GE-GP 1246 - Water pump EINHELL - Free user manual and instructions

Product Type	Garden Water Pump
Model	GE-GP 1246
Brand	Einhell
Power Consumption	1200 W
Max Flow Rate	4600 l/h
Max Delivery Head	48 m
Max Pressure	0.48 MPa (4.8 bar)
Max Suction Height	8 m
Max Water Temperature	35 °C
Protection Class	IPX4
Sound Power Level	84.2 dB(A)
Power Supply	220 - 240 V ~ 50 Hz
Pressure Connection	approx. 33.3 mm (R1 female thread)
Suction Connection	approx. 42 mm (R1¼AG)
Self-Priming	Yes (up to 5 minutes)
Included Accessories	Coarse filter, non-return valve, connection adapter, wrench
Motor Protection	Built-in thermostat (automatic overload shut-off)
Minimum Fuse	10 A
Recommended Suction Hose	Min. 19 mm (3/4") plastic hose with spiral reinforcement
Excluded Uses	Not for drinking water, corrosive or abrasive liquids

Frequently Asked Questions - GE-GP 1246 EINHELL

How do I prime the pump before first use?

Remove the ventilation screw and coarse filter screw. Fill the pump housing with water through the coarse filter opening. Reassemble, open the discharge line, and switch on. The pump can suction for up to 5 minutes to reach the maximum suction height.

What types of water can I pump with this device?

It is designed for clear water (fresh water), rainwater, and light suds/service water. Do not pump inflammable, gassing, explosive, or aggressive liquids (acids, alkalis, silo seepage) or liquids with abrasive substances like sand. The water temperature must not exceed 35°C.

Can I use this pump for drinking water?

No, the pump is not designed to convey drinking water. It is intended for irrigation, garden watering, and drawing water from ponds or rainwater butts.

What should I do if the motor does not start?

Check if there is mains voltage. If the pump rotor is blocked, dismantle and clean the pump. The built-in thermostat may have switched off due to overheating; let it cool down. Ensure the power cord is properly connected.

How do I clean the coarse filter?

Disconnect the pump from power. Remove the coarse filter screw with the supplied wrench and take out the coarse filter and non-return valve. Tap them on a flat surface. For stubborn dirt, clean with soapy water, rinse with clear water, and air-dry before reassembling.

What should I do if the pump loses suction or delivers less water?

Check that the intake valve is fully submerged and the suction line is airtight. Clean the strainer and ensure the suction height does not exceed the maximum of 8 m. If water level drops, place the suction hose deeper. Also check for clogged coarse filter.

How do I protect the pump from frost in winter?

Before frost, drain the pump completely by rinsing it with water and emptying it. Store in a dry, frost-free location (between 5 and 30°C). Remove all water from the pump housing and hoses to prevent freeze damage.

Can children or inexperienced persons use this pump?

Yes, children aged 8 and above and persons with limited physical or mental capacities may use it if supervised or instructed about safe operation and the risks. Children must not play with the equipment.

What does the intake pressure gauge indicate?

The pressure gauge in the coarse filter screw shows the current suction height during operation. If the gauge does not rise during priming, there is likely a leak or blockage in the suction side. Check all connections and the suction hose.

Where can I get spare parts or service for this pump?

For spare parts and service, visit www.Einhell-Service.com. When ordering, provide the machine type, article number, identification number, and replacement part number. Service partners are available in many countries as listed in the warranty certificate.

USER MANUAL GE-GP 1246 EINHELL

Two black mechanical components with labeled parts, one resembling a keyhole and the other a threaded fitting (no text or symbols present)

-2-

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Icon of an open book inside a black circle, labeled with number 5 and number 1 (no text or symbols on the icon itself)

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 5)

1. Danger! - Read the operating instructions to reduce the risk of injury.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.

2. Layout and items supplied

2.1 Layout (Fig. 1-2)

1. Water drain screw

2. Level indicator

3. Suction connector

4. Coarse filter screw

5. Pressure connector

6. Ventilation screw

7. Carry handle

8. Pressure connector

9. Power switch

10. Wrench for coarse fi lter screw

11. Connection adapter approx. 33.3 mm (R1 male thread)

12. Coarse fi lter

13. Non-return valve

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Garden pump
• Connection adapter approx. 33.3 mm (R1 male thread)
  • Wrench for coarse filter screw
  • Original operating instructions
• Safetyinstructions

GB

3. Proper use

Applications

• Irrigation and watering of green areas, vegetable beds and gardens.
  • Operation of lawn sprinklers.
• For drawing water from ponds, streams, rainwater butts, rainwater cisterns and springs
  • For supplying service water

Transport media:

• For the pumping of clear water (fresh water), rainwater or light suds/service water.
• The maximum temperature of the fluid must not exceed +35°C if the equipment is operated permanently.
• Do not use the equipment to pump inflammable, gassing or explosive fluids.
• The pumping of aggressive liquids (acids, alkalis, silo seepage etc.) as well as liquids with abrasive substances (sand) must likewise be avoided.
• This equipment is not designed to convey drinking water.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Mains connection .....220 - 240V\~ 50 Hz

Power consumption: 1200 W

Pumping rate: 4600 l/h

Delivery head max. 48m

Delivery pressure max. 0.48MPa (4,8 bar)

Suction height max. 8 m

Pressure connection: ....approx. 33.3 mm ....(R1 female thread)

Suction connection: ....approx. 42 mm (R1¼AG)

Water temperature max. 35°C

Sound power level 84.2 dB (A)

Uncertainty 3.6 dB

Protection type: IPX4

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

As a basic principle, we recommend the use of a preliminary filter and a suction set with suction hose, intake cage and non-return valve, in order to prevent long priming periods and unnecessary damage to the pump as a result of stones and solid foreign bodies.

5.1 Connecting the intake line

• Fasten the suction hose (at least approx. 19 mm ( 3/4" ) plastic hose with spiral reinforcement) to the suction connection approx. 42 mm (R1 1/4 AG) of the equipment either directly or via a threaded nipple.
• Use the connection adapter (11) to reduce the thread of the suction connection to approx. 33.3 mm (R1 male thread).
• The suction hose used should be equipped with an intake valve. If the intake valve cannot be used, a non-return valve should be installed in the intake line.
• Position the intake line so that it rises from the water withdrawal point to the equipment. Avoid positioning the intake line higher than the pump, as this would delay the escape of air bubbles from the intake line and impede the priming process.
  • Install the intake and discharge lines in such a way that they do not exert any mechanical

GB

pressure on the equipment.

• The intake valve should be low enough in the water to ensure that if the water level falls, the unit will not run dry.
• A leaking intake line will draw in air and therefore not draw in any water.
• Prevent the intake of foreign bodies (sand, etc.). If necessary, install a coarse filter for this purpose.

5.2 Connecting the discharge line

• The discharge line (min. 19 mm ( ^3/4 ")) must be connected to the 33.3 mm (R1G) female thread discharge line connector of the equipment either directly or with the aid of a threaded nipple.
• With the right couplings it is also possible, of course, to use a 13 mm ( 12 " ) delivery hose. The smaller delivery hose results in a lower delivery rate.
• During the priming operation, fully open any shut-off mechanisms (spray nozzles, valves, etc.) in the pressure line so that the air can escape without obstruction.

5.3 Electrical connections

• Connect the appliance to a 220-240 V \~ 50 Hz socket-outlet with earthing contact. Minimum fuse 10 ampere.
• A built-in thermostat protects the motor from overloading and blocking. The pump is switched off automatically by the thermostat if overheating occurs and is switched on again automatically after cooling.

6. Operation

6.1 Using for the first time

• Install the equipment on a solid and level surface.
- Remove the ventilation screw (6).
- Unscrew the coarse filter screw (4) using the supplied wrench (10) and remove the coarse filter (12) together with the non-return valve (13) as shown in Figure 3. Now you can fill the pump housing with water via the coarse filter screw (4). Filling the intake line accelerates the intake process.
• Assemble in reverse order.
- Open the discharge line.
- Connect the mains cable.
- Switch on the equipment with the power switch (9) - water can be suctioned in for up

to 5 minutes (maximum suction height).
- After finishing the work, switch off the equipment with the power switch (9).

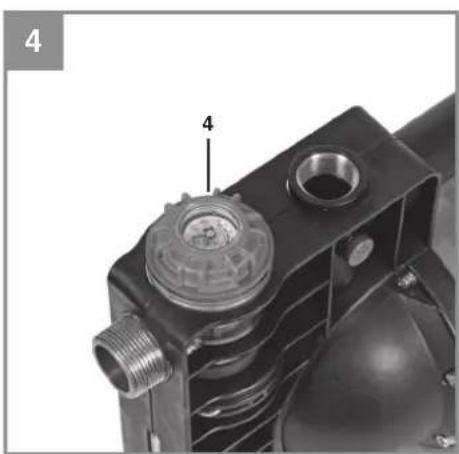

6.2 Intake pressure gauge

If the pump has been started up correctly, it will pump water and the indicator on the intake pressure gauge in the coarse fi lter screw (4) will rise to the applicable suction height. During operation the current suction height can be read off the intake pressure gauge (4). (Figure 4).

If the pump fails to pump any water when a priming attempt is made and the value on the intake pressure gauge stagnates or stays at 0m , this means that there is a problem on the intake side. Check all connections and the suction hose for possible leaks. Filling the pump with water can help the priming attempt. As a basic principle, we recommend the use of a suction set with suction hose, intake cage and non-return valve.

7. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and ordering of spare parts

The equipment is almost completely maintenance free. In order to ensure a long service life, however, we recommend that you regularly check and care for the product.

Danger!

The equipment must be disconnected from the power supply (pull the power plug) prior to performing any maintenance.

8.1 Servicing

• If the equipment becomes clogged, connect the discharge line to the water line and disconnect the suction hose. Open the water line. Switch on the equipment several times for approx. two seconds. This should resolve the majority of clog-related problems.
• There are no parts inside the equipment which require additional maintenance.

GB

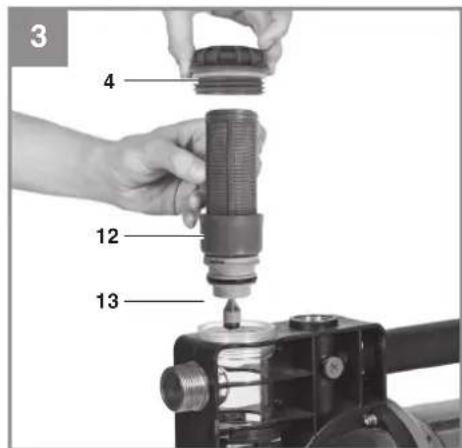

8.2 Cleaning the coarse fi Iter insert

• Clean the coarse filter insert at regular intervals, and replace it if necessary.
• Remove the coarse filter screw (4) and coarse filter (12) together with the non-return valve (13) (Figure 3).
• Do not use abrasive cleaning agents or petrol to clean the coarse filter and the non-return valve.
• Clean the coarse filter and the non-return valve by tapping them on a flat surface. In cases of stubborn dirt, first clean with soapy water, then rinse with clear water and air-dry.
  • Assemble in reverse order.

- After long stoppages, make sure the rotor turns correctly by briefly switching the pump on and off.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to www.Einhell-Service.com

9. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

10. Storage

• Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.
• If the pump is not going to be used for a long time or has to be removed for the winter months, rinse it out with water, empty it completely and allow it to dry.
• The equipment must be completely drained before it is subjected to frost.

11. Troubleshooting guide

Faults Cause	Remedy
Motor fails to start up	-Nomainsvoltage- Pump rotor blocked -thermostat switched off	-Checkvoltage- Dismantle and clean pump
No intake - Intake	valve not in water- Pump chamber without water connection- Air in intake line air-tight- Intake valve leaks- Strainer (intake valve) blocked- Max. suction height exceeded	- Immerse intake valve in water- Fill water into intake- Make sure intake line is close- Clean intake valve- Clean strainer- Check suction height
Inadequatedelivery rate	- Suction height too high- Strainer dirty- Water level falling rapidly- Pump performance diminished by contaminants part	-Checksumsuctionheight- Clean strainer- Place the suction hose at a deeper level- Clean pump and replace wearing
Thermostatswitches pump off	- Motor overloaded - friction caused by foreign substances too high	- Dismantle and clean pump. Prevent intake of foreign substances (fi Iter)

GB

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts*	Coarse filter, filter cartridge
Consumables*
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that this equipment develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply solely to consumers, i.e. natural persons, who do not want to use this product in connection with either their commercial or other self-employed activities. These guarantee terms regulate additional guarantee services which the undermentioned manufacturer promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory rights of guarantee are not affected by this guarantee. Our guarantee is free of charge to you.

2. The guarantee services cover only defects due to material or manufacturing faults on the new product which you have bought in the European Union from the undermentioned manufacturer and are limited to either the rectification of said defects or the replacement of the product, whichever we prefer. Please note that only equipment under the brand name "Professional" has been designed for use in commercial, trade or professional applications. For all other products the guarantee is invalidated if the equipment is used within the guarantee period in commercial, trade or industrial applications or for other equivalent activities.

3. Our guarantee does not cover:

4. Damage to the equipment caused by failure to comply with the installation/assembly instructions or by unprofessional installation; damage caused by failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type); damage caused by failure to comply with the maintenance and safety regulations; damage caused by exposing the equipment to abnormal environmental conditions; damage resulting from poor care and maintenance.

5. Damage to the equipment caused by misuse or incorrect applications (e.g. overloading the equipment or using non-approved attachments or accessories); damage caused by foreign bodies (e.g. sand, stones, dust, ....) getting inside the equipment. Damage in transit; damage caused by force or external influences (e.g. by dropping the equipment).

6. Damage to the equipment or parts of the equipment which is owed to use-related, normal or otherwise natural wear. For example, batteries and battery packs are manufactured with a cycle limit for design-related reasons. Wear is negatively influenced in particular by load demands and charging speeds as well as exposure to heat, cold, vibration and impact.

7. The guarantee is valid for a period of 2 years starting from the purchase date of the equipment. Guarantee claims must be submitted before the end of the guarantee period and within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the equipment even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or for any replacement parts fitted. This also applies if on-site service is used.

8. To assert your guarantee claim, register the defective equipment at: www.Einhell-Service.com. You will need to provide proof of purchase of the new item of equipment. Equipment returned without such proof or without a rating plate are excluded from the guarantee services because of the lack of traceability. If the defect is covered by our guarantee, then either the item in question will be repaired immediately and returned to you or we will send you a new replacement.

9. If you have taken the equipment with you to a different EU country than where you bought it, we will arrange for a local service partner to provide the guarantee services. If you take the equipment outside the EU, the guarantee will not apply.

Of course, we are also happy to offer a chargeable repair service for any defects which are not covered or no longer covered by the scope of this guarantee. To take advantage of this service, please send the equipment to our service address. We draw attention to the restrictions of this guarantee concerning wear parts, consumables and missing parts as presented in the service information included in this operating manual.

Warrantor/ Service:

Einhell UK Ltd, Unit 10, 1st Floor, Champion's Business Park, Arrowe Brook Road, Upton, Wirral, CH49 0AB

Pericolo!

X 2006/42/EC
Annex IV
Notified Body:
Reg. No.:

X 2000/14/EC_2005/88/EC

X Annex V

□ Annex VI

Noise: measured L_w0 = 84.2 dB (A); guaranteed L_w0 = 88 dB (A)

P = kW; L/∅ = cm

Notified Body:

2012/46/EU_(EU)2016/1628 Emission No.:

Standard references: EN 60335-1; EN IEC 60335-2-41; EN 62233; EN IEC 55014-1; EN IEC 55014-2; EN IEC 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR030134

Documents registrar: Thomas Fischer

Wiesenweg 22, D-94405 Landau/Isar

* GB Garden pump - F Pompe de jardin - I Panpa per gardina - OKN Havepump - S tradgärsspump - CZ tastenska pumpra - SK Zanazne čerpadto - NL lúnomp - E bomba de jardin - FIN Paulanharpump - SLO Vlma čerpaka - H Keri sadevala - NO Panpa de grádná - GR Avila kuprava - P Bomba de jardin - NH/SHV Ivira pumpra - IS Bastenska pumpra - PL Panpa ogristoka - TR Bavne ponprras - RUS Sedovo-ogorodniy polnvočno keros - EE Alepruo - LV DBza sūkine - LT Sede sūdībys - BG Drađeneka ponla - OKT Sadovnič keros - MK Pukula za građina - NE Herepirruppe - IS Bačivateladi

EH 04/2024 (01)
