Product Type	Hi-Fi System with DAB+/FM Radio and Bluetooth
Brand	GoGen
Model	IR 267BT-DAB
Dimensions (W x H x D)	Approximately 430 x 100 x 280 mm
Weight	Approximately 3.5 kg
Power Supply	AC 220-240V, 50/60 Hz
Power Consumption	30 W (max)
Tuner Bands	DAB+ (Band III), FM (87.5-108 MHz)
Bluetooth Version	Bluetooth 5.0 with A2DP, AVRCP profiles
Audio Output Power	2 x 15 W RMS
Speaker Type	Full-range stereo speakers with bass reflex
Inputs	USB (MP3 playback), AUX (3.5mm), FM antenna
Alarm Function	Dual alarm with snooze, wake to DAB, FM, or buzzer
Display	LCD with adjustable brightness
Clock	Auto-sync via DAB/FM time signal
Sleep Timer	Yes, adjustable from 15 to 120 minutes
Remote Control	Included (CR2025 battery required)
Preset Stations	40 (20 DAB, 20 FM)
Maintenance	Clean with a soft, dry cloth; do not use solvents
Safety	Keep away from moisture; do not expose to rain or splashing liquids
Spare Parts & Repairability	Contact GoGen support for spare parts; no user-serviceable components
Accessories Included	User manual, remote control, FM wire antenna, warranty card

Frequently Asked Questions - IR 267BT-DAB GoGen

How do I perform an initial scan for DAB stations?

Press the Source button repeatedly until DAB is selected. The unit will automatically start a full scan. You can also press and hold the Menu button, then use Select to choose Scan.

Why is there no sound from the speakers?

Check that the volume is turned up and not muted. Ensure the correct source is selected (DAB, FM, Bluetooth, AUX). If using Bluetooth, verify that the device is paired and playing.

How can I pair my smartphone via Bluetooth?

Press Source to select Bluetooth mode. On your phone, enable Bluetooth and search for devices. Select GoGen IR 267BT-DAB from the list. Once paired, the display will show Connected.

Can I set two different alarm times?

Yes, the unit has a Dual Alarm function. Press and hold Alarm 1 or Alarm 2 to set each alarm independently. You can choose to wake to DAB, FM, or buzzer.

How do I store a DAB radio station as a preset?

Tune to the desired station, then press and hold one of the preset buttons (1-10). The display will confirm Preset Stored. You can also access more presets via the Preset button.

What should I do if the FM reception is poor?

Extend the FM wire antenna fully and try repositioning it. Move the unit away from other electronic devices. If using in a basement or concrete building, a signal booster may help.

How do I reset the unit to factory settings?

Press and hold the Menu button, navigate to System or Factory Reset, then confirm with Select. This will erase all presets and settings.

Can I play music from a USB drive?

Yes, insert a USB drive with MP3 files into the USB port. Press Source to select USB. Use the Play/Pause, Next, and Prev buttons to control playback.

Why does the clock lose time?

The clock syncs automatically via DAB or FM time signals. If using only AUX/Bluetooth, the clock may drift. To resync, switch to DAB or FM mode for a few minutes.

How do I clean the unit?

Unplug the power cord. Use a soft, dry cloth to wipe the exterior. For stubborn marks, lightly dampen the cloth with water. Never use alcohol, ammonia, or abrasive cleaners.

USER MANUAL IR 267BT-DAB GoGen

http://www.spotify.com/connect/third-party-licenses

PŘEHRÁVAČ HUDBY / USB

VYPNUTÍ PŘI NEČINNOSTI

http://www.spotify.com/connect/third-party-licenses

PŘEHRÁVAČ HUDBY / USB

• Thank you for buying our product.
• Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

DANGER

Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

This Product is classified as a Class 1 LASER PRODUCT.

THE CLASS 1 LASER PRODUCT label is located on the rear exterior.

SAFETY

General

• Do not drop the device and do not expose it to liquid, moisture or humidity. These might lead to damage to the device.
• If the device is moved from a cold environment into a warmer one, do let it adapt to the new temperature before operate the device. Otherwise, it might lead to condensation and cause malfunctions in the device.
• Do not use the device in the dust environment as dust can damage the interior electronic components and lead to malfunctions in the device.
• Protect the device from strong vibrations and place it on stable surfaces.
• Do not attempt to disassembly the device.
• If the device is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.

Battery handling and usage

• Only adults should handle battery. Do not allow a child to use this apparatus unless the battery cover is securely attached.
• Remove batteries if exhausted or if they will not be used again for a long period. The incorrect use of batteries can cause electrolyte leakage and will corrode the compartment or cause the batteries to burst, therefore:

-Do not mix battery types, e.g. alkaline with zinc carbonate.

- When inserting new batteries, replace all batteries at the same time.

- Batteries contain chemical substances, so they should be disposed of properly.

Risks associated with high volumes

Connect headphones with volume set low and increase it if required. Prolonged listening through some headphones at high volume settings can result in hearing damage. To prevent possible hearing damage, do not listen at high volume levels for long periods.

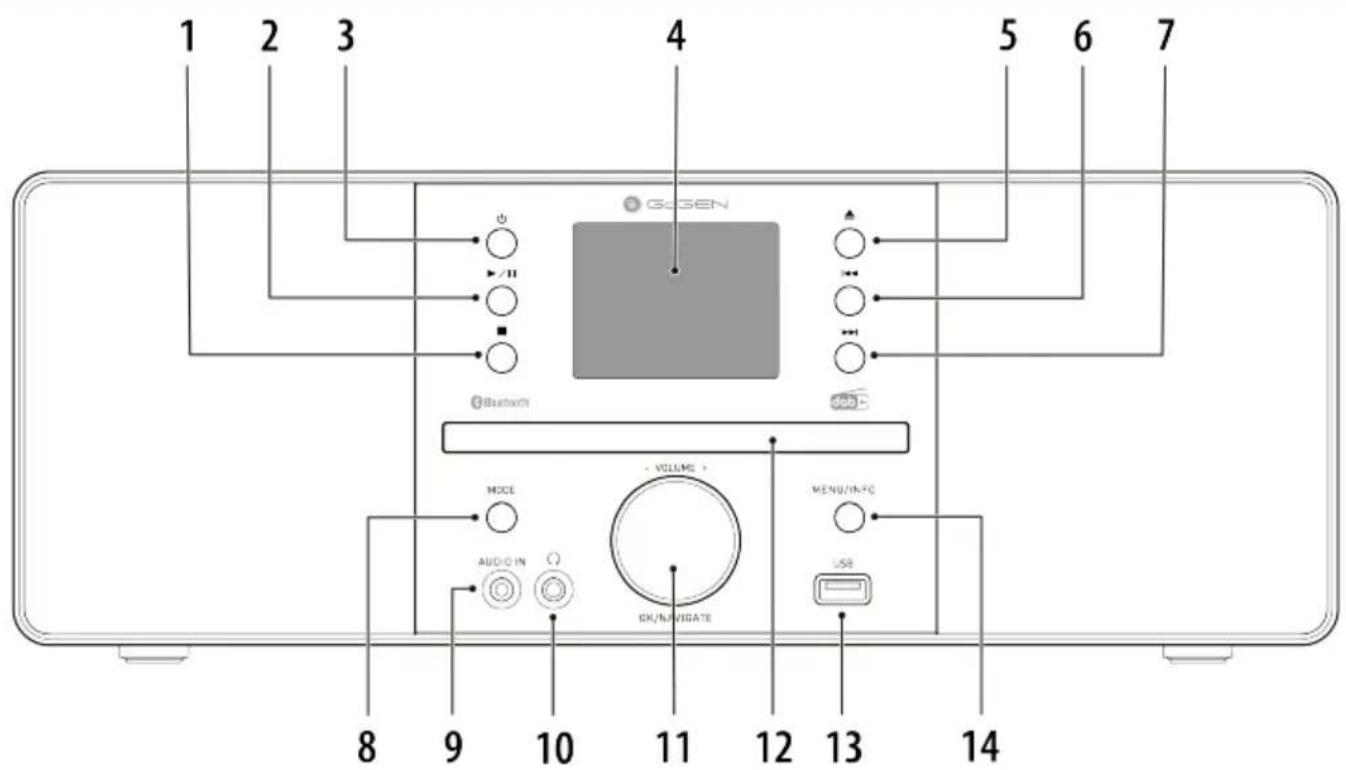

PRODUCT OVERVIEW AND CONTROL BUTTONS

1. button
2. / button
3. button
4. Display
5. button
6. button
7. button

8. MODE button

9. AUDIO IN socket

10. Headphone output
11. OK/NAVIGATE//VOLUME knob
12. Disk tray
13. USB port
14. MENU/INFO button
15. Mains Cable
16. Antenna

NOTE: The USB port does not support charging external devices.

REMOTE CONTROL BUTTONS

▲	Open / Close disc tray
◎	Power On/OffAlarm Off
▶II	BT/USB/CD: Start/Pause playback
■	USB/CD: Stop playback
◀/▶	BT/USB/CD: Press to skip to the previous/next track
○	USB/CD: Repeat playback
×	USB/CD: Random playback
SLEEP	Sleep timer
TIMER	Alarm1/Alarm2 settingStandby mode: Activation/deactivation of the Alarm 1/Alarm 2
P.BASS	X-Bass
BACK	Step backDAB: Press to view the Station list
SCAN	DAB: Press to start a full scan
EQ	Select equalizer preset
MODE	Mode selection
MENU	Press and hold to open the menuDAB/FM: Press repeatedly to view information about the currently playing content
VOL+/-	Increase/Decrease volume
^/∨	Move up/downDAB/FM: Press to skip to the previous/next preset stationCD: Press to skip to the previous/next folder
< / >	FM: Press repeatedly to set desired station/frequencyPress and hold to search for the previous/next station
OK	Confirm entryDAB: Press to view the picture or information in the full-screen size
0~9	Press to select a preset 1-9 directlyPress and hold to store a radio station to the presets 1-9 directly
✕	Mute, unmute
MEMORY	DAB/FM: Press and hold to store a radio station to the presetsPress to select a presetUSB/CD: Programmed playback

To install the batteries

Lift off the battery compartment cover from the rear of the remote control. Insert 2 x 1,5V AAA size batteries in accordance with the diagram in the battery compartment. Take care to observe the correct polarity.

Remote control operation

To operate the device with the remote control, point the remote handset at the remote sensor on the front panel and press the appropriate button on the remote handset.

The remote works best within a range of 6 \~ 7 meters from the front panel and on an angle of 30 degrees. Bright sunlight or room light conditions can interfere with the remote control. If the remote operation is unsatisfactory or stops working entirely, first try replacing the remote batteries, then try reducing the room lighting conditions.

GETTING STARTED

Mains Power

NOTE: Connecting the unit to any other power source may cause damage the unit.

Unwind the mains cable to its full length. Connect the mains cable to the socket on the back of the main unit and then to the mains socket. The unit is now connected and ready to use.

WARNING: Make sure the unit is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard. If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Antenna

Extend the telescopic antenna to its full length to get the best reception, or place the unit in an open location.

Connecting the headphones

Turn the volume down before using the headphones. Inset the headphone plug (standard 3,5 mm) into the headphone socket.

GENERAL DEVICE FUNCTIONS

Power on/off

Press the ⏻ button to switch on the device. Press and hold the same button again to switch the device back to Standby mode. The time, WiFi connection status and any active alarm times display on the screen.

Menu operation

Press and hold the MENU/INFO button to open the menu. On the menu, rotate the OK/NAVIGATE knob to move through the items. Press the OK/NAVIGATE knob to confirm. Press the MENU/INFO button to step back. Press and hold the MENU/INFO button exit the menu.

Mode selection

Press the MODE button repeatedly to switch between modes.

Volume

Rotate the VOLUME knob to adjust the volume.

Now playing information

While stream/DAB/FM is playing, the screen shows some information about the station, press the MENU/INFO button to view.

Press the OK/NAVIGATE knob to view the picture or information in the full-screen size.

PRESETS

You can store up to 20 of your favorite DAB or FM stations to the memory. This will enable you to access your favorite stations quickly and easily. To store a preset, you must first be listening to the station that you would like to save.

Storing to Presets 1 \~ 20

To store a radio station to the presets, press and hold the MEMORY button on the remote control, the display will show [Save to Preset]. Select one of the 20 presets, and press the OK/NAVIGATE knob to confirm.

Recalling Presets 1 \~ 9

Press the number button 1 \~ 9 on the remote control to select the station you want to listen to.

Recalling Presets 1 \~ 20

To select a preset, press the MEMORY button on the remote control, the display will show [Recall from Preset]. Select one of the listed preset stations, press the OK/NAVIGATE knob to confirm.

NOTE: When a preset station is playing, it shows [★ 1], [★ 2], etc. at the bottom of the display.

FIRST INSTALLATION

Language settings

The first time you turn it on, the language selection screen will appear. Select the desired language, and press the OK/NAVIGATE knob to continue.

Time and date settings

• Select [12] for 12-hour display format or [24] for 24-hour display format. If you select the 12-hour format, the display shows AM in the morning or PM in the afternoon after the time.
• Choose how the time data will be synchronized: [Update from DAB], [Update from FM], [Update from Network] or [No update].

NOTE: If you choose [Update from Network] you must set your time zone [Set timezone], and in the next step summer time [Daylight saving]. If you choose [No update], you will have to enter the date and time manually.

Network settings

• If you want to control the device in all operating modes via the app, set [Keep network connected?] to [YES]. If choosing [NO], it won't be possible to control the device from the app.
  Note: The power consumption in standby mode will be higher when the network connection is kept up.
• The device searches for WLAN networks. After the search is finished, a list of available networks will be displayed. Select your preferred network and enter the password.

NOTE: To enter the password, use the OK/NAVIGATE knob to highlight the next relevant character and press the knob to select each character in turn. Backspace (BCSP), OK and Cancel can be found on the right of the password screen.

Once the installation is complete, press the OK/NAVIGATE knob to start using the device.

MODE SELECTION

INTERNET RADIO / PODCASTS

The device can play thousands of radio stations and podcasts from around the world through a broadband Internet connection. When you select Internet radio or Podcasts mode, the device directly contacts the portal to get a list of stations or podcasts, organized into different categories like Country, Popular, Genre, and so on. Choose the required category and search for the station or podcast to listen to.

NOTE: The contents and submenus may change from time to time.

SPOTIFY CONNECT

Spotify

Use your phone, tablet or computer as a remote control for Spotify.

Go to spotify.com/connect to learn how.

The Spotify Software is subject to third party licenses found here:

http://www.spotify.com/connect/third-party-licenses

MUSIC PLAYER / USB

NOTE: Only MP3 audio format is supported. The device supports USB drives (FAT32) up to 32 GB. The USB port does not support charging external devices.

Playback

To view files stored on USB, press and hold the MENU button and choose [USB Playback]. Select the desired folder/track and the OK/NAVIGATE knob to start playback.

My playlist

To add a track to the [My playlist], press and hold the OK/NAVIGATE knob while playing the desired track. To view the added tracks, press and hold the MENU button and choose [My playlist]. To delete the list, press the MENU button and choose [Clear My playlist].

Repeat playback

Press ⬇ button on the remote control, the display will show [↔] and the current folder will be played repeatedly. To cancel press the same button.

Random playback

Press ✗ button on the remote control, the display will show [✗] and the tracks from the current folder will be played randomly. To cancel press the same button.

DAB+ RADIO

DAB mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing.

Scanning for stations

• The first time you select DAB radio mode, or if the station list is empty, the radio automatically performs a full scan to see what stations are available.
• To start a full scan press the SCAN button on the remote control or choose [Scan] in the menu.
• To start a manual tune choose [Manual tune] and the desired frequency.

Station selection

To view the station list press the BACK button on the remote control or select [Station list] in the menu. Rotate the OK/NAVIGATE knob to select the desired station, and press the knob to confirm the selection.

Settings menu

[Prune invalid] > Once the scan is complete, the radio shows a list of available stations. To remove all invalid stations (marked with ?) that are listed but not available choose this option.

[DRC] (Dynamic range compression) > If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high.

FM RADIO

FM radio mode receives analog radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast.

Scanning for stations

• To start a full scan, choose [Auto presetting] in the menu. When the full scan is complete, all found stations are saved to presets.
• To search for FM stations manually, press repeatedly << / >> buttons on the remote control until your desired frequency is reached. Press and hold the same buttons to search for the previous/ next station.

Settings menu

[Scan settings] > By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select [YES] after choosing [Strong station only?].

[Audio settings] > All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select [YES] after choosing [Listen in mono only?].

BLUETOOTH

Pair your phone with the device before listening to music. If the device is not paired with any phone, the 📄con will flash at the bottom display. Activate Bluetooth of mobile phone and search for device name "IR 267 BTDAB" then connect it.

NOTE: If you are asked to enter a passcode, enter 0000.

If the pairing is successful, the 📄con will be solid and you can use the device to listen to music from your mobile phone.

NOTE: The operational range between the unit and the device is approximately 8 meters. If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically. For better signal reception, remove any obstacles between the unit and the Bluetooth device. Compatibility with all devices and media types is not guaranteed. Some mobile phones with Bluetooth functions may connect and disconnect as you make and end calls. This is not an indication of a problem with your unit.

Disconnecting the paired mobile phone

To disconnect your phone from the device, choose [Setup Bluetooth] in the menu.

CD / CD-MP3

NOTE: The unit can play digital audio CD / CD-MP3 discs: finalized digital audio CD-Recordable (CD-R) discs, finalized digital audio CD-Rewritable (CD-RW) discs, and CD-DA format digital audio discs.

• In CD mode, press to open the disc tray.
• Place the CD with the label side up into the CD compartment, and then press ▲ to close the disc tray. The display shows the total number of folders*/tracks.

NOTE: If there is no disc or the disc can't be read, will show on the display.

Playback

• Press ▶to play/pause the playback.
• Press 1/4 to skip to the previous/next track.
• Press and hold to fast forward/rewind.
• Press ↗ to select a folder.
• Press ■ to stop the playback.

Playback modes

- Repeat playback: Press ⬆ on the remote control repeatedly to select one of the modes:

-Repeat all All tracks will be played repeatedly.

-Repeat folder* - The current folder will be played repeatedly.

-Repeat one. The current track will be played repeatedly.

- Random playback: Press on the remote control to play all tracks in random order.

Programmed playback

Up to 20 CD tracks or 99 MP3 tracks can be stored in the memory in any order. Programming is possible in STOP mode only.

• Press MEMORY to enter programming mode. (Position 1). will show on the display.
• To add a track to the list, follow these steps:

-Press/ to select a track

(To skip to the first track in the next/previous folder* press ↗).

- Press MEMORY to confirm.

-Repeat the previous steps to add more tracks.

• Once it is completed, press ▶to start the playback of the programmed tracks.
• Press ■ twice to cancel the programmed playback.

* These options are available only for CD-MP3 discs that contain more than one folder.

COMPACT DISC MAINTENANCE

Always use a compact disc bearing the mark as shown.

Notes on handling discs

Removing the disc from its storage case and loading it. Do not touch the reflective recorded surface. Do not stick paper or write anything on the surface. Do not bend the disc.

Storage

Store the disc in its case. DO not expose discs to direct sunlight or high temperatures, high humidity or dusty places.

Cleaning a disc

Should the disc become soiled, wipe off dust, dirt and fingerprints with a soft cloth. The disc should be cleaned from the center to the edge. Never use benzene, thinners, record cleaner fluid or antistatic spray. Be sure to close the CD door, so the lens is not contaminated by dust. Do not touch the lens.

AUX IN

This device provides AUDIO IN socket, through this 3,5 mm jack external audio sources can be connected to this unit and be amplified.

• In AUX mode, connect your device with a cable (not included) to the AUDIO IN socket.
• Adjust the volume to your desired level.

NOTE: When using an external device, all playback features can only be controlled by the external device.

ALARM

There are two wake-up alarms with a snooze facility. Each alarm can be set to start in a particular mode.

Press TIMER button or select [Alarms] in the [Main menu] to set or change an alarm. After setup all the parameters, select [Save] to activate.

NOTE: When the alarm is set, it shows the [ 🔒 ] and/or [ 🔒 ] icon at the bottom of the display.

At the set time, the alarm will sound:

• Press the button on the device or on the remote control to turn off the alarm.
• To temporarily silence, press the OK/NAVIGATE knob or the OK button on the remote control. You can set the snooze period (5, 10, 15, 30 min.). The radio returns to standby for the set period, with the alarm icon flashing.

SLEEP TIMER

To set the sleep timer press repeatedly SLEEP button on the remote control or select [Sleep] in the [Main menu]. Rotate the OK/NAVIGATE knob to adjust the sleep time OFF, 15, 30, 45, 60, 90 or 120 minutes and confirm.

NOTE: When the sleep time is set, it shows the [37] icon with the remaining time at the bottom of the display.

UNDOK

The device gives a feature of network remote by smartphone or tablet in iOS or Android system. By downloading the assigned app named UNDOK or OKTIV, you can view all the modes the device. Search UNDOK or OKTIV from Google Play or Apple Store, and install it to your smartphone or tablet.

Before using the UNDOK or OKTIV app, make sure the device and the smartphone / tablet are in the same WiFi network. Launch the app. The app initializes and scans for Internet Radio in the network. Tap the device to make the connection.

When prompted, enter the current PIN code. The default PIN is 1234. You can view and edit the current PIN on the Internet Radio in the menu. Select your desired mode in the main page. You may then control the selected mode on your smartphone / tablet and on the display of the device simultaneously.

NOTE: Be aware that if another smartphone / tablet with the app in the same network have access with the device, the original connection will be cut off.

SYSTEM SETTINGS

EQUALISER

Several preset EQ modes are available: Flat, Rock, Classic, Pop, Vocal, Jazz.

A user-defined [My EQ] setting is available. Select [My EQ profile setup] to create your own setup with custom bass, treble settings.

STREAMING AUDIO QUALITY

Set the streaming quality to Low quality, Medium quality or High quality.

NETWORK

[Network wizard] > Search for available AP SSID (Wireless networks). Then input the password to connect your wireless network.

[PBC Wlan setup] > Connect the AP that supports WPS (WiFi Protected Setup).

[View settings] > View the information of the currently connected network.

[Manual settings] > Enable or disable DHCP (Dynamic Host Configuration Protocol). Input the SSID, WEP / WPA key and/or other configuration.

[NetRemote PIN Setup] > View and edit the NetRemote PIN. The default NetRemote PIN is: 1234.

The NetRemote PIN is required when you want to connect a smartphone or Tablet PC to your device.

[Network profile] > View the list of registered networks. You can also delete unwanted networks.

Press ENTER to delete the selected network.

NOTE: The device remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find.

[Clear network settings] > Clear all the current network settings.

If you enable [Keep network connected] the device will not disconnect from the wireless network, even if you are in standby mode. This option allows the device to be ready for UNDOK control.

TIME/DATE

[Set Time/Date] > Set the time/date manually.

[Auto update] > Auto-update the time/date from the selected source.

You can also edit the details of the time/date settings: Set format, Clock style.

INACTIVE STANDBY

Set the desired time, after which the device will go into standby mode automatically in case it is not controlled.

LANGUAGE

Set the desired language.

NOTE: The default language is Czech. Available languages: English, Hungarian, Czech, Slovak, and Polish.

FACTORY RESET

Resetting all user settings to default values, so that time and date, network configuration, and presets are lost.

SOFTWARE UPDATE

[Auto-check setting] > Check for new updates from time to time automatically.

Automatic updating is enabled by default.

[Check now] > Search for available updates immediately.

You will be asked if you want to go ahead with the download and installation of an update.

After a software upgrade, all user settings are maintained.

NOTE: Before starting a software upgrade, ensure that the device is plugged into a stable main power connection.

Disconnecting power during an upgrade may permanently damage the device.

SETUP WIZARD

With this function, you can start the setup wizard at any time.

INFO

View the SW version, Spotify version and the Radio ID.

BACKLIGHT

Set the desired time [Timeout], after which the display backlight level will be changed.

Adjust the levels of backlight for both states [On level] / [Dim level].

MAINTENANCE / CLEANING

• Always power off the device when cleaning it.
- Never use any harsh or strong solvents to clean the device since these may damage the surface of the device. Dry, soft cloth is appropriate, however, if the device is extremely dirty, it may be wiped off with a slightly moist cloth. Make sure the device is dried off after cleaning.

When you are necessary to ship the device, store it in its original package. Save the package for this purpose.

TROUBLESHOOTING

ERROR REMEDY
The device does not switch on.	Check it the power adaptor is connected properly.
No sound.	Turn on the sound as it may be muted. Increase the volume.Pull any connected headphone or speaker from the connector jack.
No network connection can be established.	Check the WLAN function.Try to set an IP address at the device.Activate the DHCP function on the router and make the connection again at the device.A firewall is activated on the network > set the respective program in such a way that access is possible.Reboot the router
Hiss in FM mode.	Check/move the FM antenna.Move the radio.
No stations available / burbling / intermittent in DAB mode.	Move the radio.Rescan local stations only (high-strength).Check the local DAB coverage.
Alarm does not work.	Switch on the alarm.Due to the volume setting, refer to the solutions of “No sound”.The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
All other undetermined cases.	The smart radio may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot the device if necessary.
	The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
	The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.

SPECIFICATIONS

Display: 2,8", 320 x 240 pxl, TFT colour display

FM Frequency Range: 87,5 - 108 MHz

DAB+ Frequency Range: 174,928 – 239,200 MHz

Number of preset stations: 20 Internet / 20 DAB / 20 FM

BT Frequency Range/EIRP: 2402 - 2480 MHz / 15,959 mW (EIRP)

Supported WLAN networks: WiFi IEEE 802.11 b/g/n/ac, 2,4 GHz/5 GHz

Supported security protocols: WEP, WPA, WPA2, WPS

Power supply: AC 230 V; 50/60 Hz

Power consumption (in operation): < 35 W

Power consumption (standby): ≤ 1 W

Remote Control Power Supply: 2 x 1,5V AAA battery

Power output: 2 x 10 W (RMS)

Dimensions: 380 x 140 x 215 mm

Weight: 3,3 kg

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

PACKAGE CONTENTS

Internet/DAB+/FM Audio System, Remote control, 2 x 1,5V AAA batteries, User manual

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE

REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENSION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type IR267BTDAB is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.GoGEN.cz/declaration_of_conformity

WPROWADZENIE

STACJE ZAPISANE W PAMIĘCI

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JENMART INDUSTRIAL (HK) CO., LIMITED is under license. Other trademarks and trade names are those of their respective owners.

Abstract black and white circular logo with stylized white 'S' or wave-like design (no text or symbols)
