PB270001BL - Power bank GoGen - Free user manual and instructions

Product Type	Portable Power Bank
Brand	GoGen
Model	PB270001BL
Battery Type	Lithium-ion
Capacity	20000 mAh
Input Port	Micro USB, USB-C
Output Ports	2 x USB-A, 1 x USB-C
Max Input Current	2.1 A
Max Output Current	2.4 A (per port)
Charging Time	Approximately 6-8 hours (with 2A charger)
Dimensions	160 x 80 x 20 mm
Weight	450 g
LED Indicator	4 LED lights for battery level
Flashlight	Included, with SOS mode
Safety Features	Overcharge, over-discharge, short circuit, overcurrent protection
Material	ABS plastic
Operating Temperature	0°C to 45°C
Compatibility	Smartphones, tablets, cameras, and other USB devices
Warranty	1 year
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquid cleaners.

Frequently Asked Questions - PB270001BL GoGen

How do I charge the power bank?

Use the provided Micro USB or USB-C cable to connect the power bank to a USB power source (wall charger, computer). The LED indicators will show the charging progress. Full charge takes about 6-8 hours with a 2A charger.

What devices can I charge with this power bank?

This power bank can charge smartphones, tablets, cameras, Bluetooth headphones, and any other device that charges via USB with up to 2.4A per port. Ensure your device's charging requirements do not exceed the output capacity.

How do I interpret the LED indicators?

The 4 LED lights indicate battery level: 1 light = 25%, 2 lights = 50%, 3 lights = 75%, 4 lights = 100%. During charging, the lights blink to show progress. When the power bank is discharging, the lights remain solid.

Can I charge multiple devices at the same time?

Yes, you can charge up to three devices simultaneously using the two USB-A ports and one USB-C port. The total output current will be shared, so charging may be slower than using a single port.

Is this power bank safe to use?

Yes, it includes built-in protection against overcharge, over-discharge, short circuit, and overcurrent. Do not expose to extreme temperatures or moisture.

How do I clean the power bank?

Unplug all devices and cables. Wipe the surface with a dry, soft cloth. Do not use any liquid cleaners or abrasive materials as they may damage the device.

What does the flashlight do?

The built-in flashlight has three modes: steady on, SOS (flashing distress signal), and off. Press the power button twice quickly to toggle between modes.

How long does it take to charge my phone?

Charging time depends on your phone's battery capacity. For example, a 3000 mAh phone will charge approximately 1.5 times from a fully charged 20000 mAh power bank. A full charge of your phone typically takes 1-2 hours.

Can I take this power bank on an airplane?

Yes, power banks with capacity up to 100 Wh (about 27000 mAh) are generally allowed in carry-on luggage. This model has 74 Wh (20000 mAh), so it is permitted. Check your airline's policy.

What should I do if the power bank stops working?

First, try charging it for a few hours. If it still doesn't work, press the reset button (if available) or contact GoGen support. Do not disassemble the device.

USER MANUAL PB270001BL GoGen

Blue rectangular electronic device with digital display showing 100% and red buttons (no text or symbols on body)

PB 270001BL

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIELKACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

Before using the product for the first time, peel off the protective film from the display.

PACKAGE CONTENT

Powerbank, USB-C cabel, instruction manual

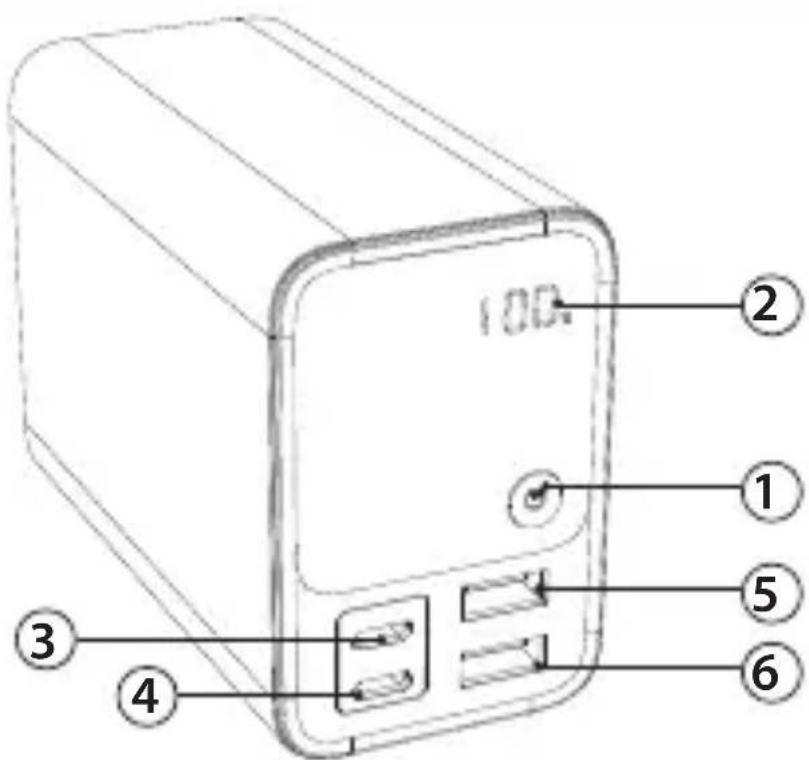

DEVICE LAYOUT

1. Power button
2. LCD display of charge status
3. USB-C1 input/output (65 W Max.)
4. USB-C2 input/output (65 W Max.)
5. USB-A1 output (22,5 W Max.)
6. USB-A2 output (22,5 W Max.)

CHARGING INSTRUCTION

Press the power button to switch the backup power source to standby mode. The backup power source will automatically turn off in 30 seconds if it is not connected to the charged device by this time.

CHARGING OF MOBILE DEVICES

Connect the charging cable to the USB output or the USB-C output on the device and the mobile device. Charging starts automatically.

Please use compatible charging cable for using PD (Power Delivery) function.

CHARGING THE POWER BANK

Connect the backup power supply using a charging cable to a power supply with a minimum charging current of 5V / 2A. You can use the USB-C inputs on the device.

CAPACITY INDICATION

Press the main button to show the remaining capacity:

ATTENTION

This device has safety protection that prevent the battery from damages when overcharging. It is normal for the casing to become warm during charging and it will gradually cool down to room temperature after fully charged.

Please make a complete charge every three month to avoid shorten the mobile power life span.

TECHNICAL SPECIFICATION

Battery type: Li-ion Battery

Capacity: 27 000 mAh / 99,9 Wh (3,7 V)

Input: USB-C1/2 DC 5V/3A, 9V/3A, 12V/3A,

15V/3A, 20V/3,25A (Max. 65W)

Output: USB-C1/2 DC 5V/3A, 9V/3A, 12V/3A,

15V/3A, 20V/3,25A (Max. 65W)

USB-A1/2 DC 5 V / 4,5 A, 9 V / 2 A, 12 V / 1,5 A (22,5 W Max.)

Dimension: 101,5 x 73 x 49 mm

Weight: 591 g

CAUTION

• Please completely full charge the mobile power in first usage.
• Please make sure that use standard cable with appropriate specification, or it may lead to the mobile power damage.
• Please confirm the voltage of the electric device is 5V before charging it.
• Do not drop, knock, disassemble or attempt to repair the mobile power by yourself.
• Do not immerse or put the mobile power in water or damp place.
• Do not expose or put the mobile power near to heat sources or flammable place.
• Do not put the mobile power in car, for strong light and high temperature will lead to product damage.
• Keep the mobile power away from children.
• Do not put any item into the mobile power USB input and output ports to avoid any shortcut or damage.
• Please make a complete charge every three month to avoid shorten the mobile power life span.
• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safety. Young children should be supervised to ensure that they do not play with the appliance.
• Never charge the battery unattended.

WARRANTY

The warranty does not apply to a decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

We reserve the right to change technical specifications.

Prohibition sign with a circular border and a stylized human figure (no text or symbols)

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

NIEBEZPIECZEŃSTWO UDUSZENIA. TOREBKE Z PE POŁOŻYĆ W MIEJSCU BĘDĄCYM POZA ZASIĘGIEM DZIECI. TOREBKA NIE SŁUŻY DO ZABAWY! TEGO WORKA NIE NALEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB KOJCACH DZIECIĘCYCH.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÓL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSŐKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)
