Product Type	Petrol Snow Thrower
Brand	Einhell
Model	Royal BSF 40
Engine Type	1-cylinder, 4-stroke
Power	3.1 kW (4.2 HP)
Displacement	163 cm³
Operating Speed	~3600 rpm
Starting System	Recoil start (linkage)
Fuel Type	Normal petrol (lead-free)
Tank Capacity	3.5 L
Oil Capacity	0.6 L (10W30)
Working Width	52 cm
Max Snow Height	25 cm
Throwing Range	4 - 8 m
Working Area	~1200 m²/h
Working Capacity	~180 m³/h
Ejection Adjustment	190° via crank
Self-Propelled	Yes
Wheels	Air-filled
Guidance Bar	Ergonomic with soft grip
Safety Feature	Oil deficiency safety
Net Weight	43.9 kg
Gross Weight	47 kg
Packing Dimensions	710 x 555 x 495 mm

Frequently Asked Questions - Royal BSF 40 EINHELL

What type of fuel should I use for the Einhell Royal BSF 40?

Use normal unleaded petrol. Do not use any oil mixture as it is a 4-stroke engine.

What oil is recommended for the engine?

Use 10W30 motor oil. The oil capacity is 0.6 litres. Check oil level before each use.

How do I start the snow thrower?

Ensure the engine is filled with oil and fuel, then pull the recoil starter linkage. Refer to the manual for detailed starting procedure.

How do I adjust the snow throwing direction?

Use the crank on the snow ejection unit to rotate the chute up to 190 degrees for precise direction control.

Can the throwing range be adjusted?

Yes, the adjustable cover on the snow ejection unit allows you to control the throwing range from 4 to 8 metres.

What is the maximum snow height this machine can handle?

It can handle snow up to 25 cm in height. For deeper snow, multiple passes may be required.

How do I maintain the snow thrower after use?

Clean the snow and debris from the machine, especially the milling unit and chute. Store in a dry place. Check and change oil and air filter as per maintenance schedule.

What safety features does the Royal BSF 40 have?

It includes an oil deficiency safety that shuts off the engine if oil level is too low. Always wear appropriate protective gear and follow safety instructions in the manual.

Is the snow thrower self-propelled?

Yes, it is self-propelled with a clutch leverage for the milling drive, making it easier to move through snow.

Where can I find spare parts for this model?

Spare parts are available from Einhell authorized dealers or service centers. Check the manual for part numbers and ordering information.

USER MANUAL Royal BSF 40 EINHELL

Petrol Snow Thrower BSF 40

Art.-No.: 34.170.40

Bar code: 4006825530681

Sales unit: 1 pc

The powerful, self propel Petrol Snow Thrower with high quality 4 stroke engine (3.1 KW / 4.2 HP) warrants for a quiet running, economy, high power reserve and long life span. It is simple to serve and furthermore easy to maintain.

By the via adjustment crank about 190^ pivotable snow ejection and the throwing range of 4-8m it's qualified for professional milling of snow surfaces of quite different nature. With the ergonomically push bracket, the air-filled wheels and the wide slide vats it's easy to move through the snow.

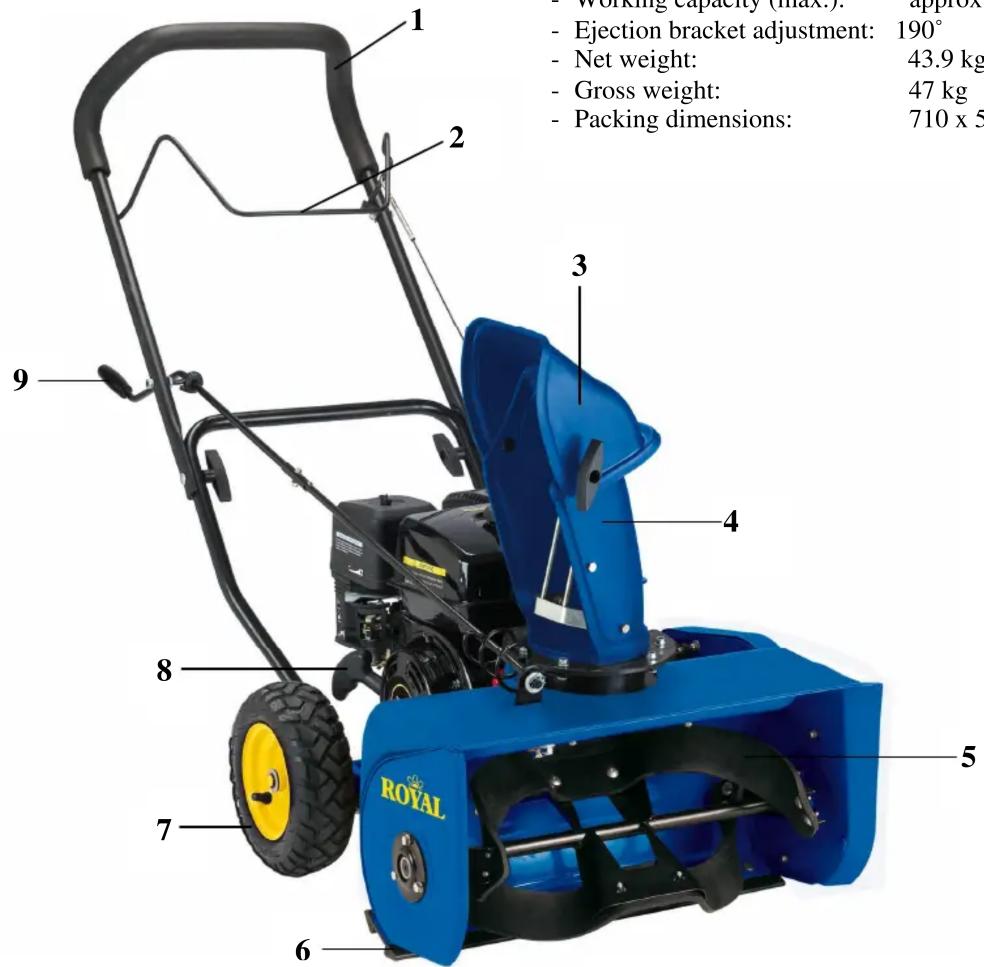

Features:

• Strong 4 stroke engine
• Ergonomically guidance bar with soft grip casing (1)
• Clutch leverage for milling drive (2)
• Adjustable cover for controllable throwing range (3)
• Snow ejection unit (4)
• Robust milling unit (5)
• Slide vats (6)
• Air-filled wheels (7)
• Linkage to start the motor (8)
• Oil deficiency safety
• Crank for easy snow ejection-adjustment (9)
• Full crank shaft

Technical data:

• Motor: 1-cylinder, 4-stroke engine 3.1 kW 4.2 HP
• Displacement: 163 cm ^3
• Operating speed: approx. 3600 rpm
• Starting system: linkage to start the motor
• Fuel: normal petrol (lead-free)
• Tank capacity: 3.5 litre
• Motor oil capacity: 0.6 litre (10W30)
• Working width: 52 cm
• Snow height (max.): 25 cm
• Throwing range (max.): 4 - 8 m
• Working area (max.): approx. 1200m^2/h
• Working capacity (max.): approx. 180m^3/h
• Ejection bracket adjustment: 190°
• Net weight: 43.9 kg
• Gross weight: 47 kg
• Packing dimensions: 710 x 555 x 495 mm
