BSF 55 - Snow blower EINHELL - Free user manual and instructions

Product Type	Snow Blower
Brand	Einhell
Model	BSF 55
Engine Type	1-cylinder, 4-stroke
Engine Power	4 kW / 5.5 HP
Engine Displacement	163 cm³
Operating Speed	approx. 3000 rpm
Starting System	Recoil start (linkage)
Fuel Type	Normal petrol (lead-free)
Tank Capacity	3.6 litres
Oil Capacity	0.6 litres (10W30)
Working Width	56 cm
Max Snow Height	510 mm
Throwing Range	10 - 15 m
Gears Forward	5
Gears Reverse	2
Max Speed	4 km/h
Working Area	approx. 1400 m²/h
Ejection Adjustment	190° (via crank)
Wheels	Air-filled, abrasive profile winter tyres
Drive System	Self-propelled, 2-wheel drive (convertible to 1-wheel)
Net Weight	74.3 kg
Gross Weight	85 kg
Packing Dimensions	900 x 620 x 680 mm
Optional Accessory	Snow Chains SK 1 (Art.-No.: 34.170.80)

Frequently Asked Questions - BSF 55 EINHELL

What type of fuel does the Einhell BSF 55 use?

The Einhell BSF 55 uses normal lead-free petrol. The tank capacity is 3.6 litres.

What engine oil is recommended?

Use 10W30 motor oil. The oil capacity is 0.6 litres. Ensure the oil level is checked before each use.

How do I start the snow blower?

The BSF 55 has a recoil start system (linkage). Ensure fuel and oil are filled, then pull the starter cord firmly.

What is the working width of the BSF 55?

The working width is 56 cm, allowing efficient clearing of snow paths.

How far does it throw snow?

The throwing range is adjustable from 10 to 15 meters, depending on the snow condition and ejection angle.

Can I adjust the snow ejection direction?

Yes, the ejection unit can be rotated 190° using a crank, allowing you to direct snow exactly where you want.

How many gears does it have?

It has 5 forward gears and 2 reverse gears, giving you flexibility for different snow conditions.

What is the maximum snow height it can handle?

The BSF 55 can handle snow up to 510 mm (51 cm) in height.

Is there an oil deficiency safety feature?

Yes, the engine has an oil deficiency safety system that prevents starting or shuts off the engine if oil level is too low.

How do I maintain the snow blower?

Regularly check oil and fuel levels; clean the machine after use; inspect the auger and scraper blade for wear; store in a dry place. For detailed maintenance, refer to the user manual.

USER MANUAL BSF 55 EINHELL

Petrol Snow Thrower BSF 55

Art.-No.: 34.170.60

Bar code: 4006825530698

Sales unit: 1 pc

The powerful, self propel Petrol Snow Thrower with high quality 4 stroke engine (4 KW / 5.5 HP) warrants for a quiet running, economy, high power reserve and long life span.

It's suitable with the 5 forwards and 2 backwards gears and the snow ejection adjustable by means of adjustment crank about 190^ for professional milling of snow surfaces of quite different nature. Due to the throwing range of 10-15m large areas can be effortlessly made free from snow. With the driven wheels, the ergonomically push bracket and the skids it's easy to move through the snow.

Depending on application the tool can be in a few handles from 2-wheel-drive to a 1-wheel-drive undergo reconstruction.

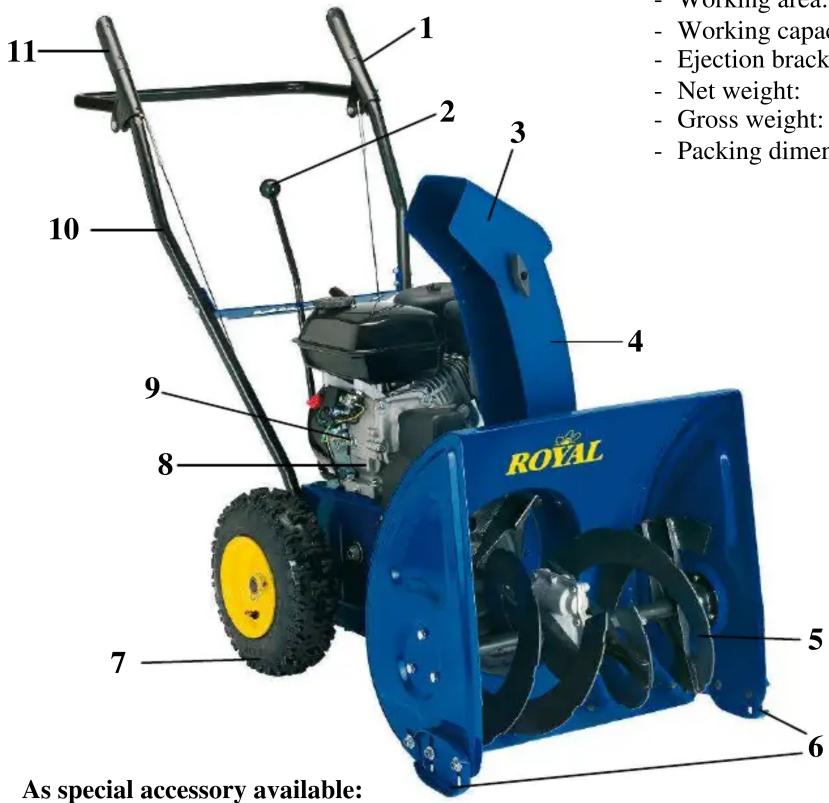

Features:

• Clutch lever for milling drive (1)

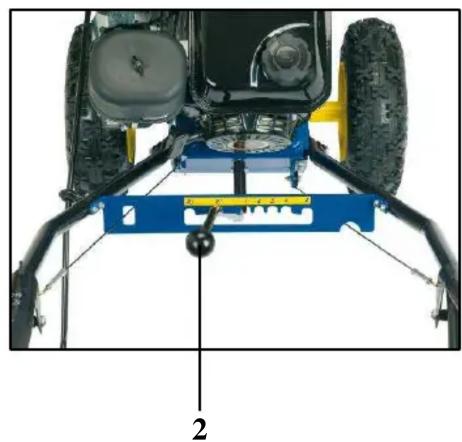

• 7-gear-switching (2)
• Adjustable cover for controllable throwing range (3)
• Snow ejection unit (4)
• Robust milling unit (5)
• Adjustable Slide vats (6)
• Air-filled, abrasive profile winter tyres (7)
• Powerful 4 stroke engine (8)
• Oil deficiency safety (9)
• Ergonomically handle (10)
• Clutch lever for traction drive (11)
• Independent coupling for wheels and miller
• Optionally 1 wheel or 2 wheel drive
• Full crank shaft

Snow Chains SK 1
Art.-No.: 34.170.80
Bar code: 4006825532722

Technical data:

• Engine: 1-cylinder, 4-stroke engine 4 kW / 5.5 HP
• Engine displacement: 163 cm ^3
• Operating speed: approx. 3000 rpm
• Starting system: Linkage to start the motor
• Speed (max.): 4 km/h
• Gear forwards: 5
• Gear backwards: 2
• Fuel: normal petrol (lead-free)
• Tank capacity: 3.6 litres
• Motor oil quantity: 0.6 litres (10W30)
• Working width: 56 cm
• Snow height (max.): 510 mm
• Throwing range (max).: 10 - 15 m
• Working area: approx. 1400 m ^2 /h
• Working capacity: approx. 350 cm ^3 /h
• Ejection bracket adjustment: 190°
• Net weight: 74.3 kg
• Gross weight: 85 kg
• Packing dimensions: 900 x 620 x 680 mm

Top-down view of a vehicle chassis with visible tire, wheels, and mechanical components (no text or symbols)
