PB200008S - Power bank GoGen - Free user manual and instructions

Product Type	Power bank
Brand	GoGen
Model	PB200008S
Battery Type	Li-pol
Capacity	20000 mAh
Input (Micro USB / USB-C)	DC 5 V / 2 A, 9 V / 2 A
Output (USB-C)	DC 5 V / 3 A, 9 V / 2.22 A, 12 V / 1.67 A
Output (USB 1/2)	DC 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A
Dimensions	145 x 68 x 28.5 mm
Weight	453 g
Display	LCD display for power indicator
Auto Power On/Off	Yes (auto on when connected, off after 20 sec disconnect)
Power Delivery (PD)	Supported (use compatible cable)
Safety Protection	Overcharge protection, auto shut-off
Package Contents	Power bank, USB-C cable, instruction manual
Warranty	2 years (does not cover capacity decrease due to use/age)

Frequently Asked Questions - PB200008S GoGen

How do I charge a mobile device with the power bank?

Connect the charging cable to a USB output (USB 1 or USB 2) or the USB-C output on the power bank, then to your device. Charging starts automatically. The power bank will auto power on when connected.

How do I charge the power bank itself?

Use a charging cable to connect the power bank to a power adapter (minimum 5V/2A). You can use either the Micro USB input or the USB-C input. Fully charge before first use.

What does the LCD display show?

The LCD display shows the remaining battery capacity as a percentage. Press the power button briefly to check the charge level.

Is the power bank compatible with PD (Power Delivery) fast charging?

Yes, but only the USB-C port supports PD. You need a compatible USB-C to USB-C cable (not included) and a PD-compatible device.

How long does it take to fully charge the power bank?

Charging time depends on the adapter. With a 5V/2A adapter, it takes approximately 10-12 hours. Using a 9V/2A adapter may reduce time. The exact time is not specified in the manual.

Can I use multiple outputs simultaneously?

Yes, you can charge multiple devices at the same time. The total output current will be shared among the ports. The power bank will distribute power automatically.

What safety precautions should I follow?

Do not drop, disassemble, or immerse the power bank in water. Keep away from heat sources and children. Use only standard charging cables. Do not charge unattended. See manual for full safety instructions.

How do I maintain the power bank's battery life?

To prolong battery life, perform a full charge every three months even if not in use. Avoid complete discharge when possible. The capacity naturally decreases over time.

What is the warranty coverage?

The power bank is warranted for 2 years from purchase date against material defects and workmanship. The warranty does not cover reduction in effective capacity due to normal use or aging.

What is the recommended charging cable for best performance?

Use the included USB-C cable for general charging. For PD fast charging, use a high-quality USB-C to USB-C cable that supports Power Delivery. The cable must be in good condition.

USER MANUAL PB200008S GoGen

Abstract logo with a stylized white 'S' inside a circle on black background (no text or symbols)

GoGEN

Exterior view of a modern black power bank with a digital display showing '001' and 'Nanone', no visible text or symbols beyond branding.

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁ- DEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

1. Tlačidlo zapnutia
2. LCD displej stavu nabitia
3. Micro USB vstup
4. USB-C vstup/výstup
5. USB 1 výstup
6. USB 2 výstup

POKYNY NA OBSLUHU

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Powerbank, USB-C cabel, instruction manual

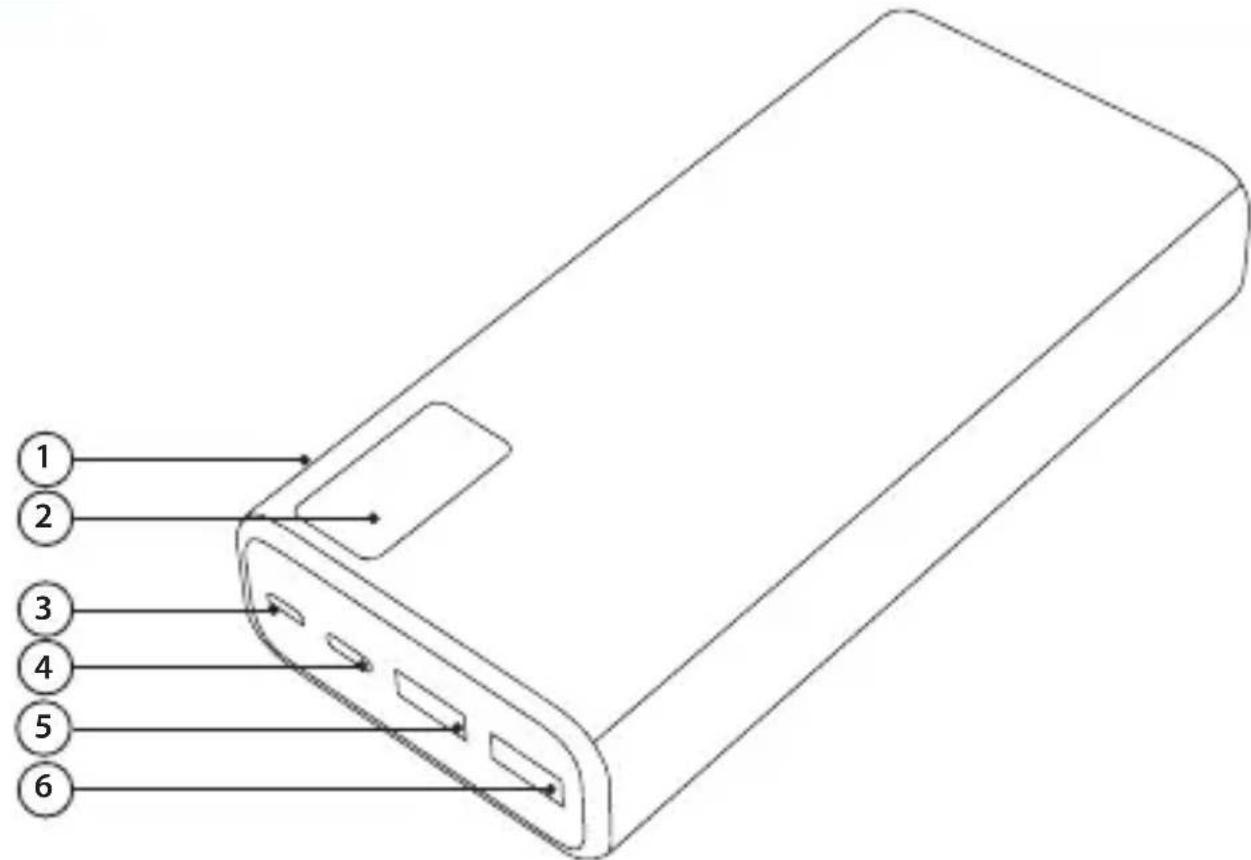

DEVICE LAYOUT

1. ON button
2. LCD display power indicator
3. Micro USB input
4. USB-C input/output
5. USB 1 output
6. USB 2 output

CHARGING INSTRUCTION

The power bank will auto power on when connected and turn off automatically 20 seconds after disconnecting. Press the power button to turn the product on.

Charging of mobile devices

Connect the charging cable to the USB output or the USB-C output on the

device and the mobile device. Charging starts automatically.

Please use compatible charging cable (not included) for using PD (Power Delivery) function.

Charging the power bank

Connect the backup power supply using a charging cable to a power supply with a minimum charging current of 5V / 2A. Micro USB or USB-C input on the device can be used.

Capacity Indication

Press the main button to show the remaining capacity.

ATTENTION

This device has safety protection that prevent the battery from damages when overcharging. It is normal for the casing to become warm during charging and it will gradually cool down to room temperature after fully charged.

Please make a complete charge every three month to avoid shorten the mobile power life span.

TECHNICAL SPECIFICATION

Battery type: Li-pol Battery

Capacity: 20 000 mAh

Input: Micro USB / USB-C DC 5 V / 2 A, 9 V / 2 A

Output: USB-C DC 5 V / 3 A, 9 V 2,22 A, 12 V / 1,67 A

USB 1/2 DC 5V / 3 A, 9 V / 2 A, 12 V / 1,5 A

Dimension: 145 x 68 x 28,5 mm

Weight: 453 g

CAUTION

• Please completely full charge the mobile power in first usage.
• Please make sure that use standard cable with appropriate specification, or it may lead to the mobile power damage.
• Please confirm the voltage of the electric device is 5V before charging it.
• Do not drop, knock, disassemble or attempt to repair the mobile power by yourself.
• Do not immerse or put the mobile power in water or damp place.
• Do not expose or put the mobile power near to heat sources or flammable place.

• Do not put the mobile power in car, for strong light and high temperature will lead to product damage.

• Keep the mobile power away from children.

• Do not put any item into the mobile power USB input and output ports to avoid any shortcut or damage.
• Please make a complete charge every three month to avoid shorten the mobile power life span.
• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safety. Young children should be supervised to ensure that they do not play with the appliance.
• Never charge the battery unattended.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

Prohibition sign with a person wearing a mask inside a circle (no text or symbols)

Prohibition sign with a diagonal line crossing through it, no text or symbols present.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

NIEBEZPIECZEŃSTWO UDUSZENIA. TOREBKE Z PE POŁOŻYĆ W MIEJSCU BĘDĄCYM POZA ZASIĘGIEM DZIECI. TÓREBKA NIE SŁUŻY DO ZABAWY! TEGO WORKA NIE NAŁEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB

KOJCACH DZIECIĘCYCH.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÖL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSÖKBEN, KISÁGYAK-

BAN, BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁK-BAN.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)
