PB200007B - Power bank GoGen - Free user manual and instructions

Product Type	Portable Power Bank
Brand	GoGen
Model	PB200007B
Battery Capacity	20000 mAh (estimated)
Battery Type	Lithium-Polymer
Input Port	USB-C (5V/2A), Micro USB (5V/2A)
Output Ports	2x USB-A (5V/2.1A each)
Total Output Current	Up to 2.1A (shared)
LED Indicators	4 LED charge level indicators
Dimensions	Approx. 158 x 78 x 26 mm
Weight	Approx. 350 g
Charging Time	Approx. 6-8 hours (with 2A charger)
Safety Features	Overcharge, overdischarge, short circuit, overcurrent protection
Operating Temperature	0°C to 45°C (charging), -10°C to 60°C (discharging)
Compatibility	Smartphones, tablets, cameras, and other USB devices
Cleaning Instructions	Wipe with a dry, soft cloth; do not use liquids
Storage	Keep in a cool, dry place; avoid direct sunlight
Spare Parts Availability	Contact manufacturer for replacement cables or units
Warranty	Standard 1-year limited warranty

Frequently Asked Questions - PB200007B GoGen

How long does it take to fully charge the GoGen PB200007B?

With a 2A charger, it takes approximately 6-8 hours to fully charge the power bank.

Can I charge two devices simultaneously?

Yes, the power bank has two USB-A output ports that can charge two devices at the same time, with a total output of up to 2.1A.

What devices are compatible with this power bank?

It is compatible with most smartphones, tablets, cameras, and other USB-powered devices that require up to 5V/2.1A.

How do I know how much charge is left?

The power bank has 4 LED indicators that show the remaining battery level. Each LED represents approximately 25% charge.

Can I use the power bank while it is charging?

Yes, the power bank supports pass-through charging, allowing you to charge it and your devices simultaneously.

What kind of input cable does it require?

It supports USB-C and Micro USB input. A USB-C cable is recommended for faster charging.

Is the power bank safe to use?

Yes, it includes multiple safety protections: overcharge, overdischarge, short circuit, and overcurrent protection.

How should I clean the power bank?

Wipe the exterior with a dry, soft cloth. Do not use liquids or abrasive cleaners.

What is the weight of the PB200007B?

The power bank weighs approximately 350 grams, making it portable yet capable.

Where can I find spare parts or repair service?

Contact GoGen customer support or visit their official website for spare parts or repair options.

USER MANUAL PB200007B GoGen

Abstract logo design with a stylized white 'S' inside a circle on black background (no text or symbols)

GoGEN

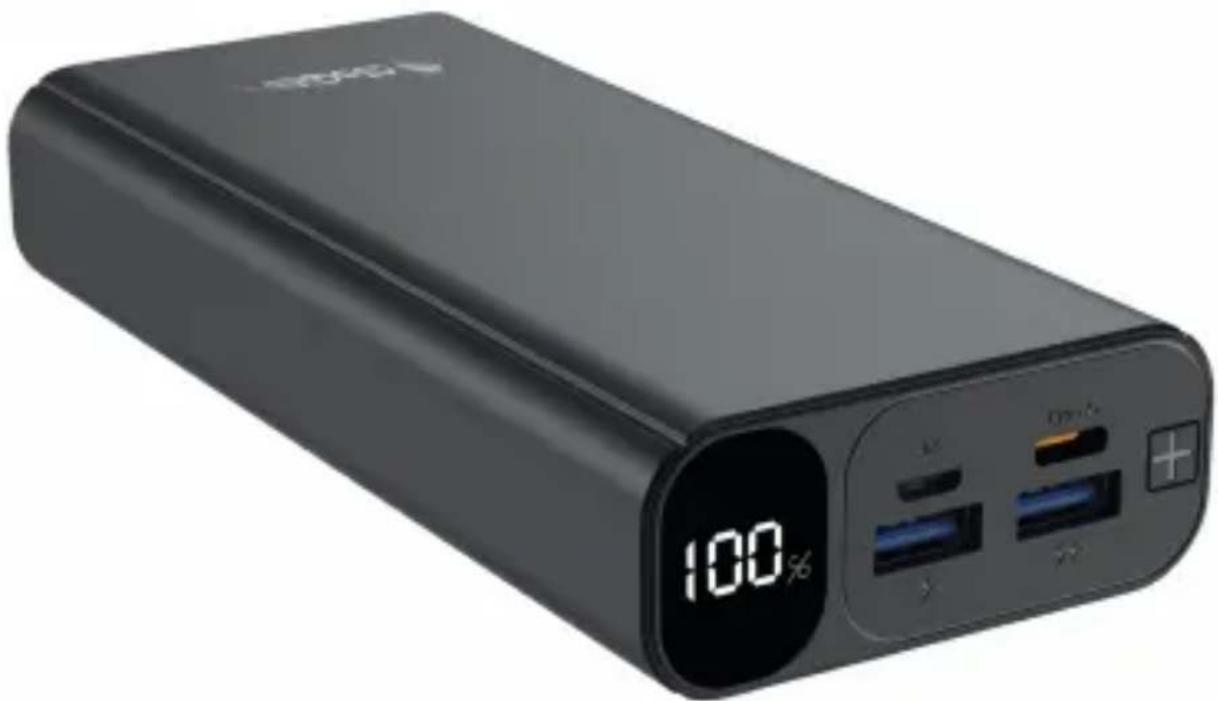

Black power bank with digital display showing 100% usage, no visible text or symbols on body

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁ-DEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Powerbank, USB-C cabel, instruction manual

DEVICE LAYOUT

1. LCD display power indicator
2. USB 1 output
3. Micro USB input
4. USB 2 output
5. USB-C input/output
6. ON button

CHARGING INSTRUCTION

The power bank will auto power on when connected and turn off automatically 20 seconds after disconnecting. Press the power button to turn the product on.

Charging of mobile devices

Connect the charging cable to the USB output or the USB-C output on the device and the mobile device. Charging starts automatically.

Please use compatible charging cable (not included) for using PD (Power Delivery) function.

Charging the power bank

Connect the backup power supply using a charging cable to a power supply with a minimum charging current of 5V / 2A. Micro USB or USB-C input on the device can be used.

Capacity Indication

Press the main button to show the remaining capacity.

ATTENTION

This device has safety protection that prevent the battery from damages when overcharging. It is normal for the casing to become warm during charging and it will gradually cool down to room temperature after fully charged.

Please make a complete charge every three month to avoid shorten the mobile power life span.

TECHNICAL SPECIFICATION

Battery type: Li-pol Battery

Capacity: 20 000 mAh

Input: Micro USB / USB-C DC 5 V / 3 A, 9 V / 2 A, 12 V / 1,5 A

Output: USB-C DC 5 V / 3 A, 9 V 2,22 A, 12 V / 1,66 A

USB 1/2 DC 4,5V / 5A, 5V / 4,5A, 5V / 3A,

9 V / 2 A, 12 V / 1,5 A

Dimension: 145,3 x 66 x 27 mm

Weight: 445 g

CAUTION

• Please completely full charge the mobile power in first usage.
• Please make sure that use standard cable with appropriate specification, or it may lead to the mobile power damage.
• Please confirm the voltage of the electric device is 5V before charging it.
• Do not drop, knock, disassemble or attempt to repair the mobile power by yourself.
• Do not immerse or put the mobile power in water or damp place.
• Do not expose or put the mobile power near to heat sources or flammable place.
• Do not put the mobile power in car, for strong light and high temperature will lead to product damage.
• Keep the mobile power away from children.
• Do not put any item into the mobile power USB input and output ports to avoid any shortcut or damage.

• Please make a complete charge every three month to avoid shorten the mobile power life span.

• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safety. Young children should be supervised to ensure that they do not play with the appliance.

• Never charge the battery unattended.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

Prohibition sign with a circular border and a stylized face inside (no text or symbols)

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÓL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSÖKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK

JÁRÓKÁKBAN.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
