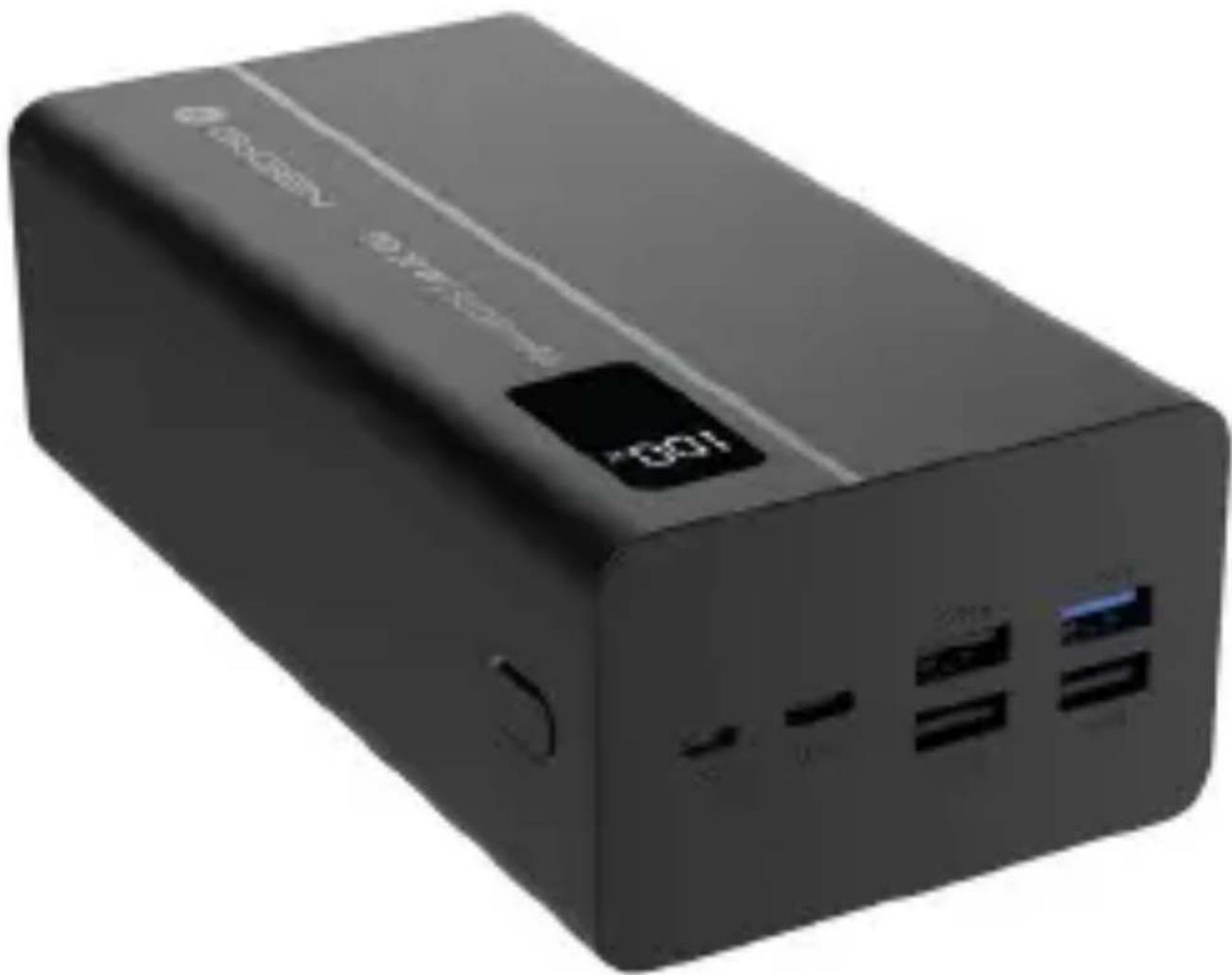

PB500001B - Power bank GoGen - Free user manual and instructions

Product Type	Power Bank / External Battery
Brand	GoGen
Model	PB500001B
Battery Type	Lithium Polymer (Li-Pol)
Capacity	50,000 mAh
Input (Micro USB)	DC 5V/3A, 9V/2A, 12V/1.5A
Input (USB-C)	DC 5V/3A, 9V/2A, 12V/1.5A
Output (USB-C)	DC 5V/3A, 9V/2.22A, 12V/1.66A
Output (USB 1)	DC 4.5V/5A, 5V/3A, 9V/2A, 12V/1.5A
Output (USB 2, 3, 4)	DC 5V/3A (Max each)
Number of USB Ports	5 (1 USB-C, 4 USB-A)
Dimensions (L x W x H)	161.2 x 81.6 x 52.6 mm
Weight	1084 g
Package Contents	Power bank, USB-C cable, instruction manual
Auto Power On/Off	Yes (auto on when connected, off after 20s disconnect)
Power Delivery Support	Yes (via USB-C, requires compatible cable)
Safety Protections	Overcharge protection, short-circuit prevention, temperature control
Maintenance	Fully charge every 3 months to prolong battery life
Warranty	2 years (does not cover capacity decrease from use/age)

Frequently Asked Questions - PB500001B GoGen

How do I charge the power bank itself?

Connect the power bank to a power source using a charging cable with at least 5V/2A output. You can use either the Micro USB or USB-C input port. The power bank will automatically start charging. A full charge may take several hours due to the large capacity.

How do I charge my mobile devices with the PB500001B?

Connect your device to any USB output (USB 1-4 or USB-C) using a compatible charging cable. Charging starts automatically. For Power Delivery (PD) fast charging, use the USB-C output and a PD-compatible cable (not included).

How can I check the remaining battery level?

Press the power button once to display the remaining capacity. The LED indicators or display will show the current battery level.

What should I do if the power bank is not charging my device?

Ensure the cable is properly connected and compatible. Verify that the power bank has sufficient charge. Try pressing the power button to wake it up. If the issue persists, check if the device's voltage requirement is 5V (as required by the power bank).

How long does the power bank last on a full charge?

The 50,000 mAh capacity can charge a typical smartphone (3000 mAh battery) about 10-15 times, depending on charging conditions and cable losses. Actual performance varies by device usage.

Can I charge multiple devices simultaneously?

Yes, the power bank has 5 output ports (1 USB-C and 4 USB-A). You can charge up to five devices at once. However, total output power is shared, so charging speeds may decrease when multiple devices are connected.

How should I maintain the power bank to prolong its life?

Perform a complete charge every three months to prevent battery degradation. Store in a cool, dry place away from heat sources and direct sunlight. Avoid dropping or immersing in water.

Is it safe to leave the power bank charging overnight?

Yes, the power bank has overcharge protection that stops charging when full. It is normal for the casing to become warm during charging and cool down after. However, never charge unattended with young children or infirm persons.

What devices are compatible with this power bank?

Most devices that charge via USB (smartphones, tablets, headphones, etc.) are compatible. For devices requiring PD fast charging, use the USB-C port with a PD cable. Ensure your device's input voltage is 5V or compatible with the output options.

What is the warranty period and what does it cover?

The GoGen PB500001B comes with a 2-year warranty covering material defects and workmanship. It does not cover decrease in effective capacity caused by use or age. Keep your purchase receipt for warranty claims.

USER MANUAL PB500001B GoGen

Abstract black-and-white graphic symbol resembling a stylized letter 'S' or wave, enclosed in a circle (no text or symbols)

GoGEN

Black rectangular electronic device with display and control buttons (no visible text or symbols)

Prohibition sign with a circular border and a central figure (no text or symbols)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH,

KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin crossed with two diagonal lines and a horizontal bar below (no text or numbers present)

Prohibition sign with a circular border and a central figure (no text or symbols)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO

VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

oddeleného zberu)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Powerbank, USB-C cabel, instruction manual

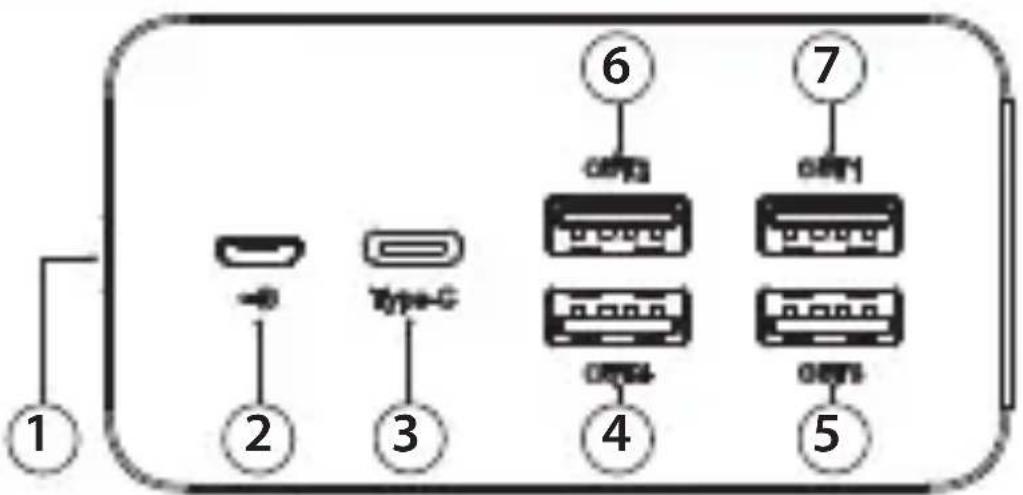

DEVICE LAYOUT

1. Power button
2. Micro USB input
3. USB-C input/output
4. USB 4 output
5. USB 3 output
6. USB 2 output
7. USB 1 output

CHARGING INSTRUCTION

The power bank will auto power on when connected and turn off automatically 20 seconds after disconnecting.

Press the power button to turn the product on.

Charging of mobile devices

Connect the charging cable to the USB output or the USB-C output on the device and the mobile device. Charging starts automatically.

Please use compatible charging cable (not included) for using PD (Power Delivery) function.

Charging the power bank

Connect the backup power supply using a charging cable to a power supply with a minimum charging current of 5V / 2A. Micro USB or USB-C input on the device can be used.

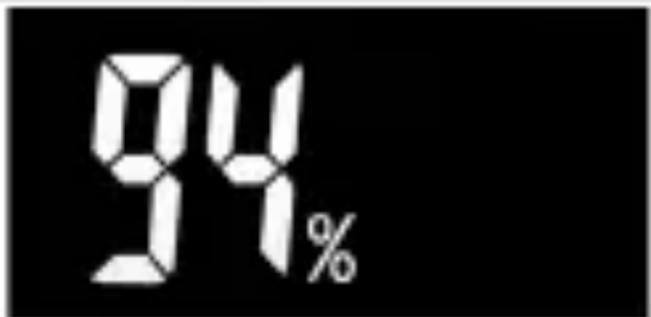

Capacity Indication

Press the power button to show the remaining capacity:

ATTENTION

This device has safety protection that prevent the battery from damages when overcharging. It is normal for the casing to become warm during charging and it will gradually cool down to room temperature after fully charged.

Please make a complete charge every three month to avoid shorten the mobile power life span.

TECHNICAL SPECIFICATION

Battery type: Li-pol Battery

Capacity: 50 000 mAh

Input: Micro USB DC 5 V / 3 A, 9 V / 2 A, 12 V / 1,5 A

USB-C DC 5 V / 3 A, 9 V / 2 A, 12 V / 1,5 A

Output: USB-C DC 5 V / 3 A, 9 V / 2,22 A, 12 V / 1,66 A

USB 1 DC 4,5 V / 5A, 5 V / 3A, 9 V / 2A,

12 V / 1,5 A

USB 2,3,4 DC 5V / 3 A (Max)

Dimension: 161,2 x 81,6 x 52,6 mm

Weight: 1084 g

CAUTION

• Please completely full charge the mobile power in first usage.
• Please make sure that use standard cable with appropriate specification, or it may lead to the mobile power damage.
• Please confirm the voltage of the electric device is 5V before charging it.
• Do not drop, knock, disassemble or attempt to repair the mobile power by yourself.
• Do not immerse or put the mobile power in water or damp place.
• Do not expose or put the mobile power near to heat sources or flammable place.
• Do not put the mobile power in car, for strong light and high temperature will lead to product damage.
• Keep the mobile power away from children.
• Do not put any item into the mobile power USB input and output ports to avoid any shortcut or damage.
• Please make a complete charge every three month to avoid shorten the mobile power life span.

- This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safety. Young children should be supervised to ensure that they do not play with the appliance.

- Never charge the battery unattended.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES

OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Prohibition sign with a circular border and a central figure (no text or symbols)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

NIEBEZPIECZEŃSTWO UDUSZENIA. TOREBKE Z PE POŁOŻYĆ W MIEJSCU BĘDĄCYM POZA ZASIĘGIEM DZIECI. TOREBKA NIE SŁUŻY DO

ZABAWY! TEGO WORKA NIE NALEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB KOJCACH DZIECIĘCYCH.

Symbol of a trash bin crossed with two diagonal lines and a horizontal bar below (no text or numbers present)

Prohibition sign with a circular border and diagonal line crossing through a central figure (no text or symbols)

Prohibition sign with a crossed-out robot silhouette (no text or symbols)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÓL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A

ZACSKÓT BÖLCSŐKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Abstract logo design with white stylized 'S' inside a black circle (no text or symbols)

GoGEN
