PB100008B - Power bank GoGen - Free user manual and instructions

Product Type	Portable Power Bank
Brand	GoGen
Model	PB100008B
Battery Type	Lithium-Polymer (Li-Pol)
Battery Capacity	10,000 mAh
Input (Micro USB / USB-C)	DC 5V/3A, 9V/2A, 12V/1.5A
Output (USB-C)	DC 5V/3A, 9V/2.22A, 12V/1.66A
Output (USB 1 & 2)	DC 4.5V/5A, 5V/4.5A, 5V/3A, 9V/2A, 12V/1.5A
Number of Output Ports	3 (2x USB-A, 1x USB-C)
Display	LCD digital display (remaining capacity)
Power Delivery (PD)	Yes (via USB-C)
Dimensions	145.3 x 66 x 14.6 mm
Weight	245 g
Package Contents	Power bank, USB-C cable, instruction manual
Auto Power Off	Yes, 20 seconds after disconnection
Safety Features	Overcharge protection, short circuit protection
Charging Time (approx)	3-4 hours with 5V/3A adapter
Operating Temperature	0°C to 45°C (ambient)
Warranty	2 years (excluding battery capacity degradation)

Frequently Asked Questions - PB100008B GoGen

How long does it take to fully charge the GoGen PB100008B?

It takes approximately 3-4 hours when using a 5V/3A charger. You can charge via Micro USB or USB-C input.

Can I charge two devices at the same time?

Yes, you can charge up to two devices simultaneously using the two USB-A outputs and the USB-C output. The total output current is shared.

Does this power bank support fast charging?

Yes, it supports Power Delivery (PD) up to 12V/1.66A and USB-A fast charging protocols like QC (Quick Charge). Actual speed depends on your device.

How do I check the remaining battery level?

Press the power button once. The LCD display will show the remaining capacity as a percentage or battery bar.

Is it safe to leave the power bank charging overnight?

Yes, the power bank has overcharge protection. However, it is recommended to unplug once fully charged for optimal battery lifespan.

What is the input voltage and current for charging the power bank?

The input can accept 5V/3A, 9V/2A, or 12V/1.5A via Micro USB or USB-C. Use a compatible charger for faster charging.

Can I use the USB-C port for both input and output?

Yes, the USB-C port is bidirectional. It can charge the power bank and also output to devices, including supporting Power Delivery.

Why is the power bank warm during charging?

It is normal for the casing to become warm during charging due to energy conversion. It will cool down after fully charged. Avoid covering it while charging.

How do I maintain the battery for long life?

Fully charge and discharge the power bank every three months to preserve battery capacity. Avoid extreme temperatures and store in a dry place.

What devices can I charge with this power bank?

You can charge smartphones, tablets, Bluetooth earphones, and other USB-powered devices. The 10,000 mAh capacity can charge a typical smartphone 2-3 times.

USER MANUAL PB100008B GoGen

Abstract logo design with a stylized white 'S' inside a circle on black background (no text or symbols)

GoGEN

PB 100008 B

PB 100008 R

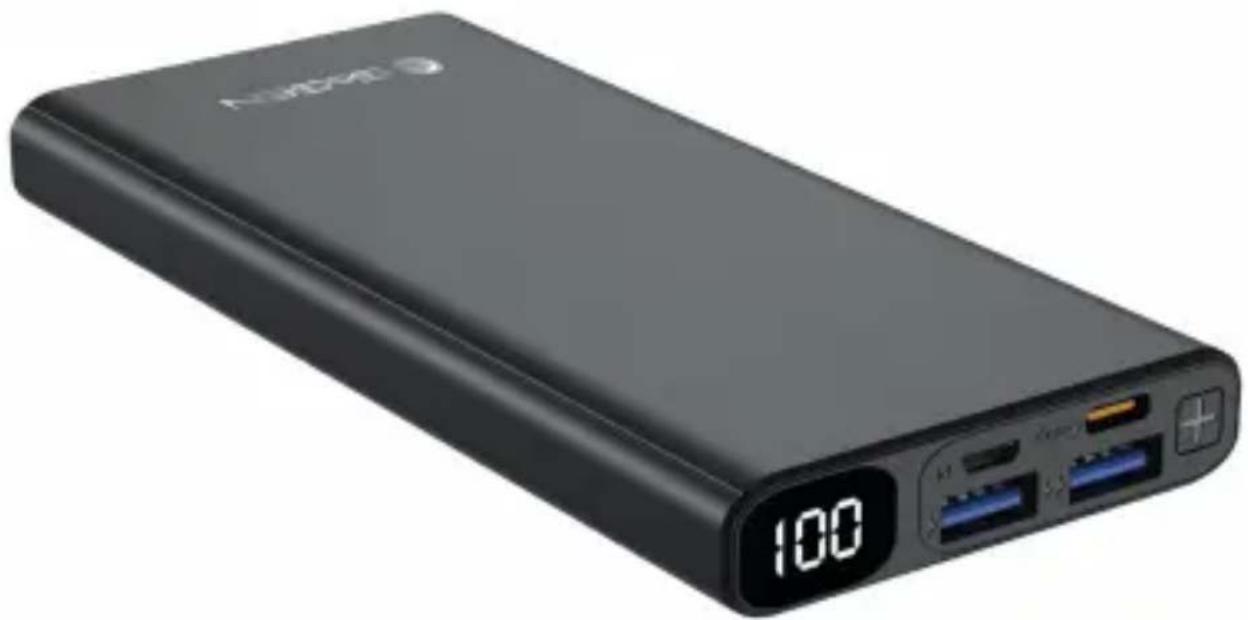

Black power bank with digital display showing 100Ω, ports, and charging button (no text or symbols on body)

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁ-DEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIEL'KACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Thank you for purchasing our product. For optimum performance and safety, please read these instructions carefully before operating the product. Please keep this manual for future reference.

PACKAGE CONTENT

Powerbank, USB-C cabel, instruction manual

DEVICE LAYOUT

1. LCD display power indicator
2. USB 1 output
3. Micro USB input
4. USB 2 output
5. USB-C input/output
6. ON button

CHARGING INSTRUCTION

The power bank will auto power on when connected and turn off automatically 20 seconds after disconnecting. Press the power button to turn the product on.

Charging of mobile devices

Connect the charging cable to the USB output or the USB-C output on the device and the mobile device. Charging starts automatically.

Please use compatible charging cable (not included) for using PD (Power Delivery) function.

Charging the power bank

Connect the backup power supply using a charging cable to a power supply with a minimum charging current of 5V / 2A. Micro USB or USB-C input on the device can be used.

Capacity Indication

Press the main button to show the remaining capacity.

ATTENTION

This device has safety protection that prevent the battery from damages when overcharging. It is normal for the casing to become warm during charging and it will gradually cool down to room temperature after fully charged.

Please make a complete charge every three month to avoid shorten the mobile power life span.

TECHNICAL SPECIFICATION

Battery type: Li-pol Battery

Capacity: 10 000 mAh

Input: Micro USB / USB-C DC 5 V / 3 A, 9 V / 2 A, 12 V / 1,5 A

Output: USB-C DC 5 V / 3 A,9 V 2,22 A, 12 V / 1,66 A

USB 1/2 DC 4,5V / 5A, 5V / 4,5A, 5V / 3A,

9 V / 2 A, 12 V / 1,5 A

Dimension: 145,3 x 66 x 14,6 mm

Weight: 245 g

CAUTION

• Please completely full charge the mobile power in first usage.
• Please make sure that use standard cable with appropriate specification, or it may lead to the mobile power damage.
• Please confirm the voltage of the electric device is 5V before charging it.
• Do not drop, knock, disassemble or attempt to repair the mobile power by yourself.
• Do not immerse or put the mobile power in water or damp place.
• Do not expose or put the mobile power near to heat sources or flammable place.
• Do not put the mobile power in car, for strong light and high temperature will lead to product damage.
• Keep the mobile power away from children.
• Do not put any item into the mobile power USB input and output ports to avoid any shortcut or damage.

• Please make a complete charge every three month to avoid shorten the mobile power life span.

• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safety. Young children should be supervised to ensure that they do not play with the appliance.

• Never charge the battery unattended.

WARRANTY

Our product is warranted for 2 full year from the date of purchase. The warranty is provided on all material defects and workmanship. Guarantee of 24 months does not apply to decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

Prohibition sign with a circular border and a stylized face inside (no text or symbols)

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÓL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSÖKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK

JÁRÓKÁKBAN.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
