TWO140 - Scale Eldom - Free user manual and instructions

Product Type	Digital Bathroom Scale
Brand	Eldom
Model	TWO140
Maximum Capacity	150 kg (330 lb)
Resolution	100 g (0.2 lb)
Measurement Accuracy	1 kg
Power Supply	1 x CR2032 battery (included)
Display Type	LCD screen
Unit of Weight	kg / lb (selectable)
Body Fat Measurement	Yes
Hydration Measurement	Yes
Muscle Percentage Measurement	Yes
Bone Percentage Measurement	Yes
User Memory	Up to 10 users (P0-P9)
Personal Settings	Gender, age (10-80), height (100-240 cm)
Body Type Assessment	Underfat, Healthy, Overfat, Obese (based on age and gender)
Auto Power Off	Yes
Low Battery Indicator	Yes
Overload Indicator	Yes
Electrodes	Stainless steel foot plates
Cleaning	Wipe with damp soft cloth; do not immerse in water
Storage	Shady, dry place; do not place objects on top
Safety Warnings	Not for use by pregnant women, persons with pacemakers, or on dialysis. Not for medical use.
Repair	Only authorized service centers. Do not modify or use non-original parts.
Material	Plastic housing, tempered glass platform (assumed)
Recommended Age	10-70 years for body composition measurement; children under 10 and adults over 70 can use weight-only mode

Frequently Asked Questions - TWO140 Eldom

How do I turn on the scale and set my personal data?

Press the SET button to turn on the scale. The screen will show '0.0' after displaying '8888'. Then press and hold SET for a few seconds to enter personal data mode. Use ▲ and ▼ to select your personal code (P0-P9), gender, age (10-80), and height (100-240 cm). Confirm each step with SET.

How do I switch between kg and lb?

With the scale on and showing '0.0', press ▲ or ▼ to toggle between kg and lb.

Why does the scale show an error message?

Common errors: Lo (low battery), Err or FATL/FATH (body fat out of range), Err2 (measurement error), OL (overload). Ensure you stand still, feet bare and centered. If problem persists, replace battery.

Can I use the scale if I have a pacemaker?

No. The scale sends a low-level electrical signal through the body to measure body composition. Persons with implanted medical devices (e.g., pacemakers) should not use this scale.

How should I clean the scale?

Use a damp, soft cloth (no chemical agents) to wipe the surface. Dry thoroughly. Do not immerse the scale in water or allow water to enter the battery compartment.

What type of battery does the scale use and how do I replace it?

It uses one CR2032 lithium battery. Open the battery cover on the bottom, carefully remove the old battery, insert the new one with correct polarity (+ up), and close the cover. Dispose of used batteries properly.

Why is my body fat percentage not showing?

Ensure your feet are bare and clean, and you are standing still on the electrodes. The scale must be on a hard, flat surface. Also, children under 10 or adults over 70 can only use weight-only mode (body composition not displayed).

How accurate is the scale?

Weight accuracy is within 1 kg as stated. Body composition readings are for reference only and may vary with hydration, exercise, or diet. For medical advice, consult a doctor.

Can I store the scale standing up or on its side?

The manual does not specify orientation. It is recommended to store the scale flat in a dry, shady place. Do not place heavy objects on top of it.

What does 'P0' mean on the display?

'P0' to 'P9' are user memory slots. When you step on the scale, it will automatically recognize the user if previously programmed. If not, it will show weight only. You can assign a personal code to store your data.

USER MANUAL TWO140 Eldom

Two digital twin-chamber refrigerators with black and white plates, placed side by side (no visible text or symbols on the covers)

Eldom Sp. z o.o.

Simple gray horizontal bar with two vertical lines and tick marks at the bottom (no text or symbols)

WSKAZÓWKI BEZPIECZEŃSTWA

SKALA OCENY MIĘŚNI I KOŚCI

Please read all these instructions carefully before using this appliance.

1. This device may be used by children of 8 years of age or more and by persons with limited physical and mental capacity, as well as by persons without experience and knowledge of the device, provided that supervision or instruction is ensured as regards operation of the equipment in a safe way, so as to make the related hazards understandable. Children should not play with the device. Children without supervision should not clean and maintain the appliance.
2. The device is intended only for household use.
3. Do not stand on the scales when it is wet.
4. Do not stand on the scales with wet feet.
5. Store the scales in a place shady and dry place.
6. When in storage, the scales should not be placed under other items.
7. The accuracy of reading of the scales depends on the way it is used. Use the scales carefully. Do not jump on the scales, do not drop the scales.
8. Use damp, soft cloth without chemical agents to clean, then wipe dry. Do not immerse in water.
9. Only authorised service centres may repair the device. Any modernisations or using of non-original spare parts or elements of the device is forbidden and threatens safety of its use.
10. Eldom Sp. z o.o. shall not be liable for any damages resulting from improper use of the device.

EN

INSTRUCTION MANUAL

DIGITAL BATHROOM SCALE TWO140

eldom

TECHNICAL DATA

• weight capacity 150kg (330lb)
• resolution 100g (0,2lb)
• accuracy of measurement: 1kg
• power: CR2032

This product is specially designed to test body fat/ hydration, help keep a close eye on the daily change of your body fat, hydration and weight, providing information for your reference. Base on the analysis of your height, weight and age etc., it tells your body fat status and gives you an idea of your body condition. Please read this instruction carefully before use.

During Measuring

1. Always remove your shoes and socks, wipe clean your feet before using.
2. It is advisable to take measurement at the same time of the day.
3. Measured result could be misleading after intensive exercise, excessive dieting or under extreme dehydration condition.
4. Always weigh/use the scale on a hard and flat surface. When you are measuring, please keep still.
5. The body fat/hydration measured data of the following people may have deviation:

- Children under 10 or adult over 70 (can only use the device under normal weighing mode)

- Body building athletes or other occupational athletes.

1. People with the following conditions should not use the device:

- Pregnant women

- Those on dialysis treatment

- Those who use heart pacemaker or with other implanted medical device.

Safety Warning

The Fat% Hydration% Muscle% content evaluated by this device is only for reference (not for medical purpose). If your Fat% Hydration% content is over/below normal level, please consult your doctor for more advice

BATTERY

Used batteries should be discarded in special collection bins. Please remove the isolation sheet from the battery contact before use.

BATTERY REPLACEMENT:

1. Open the battery cover at the bottom of the device.

2. Carefully lever the battery and take it out.

3. Insert a new battery and press it gently until the retaining clip snaps in place. Please pay attention to the polarization.
4. Close the lid.

TO SET WEIGHT UNIT

- Press "SET" and it will get ready for use when screen shows "0,0kg" after "8888" and you can press and to switch within different units (kg/lb)

FOR WEIGHT ONLY

• Press "SET"
• Step on the scale gently, position your feet evenly near the center and keep ypour body still until the scale stabilizes your weight.
• The scale will be auto off if no further using.

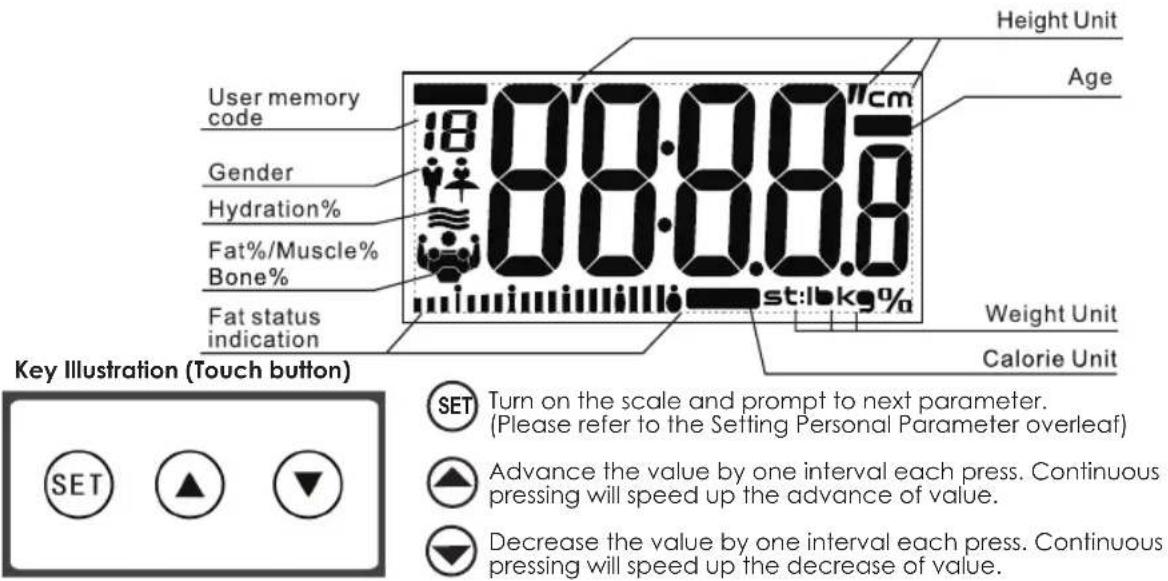

PRESS "SET" KEY FOR SECONDS TO SET YOUR PERSONAL DATA WHEN THE SCREEN

Press▲r key to select a number from P0 to P9 as your personal code.

Please press "SET" to confirm

Press ▲ or ▼ key to chosse Male or Female.

Please press "SET" to confirm

Press ▲ or key to reach your target age (10-80).

Please press "SET" to confirm.

Press ▲ or key to reach your target height (100-240 cm).

Please press "SET" to confirm.

Body fat and hydration ranges table.

Age	Female Male				Display
	Fat %	Hydration %	Fat %	Hydration %
<=30	4.0-20.5	66.0-54.7	4.0-15.5	66.0-58.1	Underfat
	20.6-25.0	54.6-51.6	15.6-20.0	58.0-55.0	Healthy
	25.1-30.5	51.5-47.8	20.1-24.5	54.9-51.9	Overfat
	30.6-80.0	47.7-13.8	24.6-80.0	51.8-13.8	Obese
>30	4.0-25.0	66.0-51.6	4.0-19.5	66.0-55.4	Underfat
	25.1-30.0	51.5-48.1	19.6-24.0	55.3-52.3	Healthy
	30.1-35.0	48.0-44.7	24.1-28.5	52.2-49.2	Overfat
	35.1-80.0	44.6-13.8	28.6-80.0	49.1-13.8	Obese

Step on the scale gently and keep your bare feet in touch with the electrodes. Stand still and erect to get your weight measured and your body fat, hydration, muscle and bone percentage will be displayed respectively on the screen within seconds. Thes results will be repeated for two times and the scale will be auto off no further using.

The personal data will be stored once you set. Just confirm your code when you use scale again and your other information will be showed so there is no need to program them again.

CLEANING AND MAINTENANCE

• The appliance cannot be submersed in water
• Do not use any cleansing agents which are strong and damage the surface
• Wipe the housing with a moistened cloth

PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

Body muscle and bone ranges table

Age	Female		Male
	Muscle %	Bone %	Muscle %	Bone %
16-50	>31	>8	>38	>10

BMI parameter

Low Normal		Overweight	Fat
<18.5	18.5~25	25~30	>30

Warning Indications

Low Battery Indication.

The battery power is running low, please replace with a new battery.

Over-load Indication

The weighing subject on the platform exceeds the maximum capability of scale. Please step off to avoid damage.

Rate too low level of fat.

Too high a level of fat.

Message redo the measurements.

If body percentage is less than 5%, then screen will show "FATL". If more than 50% it will display "FATH" and "ERR2" indicates that the measuring makes an error.

BEZPEČNOSTNÍ DOPORUČENÍ

STUPNICE HODNOCENÍ SVALŮ A KOSTÍ

Věk	Žena		Muž
	Svaly %	Svaly Kosti %		Kosti %
16-50	>31	>8	>38	>10

PARAMETR BMI

SKALA OCENY MIĘŚNI I KOŚCI

vek	žena		muž
	Pohlavie %	Kosti % Kosti %Pohlavie %
16-50	>31	>8	>38	>10

PARAMETR BMI
