Product Type	Air Fryer
Brand	Vivax
Model	DFA-617DB
Power Supply	220-240V ~ 50/60Hz
Power Consumption	1575-1875W
Barrel Volume	6 L
Net Weight	5.8 kg
Protection Class	Class I
Preset Functions	Air Fry, Bake, Roast, Reheat, Dehydrate
Temperature Range	40°C - 200°C
Timer Range	1 - 60 minutes
Control Type	Digital touch panel with LED display
Material - Housing	Plastic and metal
Material - Barrel & Basket	Non-stick coated metal
Dishwasher Safe Parts	Barrel (handle detachable)
Safety Features	Automatic shutdown after 10 min when barrel removed; overheat protection; grounded plug
Cleaning	Do not immerse main unit; clean basket with warm soapy water; wipe housing with damp cloth
Accessories Included	Baking tray, frying basket
Dimensions (approx.)	Not specified in manual; estimate 30 x 30 x 35 cm

Frequently Asked Questions - DFA-617DB Vivax

How do I preheat the air fryer?

Turn on the appliance, select temperature and time (e.g., 180°C for 3-5 minutes), then press Start. The machine will preheat and beep when ready.

Why is my air fryer not working?

Check that the mains connection is secure, the barrel is fully inserted into the main unit, and the thermostat/timer are set. The micro-switch prevents operation if the barrel is not properly inserted.

Can I use oil in the air fryer?

Yes, but only 1-2 teaspoons to help crispiness. Too much or too little oil may affect results. Most recipes recommend the appropriate amount.

How do I clean the air fryer?

Unplug and let cool. Remove the barrel and basket. Wash them in warm soapy water or dishwasher (barrel only). Wipe the main unit with a damp cloth. Never immerse the main unit in water.

Why are my fries not crispy?

Possible causes: overcrowding the basket, using too little oil, or not preheating. Try shaking the basket halfway through cooking and lightly brushing oil on snacks meant for deep frying.

What is the 10-minute shutdown memory function?

If the barrel is removed for more than 10 minutes, the appliance automatically switches off. You must then reset time, temperature, and press Start again.

Can I cook frozen foods directly?

Yes, but adjust cooking time. Frozen foods may require a few extra minutes. Refer to typical frying times in the manual (e.g., french fries 15-17 min at 180°C).

Why does my air fryer produce smoke or odor on first use?

The first use requires 10 minutes of dry burning. A small amount of white smoke or odor is normal. Run the appliance empty at high temperature to eliminate manufacturing residues.

What are the preset cooking modes and their default settings?

Air Fry (180°C, 21 min), Bake (170°C, 12 min), Roast (200°C, 15 min), Reheat (180°C, 15 min), Dehydrate (140°C, 30 min). Temperature and time can be adjusted manually.

Is the appliance safe to leave unattended?

No, the user must not leave the device unattended while it is connected to the supply. Always supervise during use and unplug after cooking.

USER MANUAL DFA-617DB Vivax

Line drawing of a rectangular device with two internal compartments and a central trough (no text or symbols)

Warning symbol with steam inside a triangle (no text or numbers)

Line drawing of a table with an air fryer on top (no text or symbols on the device itself)

Slika 1

Line drawing of a food microwave oven and its internal tray, showing internal components and a directional arrow (no text or symbols)

Slika 2

Line drawing of a rectangular device with two internal compartments and a top panel (no text or symbols)

Warning symbol of a steam inside a triangle (no text or numbers)

1. Decu mlađa od 8 godina treba držati dalje od uređaja osim ako nisu pod stalnim nadzorom.

2. Za čišćenje nemojte upotrebljavati parni čistač.

UPOZORENJE: Opasnost od električnog udara!

Neprimerena upotreba uzemljenja može da rezultira strujnim udarom.

Line drawing of a table with an air fryer on top (no text or symbols on the device itself)

Slika 1

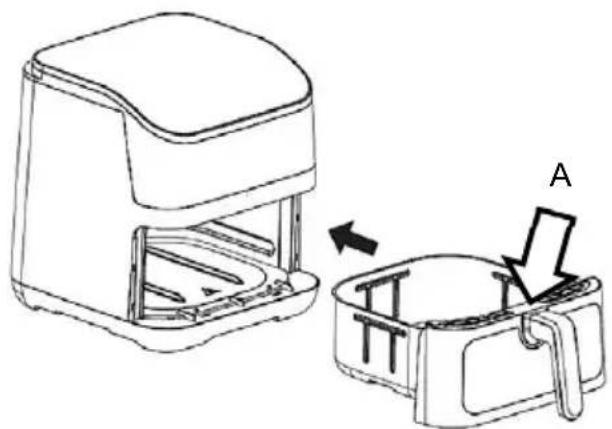

1. Instaliranje korpe za prženje (Slika 2)

Napomena: Pritiskom na dugme na vrhu ručke (A), ručka se može pričvrstiti ili odvojiti od korpe za prženje.

Line drawing of a microwave oven and its internal structure, showing internal components and a labeled section A (no text or symbols present)

Slika 2

1. Ubacite korpu za prženje u telo uređaja (Slika 2).

Napomena: Pre stavljanja sastojaka, prethodno zagrejte fritezu u trajanju od 3-5 minuta, učinak prženja biće bolji.

1. Nakon uključivanja uređaja, dodirnite taster funkcije koju želite podešavati (Temp. i zatim "+" i "" - " za podešavanje temperature, zatim pritisnite taster " Time " i " + " i " - " za podešavanje temperature i zatim pritisnite taster " Start " za početak zagrejavanja uređaja.

2. Nakon što je predgrejanje završeno, uređaj će se oglasiti zvučnim signalom i na ekranu će pisati poruka "Add food" (Dodaj namirnice).

Jednom rukom pridržite vrh uređaja, a drugom rukom izvucite posudu za prženje držeći za ručicu posude. Posudu postavite na stabilnu površinu otpornu na visoku temperaturu.

1. Stavite sve sastojke u unutrašnju posudu za prženje.

Ova metoda kuvanja praktično eliminiše potrebu za dodavanjem ulja, čineći pripremljenu piletinu hrskavom, pržene krompiriće pripremljene kao u najboljem restoranu i hrskavim čipsom

1. Gurnite posudu za prženje u uređaj, podesite odgovarajuću temperaturu i vreme prženja i uređaj će nastaviti sa radom.

Ekran prikazuje podešeno vreme ili ako je potrebno, putem kontrolne ploče možete podesiti željenu temperaturu i vreme, a zatim dodirnite taster "Start/Cancel" za početak.

Takođe, možete odabrati jedan od unapred podešenih modova prženja pritiskom na dugme za "Fabrički podešeni modovi rada".

Mod rada	Temperatura (°C)		Vreme rada (Min)
	Fabrički podešeno	Raspon ručnog podešavanja	Fabrički podešeno	Raspon ručnog podešavanja
Air Fry (Prženje)	180 40 - 200	21 1 – 60
Bake (Pečenje)	170 40 - 200	12 1 – 60
Roast (Jače pečenje)	200 40 - 200	15 1 – 60
Reheat (Za gejavanje)	180 40 - 200	15 1 – 60
Dehydrate (Dehidracija)	140 40 - 200	30 1 – 60

Line drawing of a device casing with internal compartments and mounting feet (no text or symbols)

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Line drawing of a food microwave oven and its internal structure, showing internal components and airflow direction (no text or symbols)

Слика 2

Rm.1503A, 15/F, Shun Kwong Commercial Bldg., No.8 Des Voeux Road West, Sheu Wan, Hong Kong

member of M SAN Grupa

Потпишано

Rm.1503A, 15/F, Shun Kwong Commercial Bldg., No.8 Des Voeux Road West, Sheu Wan, Hong Kong

Subjekti i deklaratës:

Produkt:

PAKOM KOMPANI member of M SAN Grupa

Nënshkruar

Margareta Gnjatovic Spirov Manager

Line drawing of a device with two rectangular compartments and a central U-shaped tube (no text or symbols)

Line drawing of a flat-screen air fryer on a table, labeled Fig. 1 (no text or symbols on the device itself)

Fig 1

1. Instaloni montimin e enës (Fig 2)

Line drawing of a food blender and its internal tray, showing the device's open lid and handle (no text or symbols)

Fig 2

Line drawing of a rectangular device with two internal compartments and a central trough (no text or symbols)

Line drawing of a table with an air fryer on top, labeled 'Slika 1' below (no other text or symbols)

1. Namestitev košare za cvrtje (slika 2)

Line drawing of a food microwave oven and its internal structure, showing internal components and a labeled section A (no text or symbols on the device itself)

Slika 2

This appliance may only be used for domestic use and only for the purpose for which it is intended.

Read and follow these instructions carefully before using your new device.

DO NOT bend the power cord.

Line drawing of a device casing with two internal compartments (no text or symbols)

Keep the appliance and it's cable out of the reach of children under 8 years of age. Children should be supervised to ensure that they do not play with the appliance.

Do not let the cord hang over the edge of a table or kitchen counter. The appliance and its accessible parts are hot during use. Be careful not to touch hot parts and heater of appliance.

WELCOME!

This device meets the highest standards, innovative technology and highly comfortable use.

Read these instructions carefully before using your new unit, and keep it carefully.

If you follow the instructions, your new appliances will provide you with many years of good service.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS WARNING

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the cover. In no case the user is allowed to operate inside the unit. Only a qualified technician from the manufacture is entitled to operate. By ignoring the safety instructions, the manufacturer cannot be hold responsible for the damage.

SAFETY PRECAUTIONS

1. The Appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
2. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
5. Keep the appliance and its cord out of reach of children less than 8 years. Children should be supervised to ensure that they do not play with the appliance
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. Never move the appliance by pulling the cord and make sure the cord cannot become entangled.
8. Cooking appliance should be positioned in a stable situation with handles (if any) positioned to avoid spillage of the hot liquids.
9. The user must not leave the device unattended while it is connected to the supply.
10. This appliance is only to be used for household purposes and only for the purpose it is made for.
11. This appliance is intended for indoor use only

12. To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

13. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

14. Only use the appropriate power plug and power socket for this device.
15. Do not use this appliance near water, in a wet basement or near a swimming pool. Do not expose the device to direct sunlight, humidity or excessive dust.
16. Do not let cord hang over edge of table or counter.
17. Failure to maintain the appliance in a clean condition could lead to damage of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Such damages are not included in the warranty.

WARNING: The appliance and its

accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

1. Children less than 8 years of age shall be

kept away unless continuously supervised.

1. Steam cleaner is not to be used.

WARNING: Electric Shock Hazard Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

Before you connect your new device to the power supply 230V, 50Hz, make sure the voltage in your household and

socket type correspond to the voltage indicated on the nameplate. If you have any doubt, consult with a licensed electrician.

Before using for the first time

1. Remove the packaging.
2. Make sure that the packaging and the bags must be kept out of reach of small children. Do not allow children to play with packaging because there is a risk of suffocation and injury.
3. Take the lid off the deep fat fryer. In the deep fat fryer, you will find a frying basket. Take all objects out of the fryer.
4. It is highly recommended to clean the lid, casing, container and frying basket as described in Cleaning section.

Electrical connection

• Make sure that the voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed 220-240V \~ 50/60Hz,1575-1875W. socket with earthing contact.

Connected Wattage

The total power consumption of this device can be up to 1575-1875W. With this connected load a separate supply line protected by a 10A household circuit breaker is recommended.

CAUTION: OVERLOAD:

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

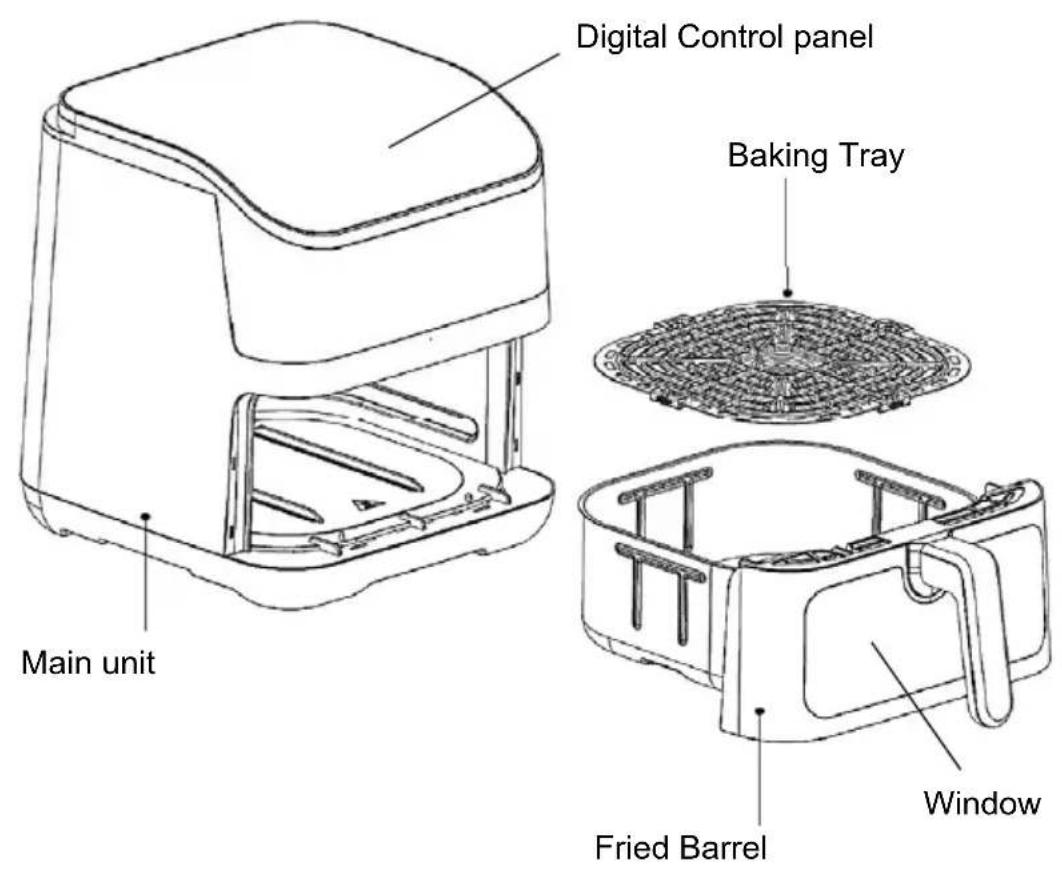

Overview of the Components

NOTE: Remove component parts before usage.

Special Safety Instructions for this Device

• Never add water to the oil!
• Oils and fats may burn when overheated. Please be careful! Do not forget to switch the device off after use! First turn the thermostat to the lowest position and then remove the mains plug.
• Please do not operate the device with an external timer or a separate remote control system.

Intended Use

This device is used for Air-frying food.

It is intended exclusively for this purpose and may only be used as such. It may only be used in the manner described in these instructions for use. The device must not be used for commercial purposes.

Any other use of this device is considered to be contrary to the intended use and may result in damage to materials or even personal injury.

Cooking Technology

Air fryers use convection heat to cook foods so that they are browned and crispy on the outside but remain moist and tender on the inside. Cooking with an air fryer takes less time and makes less of a mess than deep frying or traditional oven roasting.

The top section of an air fryer holds a heating mechanism and fan. You place the food in a fryer-style basket and when you turn it on, hot air rushes down and around the food. This rapid circulation makes the food crisp—much like deep-frying, but without the oil.

In most cases, you'll want to add just 1 or 2 teaspoons of oil to help the food get nice and crispy

Common Mistakes

• Overcrowding the basket: The food in the barrel needs air around it. If you overcrowd the basket in your air fryer, your food won't have a lot of exposed surface area.
• Using too much or too little oil: Air fryer call for only a teaspoon or two of oil. If too much or too little oil is added, you won't get those crispy, browned results. Most recipe s will recommend the amount that's right for that dish, but when in doubt, give everything a quick spritz with oil—just don't overdo it.
• Skipping the preheat step: An Air fryer is like an oven: It needs to be hot before you start with cooking. Preheat your Air frayer before usage.

INSTRUCTIONS FOR USE

Preparation

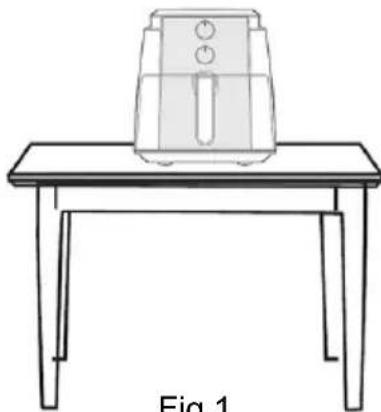

1. The product should be stably placed on a flat table (Figure 1), so that the power cord has a sufficient length to be plugged into socket, and the air around the product should be kept in circulation, and should not be close to flammable items.

Line drawing of a flat-screen air fryer on a table, labeled Fig. 1 (no text or symbols on the device itself)

Fig 1

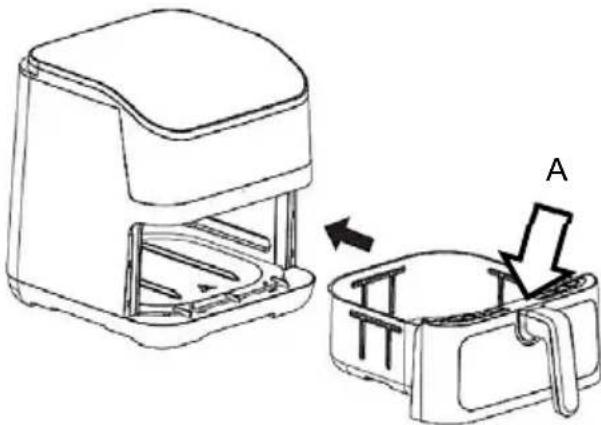

1. Install the barrel assembly (Fig 2)

Note: By pressing the button on the top of the handle (A), the handle can be attached or detached from the barrel.

Line drawing of a toaster oven and its side view showing internal components (no text or symbols)

Fig 2

1. Then push it into the Main unit (Fig 2).

Note: Before placing ingredients, preheat the Air-Fryer for 3-5 minutes, the cooking effect will be better.

1. Turn on the power, then touch a button to select the corresponding function ("Time" and "Temp" to choose working time and Temperature adjustment, then touch "+" and "-" button to adjust value) and touch "Start" button to let the machine run for preheating.

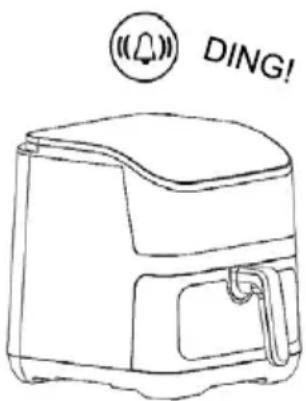

2. After the preheating is completed, the machine will beep and dispaly shows "Add food", hold the top of the machine with one hand, and pull the barrel out by holding the handle of the barrel with the other hand. The barrel must be placed on a stable table.

3. Put the ingredients on the baking tray in the fried barrel.

This cooking method practically eliminates the need for oil, leaving you with crispy air fryer chicken, restaurant-quality french fries and, yes, even crunchy potato chips.

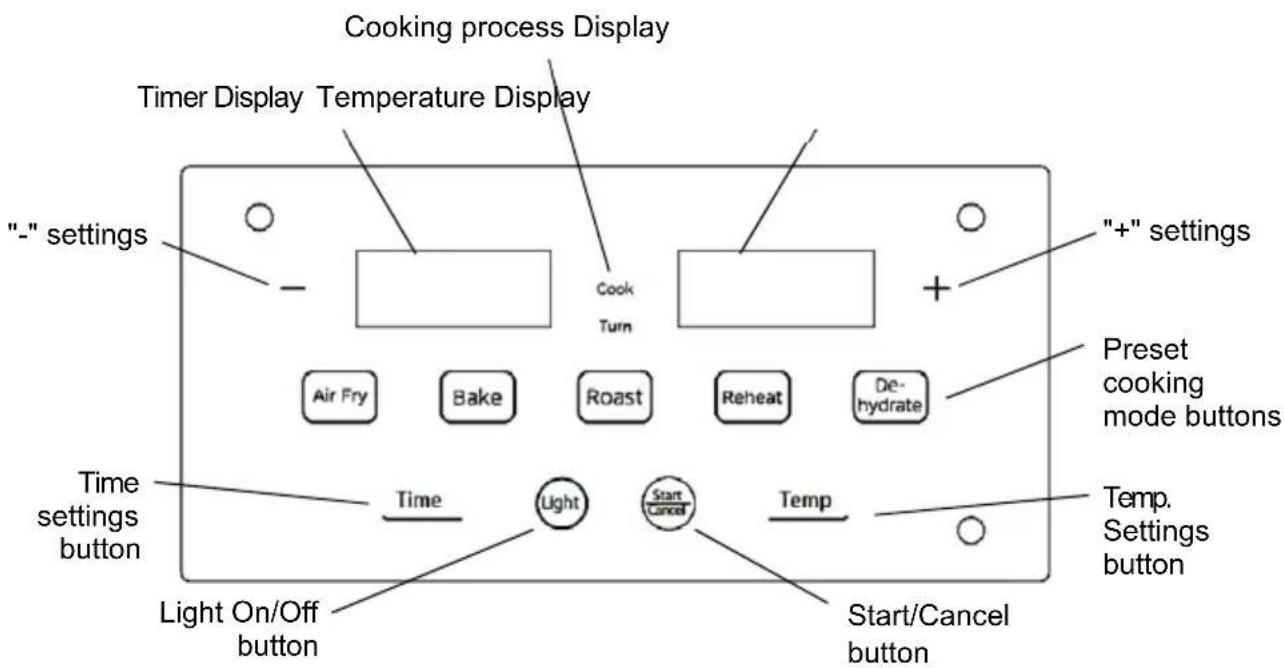

1. Push the barrel into the machine, after the machine is powered on, it will continue to work.

The Display shows the set time or if it is necessary, through the control panel, you can set the certain temperature and time, then touch “ Start/Cancel ” button to start.

Also, you can choose one of the preset cooking modes by pressing "Cooking mode" buttons:

Preset function	Temperature (°C) Time (Min)
	Pre-Setting	Adjustment range	Pre-Setting	Adjustment range
Air Fry 180	40 - 200 21 1 – 60
Bake 170	40 - 200 12 1 – 60
Roast 200	40 - 200 15 1 – 60
Reheat 180	40 - 200 15 1 – 60
Dehydrate	140 40 - 200	30 1 – 60

Typical Frying times*:

Ingredients	Temperature/Time	Ingredients	Temperature/Time
Defrost	5-10min / 80°C	Meat	10-14min / 200°C
French Fries	15-17min / 180°C	Shrimps	8-12min / 180°C
Chicken wings	15-19min / 180°C	Fish	13-17min / 180°C
Chicken legs	20-24mion / 180°C	Cake	8-10min / 180°C

*Frying time may vary, depending on the amount and type of food.

Note: When the barrel is not fully inserted, the micro-switch is not triggered, the machine is still in power Off mode and it will not work. In that case, you only need to fully push the barrel into main unit.

The device has a 10-minute shutdown memory function. If the barrel is removed from the device for more than 10 minutes, the device switches off automatically. Then you have to set Time, Temp and other setting to start with Frying process.

1. After reaching half of the set heating, the machine beeps 5 times, you can put out the barrel, flip sides of the food.

After the timer sounds with "ding" notification, the Air-Frayer cooking process is completed (Fig 3).

When the food is ready, unplug the Air frayer. Take out the Barrel from the main unit carefully, lay it flat on the table, and then use the auxiliary tools (such as chopsticks) to remove the cooked food.

Fig 3

WARNING

Handle with care and remember to lay it flat on the table to avoid being burned by steam or dumping the fryer, or burned by oil or hot food. In the process of removing food, it is recommended to use auxiliary tools (such as chopsticks) to assist.

WARM REMINDERS

• The first use requires 10 minutes of dry burning. A small amount of white smoke or odor may appear during the dry burning process, which is normal. Do not panic.
• Before the product works, please check whether the bakeware or fried basket is in place to avoid malfunction.
• If you find that the product is malfunctioning, please stop using it and contact our service department immediately.
• Please use the bakeware or fried basket and fried barrel together in the whole machine, and avoid using them separately.
• After using, unplug the power plug and allow the air fryer to cool complete-ly before moving.

Cleaning and maintenance

Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.

1. Make sure the fryer is switched off both the thermostat and timer knobs before cleaning and maintenance.
2. Allow the unit, oil or fat to cool down.
   Caution: Do not move the fryer and the contents until it is completely cool down.
3. Empty the fryer and clean the inner part with a paper towel, then wipe with a wet cloth dipped in soapy water. Wipe with a damp cloth and allow it to dry.
   Warning: Never immerse the main unit in the water and do not clean these parts under running water.
   Note: By pressing the button on the top of the handle, the handle can be attached or detached from the barrel. Then, the barrel you can wash in dishwasher.
4. Clean regularly the outer part of the fryer with damp cloth and dry it with a soft and clean towel.
   Note: Do not use abrasive detergents.
5. Clean the basket and the handle in warm soapy water. Dry thoroughly before reusing.
6. Dry completely before storage.
7. Store the appliance in a dry, well-ventilated position which is out of reach of children, when the deep fryer is not in use.
8. Store in its original package when not using for a long time to avoid soiling

CAUTION

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents.
  • Under no circumstances should the device be immersed in water for cleaning.

Housing

- Clean the housing after use with a slightly damp cloth.

Troubleshooting guide

Device is not working

• Check the mains connection.
• Check the position of the thermostat and Timer.
  • The Barrel is not inserted fully into main unit

The ingredients fried with the air fryer are not done

• The amount of ingredients in the basket is too big.
• The set temperature is too low.
  • The preparation time is too short.

The ingredients are fried unevenly in the air fryer.

- Certain types of ingredients need to be shaken halfway through the preparation time. Ingredients that lie on top of or across each other (e.g.fries) need to be shaken halfway through the preparation time.

Fried snacks are not crispy when they come out of the air fryer.

- You used a type of snacks meant to be prepared in a traditional deep fryer. Use oven snacks or lightly brush some oil onto the snacks for a crispier result.

I cannot slide the pan into the appliance properly.

• There are too much ingredients in the basket..
• The basket is not placed, in the pan correctly.

Technical Data

Model	DFA-617DB Protection class Class I
Power Supply 220-240V~, 50/60 Hz Barrel volume	6 L
Power 1575-1875W Net weight 5,8kg

Disposal of electrical and electronic equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

EU Declaration of Conformity

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following

link:

www.msan.hr/dokumentacijaartikala

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

POTPIS I PEČAT PRODAVATELJA

POŠTOVANI!
