Product Type	Deep Fryer
Brand	Vivax
Model	DF-1800B
Oil Capacity	2.5 Liters (max)
Temperature Settings	150°C, 170°C, 190°C
Power Supply	220-240 V AC
Power Consumption	1800 W (estimated)
Viewing Window	Yes, with anti-fog oil coating
Filter System	Removable draw-out filter in lid
Lid Opening	Automatic push-button for safe steam release
Basket Handle	Foldable design
Safety Features	Thermal safety device, automatic cutout, cord management
Usage	Household indoor use only
Included Parts	Pot, basket, lid with filter, handle
Cleaning	Hand wash basket and pot; wipe exterior with damp cloth; do not immerse heating element
Certification	CE compliant

Frequently Asked Questions - DF-1800B Vivax

What type of oil should I use in the deep fryer?

Use only good quality vegetable oil or all-purpose shortening. Butter, margarine, olive oil, or animal fat are not recommended due to their lower smoking temperatures.

How much oil should I put into the fryer?

Pour between 2 and 2.5 liters of oil into the fryer. The oil level must be between the MAX and MIN marks on the pot.

How do I safely open the lid during use?

Press the special lid-open button; the lid will release automatically, allowing steam to escape safely without risk of burns.

Can I use an extension cord with this deep fryer?

No, do not use an extension cord. Plug the fryer directly into a 220-240 V AC outlet to avoid fire hazards.

How do I clean the filter?

The lid is fitted with a draw-out filter system. To clean, remove the filter from the lid and wash it with warm soapy water. Allow it to dry completely before reinserting.

What is the maximum oil level?

The maximum oil level is marked as MAX on the inside of the pot. Do not exceed this level to prevent oil splatter and overheating.

Can I fry frozen food directly?

Yes, but ensure the food is as dry as possible before adding to the basket. Do not add water or wet items to the oil as it will cause spattering.

How should I store the deep fryer when not in use?

Store the appliance in a dry, well-ventilated place out of reach of children. If not used for a long time, store it in its original package to avoid dust.

What should I do if the oil catches fire?

Never use water to extinguish an oil fire. Turn off the fryer and cover with a lid or use a fire blanket. If necessary, call emergency services.

Is the deep fryer safe for children to use?

No, the appliance should not be used by children under 8 years. Children aged 8 and above can use it only under continuous supervision. Keep the appliance and cord out of reach of children under 8.

USER MANUAL DF-1800B Vivax

Line drawing of a child touching a mounted electric fryer with cable, no text or symbols present

DRŽITE PODALJE OD DJECE!

UPOZORENJE

KAO REZULTAT POVLA Č ENJA FRITEZE SA RADNE POVRŠINE MOŽE DO ć I DO OZBILJNIH OPEKOTINA OD ULJA. NE DOPUSTITE DA KABEL NAPAJANJA VISI SA RUBA RADNE POVRŠINE TAMO GDJE GA MOGU DOHVATITI DJECA ILI GDJE SE KORISNIK MOŽE SPOTAKNUTI O NJEGA.

NE KORISTITI SA PRODUŽNIM KABELOM!

SIGURNOSNE UPUTE

1. PROZOR
2. POKLOPAC
3. UNUTARNJI POKROV
4. SUSTAV FILTERA
5. KUĆIŠTE
6. KABEL NAPAJANJA
7. RUČICA TERMOSTATA

8. PREKIDAČ

9. RADNO SVJETLO

10. SVJETLO NAPANJA

11. RUČKA KOŠARE

12. TIPKA RUČKE
13. TIPKA OTVARANJA
14. LONAC
15. KOŠARA

RUČKA KOŠARE

Košara se ne miče kada je ručka košare sklopljena. (FIG.4)

TIPKA OTVARANJA POKLOPCA

Specijalno dizajnirana tipka otvaranja poklopca pomaže Vam otvoriti poklopac sigurno i jednostavno. Pritisnite tipku i poklopac friteze automatski se otvara. Na taj način para iz uređaja izaći će bez opasnosti od opekotina. (FIG.5)

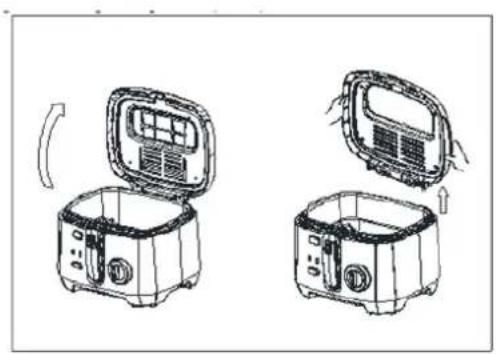

UKLANJANJE POKLOPCA

Kako bi uklonili poklopac podignite ga u vertikalnu poziciju te ga povucite prema gore. (FIG.6)

Line drawing of a toaster with smoke and handle, no text or symbols present

FIG. 5

Line drawings of three kitchen electric cookers with open doors and heat sinks, showing internal compartments and fan arrangement (no text or symbols)

FIG.6

SUSTAV FILTERA

Poklopac je opremljen sa sustavom filtera koji je moguće ukloniti prilikom čišćenja. (FIG.7)

Line drawing of a toaster with a grater and smoke, labeled 'FIG .7' (no text on device)

PROZOR

FIG.9

1. Namažite malo ulja na prozor friteze.
2. Ukopčajte napajanje te postavite termostat na potrebnu temperaturu (pogledajte tablicu referenci). Svjetlo temperature će se ugasiti kada je postavljena temperatura dosegnuta.
3. Dodajte hranu (koliko je moguće suhu) u košaru.

Line drawing of a child interacting with an open fryer on a table, no text or symbols present

DRŽITE UREĐAJ VAN DOMAŠAJA DECE

UPOZORENJE!

KAO REZULTAT POVLAČENJA KABLA I PADA FRITEZE SA RADNE POVRŠINE MOŽE DA DOĐE DO OZBILJNIH OPEKOTINA OD ULJA. NE DOPUSTITE DA KABL NAPAJANJA VISI PREKO IVICE RADNE POVRŠINE TAMO GDE MOGU DA GA DOHVATE DECA ILI GDE KORISNIK MOŽE DA SE SPOTAKNE O NJEGA.

SIGURNOSNA UPUTSTVA

NE UPOTREBLJAVATI SA PRODUŽNIM KABLOM

NAPOMENA

1. PROZOR
2. POKLOPAC
3. UNUTRAŠNJI POKROV
4. SISTEM FILTARA
5. KUĆIŠTE
6. KABL NAPAJANJA
7. RUČICA TERMOSTATA

8. PREKIDAČ

9. RADNO SVETLO

10. INDIKATOR NAPANJA

11. RUČKA KORPE

12. TASTER RUČKE
13. TASTER OTVARANJA
14. LONAC
15. KORPA

RUČKA KORPE

Korpa se ne pomera kad je ručka korpe sklopljena. (FIG.4)

TASTER OTVARANJA POKLOPCA

Specijalno dizajnirani taster otvaranja poklopca pomaže vam da otvorite poklopac bezbedno i jednostavno. Pritisnite taster i poklopac friteze automatski se otvara. Na taj način para iz uređaja izaći će bez opasnosti od opekotina. (FIG.5)

UKLANJANJE POKLOPCA

Kako bi uklonili poklopac podignite ga u vertikalnu poziciju i povucite ga prema gore. (FIG.6)

Line drawing of a hand holding a toaster with a handle, emitting smoke (no text or symbols)

FIG. 5

Line drawing of two kitchen electric cookers with open doors and heat sinks, showing internal components (no text or symbols)

FIG. 6

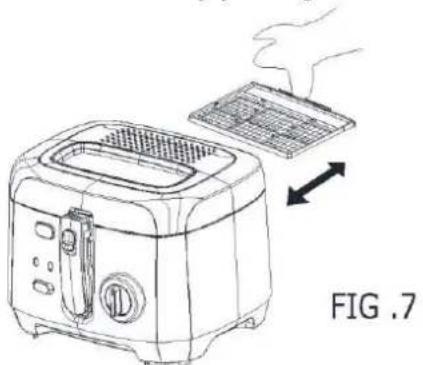

SISTEM FILTARA

Poklopac je opremljen sa sistemom filtara koji je moguće ukloniti prilikom čišćenja. (FIG.7)

Line drawing of a toaster with a grater inside, showing heat transfer from a tray to a front panel (no text or symbols)

PROZOR

FIG.9

Line drawing of a child touching a mounted electric fryer with cable, no text or symbols present

ЧУВАЈТЕ ГО ПОДАЛЕКУ ОД ДЕЦА!

ПРЕДУПРЕДУВАЊЕ

НАПОМЕНА

Line drawing of a toaster with smoke and steam rising from its side (no text or symbols)

FIG. 5

Line drawings of two kitchen electric cookers with open doors and heat sinks, showing internal compartments (no text or symbols)

FIG.6

СИСТЕМ ФИЛТЕР

Line drawing of a toaster with a grater and smoke, labeled 'FIG .7' (no text on the diagram itself)

ПРОЗОР

FIG.9

Line drawing of a person using a cooking fryer to connect electrical wires to a table (no text or symbols)

MBANI LARG FËMIJËVE!

PARALAJMËRIM

SI REZULTAT I TËRHEQJES SË FRITEZËS NGA SIPËRFAQJA E PUNËS MUND TË VIJË NË DJEGIE TË RËNDA NGA VAJI. MOS LEJONI QË KABLLOJA E RRYMËS TË VARET

NGA KËNDI I SIPËRFAQES ATY KU MUND TA PREKIN FËMIJË OSE ATY PËRDORUESI MUND TË PENGOHET NGA AI.

MOS E PËRDORNI ME KABLLO ZGJATËSE! UDHËZIME SIGURIE

1. DRITARJA
2. KAPAKU
3. KAPAKU I BRENDSHËM
4. SISTEMI I FILTRAVE
5. SHTËPIZA
6. KABLLOJA E RRYMËS
7. DOREZA E TERMOSTATIT

8. KYÇËSJA

9. DRITA E PUNËS

10. DRITA E RRYMËS

11. DOREZA E SHPORTËS

12. SUSTA E DOREZËS

13. SUSTA E HAPJES

14. ENA

15. SHPORTA

DOREZA E SHPORTËS

Line drawing of a toaster with smoke and steam rising from the side (no text or symbols)

FIG. 5

Line drawings of two electric cookers with open doors and heat sinks, showing internal components (no text or symbols)

FIG. 6

SISTEMI I FILTRAVE

Line drawing of a toaster with a grater and smoke rising, labeled 'FIG .7' (no text on the diagram itself)

DRITARJA

FIG.9

This product is for household use onl Please read all instructions before us

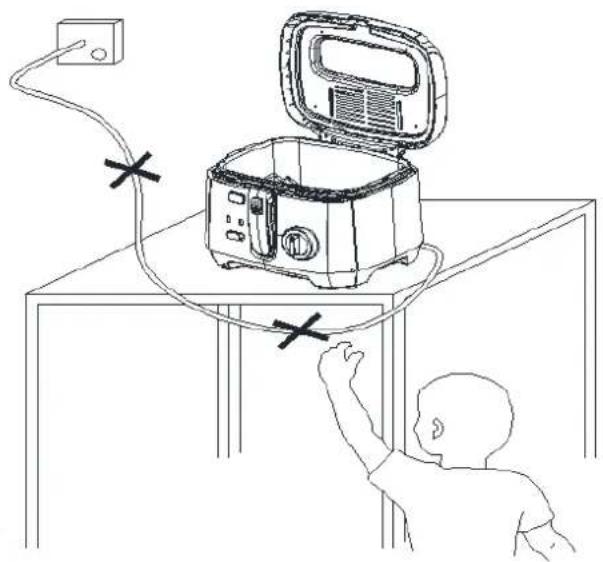

DO NOT DRAPE CORD!

Line drawing of a child touching a cooking appliance on a table, with no text or symbols present.

KEEP AWAY FROM CHILDREN!

WARNING

SERIOUS HOT-OIL BURNS MAY RESULT FROM THE DEEP FRYER BEING PULLED OFF OF A COUNTERTOP. DO NOT ALLOW THE CCRD TO HANG OVER THE EDGE OF THE COUNTER WHERE IT MAY BE GRABBED BY CHILDREN OR BECOME ENTANGLED WITH THE USER.

DO NOT USE WITH AN EXTENSION CORD!

SAFETY GUIDENCE

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

3. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

4. For indoor use only.

5. For household use only.

6. Never immerse the appliance in water

7. This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;

- farm houses;

– by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

1. Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.

1. The surfaces are liable to get hot during use.
2. The temperature of the accessible surfaces may be very high when the appliance is operating.
3. For details on how to clean the surfaces in contact with food or oil, please refer to part “Cleaning and maintenance”. This appliance complies with CE –Directives for EMC is engineered to the latest safety technical requirements.

Subject to technical changes without notice.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE! THIS PRODUCT IS FOR HOUSEHOLD USE ONLY.

NOTE

Plug cord into a 220-240 Volt AC outlet.

Before using fryer for the first time, wash the pot and basket thoroughly with warm, soapy water, carefully dry aluminum pot to maintain the good aesthetic appearance.

Do not use fryer without oil or fat. Fryer will be severely damaged if heated dry.

This fryer has a thermal safety device. In case of thermostat failure, the electrical circuit has an automatic cutout, thus preventing overheating.

Should the fryer leak, please contact the company from which you purchased the fryer.

To ensure safe operation, excessive food or utensils must not be inserted into the fryer.

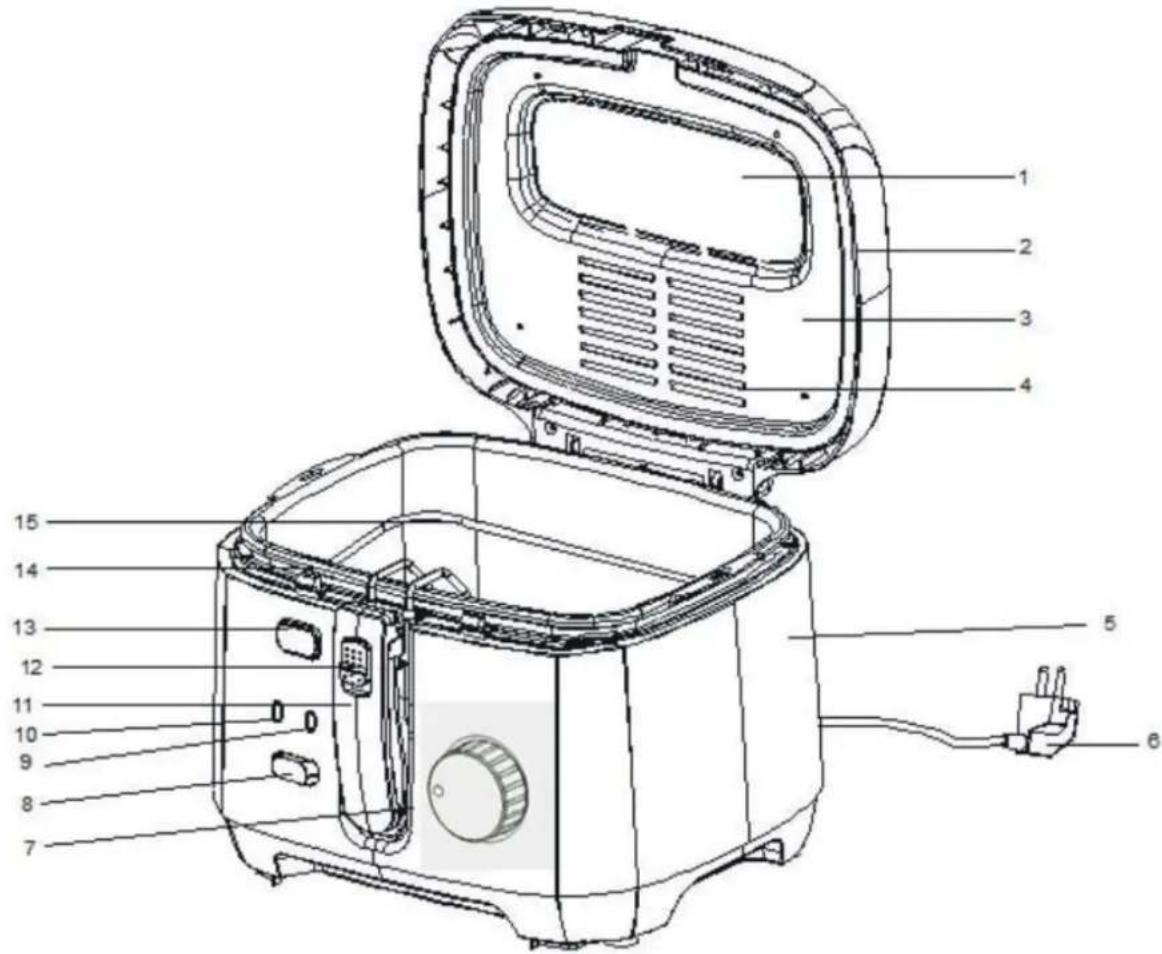

PARTS

1. VIEWING WINDOW
2. LID
3. INNER COVER
4. FILTER SYSTEM
5. HOUSING
6. POWER CORD
7. THERMOSTAT KNOB

8. SWTICH

9. WORKING LIGHT

10. POWER LIGHT

11. BASKET HANDLE

12. HANDLE BUTTON

13. OPEN BUTTON

14. POT

15. BASKET

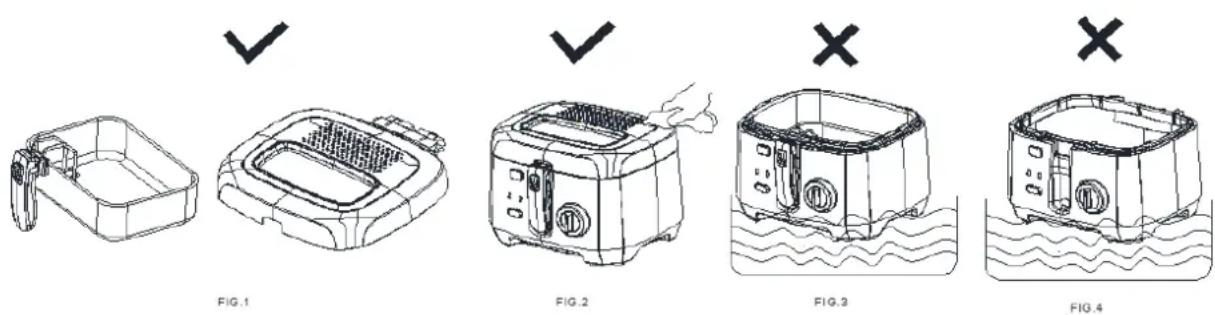

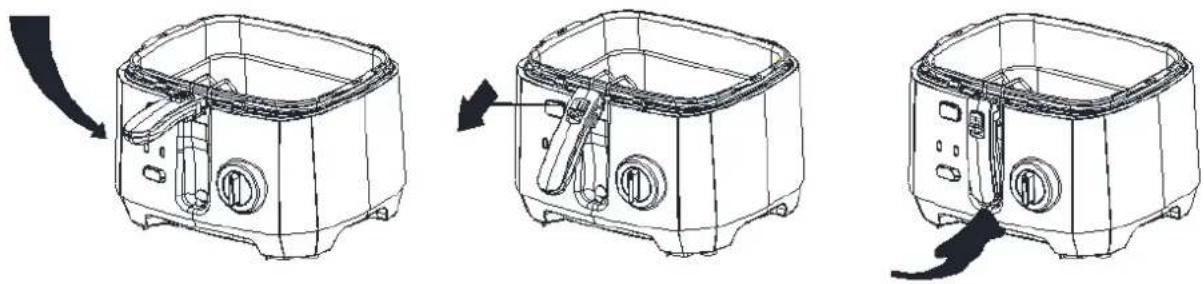

BASKET HANDLE

The basket does not move when fold basket handle. (FIG.4)

Three technical line drawings of a toaster oven with internal components and arrows indicating assembly (no text or symbols)

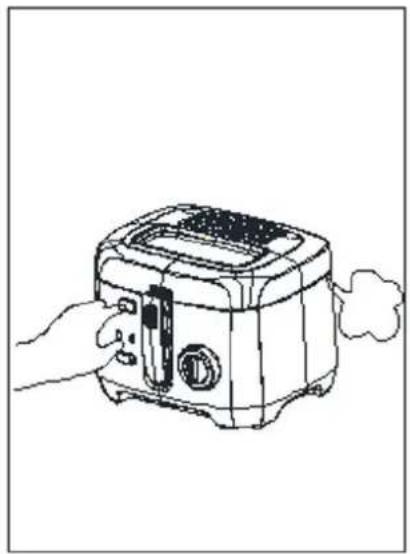

LID-OPEN BUTTON

The special designed LID-OPEN BUTTON helps you open the lid much more easily and safely. Push the button, and fry lid will release automatically. Thus steam will escape from the deep fryer when fried to avoid scalding the fingers (FIG.5)

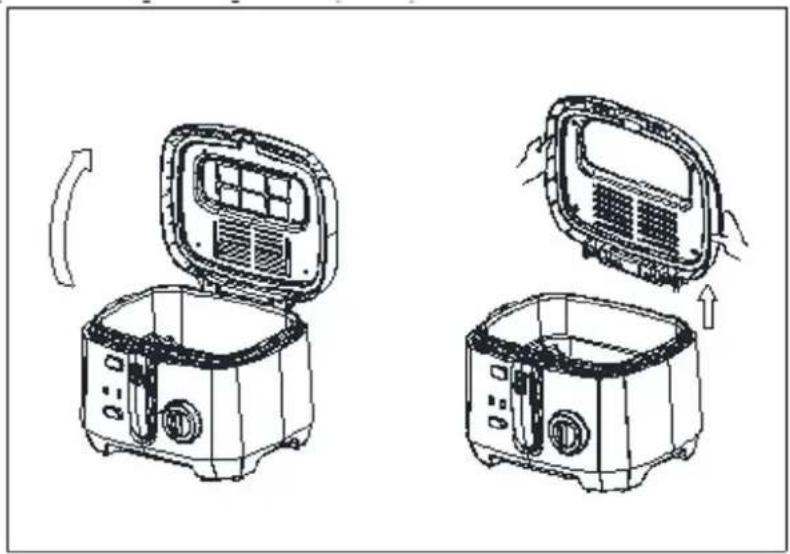

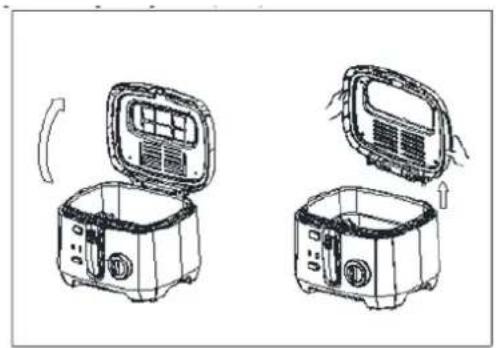

TO REMOVE THE LID

To remove the lid, lift the lid to a vertical position and pull it upwards. (FIG.6)

Line drawing of a hand holding a toaster with smoke, no text or symbols present

FIG. 5

Line drawings of three kitchen electric cookers with open doors and heat sinks, showing internal components and airflow direction (no text or symbols)

FIG. 6

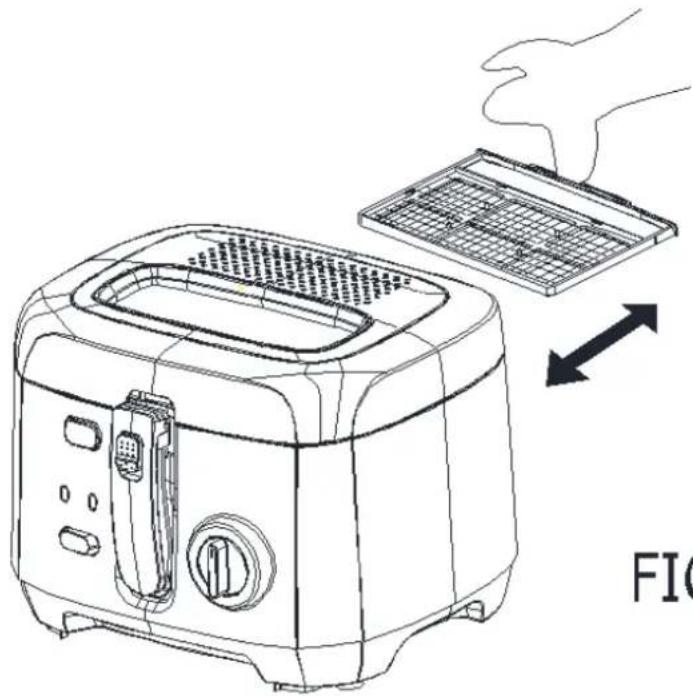

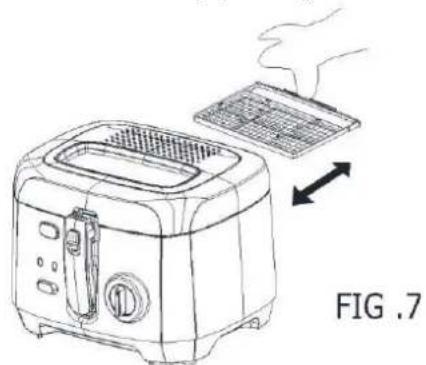

FILTER SYSTEM

The lid is fitted with a draw-out filter system, when cleaning the filter draw it out. (FIG.7)

Line drawing of a toaster with a side panel and hand placing it (no text or symbols)

FIG .7

VIEWING WINDOW

Smear the inner face of the viewing window with the oil to prevent condensation forming and to enable cooking process to be checked.

THERMOSTAT AND PILOT LIGHT

The thermostat is calibrated in steps marked, 150^ , 170^ , and 190^ C, which offers you the best temperature to suit the food to be fried.

TEMPERATURE LIGHT will light automatically while the temperature keeps rising and go out when the set temperature is reached.

POWER LIGHT it will light automatically when the appliance is plugged.

REFERENCE MENU

The frying time given in this chart is only for reference.

FOOD TYPE	TEMPERATURE(°C)	TIME(minutes)
mushrooms	170°C	3-5
crumbed chicken	190°C	10-14
whole shrimp	170°C	3-5
fish cakes	170°C	3-5
fillets	170°C	5
onions	190°C	2-4
french fries	190°C	8-12
potato chips	190°C	12-18

DEEP FRYER USAGE

1. Remove the basket with the handle from the bracket.

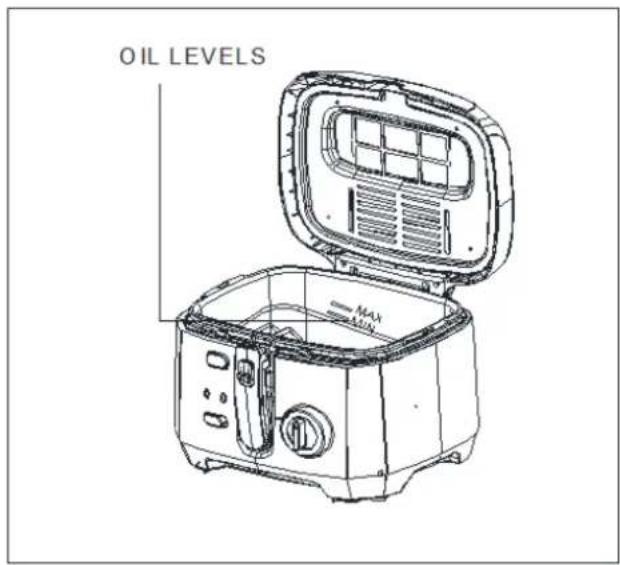

2. Pour between 2-2.5 litres of oil into the fryer. The level of oil must be between the MAX and MIN level marked on the surface of the pot. (FIG.9)
   . Use only good quality vegetable oil or all purpose shortening for deep frying. Butter, margarine, olive oil or animal fat is not recommended due to its lower smoking temperatures.
3. Smear the viewing window with a little oil.

4. Plug in the mains and set thermostat to the required temperature (see the reference menu) The temperature light will go out when the set temperature is reached.

5. Add food (as dry as possible) into the basket first.

.Do not overload basket.

. Place food of uniform size into the basket so that cook evenly.
. Be sure to dry all food before frying.

1. Place the basket back into the fryer. Remove the handle and close the lid. Turn the BASKET knob down to have basket and food immersed in the oil.

. Do not add water or wet stuff to the cooking oil, even small amounts of water will cause oil to spatter.

1. After cooking, lift the basket out of the oil to drain. Push the LID-RELEASE BUTTON to open the lid.

FIG.9

HINTS

1. Use only metal kitchen utensils with insulated handles in hot oil.

2. As is carefulness should be taken when frying, especially when children are near by.

3. Taking into account the food type select the temperature for frying. As a general guide, food that has been pre-cooked in some way need a higher temperature and less cooking time than those raw food.

MAINTENANCE AND CLEANING

1. Make sure the deep fryer is switched off both the thermostat and timer knobs before cleaning and maintenance.

2. Allow the oil or fat to cool down.

Caution: Do not move the deep fry and the contents until it is completely cool down.

1. If the deep fryer is not used regularly. It is recommended to store the oil or liquid fat after cooling in a container preferably in the fridge or some other cool place. Open the lid and remove the bastet. Filter the oil or fat through a fine sieve into the container to remove food particles from the oil or fat.

2. If the deep fryer contains solid fat, allow the fat to solidify in the deep fryer and store the fat in the deep fat fryer. Please refer to chapter of frying with solid fat for details.

3. Empty the fryer and clean the inner part of oil tank with a paper towel, then wipe with a wet cloth dipped in soapy water. Wipe with a damp cloth and allow it to dry.

Warning: Never immerse the heating element in water and do not clean these parts under running water.

1. Clean regularly the outer part of the fryer with damp clothe and dry it with a soft and clean towel.

Note: Do not use abrasive detergents.

1. Clean the basket and the handle in warm soapy water. Dry thoroughly before reusing.
2. Dry completely before storage.
3. Store the appliance in a dry, well-ventilated position which is out of reach of children, when the deep fryer is not in use.
4. Store in its original package when not using for a long time to avoid soiling

EU Waste Electrical and Electronic Equipm

Directive

This symbol on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge.

Alternatively, in some countries, you may be able to return your products to your local retailer upon purchase of an equivalent new product.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with you national legislation.

EU Declaration of Conformity:

Hereby, M SAN Grupa d.d. declares that the radio equipment type TV set is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom periodu bude potreban popravak proizvoda, molim savjetuje se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPOTREBE PROIZVODA PAŽLJIVO PROČITATE TEHNIČKU DOKUMENTACIJU I UPUTE KOJI SU PRILOŽENI UZ PROIZVODI

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovom garancijom garantira

Brčko

Mij as Trade d.o.o.

RDŽ Čauševića 52

049/ 233 500
