Xany 1 LTE - TV Antenna Evolveo - Free user manual and instructions

Product Type	Indoor/Outdoor TV Antenna with LTE Filter
Brand	Evolveo
Model	Xany 1 LTE
Frequency Range	VHF 174-230 MHz, UHF 470-862 MHz
Gain	Up to 15 dBi (UHF)
Impedance	75 Ohm
Polarization	Horizontal / Vertical
Connector Type	F-type female
Cable Length	1.5 m (approx.)
Power Supply	Passive (no external power required)
Dimensions (L x W x H)	300 x 200 x 50 mm
Weight	0.3 kg
LTE Filter	Yes, suppresses 4G/5G interference
Mounting Options	Indoor tabletop stand or wall bracket (included)
Operating Temperature	-10°C to +50°C
Protection Class	IP54 (weather resistant for outdoor use)
Maintenance	Wipe with a dry cloth; avoid water ingress
Safety	Do not install near power lines; use proper mounting hardware
Spare Parts & Repairability	Replacement cables and connectors available; professional repair recommended
General Information	Compatible with DVB-T/T2, HD ready

Frequently Asked Questions - Xany 1 LTE Evolveo

What is the purpose of the LTE filter?

The LTE filter blocks interference from 4G and 5G mobile networks, ensuring clearer TV reception.

Is the antenna suitable for both indoor and outdoor use?

Yes, the antenna is weather-resistant (IP54) and can be used indoors or outdoors with the included stand or bracket.

Which TV standards does it support?

It supports DVB-T and DVB-T2 standards, including HD channels.

Does the antenna need external power?

No, it is a passive antenna and does not require any power source.

How do I achieve the best reception?

Place the antenna as high as possible, near a window or outdoors, and orient it toward the nearest transmitter.

Can I connect multiple TVs to this antenna?

Yes, you can use a signal splitter, but this may reduce signal strength. An amplifier might be needed.

What connector type does it use?

It has an F-type female connector. Standard coaxial cables with F-plugs are required.

How long is the included cable?

The antenna comes with a 1.5-meter coaxial cable pre-attached.

Is the antenna compatible with 4K or HDR?

The antenna itself does not affect picture quality; it receives signals. Compatibility depends on your TV tuner and broadcast.

What should I do if reception is poor?

Check cable connections, try relocating the antenna, or consider adding an amplifier. Also ensure no nearby obstructions.

USER MANUAL Xany 1 LTE Evolveo

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Dovozce / Dovozca / Importer / Importör

Abacus Electric, s.r.o.

Planá 2, 370 01, Czech Republic

No.5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong

Made in China

• Ultra flat design with mirror finish
- Receives Full HD television, digital signals.
- For reception of local and regional UHF and VHF signals.
• Signal clear technology with extremely low noise circuitry.
- Wide band amplifier for best picture and sound reception.

- Includes an external amplifier to enhance performance in poor reception areas. - Can be used as active or passive version, suitable to area near or far from the transmitter.

• To be powered by included AC/DC power adaptor (with detachable USB cable).

• Power-on indicator light.

• Frequency: VHF (174 \~ 230MHz) UHF (470 \~ 790MHz)

- Impedance (Ω): 75

- Gain: 50dBi

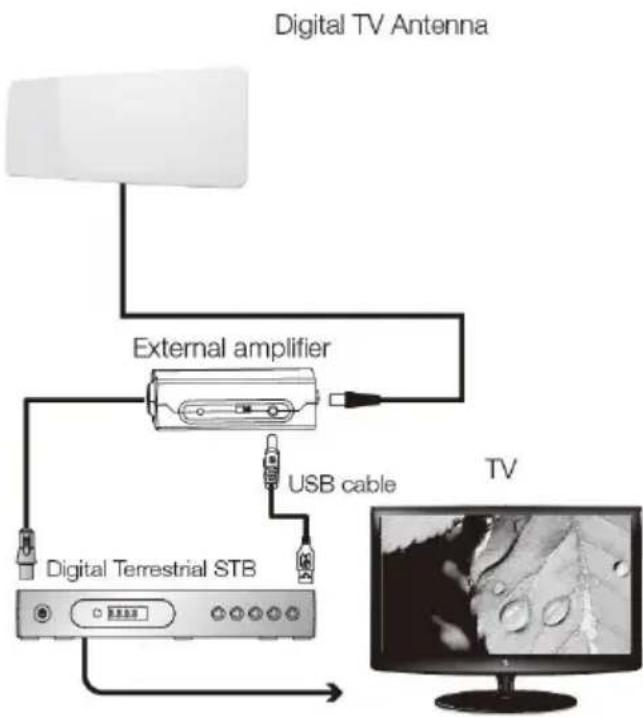

Connection to set-top box, power from set-top box.

Connect the antenna coaxial cable to the external amplifier (included) and connect the amplifier's coaxial cable to the connector of your digital set-top box. If you do not have the IEC connector on the set-top box, use the supplied converter from the IEC connector to F connector. Then connect the USB power cable from the amplifier to the set-top box.


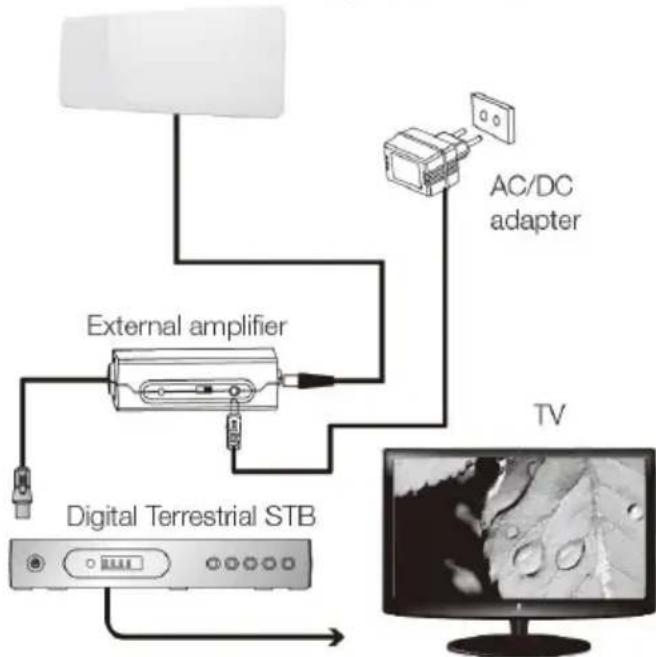

Connect to set-top box, power AC / DC adapter

Connect the antenna coaxial cable to the external amplifier and connect the amplifier's coaxial cable to the connector of your digital set-top box. If you do not have the IEC connector on the set-top box, use the supplied adapter from the IEC connector to the F connector. Then connect the USB power cable from the amplifier to the 200-240V adapter jack. Digital TV Antenna


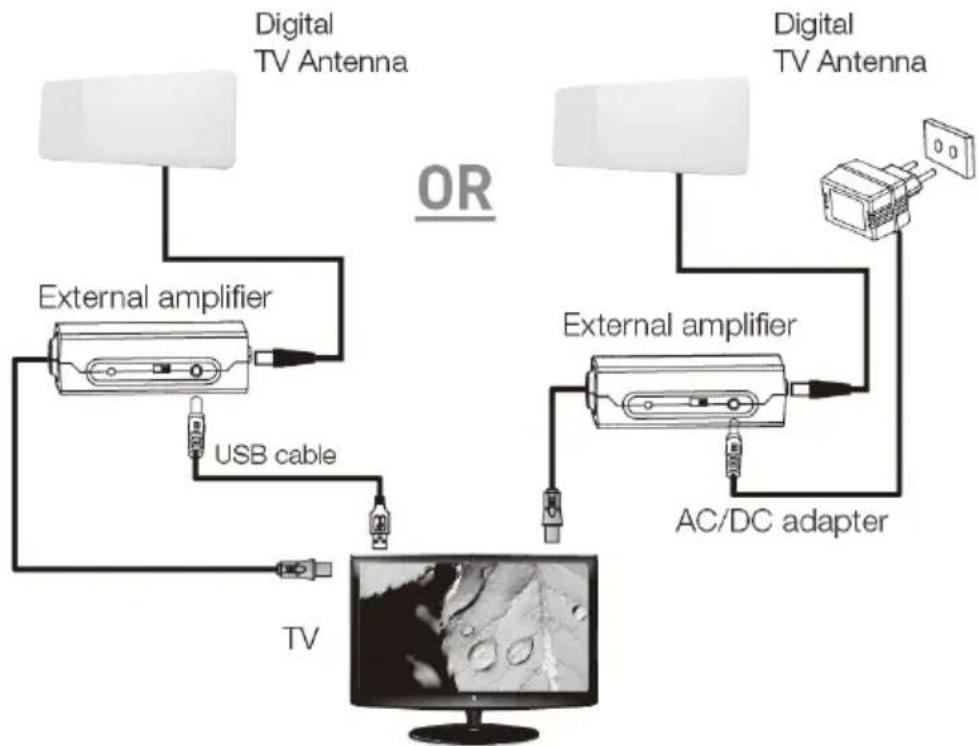

Connecting to a TV (for TVs with built-in tuner)

1: Connect the coaxial antenna cable to the external amplifier and connect the amplifier's coaxial cable to the TV. Then, plug the amplifier's USB power cable into the USB connector on the TV.
2: Connect the antenna coaxial cable to the external amplifier and connect the amplifier's coaxial cable to the TV's antenna connector. Plug the power cord of the amplifier into the adapter and the adapter into a 220-240V outlet.


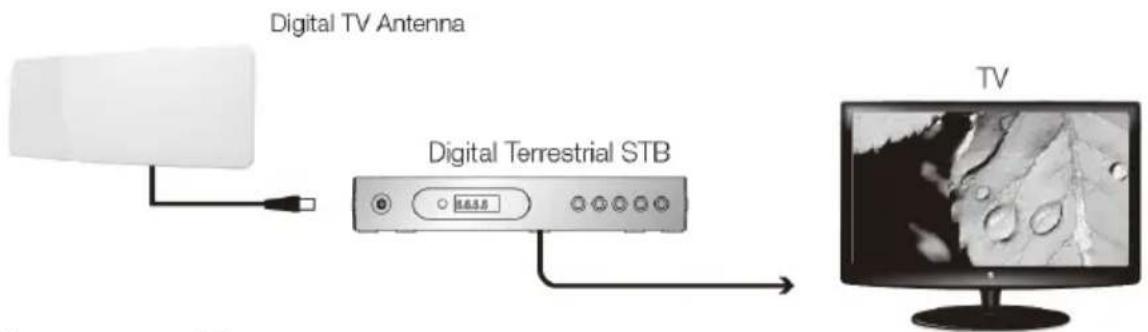

Connection without external amplifier (for strong signal area)

Connect to a digital receiver.

Connect the coaxial antenna cable to the antenna connector of the digital receiver (set-top box). If you do not have the IEC connector on the set-top box, use the supplied adapter from the IEC connector to the F connector.


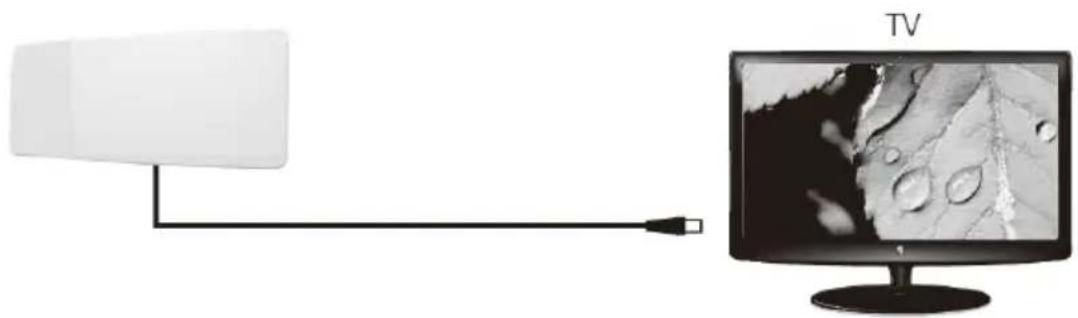

Connect to a TV

Connect the antenna coaxial cable to the TV's antenna connector.

Digital TV Antenna

Diagram showing a TV connected to a rectangular device, with a close-up of its screen displaying water droplets (no text or symbols on the device itself)

Notice:

• The EVOLVEO Xany 1 can be used with or without an amplifier, depending on which connection gives you the best signal. Using the amplifier provides the best performance in most situations, so try using an external amplifier first. If you find that you can not tune some of the channels you normally receive, try to connect Xany 1 without an amplifier.
  • Turn off the TV and turn off the power of the amplifier in the storm.
• If the antenna is not in use, turn off the power of the external amplifier.

Do you still need an advice after reading this guide?

First read “Frequently Asked Questions” at www.evolveo.com or contact the EVOLVEO technical support.

Disposal: The symbol of crossed out container on the product, in the literature or on the wrapping means that in the European Union all the electric and electronic products, batteries and accumulators must be placed into the separate salvage after finishing their lifetime. Do not throw these products into the unsorted municipal waste

① C€ DECLARATION OF CONFORMITY

Hereby, the company Abacus Electric, s.r.o. declares that the EVOLVEO Xany1 is in compliance with the requirements of the standards and regulations, relevant for the given type of device.

Find the complete text of Declaration of Conformity at ftp://ftp.evolveo.com/ce

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Dovozce / Dovozca / Importer / Importőr

Abacus Electric, s.r.o.

Planá 2, 370 01, Czech Republic

No.5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong

Made in China

All rights reserved.

Design and specification may be changed without prior notice.
