Xany 2in1 - TV Antenna Evolveo - Free user manual and instructions

Brand	Evolveo
Model	Xany 2in1
Product Type	TV Antenna (Indoor/Outdoor)
Frequency Range (UHF)	470-698 MHz
Frequency Range (VHF)	88-230 MHz
Max. Output Level	100 dBμV
Impedance	75 Ω
Noise Figure	≤ 3.5 dB
Power Supply	DC 12V (via included adapter)
5G Filter	Yes
Waterproof Housing	Yes
UV Protection	Yes (anti-UV coating)
Built-in Preamplifier	Yes, high gain and low noise
Compatibility	Analog TV, DVB-T, ISDB-T, DMB-T/H, ATSC (HDTV)
Mounting Options	Pole, wall, balcony, table stand (indoor optional)
Package Contents	Antenna unit, table base, mounting accessories, power adapter, coaxial cable with amplifier

Frequently Asked Questions - Xany 2in1 Evolveo

What is the frequency range of the Evolveo Xany 2in1 antenna?

The antenna covers UHF 470-698 MHz and VHF 88-230 MHz, suitable for digital and analog TV signals.

Can I use this antenna indoors?

Yes, the antenna can be used both indoors and outdoors. For indoor use, remove the mounting accessories and place it near a window for best reception.

Does the antenna include a 5G filter?

Yes, the Evolveo Xany 2in1 is equipped with a 5G filter to minimize interference from 5G mobile networks.

How should I position the antenna for optimal reception?

Point the front of the antenna toward the TV signal tower. Install it as high as possible and away from interference sources like air conditioners, elevators, or microwaves.

What TV standards are compatible with this antenna?

The antenna is compatible with analog TV, DVB-T, ISDB-T, DMB-T/H, and ATSC (HDTV) standards.

How do I connect the antenna to my TV?

Connect the coaxial cable's F connector to the antenna's F female connector. Then connect the other end to the TV's antenna input or via a set-top box (e.g., DVB-T2 receiver) as shown in the manual.

Can I mount the antenna on a wall or pole?

Yes, the antenna comes with mounting accessories for pole, wall, or balcony installation. Follow the diagrams in the manual for horizontal or vertical mounting.

What is the noise figure of the preamplifier?

The built-in preamplifier has a low noise figure of ≤ 3.5 dB, ensuring good signal quality even in weak signal areas.

Is the antenna waterproof?

Yes, the housing is waterproof and has an anti-UV coating, making it suitable for outdoor use.

What is included in the package?

The package includes the antenna unit, a table positioning base (optional), mounting accessories, a power adapter, and a coaxial cable with built-in amplifier.

USER MANUAL Xany 2in1 Evolveo

Elegant outdoor antenna for digital and analog TV reception

V4 - 23/10

Introduction:

This is a special designed new concept antenna for digital indoor and outdoor analog and terrestrial HDTV broadcasting reception. It is the best solution for home reception and digital portable TV reception. Complete accessories for horizontal and vertical mounting are included. With the anti-UV and water proof housing, it can be used both indoor and outdoor.

Technical Date:

• Frequency Range: UHF470-698MHz

VHF: 88-230MHz

• Max. Output level: 100dBμV
- Impedance: 75
- Noise Figure: ≤3.5dB
• Power Supply: DC12V
- 5G Filter

Included in Package:

Before start your installation, please check the contents.

1. Antenna main unit
2. Table positioning base(optional)
3. Mounting accessories
4. Power adapter
5. Coaxial cable with amplifier

Product Features:

• Anti-UV coating and waterproof design.
• Lightweight, compact size and easy to install.
• For both analog and digital TV signal reception
• Built-in high gain and low noise preamplifier

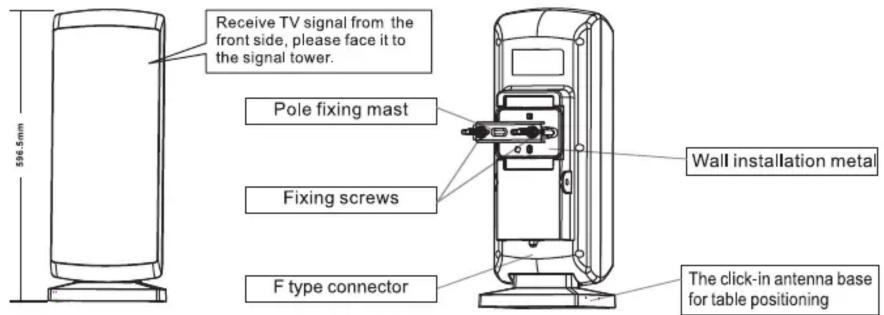

Technical line drawing of a vertical cylindrical device with a handle and mounting base (no text or symbols)

Mounting the antenna:

This antenna can be used both indoor and outdoor, with the included mounting accessories, it can be mounted on the pole.

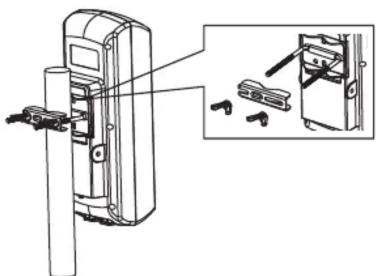

(Fig.1) use the pole mounting accessories to fix the antenna on the pole
(Fig.2) use the mounting accessories to horizontal or vertical mount

Fig.1

Fig.2

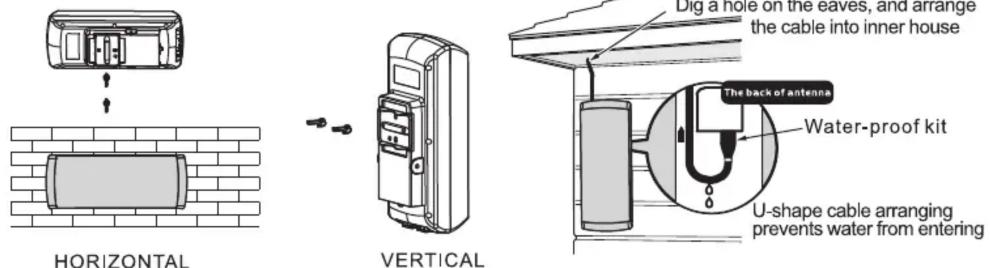

Using the screws to fix the antenna on the wall.

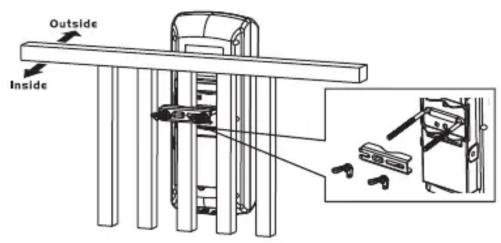

[Fig.3] Using the pole mounting accessories to fix the antenna on the balcony.

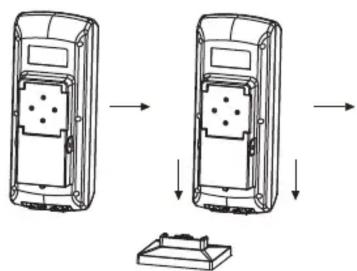

(Fig.4) Indoor installation (optional)
Note: Please take out the mounting accessories for indoor use.

Diagram of a device with an open lid and a separate close-up view showing a small component (no text or symbols present)

Diagram showing two views of a mobile phone casing with internal components and a base component (no text or symbols)

Line drawing of a desktop setup with monitor and cylindrical device (no text or symbols)

(Fig.5) connect the "F" male connector of the coaxial cable to the "F" female connector of the antenna, and wear the water-proof cap to the end of the connected "F" connector.

Fig.5

Installation: Please take following (Fig.6) and (Fig.7) installation instruction for reference.

Diagram showing a white rectangular device connected to a TV displaying a landscape (no text or symbols present)

Installation 1: Directly connected to TV(Fig.6)


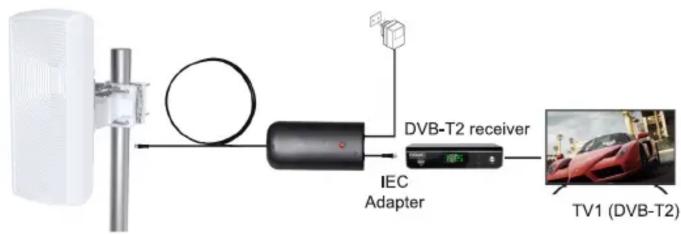

Installation 2: Connected through set-top box (Fig.7)

Note: After the antenna mounting and installation is finished, please adjust the antenna in the best position that can get clear TV picture, then fix the antenna, organize the coaxial cable for neat, tidy and safety,

Please take reference of following positioning way to adjust the antenna position.

(Fig.8) through turning the antenna body to adjust the antenna position in left or right direction (indoor using)

Fig.8

Simple line drawing of a cylindrical object with curved arrows indicating rotation or force direction (no text or symbols)

Operation Instruction:

Note: For the best reception, Please check the following conditions

1. Keep the antenna away from the sources of interference: keep the antenna away from those big power consumption devices, such as air conditioner, elevator, hair dryer and microwave oven...etc.
2. Place the antenna near windows when use the antenna in indoor environment.

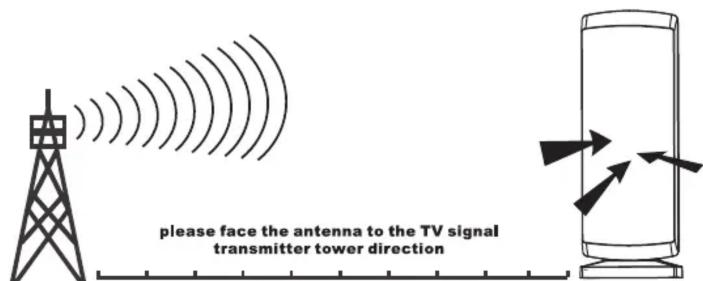

3. Install the antenna as high as possible: in digital terrestrial reception, if there are some interceptions between antenna and transmission tower, it will cause the signal loss temporarily. So if the antenna is installed as possible, those interceptions will be reduced.

Disposal: The symbol of crossed out container on the product, in the literature or on the wrapping means that in the European

Union all the electric and electronic products, batteries and accumulators must be placed into the separate salvage after finishing their lifetime. Do not throw these products into the unsorted municipal waste

DECLARATION OF CONFORMITY

Hereby, the company Abacus Electric, s.r.o. declares that the EVOLVEO Xany 2in1is in compliance with the requirements of the standards and regulations, relevant for the given type of device.

Find the complete text of Declaration of Conformity at http://ftp.evolveo.com/ce/

Dovozce / Výrobce - Dovozca / Výrobca - Importer / Manufacturer - Importör / Gyártó Abacus Electric, s.r.o.

Planá 2, 370 01, Czech Republic

Made in China

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

All rights reserved.

Design and specification may be changed without prior notice.
