Product Type	TV Antenna
Brand	Evolveo
Model	Jade 1
Power Adapter Input	AC 100-240V, 50/60Hz
Power Adapter Output	DC 5V, 0.2A (1W)
Adapter Model	XBA0500200V1
Manufacturer	Guangdong Xinbao Electronic Technology Co., Ltd
Average Active Efficiency	67.45%
No-Load Power Consumption	0.09W
Frequency Range	VHF/UHF
Signal Reception	Digital and analog TV signals
Maintenance	Clean with a soft, dry cloth
Safety	Do not expose to moisture; use only provided adapter
Repairability	Contact professional service for repairs
Mounting	Indoor use recommended
Cable Length	Approximately 1.5 meters

Frequently Asked Questions - Jade 1 Evolveo

How do I install the Evolveo Jade 1 antenna?

Place the antenna near your TV and connect it to the TV's antenna input using the included cable. Plug the power adapter into a wall outlet and connect it to the antenna. Adjust the antenna position for best reception.

What type of TV signal does the Jade 1 support?

It supports digital (DVB-T/T2) and analog TV signals in the VHF/UHF frequency range.

Can I use the Jade 1 outdoors?

The antenna is designed for indoor use. Outdoor use may expose it to moisture and damage; consider a weatherproof model for outdoor installation.

How can I improve the reception quality?

Try repositioning the antenna near a window or higher location. Avoid obstructions like walls or metal objects. Also ensure the antenna is fully extended.

What should I do if the power adapter is lost or damaged?

Only use the specified adapter model XBA0500200V1 (5V DC, 0.2A). Using a different adapter may damage the antenna. Contact Evolveo support for a replacement.

How do I clean the Evolveo Jade 1?

Unplug the antenna and wipe it gently with a soft, dry cloth. Do not use liquids or abrasive cleaners.

Is the Jade 1 compatible with all TVs?

It works with any TV that has a standard coaxial antenna input (F-type connector). It is compatible with both digital and analog tuners.

Why is there no picture on my TV after connecting the antenna?

Ensure the antenna is plugged into power and the TV input is set to 'Antenna' or 'TV'. Perform a channel scan on your TV. Adjust antenna position for stronger signal.

Can I use the Jade 1 with a satellite dish?

No, this antenna is designed for terrestrial TV signals (VHF/UHF), not satellite signals. For satellite, you need a dedicated satellite dish receiver.

Where can I download the user manual?

Visit notice-facile.com and search for 'Evolveo Jade 1' to download the manual in PDF format for free.

USER MANUAL Jade 1 Evolveo

Diagram of a ceiling-mounted device with a curved pipe above it (no text or symbols)

Illustration of a small vehicle with a satellite dish emitting smoke, connected to a car (no text or symbols)

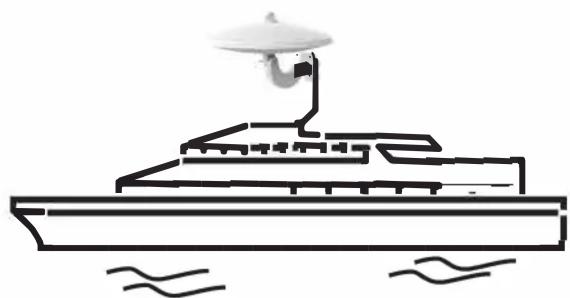

Simple line drawing of a ship with a flagpole and wavy water lines at the base (no text or symbols)

Manufature's name or trade mark, commercial registration number and address
	Name:	Guangdong Xinbao Electronic Technology Co., Ltd
	Address:	Room 402, Building 1, No.6, Puxin 4th Street, Shipai Town, 523330 Dongguan City, PEOPLE'S REPUBLIC OF CHINA.
Model identifier
				Article:	XBA0500200V1
				Description:	Power adapter
	Information published			value	unit
	Input voltage:		AC	100-240	V
	Input AC frequency:			50/60	Hz
	Output voltage		DC	5.0	V
	Output current			0.2	A
	Output power:			1.0	W
	Average active efficiency:			67.45	%
	Efficiency at low load(10%):			/	%
	No-load power consumption:			0.09	W
