Product Type	Outdoor TV Antenna
Brand	Evolveo
Model	Flexi 1 LTE
Signal Reception	Digital HD TV, VHF/UHF, DVB-T/T2
Frequency Range	VHF: 174-230 MHz, UHF: 470-790 MHz
Gain (Passive)	16 dB
Gain (Active with EVOLVEO AMP 1)	36 dB
Polarization	Horizontal
Impedance	75 Ω
Connector	F-type
Included Cable	8.5 m 3C2V antenna cable
Included Accessories	IEC to F-type converter, mounting hardware (screws, U-bolt)
LTE Interference Filtering	Yes (integrated LTE filter)
Weather Resistance	Rustproof and water resistant materials
Installation	Outdoor wall or mast mount
Amplifier Compatibility	EVOLVEO AMP 1 adapter (sold separately)
Maintenance	Clean with damp cloth; avoid solvents
Safety	Install away from power lines; secure mounting
Spare Parts	Optional amplifier available
Repairability	Replaceable cable and amplifier

Frequently Asked Questions - Flexi 1 LTE Evolveo

What type of signals can the Evolveo Flexi 1 LTE antenna receive?

It receives digital HD TV signals including DVB-T/T2, as well as local VHF (174-230 MHz) and UHF (470-790 MHz) signals.

Is the antenna passive or active?

The antenna is passive by default with a gain of 16 dB. It can be converted to active by adding the optional EVOLVEO AMP 1 amplifier, increasing gain to 36 dB.

What is the impedance and connector type?

The antenna has an impedance of 75 Ω and uses an F-type connector. An IEC to F-type converter is included.

Does the antenna come with a cable?

Yes, it includes an 8.5 meter 3C2V antenna cable.

Can I use this antenna indoors?

It is designed for outdoor installation to maximize signal reception. Indoor use may result in weaker signals due to barriers.

Is the antenna weatherproof?

Yes, the antenna is made of rustproof and water-resistant materials suitable for outdoor use.

How do I install the antenna?

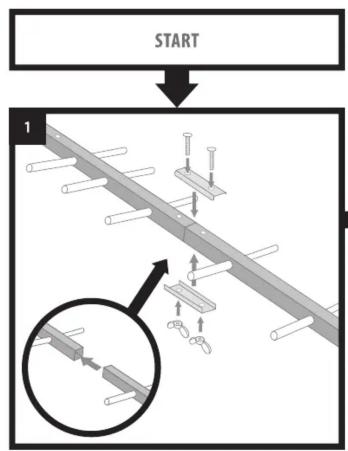

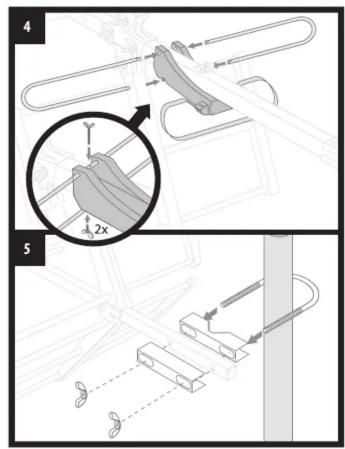

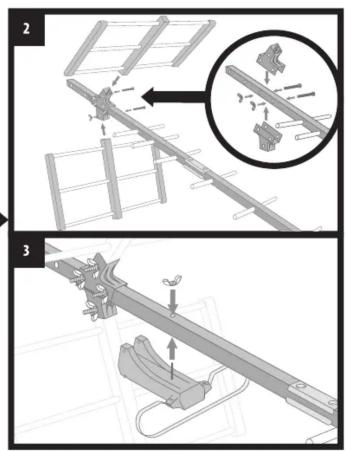

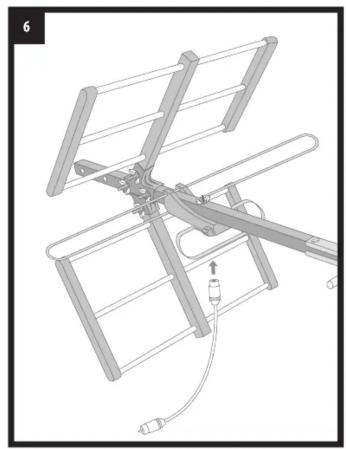

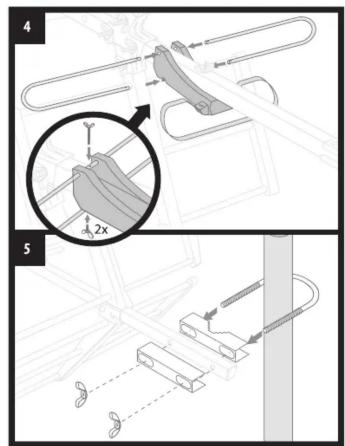

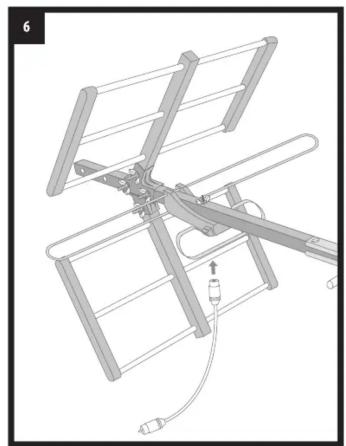

Mount the antenna on a mast or wall using the included U-bolt and screws. Connect the cable to your TV or receiver. For best reception, point the antenna toward the transmitter.

Do I need the amplifier?

If you are in a strong signal area, the passive antenna may suffice. If signal is weak, purchase the EVOLVEO AMP 1 adapter to boost gain to 36 dB.

What is the polarization of the antenna?

The antenna has horizontal polarization.

Does the antenna filter LTE interference?

Yes, the model name Flexi 1 LTE indicates it includes an LTE filter to reduce interference from mobile networks.

USER MANUAL Flexi 1 LTE Evolveo

The EVOLVEO Flexi 1 antenna is for those who are not sure of signal quality. First, it is possible to buy an antenna in a passive variation, if you find that the signal is not sufficient, you can buy the EVOLVEO Amp 1 adapter, which will amplify the signal to a sufficient level.

Features

Receives HD and digital TV signals, local VHF and UHF signals Reflector Panels provide excellent resistance to interference F-type connection makes signal transmission more effective Durable elements are rustproof and water resistant

Technical Specifications

Gain: 16 dB (passive)

36 dB (active with EVOLVEO AMP 1 amplifier)

Frequency: VHF 174-230MHz UHF 470-790MHz

Polarization: horizontal

Impedance: 75Ω

Connector: F type

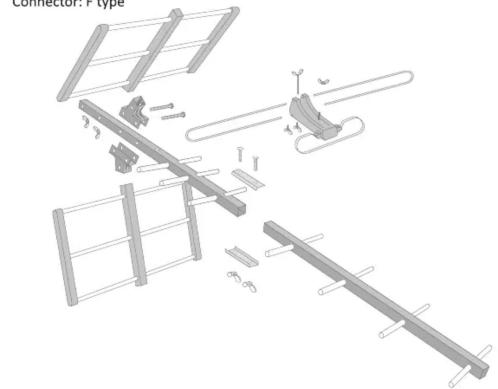

Parts List

1x outdoor antenna

1x 8.5m 3C2V antenna cable

1x IEC to F-type converter

9x screws

1x U-bolt with 2 wing nuts

Technical line drawing of a multi-tiered antenna or antenna assembly with no visible text or symbols

EVOLVE® Flexi 1 LTE

Technical line drawing of a multi-tiered antenna or antenna assembly with no visible text or symbols
