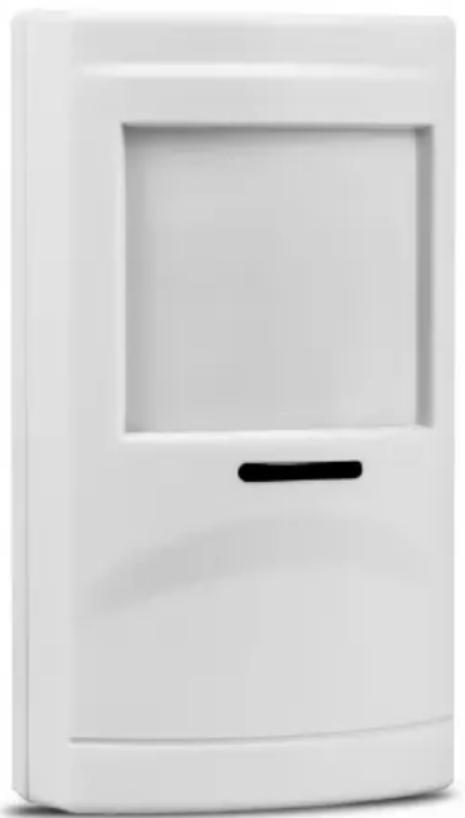

Product Type	Wireless PIR Motion Sensor
Power Supply	DC 3V (CR123A Lithium Battery)
Standby Current	12 µA
Alarm Current	< 20 mA
Detection Distance	< 13 m (25°C)
Transmission Frequency	868.65 MHz
Coding Options	PT2262 and EV1527
Pet Immunity	Up to 20 kg
Tamper Protection	Built-in anti-tamper switch
Operating Temperature	-10°C to 50°C
Recommended Installation Height	2 m above ground (2.2 m for pet immunity)
Alarm Indication	Red LED for 1 second
Low Battery Warning	LED flashes every 5 seconds; signal sent to panel (EV1527 only)
Smart Energy Saving	Enters sleep mode after 3 continuous alarms in 10 minutes, wakes after 3 minutes of inactivity
Application	Indoor use only
Included Components	Sensor, bracket, screws, battery (CR123A)

Frequently Asked Questions - Sonix Evolveo

How do I install the Evolveo Sonix motion sensor?

Mount the sensor at a height of 2 m (2.2 m for pet immunity) using the included bracket. Ensure the detection area is free of obstructions within 1.8 m. Avoid placing near air conditioners, heaters, or direct sunlight. Perform a walk test after installation.

What type of battery does the Sonix use and how long does it last?

It uses a CR123A 3V lithium battery. Battery life depends on usage but is optimized by the intelligent power saving mode. Low battery is indicated by a flashing LED every 5 seconds.

Can I use this sensor with pets?

Yes, the sensor has pet immunity for animals up to 20 kg. For best results, install at 2.2 m height, perpendicular to the ground, and avoid aiming at furniture pets can climb.

How do I switch between Test and Work mode?

Use the onboard switch. Set to Test (ON) for continuous alarm on motion. Set to Work (OFF) for smart energy saving mode. Note: In Work mode, the sensor starts in test mode for 10 minutes.

What does the smart energy saving mode do?

After 10 minutes in Work mode, if the sensor triggers 3 alarms continuously, it enters a sleep mode to save battery. It will not alarm until there is no motion for 3 minutes, then it returns to alarm state.

How do I code the sensor to my alarm panel?

The sensor supports PT2262 and EV1527 coding. Refer to your alarm panel manual for pairing instructions. The sensor sends a signal at 868.65 MHz.

What should I do if the sensor triggers false alarms?

Check for sources of rapid temperature change (AC, heaters, direct sunlight). Ensure the sensor is not facing moving objects like curtains. Adjust the angle and height per installation notes.

How do I replace the battery?

Open the sensor case by removing the screw. Replace the CR123A battery ensuring correct polarity. The sensor will resume operation; a low battery warning is sent only if using EV1527 coding.

Can I install the sensor outdoors?

No, the Sonix is designed for indoor use only. Outdoor installation may cause malfunction and damage.

What is the warranty for Evolveo Sonix?

The product comes with a standard 2-year warranty. For details, refer to the included warranty card or contact Evolveo support.

USER MANUAL Sonix Evolveo

Wireless PIR motion sensor with tamper protection

White rectangular electronic device with a black handle, no visible text or symbols

CZ

EN

I. Funkce

Diagram of a building interior with diagonal shading and a X-shaped structure, enclosed in a rectangular frame (no text or symbols)

1) Kód1

2) Kód2

3) Test

4) Work

1. Kódování

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Dovozce / Výrobce

• Very low 12uA consumption and intelligent energy saving technology.
• Intelligent power saving mode to extend battery life.
• Li battery power supply with battery consumption monitoring.
• PT2262 coding and EV1527 coding.
• Built-in spiral antenna at 868.65 MHz.
• Built-in tamper switch.
• Immunity to animals up to 20 kg.

II. Description of appearance

EN

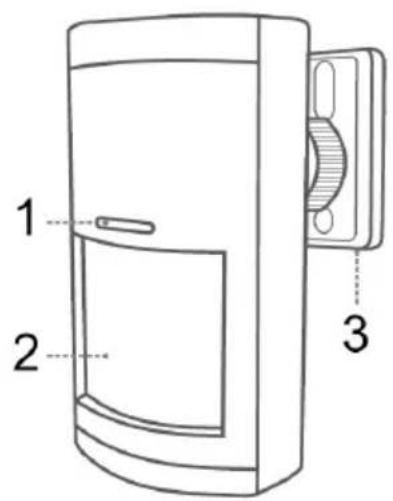

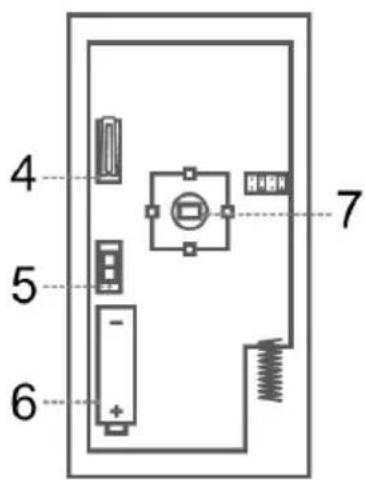

1) Indicator,
2) PIR lens
3) Holder

4) Anti-tamper button
5) Switch
6) Batteries
7) PIR

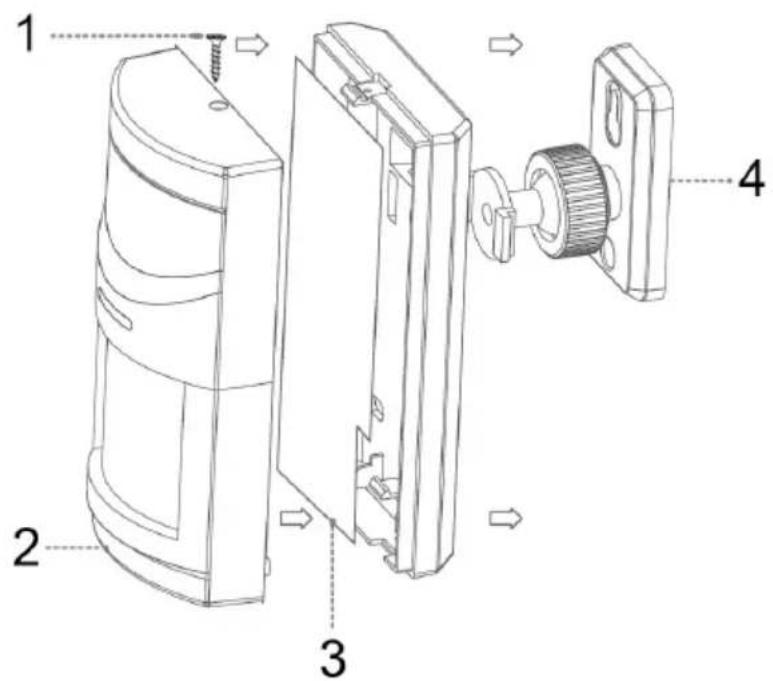

1) Screw
2) Outer jacket

3) Printed circuit board

4) Holder

III. Installation notes

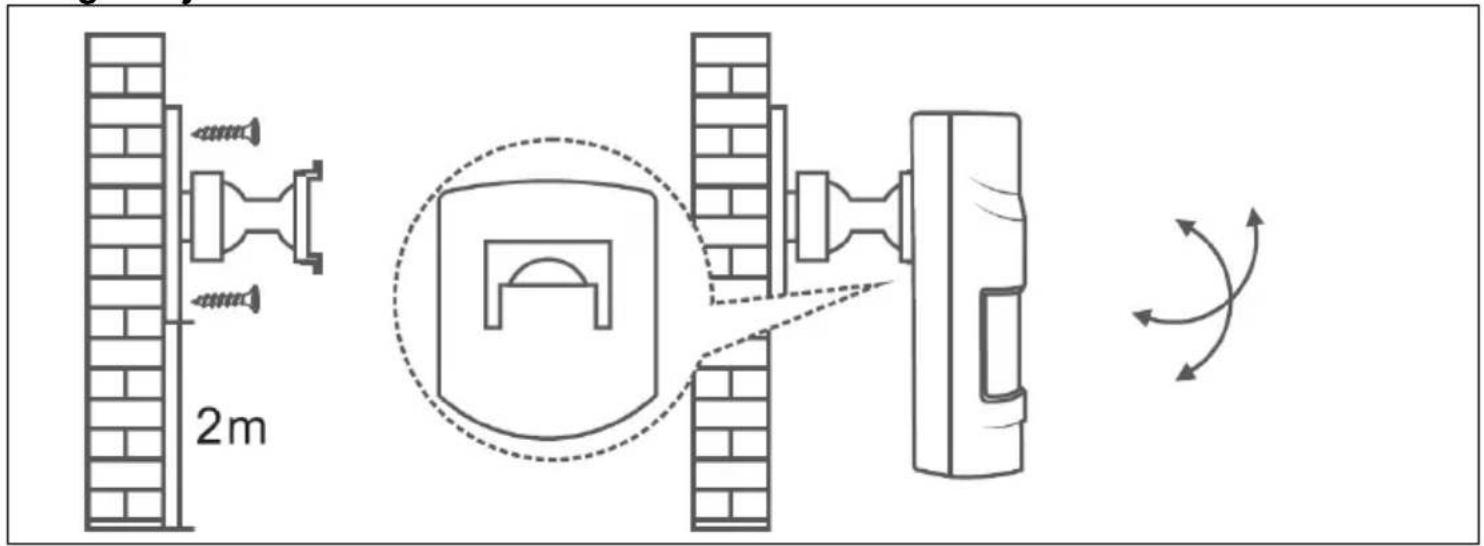

1. It is recommended to mount the detector at a height of 2 m from the ground, select a suitable installation location and adjust the angle.

Angle adjustment

1. Infrared detection is closely related to temperature change.

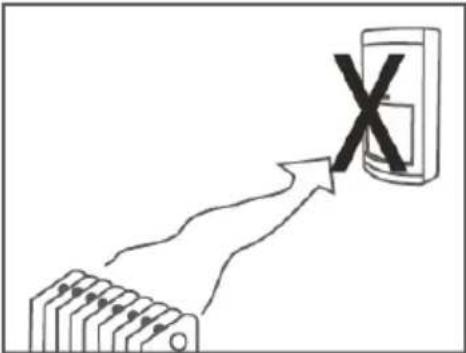

Keep the detector away from air conditioners, heaters, refrigerators or anything that can cause rapid temperature changes.

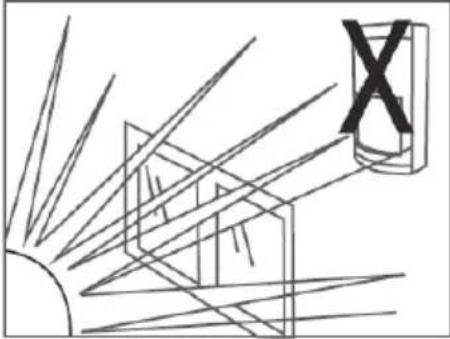

Avoid installation near areas with high sources of cold or heat	Avoid mounting in direct sunlight

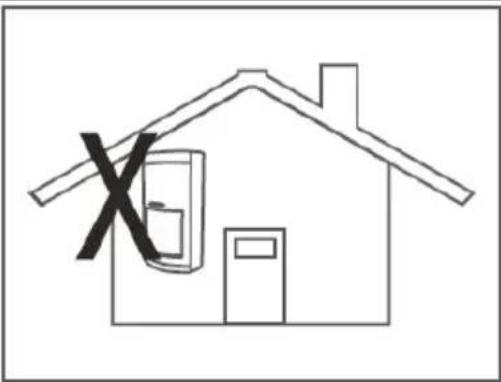

Cannot be installed outdoors			Detector angle cannot be tilted down

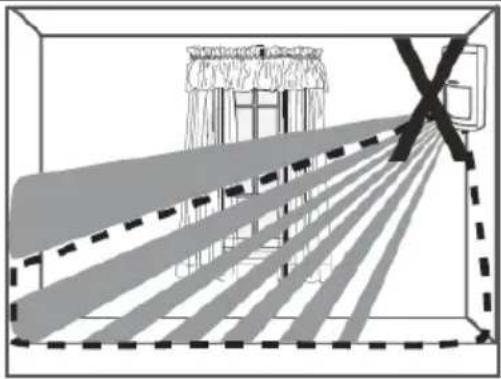

Cannot be installed next to swinging curtains	There must be no objects within 1.8 metres of the detector

1. After installation, perform a walk test. Pay attention to whether the detector can cover the alert area and wireless distance.

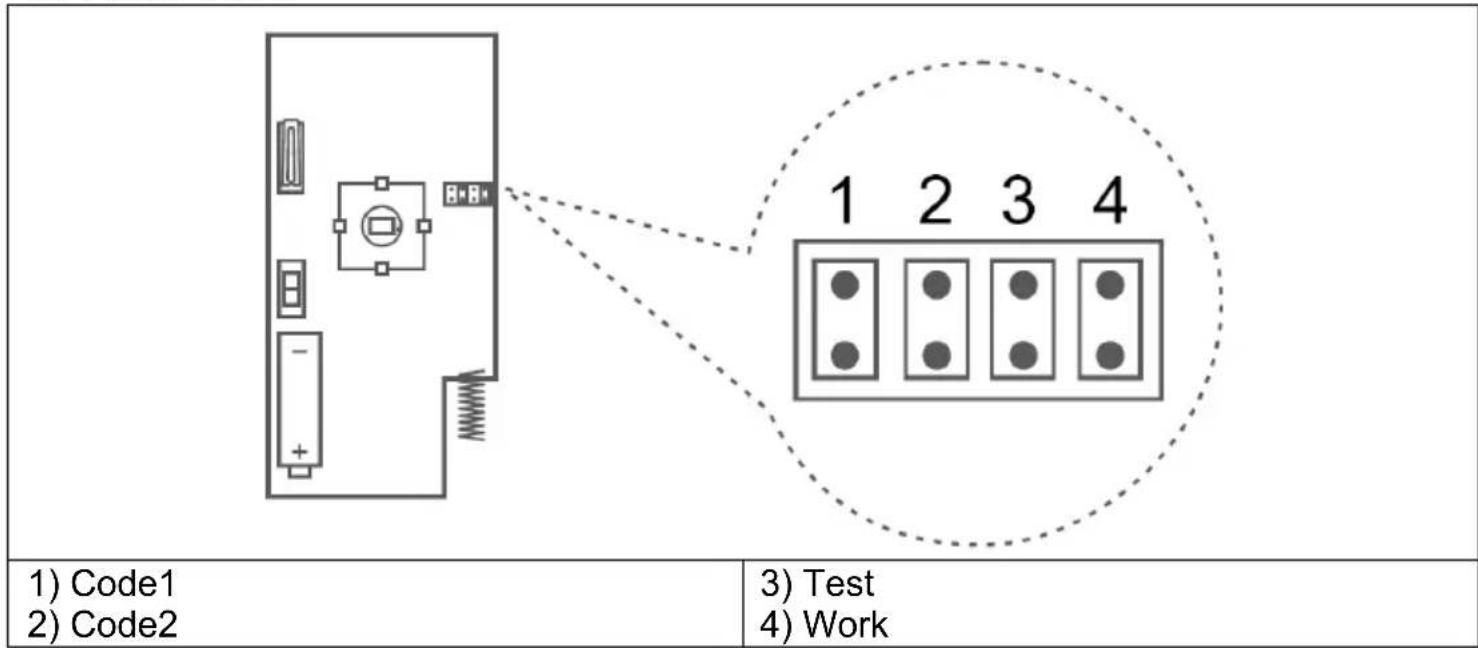

IV. Pin function

2. Options for working states

Status	Test	Work
Test	ON	OFF
Work	OFF	ON
Invalid	OFF	OFF

On: pin to ON position; Off: pin to OFF position

Test mode: triggers an alarm if someone moves in the detection area.

Working mode (default): Smart energy saving. Within 10 minutes of switching on, it is in test mode. Triggers an alarm if someone moves in the detection area. After 10 minutes, if the detector is alarmed 3 times continuously, it will automatically enter intelligent power saving sleep mode to save power. In this case, it will not alarm if someone moves in front of the detector.

When there is no activity in the detection area for 3 minutes, it will exit sleep mode and enter alarm state again.

3. Pet resistance function

With a detection range of 12 meters, the detector is immune to pets up to 20 kg.

For best coverage and immunity effect against pets, install the detector at a height of 2.2 metres above the ground.

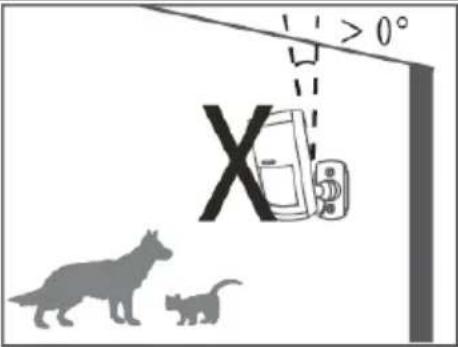

For proper pet immunity function, the detector cannot be installed facing downwards, but perpendicular to the ground. And the bracket can only be rotated horizontally when

installed with the bracket.

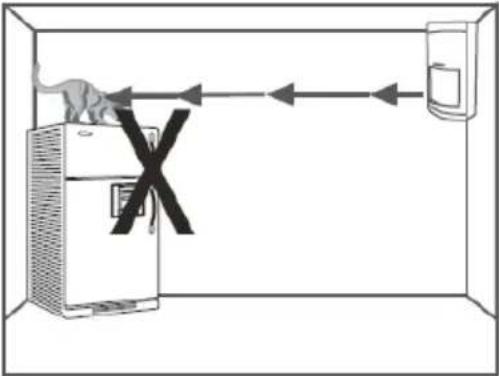

When installing, avoid installing towards furniture that pets can climb on or similar areas.

4. Low battery warning

When the voltage is below 2.2 V, the detector sends a low battery signal to the main panel and an LED flashes every 5 seconds to remind the user to replace the battery.

COMMENT: The detector sends a low battery signal only when EV1527 coding is selected.

V. Parameters

Working voltage: DC 3V (CR 123 A Li battery)

Power consumption: Alarm current: < 20 mA

Standby current: 12 uA

Detection distance: < 13 m(25°)

Transmission frequency: 868.65 MHz

Transmission coding: coding Pt 2262 and coding EV1527

Alarm time: 1 second after alarm indicator turns red

Sensor type: Dual low noise pyroelectric sensor

Operating temperature: - 10 °C - 50 °C

Disposal

The crossed-out container symbol on the product, in literature or on the packaging means that in the EU, all electrical and electronic equipment, batteries and accumulators must be put into separate waste at the end of their useful life. Do not dispose of these products in unsorted municipal waste.

Declaration of conformity

Abacus Electric, s.r.o. hereby declares that the EVOLVEO ACS PIRT meets the requirements of the standards and regulations applicable to this type of equipment.

The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/CE/.

Copyright © Abacus Electric, s.r.o.

www.evolveo.com

www.facebook.com/EvolveoCZ

Importer / Manufacturer

Abacus Electric, s.r.o., Planá 2, 370 01, Czech Republic

Made in China

All rights reserved.

Design and specifications are subject to change without notice.
