Product Type	Microwave Oven with Grill
Model Number	MG23A7013AB
Brand	Samsung
Capacity	23 L
Microwave Power	800 W
Grill Power	1100 W
Combination Cooking	Yes (Microwave + Grill)
Dimensions (W x H x D)	48.9 x 27.5 x 39.2 cm
Cavity Dimensions (W x H x D)	33.2 x 21.5 x 34.2 cm
Weight	12.5 kg
Power Supply	230 V ~ 50 Hz
Controls	Touch + Dial
Display	LED
Auto Cook Programs	Yes (30+ pre-sets)
Defrost Function	Auto and By Weight
Keep Warm Function	Yes
Child Lock	Yes
Interior Light	Yes
Cleaning Helper	Easy Clean Enamel Coating
Spare Parts Availability	Glass tray, roller ring, filters (replaceable)
Repairability	Score 7.5/10 (parts available, complex electronics)
Safety Certifications	CE, RoHS, IEC 60335-2-25

Frequently Asked Questions - MG23A7013AB SAMSUNG

How do I set the clock on my Samsung MG23A7013AB microwave?

Press the Clock button, then use the dial to set hours and minutes. Confirm with OK or Start.

Can I use metal containers in this microwave?

No, metal containers may cause sparks. Use microwave-safe glass, ceramic, or plastic. However, the grill function may allow metal, but only if specified in the manual.

How do I clean the interior?

Wipe with a damp cloth and mild detergent. For stubborn stains, use the Easy Clean function: place a bowl of water with lemon juice, heat for 2 minutes, then wipe.

What does the combination cooking mode do?

Combination cooking uses microwave and grill alternates for crispy and evenly cooked food, e.g., pizza, baked chicken.

How do I defrost food automatically?

Select Auto Defrost, choose food type, enter weight, and press Start. The microwave adjusts time and power automatically.

Why is my microwave not heating?

Check power supply, door closure, and child lock. If the door switch is faulty, contact service. Overheating protection may also activate.

Can I replace the light bulb myself?

No, the interior light is an LED module that requires professional replacement. Contact Samsung service.

How do I use the grill function?

Press Grill, set time (up to 60 minutes), and place food on the high rack. Never cover the grill heating element.

What is the child lock and how to activate it?

The child lock prevents accidental operation. Press and hold Stop/Reset for 3 seconds until L appears on display. Repeat to unlock.

Where can I find spare parts like the glass tray?

Order from Samsung official website or authorized dealers. Part numbers: glass tray DG61-01150A, roller ring DG61-01151A.

USER MANUAL MG23A7013AB SAMSUNG

Simple line drawing of a rectangular frame with a recessed recess (no text or symbols)

Pure technical line drawing of three identical mechanical components with mounting holes (no text or symbols)

Technical line drawing of two mechanical components with internal spring-like structures (no text or symbols)

Four identical screw illustrations arranged in a 2x2 grid (no text or symbols)

Wkręty (typ B) (8)

Instalacja

Technical line drawing of a mechanical component with circular features and mounting base (no text or symbols)

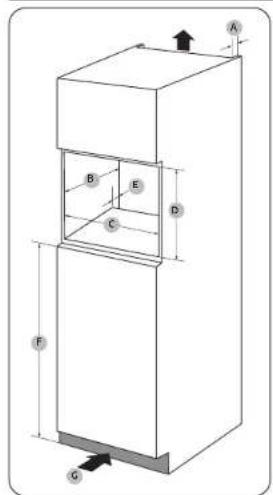

Szafka

A 50 mm

B 550 mm

C 560 mm (+8) mm

D 362 mm

E 50 mm

F 850 mm

G 200 cm

Technical drawing of a rectangular frame with labeled dimensions A and B (no text or symbols beyond labels)

Nakładka ozdobna

A 381 mm

B 596 mm

Technical line drawing of a mechanical device with mounting base and internal components (no text or symbols)

Isometric technical drawing of a mechanical component with no visible text or symbols

Technical line drawing of a microwave oven with mounting bracket and internal panel (no text or symbols)

Technical line drawing of a door frame with an arrow indicating direction (no text or symbols)

Simple line drawing of a roasted chicken inside a rectangular frame (no text or symbols)

Line drawing of a circular mechanical component with a central top and three legs (no text or symbols)

Grillowanie

600 W + Grill, 450 W + Grill i 300 W + Grill.

Simple line drawing of a rectangular frame with a recessed recess (no text or symbols)

Pure technical line drawing of three identical mechanical components with mounting holes (no text or symbols)

Technical line drawing of two mechanical components with spring-like elements (no text or symbols)

Four screws arranged in a 2x2 grid (no text or symbols visible)

Technical line drawing of a mechanical component with a circular base and mounting base (no text or symbols)

Szekrény

A 50 mm

B 550 mm

C 560 mm (+8) mm

D 362 mm

E 50 mm

F 850 mm

G 200 cm

Simple line drawing of a rectangular box with labeled dimensions A and B (no text or symbols on the object itself)

Szegély

A 381 mm

B 596 mm

Üzembe helyezés

Technical line drawing of a mechanical device with labeled components (no text or symbols)

Pure technical diagram of a 3D rectangular component with an arrow indicating direction, no text or symbols present.

Technical line drawing of a cabinet or oven with internal components and mounting features (no text or symbols)

Isometric line drawing of a door frame with an arrow indicating direction (no text or symbols)

Simple line drawing of a roasted chicken inside a rectangular frame (no text or symbols)

Line drawing of a circular mechanical component with internal structure and three legs (no text or symbols)

26 Magyar

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

POZORNE SI ICH PREČÍTAJTE A USCHOVAJTE ICH PRE BUDÚCE POUŽITIE.

Simple line drawing of a rectangular frame with a recessed recess (no text or symbols)

Pásik Základná konzola (2)

Pure technical line drawing of three identical mechanical components with mounting holes (no text or symbols)

Four screws arranged in a 2x2 grid (no text or symbols visible)

Technical line drawing of two mechanical components with spring-like elements (no text or symbols)

Držiak pásika (2) Skrutka (typ A) (4)

Skrutka (typ B) (8)

Slovenčina 9

Inštalácia

Technical line drawing of a mechanical component with circular features and mounting base (no text or symbols)

Skrinka

A 50 mm

B 550 mm

C 560 mm (+8) mm

D 362 mm

E 50 mm

F 850 mm

G 200 cm

Isometric diagram of a rectangular frame with labeled dimensions A and B (no text or symbols beyond labels)

Pásik

A 381 mm

B 596 mm

Technical line drawing of a mechanical device with labeled components (no text or symbols)

Isometric technical drawing of a rectangular component with an arrow indicating direction (no text or symbols)

Technical line drawing of a cabinet or oven with internal components and mounting holes (no text or symbols)

Technical line drawing of a door frame with an arrow indicating direction (no text or symbols)

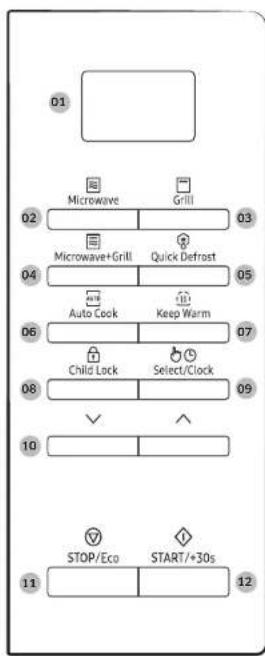

01 Displej
02 Microwave (Mikrovlnny ohrev)
03 Grlovanie
04 Microwave-Grill (Mikrovlnny ohrev + Crilovanie)
05 Quick Defrost (Rychle rozmrazovanie)
06 Auto Cook (Automatické varenie)
07 Keep Warm (Uchovanie v teplom stave)
08 Child Lock (Detská zámka)
09 Select/Clock (Vyber/Hodiny)
10 Nahor/Nadol
11 STOP/Eco (ZASTAVIT/Eko)
12 START/+30s (SPUSTIT/+30s)

14 Slovenčina

Simple line drawing of a roasted chicken inside a rectangular frame (no text or symbols)

1. Na zobrazenie času v
   • 24-hodinovom formáte.
   • 12-hodinovom formáte.
2. Slačenim tlačidla so šipkou nadol alebo nahor nastavite formát času.
3. Stlačte tlačidlo Výber/Hodiny.
4. Scláčanim tlačidla so šípkou nadol alebo nahor nastavíte hodiny.
5. Stlačte tlačidlo Výber/Hodiny.
6. Scláčanim tlačidla so šípkou nadol alebo nahor nastavíte minúty.
7. Stlačte tlačidlo Výber/Hodlny.

1. Potlačenim tlačidla otvorte dvierka mikrovnnej rúry.

2. Umiestnite jeelo do stredu taniera a potom zalvorte dvierka.

3. Stlačte Ulačidlo Auto Cook

4. Sclačenim tlačidle nadol a nahor vyberte požadovanú kategóriu.

• 1. Zdravé varenie

• 2. Home Dessert (Domáci dezert)

1. A potom stlačte tlačidlo Výber/Hodiny.

2. Slačenim tlačidla nadol alebo nahor vyberte typ jedla.

- Úalsie informácie najdete v časti „Opis programu Auto Cook“ na stranách 22 až 26.

1. A potom stlačte tlačidlo Výber/Hodiny.

2. Slačenim tlačidla nadol alebo nahor vyberte hmotnost jedla.

Line drawing of a circular mechanical component with internal structure and three protruding rods (no text or symbols)

Grilovanie

Line drawing of a circular mechanical component with internal structure and mounting brackets (no text or symbols)

600 W + Grill, 450 W + Grill a 300 W + Grill.

Simple line drawing of a rectangular frame with a recessed recess (no text or symbols)

Pure technical line drawing of three identical mechanical components with mounting holes (no text or symbols)

Technical line drawing of two mechanical components with internal spring-like structures (no text or symbols)

Four screws arranged in a 2x2 grid (no text or symbols visible)

Šroub (typ B) (8)

Čeština 9

Umístění a zapojení

Technical line drawing of a mechanical component with a circular base and mounting feet (no text or symbols)

Skřin

A 50 mm

B 550 mm

C 560 mm (+8) mm

D 362 mm

E 50 mm

F 850 mm

G 200 cm

Simple 3D diagram of a rectangular box with labeled dimensions A and B (no text or symbols on the object itself)

Obložení

A 381 mm

B 596 mm

Technical line drawing of a mechanical device with labeled components (no text or symbols)

Isometric technical drawing of a rectangular component with an arrow indicating direction (no text or symbols)

Technical line drawing of a cabinet or oven with internal components and mounting features (no text or symbols)

Technical line drawing of a door frame with an arrow indicating direction (no text or symbols)

Simple line drawing of a roasted chicken inside a rectangular frame (no text or symbols)

Technical line drawing of a circular mechanical component with internal structure and three legs (no text or symbols)

Grilování

08-Feb-21 9:20:24 AM

Contents

Safety instructions 3

Important safety instructions 3

General safety 6

Microwave operation precautions 7

Limited warranty 8

Product group definition 8

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment) 8

Installation 9

Accessories 9

Included for installation 9

Installation instructions microwave oven 10

Installing your microwave oven 10

Dimensions 11

Microwave oven installation procedure 11

Maintenance 13

Cleaning 13

Replacement (repair) 13

Care against an extended period of disuse 13

Microwave oven features 14

Microwave oven 14

Control panel 14

Microwave oven use 15

How a microwave oven works 15

Checking that your oven is operating correctly 15

Cooking/Reheating 16

Setting the time 17

Power levels and time variations 17

Adjusting the cooking time 18

2 English

Stopping the cooking 18

Setting the energy save mode 18

Using the Quick Defrost 19

Using Auto Cook 21

Grilling 26

Combining microwaves and grill 27

Using Keep Warm 28

Using Child Lock 28

Switching the beeper off 28

Cookware guide 29

Cooking guide 30

Microwaves 30

Reheating 32

Reheating liquids 33

Reheating baby food 33

Manual defrosting 34

Grill 35

Microwave + grill 36

Tips and tricks 38

Troubleshooting and information code 38

Troubleshooting 38

Information code 42

Technical specifications 42

Safety instructions

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

This appliance is intended to be used in household only and it is not intended to be used such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

• by clients in hotels, motels and other residential environments;
  • bed and breakfast type environments.

Only use utensils that are suitable for use in microwave ovens. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

If smoke is observed (emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

English 3

Safety instructions

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

The oven should be cleaned regularly and any food deposits removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance is intended to be used built-in only. The appliance shall not be placed in a cabinet.

Metallic containers for food and beverages are not allowed during microwave cooking.

The care should be taken not to displace the turntable when removing containers from the appliance.

The appliance shall not be cleaned with a steam cleaner.

The appliance should not be cleaned with a water jet.

The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This Appliance should be allowed to disconnection from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This oven should be positioned proper direction and height permitting easy access to cavity and control area.

Before using the your oven first time, oven should be operated with the water during 10 minute and then used.

If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

A steam cleaner is not to be used.

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

The appliance must not be installed behind a decorative door in order to avoid overheating.

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

The door or the outer surface may get hot when the appliance is operating.

The temperature of accessible surfaces may be high when the appliance is operating.

The surfaces are liable to get hot during use.

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

English 5

Safety instructions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

General safety

Any modifications or repairs must be performed by qualified personnel only.
Do not heat food or liquids sealed in containers for the microwave function.
Do not use benzene, thinner, alcohol, or steam or high-pressure cleaners to clean the oven.
Do not install the oven: near a heater or flammable material; locations that are humid, oily,
dusty or exposed to direct sunlight or water; or where gas may leak; or an uneven surface.
This oven must be properly grounded in accordance with local and national codes.
Regularly use a dry cloth to remove foreign substances from the power plug terminals and contacts.
Do not pull, excessively bend, or place heavy objects on the power cord.
If there is a gas leak (propane, LP, etc) ventilate immediately. Do not touch the power cord.
Do not touch the power cord with wet hands.
While the oven is operating, do not turn it off by unplugging the power cord.
Do not insert fingers or foreign substances. If foreign substances enter the oven, unplug
the power cord and contact a local Samsung service centre
Do not apply excessive pressure or impact to the oven
Do not place the oven over fragile objects.
Ensure the power voltage, frequency, and current matches the product specifications.
Firmly plug the power plug into the wall socket. Do not use multiple plug adapters,
extension cords, or electric transformers.
Do not hook the power cord on metal objects. Make sure the cord is between objects or behind the oven.
Do not use a damaged power plug, power cord, or loose wall socket. For damaged power plugs or cords, contact a local Samsung service centre.
Do not pour or directly spray water onto the oven.
Do not place objects on the oven, inside, or on the oven door.
Do not spray volatile materials such as insecticide on the oven.
Do not store flammable materials in the oven. Because alcohol vapours can contact hot
parts of the oven, use caution when heating food or drinks containing alcohol.
Children may bump themselves or catch their fingers on the door. When opening/closing
the door, keep children away.

Microwave warning

Microwave heating of beverages may result in delayed eruptive boiling; always use caution when handling the container. Always allow beverages to stand at least 20 seconds before handling. If necessary, stir during heating. Always stir after heating. In the event of scalding, follow these First Aid instructions:

1. Immerse the scalded area in cold water for at least 10 minutes.

2. Cover with a clean, dry dressing.

3. Do not apply any creams, oils, or lotions.

To avoid damaging the tray or rack, do not put the tray or rack in water shortly after cooking.

Do not use the oven for deep fat frying because the oil temperature cannot be controlled. This could result in a sudden boil over of hot oils.

Microwave oven precautions

Only use microwave-safe utensils. Do not use metallic containers, gold or silver trimmed dinnerware, skewers, etc.

Remove wire twist ties. Electric arcing may occur.

Do not use the oven to dry papers or clothes.

Use shorter times for small amounts of food to prevent overheating or burning.

Keep the power cord and power plug away from water and heat sources.

To avoid the risk of explosion, do not heat eggs with shells or hard-boiled eggs. Do not heat airtight or vacuum-sealed containers, nuts, tomatoes, etc.

Do not cover the ventilation slots with cloth or paper. This is a fire hazard. The oven may overheat and turn off automatically and will remain off until it cools sufficiently.

Always use oven mitts when removing a dish.

Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.

Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.

Do not operate the oven when it is empty. The oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all times to absorb microwave energy in case the oven is started accidentally. Install the oven in compliance with the clearances in this manual. (See installing your microwave oven.)

Use caution when connecting other electrical appliances to sockets near the oven.

Microwave operation precautions

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

- Do not operate the oven with the door open. Do not tamper with the safety interlocks (door latches). Do not insert anything into the safety interlock holes.

- Do not place any object between the oven door and front face or allow food or cleaner residue to accumulate on sealing surfaces. Keep the door and door sealing surfaces clean by wiping with a damp cloth and then with a soft, dry cloth after each use.

- Do not operate the oven if it is damaged. Only operate after it has been repaired by a qualified technician.

Important: the oven door must close properly. The door must not be bent; the door hinges must not be broken or loose; the door seals and sealing surfaces must not be damaged.

- All adjustments or repairs must be done by a qualified technician.

English 7

Safety instructions

Limited warranty

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit or accessory was caused by the customer. Items this stipulation covers include:

- Door, handles, out panel, or control panel that are dented, scratched, or broken. - A broken or missing tray, guide roller, coupler, or wire rack.

Use this oven only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven. Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact a local Samsung service centre or find help and information online at www.samsung.com. Use this oven for heating food only. It is intended for domestic use only. Do not heat any type of textiles or cushions filled with grains. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the oven.

To avoid deterioration of the oven surface and hazardous situations, always keep the oven clean and well maintained.

Product group definition

This product is a Group 2 Class B ISM equipment. The definition of group 2 which contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment

For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit: www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/

8 English

Installation

Accessories

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

01 Roller ring, to be placed in the centre of the microwave oven. The roller ring supports the turntable.

02 Turntable, to be placed on the roller ring with the centre fitting to the coupler. The turntable serves as the main cooking surface; it can be easily removed for cleaning.

03 Grill rack, to be placed on the turntable. The metal rack can be used in grill and combination cooking.

CAUTION

Do not operate the microwave oven without the roller ring and turntable.

Included for installation

Simple line drawing of a rectangular frame with two recessed inner panels (no text or symbols)

Trim Base bracket (2)

Pure technical line drawing of two parallel electrical connectors without any text or symbols

Four screws arranged in a 2x2 grid (no text or symbols visible)

Technical line drawing of two mechanical components with spring-like elements (no text or symbols)

Trim holder (2) Screw (Type A) (4)

Screw (Type B) (8)

English 9

Installation

Installation instructions microwave oven

This appliance complies with the EU regulations.

Disposal of packaging and appliance.

The appliance's packaging is recyclable.

The following can be used:

- cardboard;

• polyethylene film (PE);

• CFC-free polystyrene(PS rigid foam).

Dispose of these materials in a responsible manner and in accordance with government regulations.

The authorities can provide you with information about how to dispose of discarded domestic appliances in a responsible manner.

Safety

The appliance should only be connected by a qualified technician.

The microwave oven has been designed for domestic use.

You should use it exclusively for cooking food.

The appliance is hot during and after use.

Bear this in mind if young children come anywhere near the appliance. Installation near to a conventional oven.

- Where a microwave oven is to be installed next to a conventional oven, sufficient space between them should be allowed to prevent overheating, as the trim can wrap with excessively high temperatures. Obviously, it is important to adherent strictly to the conventional oven manufacturer's installation instruction.

- A built-in microwave oven must not be installed above a conventional oven otherwise the microwave oven's cooling system may be adversely affected by hot air produced by the conventional oven.

Electrical connection

The house mains to which the appliance is connected should comply with national and local regulations.

If you wish to make a fixed connection, ensure that a multipolar switch with a minimum contact spacing of 3 mm is fitted in the supply line.

Installing your microwave oven

Technical line drawing of a mechanical component with circular base and mounting holes (no text or symbols)

1. Remove all packing materials inside the oven. Install the roller ring and turntable. Check that the turntable rotates freely.

2. This microwave oven has to be positioned so that plug is accessible.

CAUTION

- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. For your personal safety, plug the cable into a 3 pin, 230 Volt, 50 Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by a special cable.

- Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

10 English

Dimensions

Cabinet

A 50 mm

B 550 mm

C 560 mm (+8) mm

D 362 mm

E 50 mm

F 850 mm

G 200 cm ^2

Simple 3D diagram of a rectangular frame with labeled dimensions A and B (no text or symbols beyond labels)

Trim

A 381 mm

B 596 mm

Microwave oven installation procedure

1. Measure the length of the cabinet and put a mark on the centre.

2. Cut out the template sheet on page 43.

Simple line drawing of a rectangular box with internal compartments and labeled points (no text or symbols)

1. Align the 'CENTRE MARK' on the right side of the template sheet with the centre mark on the cabinet.

- Make sure the text 'LEFT SIDE' is upright.

1. Mark the screw hole locations on the cabinet.

English 11

Installation

Technical line drawing of a mechanical device with labeled components (no text or symbols)

Technical line drawing of a 3D cabinet or enclosure with an arrow indicating direction (no text or symbols present)

1. Turn the template sheet 180 degrees.
2. Align the 'CENTRE MARK', now on the left side of the template sheet, with the centre mark on the cabinet.

3. Mark the screw hole locations on the cabinet.

4. Use the provided screws (Type A) to fasten two Trim holders to the left and right side of the microwave.

- Check the markings (L: left, R: right) on the brackets to fasten them on the correct side.

1. Insert the microwave into the cabinet. Then, align the Base bracket holes with the marking from step 4 and 7.

Technical line drawing of a microwave oven with internal components and mounting bracket (no text or symbols)

Isometric line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

1. Use a 3 mm drill to make holes in the cabinet to fasten the Base brackets. Then, fasten with the provides screws (Type B).

2. Attach the Trim, and then connect all electrical cables. Check if the appliance works properly.

Maintenance

Cleaning

Clean the microwave oven regularly to prevent impurities from building up on or inside the microwave oven. Also pay special attention to the door, door sealing, and turntable and roller ring (applicable models only).

If the door won't open or close smoothly, first check if the door seals have built up impurities. Use a soft cloth in soapy water to clean both the inner and outer sides of the microwave oven. Rinse and dry well.

To remove stubborn impurities with bad smells from inside the microwave oven

1. With an empty microwave oven, put a cup of diluted lemon juice on the centre of the turntable.
2. Heat the microwave oven for 10 minutes at max power.
3. When the cycle is complete, wait until the microwave oven cools down. Then, open the door and clean the cooking chamber.

CAUTION

• Keep the door and door sealing clean and ensure the door opens and closes smoothly. Otherwise, the microwave oven's lifecycle may be shortened.
  • Take caution not to spill water into the microwave oven vents.
• Do not use any abrasive or chemical substances for cleaning.
  • After each use of the microwave oven, use a mild detergent to clean the cooking chamber after waiting for the microwave oven to cool down.

Replacement (repair)

WARNING

This microwave oven has no user-removable parts inside. Do not try to replace or repair the microwave oven yourself.

• If you encounter a problem with hinges, sealing, and/or the door, contact a qualified technician or a local Samsung service centre for technical assistance.
• If you want to replace the light bulb, contact a local Samsung service centre. Do not replace it yourself.
• If you encounter a problem with the outer housing of the microwave oven, first unplug the power cord from the power source, and then contact a local Samsung service centre.

Care against an extended period of disuse

If you don't use the microwave oven for an extended period of time, unplug the power cord and move the microwave oven to a dry, dust-free location. Dust and moisture that builds up inside the microwave oven may affect the performance of the microwave oven.

English 13

Microwave oven features

Microwave oven

01 Ventilation holes
02 Heating element
03 Light
04 Display 05 Door latches 06 Door
07 Turntable
08 Roller ring
09 Coupler
10 Safety interlock holes

Control panel

01 Display
02 Microwave
03 Grill
04 Microwave+Grill
05 Quick Defrost
06 Auto Cool
07 Keep Warm
08 Child Lock
09 Select/Clock
10 Up/Down
11 STOP/Eco
12 START/+30s

14 English

Microwave oven use

How a microwave oven works

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour.

You can use your microwave oven to:

• Defrost
• Reheat
  • Cook

Cooking principle

Line drawing of a chicken inside a cage (no text or symbols)

1. The microwaves generated by the magnetron reflected at cavity and are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
3. Cooking times vary according to the container used and the properties of the food:

• Quantity and density
- Water content
- Initial temperature (refrigerated or not)

NOTE

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the microwave oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre.
• The same temperature throughout the food.

Checking that your oven is operating correctly

The following simple procedure enables you to check that your oven is working correctly at all times. If you are in doubt, refer to the section entitled "Troubleshooting" on the page 38-42.

NOTE

The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum (100% - 800 W) is used, the water takes longer to boil.

1. Push the button to open the microwave oven door.
2. Place a glass of water on the turntable, and then close the door.
3. Press the Microwave button.
4. Press the START/+30s button repeatedly to set the time to 4 or 5 minutes.
5. The microwave oven heats the water for the set time. Check and make sure the water is boiling.

English 15

Microwave oven use

Cooking/Reheating

The following procedure explains how to cook or reheat food.

CAUTION

Always check your cooking settings before leaving the microwave oven unattended.

1. Push the button to open the microwave oven door.
2. Place the food on the centre of the turntable, and then close the door.

CAUTION

Do not operate the microwave oven when it is empty.
3. Press the Microwave button.

- The control panel display shows the corresponding icon (ind the maximum power level (800 W).

1. Press the Down or Up button to select the desired power level.
2. Refer to the "Power levels and time variations" section on page 17 for the appropriate power level.
3. And then press Select/Clock button.

1. Press the Down or Up button to set the desired cooking time.

• The control panel display shows the cooking time.

1. Press thew START/+30s button to start cooking.

2. The light turns on and the turntable starts to rotate.

3. When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

16 English

Setting the time

When power is supplied, "88:88" and then "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour clock. You must set the clock:

- When you first install your microwave oven

• After a power failure

NOTE

You must manually change the time to apply daylight saving time.

1. To display the time in the :
   • 24 hour notation.
   • 12-hour notation.
2. Press the Down or Up button to set the time notation.
3. Press the Select/Clock button.
4. Press the Down or Up button to set the hour.
5. Press the Select/Clock button.
6. Press the Down or Up button to set the minute.
7. Press the Select/Clock button.

Power levels and time variations

The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between six power levels.

Power level Percentage Output
HIGH 100 % 800 W
MEDIUM HIGH 75 % 600 W
MEDIUM 56 % 450 W
MEDIUM LOW 38 % 300 W
DEFROST 23 % 180 W
LOW 13 % 100 W

The cooking times given in recipes and in this booklet correspond to the specific power level indicated.

• The cooking time decreases if you select a higher power level.
• The cooking time increases if you select a lower power level.

NOTE

The control panel display shows the time when the microwave is not in use.

English 17

Microwave oven use

Adjusting the cooking time

You can increase or decrease the cooking time while the microwave oven is cooking.

- Check how cooking is progressing at any time simply by opening the door, and then increase or decrease the cooking time if necessary.

Method 1

Press the START/+30s button to increase the cooking time by 30 seconds.

• Example: To add three minutes, press START/+30s six times.

NOTE

You can only increase the cooking time.

Method 2

Press the Down or Up button to adjust the cooking time.

Stopping the cooking

You can stop cooking at any time so that you can:

• Check the food
  • Turn the food over or stir it
• Leave it to stand

To stop the cooking temporarily

1. Open the door or press STOP/Eco once.
2. Cooking stops temporarily.
3. To resume cooking, close the door and press START/+30s.

To stop the cooking completely

1. Open the door or press STOP/Eco once.
   • Cooking stops temporarily.
2. Press STOP/Eco button again.

Setting the energy save mode

The microwave oven has an energy save mode.

• Press the STOP/Eco button. The control panel display turns off.
• To cancel the energy save mode, open the door or press STOP/Eco. The control panel display shows the current time.

NOTE

Auto energy saving function

The product returns to standby status if there is no input for 25 minutes in the middle of setting or while the operation has been paused. Also, if you leave the door open, the interior lamp automatically turns off after 5 minutes.

18 English

Using the Quick Defrost

The Quick Defrost features enable you to defrost meat, poultry, fish, frozen vegetable and bread. The defrost time and power level are set automatically. You simply select the programme and the weight.

NOTE

Use only containers that are microwave-safe.

1. Push the button to open the microwave oven door.
2. Place the food on the centre of the turntable, and then close the door.
3. Press the Quick Defrost button.
4. Press the Down or Up button to select the type of food.
5. For more information, see the "Quick Defrost programme description" section on page 20.
6. And then press Select/Clock button
7. Press the Down or Up button to set the serving size.

1. Press the START/+30s button to start defrosting.
2. When the microwave oven beeps, open the door and turn the food over.
3. Close the door, and then press START/+30s to resume defro
4. When the defrosting is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

English 19

Microwave oven use

Quick Defrost programme description

The following table presents the various Quick Defrost programmes, serving size, standing times and appropriate instructions. Remove all kind of package material before defrosting. Place meat, poultry, fish, frozen vegetable and bread on a flat glass dish or ceramic plate.

Code	Food Serving	Size Instructions
1	Meat 200-1500	g Shield the edges with aluminium foil. Turn the meat over, when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops, minced meat. Stand for 20-60 minutes.
2	Poultry 200-1500	00 g Shield the log and wing tips with aluminium foil. Turn the poultry over, when the oven beeps. This programme is suitable for whole chicken as well as for chicken portions. Stand for 20-60 minutes.
3	Fish 200-1500	g Shield the tail of a whole fish with aluminium foil. Turn the fish over, when the oven beeps. This programme is suitable for whole fishes as well as for fish fillets. Stand for 20-60 minutes.
4	Frozen Vegetable	200-1500 g Spread frozen vegetable evenly into a flat glass dish. Turn over or stir the frozen vegetable, when the oven beeps. This programme is suitable for all kind of frozen vegetable. Stand for 5-20 minutes.

Code	Food Serving	Size Instructions
5	Bread	200-1500 g	Put bread horizontally on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not suitable for short/ crust pastry, fruit and cream cakes as well as for cake with chocolate topping. Stand for 10-30 minutes.

20 English

Using Auto Cook

Auto Cook has 29 pre-programmed cook settings. You do not need to set either the cooking times or the power level.

CAUTION

Always use microwave-safe and oven-proof cookware.

1. Push the button to open the microwave oven door.

2. Place the food on the centre of the turntable, and then close the door.

3. Press the Auto Cook button.

4. Press the Down and Up button to select the desired category.

• 1. Healthy Cooking

• 2. Home Dessert

1. And then press Select/Clock button

2. Press the Down or Up button to select the type of food.

- For more information, see the "Auto Cook programme description" section on pages 22 to 26.

1. And then press Select/Clock button.

2. Press the Down or Up button to select the weight of food.

- For more information, see the "Auto Cook programme description" section on pages 22 to 26.

- Depending on the selected menu, you may have only one weight option available to select.

- You do not have to select a weight for Home Dessert.

1. Press the START/+30s button to start Auto Cook.

• The microwave oven cooks the food according to the selected pre-programmed setting.

- When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

English 21

Microwave oven use

The following table presents quantities and appropriate instructions about 29 pre-programmed cooking options. The pre-programmes are categorized into 2 different categories.

CAUTION

Use oven gloves when taking out food.

Auto Cook programme description

1. Healthy Cooking

Code	Food Serving Size	Instructions
1-1	Chilled Ready Meal	350 g450 g	Put meal on a ceramic plate and cover with microwave cling film.This programme is suitable for meals consisting of 3 components (e.g. meat with sauce, vegetables and a side dish like potatoes, rice or pasta). Stand for 2-3 minutes.
1-2	Chilled Vegetarian Meal	350 g450 g	Put meal on a ceramic plate and cover with microwave cling film.This programme is suitable for meals consisting of 2 components (e.g. spaghetti with sauce or rice with vegetables). Stand for 2-3 minutes.

Code	Food Serving Size	Instructions
1-3	Broccoli Florets 250 g	Rinse and clean broccoli florets. Put them evenly into a glass bowl with lid. Add 30-45 ml water. (2-3 tbsp.) Put bowl in the centre of turntable. Cook covered. Stir after cooking. This programme is suitable for broccoli as well as sliced courgette, egg plant, pumpkin or pepper. Stand for 1-2 minutes.
1-4	Sliced Carrots 250 g	Rinse and clean carrots cut into round slices evenly. Put them into a glass bowl with lid. Add 30-45 ml water. (2-3 tbsp.) Put bowl in the centre of turntable. Cook covered. Stir after cooking. This programme is suitable for sliced carrots as well as cauliflower florets or turnip cabbage. Stand for 1-2 minutes.
1-5	Green Beans 250 g	Rinse and clean green beans. Put them evenly into a glass bowl with lid. Add 30 ml (1 tbsp.) water when cooking 250 g. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
1-6	Spinach 150 g	Rinse and clean spinach. Put into a glass bowl with lid. Do not add water. Put bowl in the centre of turntable. Cook covered. Stir after cooking. Stand for 1-2 minutes.
1-7	Corn on the Cob	250 g	Rinse and clean corn on the cobs and put into an oval glass dish. Cover with microwave cling film and pierce film. Stand for 1-2 minutes.

22 English

Code	Food Serving Size	Instructions
1-8	Peeled Potatoes	250 g Wash and peel the potatoes and cut into a similar size. Put them into a glass bowl with lid. Add 45-60 ml (3-4 tbsp.) water. Put bowl in the centre of turntable. Cook covered. Stand for 2-3 minutes.
1-9	Brown Rice 125 g	Use a large glass ovenware dish with lid. Add double quantity of cold water (250 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 5-10 minutes.
1-10	Wholemeal Macaroni	125 g Use a large glass ovenware dish with lid. Add 1 L hot boiling water, a pinch of salt and stir well. Cook uncovered. Stir before standing time and drain thoroughly afterwards. Stand for 1 minutes.
1-11	Quinoa 125 g Use a large glass ovenware dish with lid. Add double quantity of cold water (250 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 1-3 minutes.
1-12	Bulgur 125 g Use a large glass ovenware dish with lid. Add double quantity of cold water (250 ml). Cook covered. Stir before standing time and add salt and herbs. Stand for 2-5 minutes.

Code	Food Serving Size	Instructions
1-13	Vegetable Gratin	500 g Put	the vegetables, such as precooked potato slices, courgette slices and tomatoes and sauce into a suitable sized glass pyrex dish. Add grated cheese on top. Put dish on the grill rack. Stand for 2-3 minutes.
1-14	Grilled Tomatoes	400 g Rinse	and clean tomatoes, cut them into halves and put in an ovenware dish. Add grated cheese on top. Put dish on grill rack. Stand for 1-2 minutes.
1-15	Chicken Breasts	300 g (2 pcs.)	Rinse pieces and put on a ceramic plate. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
1-16	Turkey Breasts 300 g	(2 pcs.)	Rinse pieces and put on a ceramic plate. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
1-17	Fresh Fish Filets	300 g (2 pcs.)	Rinse fish and put on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
1-18	Fresh Salmon Filets	300 g (2 pcs.)	Rinse fish and put on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.

Microwave oven use

Code	Food Serving Size	Instructions
1-19	Fresh Prawns 250 g	Rinse prawns on a ceramic plate, add 1 tbsp. lemon juice. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 1-2 minutes.
1-20	Fresh Trout 200 g	(1 fish)	Put fresh whole fish into an microwave oven proof dish. Add a pinch salt, 1 tbsp. lemon juice and herbs. Cover with microwave cling film. Pierce film. Put dish on turntable. Stand for 2 minutes.
1-21	Grilled Fish 300 g	(1-2 fish)	Brush skin of whole fish (trout or gilthead) with oil and add herbs and spices. Put fish side by side, head to tail on the grill rack. Turnover, as soon as the beep sounds. Stand for 3 minutes.
1-22	Grilled Salmon Steaks	400 g (2 steaks)	Put fish steaks evenly on the grill rack. Turnover, as soon as the beep sounds. Stand for 2 minutes.

1. Home Dessert

Code	Food Serving Size	Instructions
2-1	Walnut Pound Cake	1 serving IngredientsFlour 120 g, Butter 150 g, Black sugar 100 g, Egg 2 pcs., Walnut (Chopped) 50 g, Baking powder 4 g
		1. Combine a butter and black sugar in bowl.2. Add egg and mix well.3. Add a flour, baking powder and keep stirring.4. Add a walnut and mix well.5. Pour a mixture in greased glass or plastic bowl.6. Put the bowl in the microwave oven and select the Auto cook [2-1].7. After cooking, stand for 2-3 minutes.
2-2	Banana Bread	1 serving(6 pcs.)	IngredientsBanana 3 pcs., Pancake mix 120 g, Milk 120 g, Egg 1 pc., Malt syrup 2 tbsp.
		1. Chop the banana.2. Combine a pancake mix, milk, egg, malt syrup in bowl.3. Add banana and mix well.4. Pour a mixture in 6 paper cups.5. Put paper cups in the microwave oven and select the Auto cook [2-2].6. After cooking, stand for 2-3 minutes.

24 English

Code	Food Serving Size	Instructions
2-3	Sponge Cake 1	serving Ingredients
		1. Combine a butter and sugar in bowl.2. Add egg and mix well.3. Add a flour, baking powder and keep stirring.4. Pour a mixture in greased glass or plastic bowl.5. Put the bowl in the microwave oven and select the Auto cook [2-3].6. After cooking, stand for 2-3 minutes.
2-4	Brownic 1 serving Ingredients		Flour 90 g, Butter (Melted) 1⁄2 cup, Sugar 230 g, Egg 2 pcs., Cocoa power 40 g
			1. Combine a butter, beaten eggs, sugar in bowl.2. Add a flour, cocoa powder and keep stirring.3. Pour a mixture in greased glass or plastic bowl.4. Put the bowl in the microwave oven and select the Auto cook [2-4].5. After cooking, stand for 20-30 minutes.

Code	Food Serving Size	Instructions
2-5	Egg Pudding 1	serving(3 pcs.)	IngredientsMilk 250 g, Sugar 40 g, Egg 2 pcs.
		1.Crack the two eggs into a bowl. Lightly beat the egg with a balloon whisk. Don't let the tip of the whisk leave the bottom of the bowl to avoid creating too much foam.2.Combine milk, sugar in other bowl.3.Add the milk to the beaten egg while whisking the mixture.4.Sieve the egg mixture with a fine mesh strainer. Scrape off the bottom of the strainer with a spatula. Remove any foam on the surface with a spoon.5.Pour the mixture into custard cups.6.Put the cups in the microwave oven and select the Auto cook [2-5].7.After cooking, refrigerate and serve.
2-6	Chocolate Mug Cake	1 serving Ingredients
		1.Combine the butter, egg and cream together in a mug until well combined.2.Add the flour, sugar and keep stirring.3.Add the cocoa, vanilla and stir until just combined.4.Stir in the chocolate chips.5.Put the mug in the microwave oven and select the Auto cook [2-6].6.After cooking, stand for 2-3 minutes.

English 25

Microwave oven use

Code	Food Serving Size	Instructions
2-7	Mug Cake 1 serving Ingredients

Grilling

The grill enables you to heat and brown food quickly, without using microwaves.

• Always use oven gloves when touching the cookware in the microwave oven, as they will be very hot.
- You can get better cooking and grilling results, if you use the grill rack.

Technical line drawing of a circular mechanical component with three legs and a central top (no text or symbols)

1. Push the button to open the microwave oven door.

2. Place the food on the grill rack, and then close the door.

3. Press the Grill button.

4. The control panel display shows the corresponding icon (☐)

5. You cannot set the temperature of the grill.

6. Press the Down or Up button to set the desired grilling time.

- The maximum grilling time is 60 minutes.

1. Press the START/+30s button to start grilling.

- When the grilling is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

26 English

Combining microwaves and grill

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

CAUTION

• Always use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.
• Always use oven gloves when touching the cookware in the microwave oven, as they will be very hot.
- You can improve cooking and grilling, if you use the grill rack.

1. Push the button to open the microwave oven door.
2. Place the food on the grill rack, and then close the door.
3. Press the Microwave+Grill button.

• The control panel display shows the corresponding icon

(☐ and the default power level (600 W).

1. Press the Down or UP button to select the desired power level.

2. You can select the power level from 600 W, 450 W, or 300 W.

3. You cannot set the temperature of the grill.

1. Press the Down or Up button to set the desired cooking time.
   • The maximum cooking time is 60 minutes.
2. Press the START/+30s button to start cooking.

- When the cooking is complete, the microwave oven beeps 4 times and the control panel display shows the current time. Then, the end reminder signal beeps once every minute for 3 times.

English 27

Microwave oven use

Using Keep Warm

The Keep Warm feature keeps food hot until it's served. Use this function to keep food warm until ready to serve.

NOTE

The Keep Warm time has been specified as 60 minutes.

1. Press the Keep Warm button.

1. Press the Down or Up button to select the desired setting.

• 1. Hot
• 2. Mild

1. Press START/+30s.

• To stop warming the food, open the door or press STOP/Eco button.

CAUTION

• Do not use this function to reheat cold foods. This programmes are for keeping food warm that has just been cooked.
• Do not cover with lids or plastic wrap.
  • Use oven gloves when taking out food.
  • After start keep warm feature, set time cannot be changed.

Using Child Lock

Your microwave oven is fitted with a special child lock programme, which enables the microwave oven to be "locked" so that children or anyone unfamiliar with it cannot operate it accidentally.

• To activate Child Lock, press the Child Lock button for 3 second
• The control panel is locked, and the control panel display shows "L".
  • To deactivate Child Lock, press the Child Lock button again for 3 seconds.

Switching the beeper off

You can switch the beeper off whenever you want.

• To turn the beeping sound off, press the Stop/ECO and Down buttons at the same time.

• The control panel shows "Off".

• To turn the beeping sound back on, press the Stop/ECO and Down buttons at the same time again.

• The control panel shows "On"

28 English

Cookware guide

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used.

Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry.

The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware	Microwave-safe	Comments
Alunimium foil	√✗	Can be used in small quantities to protect areas against overcooking. Arcing can occur if the foil is too close to the microwave oven wall or if too much foil is used.
Crust plate	√	Do not preheat for more than 8 minutes.
China and earthenware	√	Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes	√	Some frozen foods are packaged in these dishes.
Fast food packaging• Polystyrene cups containers• Paper bags or newspaper• Recycled paper or metal trims	√✗✗	Can be used to warm food. Overheating may cause the polystyrene to melt.May catch fire.May cause arcing.
Glassware• Oven to-tableware• Fine glassware	√√	Can be used, unless decorated with a metal trim.Can be used to warm foods or liquids.Delicate glass may break or crack if heated suddenly.

Cookware	Microwave-safe	Comments
Glass jars	√	Must remove the lid. Suitable for warming only.
MetalDishesFrocer bag twist ties	✗✗	May cause arcing or fire.
PaperPlates, cups, napkins and kitchen paperRecycled paper	√✗	For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
PlasticContainersCling filmFreezer bags	√√√✗	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures.Do not use Melamine plastic.Can be used to retain moisture. Should not touch the food. Take care when removing the film as hot steam will escape.Only if boilable or oven-proof. Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ : Recommended
√X : Use caution
✗ : Unsafe

English 29

Cooking guide

Microwaves

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content. The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

Cooking

Cookware for microwave cooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking:

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking Guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time.

Food Serving	Size Power Time (m/n.)
Spinach 150 g 600 W	412 512
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Broccoli 300 g 600 W	9-10
	InstructionsAdd 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes.
Peas 300 g 600 W	712 812
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Green Beans 300 g 600 W	8-9
	InstructionsAdd 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes.
Mixed Vegetables(Carrots/Peas/Corn)	300 g 600 W	712 - 812
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
Mixed Vegetables(Chinese Style)	300 g 600 W	8-9
	InstructionsAdd 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.

30 English

Cooking Guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.

Food Serving	Size Power Time (min.)
Broccoli 250 g	500 g	800 W 4-4 12	7-7 12
	InstructionsPrepare even sized florets. Arrange the stems to the centre. Stand for 3 minutes.
Brussels Sprouts 250	g 800 W 5 12 -6 12
	InstructionsAdd 60-75 ml (4-5 tbsp.) water. Stand for 3 minutes.
Carrots 250 g 800 W	4 12 -5
	InstructionsCut carrots into even sized slices. Stand for 3 minutes.
Cauliflower 250 g	500 g	800 W 5-5 12	8 12 -9
	InstructionsPrepare even sized florets. Cut big florets into halves.Arrange stems to the centre. Stand for 3 minutes.
Courgettes 250 g 800	W 3 12 -4
	InstructionsCut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender. Stand for 3 minutes.

Food Serving Size Power Time (m/n.)
Egg Plants 250 g 800 W 31⁄2 4
		InstructionsCut egg plants into small slices and sprinkle with 1 tbsp. lemon juice. Stand for 3 minutes.
Leeks	250 g 800 W	41⁄2-5
	InstructionsCut leeks into thick slices. Stand for 3 minutes.
Mushrooms	125 g250 g	800 W 11⁄2-2	3-31⁄2
	InstructionsPrepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving. Stand for 3 minutes.
Onions	250 g 800 W	51⁄2-6
	InstructionsCut onions into slices or halves. Add only 15 ml (1 tbsp.) water. Stand for 3 minutes.
Pepper	250 g 800 W	41⁄2 5
	InstructionsCut pepper into small slices. Stand for 3 minutes.
Potatoes	250 g500 g	800 W	4-571⁄2-81⁄2
	InstructionsWeigh the peeled potatoes and cut them into similar sized halves or quarters. Stand for 3 minutes.
Turnip Cabbage	250 g 800 W	5-51⁄2
	InstructionsCut turnip cabbage into small cubes. Stand for 3 minutes.

English 31

Cooking guide

Cooking Guide for rice and pasta

Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered.

After the cooking time is over, stir before standing time and salt or add herbs and butter.

Remark: the rice may not have absorbed all water after the cooking time is finished.

Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered.

Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

Food Serving Size Power Time (min.)
White Rice (Parboiled)	250 g 800 W	16-17
	Instructions Add 500 ml cold water. Stand for 5 minutes.
Brown Rice (Parboiled)	250 g 800 W	21-22
	Instructions Add 500 ml cold water. Stand for 5 minutes.
Mixed Rice (Rice + Wild Rice)	250 g 800 W	17-18
	Instructions Add 500 ml cold water. Stand for 5 minutes.
Mixed Corn (Rice + Grain)	250 g 800 W	18-19
	Instructions Add 400 ml cold water. Stand for 5 minutes.
Pasta 250 g 800 W	11-12
	Instructions Add 1000 ml hot water. Stand for 5 minutes.

Reheating

Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take.

Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.

Arranging and covering

Avoid reheating large items such as joint of meat - they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

Some foods can be reheated using 800 W power while others should be reheated using 600 W, 450 W or even 300 W.

Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).

Stir well or turn food over during reheating for best results. When possible, stir again before serving.

Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating.

Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food.

It is preferable to underestimate cooking time and add extra heating time, if necessary.

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken - for future reference.

Always make sure that the reheated food is piping hot throughout.

Allow food to stand for a short time after reheating - to let the temperature even out.

The recommended standing time after reheating is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

Reheating liquids

Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

Reheating baby food

Baby food:

Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand for 2-3 minutes before serving. Stir again and check the temperature. Recommended serving temperature: between 30-40 °C.

Baby milk:

Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C.

Remark:

Baby food particularly needs to be checked carefully before serving to prevent burns. Use the power levels and times in the next table as a guide lines for reheating.

Reheating liquids and food
Use the power levels and times in this table as a guide lines for reheating.

Food Serving	Size Power Time (min.)
Drinks (Coffee, Tea and Water)	150 ml (1 cup)250 ml (1 mug)	800 W 1-1 12	1 12 -2
	InstructionsPour into cup and reheat uncovered. Put cup / mug in the centre of turntable. Keep in microwave oven during standing time and stir well. Stand for 1-2 minutes.
Soup (Chilled) 250 g	800 W 3-3 12
	InstructionsPour into a deep ceramic plate. Cover with plastic lid. Stir well after reheating. Stir again before serving. Stand for 2-3 minutes.
Stew (Chilled) 350 g	500 W 5 12 -6 12
	InstructionsPut stew in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 2-3 minutes.
Pasta with Sauce (Chilled)	350 g 600 W	4 12 -5 12
	InstructionsPut pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving. Stand for 3 minutes.
Filled Pasta with Sauce (Chilled)	350 g 600 W	5-6
	InstructionsPut filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving. Stand for 3 minutes.

Cooking guide

Food Serving	Size Power Time (min.)
Plated Meal(Chilled)	350 g 600 W	512 612
	InstructionsPlate a meal of 2-3 chilled components on a ceramic dish.Cover with microwave cling-film. Stand for 3 minutes.

Reheating baby food and milk

Use the power levels and times in this table as guide lines for reheating.

Food Serving	Size Power Time
Baby Food (Vegetables + Meat)	190 g 600 W	30 sec.
	InstructionsEmpty into ceramic deep plate. Cook covered. Stir after cooking time. Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes.
Baby Porridge (Grain + Milk + Fruit)	190 g 600 W	20 sec.
	InstructionsEmpty into ceramic deep plate. Cook covered. Stir after cooking time. Before serving, stir well and check the temperature carefully. Stand for 2-3 minutes.
Baby Milk	100 ml 300 W200 ml	30-40 sec.	50 sec. to 1 min.
	InstructionsStir or shake well and pour into a sterilized glass bottle. Place into the centre of turn-table. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully. Stand for 2-3 minutes.

Manual defrosting

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away. Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible.

Check the food occasionally to make sure that it does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting. Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to stand in order to complete defrosting. The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about 18 to 20 °C, use the following table as a guide.

Food Serving Size Power Time (min.)
MeatMinced Beef 250 gPork Steaks 250 g	500 g180 W 7 12 8 12	180 W 6 12 -7 12	10-12
	InstructionsPlace the meat on a flat ceramic plate. Shield thinner edges with aluminium foil. Turn over after half of defrosting time! Stand for 5-25 minutes.

34 English

Food Serving Size Power Time (min.)
PoultryChicken Pieces 500Whole Chicken 900	g (2 pcs.) 180 W 14 12 -15 12 g 180 W 28-30
	InstructionsFirst, put chicken pieces first skin-side down, whole chickenfirst breast-side-down on a flat ceramic plate. Shield thethinner parts like wings and circles with aluminium foil. Turnover after half of defrosting time! Stand for 15-40 minutes.
FishFish Fillets 250 g (2 pcs.)400 g (4 pcs.)		180 W 6-7	12-13
FruitsBerries 250 g 180 W 6-7
BreadBread Rolls (Eachabout 50 g)Toast/Sandwich 250 g 180 W 4 12 -5German Bread(Wheat + Rye Flour)	InstructionsDistribute fruits on a flat, round glass dish (with a largediameter). Stand for 5-10 minutes.
	2 pcs.4 pcs.500 g 180 W 4 12 -5500 g 180 W	180 W 12 -18-10	2-2 12
	InstructionsArrange rolls in a circle or bread horizontally on kitchenpaper in the middle of turntable. Turn over after half ofdefrosting time! Stand for 5-20 minutes.

Grill

The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 3-5 minutes will make the food brown more quickly.

Cookware for grilling:

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling;

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings.

Important remark:

Whenever the grill only mode is used, please remember that food must be placed on the high rack, unless another instruction is recommended.

English 35

Cooking guide

Microwave + grill

This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Three combination modes are available with this model:

600 W + Grill, 450 W + Grill and 300 W + Grill.

Cookware for cooking with microwaves + grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwaves + grill cooking:

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

Important remark:

Whenever the combination mode (microwave + grill) is used, the food should be placed on the high rack, unless another instruction is recommended. Please refer to the instructions in the following chart.

The food must be turned over, if it is to be browned on both sides.

Grill Guide for frozen food

Use the power levels and times in this table as guide lines for grilling.

Frozen Food Serving Size Power		1 step (min.)	2 step (min.)
Bread Rolls(Each ca. 50 g) 2 pcs.	4 pcs.	MW + Grill 300 W + Grill		Grill only
				1-1 12
				2-2 12
	InstructionsArrange rolls in a circle on rack. Grill the second side of the rolls up to the crisp you prefer. Stand for 2-5 minutes.
Baguettes + Topping(Tomatoes, Cheese, Ham, Mushrooms)	250-300 g(2 pcs.)	450 W + Grill	8-9 -
	InstructionsPut 2 frozen baguettes side by side on the rack. After grilling. Stand for 2-3 minutes.
Gratin(Vegetables or Potatoes)	400 g 450	W + Grill 13-14 -
	InstructionsPut frozen gratin into a small, round glass pyrex dish. Put the dish on the rack. After grilling. Stand for 2-3 minutes.
Pasta (Cannelloni, Macaroni, Lasagne)	400 g MW	+ Grill 300 W +	Grill18-19	Grill only1-2
	InstructionsPut frozen pasta into a small flat rectangular glass pyrex dish. Put the dish directly on the turntable. After grilling. Stand for 2-3 minutes.
Chicken Nuggets	250 g	450 W + Grill	5-5 12	3-3 12
	InstructionsPut chicken nuggets on the rack. Turn over after first time.
Oven Chips	250 g	450 W + Grill	9-11	4-5
	InstructionsPut oven chips evenly on baking paper on the rack.

36 English

Grill Guide for fresh food

Preheat the grill with the grill-function for 3-4 minutes.

Use the power levels and times in this table as guide lines for grilling.

Fresh Food Serving Size Power		1 step (min.) 2 step (min.)
Toast Slices	4 pcs.(each 25 g)	Grill only	6-8	4-5 12
	InstructionsPut the toast slices side by side on the rack.
Bread Rolls(Already Baked)	2-4 pieces	Grill only	2-3 2-3
	InstructionsPut bread rolls first with the bottom side up in a circle directly on the turntable.
Grilled Tomatoes	200 g (2 pcs)400 g (4 pcs) 7-8	MW + Grill 300 W + Grill Grill4 12 -5 12	only2-3
	InstructionsCut tomatoes into halves. Put some cheese on top.Arrange in a circle in a flat glass pyrex dish. Place it on the rack.
Toast Hawaii(Ham, Pineapple,Cheese Slices)	2 pcs. (300 g)	450 W + Grill	3 12 -4
	InstructionsToast the bread slices first. Put the toast with topping on the rack. Put 2 toasts opposite directly on the rack. Stand for 2-3 minutes.
Baked Potatoes	250 g500 g	600 W + Grill	4 12 5 12 8-9
	InstructionsCut potatoes into halves. Put them in a circle on the rack with the cut side to the grill.

Fresh Food Serving Size Power 1 step (min.) 2 step (min.)
Chicken Pieces 450-500 g(2 pcs.)		300 W + Grill	10-12 12-13
InstructionsPrepare chicken pieces with oil and spices. Put them in a circle with the bones to the middle. Put 1 chicken piece not into the centre of the rack. Stand for 2-3 minutes.
Lamb Chops/Beef Steaks (Medium)	400 g (4 pcs.) Grill only 12-15		9-12
	InstructionsBrush the lamb chops with oil and spices. Lay them in a circle on the rack. After grilling. Stand for 2-3 minutes.
Pork Steaks MW +	Grill 300 W + Crill 250 g (2 pcs.) 7-8 6-7
	InstructionsBrush the pork steaks with oil and spices. Lay them in a circle on the rack. After grilling. Stand for 2-3 minutes.
Baked Apples	1 apple(ca. 200 g)2 apples(ca. 400 g)	300 W + Grill	4-4 12 6 7	-
	InstructionsCore the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish. Place the dish directly on the turntable.
Roast Chicken	1200 g	MW + Grill	450 W + Grill22-24 23-25	300 W + Grill
	InstructionsBrush chicken with oil and spices. Put chicken first breast side down, second breast side up on pyrex dish. Stand for 5 minutes after grilling.

Tips and tricks

Melting crystallized honey

Put 20 g crystallized honey into a small deep glass dish.

Heat for 20-30 seconds using 300 W, until honey is melted.

Melting gelatine

Lay dry gelatine sheets (10 g) for 5 minutes into cold water.

Put drained gelatine into a small glass pyrex bowl.

Heat for 1 minute using 300 W.

Stir after melting.

Cooking glaze/icing (for cake and gateaux)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water.

Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 800 W, until glaze/icing is transparent. Stir twice during cooking.

Cooking jam

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex

bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 800 W.

Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

Cooking pudding/custard

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers

instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook

covered for 6½ to 7½ minutes using 800 W.

Stir several times well during cooking.

Browning almond slices

Spread 30 g sliced almonds evenly on a medium sized ceramic plate.

Stir several times during browning for 3½ to 4½ minutes using 600 W.

Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

Troubleshooting and information code

Troubleshooting

If you have any of the problems listed below try the solutions given.

Problem Cause	Action
General
The buttons cannot be pressed properly.	Foreign matter may be caught between the buttons.	Remove the foreign matter and try again.
	For touch models: Moisture is on the exterior.	Wipe the moisture from the exterior.
	Child lock is activated. Deactivate Child lock.
The time is not displayed.	The Eco (power-saving) function is set.	Turn off the Eco function.
The microwave oven does not work.	Power is not supplied. Make sure power is supplied.
	The door is open. Close the door and try again.
	The door open safety mechanisms are covered in foreign matter.	Remove the foreign matter and try again.
The microwave oven stops while in operation.	The user has opened the door to turn food over.	After turning over the food, press the START/+30s button again to start operation.

38 English

Problem Cause	Action
The power turns off during operation.	The microwave oven has been cooking for an extended period of time.	After cooking for an extended period of time, let the microwave oven cool.
	The cooling fan is not working.	Listen for the sound of the cooling fan.
	Trying to operate the microwave oven without food inside.	Put food in the microwave oven.
	There is not sufficient ventilation space for the microwave oven.	There are intake/exhaust outlets on the front and rear of the microwave oven for ventilation.Keep the gaps specified in the product installation guide.
	Several power plugs are being used in the same socket.	Designate only one socket to be used for the microwave oven.
There is a popping sound during operation, and the microwave oven doesn't work.	Cooking sealed food or using a container with a lid may causes popping sounds.	Do not use sealed containers as they may burst during cooking due to expansion of the contents.

Problem Cause Action
The microwave oven exterior is too hot during operation.	There is not sufficient ventilation space for the microwave oven.	There are intake/exhaust outlets on the front and rear of the microwave oven for ventilation. Keep the gaps specified in the product installation guide.
	Objects are on top of the microwave oven.	Remove all objects on the top of the microwave oven.
The door cannot be opened properly.	Food residue is stuck between the door and microwave oven interior.	Clean the microwave oven and then open the door.
Heating including the Warm function does not work properly.	The microwave oven may not work, too much food is being cooked, or improper cookware is being used.	Put one cup of water in a microwave safe container and run the microwave for 1-2 minutes to check whether the water is heated. Reduce the amount of food and start the function again. Use a cooking container with a flat bottom.
The thaw function does not work.	Too much food is being cooked.	Reduce the amount of food and start the function again.
The interior light is dim or does not turn on.	The door has been left open for a long time.	The interior light may automatically turn off when the Eco function operates. Close and reopen the door or press the STOP/Eco button.
	The interior light is covered by foreign matter.	Clean the inside of the microwave oven and check again.

Troubleshooting and information code

Problem Cause	Action
A beeping sound occurs during cooking.	If the Auto Cook function is being used, this beeping sound means it's time to turn over the food during thawing.	After turning over the food, press the START/+30s button again to restart operation.
The microwave oven is not level.	The microwave oven is installed on an uneven surface.	Make sure the microwave oven is installed on flat, stable surface.
There are sparks during cooking.	Metal containers are used during the microwave oven/thawing functions.	Do not use metal containers.
When power is connected, the microwave oven immediately starts to work.	The door is not properly closed.	Close the door and check again.
There is electricity coming from the microwave oven.	The power or power socket is not properly grounded.	Make sure the power and power socket are properly grounded.
1. Water drips.2. Steam emits through a door crack.3. Water remains in the microwave oven.	There may be water or steam in some cases depending on the food. This is not an microwave oven malfunction.	Let the microwave oven cool and then wipe with a dry dish towel.

Problem Cause Action
The brightness inside the microwave oven varies.	Brightness changes depending on power output changes according to function.	Power output changes during cooking are not malfunctions. This is not an microwave oven malfunction.
Cooking is finished, but the cooling fan is still running.	To ventilate the microwave oven, the cooling fan continues to run for about 3 minutes after cooking is complete.	This is not an microwave oven malfunction.
Turntable
While turning, the turntable comes out of place or stops turning.	There is no roller ring, or the roller ring is not properly in place.	Install the roller ring and then try again.
The turntable drags while turning.	The roller ring is not properly in place, there is too much food, or the container is too large and touches the inside of the microwave.	Adjust the amount of food and do not use containers that are too large.
The turntable rattles while turning and is noisy.	Food residue is stuck to the bottom of the microwave oven.	Remove any food residue stuck to the bottom of the microwave oven.

40 English

Problem Cause	Action
Grill
Smoke comes out during operation.	During initial operation, smoke may come from the heating elements when you first use the microwave oven.	This is not a malfunction, and if you run the microwave oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the microwave oven cool and then remove the food from the heating elements.
	Food is too close to the grill.	Put the food a suitable distance away while cooking.
	Food is not properly prepared and/or arranged.	Make sure food is properly prepared and arranged.
Microwave oven
The microwave oven does not heat.	The door is open. Close the door and try again.
Smoke comes out during preheating.	During initial operation, smoke may come from the heating elements when you first use the microwave oven.	This is not a malfunction, and if you run the microwave oven 2-3 times, it should stop.
	Food is on the heating elements.	Let the microwave oven cool and then remove the food from the heating elements.
There is a burning or plastic smell when using the microwave oven.	Plastic or non heat-resistant cookware is used.	Use glass cookware suitable for high temperatures.

Problem Cause	Action
There is a bad smell coming from inside the microwave oven.	Food residue or plastic has melted and stuck to the interior.	Use the steam function and then wipe with a dry cloth. You can put a lemon slice inside and run the microwave oven to remove the odour more quickly.
The microwave oven does not cook properly.	The microwave oven door is frequently opened during cooking.	If you open the door often, the interior temperature will be lowered and this may affect the results of your cooking.
	The microwave oven controls are not correctly set.	Correctly set the microwave oven controls and try again.
	The grill or other accessories are not correctly inserted.	Correctly insert the accessories.
	The wrong type or size of cookware is used.	Use suitable cookware with flat bottoms.

English 41

Information code

Information code	Cause Action
C-d0	Control buttons are pressed over 10 seconds.	Clean the keys and check if there is water on the surface around key. If it occurs again, turn off the microwave oven over 30 seconds and try setting again. If it appears again, call your local SAMSUNG Customer Care Centre.

NOTE

if the suggested solution does not solve the problem, contact your local 5AMSUNG Customer Care Centre.

Technical specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

By right of the common regulation 2/1984 (III.10) BKM-IpM, we as distributors testify, that the MG23A7013A' oven of Samsung comply with the undermentioned technological parameters.

Model MG23A7013A*
Power source 230 V	-50 Hz AC
Power consumption
Maximum power	2400 W
Microwave	1300 W
Grill (heating element)	1100 W
Output power 100 W / 800 W - 6 levels (IEC 705)
Operating frequency 2450 MHz
Dimensions (W x H x D)
Outside	489 x 275 x 362 mm
Oven cavity	330 x 211 x 324 mm
Volume 23 liter
Weight
Net 14.5 kg approx.
Noise level 40 dBA

42 English

MARK HERE

MARK HERE

CENTRE MARK

RIGHT SIDE

Template for installation

LEFT SIDE

MARK HERE
MARK HERE

CENTRE MARK

SAMSUNG

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
ALBANIA 045	620 202 www.samsung.com/al/support
BOSNIA 055	233 999 www.samsung.com/ba/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
BULGARIA	*3000 Цена на един градски разговор 0800 111 31 Безплатен за всички оператори	www.samsung.com/bq/support
CROATIA 072	726 786 www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726/786)	www.samsung.com/cz/support
HUNGARY 068	0SAMSUNG (0680-726-786/) www.samsung.com/hu/support
MONTENECRO 020	405 888 www.samsung.com/support
POLAND	[M]801-172-678" lub [phone]" Specjalistycna infolinia co obsługi zapytan dotyczących telefonów kumorkowych: 801-672-678" *(opłata według taryfy operatora);[CE]801-172-678" lub [phone]" *(opłata według taryfy operatora)	http://www.samsung.com/p/support/

COUNTRY CALL OR VISIT US ONLINE AT
ROMANIA	*8000 (apel in retea)08008-726-78-64(08008 SAMSUNG) Apel GRATUIT Alenjiie: Dacă efectuati apelul din retezua Digi (RCS/RDS), vă rugăm să ne contactați formând numărul Telverde fară ultimele două cifre, astfel: 0800872678.	www.samsung.com/ro/support
SERBIA 011	321 6899 www.samsung.com/rs/support
SLOVAKIA 0800	SAMSUNG (0800 726 786) www.samsung.com/sk/support
LITHUANIA	8-800-77777 www.samsung.com/lt/support
LATVIA	8000 7267	www.samsung.com/lv/support
ESTONIA	800 7267 www.samsung.com/ee/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
KOSOVO	0800 10 10 1	www.samsung.com/support

DE68-D4660K-00
