9014LGTT - Screwdriver Hazet - Free user manual and instructions

Product Type	Impact Wrench / Screwdriver
Brand	Hazet
Model	9014LGTT
Category	Screwdriver
Technology	Twin Turbo
Motor Type	8-blade air motor with 25% higher impact performance
Max Working Pressure	6.3 bar (90 PSI)
Air Inlet Size	20.67 mm (1/2")
Direction Control	Two-stage forward, single-stage reverse
Exhaust Outlets	4
Lubrication Type	Special pneumatic oil (e.g., Hazet 9070N-1 lubricator recommended)
Safety Equipment Required	Safety glasses, hearing protection, face mask, tight-fitting clothing, gloves
Intended Use	Automotive, motorcycle, agricultural equipment, assembly lines, DIY
Included Accessories	Handle and air connection nipple (1/2")
Maintenance Interval	Every 3 months or 1000 operating hours (daily lubrication recommended)
Storage Temperature	-10 to +45 °C
Storage Humidity	Max 65% relative humidity
Spare Parts	Only original Hazet spare parts

Frequently Asked Questions - 9014LGTT Hazet

How should I lubricate the Hazet 9014LGTT impact wrench?

Disconnect the tool from the air supply. Hold it with the air inlet pointing upwards and add 1-2 drops of special pneumatic oil into the inlet. Then reconnect the air supply, cover the air outlet with a towel, and run the tool for a few seconds. For continuous lubrication, use an integrated lubricator like the Hazet 9070N-1.

What is the maximum working pressure for this tool?

The maximum working pressure is 6.3 bar (90 PSI). Exceeding this pressure can cause explosions and severe injuries. Always ensure the air compressor regulator is set correctly.

Can I use the 9014LGTT in explosive atmospheres?

No, never use this pneumatic tool in rooms with an explosive atmosphere. Pneumatic tools can produce sparks that may ignite combustible materials. Work only in well-ventilated areas away from petrol, naphtha, or other flammable substances.

How do I change the direction of rotation on the Hazet 9014LGTT?

The direction of rotation is controlled via the changeover switch located on the rear of the housing. It offers two-stage forward rotation and single-stage reverse rotation.

What type of air compressor is recommended for this impact wrench?

Use a compressor that can supply clean, dry air at a maximum pressure of 6.3 bar (90 PSI). The compressor tank should be drained regularly. Ensure the hose diameter is adequate (see table in manual) and avoid using quick-release couplings directly on the tool; keep a hose length of at least 20 cm.

How should I store the Hazet 9014LGTT?

Store the tool indoors in a dry, dust-free place, away from liquids and aggressive substances. The storage temperature should be between -10 and +45 °C, with a maximum relative humidity of 65%.

What personal protective equipment (PPE) is required when using this tool?

Always wear safety glasses, hearing protection, a face mask or breathing protection, tight-fitting protective clothing, and working gloves. Avoid loose clothing, jewelry, and tie back long hair to prevent entanglement.

How often should maintenance be performed on the 9014LGTT?

If used daily, perform maintenance every 3 months or after 1000 operating hours. This includes replacing damaged O-rings, bearings, and lubricating all moving parts. Always disconnect the air supply before maintenance.

Can I use non-original spare parts for the Hazet impact wrench?

No, only use original Hazet spare parts. Unsuitable or defective parts can cause damage or malfunctions, and using non-approved parts voids all warranty, service, and liability claims.

What is the Twin Turbo technology in the Hazet 9014LGTT?

The HAZET Twin Turbo technology enables high torques while maintaining a compact design. It features an innovative 8-blade air motor with 25% higher impact performance, ensuring maximum torque and long service life in industrial and automotive applications.

USER MANUAL 9014LGTT Hazet

Operating instructions

Twin Turbo impact wrench

Käyttöohje

Two HAZET air purifiers with black and blue designs, one labeled '9014 LGTT' and the other '9014 TT', accompanied by a fan icon and directional arrows (no text on main objects)

Always wear personal protective equipment!

Always wear personal protective equipment!

Always wear personal protective equipment!

Always wear personal protective equipment!

• Please make sure that the user of this tool carefully reads these operating instructions and fully understands all information given before it is used.
• These operating instructions contain important advice that is necessary for the safe and trouble-free operation of your HAZET tool.
• For intended use of the tool, it is essential that all safety precautions and other information in these operating instructions are adhered to.
• For this reason, always keep these operating instructions together with your HAZET tool.
• This tool has been designed exclusively for specific applications. HAZET emphasises that any modification to the tool and/or use in a way that does not correspond to its intended application is strictly forbidden.
• HAZET will not be liable for any injuries to persons or damage to property originating from improper or inappropriate application, misuse of the tool or a disregard of the safety instructions.
• Furthermore, the general safety regulations and regulations for the prevention of accidents in the application range of this tool must be observed and respected.

2. Explanation of symbols

ATTENTION: Pay strict attention to these symbols!

READ THE OPERATING INSTRUCTIONS!

The owner of this tool is obliged to observe the operating instructions and instruct any users of this tool according to the operating instructions.

NOTE!

This symbol indicates advice that is helpful when using the tool.

WARNING!

This symbol indicates important descriptions, dangerous conditions, safety risks and safety advice.

CAUTION!

This symbol indicates advice which, if disregarded, results in damage, malfunction and/or functional failure of the tool.

QUALIFIED PERSONNEL!

The tool may only be used by qualified personnel. Handling by non-qualified people may lead to injuries to persons or damage to the tool or workpiece.

Always wear personal protective equipment!

1. Owner's liability

• The tool was developed and manufactured according to the technical norms and standards valid and recognised at the time and is considered to be operationally reliable. Nevertheless, the tool may present a danger when it is not used as intended or used in an inappropriate way by non-qualified personnel. Please make sure that any person using this tool or carrying out maintenance work carefully reads and fully understands these operating instructions before using the tool.
• Any modification of the tool is strictly forbidden.
• All safety, warning and operating instructions on the tool must be kept legible at all times. All damaged labels or stickers must be replaced immediately.
• All specified set values or ranges must be observed.
• Always keep the operating instructions close to the tool.
• The tool must only be used if it is in good working condition.
• All safety equipment must always be within easy reach and should be checked regularly.

2. Intended use

Operational reliability is only guaranteed if the device is used as intended in accordance with the information provided in the operating instructions. In addition to the safety advice in these operating instructions, the general safety regulations, regulations for the prevention of accidents and regulations for environmental protection valid for this tool's application range must be observed and respected.

Use and maintenance of the tool must always comply with relevant local and national regulations.

• The HAZET twin turbo impact wrench is a handy tool for handiwork and DIY jobs.
• It is particularly suitable for work on motor vehicles, motorcycles, agricultural equipment or assembly lines.
• Maximum efficiency due to the ground-breaking HAZET Twin Turbo technology enables high torques with compact design.
• Innovative 8-blade air motor with 25% higher impact performance ensures maximum torque.
• Long service life and high efficiency in industrial and automotive applications.
• Compact design, optimised for work in confined spaces.
• Any deviation from the intended use and/or any misapplication of the tools is not permitted and will be considered as improper use.
• Any claims against the manufacturer and/or its authorised agents resulting from damage caused by improper use of the tool are excluded.
• Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the operator.

3. Dangers that may arise from using the tool

Before each use, check the HAZET tool for full functionality. Do not use the tool if its functional efficiency cannot be ensured or if damage is detected. If you use the tool despite full functionality not being guaranteed, this poses a risk of serious injury, health problems and material damage.

• Do not use tools with a defective On/Off switch. Any tools that cannot be switched on or off with the On/Off switch are dangerous and must be repaired.
• All service or repair work must be carried out by qualified personnel only. Only use original spare parts so as to guarantee its long-term operational safety.
• Do not remove safety devices and/or housing parts.
• Never operate the tool when a protective cover is missing or when not all of the safety devices are fitted and in perfect condition.
• For safety reasons, any modification to HAZET tools is strictly forbidden. Any modification of the tool will result in immediate exclusion from express or implied warranty and liability.

Wear working gloves and safety glasses.

Pneumatic tools can disperse chips, dust and other abraded particles at high speed which may result in severe eye injuries. Compressed air is dangerous. The air flow may cause harm to sensitive parts of the body like eyes, ears, etc. Dust and objects being raised by the air flow may cause injuries.

Wear hearing protection.

Long exposure to the working noise of pneumatic tools may result in permanent hearing loss.

Wear a face mask or breathing protection.

Breathing in the vapours of some materials like adhesives and chemicals containing tar can, over a prolonged period, cause serious harm.

Wear tight-fitting protective clothing.

Tools with moving parts can get caught in your hair, clothes, jewellery or other loose objects, which can lead to serious injury. Never wear clothing that is too loose and/or clothing with bands or loops, etc. which may get caught in the moving parts of the tool. During the work, take off jewellery, watches, identification tags, bracelets, necklaces, etc. that could get caught in the tool. Never touch the moving parts of a tool. Long hair should be tied back or covered.

Keep children away from pneumatic tools.

Unattended tools or tools that are connected to the compressed air supply may be used by unauthorised persons and could cause injury to them or to other persons.

• Do not use the tool in rooms with an explosive atmosphere. Pneumatic tools can produce sparks that may ignite combustible materials. Never operate tools in proximity to combustible substances like petrol, naphtha or detergents, etc. Work in well-cleaned and well-ventilated areas only. Keep combustible materials out of the work area. Never use oxygen, carbon dioxide or other bottled gases to power pneumatic tools.
• Do not point the tool at another person. Keep children and other persons out of the work area when operating the tool.
• Do not operate the tool in an idle state.
• Do not allow pneumatic tools to come into contact with sources of electricity.
• Pay attention to the working pressure. For max. air pressure see table on page '15. Exceeding the approved maximum pressure of tools and accessories may cause explosions and may result in severe injuries. The maximum pressure of the compressed air must be equal to or less than the approved pressure load indicated for the tool.
• Check tight fit of the air hose connections. Do not use defective pressure hoses. Uncontrollably moving pressure hoses may cause severe injuries.
• Only disconnect pneumatic tools when they are not pressurised. Uncontrollably moving pressure hoses may cause severe injuries.
• Only use clean and dry air. Never use oxygen, carbon dioxide or other bottled gases to power pneumatic tools.
• Only use spare parts, attachments and accessories recommended by the manufacturer.
• Never carry the tool by the compressed air hose.
• Never carry the connected tool with a finger on the operating lever.

• Avoid unintentional activation.

• Always keep the handles dry, clean and free of grease or oil.

• Ensure that the working area is clean, well ventilated and always well lit.
• Never use the tool whilst under the influence of alcohol or drugs.
• Repair work must be carried out exclusively by authorised persons.
• Labels on the tool must always be kept legible. The user is responsible for ensuring that the sticker stating warning signs, rotation speed, the serial no. and the article no. is not damaged and is easy to read.
• Do not use quick-release couplings directly on the tool. There must be an air hose of at least 20 cm in length between the tool and the quick-release coupling.
• Only replace tools when the air hose is disconnected. Before lubricating or changing the tools, always disconnect the machine from the compressed air supply.

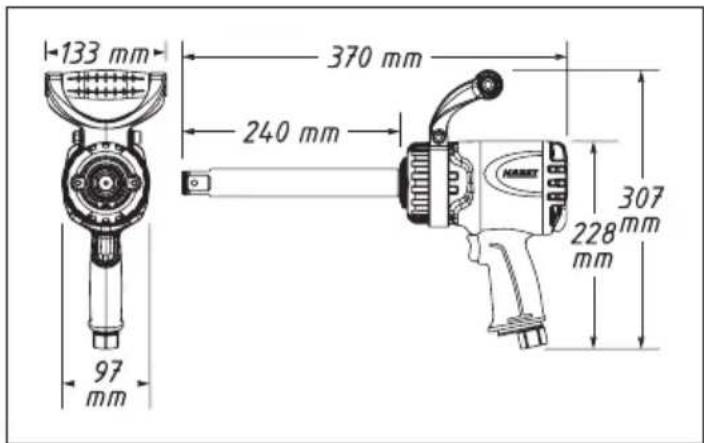

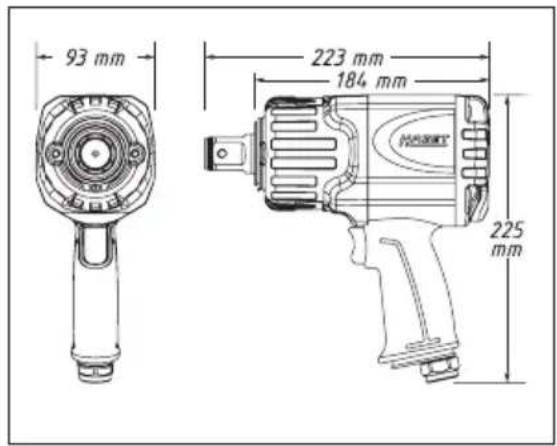

Included in delivery:

9014 TT Twin Turbo impact wrench with handle and air connection nipple 20.67 mm (1/2") or

9014 LGTT Twin Turbo impact wrench with handle and air connection nipple 20.67 mm (1/2")

9014 TT

9014 LGTT

Always wear personal protective equipment!

2. Before starting the operation

The pneumatic tools must always be used, inspected and maintained in compliance with the local government, state or federal regulations.

- Drain the compressor tank and remove the condensate from the air lines. Carefully read through the operating instructions for the compressor.

IMPORTANT:

We recommend using air filters and a compressed air line lubricator.

CAUTION!

Disconnect the compressed air supply prior to lubricating, connecting or disconnecting the tool.

• Lubricate the tool; see the section on maintenance in these operating instructions.
• Remove the dust cap on the compressed air inlet.
• Connect the tool to a hose of suitable size. Table on page 15.

3. Commissioning

• Switch on the compressor so that the air tank can be filled.
• Turn the compressor regulator to approx. 90 PSI or 6.3 bar. The max. working pressure of this tool is approx. 90 PSI or 6.3 bar.
• The power may vary depending on the size of the air compressor and the volume of the compressed air output.
• Do not use damaged or worn air hoses or adapters of inferior quality.
• The technical data provided refer to an operation of the tool at a pressure of 6.3 bar.

• Caution is required at all times when using the tool. Negligent operation may cause damage to the inner parts or the housing and limit the working performance.

• Press the operating lever to operate the tool.

• Release the operating lever to stop the tool.
• Please note that the tool still carries on running after the operating lever has been released.
• The direction of rotation is controlled via the changeover switch on the rear of the housing; two-stage forward rotation, single-stage reverse rotation
• After completing the operation, switch off the compressor and store it in accordance with the operating instructions of the compressor.
• Only use clean and dry air at a max. pressure of 90 PSI or 6.3 bar. Dust, flammable vapour and high humidity can result in damage to the pneumatic tool's motor.
• Do not remove any stickers and replace damaged stickers.
• Keep hands, loose clothing and long hair away from the tool's moving part.
  • Maximum efficiency due to the ground-breaking HAZET Twin Turbo technology enables high torques with compact design
• Innovative 8-blade air motor with 25% higher impact performance ensures maximum torque.
• Long service life and high efficiency in industrial and automotive applications.
• Compact design, optimised for work in confined spaces

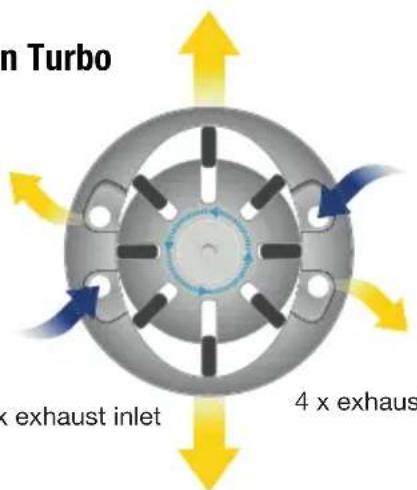

Twin Turbo

4 x exhaust outlet

Always wear personal protective equipment!

4. Maintenance and care

• Lubrication:
  Pneumatic tools have to be lubricated throughout their entire service life. The motor and the ball bearings require compressed air to operate the tool. Since the moisture in the compressed air corrodes the motor, the motor must be lubricated every day. We recommend that an integrated lubricator is used to do this.
• HAZET 9070N-1 lubricator for mounting to the pneumatic tool.
• Lubricating the pneumatic motor by hand: Disconnect tool from the air supply and hold with the air inlet pointing upwards. Put 1 or 2 drops of special pneumatic oil into the air inlet.

Connect the tool to the compressed air supply; cover the air outlet on the tool with a towel and operate for a few seconds.

Never use combustible or easily evaporable liquids such as kerosene, diesel or petrol to lubricate the tool.

• Never clean with solvents or acids, esters (organic compounds comprising acids and alcohol), acetone (ketone), chlorinated hydrocarbons or oils containing nitro hydrocarbons. Do not use any chemicals with a low burning point.
• For customer service, please contact your distributor or the HAZET Service Centre.

5. Malfunctions

If faults occur, check the following:

• Compression system and compressed air supply line, air consumption l/min and hose diameter according to the technical data of the tool
• Check the compressed air for the occurrence of dust, condensate and rust particles
  • Excess lubrication of the air motor

CAUTION!

Excess oil in the motor will be expelled through the air outlet.

WARNING!

Never point the opening of the outlet at any person or object. The air outlet is located at the back of the handle.

• Maintenance
  Always disconnect the tool from the compressed air supply prior to carrying out maintenance work.
• If used daily, carry out maintenance every 3 months, or every 1000 operating hours at the latest.
• Damaged or worn components such as o-rings and bearings etc. must be replaced and all moving parts must be lubricated.
• Only use spare parts recommended by the manufacturer, as any other parts will invalidate the warranty.
• Ensure that the relevant environmental protection regulations are observed when disposing of the components, lubricants and oils, etc.

Always wear personal protective equipment!

-en

④ Spare parts

• For safety reasons, only the manufacturer's original spare parts may be used.
• Unsuitable or defective spare parts may cause damage, malfunctions or total failure of the tool.
• The use of non-approved spare parts will void all warranty, service and liability claims as well as all claims for compensation against the manufacturer or its agents, distributors and sales representatives.

⑤ Storage

• The tool must be stored under the following conditions:
• Do not store the tool outdoors.
• Keep tool in a dry and dust-free place.
• Do not expose the tool to liquids and aggressive substances.
  • Storage temperature: -10 to +45 °C.
  • Relative air humidity: max. 65%

⑥ Disposal

• For disposal, clean tool and disassemble according to the regulations for work safety and environmental protection.
• Components can be recycled.
