Product Type	Generator
Brand	Herkules
Model	SE 2200 F
Continuous Power	2.0 kW
Maximum Power	2.2 kW (S2 5 Min.)
Voltage	2 x 230 V
Frequency	50 Hz
Engine Type	4-stroke, air-cooled, single cylinder
Displacement	196 cm³
Max Engine Power	4.77 kW / 6.5 PS
Fuel Type	Normal unleaded gasoline
Tank Volume	15 liters
Runtime at 2/3 Load	Approx. 11 hours
Sound Power Level	93 dB(A)
Weight	48 kg
Packing Dimensions (L x W x H)	625 x 535 x 525 mm
Generator Type	Synchronous
Outlets	2 x 230V sockets
Overload Switch	Yes
Fuel Gauge	Yes
Volt Meter	Yes
Ignition Key Switch	Yes
Oil Deficiency Safety Device	Yes
Wheels	Yes (integrated)
Push Bracket	Yes
Linkage (for pulling)	Yes

Frequently Asked Questions - SE 2200 F Herkules

What type of fuel does the Herkules SE 2200 F generator use?

The generator uses normal unleaded gasoline. Do not use diesel or mixed fuel.

How long can the generator run on a full tank?

At 2/3 load, the 15-liter tank provides approximately 11 hours of continuous operation.

What is the continuous and maximum power output?

Continuous power is 2.0 kW, and maximum power is 2.2 kW (for 5 minutes at S2 duty).

Does the generator have an overload protection?

Yes, it is equipped with an overload switch that automatically shuts off the generator to prevent damage.

How do I start the generator?

Ensure fuel and oil are at proper levels. Turn the ignition key switch to the ON position, and pull the starter cord or use the electric start (if equipped). Refer to the manual for detailed steps.

What maintenance is required?

Regularly check and change the engine oil, clean or replace the air filter, and inspect the spark plug. The oil deficiency safety device will shut down the engine if oil is low.

Can I use the generator indoors?

No, the generator produces carbon monoxide and must be used only outdoors in a well-ventilated area away from windows and doors.

What is the sound level of the generator?

The sound power level is 93 dB(A), which is typical for a generator of this size.

How do I transport the generator?

The generator has wheels, a push bracket, and a linkage for easy maneuvering and towing.

What is the warranty or repair policy?

Warranty details are provided in the manual. For repairs, contact Herkules customer service or an authorized service center. Repairability is supported by available spare parts.

USER MANUAL SE 2200 F Herkules

Power Generator SE 2200 F

Art.-No.: 41.523.17

Bar code: 4006825532258

Sales unit: 1 pc

This „power station“ provides energy and gives security. Electricity flows, when it is needed. Power failures or insufficient current supply are no more a problem; whether during camping, at building sites, in homes or cottages, on boats or in the garden. This equipment is nearly applicable everywhere and offers with its continuous power of 2000 watts sufficient performance for many applications. The 15 litre tank ensures continuous operation for 11 hours at 2/3 load. The power generator is powered by a high quality 4 - stroke engine and is equipped with overload switch.

Technical Data:

- Generator: Synchrony

- Continuous Power: 2.0 kW

- Max. Power: 2.2 kW (S2 5 Min.)

- Voltage: 2 x 230 V

- Frequency: 50 Hz

- Type: Engine motor 1 cylinder,

4 - stroke air-cooled

- Running time with 2/3 loads: approx. 11 h

- Displacement: 196 cm ^4

- Max. Motor Power: 4.77KW / 6.5 PS

- Fuel: normal lead-free

- Tank volume: 15 ltrs.

- Sound power level: 93 dB (A)

- Weight: 48 kg

- Packing dimensions: 625 x 535 x 525 mm

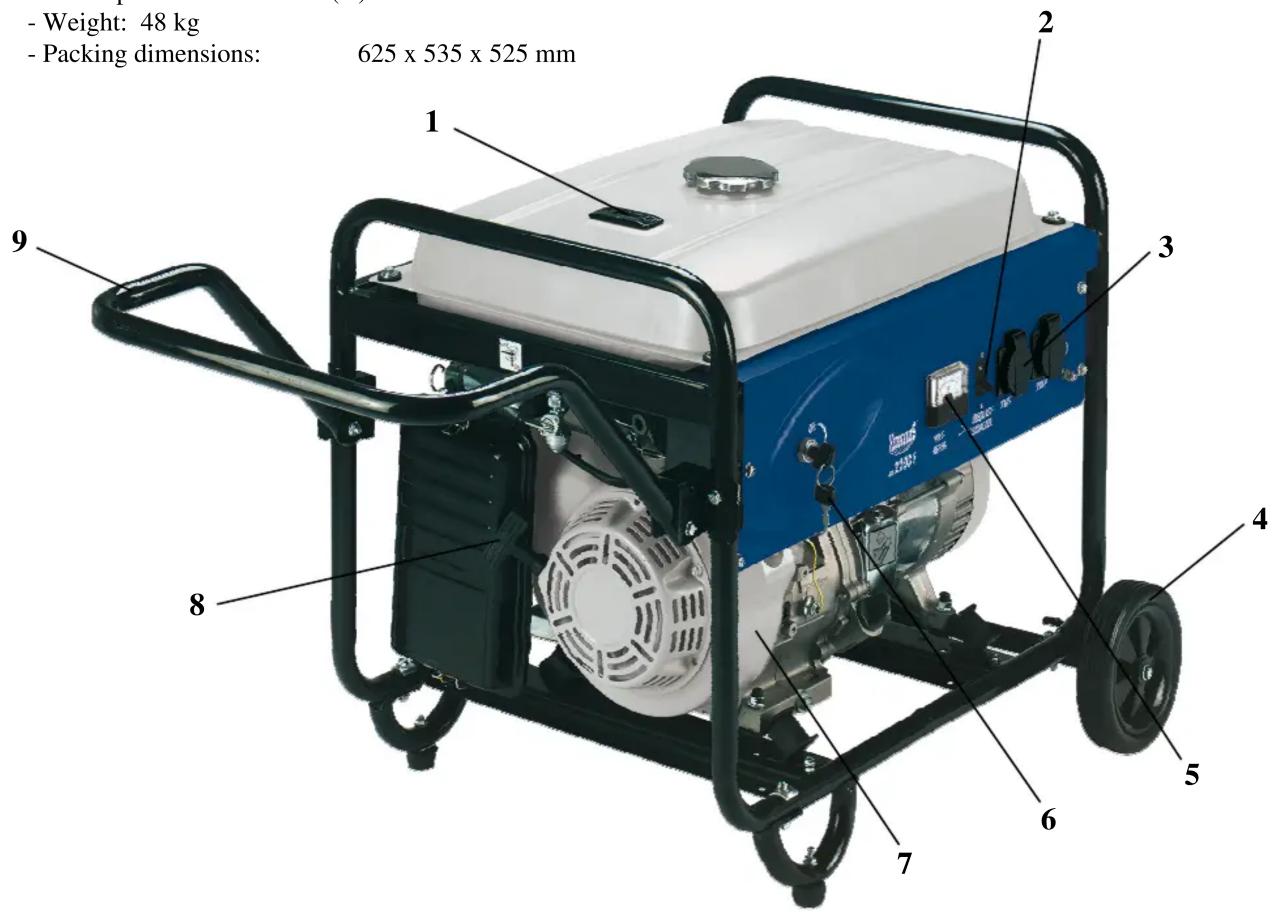

Features:

- Fuel gauge (1)

- Overload switch (2)

- 2 x 230 Volt socket (3)

- Wheels (4)

- Volt meter (5)

- Ignition key switch (6)

- Oil deficiency safety device

- 4 - stroke - Engine (7)

- Linkage (8)

- Push bracket (9)
