SE 5500 SF - Generator Herkules - Free user manual and instructions

Product Type	Generator
Brand	Herkules
Model	SE 5500 SF
Rated Power	5000 W
Peak Power	5500 W
Voltage	230 V
Frequency	50 Hz
Engine Type	4-stroke OHV
Displacement	389 cc
Fuel Type	Unleaded petrol
Fuel Tank Capacity	25 L
Oil Capacity	1.1 L
Starting System	Recoil and electric
Noise Level	96 dBA
Dimensions (L x W x H)	670 x 520 x 540 mm
Weight	62 kg
Run Time at 50% Load	10 h
Outlets	2 x 230V Schuko, 1 x 12V DC
Protection	Overload, low oil shutdown
Warranty	2 years
Maintenance	Air filter cleaning, oil change, spark plug replacement

Frequently Asked Questions - SE 5500 SF Herkules

What type of fuel should I use?

Use unleaded petrol with an octane rating of 95 or higher. Avoid using old or contaminated fuel.

How do I start the generator?

Ensure proper oil and fuel levels. Turn the fuel valve to ON, set the choke to CLOSE, and pull the recoil starter or use the electric start. Once started, open the choke gradually.

What oil is recommended?

Use SAE 10W-30 or 15W-40, API certified oil. Check oil level regularly and change according to the maintenance schedule.

How often should I change the oil?

Change the oil after the first 20 hours of operation, then every 100 hours or once a season.

What is the maximum load?

The generator can handle a peak load of 5500W and a continuous rated load of 5000W. Do not exceed these limits.

Can I run the generator indoors?

No, never operate the generator indoors or in enclosed spaces. It produces carbon monoxide (CO) which is deadly.

How do I maintain the air filter?

Clean the air filter every 50 hours of use. If heavily soiled, replace it. A clean air filter ensures proper engine performance.

What does the low oil shutoff do?

The low oil shutoff automatically stops the engine when the oil level drops below a safe limit, preventing engine damage.

How long will the generator run on a full tank?

At 50% load, the generator runs approximately 10 hours on a full tank of 25 liters.

Is this generator compatible with sensitive electronics?

For sensitive electronics like computers or TVs, we recommend using a voltage regulator or an inverter generator, as standard generators may have voltage fluctuations.

USER MANUAL SE 5500 SF Herkules

This "power station" supplies energy and provides security.

Power will be available whenever it is needed. Power failures or insufficient current supply are no longer a problem; whether during camping, at building sites, in homes or cottages, on boats or in the garden. This equipment can be used nearly everywhere, and, with its maximum power supply of 5,500 watts, provides sufficient power for many applications. The large 25-litre metal tank ensures continuous operation for 9.5 hours at 2/3 load. The power generator is powered by a high-quality 4-stroke engine and is equipped with an overload switch.

The automatic voltage regulation adjusts the motor power according to the decreased power and acquire the voltage to estimated standard again.

Tank capacity 25 l

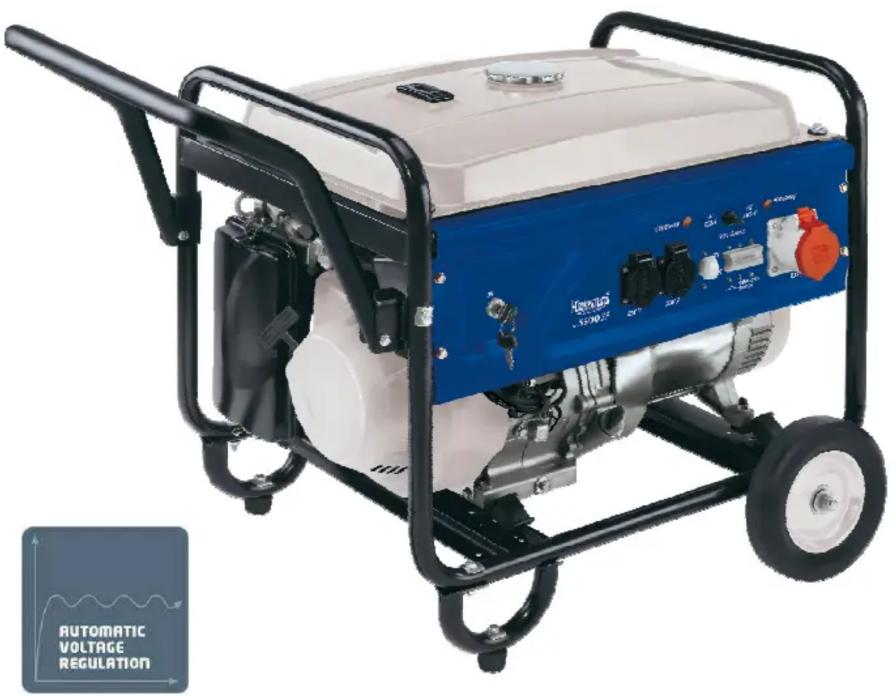

Exterior view of a blue and white portable power supply unit (no visible text or symbols on the device body)

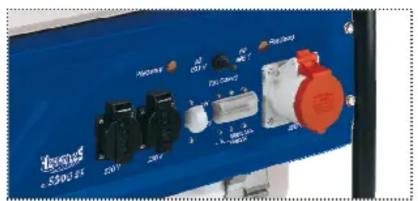

230 V

230 V

400 V

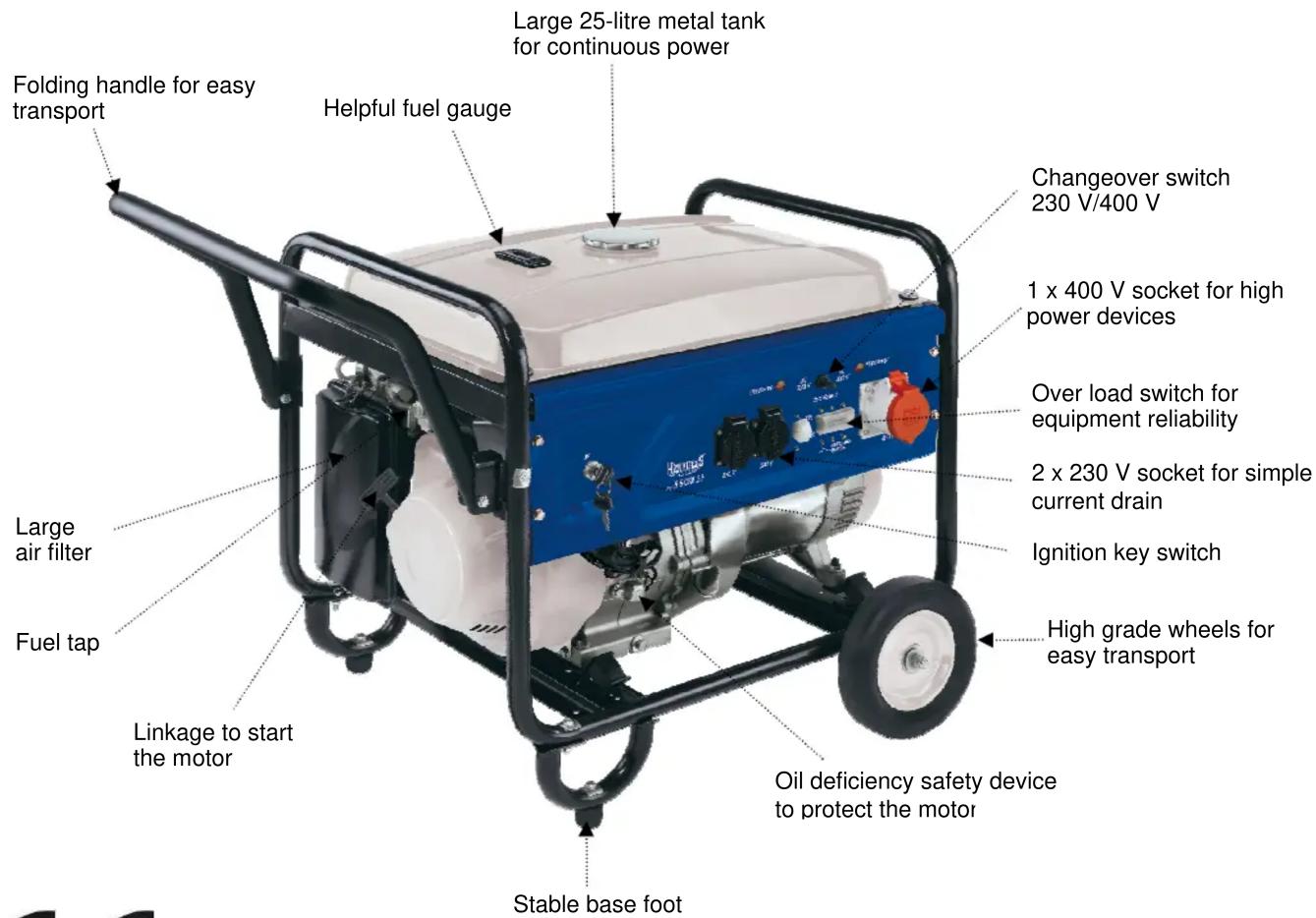

Features

■ Automatic voltage regulation
■ Powerful 4-stroke drive motor
■ Large 25-litre tank for continuous power with fuel gauge
■ Oil deficiency safety device to protect the motor
■ Overload switch for equipment reliability
■ Changeover switch 230 / 400 V
Ignition key switch
■ Linkage to start the motor
■ High grade wheels and folding handle for easy transport
■ Stable base foot
Full crank shaft

CE

Logistic Information

Type:	SE 5500 SF	■ Generator: Synchronous
Art.-No.:	41.523.31	■ Max. Power: 5,500 W at 400 V socket
Ident-No.:	01028	or: 3,300 W at 230 V sockets
Bar code:	4006825 511208	■ Voltage: 2 x 230 V / 1 ~ / 1 x 400 V / 3 ~
Packaging:	715 x 595 x 620 mm	■ Frequency: 50 Hz
		■ Type: 1 cylinder, 4-stroke air-cooled
Sales unit:	1 pc	■ Cylinder capacity: 390 cm ^3
20":	81 pcs	■ Max. motor power: 9.55 kW / 13 HP
40":	180 pcs	■ Fuel: Petrol lead-free
40" HC:	-- pcs	■ Tank capacity: 25 l
Net weight:	79.0 kg	■ Running time at 2/3 load: approx. 9.5 hours
Gross weight:	86.5 kg

Technical Data
