HH-01 - Heating Ravanson - Free user manual and instructions

Product Type	Halogen Heater
Brand	Ravanson
Model	HH-01
Rated Voltage	220-240 V
Rated Frequency	50/60 Hz
Power Consumption	1200 W
Heating Elements	2 halogen tubes (upper and lower)
Oscillation	Yes, with button control
Safety Cut-off Switch	Tip-over switch (automatic deactivation when tilted)
Control Buttons	Orange power button, 4 white buttons (upper heat, lower heat, oscillation, main)
Base Assembly	Requires 2 screws (included)
Cable Length	Approx. 1.5 m (estimated)
Dimensions (Approx.)	Height: 45 cm, Width: 25 cm, Depth: 25 cm (estimated)
Weight (Approx.)	1.5 kg (estimated)
Material	Plastic housing, metal grille
Cleaning Method	Dry or slightly damp cloth; do not submerge or pour water
Usage Environment	Indoor only, avoid dusty rooms
Storage	Cool, dry place, out of reach of children
Overheat Protection	Yes (via safety cut-off switch)

Frequently Asked Questions - HH-01 Ravanson

What are the main safety features of the Ravanson HH-01 heater?

The heater includes a tip-over safety cut-off switch that automatically deactivates the heater if it is tilted or placed horizontally. It also has overheat protection and must not be covered to prevent fire risk.

How do I operate the HH-01 heater?

Plug the heater into a wall socket, press the orange power button to activate. Then use the two middle white buttons to turn on the upper and lower halogen heating elements separately. The leftmost white button activates the oscillation function.

Can I use the heater in a bathroom?

No, the manual states do not use the heater in the immediate surroundings of a bath, shower or swimming pool. It is intended for indoor use only in dry areas.

How should I clean the heater?

Always disconnect from the mains and let the heater cool down. Clean with a dry or slightly damp cloth. Do not pour water on the device or submerge any part.

What should I do if the heater smells when first used?

A burning smell may occur due to dust on the heating element. This is normal and should disappear after a short period of use.

Can I use a timer or remote control with this heater?

No, the manual warns do not use the heater with a programmer, timer, separate remote control system, or any device that switches it on automatically as it may cause a fire hazard if covered or positioned incorrectly.

Is the heater safe to use around children?

Children under 3 should be kept away. Children aged 3-8 may only switch the device on/off under supervision. Ages 8+ and persons with reduced capabilities can use it under supervision. The grille can become hot so touch with care.

How do I assemble the base?

Run the cable through the opening in the base, then through the groove. Place the upper part on the base and fix it using the two screws provided.

What should I do if the heater stops working?

Disconnect from the mains, check if the socket is live. If the power supply is fine, do not attempt repair; contact authorized service. The heater has a safety cut-off that may have activated if tipped.

How should I store the heater when not in use?

Always let the device cool down. Store in a clean, dry place, out of reach of children. Protect from dust, humidity, and mechanical damage. Use original packaging for transport.

USER MANUAL HH-01 Ravanson

ENG User's manual Halogen Heater

Illustration of a portable electric heater with cooling fan and heat sink (no text or symbols)

MODEL:

HH-01

Producent:

Ravanson®

Ravanson Ltd. Sp. z o.o. ul. Mazowiecka 6, 09-100 Płońsk, Polska

tel.: [phone], fax: [phone]

www.ravanson.pl

P1

PRZED PIERWSZYM UŻYCIEM

Close-up of a gray industrial control panel with four white cylindrical buttons and an orange button, no visible text or symbols.

Before first start-up, read thoroughly this operation manual.

WARNING: To reduce the risk of fire, electric shock or injury, it is necessary to follow the tips presented below:

Please keep this operation manual in order to be able to use it at any time, because it contains important information.

GENERA1 SAFETY GUIDE1INES

WARNING: To reduce the risk of fire, electric shock or injury, it is necessary to follow the tips presented below:

1. Before first start-up read thoroughly this operation manual.
2. WARNING: Do not cover the heater as it may overheat
3. The heater must not be placed directly below an electric socket
4. Do not use the heater with a programmer, timer, separate remote control system or other device for automated operation of the heater because there is a risk of fire if the heater is covered or placed incorrectly.
5. The heater grille prevents direct access to the heating elements and has to be in place when the heater is being used.
6. The heater grille does not provide full protection for small children and infirm persons
7. Do not use the heater in the immediate surroundings of a bath, shower or swimming pool
8. Children under the age of 3 should be kept away or supervised at all times
9. Children between 3 and 8 years of age may only switch the device on and off if it is placed and installed in normal position as per its intended use, under supervision only and in a safe way as per the manual and provided they understand the hazards related to the device. Children between 3 and
   8 years of age must not unplug, adjust, clean, or service the device.
10. This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device. Cleaning and maintenance must not be performed by unsupervised children.
11. WARNING: Some parts of the product may be very hot and cause burns. Pay particular attention to children and sensitive persons.
12. The device cannot be covered. It may result in overheating or fire.
13. If the power cord becomes damaged, it should be replaced by the manufacturer, in a specialist repair workshop, or by a qualified person in order to prevent any hazards.
14. Disconnect the unit from the mains when you don't use it. Do not remain it with the switch off and/or with thermostat set to minimum when you don't use it.
15. Use the device at a safe distance from inflammable materials such as: curtains, paper, wooden or plastic elements etc.
16. Air inlet and outlet cannot be blocked.
17. Always switch off the device when you don't use it. While removing the plug from the socket do not pull by the power cord.
18. Do not allow children or animals to play around the device. Touching the outlet grate may result in burns.
19. Do not use it in the rooms where gas or other volatile or inflammable substances can occur.
20. The device should be cleaned with a dry or slightly wet cloth. During cleaning the device cannot be connected to the mains.
21. Before starting any maintenance or repair work always disconnect the device from the power source. In addition, do not forget to let the device cool down.
22. Do not use the device in dusty rooms.
23. Store it in a clean and dry place.
24. The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors.
25. Its place of operation should provide stability. The power cord cannot run in the vicinity of hot air outlets. It cannot be bent or crushed or run in the neighborhood of sharp edges.
26. Do not insert any objects into the opening of the device's body.

27. Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

28. It must be possible to unplug the device after it is installed; access to the plug must be provided.

29. Do not use glue to fix the device. Glueing is not considered a reliable fastening method

Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exist if the heater is covered or positioned incorrectly.

Accessible surfaces may become hot during operation.

The heater is not equipped with a device for controlling room temperature. Do not use the heater in small rooms when they are occupied by people not able to leave the room on their own, unless a permanent supervision is ensured

PURPOSE

This appliance is intended for household and similar applications, such as:

• kitchens in shops, offices, and other working environments
• households
• by customers in hotels, motels, and other residential environments
• lodgings, breakfast rooms, and similar environments

Parameters:

Nominal voltage 220 - 240 V

Nominal frequency 50/60 Hz

Nominal power consumption 1200 W

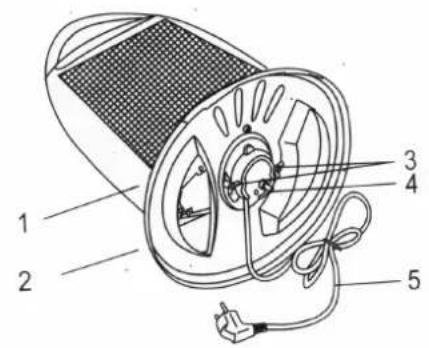

Parts:

1. Cover
2. Base
3. Screws (2 pcs)
4. Safety tip over cutoff switch
5. Power cable

Base assembly:

a. Run the cable through an opening in the base and then
through a groove in the part outside the
device.
b. Place the upper part of the device on the base.
c. Fix the base to the main part of the device with the use of two screws provided in the set.

BEFORE FIRST USE

ATTENTION! Make sure that the power source to which the appliance is to be connected is accordant with the parameters specified on the rating plate.

Operation:

1. Plug the supply cable in a socket.
2. Press the orange POWER button in order to activate the device. The halogen in the middle will start heating.
3. Two middle white buttons activate heating of upper and lower halogen.
4. First white button on the left activates the oscillation function.

NO/E: This device is equipped with a safety cut-off switch. In case the heater is inclined or horizontal, it will be automatically deactivated with the use of a switch in the base part of the heater.

Maintenance:

Always pull the plug out of the mains socket before starting any maintenance work. Let the heater cool down. Clean with a dry or slightly wet cloth. Do not pour water or other liquids onto the device; do not submerse any part in water. Manufacturer reserves the right to change the technical parameters of the device without notice. When the device is switched on after a long period, a burning smell may be produced by the dust on the heating element. After some time, the smell subsides.

/echnical service:

All devices undergo a thorough post production control. If you still find any fault, you can ask technical service for help.

Before you talk to technical service, check if7

• there is power in the wall socket,
• you followed this manual when turning the device on.

Do not:

- install the device near furniture, below shelves, inside walls, and near curtains; cover the device when it is turned on; and always try not to hinder its correct operation.

/ransport and storage:

Store out of reach of children. 'rotect against dust, humidity, and mechanical damage.

Transport in the original packaging. 'rotect against dust, humidity, and mechanical damage.

Always let the device cool down prior to storage or transport

If after purchase the product is found to be damaged, please contact your supplier. Observe the rules provided in the enclosed manual. Do not modify nor make any changes to the product.

Defects:

In case the device refuses to work, disconnect it from the mains. Make sure there is current in the socket to which the device is connected. Do not attempt to repair the device if there is no problem with the external power supply. Contact authorized service.

Such a marking informs that this equipment cannot be disposed of together with other household waste. The user is obliged to pass the device to a company authorized to dispose of electronic/electric devices. Both the person who deals with direct disposal, shops and other local units make a system enabling to dispose of the device. 'roper procedures concerning electric/electronic

equipment disposal are intended to avoid any harmful impact to humans and environment resulting from dangerous components and improper storage or processing of the devices. Substances having negative environmental impact have been reduced to make the product safer after its disposal.
