Product Type	Portable Generator
Brand	Einhell
Model	BT-PG 850/2
Rated Output	850 W
Peak Output	1000 W
Fuel Type	Unleaded Petrol (Gasoline)
Engine Displacement	212 cc
Start Type	Recoil Start
Outlet Type	2x 230V Schuko Sockets
Frequency	50 Hz
Voltage	230 V
Fuel Tank Capacity	5 L
Run Time at 50% Load	Approx. 5 hours
Noise Level	95 dB(A)
Weight	22 kg
Dimensions (L x W x H)	420 x 330 x 380 mm
Safety Features	Overload Protection, Low Oil Shut-off
Maintenance	Check oil and air filter regularly; change oil after first 20 hours, then every 100 hours
Spare Parts Availability	Spare parts available through Einhell service centers
Repairability	Modular design, accessible components for easy repair

Frequently Asked Questions - BT-PG 850/2 EINHELL

What type of fuel does the Einhell BT-PG 850/2 generator use?

The generator uses unleaded petrol (gasoline) with a minimum octane rating of 95.

How do I start the generator?

Ensure the fuel valve is open, set the choke to 'start', pull the recoil cord firmly until the engine starts, then gradually turn off the choke.

What is the maximum power output of this generator?

The peak output is 1000 W, but the continuous rated output is 850 W. Do not exceed the rated output for prolonged periods.

How often should I change the oil?

Change the oil after the first 20 hours of use, then every 100 hours or at least once a year. Use SAE 10W-30 oil.

What does the low oil shut-off feature do?

The low oil shut-off automatically stops the engine if the oil level drops too low, preventing engine damage. Check oil level before each use.

Can I run sensitive electronics on this generator?

The generator produces standard AC power (230V, 50Hz). For sensitive electronics, a voltage regulator or UPS is recommended to protect against fluctuations.

How do I store the generator when not in use?

Drain the fuel tank and run the engine until it stops to empty the carburetor. Store in a dry, well-ventilated area away from living spaces.

What is the noise level of the generator?

The noise level is approximately 95 dB(A), similar to a lawnmower. Use ear protection and consider distance from neighbors.

How do I clean the air filter?

Remove the air filter cover, take out the foam filter, wash it in warm soapy water, dry thoroughly, and reapply a light coat of oil before reinstalling.

What are the dimensions and weight of the BT-PG 850/2?

Dimensions are 420 x 330 x 380 mm and it weighs 22 kg. It is portable with a robust frame.

USER MANUAL BT-PG 850/2 EINHELL

Abstract geometric logo with white letter 'E' on red background (no text or symbols)

Einhell

BLUE

BT-PG 850/2

Power Generator

Art.-No. 41.512.45

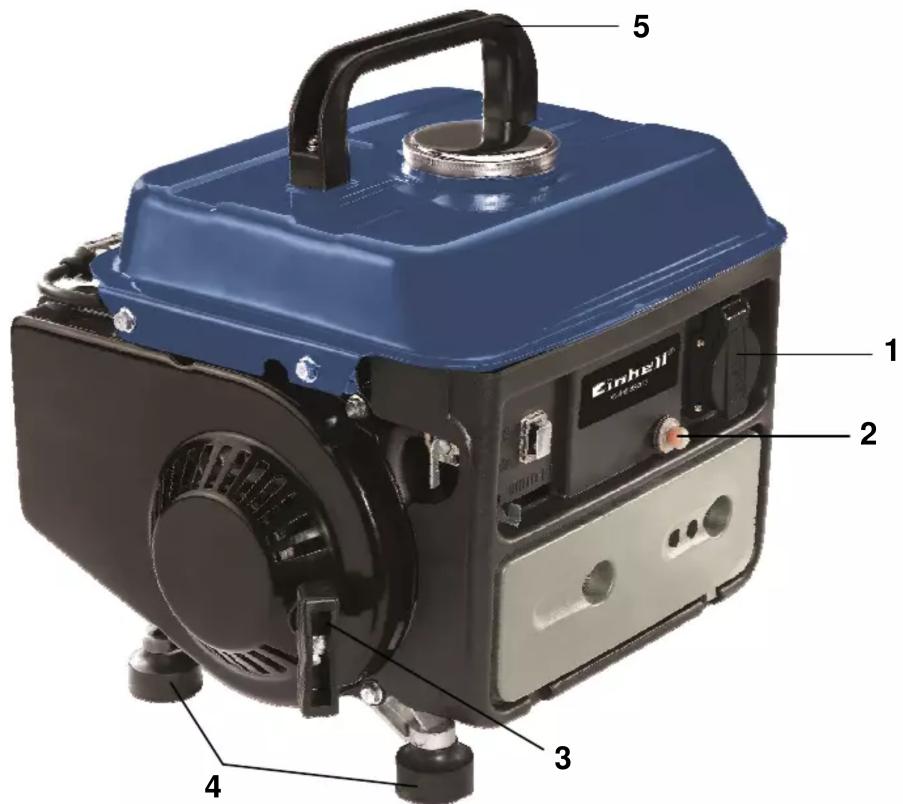

Features

■ 230 V socket for easy power supply (1)
■ Overload switch for appliance safety (2)
■ Reversing starter to start the machine (3)
■ Sturdy feet for safe standing (4)
■ Carrying handle for easy transport (5)
■ Powerful 2-stroke engine, air-cooled
■ Synchronous generator
■ Large 4.2 liter tank for a continuous operation
Full crank shaft
■ Automatic voltage regulation

Technical Data

• Generator: Synchronous
  ■ Continuous power: 650 W
  ■ Maximum power: 720 W (S2 2 min)
  ■ Rated voltage: 230 V \~
  ■ Rated current: 2.8 A \~
  Frequency: 50 Hz
  ■ Type: 1 cylinder; 2-stroke air-cooled
  ■ Cylinder capacity: 63 cm ^4
  ■ Max. Power: 1.2 kW / 1.65 HP
  ■ Fuel: Mixture 1:40 (Oil:Petrol)
  ■ Tank capacity: 4.2 l
  ■ Consumption at 2/3 load: approx. 0.7 l/h
  ■ Protection type: IP 23 M
  ■ Product weight: 16 kg

Illustration of a door latch with a maximum power rating label (MAX. 720 WATT) at the bottom, no other text or symbols present.

Logistic Data

■ Net weight: 16.15 kg
■ Gross weight: 17.6 kg
■ Packing dimensions: 390 x 350 x 335 mm
■ Bar code: 4006825 598452
■ Sales unit: 1 pc
