BT-PG 2000 - Generator EINHELL - Free user manual and instructions

Product Type	Generator
Brand	Einhell
Model	BT-PG 2000
Rated Power	2000 W
Max Power	2200 W
Engine Type	4-Stroke, Air-Cooled
Fuel Type	Petrol
Tank Capacity	15 L
Fuel Consumption	1.5 L/h at 50% load
Voltage	230 V ~ 50 Hz
Socket Type	2 x Schuko (CEE 7/3)
Dimensions (L x W x H)	60 x 45 x 50 cm
Weight	45 kg
Noise Level	96 dB(A)
Starting System	Recoil start
Protection Class	IP23
Emissions Compliance	EU Stage V
Maintenance	Check oil, air filter, spark plug regularly
Safety Features	Overload protection, low oil shutdown
Spare Parts Availability	Available through Einhell service network
Manual Languages	English, German, French

Frequently Asked Questions - BT-PG 2000 EINHELL

What type of fuel does the BT-PG 2000 use?

The generator uses standard unleaded petrol (gasoline). Do not use mixed oil/gasoline.

How do I start the generator?

Ensure the fuel valve is open, choke is closed when cold, then pull the recoil starter firmly. Once started, open the choke gradually.

What is the power output of the BT-PG 2000?

It has a rated power of 2000 W and a maximum power of 2200 W, suitable for powering tools and appliances.

Does the generator have low oil shutdown?

Yes, it features an automatic low oil shutdown to protect the engine from damage.

How often should I change the engine oil?

Change the oil after the first 20 hours of use, then every 100 hours or once per season.

What is the fuel tank capacity?

The fuel tank holds 15 liters, providing several hours of operation at 50% load.

Is the generator suitable for sensitive electronics?

The output is standard 230 V. For sensitive electronics, an AVR or line conditioner is recommended.

How loud is the generator?

The noise level is approximately 96 dB(A), similar to a lawnmower. Use ear protection.

Where can I find spare parts?

Spare parts are available through Einhell authorized service centers or online retailers.

Can I operate the generator in the rain?

No, the generator is not waterproof. Use it in dry conditions or under a suitable shelter.

USER MANUAL BT-PG 2000 EINHELL

This "power station" supplies energy and provides security.

Power will be available whenever it is needed. Power failures or insufficient current supply are no longer a problem; whether during camping, at building sites, in homes or cottages, on boats or in the garden. This equipment can be used nearly everywhere, and, with its continuous power supply of 2,000 watts provides sufficient power for many applications. The large 15-litre tank ensures continuous operation for 14 hours at 2/3 load. The power generator is powered by a high-quality 4-stroke engine and is equipped with an overload switch.

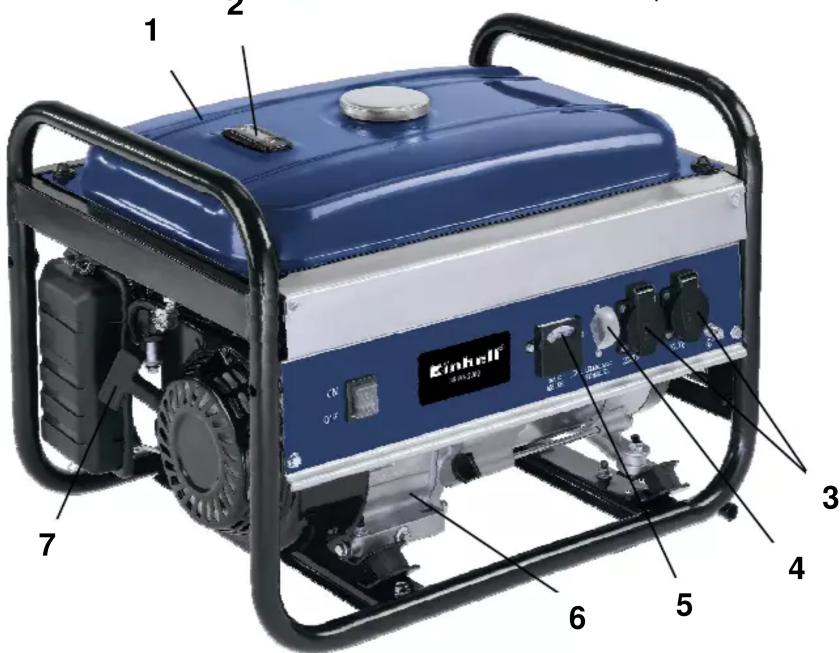

Features

■ Large 15-litre tank for continuous power (1)
■ Convenient fuel gauge (2)
■ 2 x 230 V socket for simple current drain (3)
■ Overload switch for equipment reliability (4)
■ Practical voltmeter (5)
■ Powerful 4-stroke drive motor (6)
■ Linkage to start the motor (7)
■ Oil deficiency safety device to protect the motor
Full crank shaft
■ Automatic voltage regulation

• Generator: Synchronous
  ■ Continuous Power (S1): 1 x 2,000 W
  ■ Max. Power (S2 2 min): 1 x 2,200 W
  ■ Nominal current: 2 x 230 V
  ■ Frequency: 50 Hz
  ■ Type: 1 cylinder, 4-stroke air cooled
  ■ Cylinder capacity: 196 cm ^3
  ■ Max. motor power: 3.74 kW / 5 HP
  Fuel: Petrol
  ■ Tank capacity: 15 l
  ■ Running time at 2/3 load: approx. 14 hours
  ■ Noise level: 94 dB (A)
  ■ Product weight: 38.5 kg

Logistic Data

■ Net weight: 38.8 kg
■ Gross weight: 41.5 kg
■ Packing dimensions: 635 x 470 x 485 mm
■ Bar code: 4006825 541083
■ Sales unit: 1 pc
