TSA8034 - Heating Teesa - Free user manual and instructions

Product Type	Electric Space Heater
Brand	Teesa
Model	TSA8034
Power Supply	220-240 V ~ 50 Hz
Power Output	2000 W (max)
Heating Type	Fan-forced convection
Number of Heat Settings	2 (low, high) + fan only
Thermostat	Adjustable thermostat
Oscillation	Yes, wide-angle oscillation
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Dimensions (L x W x H)	20 x 18 x 35 cm
Weight	1.5 kg
Cord Length	1.5 m
Noise Level	< 45 dB
Room Coverage	Up to 25 m²
Control Type	Manual knobs and buttons
Display	No display (mechanical controls)
Timer	Not available
Remote Control	Not included
Cleaning	Wipe with damp cloth; do not immerse
Warranty	2 years

Frequently Asked Questions - TSA8034 Teesa

How do I turn on the heater?

Plug the heater into a power outlet. Turn the thermostat knob to the desired temperature, then select the fan speed using the switch: Low (1000W) or High (2000W). The Fan Only setting circulates air without heat.

What is the recommended room size for this heater?

The heater is suitable for rooms up to approximately 25 m² (270 sq ft). For larger spaces, consider using multiple units.

How do I clean the heater?

Always unplug the heater and let it cool completely. Use a soft, damp cloth to wipe the exterior. Do not use abrasive cleaners or immerse the heater in water. The air intake and outlet can be cleaned with a vacuum brush attachment.

Does the heater have an automatic shut-off?

Yes, the heater features overheat protection and a tip-over switch. If the unit overheats or is knocked over, it will automatically turn off for safety.

Can I use the heater in a bathroom?

No, this heater is not designed for damp or wet locations. It should only be used in dry indoor areas to avoid electric shock.

Why does the heater produce a smell when first used?

During initial use, the heating element may produce a slight odor as it burns off dust or manufacturing residues. This is normal and will disappear after a few minutes of operation. Ensure the room is well-ventilated.

How can I reduce noise from the heater?

The fan generates some noise (< 45 dB). To minimize it, operate on the Low setting or place the heater on a stable, non-carpeted surface. Oscillation may add slight mechanical noise.

Does the heater have a remote control?

No, the Teesa TSA8034 is controlled manually via knobs and a switch on the unit. There is no remote control included.

Can I leave the heater on overnight?

It is not recommended to leave the heater unattended or while sleeping. Although safety features are present, always follow the manual's guidelines: turn off the heater when leaving the room or going to bed.

What should I do if the heater stops working?

First, check that it is plugged in and the power outlet is working. Ensure the thermostat is set above room temperature. If the heater tipped over, reset it by placing it upright. If it still does not work, contact Teesa customer service under the 2-year warranty.

USER MANUAL TSA8034 Teesa

White rectangular water heater with cooling wheels and a digital display showing 25°C, placed on tiled floor (no text or symbols on main subject)

TSA8034

Návod k obsluze

cs

Bedienungsanleitung

DE

Owner's manual

EN

Εγχειρίδιο χρήσης

GR

Instrukcja obsługi

PL

Manual de utilizare

RO

Návod na použitie

SK

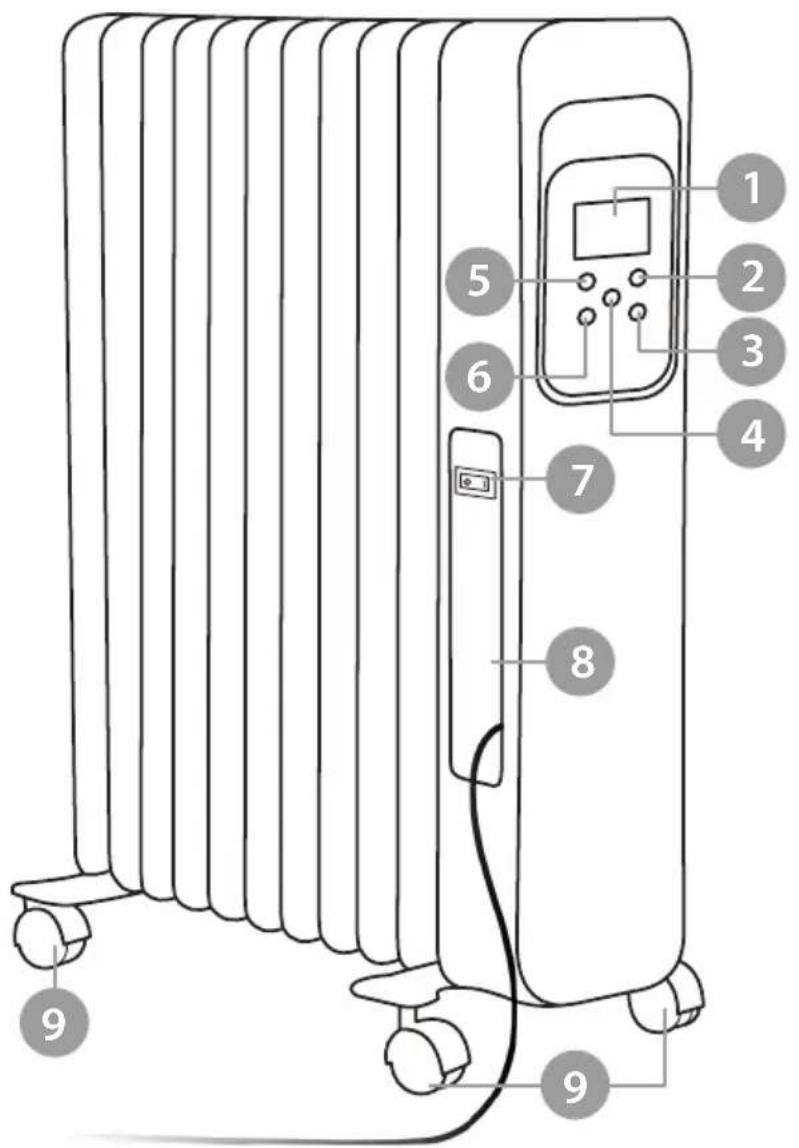

CS DE	EN GR PL	RO SK
LCD displej LCD	Display LCD display Oθόνη LCD Wyświetlacz LCD Ecran LCD LCD displej
TlačítkoTimer Taste	Timer Timer button KouμπiTimer		PrzyciskTimer ButonTimer TlačidloTimer
Tlačítko Mode Taste	Mode Mode button Kouμπi Mode Przycisk Mode Buton Mode				Tlačidlo Mode
Knoflík napájení	Netztaste	Power button	Πλήκτρο ισχύος	Przycisk zasilania	Buton alimentare	Tlačidlo napájania
Tlačítko +	Taste +	+ button	Kouμπi +	Przycisk +	Buton +	Tlačidlo +
Tlačítko -	Taste -	- button	Kouμπi -	Przycisk -	Buton -	Tlačidlo -
Vypínač	Stromschalter Power switch		Διακόπτης ρεύματος	Przełącznik zasilania	Întrerupător	Vypínač
Úložný prostor pro kabel	Kabelaufbewahrung	Cord storage	Αποθήκευση καλωδίου	Schowekna przewód	Suportpentrucablu dealimentare	Úložný priestor n kábel
Kolečka	Rollen	Castors	Τροχοί	Kółka	Roți pentru deplasare	Kolieska

Diagram showing a curved arrow indicating rotation or movement, with no visible text or symbols

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Diagram showing a hand holding a tool with an arrow pointing to a device component (no text or symbols present)

Simple line drawing of a cabinet with a bird on top (no text or symbols)

Diagram of a mechanical device with a hanging hook and internal components (no text or symbols)

Diagram showing a hand moving through a curved arrow on a grid-like structure (no text or symbols)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Diagram showing a hand holding a tool with an arrow pointing to a device (no text or symbols present)

Simple line drawing of a cabinet with decorative elements (no text or symbols)

Diagram of a mechanical assembly with a hanging component and a curved component (no text or symbols)

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future reference. Producer does not take responsibility for damage caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the risk of injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

• Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.
• Do not use the product for purposes different from displayed in this operating manual.

- Before connecting the device to power supply socket, make sure the voltage indicated on appliance corresponds to the voltage in the power supply socket.

- ALWAYS turn off the device and disconnect it from the mains supply:

• if it's not operating correctly
• if there's an uncommon voice when using
• before cleaning
• when not in use

- Note: during first use, the device may give off peculiar smell and fumes from heating and isolation elements – it is a normal phenomenon.

- During first use or when they are turned on after having not been used for a long period time, the device may initially emit a sound – it is a normal phenomenon, it will stop after while.

- When you disconnect the power cord of the device, grasp and pull the plug, not the cor cable.

- Place the device on flat, stable and heat resistant surface. Use in upright position only and not leave unattended!

- Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

- Do not handle/use the device with wet or moist hands. Do not place it the device in water any liquid, nor use it in humid or wet environments/rooms. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool!

- Do not use heater near flammables, explosives, varnish, glue or heat sensitive items.

- Do not cover the device or block its ventilation grilles (danger of overheating); keep them free from obstacles (at least 1 meter away). Do not place the device up against walls, furniture, curtains, etc. Place it in a properly ventilated place.

- Do not use the heater to dry clothes.

- Do not use the appliance in rooms less than 5 m2 area.

- Do not place the heater directly beneath power mains socket.

- Do not use in dusty environments.

- When not in use, store in clean, cool and dry area. Remember to cool the heater before storing.

- Protect the product from strong impact and mechanical stress.

- Keep the device out of the reach of children. Do not leave children unsupervised with the product.

• This appliance may be used by children who are above 8 years old and by persons with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if the are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

• Pay attention! The surface of this device will get hot. To avoid burns and personal injury, not let bare skin touch hot surfaces. Use handles when moving the product. Closely supervise any children and pets when in use.
• Do not route power cord underneath the heater or in front of air ventilation grilles.
• Do not insert anything into the ventilation grill!
• ALWAYS disconnect the product form the mains supply when it is not in use.
• DO NOT use this device if the cord or the plug is damaged, or the appliance is broken. attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this device. Never disassemble this device.
• This heater is filled with a precise quantity of special oil. In case of an oil leakage, conta authorized service point for repair. Do not repair this device yourself!
• Fixed power cable may only be replaced in an authorized service point.
• This product is only suitable for well insulated spaces and occasional use.
• Clean this device in accordance to instructions listed in "Cleaning and Maintenance" section Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust open as this may cause electric shock, fire or damage to the heater.

ASSEMBLING CASTORS

Before use, mount the attached castors to the body of the heater.

Diagram showing a curved arrow indicating rotation or movement, with no visible text or symbols

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Diagram showing a hand holding a tool with an arrow pointing to a device component (no text or symbols present)

Simple line drawing of a cabinet with a bird on top (no text or symbols)

Diagram of a mechanical assembly with a hanging component and a circular component (no text or symbols)

1. Place the radiator body upside-down on a safe, stable surface.
2. Position the wheel base assemblies between the end fins on the front and at the end of heater.
3. Attach them to the heater using the U-bolts and wing nuts supplied.
4. Tighten the wheel nuts.

Note: Do not overtighten as it may cause the damage of heater flange.

1. . Turn the heater the right way up.

WARNING:

• Do not operate without castors attached.
• Operate the heater only in an upright position (castors on the bottom); any other position could create hazardous situation.

OPERATION

1. Before using the heater, make sure it is placed on a flat and stable surface.
2. Insert the plug of the heater's power cord into a suitable power mains socket.
3. Press the power switch on the side of the heater. The buzzer rings and the screen and buttons light up for 1 second.
4. Press the Power button to turn on the heater. P3 (high heat) program is running. To charge the program (P2- medium heat, P1- low heat), press the Mode button.
5. To change the degrees between Celsius and Fahrenheit, press and hold the Mode button.
6. To set the desired temperature, while in heating mode, press the + or - buttons. After 5 seconds, the setting will be saved. When set temperature is reached, the heater will turn When the ambient temperature drops, the heater will turn on.
7. To set the timer, while in heating mode, press the Timer button. The display will show C Press the + and - buttons to set the time (in hours), after which the heater will turn off remaining time and the temperature will be shown on display in 5 second intervals.
   Note: after turning off the heater with the power switch on the side, the set timer will be cleared.
8. When the heater is tilted, it will stop working automatically and the display will show "EC" message. After straitening the heater, press the power button to reset it.
9. If the display shows "Ex" message, stop using the device and contact the manufacturer.

Remote control

Buttons on the remote correspond to the buttons on the heater and have the same functio

CLEANING AND MAINTENANCE

Clean your device regularly.

1. Always unplug the heater from the wall socket and allow it to cool down before clearing
2. Cleantheoutsideoftheheater bywiping with a soft,slightlydampclothandbuffwithadry cloth.
3. Do not use any detergents or abrasives and do not allow any water to enter the heater.
4. Before storing the heater, wind the cable round cable storage bobbin and place the heat in a clean and dry place.

SPECIFICATION

• Rated power: 2500 W
- Fins: 11
• Fins size: 145 x 580 mm
- 3 heating modes
- Adjustable thermostat
• Automatic control temperature
- 9 hour timer
- LCD display
• Casing material: metal + plastic
- Handle
- Cord storage
- Tip-over switch
- Remote control
- Protections against: overheat
• Power cord length: 145 cm
• Power supply: 220-240 V, 50/60 Hz
- Weight: 7,5 kg

• Dimensions: 490 x 230 x 630 mm (WxDxH)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible hand to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take the item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Hergestellt in China für LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.

Diagram showing a hand pressing down on a curved mechanical component (no text or symbols)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Simple line drawing of a hand holding a tool, with an arrow pointing to a device (no text or symbols)

Simple line drawing of a cabinet with an arrow pointing downward (no text or symbols)

Diagram of a mechanical assembly with a suspended component and a downward arrow indicating motion (no text or symbols)

Diagram showing a hand pressing down a curved arrow on a stepped surface (no text or symbols)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Diagram showing a hand holding a tool with an arrow pointing to a device component (no text or symbols present)

Simple line drawing of a cabinet with a bird on top (no text or symbols)

Pure mechanical diagram showing a clamping device with no text or symbols

Diagram showing a hand pressing down a curved arrow on a grid-like structure (no text or symbols)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Simple line drawing of a hand holding a tool, with an arrow pointing to a device (no text or symbols)

Simple line drawing of a cabinet with a bird on top (no text or symbols)

Pure mechanical diagram showing a gear and base assembly without any text, numbers, or symbols

Diagram showing a curved arrow indicating rotation or force direction (no text or symbols present)

Illustration of a hand holding a tool with an upward arrow, no text or symbols present

Diagram showing a hand holding a tool with an arrow pointing to a device (no text or symbols present)

Simple line drawing of a cabinet with a bird silhouette on top (no text or symbols)

Pure mechanical diagram showing a clamping device with a hanging hook and internal components (no text or symbols)
