TSA8027 - Heating Teesa - Free user manual and instructions

Product Type	Portable Electric Fan Heater
Model	TSA8027
Brand	Teesa
Power Supply	220-240V ~ 50/60Hz
Rated Power	2000W
Heating Levels	2 (1000W / 2000W) + Fan Only
Work Modes	Cool Air (fan), Warm Air (1000W), Hot Air (2000W)
Thermostat	Adjustable with automatic temperature control
Overheat Protection	Yes, automatic shut-off
Noise Level	<50 dB
Heating Element	Spiral
Casing Material	PP (Polypropylene)
Blades Material	Aluminium
Power Indicator	Yes
Handle	Yes
Power Cord Length	120 cm
Dimensions (approx.)	H: 25 cm, W: 18 cm, D: 12 cm
Weight (approx.)	1.5 kg
Recommended Room Area	Up to approx. 20 m²
Cleaning	Wipe with soft damp cloth; avoid detergents; clean intake grill regularly
Safety Features	Overheat protection, tip-over protection not specified, not for bathroom use
Repair	Only qualified personnel; no user-serviceable parts

Frequently Asked Questions - TSA8027 Teesa

How do I clean the Teesa TSA8027 heater?

Before cleaning, turn the mode knob to 0 and unplug. Allow to cool completely. Wipe the casing with a soft, slightly damp cloth. Do not use abrasive detergents. Ensure the air intake grill is free from dust; use a vacuum cleaner if needed.

What are the operating modes?

The mode knob has three positions: 0 (off), I (fan only, cool air), II (heating at 1000W). For 2000W, turn the thermostat to maximum. The manual also describes a III position for 2000W, but the knob on TSA8027 shows only 0, I, II.

Does the heater have overheat protection?

Yes, the heater is equipped with a safety function that switches it off if it accidentally overheats (e.g., obstructed air intake/outlet). Remove the cause, let it cool, and it will automatically restart.

Can I use this heater in a bathroom?

No, the heater is not suitable for use in bathrooms or near water. It should not be placed near baths, showers, or swimming pools to avoid electric shock.

How does the thermostat work?

Turn the thermostat knob to the desired temperature. When the room reaches that temperature, the heater switches off. It cycles on/off to maintain the set temperature automatically. The indicator light stays on until the set temperature is reached.

What is the recommended clearance around the heater?

Keep at least 1 meter clearance from walls, furniture, curtains, and other objects. Do not cover the heater, and ensure the air intake and outlet grilles are unobstructed.

What is the power cord length?

The power cord is 120 cm long. Do not use an extension cord unless necessary and ensure it is suitable for the power rating.

How should I store the heater?

After use, turn off and unplug. Allow it to cool completely. Store in a dry, clean place away from dust and moisture. Keep the cord loosely coiled.

Is the handle for carrying?

Yes, the heater has a handle for easy portability. Use it to carry the heater when it is cool and unplugged.

What is the noise level of this heater?

The noise level is less than 50 dB, making it relatively quiet for a fan heater.

USER MANUAL TSA8027 Teesa

White portable electric heater with a grid grille and two buttons, no visible text or symbols on the device itself.

Bedienungsanleitung

Owner's manual

Instrukcja obsługi

Manual de utilizare

Návod na použitie

DE

EN

PL

RO

SK

DE EN PL RO SK

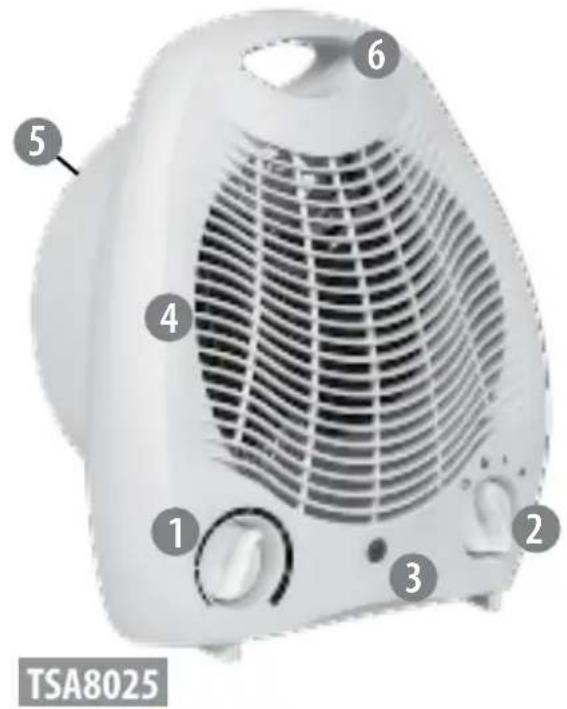

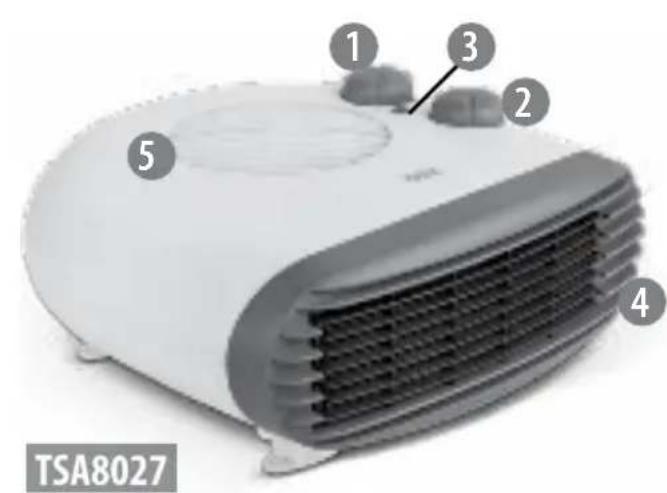

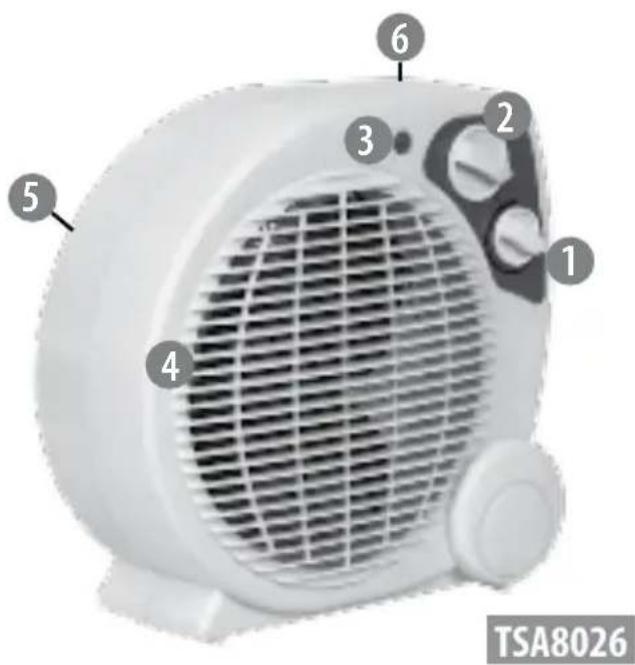

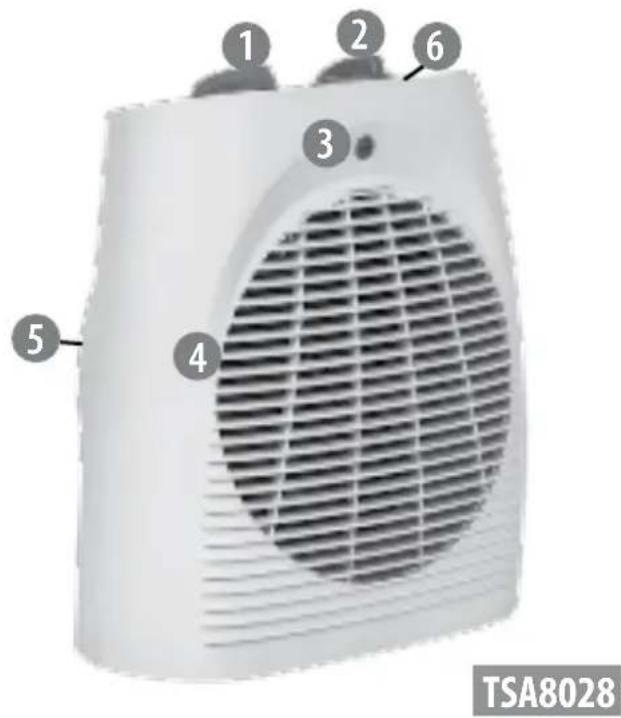

Thermostatregler Thermostat knob Pokrętło termostatu Buton termostat				Otočný regulátor termostatu
Modus Drehschalter	Mode selection knob	Pokrętło wyboru trybu	Buton de selectare mod	Otočný prepínač režimu
Betriebsanzeige	Power indicator light	Lampka kontrolna	Indicator alimentare	Indikátor prevádzky
Luftaustrittsgitter	Air outlet grill	Kratka wylotu powietrza	Grilaj de evauare a aerului	Mriežka výstupu vzduchu
Lufteinlass-Gitter	Air inlet grill	Kratka wlotu powietrza	Grilaj de admsie a aerului	Mriežka nasávania vzduchu
Griff	Handle	Uchwyt	Mâner	Rukovát'

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future reference. Producer does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS:

In order to reduce the risk of injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

the manual for future reference.

on the appliance corresponds to the voltage in the power supply socket.

elements – it is a normal phenomenon.

cable.

and do not leave unattended.

other factor which may damage the appliance or its cord.

water or any liquid, nor use it in humid or wet environments. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool! The device is not suitable for use in a bathroom.

and outlet free from obstacles; make sure there are no objects near the device within at least 1 meter range. Do not place it up against walls, furniture, curtains, etc. Place the device in a properly ventilated place.

^2 area.

storing.

the product.

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a

cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

operation. Closely supervise any children and pets when in use.

may repair this device. Never disassemble this device.

section. Keep the fan heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this may cause electric shock, or fire or damage to the heater.

OPERATION

1. Make sure the device is turned off (0) and the thermostat knob is set at the minimal value, before plugging it into power mains socket.

2. Use the mode selection knob to choose desired work mode

/ position, the heater blows cool air.

1000 W.

2000 W.

light will be off.

1. Use the thermostat switch to select desired temperature setting.

Simple circular icon with a diagonal line and labeled points 0, I, II (no text or symbols beyond labels)

Note: knobs on your device may differ in appearance from the once presented in this instruction manual. Illustrations are for reference only.

1. The operating temperature is selected by a combination of the power mode knob and thermostat settings. The hottest setting will be when the heater is at the second heating setting (II) and thermostat is turned to maximum.

Note: When in heating modes, the indicator light will be on signaling the device has not reached yet the set temperature.

1. Automatic temperature control: When the room has reached the required temperature turn the right thermostat knob in an anti-clockwise direction up to the point where the appliance switches off and not beyond. The temperature fixed in this way will be automatically regulated and kept at a constant level by the thermostat.

IMPORTANT: The heater is equipped with a safety function which will switch off the heater in case of accidental overheating (eg. obstruction of air intake and outlet grilles, motor turning slowly or not at all). If the overheat protection is activated, remove the cause of overheating. Allow the heater to cool and remove anything restricting the airflow before using the heater again. The heater will automatically turn on again once it's cooled down and ready to resume operation.

NOTE:

of the thermostat.

CLEANING AND MAINTENANCE

Clean your device regularly.

1. Before cleaning, turn the power switch to "0" position and unplug the device from power mains socket.
2. Allow the device to cool completely.
3. Wipe the device casing with a soft, slightly damp cloth. Do not use detergent or abrasives as this may damage the surface.
4. Ensure the intake grill is free from dust, as this will reduce the airflow. Accumulated dust can be removed with soft cloth or vacuum cleaner.
5. Allow surface to fully dry before using the heater again.

SPECIFICATION

TSA8025 TSA8026 TSA8027 TSA8028

Rated power 2000 W
3 work modes cool air / warm air / hot air
2 heating levels 1000 W / 2000 W
Adjustable room thermostat	√
Automatic control temperature	√
Noise level <50 dB
Spiral heating elements	√
Casing material PP
Blades material Aluminium
Power indicator	√
Handle -	√		√
Protections against overheat	√
Power cord length 120 cm
Power supply 220-240 V, 50/60 Hz

EN

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
