TSA8025 - Heating Teesa - Free user manual and instructions

Product Type	Heater
Brand	Teesa
Model	TSA8025
Power Supply	220-240 V, 50/60 Hz
Rated Power	2000 W
Work Modes	Cool air, warm air (1000 W), hot air (2000 W)
Heating Levels	2 (1000 W / 2000 W)
Adjustable Thermostat	Yes
Automatic Temperature Control	Yes
Noise Level	< 50 dB
Heating Element Type	Spiral
Casing Material	PP (Polypropylene)
Blade Material	Aluminium
Power Indicator Light	Yes
Handle	Yes
Protection Against Overheating	Yes (auto shut-off)
Power Cord Length	120 cm
Intended Use	Indoor household use only
Minimum Room Area	4 m²
Cleaning	Wipe with soft damp cloth; clean intake grill regularly

Frequently Asked Questions - TSA8025 Teesa

How do I turn on the heater?

Plug the heater into a mains socket with the mode knob set to 0 and thermostat at minimum. Then turn the mode knob to I (1000 W) or II (2000 W) for heat, or to the fan symbol for cool air.

What do the different mode positions mean?

The fan symbol provides cool air. Position I provides warm air at 1000 W. Position II provides hot air at 2000 W. Position 0 turns the heater off.

How does the thermostat work?

Set the thermostat knob to the desired temperature. When the room reaches that temperature, the heater will automatically switch off. Turn the knob anticlockwise to find the point where it clicks off; that sets the constant temperature.

What should I do if the heater overheats?

The heater has an overheat protection that shuts it off automatically. Unplug the heater, remove any obstruction from the air intake or outlet, let it cool down, then plug it back in. It will resume operation once cooled.

Can I use this heater in a bathroom?

No, this heater is not suitable for bathrooms or humid environments. Do not use it near a bath, shower, or swimming pool.

How should I clean the heater?

Turn off and unplug the heater, let it cool completely. Wipe the casing with a soft damp cloth. Clean the air intake grill with a soft cloth or vacuum cleaner to remove dust. Do not use abrasive cleaners.

Can I leave the heater unattended?

No, do not leave the heater unattended while it is operating. Keep it out of reach of children and pets.

What is the minimum room size for this heater?

Do not use the heater in rooms smaller than 4 m².

The indicator light is on but no heat?

The indicator light stays on when the room temperature is below the thermostat setting. If the heater is set to a heating mode and the light is on, it means the heater is actively heating. If no heat, ensure the mode knob is at I or II and the thermostat is set high enough.

Can I use an extension cord?

The manual does not recommend extension cords. Plug the heater directly into a wall socket. If necessary, use a heavy-duty cord that matches the power rating.

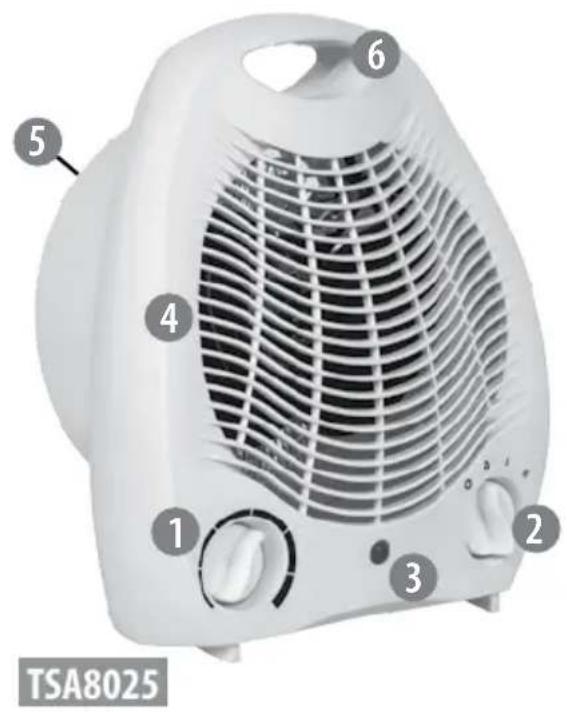

USER MANUAL TSA8025 Teesa

White portable heater with grid grille and control knobs, labeled 'reesa' (no visible text or symbols on device body)

Bedienungsanleitung

Owner's manual

Instrukcja obsługi

Manual de utilizare

Návod na použitie

DE

EN

PL

RO

SK

DE EN PL RO SK

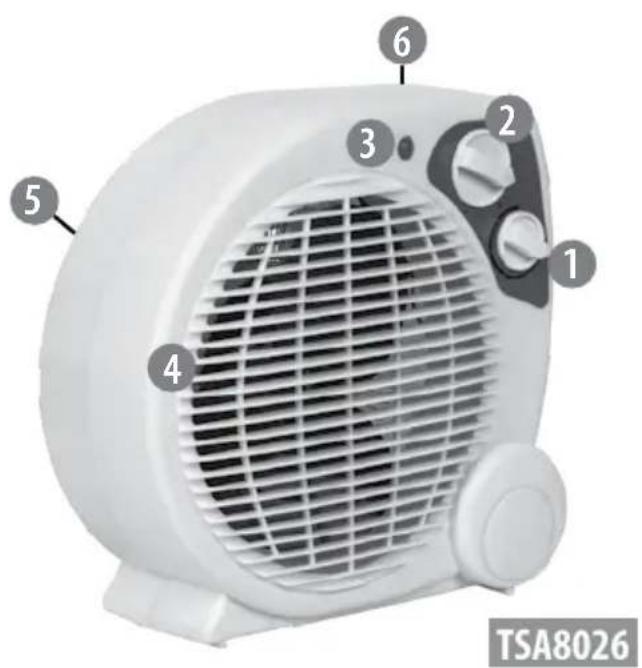

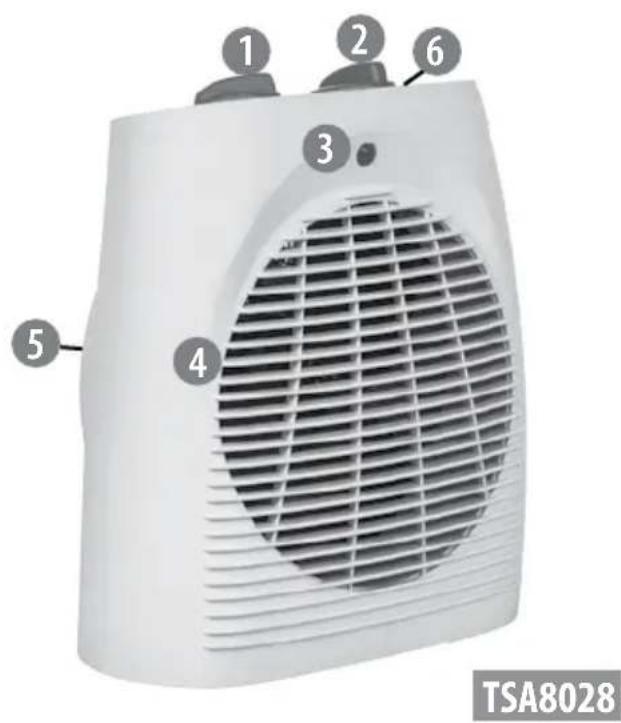

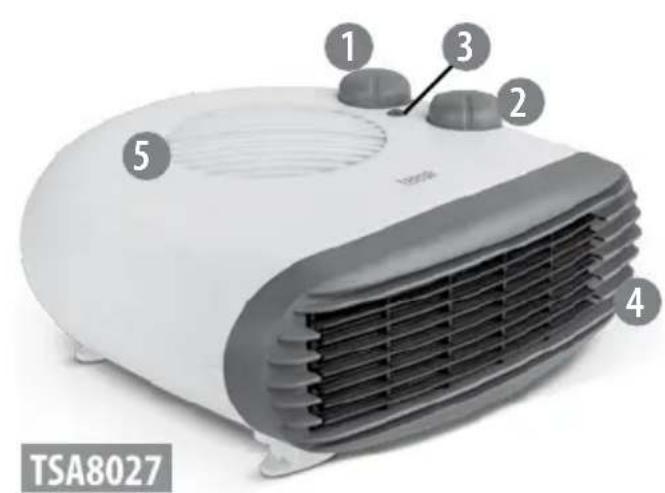

Thermostatregler Thermostat knob Pokrętło termostatu Buton termostat				Otočný regulátor termostatu
Modus Drehschalter	Mode selection knob	Pokrętło wyboru trybu	Buton de selectare mod	Otočný prepínač režimu
Betriebsanzeige	Power indicator light	Lampka kontrolna	Indicator alimentare	Indikátor prevádzky
Luftaustrittsgitter	Air outlet grill	Kratka wylotu powietrza	Grilaj de evauare a aerului	Mriežka výstupu vzduchu
Lufteinlass-Gitter	Air inlet grill	Kratka wlotu powietrza	Grilaj de admsie a aerului	Mriežka nasávania vzduchu
Griff	Handle	Uchwyt	Mâner	Rukovät

Simple circular icon with a pencil and letter labels 0, I, II (no additional text or symbols)

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future reference. Producer does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS:

In order to reduce the risk of injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

• Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.
• Do not use the product for purposes different from displayed in this operating manual.
• Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.
  • ALWAYS turn off the device and disconnect it from the mains supply:

• if it's not operating correctly
- if there's an uncommon voice when using
- before cleaning
- when not in use

- Note: during first use, the device may give off peculiar smell from heating and isolation elements – it is a normal phenomenon.

- When you disconnect the power cord of the device, grasp and pull the plug, not the cord/cable.

- Place the device on flat, stable and heat resistant surface. Use in upright position only, and do not leave unattended.

- Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

- Do not handle/use the device with wet or moist hands. Do not place it the device in water or any liquid, nor use it in humid or wet environments. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool! The device is not suitable for use in a bathroom.

- Do not use fan heater near flammables, explosives, varnish, glue or heat sensitive items.

- Do not cover or restrict inlet and outlet grilles (danger of overheating). Keep the air inlet and outlet free from obstacles; make sure there are no objects near the device within at least 1 meter range. Do not place it up against walls, furniture, curtains, etc. Place the device in a properly ventilated place.

• Do not use the heater to dry clothes.

- Do not use the appliance in rooms less than 4 m² area.

• Do not use in dusty environments.

- When not in use store in clean, cool and dry area. Remember to cool the heater before storing.

- Keep the device out of the reach of children. Do not leave children unsupervised with the product.

- Protect the product from strong impact and mechanical stress.

- This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a

cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

- Pay attention! The surface of this device may get hot; the air outlet gets hot during operation. Closely supervise any children and pets when in use.

• Do not route power cord underneath the heater or in front of air inlet or outlet.

• Do not insert anything into the ventilation grill!

• ALWAYS disconnect the product form the mains supply when it is not in use.

• DO NOT use this device if the cord or the plug is damaged, or the appliance is broken.

- Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this device. Never disassemble this device.

• Fixed power cable may only be replaced in an authorized service point.

• Appliance for indoor and household use only.

- Clean this device in accordance to instructions listed in "Cleaning and Maintenance" section. Keep the fan heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this may cause electric shock, or fire or damage to the heater.

OPERATION

1. Make sure the device is turned off (0) and the thermostat knob is set at the minimal value, before plugging it into power mains socket.

2. Use the mode selection knob to choose desired work mode

• Turn the mode selection knob to / position, the heater blows cool air.
- Turn the mode selection knob to "I" position, the heater blows warm air, working at 1000 W.
- Turn the mode selection knob to "II" position, the heater blows hot air, working at 2000 W.
- Turn the mode selection knob to "0" position, the heater stops working, the indicator light will be off.

1. Use the thermostat switch to select desired temperature setting.

Simple circular icon with a diagonal line and labeled points 0, I, II (no text or symbols beyond labels)

Note: knobs on your device may differ in appearance from the once presented in this instruction manual. Illustrations are for reference only.

1. The operating temperature is selected by a combination of the power mode knob and thermostat settings. The hottest setting will be when the heater is at the second heating setting (II) and thermostat is turned to maximum.

Note: When in heating modes, the indicator light will be on signaling the device has not reached yet the set temperature.

1. Automatic temperature control: When the room has reached the required temperature turn the right thermostat knob in an anti-clockwise direction up to the point where the appliance switches off and not beyond. The temperature fixed in this way will be automatically regulated and kept at a constant level by the thermostat.

IMPORTANT: The heater is equipped with a safety function which will switch off the heater in case of accidental overheating (eg. obstruction of air intake and outlet grilles, motor turning slowly or not at all). If the overheat protection is activated, remove the cause of overheating. Allow the heater to cool and remove anything restricting the airflow before using the heater again. The heater will automatically turn on again once it's cooled down and ready to resume operation.

NOTE:

• When in heating modes, the indicator will be on if the temperature is below the setting of the thermostat.
  • For optimum benefit, close windows and doors.
• Do not cover the ventilation holes as this will cause overheating and will activate the cut out.

CLEANING AND MAINTENANCE

Clean your device regularly.

1. Before cleaning, turn the power switch to "0" position and unplug the device from power mains socket.
2. Allow the device to cool completely.
3. Wipe the device casing with a soft, slightly damp cloth. Do not use detergent or abrasives as this may damage the surface.
4. Ensure the intake grill is free from dust, as this will reduce the airflow. Accumulated dust can be removed with soft cloth or vacuum cleaner.
5. Allow surface to fully dry before using the heater again.

SPECIFICATION

TSA8025 TSA8026 TSA8027 TSA8028

Rated power 2000 W
3 work modes cool air / warm air / hot air
2 heating levels 1000 W / 2000 W
Adjustable room thermostat	√
Automatic control temperature	√
Noise level <50 dB
Spiral heating elements	√
Casing material PP
Blades material Aluminium
Power indicator	√
Handle -	√		√
Protections against overheat	√
Power cord length 120 cm
Power supply 220-240 V, 50/60 Hz

EN

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
