TO 307 SS - Toaster HYUNDAI - Free user manual and instructions

Type	Toaster
Brand	Hyundai
Model	TO 307 SS
Power Rating	800 W
Voltage	220-240 V
Frequency	50/60 Hz
Capacity	2 slices
Material	Stainless steel
Dimensions (W x D x H)	28 x 18 x 20 cm
Weight	1.3 kg
Functions	Toast, Defrost, Reheat, Cancel
Browning Control	7 levels
Auto Shut-Off	Yes
Removable Crumb Tray	Yes
Cord Storage	Underneath
Cleaning	Wipe exterior with damp cloth; wash crumb tray
Safety Features	Auto shut-off, overheat protection
Spare Parts Available	Crumb tray, heating elements
Warranty	2 years
Country of Origin	China

Frequently Asked Questions - TO 307 SS HYUNDAI

How do I adjust the browning level?

Turn the browning control dial to your desired level (1-7). 1 is light, 7 is dark.

Can I toast frozen bread?

Yes, use the Defrost function. Insert frozen bread, press Defrost, then lower the lever.

How do I reheat toast?

Use the Reheat function. Place toast, press Reheat, and lower the lever.

Why does my toast smell like burning?

Clean the crumb tray regularly. Built-up crumbs can burn. Unplug and remove the tray, empty it, and wash with warm soapy water.

The lever won't stay down. What should I do?

Ensure the toaster is plugged in. The lever only locks when power is on. If still not working, contact customer service.

How do I clean the toaster?

Unplug and let cool. Wipe the exterior with a damp cloth. Remove and wash the crumb tray. Do not immerse in water.

Can I toast bagels?

Yes, place bagel halves in the slots with cut sides facing inward. Use a lower browning setting.

Is the toaster safe to leave unattended?

No, always supervise the toaster during use. It has auto shut-off but avoid leaving it alone.

What does the Cancel button do?

Press Cancel at any time to stop toasting immediately and pop up the bread.

Where can I find spare parts?

Contact Hyundai customer service or visit authorized service centers. Common parts include crumb tray and heating elements.

USER MANUAL TO 307 SS HYUNDAI

Hyundai Hyundai 2000 standard sit-up toaster with control knobs and a warning symbol (no text-heavy elements)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ / NAVODILA ZA UPORABO BEDIENUNGSANLEITUNG

Topinkovač / Hriankovač / Toster / Toaster / Kenyérpirító / Opekač kruha / Elektrischer Toaster

Mechanical component diagram showing a linkage with labeled part P7 (no text or symbols beyond label)

OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND

Mechanical component diagram showing a linkage with labeled part P7 (no text or symbols beyond label)

Mechanical component diagram showing a linkage with labeled part P7 (no text or symbols beyond label)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

Safety Instructions

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- Do not leave the appliance plugged in power supply without supervision!

- Pay careful attention when handling the appliance to avoid injury, (e.g. burns, scalding).

- The bread may catch on fire, do not use the toaster near or underneath flammable materials, such as curtains.

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged and it is leaking. In this case take the appliance to a special service to check its safety and proper function.

- WARNING: Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- NOTICE – Some parts of this product may become very hot and cause burns. Take special care when children or handicapped persons are present.

- After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Do not submerge the appliance or the heating plate in to the water (not even partially). Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

- Do not place the appliance in close range of heat sorces such as grills, fireplaces, gas/electric owens, burners, hotair owens etc.

- To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

- Let the appliance cool down completely before cleaning or storing.

• Use the device only for the intended purpose.
• Before switching on, ensure the slices of bread do not get jammed in the toaster slots. However, if this happens, unplug the appliance first and then take out the jammed bread slice.
• Note the housing of the toaster will become very hot when using, especially in the area of the toaster slots. Please be careful not to be burned. Please only use the control knob, lever and button for operation.
• Do not insert your fingers or metal objects like knives or forks into the bread slots.
• The space above the toaster must be free. It has to be made sure that air can circulate around the toaster.
• Never switch on the toaster in advance as it heats immediately!
• Clean the breadcrumbs container regularly, thus you will prevent possible fire.
• If you see smoke caused e.g. by burning food, switch off the toaster immediately and unplug it from the power supply.
• Spontaneous ignition of prepared food may occur during grilling. Unplug the appliance from the mains and put out the fire in case of sudden ignition.
• To avoid injury (burning), do not move the appliance when it is hot!
• Do not use the appliance in an environment saturated with explosive or flammable steams.
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• Only use the appliance when it is horizontally placed on a suitable surface.
• Do not cover the bread slots while in operation.
• Improper use or repair may cause a risk of danger. In case of misuse or incorrect handling or repair, no liability will be taken for possible damages.
• The appliance is only designed for indoors using, not for outdoors using.
• Keep the appliance away from wall, curtain and other combustible material during use.
• Don't place anything on the appliance besides baking bread.
• Do not use near flammable materials or under this materias.
• Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
• WARNING: There is a risk of injury when the appliance is not used correctly (not in accordance with the manual).
• The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. deterioration of food, injury, burning, scalding, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

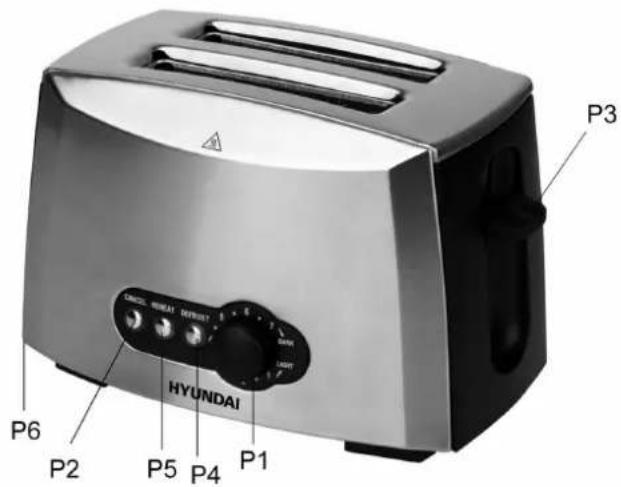

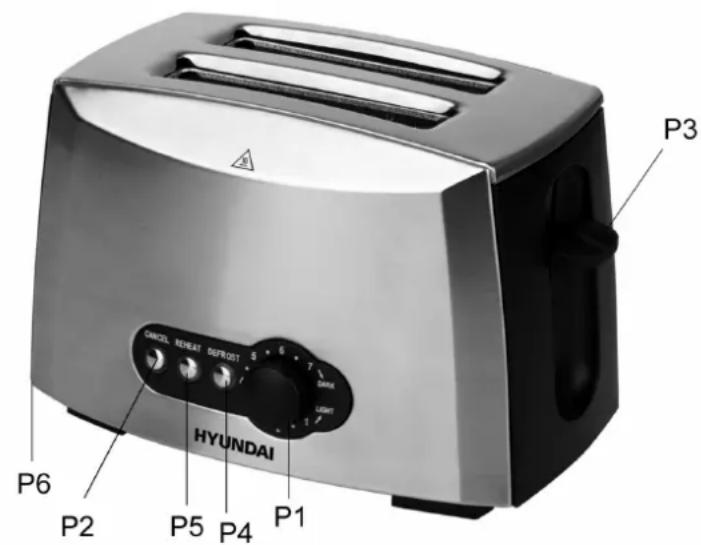

Description of the controls

P1 Timer set browning control. Bigger number for darker browning
P2 CANCEL button. Push to stop heating
P3 Sliding lever. Push down to start working
P4 DEFROZE button
P5 REHEAT button
P6 Crumb Tray

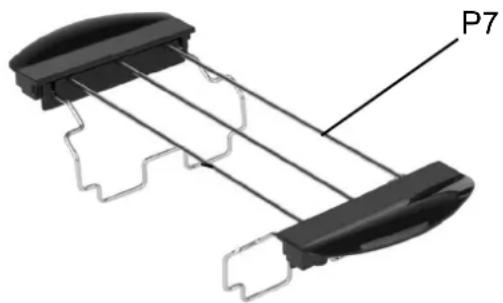

P7 Holder for crispy pastry

Mechanical component diagram showing a multi-stage assembly with labeled part P7 (no text or symbols beyond label)

EN - 15

Instructions for Use

Before you start:

Before first use it is suggested having the appliance without bread operated with the control knob set to grade 7 and the lever in down position to remove the heating element protection finish. At this time, the appliance will smoke. This is normal. It is recommended to have a good ventilation of air. After the first heating, let it cool down naturally before being used again.

Selecting the browning level

Grades Browning level

1 – 2 Very lightly toasted or to warm,
3 Lightly toasted,
4 – 5 Well toasted,
6 – 7 Very well toasted or for frozen bread.

Make toast

• Plug the toaster to the power supply and place 1 or 2 slices of bread into the bread slots of the
• Adjust the setting timer P1 to a desired level:

1 = minimum level;

7 = maximum level.

• Press down the sliding lever P3, the toaster will start running automatically.
• Bread slices will be ejected out and the appliance will shut down automatically when toasting is finished.

REHEAT FUNCTION

You can use reheat facility if ready toasts got cold.

Insert toast into the toaster and pull down the sliding lever. Press the reheat function button.

The indicator will light up.

The cold toast can be reheated in short time without over browning.

DEFROST FUNCTION

Press defrost function button DEFROST to prolong cooking time of frozen bread, thus the indicator light should light up.

CANCEL BUTTON

Toasting can be reset anytime during toasting by pressing CANCEL button.

After use, leave the toaster to cool and then unplug.

Warming pastry (not more than 2 breads or rolls)

Push the pastry warming holder P7 slightly to the toasting slots to the maximum position. Put pastry on the holder. Set the selected warming level by the regulator P1. Push the guide P3 down so that it is secured in the lower position. After the set warming time the appliances is turned off automatically and the guide goes up. If you want to toast bread from the other side too, turn it and repeat the steps.

Warning

• Never put pastry directly on the toasting slots, always use the warming holder.
• Do not put an aluminum foil on the holder. Do not toast pastry and warm bread at the same time.
• You should not use the toaster to toast slices of bread and warm buns / croissants at the same time
  – Pause after 3 cycles of pastry warming so that the appliance can cool down.

Cleaning and Maintenance

Before cleaning, switch off and unplug the appliance and have it cool down.

Clean away crumbs from toaster:

Remove the crumbs from the browning slots and grids with the appliance not tilted. Then, slide out the tray, clean it and put it again into the appliance.

Outside cleaning:

Clean the outside of the appliance gently with a damp and soft cloth, and then wipe it with a dry cloth. Never use steel wire, abrasive cloth or other caustic cleaning agents, as they will damage the finish of the appliance.

Technical specifications

• 2-slice toaster
• Stainless steel design
• Countinously adjustable thermostat
• Automatic switch-off function
• Defrost, reheat, stop function
• Indicator lights
• Bun warmer
• Drawer for crumbs
• Color: stainless steel brushed
• Power drain: 900 W
• Power supply: 230 V \~ 50 Hz
• Size: 27.5 x 18 x 17 cm
• Weight: 1.44 kg
• Input in off mode is ≤ 0,50 W

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product (or battery/ accumulator) shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

NOTICE

WARNING: HOT SURFACE

Mechanical component diagram showing a black plastic housing with labeled part P7 (no text or symbols beyond label)

Mechanical component diagram showing two black plastic parts connected by a wire, labeled P7 (no text or symbols beyond label)

Opis

Mechanical component diagram showing two black parts with labeled part P7, no text or symbols present

Inbetriebnahme

Licensed by HYUNDAI Corporation Holdings, Korea

GENUINE PRODUCT OF HYUNDAI CORPORATION
