Product Type	Steam Cleaner
Brand	Ravanson
Model	CP-7020
Rated Voltage	220-240 V
Rated Frequency	50 Hz
Power Consumption	900-1050 W
Steam Pressure	0.35 MPa (3.5 bar)
Water Tank Capacity	300 ml
Steam Output	28 g/min
Weight	1.85 kg
Heat-up Time	Approximately 4 minutes
Steam Temperature	135°C
Safety Features	Child safety lock, automatic pressure release valve, auto shut-off when tank empty
Included Accessories	Funnel, measuring cup, round adapter with brush, curved tip, extender, flexible extension, main adapter, window adapter, fabric adapter
Functions	Disinfection and sterilization, clothes cleaning, window and door cleaning
Plug Type	Grounded (earthed) plug
Use	Indoor household use only
Maintenance	Clean with soft damp cloth; do not immerse in water; descaling not required
Storage	Store in cool, dry place out of reach of children
Warranty	Contact authorized service center for repairs

Frequently Asked Questions - CP-7020 Ravanson

How long does it take for the steam cleaner to heat up?

The Ravanson CP-7020 heats up in approximately 4 minutes after being plugged in.

Can I use tap water in the tank?

Yes, you can use tap water. However, do not add any lime removers, detergents, alcohol, or fragrance as these may damage the appliance.

What is the maximum water tank capacity?

The tank capacity is 300 ml. Do not overfill; use only up to 175 ml per fill as recommended in the manual.

How do I lock the steam release button to prevent accidental use?

Move the slider on the steam release button backwards to the LOCKED position. This engages a safety lock that prevents the button from being pressed.

Can I use the steam cleaner on waxed surfaces?

It is not recommended because the steam and temperature may remove the wax. Always check the manufacturer's instructions for the surface first.

What should I do if the appliance stops producing steam?

Check the water level in the tank, ensure the power cord is plugged in, press the steam release button, and verify that the nozzle is not blocked. If the issue persists, contact an authorized service center.

Is the steam cleaner safe to use on clothes?

Yes, with the fabric adapter and brush. However, never direct steam towards your body or other people. Always keep the nozzle pointed at the fabric.

How do I refill water during operation?

First, unplug the appliance and press the steam release button until steam stops. Wait 5 minutes for cooling, then slowly unscrew the safety plug to release remaining pressure. Do not unscrew if tank is hot or under pressure.

What is the steam temperature?

The steam temperature reaches up to 135°C, which effectively kills bacteria for disinfection and sterilization.

Does the appliance have an automatic shut-off feature?

Yes, the device is designed to automatically disconnect power when the water tank is empty to prevent heating of an empty tank.

USER MANUAL CP-7020 Ravanson

ENG User's manual Steam cleaner

Line drawing of a steamer with a pipette and paper airplane, no text or symbols present

MODEL:

CP-7020

Producent:

Ravanson®

Ravanson Ltd.

DANE TECHNICZNE

Close-up of a hand adjusting a white spray gun on a person's shoulder (no text or symbols visible)

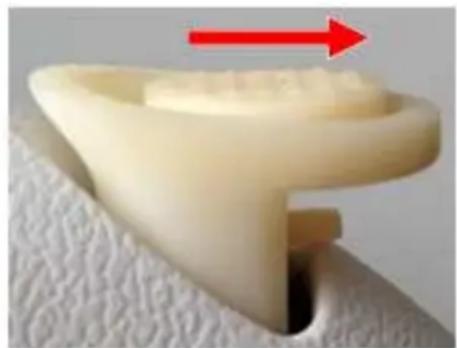

UWAGA!

Close-up of a white plastic object with a red arrow indicating direction, resting on a textured surface (no text or symbols)

ODBEZPIECZONE

Close-up of a beige plastic clip with a red arrow indicating upward motion (no text or symbols)

ZABEZPIECZONE

WARNING! To reduce the risk o-ire, ele)tri) sho)k or injury, it is ne)essary to -ollow the tips presented (elow :

1. Before first start-up read thoroughly this operation manual.
2. Please keep this operation manual in order to be able to use it at any time, because it contains important information.

3. This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device. Cleaning and maintenance must not be performed by unsupervised children.

4. WARNING! Some parts of the product may be very hot and cause burns. Pay particular attention to children and sensitive persons.

5. The applian)e is intended -or home use only.

6. Before every use, check the appliance for damage. Never use a damaged machine.

7. Do not operate the appliance with a damaged cord. If the power cord becomes damaged, it should be replaced by the manufacturer, in a specialist repair workshop, or by a qualified person in order to prevent any hazards.

8. NOTICE! Do not plug the device unless the water tank is full.

9. During operations, the tank must be hermetically connected and the safety cover must be in place.

10. Always switch off the device when you don't use it. While removing the plug from the socket do not pull by the power cord.

11. Do not allow children or animals to play around the device. Touching the outlet grate may result in burns.

12. WARNING! The appliance shall not be left unattended while it is connected to the supply mains.

13. WARNING! Keep the appliance out of reach children when it is energized or cooling down.

14. Do not use it in the rooms where gas or other volatile or inflammable substances can occur.

15. Before starting any maintenance or repair work always disconnect the device from the power source. In addition, do not forget to let the device cool down.

16. The device should be cleaned with a dry or slightly wet cloth. During cleaning the device cannot be connected to the mains. Do not immerse in water.

17. Store it in a clean and dry place. Store out of reach of children. Protect against dust, humidity, and mechanical damage.

18. Transport in the original packaging. Protect against dust, humidity, and mechanical damage.

19. The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors.

20. Do not insert any objects into the opening of the device's body.

21. Do not direct hot steam towards people, animals or electrical appliances.

22. Before filling with water disconnect from the power source. After use unplug the power cord.

23. Do not add any lime removers, detergents, alcohol or fragrance fresheners to the tank. This may damage the appliance.

24. Do not overfill the tank. This may cause too high steam pressure.

25. NOTICE! Use only original accessories provided with the appliance.

26. For wax preserved surfaces, temperature and steam may remove wax.

27. WARNING! Before switching the device on, make sure that the power characteristics comply with the parameters on the nameplate. This device is equipped with a grounded type plug and must be plugged into a grounded type outlet.

28. Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

DESCRIPTION

The appliance has been designed to avoid heating of an empty tank. After evaporation of water from the tank the power is automatically disconnected.

With high sensitivity thermostat, it is possible to provide steam at 135^ C to ensure disinfection and sterilization.

The safety valve has an automatic pressure release option. When the steam pressure is too high the valve automatically opens and releases the excess of pressure.

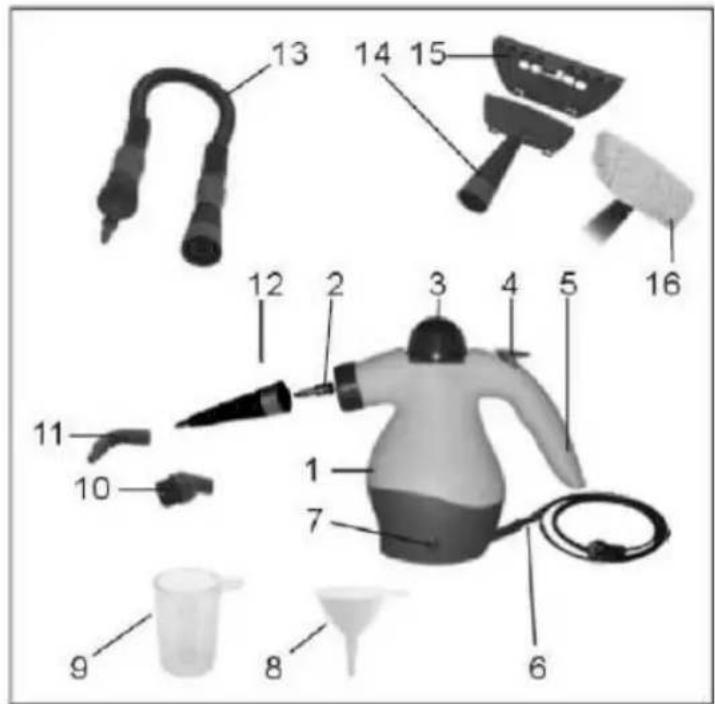

PARTS

After opening check the completeness of the package.

Check if the components are not damaged.

1. Tank

2. Fixed nozzle

3. Safety plug

4. Steam release button

5. Handle

6. Power cord

7. Power indicator

8. Funnel

9. Measure cup

10. Round adapter with brush

11. Curved tip

12. Extender

13. Flexible extension

14. Main adapter

15. Adapter for windows

16. Adapter for fabrics

PARAMETERS

Nominal voltage: 220-240 V

Nominal frequency: 50 Hz

Nominal power consumption: 900-1050 W

Pressure: 0,35 Mpa (3,5 bar)

Tank capacity: 300 ml

Steam output: 28 g/min

Weight: 1,85 kg

OPTIONS

1. Disinfection and Sterilization

Insert the extender on the fixed nozzle and point the nozzle to the surface to be disinfected. Press the steam release button. High temperature effectively kills any bacteria.

2. Cleaning of clothes

Insert a round tip with a brush on the fixed nozzle and insert the adapter for fabrics. Point the nozzle at the stains on the fabric. Press the steam release button. Move the brush left and right, up and down to remove stains.

3. Cleaning of doors and windows

Insert a round tip with a brush on the fixed nozzle and insert the adapter for windows. Point the nozzle at the window. Press the steam release button.

USE

WARNING!

Before each use, check the appliance for mechanical damages. Check the power cord. If the cord is damaged, do not connect the appliance to a power outlet.

The filling aperture shall not be used if it has been dropped, if there are visible signs of damage or if it is leaking.

Before switching the device on, make sure that the power characteristics comply with the parameters on the nameplate. This device is equipped with a grounded type plug and must be plugged into a grounded type outlet.

1. Place the cleaner on a flat surface. Unscrew the safety plug by turning it to the left.

2. Fill the measuring cup with 175 ml of water and pour it into the tank (maximum tank capacity is 300 ml. Do not overfill the tank).

3. Insert the safety plug and tighten to the correct position.

4. Check the power cord and plug, make sure that the type of power supply given in the instructions and on the nameplate is compatible.

5. Connect the appliance to a power source.

Close-up of a hand holding a spray gun on a person's torso (no text or symbols visible)

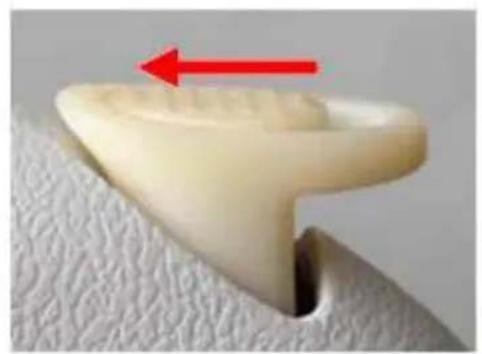

ATTENTION!

Steam release button has a safety lock – protection against operation by children (see the drawing below).

1. Whenever required, use the safety lock – move the slider on the steam release button backwards (to the LOCKED position). The locking pin rests on the handle, preventing operation of the steam release button.

Close-up of a white plastic object with a red arrow indicating upward motion, against a textured gray background (no text or symbols)

UNLOCKED

Close-up of a beige plastic clip with a red arrow pointing upward, against a textured white background (no text or symbols)

LOCKED

1. The device is ready for use 4 minutes after it has been plugged in. if you applied the safety lock, unlock the steam release button, moving the slider forwards (to UNLOCKED position). Press the release button gently – if steam flows from the nozzle, install the appropriate accessories. After that, press the steam release button to carry out the activities intended.

WARNING! Be-ore installing the a))essories and putting the devi)e o-or a short time while working, lo)k the steam release (utton prote)ting it against a))idental pressing.

WARNING! Never dire)t the stream o- steam towards people, animals, ele)tri)al or ele)troni) equipment!

WARNING! Do not leave steam )leaner unattended while waiting –or steam.

WARNING! Use only the applian)e manu-a)turer's a))essories atta)hed thereto. Installation or use o- other hardware not re)ommended (y the manu-a)turer may lead to a))idents, severe (urns and ele)tri) sho)k.

WARNING! Do not lean the unprote)ted -loors, -urniture and wooden elements and not dire)t steam at any -loors and -urniture and other wood )omponents -or a long time. This )an )ause swelling o- the wood -i(res.

Before using the device, it is recommend to check the manufacturer's instructions for the kind of surfaces that can be cleaned by means of steam and whether it is possible to clean certain surfaces of the product. In case of surfaces protected with wax, steam and temperature may remove the wax.

WARNING! When using steam to smooth out wrinkles on materials or )lothes it is -or(idden to dire)t the steam towards the (ody!

Installation o- the extender, main adapter, -lexi(le extending nozzle

Hold the extender in a hand and align the arrow on the appliance's body with a single line at the extender and insert the tip. Rotate the extender clockwise to align double lines at the extender with the arrow on the appliance's body.

In order to remove the extender, rotate it counter clockwise.

Installation o– the round tip with a (rush or )urved tip

A round tip with the brush and the curved tip are installed directly on the fixed nozzle. It is possible to obtain six different positions of the tips.

Installation o- the adapter -or windows

Install the adapter for windows on the main tip by means of two fasteners located at the bottom. Tighten the adapter to the tip so that the main fastener would snap on the tip. Install the main tip on the nozzle fixed.

WARNING! It is not re)ommended to )lean )old window glass. The use o– the adapter –or )old window glass may )ause )ra)king o– glass.

FILLING WITH WATER DURING OPERATION

1. Unplug the power cord from the electrical outlet.
2. Press the steam release button until steam cease to emerge.
3. Slowly unscrew a safety plug. Do not remove the plug. Slowly release steam remaining in the device.

WARNING! Do not twist the sa-ety plug o—i—the tank is -illed with water and steam is produced!

1. Allow 5 minutes for the appliance to cool down.
2. Unscrew and remove the safety plug.
3. Use the measuring cup provided to fill the tank.
4. Restart the appliance by following the point USE above.

TROUBLESHOOTING

The appliance does not start up

Make sure if the power cable is plugged to the socket and it is switched on (unless a switch is provided).

Check if the water tank is full.

Try another electrical outlet.

The appliance does not produce steam

Check the level of water in the water tank.

Make sure if the if the power cable is plugged to the socket.

Press the steam release button.

Check if the outlet is not blocked. Change the adapter.

Water is ejected from the appliance

Water level in the water tank is too high.

Check the water tank. Do not overfill. Keep in vertical position.

Do not tilt the steam cleaner. The appliance may not be properly warmed up.

Allow the appliance to heat the water.

Installed accessories do not stay in place

Check if appropriate force has been used during installation. Read the description of steps required for installation of accessories.

If the above mentioned brings no improvement to the operation of the appliance please contact authorized service centre for possible repair.

CLEANING, CARE, TRANSPORTATION AND STORAGE

After use:

1. Unplug power cord from the electrical outlet
2. Press the steam release button until steam cease to emerge from the device.
3. Slowly unscrew a safety plug. Do not remove the plug. Slowly release steam remaining in the device.

WARNING! Do not twist the sa-ety plug o—i—the tank is -illed with water and steam is produced!

1. Leave in a room temperature to cool down.
2. Unscrew and remove the safety plug.
3. Remove water.
4. Dry thoroughly.

No special maintenance measures are required.

Use soft damp cloth with mild detergent. Use of gasoline, alcohol, caustic means or abrasives for cleaning is forbidden.

WARNING! Do not immerse in water!

Store out of the reach of children in a packaging that protects against mechanical damages, dust and humidity.

Transport in original packaging to avoid mechanical damages, protecting against dust and humidity.

Always let the device cool down prior to storage or transport.

Such a marking informs that this equipment cannot be disposed of together with other household waste. The user is obliged to pass the device to a company authorized to dispose of electronic/electric devices. Both the person who deals with direct disposal, shops and other local units make a system enabling to dispose of the device. Proper procedures concerning electric/electronic equipment disposal are intended to avoid any harmful impact to humans and environment resulting from dangerous components and improper storage or processing of the devices. Substances having negative environmental impact have been

reduced to make the product safer after its disposal.

DE

16. Gewebezusatz

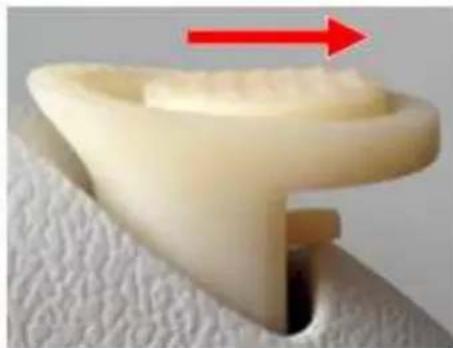

PARAMETER

Close-up of a white plastic object with a red arrow pointing to its tip, resting on textured surface (no text or symbols)

ENTSICHERT

Close-up of a white plastic object with a red arrow indicating upward motion (no text or symbols visible)

GESICHERT

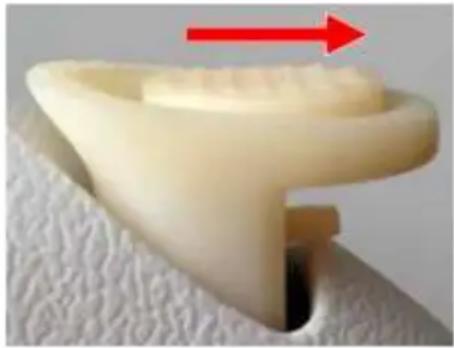

ФУНКЦИИ

Close-up of a beige plastic clip with a red arrow pointing to its tip, resting on a textured surface (no text or symbols visible)

РАЗБЛОКИРОВАНО

Close-up of a beige plastic object with a red arrow pointing upward, placed on a textured surface (no text or symbols visible)

ЗАБЛОКИРОВАНО

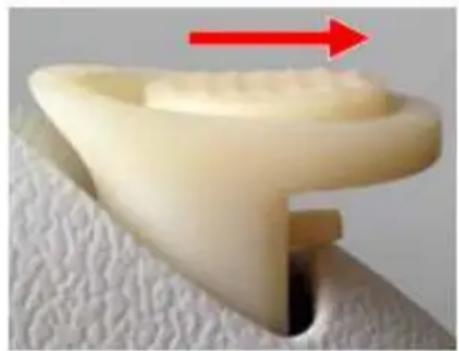

FUNKCE

Close-up of a hand holding a spray gun, no visible text or symbols

Close-up of a beige plastic clip with a red arrow indicating direction, against a textured white surface (no text or symbols)

ODJŠTĚNO

Close-up of a white plastic object with a red arrow pointing upward, resting on a textured surface (no text or symbols visible)

ZAJŠTĚNO

PA,AMET,E

Menovité napätie: 220-240 V

Menovitý kmitočet: 50Hz

Výkon: 900-1050 W

Tlak: 0,35 MPa (3,5 bar)

Close-up of a hand holding a spray gun, no visible text or symbols

Close-up of a white plastic object with a red arrow indicating direction, resting on a textured surface (no text or symbols)

ODISTENÉ

Close-up of a white plastic clip with a red arrow pointing upward, resting on a textured surface (no text or symbols visible)

ZAISTENÉ

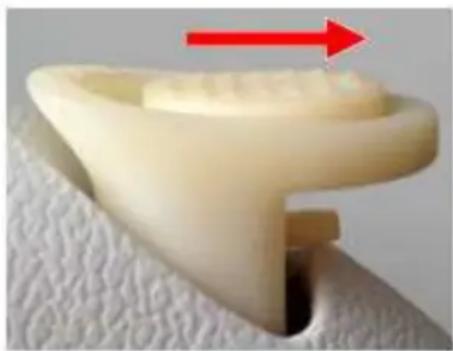

PARAMETRI

Hand operating a portable air conditioner with a black handle (no visible text or symbols)

Close-up of a white plastic object with a red arrow indicating direction, no visible text or symbols

OD BLOKIRANO

Close-up of a white plastic clip with a red arrow pointing upward, against a textured gray background (no text or symbols)

BLOKADA

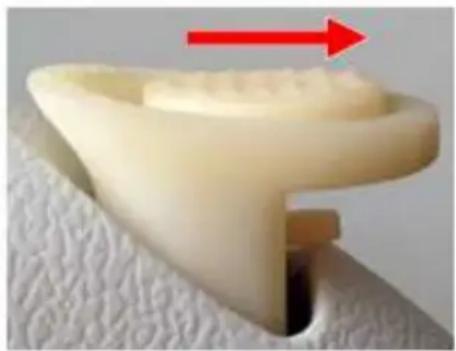

FUNKCIJOS

Close-up of a hand pressing down on a cylindrical object (no visible text or symbols)

Close-up of a white plastic object with a red arrow pointing to a textured surface (no text or symbols visible)

ATRAKINTAS

Close-up of a white plastic object with a red arrow pointing upward, resting on a textured surface (no text or symbols visible)

UŽRAKNTAS

Rõhk: 0,35 MPa (3,5 bar)

Mahuti maht: 300 ml

Close-up of a hand holding a spray gun, no visible text or symbols

Close-up of a white plastic object with a red arrow pointing to a textured surface (no text or symbols visible)

AVATUD

Close-up of a white plastic object with a red arrow pointing upward, no visible text or symbols

SULETUD
