Product Type	Drawer Freezer
Brand	Philco
Model	PF 2272
Dimensions (Height x Width x Depth)	1630 x 600 x 600 mm
Total Volume	232 L
Energy Efficiency Class	E
Annual Energy Consumption	210 kWh/a
Climate Class	T (tropical, up to 43°C), ST (subtropical, up to 38°C), N (temperate, up to 32°C)
Noise Level	41 dB(A) re 1 pW, Class C
Freezing Capacity	12 kg/24h
Defrost Type	Manual
Fast Freeze Function	Yes (4-star compartment)
Refrigerant	R600a (isobutane), flammable
Power Supply	220-240 V ~ 50 Hz
Temperature Control	Thermostat wheel (1-7, 0 = off)
Indicators	Green power indicator, red temperature rise indicator
Door Reversible	Yes, with instructions provided
Number of Drawers	Multiple (details in manual)
Cooling System	Compressor, condenser at rear
Recommended Storage Temperature	-18°C (freezer compartment)
Cleaning Instructions	Use warm soapy water; no abrasive cleaners; clean rear annually
Safety Features	Child safety (ages 8+), flammable refrigerant warning, antipanic door? (not specified)

Frequently Asked Questions - PF 2272 Philco

How do I set the temperature on my Philco PF 2272 freezer?

Turn the thermostat wheel (item 1) clockwise to lower the temperature (colder) or counterclockwise to raise it. The scale runs from 1 (warmest) to 7 (coldest). Position '0' turns off the compressor but does not disconnect power.

What does the red indicator light mean?

The red indicator lights up when the internal temperature rises above -9°C. This can happen when the freezer is first turned on, after defrosting, after a power outage, if the door is left open, or if a large amount of unfrozen food is added. The light turns off once the temperature drops below -9°C. If it stays on for more than six hours, contact service.

How do I defrost the freezer?

Defrost at least twice a year or when ice is thicker than 5 mm. Turn off and unplug the appliance, remove all food, and open the door. Pull out the defrost water duct, rotate it 180°, and place a container underneath to collect water. After ice melts, clean and dry surfaces, then replace the duct and close the door. Reconnect and turn on.

How often should I defrost the freezer?

At least twice a year, or whenever the ice layer exceeds 5 mm in thickness. Regular defrosting maintains efficiency and prevents excessive frost buildup.

Can I reverse the door on my Philco PF 2272?

Yes, the door is reversible. Follow the detailed instructions in the manual (Part 6) using two spanners (No. 8 and 10) and a Phillips screwdriver. The freezer must remain upright during the process. It is recommended to have assistance.

Why is my freezer making unusual noises?

Normal operation noises include bubbling from refrigerant flow and clicking when the compressor turns on/off. If noises are louder than usual, check if the appliance is level, not touching walls or furniture, and that components at the rear are not contacting each other. Adjust the feet if necessary.

What should I do if the freezer stops working?

First, check that the thermostat is not set to '0'. Ensure the plug is fully inserted and the fuse is intact. If the socket is faulty, contact an electrician. If the red indicator stays on for over six hours with the compressor not running, call service.

How do I clean the freezer?

Unplug the appliance. Clean interior surfaces with warm water and mild soap or dishwashing detergent. Wipe dry. Clean door seals regularly. Once a year, dust the rear condenser and compressor with a soft brush or vacuum. Do not use abrasive cleaners, acids, alcohol, or benzene.

What type of refrigerant does this freezer use?

The refrigerant is R600a (isobutane), a flammable natural gas. The appliance contains a small amount of this refrigerant. It is environmentally friendly but must be handled by qualified personnel. Do not damage the refrigerant circuit.

Is the Philco PF 2272 suitable for outdoor use?

No, the freezer is designed for indoor use only. It must not be exposed to rain, direct sunlight, or placed outdoors. It should be installed in a dry, well-ventilated room away from heat sources.

USER MANUAL PF 2272 Philco

Famous for Quality the World Over

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: SAFETY INFORMATION....2

PART 2: APPLIANCE DESCRIPTION ....11

PART 3: BEFORE USE ....12

PREPARING THE APPLIANCE FOR OPERATION....12

PLACEMENT....12

TRANSPORTATION 13

PART 4: USE ....14

TEMPERATURE REGULATION....14

FREEZING FOOD 14

FREEZER DE-ICING....15

PART 5: CLEANING AND MAINTENANCE ....16

PART 6: REVERSING THE DOOR....17

PART 7: BEFORE CALLING SERVICE....19

PRACTICAL ADVICE AND OBSERVATIONS 19

TROUBLESHOOTING 19

PART 8: TROUBLESHOOTING....20

PART 9: INFORMATION SHEET....23

This appliance has been tested in accordance with the directives in force in the European Union. This appliance conforms to the relevant safety provisions for electrical appliances in force in the European Union.

PART 1: SAFETY INFORMATION

FOR YOUR SAFETY AND CORRECT USAGE, BEFORE INSTALLING AND FIRST USING THE APPLIANCE,READ THIS USER MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO AVOID UNNECESSARY MISTAKES AND ACCIDENTS,IT IS IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES. SAVE THESE INSTRUCTIONS AND BE SURE THAT THEY REMAIN WITH THE APPLIANCE IF IT IS MOVED OR SOLD,SO THAT ANYONE USING IT THROUGHOUT ITS LIFE,WILL BE PROPERLY INFORMED ON ITS USAGE AND SAFETY NOTICES. FOR THE SAFETY OF LIFE AND PROPERTY,KEEP THE PRECAUTIONS OF THESE USER'S INSTRUCTIONS AS THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES CAUSED BY OMISSION.

- THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED.

• CHILDREN AGED FROM 3 TO 8 YEARS ARE ALLOWED TO LOAD AND UNLOAD REFRIGERATING APPLIANCES.
• CHILDREN SHALL NOT PLAY WITH THE APPLIANCE.

• CLEANING AND USER MAINTENANCE CANNOT BE PERFORMED BY CHILDREN WITHOUT SUPERVISION.

• IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE THE APPLIANCE WHEN THE SUPPLY CABLE IS DAMAGED.

• CAUTION: IF YOUR MODEL IS EQUIPPED WITH AN ICE MAKER WITHOUT WATER SUPPLY CONNECTION, FILL IT WITH DRINKING WATER ONLY.
• WARNING: KEEP VENTILATION OPENINGS, IN THE APPLIANCE ENCLOSURE OR IN THE BUILT-IN STRUCTURE, CLEAR OF OBSTRUCTION.
• WARNING: DO NOT USE MECHANICAL DEVICES OR OTHER MEANS TO ACCELERATE THE DEFROSTING PROCESS,OTHER THAN THOSE RECOMMENDED BY THE MANUFACTURER.
• WARNING: DO NOT DAMAGE THE REFRIGERANT CIRCUIT.
• WARNING: DO NOT USE ELECTRICAL APPLIANCES INSIDE THE FOOD STORAGE COMPARTMENTS OF THE APPLIANCE, UNLESS THEY ARE OF THE TYPE RECOMMENDED BY THE MANUFACTURER.
• WARNING: DO NOT STORE EXPLOSIVE SUBSTANCES SUCH AS AEROSOL CANS WITH A FLAMMABLE PROPELLANT IN THIS APPLIANCE.

ISO 7000-1701 MARK (2004-01) LABELS MEDIA UNDER PRESSURE.

THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS:

• KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES;
  -APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES;
  -APPLIANCES USED IN BED-ANDBREAKFAST FACILITIES;
  -APPLIANCES USED IN CATERING AND OTHER SIMILAR NON-VENDING ENVIRONMENTS.

ONLY SOME REFRIGERATOR MODELS ARE EQUIPPED WITH ICE MAKER. INTEGRATED ICE MAKERS MUST BE INSTALLED BY THE MANUFACTURER OR ITS SERVICING ORGANIZATION ONLY.

- THE FOLLOWING GOES FOR SELECTED MODELS EQUIPPED WITH AN ICE MAKER WITH WATER CONNECTION: CAUTION: CAN ONLY BY CONNECTED TO DRINKING WATER SUPPLY.

- CAUTION: THE APPLIANCE MUST BE FASTENED IN ACCORDANCE WITH THE MANUAL TO PREVENT DANGER CAUSED BY ITS INSTABILITY.

- CAUTION: THE COOLING SYSTEM CONTAINS REFRIGERANT UNDER HIGH PRESSURE. DO NOT MANIPULATE WITH THE SYSTEM. THE SYSTEM MAY BE REPAIRED BY AUTHORIZED PERSONS ONLY.

CONTAINS COOLING GAS ISOBUTANE

R600A

REFRIGERANT

THE REFRIGERANT ISOBUTENE (R600A) IS CONTAINED WITHIN THE REFRIGERANT CIRCUIT OF THE APPLIANCE, A NATURAL GAS WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY, WHICH IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION AND INSTALLATION OF THE APPLIANCE, ENSURE THAT NONE OF THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES DAMAGED. THE REFRIGERANT (R600A) IS FLAMMABLE.

- WARNING — REFRIGERATORS CONTAIN REFRIGERANT AND GASES IN THE INSULATION. REFRIGERANT AND GASES MUST BE DISPOSED OF PROFESSIONALLY AS THEY MAY CAUSE EYE INJURIES OR IGNITION. ENSURE THAT TUBING OF THE REFRIGERANT CIRCUIT IS NOT DAMAGE PRIOR TO PROPER DISPOSAL.

THE SYMBOL △ IS A WARNING AND INDICATES THE REFRIGERANT AND INSULATION BLOWING GAS ARE FLAMMABLE.

WARNING : RISK OF FIRE / FLAMMABLE MATERIALS

IF THE REFRIGERANT CIRCUIT SHOULD BE DAMAGED:

- AVOID OPENING FLAMES AND SOURCES OF IGNITION.

- THOROUGHLY VENTILATE THE ROOM IN WHICH THE APPLIANCE IS SITUATED.

IT IS DANGEROUS TO ALTER THE SPECIFICATIONS OR MODIFY THIS PRODUCT IN ANY WAY.

ANY DAMAGE TO THE CORD MAY CAUSE A SHORT CIRCUIT, FIRE, AND/OR ELECTRIC SHOCK.

- CAUTION: THE COOLING SYSTEM CONTAINS REFRIGERANT UNDER HIGH PRESSURE. DO NOT MANIPULATE WITH THE SYSTEM.

THE SYSTEM MAY BE REPAIRED BY AUTHORIZED PERSONS ONLY.

- CAUTION: WHEN PLACING THE APPLIANCE IT MUST BE ENSURED THAT THE SUPPLY CORD DOES NOT GET CAUGHT OR DAMAGED.

- CAUTION: DO NOT PLACE PORTABLE MULTIPLE SOCKETOUTLETS OR PORTABLE EXTENSION CABLES TO THE REAR SIDE OF THE APPLIANCE.

ELECTRICAL SAFETY

1. THE POWER CORD MUST NOT BE LENGTHENED.
2. MAKE SURE THAT THE POWER PLUG IS NOT CRUSHED OR DAMAGED.

A CRUSHED OR DAMAGED POWER PLUG MAY OVERHEAT AND CAUSE A FIRE.

1. MAKE SURE THAT YOU CAN ACCESS THE MAIN PLUG OF THE APPLIANCE.

2. DO NOT PULL THE MAIN CABLE.

EN - 6

1. IF THE POWER PLUG SOCKET IS LOOSE, DO NOT INSERT THE POWER PLUG. THERE IS A RISK OF ELECTRIC SHOCK OR FIRE.
2. YOU MUST NOT OPERATE THE APPLIANCE WITHOUT THE INTERIOR LIGHTING LAMP COVER.
3. THE FRIDGE IS ONLY APPLIED WITH POWER SUPPLY OF SINGLE PHASE ALTERNATING CURRENT OF 220\~240V/50HZ.

IF FLUCTUATION OF VOLTAGE IN THE DISTRICT OF USER IS SO LARGE THAT THE VOLTAGE EXCEEDS THE ABOVE SCOPE, FOR SAFETY SAKE, BE SURE TO APPLY A.C. AUTOMATIC VOLTAGE REGULATOR OF MORE THAN 350W TO THE FRIDGE.

THE FRIDGE MUST EMPLOY A SPECIAL POWER SOCKET INSTEAD OF COMMON ONE WITH OTHER ELECTRIC APPLIANCES. ITS PLUG MUST MATCH THE SOCKET WITH GROUND WIRE.

DAILY USE

• DO NOT STORE FLAMMABLE GAS OR LIQUIDS IN THE APPLIANCE, THERE IS A RISK OF AN EXPLOSION.
• DO NOT OPERATE ANY ELECTRICAL APPLIANCES IN THE APPLIANCE (E.G. ELECTRIC ICE CREAM MAKERS, MIXERS ETC.).
• WHEN UNPLUGGING ALWAYS PULL THE PLUG FROM THE MAINS SOCKET,DO NOT PULL ON THE CABLE.
• DO NOT PLACE HOT ITEMS NEAR THE PLASTIC COMPONENTS OF THIS APPLIANCE.
• DO NOT PLACE FOOD PRODUCTS DIRECTLY AGAINST THE AIR OUTLET ON THE REAR WALL.
• STORE PRE-PACKED FROZEN FOOD IN ACCORDANCE WITH THE FROZEN FOOD MANUFACTURE'S INSTRUCTIONS.

• THE APPLIANCES MANUFACTURES STORAGE RECOMMENDATIONS SHOULD BE STRICTLY ADHERED TO. REFER TO RELEVANT INSTRUCTIONS FOR STORAGE.

• DO NOT PLACE CARBONATED OR FIZZY DRINKS IN THE FREEZER COMPARTMENT AS IT CREATES PRESSURE ON THE CONTAINER, WHICH MAY CAUSE IT TO EXPLODE, RESULTING IN DAMAGE TO THE APPLIANCE.

• FROZEN FOOD CAN CAUSE FROST BURNS IF CONSUMED STRAIGHT FROM THE FREEZER COMPARTMENT.
• DO NOT PLACE THE APPLIANCE IN DIRECT SUNLIGHT.
• KEEP BURNING CANDLES, LAMPS AND OTHER ITEMS WITH NAKED FLAMES AWAY FROM THE APPLIANCE SO THAT DO NOT SET THE APPLIANCE ON FIRE.
• THE APPLIANCE IS INTENDED FOR KEEPING FOOD STUFF AND/OR BEVERAGES IN NORMAL HOUSEHOLD AS EXPLAINED IN THIS INSTRUCTION BOOKLET. YOU SHOULD TAKE CARE WHEN MOVE IT AS THE APPLIANCE IS HEAVY.
• DO NOT REMOVE OR TOUCH ITEMS FROM THE FREEZER COMPARTMENT IF YOUR HANDS ARE DAMP/WET, AS THIS COULD CAUSE SKIN ABRASIONS OR FROST/FREEZER BURNS.
• NEVER USE THE BASE,DRAWERS,DOORS ETC. TO STAND ON OR AS SUPPORTS.
• FROZEN FOOD MUST NOT BE REFROZEN ONCE IT HAS BEEN THAWED OUT.
• DO NOT CONSUME ICE POPSICLES OR ICE CUBES STRAIGHT FROM THE FREEZER AS THIS CAN CAUSE FREEZER BURN TO THE MOUTH AND LIPS.
• TO AVOID ITEMS FALLING AND CAUSING INJURY OR DAMAGE TO THE APPLIANCE,DO NOT OVERLOAD THE DOOR RACKS OR PUT TOO MUCH FOOD IN THE CRISPER DRAWERS.

INSTALLATION IMPORTANT!

• FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE INSTRUCTIONS GIVEN IN THIS MANUAL. UNPACK THE APPLIANCE AND CHECK IF THERE ARE DAMAGES ON IT.
• DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT IT. IN THIS CASE RETAIN PACKING.
• IT IS ADVISABLE TO WAIT AT LEAST FOUR HOURS BEFORE CONNECTING THE APPLIANCE TO ALLOW THE OIL TO FLOW BACK IN THE COMPRESSOR.
• ADEQUATE AIR CIRCULATION SHOULD BE AROUND THE APPLIANCE, LACKING THIS LEADS TO OVERHEATING. TO ACHIEVE SUFFICIENT VENTILATION, FOLLOW THE INSTRUCTIONS RELEVANT TO INSTALLATION.
• WHEREVER POSSIBLE THE BACK OF THE PRODUCT SHOULD NOT BE TOO CLOSE TO A WALL TO AVOID TOUCHING OR CATCHING WARM PARTS (COMPRESSOR, CONDENSER) TO PREVENT THE RISK OF A FIRE, FOLLOW THE INSTRUCTIONS RELEVANT TO INSTALLATION.
• THE APPLIANCE MUST NOT BE LOCATE CLOSE TO RADIATORS OR COOKERS.
• MAKE SURE THAT THE MAINS PLUG IS ACCESSIBLE AFTER THE INSTALLATION OF THE APPLIANCE.

• PLACE ALL PACKAGING MATERIALS OUT OF THE REACH OF CHILDREN, THERE IS A RISK OF SUFFOCATION.

• THE INTERIOR OF YOUR REFRIGERATOR / FREEZER MAY SMELL BEFORE FIRST USE. THIS IS NORMAL. THE ODOR DISAPPEARS AS SOON AS THE APPLIANCE STARTS TO COOL / FREEZE.

• BEFORE CONNECTING THE REFRIGERATOR I FREEZER, MAKE SURE THAT THE MAINS VOLTAGE CORRESPONDS TO THE REQUIREMENTS FOR CONNECTING THE REFRIGERATOR / FREEZER. IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
• THE APPLIANCE MUST BE CONNECTED TO A SOCKET WITH THE APPROPRIATE VOLTAGE AND A CORRECTLY INSTALLED FUSE SOCKET.
• THE REFRIGERATOR I FREEZER MUST NOT BE PLACED OUTDOORS OR EXPOSED TO RAIN.
• THE REFRIGERATOR I FREEZER MUST BE LOCATED AT LEAST 50CM FROM HEATERS, ELECTRIC OVENS, GAS OVENS, ETC.
• IF THE REFRIGERATOR WITH FREEZER IS LOCATED NEXT TO THE FREEZER, THERE MUST BE A MIN. 2CM SPACING.
  • DO NOT PLACE HEAVY OBJECTS ON THE REFRIGERATOR / FREEZER, DO NOT COVER IT.
• ABOVE THE FRIDGE / FREEZER THERE MUST BE A MIN. 150MM FREE SPACE.
• INSTALL TWO PLASTIC GUIDES ON THE REFRIGERATOR / FREEZER CONDENSER THAT PREVENT THE WALL AND CONDENSER FROM TOUCHING.
• THIS APPLIANCE IS MADE FOR DOMESTIC USE AND IS ONLY SUITABLE FOR COOLING / FREEZING FOOD. NOT SUITABLE FOR COMMERCIAL USE AND / OR STORAGE OF SUBSTANCES OTHER THAN FOOD. THE MANUFACTURER IS NOT LIABLE FOR ANY LOSSES CAUSED BY IMPROPER USE OF THE APPLIANCE.

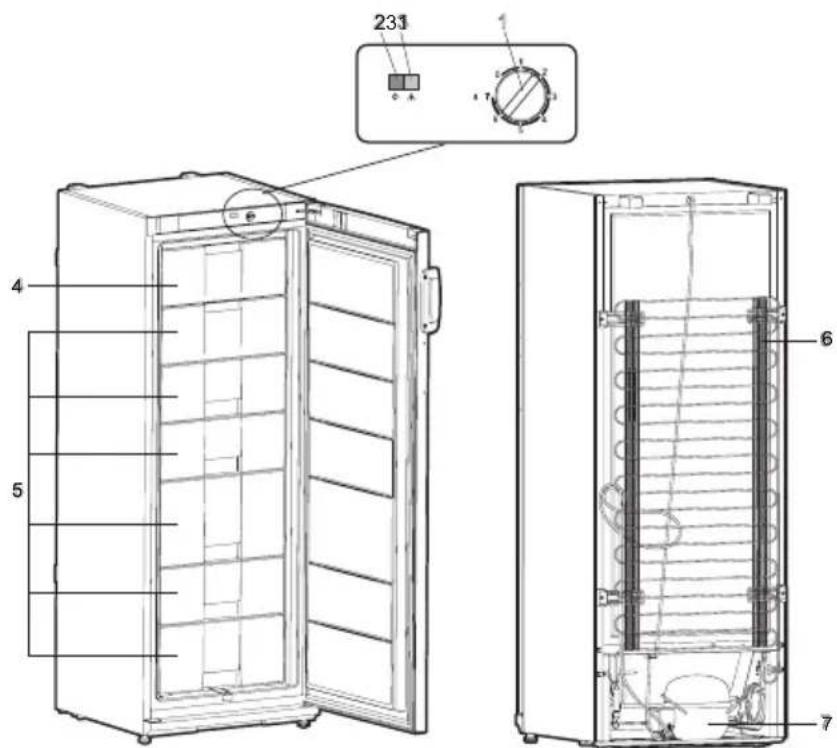

PART 2: APPLIANCE DESCRIPTION

WARNING!

THE NUMBER AND DESIGN OF THE APPLIANCE ACCESSORIES LISTED BELOW CAN DIFFER FROM THE ACCESSORIES THAT YOU PURCHASED YOUR APPLIANCE WITH. The description has been adapted to a whole series of freezers.

1 Thermostat wheel
2 Electric power indicator (green indicator)
3 Temperature rise indicator (red indicator)
4 Fast-freezing compartment

5 Compartment(s) for frozen products
6 Condenser
7 Compressor

1 - THERMOSTAT WHEEL

If there is a zero (0) in the indicator's gap, the thermostat is off. The temperature in the freezer compartment can be lowered by rotating the thermostat wheel clockwise.

2 - The ELECTRIC POWER INDICATOR is labeled by the symbol

When the appliance is connected to the electric grid, the greed indicator light is on.

3 - The TEMPERATURE RISE INDICATOR is labeled by the symbol

When the temperature in the freezer rises above -9^ , the red indicator light lights up. This can happen in the following situations:

• The freezer has been off for a long time or it is turned on for the first time; after de-icing or power outage.
• The freezer door is open or it is opened too often.
• A great amount of unfrozen food is put into the freezer.
• The freezer system does not work, i.e. the red indicator light is on for longer than 6 hours and the sound of compressor working can be heard or the compressor does not turn on. In this case you should contact the service center (but first make sure that you have taken the three causes listed above into the account).

Preparing the appliance for operation

We recommend that you use the help of another person when preparing the appliance for operation.

• Remove the packaging material. Lift the appliance from its base made of foam polystyrene.
  • Tear off the adhesive tapes.
• Placing the freezer to the chosen location will be much easier when you slightly lift it at the front and tilt it back so that it can roll on its wheels.

NOTES:

When the freezer is equipped with handles attached using screws, do not push the handles or light the freezer by the handles, otherwise they might break.

• Tear off the red tape – it is intended only for transportation of the appliance.
• Dispose of the packaging material in an appropriate way.
• Remove two supports 1 from the bag and insert them into guide rails 2 in the upper section in the rear of the appliance.

• When the appliance is brought in from cold environments (with temperature not exceeding +12 °C), you must wait for two hours before connecting it to the grid.
• The appliance must not be connected to the grid before all packaging and transport materials are removed.

Placement

• The appliance must be placed into a dry and well-ventilated room.

WARNING!

The appliance must not be used in a room that is not heated or under a shelter. Place the appliance away from heat sources, such as kitchen hob/oven, heaters or direct sunlight.

WARNING!

The appliance must not touch any heat, gas or water pipes or any other electric appliances.

- Do not cover the ventilation openings at the upper side of the appliance – sufficient airflow must be ensured around the appliance. There must be a gap of at least 10 cm between the top side of the appliance and any other possible furniture. If this requirement is not met, the appliance will consume more electricity and the compressor may overheat.

- When the appliance is placed in a corner, there must be a gap of at least 6 cm between its case and the wall so that the freezer door can be opened fully and so that the drawer with frozen food can be pulled out (see fig.)

- The appliance must be standing on a flat surface. If necessary, the appliance height can be adjusted by setting the adjusting feet: the front of the appliance can be raised by rotating the feet clockwise and lowered by rotating anti-clockwise.

THE MANUFACTURER GUARANTEES RELIABLE OPERATION OF THE APPLIANCE WITH RELATIVE AIR HUMIDITY NOT EXCEEDING 70 % AND THE FOLLOWING TEMPERATURES:

FROM +16 °C TO +32 °C. The appliance belongs to the climate class N,

FROM +16 °C TO +38 °C. The appliance belongs to the climate class ST,

FROM +16 °C TO +43 °C. The appliance belongs to the climate class T.

Acronym for ambient temperature range, ie SN, N, ST or T, in determining cli mate classes:

1. The extended temperate zone (SN) has a temperature range of 10^ C to 32^ C;
2. The temperate zone (N) has a temperature range of 16 °C to 32 °C;
3. The subtropical zone (ST) has a temperature range from 16 °C to 38 °C
4. The tropical zone (T) has a temperature range of 16^ C to 43^ C.

Transportation

NOTES:

THE MANUFACTURER DOES NOT BEAR RESPONSIBILITY FOR ANY DAMAGE TO THE APPLIANCE CAUSED BY FAILING TO FOLLOW THE TRANSPORTATION INSTRUCTIONS.

• The appliance must always be transported in a vertical position.
• During transportation the appliance must be protected against climatic influences (rain, snow, moisture).
- During transportation the appliance must be securely fastened in place to prevent it from sliding or any impacts in the transportation vehicle.
- If the appliance was not transported in a vertical position, is can only be connected to the grid after four hours or longer.

Failure to do so could result in compressor damage.

Temperature regulation

The freezer is set to -18^ . Adjust the freezer temperature according to your requirements.

The temperature in the freezer compartment is adjusted by turning the thermostat wheel 1 (see fig. 1) in both directions. There is a digital temperature indicator on the thermostat wheel. The temperature in the refrigerator compartment can be lowered by rotating the thermostat wheel clockwise.

The temperature is regulated on a scale consisting of seven digits.

0 = the compressor is off CAUTION! The power supply is not off.

1 = highest temperature (lowest cooling effect)

7 = lowest temperature (highest cooling effect)

NOTES:

THE TEMPERATURE IN THE REFRIGERATOR COMPARTMENT CAN DIFFER BASED ON THE AMBIENT TEMPERATURE, THE NUMBER OF FOOD, THE TEMPERATURE OF FOOD AND THE FREQUENCY OF APPLIANCE DOOR OPENING AND CLOSING.

With this in mind, please consider the following recommendations:

• Place the appliance further from heat sources
  • The temperature of food stored in the appliance should not exceed room temperature.
  • The appliance door must not be left open.
  • The appliance door must not be opened for longer than necessary in order to store or remove food.

IF THE ROOM IS COLD, THE APPLIANCE COOLS LESS. The temperature in the appliance can therefore increase.

Set lower temperature using the thermostat wheel.

Freezing food

The fast-freezing section in the freezer compartment is labeled with the symbol **** Place the fresh food intended for freezing in one or two rows into the fast-freezing section. The frozen food should then be placed from the fast-freezing section to a drawer in the storage section.

• DO NOT EXCEED THE MAXIMUM CAPACITY OF FROZEN PRODUCTS
- Leave a gap of at least 2.5 cm between the frozen food and the upper section.
- Do not place unpacked food into the individual freezer sections.

CAUTION:

Do not freeze liquid products in glass containers of bottles in the freezer.

• Fresh food to be frozen should not touch food that has already been frozen.
• Do not freeze food with temperature exceeding room temperature.
• Strictly observe the best before date of frozen food labeled by the manufacturer on the product packages.
  • WE RECOMMEND THAT YOU DO NOT STORE FROZEN FISH AND SMOKED MEAT PRODUCTS IN THE FREEZER COMPARTMENT FOR LONGER THAN SIX MONTHS; CHEESE, POULTRY, PORK AND LAMB FOR LONGER THAN EIGHT MONTHS AND BEEF, FRUIT AND VEGETABLES FOR LONGER THAN TWELVE MONTHS.

Freezer de-icing:

The freezer must be de-iced at least twice a year or when there is a layer of ice thicker than 5 mm. Perform the following tasks in the given order:

CAUTION:

Switch off the appliance and pull out the mains plug.

• Remove the food from the freezer compartment. The frozen food will not get too warm during de-icing if you cover it with thick cloth and store it in cool location.
• Pull out the duct for removing water resulting from thawing, turn it by 180° and hang it (see fig. 4). Insert a container under the duct for removing water resulting from thawing.
• Insert a bowl under the ducts for removing water resulting from thawing.
• Keep the freezer door open. As soon as the ice thaws, clean and dry the surfaces and fixtures in the freezer compartment.
• Remove the duct for removing water resulting from thawing, rotate it again by 180^ and place it to its original location.
• Close the freezer door. Connect the freezer to the grid and turn it on.

NOTES:

THE MOST EFFICIENT USE OF ENERGY IS ENSURED IN A CONFIGURATION WHERE THE DRAWERS ARE PROPERLY INSERTED.

PART 5: CLEANING AND MAINTENANCE

CLEAN THE APPLIANCE REGULARLY.

CAUTION:

Remember that before you start de-icing the freezer and cleaning the rear section of the cabinet the appliance must be disconnected from the grid by pulling the plug out of the electric outlet.

• Protect the inner surfaces and plastic parts of the appliance against fats, acids and sauces. In case of an accidental spill immediately clean the affected place using warm soap water or dish-washing detergent. Wipe dry.
• Clean the inner surfaces of the appliance with warm soap water. Dish-washing detergent can also be used.
  • Wipe inner and outer surfaces.
  • Regularly clean hermetic door seals. Wipe them dry.
  • Regularly wash compartments and other accessories.

Illustration of a hand holding a small object inside a container (no text or symbols visible)

• Wipe dust off the rear side of the appliance cabinet and compressor at least once a year. Cleaning can be done using a soft brush, an electro-static wipe or a vacuum-cleaner. DO NOT USE cleaning agents containing abrasive particles, acids, alcohol or benzene to clean the inner or outer surfaces of the appliance.
  • DO NOT USE cleaning agents or sponges with abrasive surface intender for scrubbing.

PART 6: REVERSING THE DOOR

We recommend that you perform door reversing with the help of another person. You will need two spanners (No. 8 and 10) and a Phillips screwdriver.

The refrigerator must NOT be laid horizontally when reversing the door! Perform the following tasks in the given order:

WARNING!

Switch off the appliance and pull out the mains plug.

1. Remove the covers (c) from the refrigerator cabinet and from the inner side of the door. Remove the upper holder (6) together with the nut, washers and spacer under the holder.
2. Remove the freezer door (3).
3. Remove the bottom cover (1).
4. Remove the bottom holder (2) together with the washers at the axis and the plastic spacer. Unscrew the axis with the washers and screw it to the hole on the other side.
5. Remove the bottom holder (7) and replace it with the second bottom holder (2) together with the washer at the axis and the plastic spacer. Attach this holder (7) to the place of the second holder (2).

6. Hang the door of the freezer compartment to the holder axis (7).

7. Rotate the holder (6) together with the washers at the axis and the plastic spacer by 180^ . Remove the axis and the washers and attach them again to the other side of the holder. As soon as the holder (6) is attached to the door, attach it to the upper holes at the other side of the refrigerator.

8. Cover the holder and the remaining area using the covers (c).
9. Remove the screw covers (a) and the plugs (b). Remove the screws that hold the handles in place. Place the handles to the other side and screw them in place. Insert the plugs to the remaining door holes and replace the screw caps.
10. Remove the cover (10) from the bottom cover (1) and replace it to the grooves at the other side of the bottom cover (1) (symmetrically with their original position). Direct the holder (see the figure) of the bottom cover (1) to the holes and push it in to fixate it fully.

PART 7: BEFORE CALLING SERVICE

Practical advice and observations

• Do not consume ice taken out of the freezer straight away.
• When you divide products and pack them in smaller pieces, they will freeze faster.
• IF YOU NEED TO KEEP THE APPLIANCE TURNED OFF FOR A LONGER PERIOD OF TIME, KEEP THE DOOR OPEN.

NOTES:

Notes regarding operation noises. When the appliance is in operation and goes through different freezing cycles, it will emit different sounds. This is normal and it does not indicate malfunction.

• When flowing through the cooling system, the refrigerant emits burbling, bubbling or rustling sounds.
• When the compressor is turned on, louder sounds can occur for a short time, such as banging or clicking.

Troubleshooting

What to do if...

- The appliance is connected to the grid, but it does not work and the power supply indicator is off.

Check if the electric installation in the building is ok. Check if the plug is correctly connected to the electric outlet.

- The temperature rise indicator lights up in red.

That means that the temperature inside the appliance is above -9 °C. That can happen when the appliance is connected to the grid for the first time or after it has been disconnected for a longer time (when de-icing or after power outage), if the freezer door is not closed or if it is opened frequently or when you store a great amount of fresh food at the same time. The indicator light turns off after the inner temperature falls below -9°C again.

ATTENTION! When the temperature indicator light does not go off after six hours (from other reasons than listed above), the compressor is either working all the time or it does not work at all. Please consult the service center representatives.

• The noise gets louder.

Check whether the appliance is placed of a flat and level surface. To level it, adjust its front feet. Check whether the appliance is not touching adjacent furniture and whether no part of the cooling system at the rear side is touching the wall. Move the appliance away from any furniture or walls. Check whether the increased noise level is not caused by bottles, tins or bowls touching each other in the appliance.

- When opening the appliance door the rubber seal gets torn away.

The seal is smeared with sticky food (fat, syrup). Clean the seal and the corresponding groove using warm water with soap or dish-washing detergent and wipe them dry. Replace the rubber seal.

- High temperature in the refrigerator, short breaks between compressor runs.

Make sure whether the appliance door closes tightly, whether it has not been kept open for a longer time than necessary when storing or removing food or whether a great amount of warm food has not been placed into the appliance.

- Condensation occurs at the upper side of the appliance.

Relative humidity of the surrounding air is greater than 70 %. Ventilate the room, in which the appliance is located, and - if possible - rectify the cause of the excess humidity.

PART 8: TROUBLESHOOTING

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below.

Caution! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
Appliance does not work.	Temperature regulation knob is set at number "0".	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective. Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much. Temperature		Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises.	Appliance is not level. Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Storage instructions

To avoid contamination of food, please respect the following instructions

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order Compartments TYPE	Target storage temp.[°C]	Appropriate food
1 Fridge +2 ~ +8 Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.
2 (***)*-Freezer ≤ -18 Seafood (fish, shrimp, shellfish),freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time,the worse the taste and nutrition),suitable for frozen fresh food.
3 ***-Freezer ≤ -18 Seafood (fish, shrimp, shellfish),freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time,the worse the taste and nutrition), are not suitable for frozen fresh food
4 **-Freezer ≤ -12 Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months,the longer the storage time,the worse the taste and nutrition), are not suitable for frozen fresh food.
5 *-Freezer	≤ -6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month,the longer the storage time,the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than 3 days).Partially encapsulated processed foods (non-freezable foods.)

7 Chil	-2 ~ +3 Fresh/frozen	pork, beef, chicken	freshwater aquatic products, etc. (7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 °C).
8 Fresh	Food 0 ~ +4 Fresh	pork,beef,fish,chicken	cooked food,etc.(Recommended to eat within the same day,preferably no more than 3 days.)
9 Wine	+5 ~ +20 Red wine	white wine,sparkling	wine etc.

Note: Please store different foods according to the compartments or target storage temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Placement of food in the appliance

• Potatoes, onions and garlic should not be stored in the refrigerator / freezer.
• Under normal circumstances, the temperature setting in the refrigerator is sufficient to +4 °C.
- The temperature of the refrigerator should be between 0 °C and 8 °C. Fresh foods stored below 0 °C freeze, rot. The bacterial load increases when stored above 8 °C and food spoils.
- Do not put warm or hot food in the fridge / freezer, wait for it to cool to room temperature. Hot food raise the temperature inside the refrigerator / freezer and can cause unnecessary spoilage and possible food poisoning.
- Meat, fish, etc. should be stored in a designated refrigerated compartment - if available.
• Fruits and vegetables should be stored in a designated refrigerated compartment - if available.
- To prevent contamination of meat products with bacteria, do not store fruits and vegetables in a common compartment. The same is true in reverse - contamination of fruits and vegetables with bacteria from meat products.

Product Information Sheet PHILCO COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: PHILCO
Supplier's address: PHILCO, FAST ČR, a.s. U Sanitasu 1621 Ričany 251 01, Czech Republic
Model identifier: PF 2272
Type of refrigerating appliance: Drawer freezer
Low-noise appliance: No Design type: freestanding
Wine storage appliance: No Other refrigerating appliance: Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 1630		Total volume (dm3 or l) 232Width		600
	Depth	600
Energy efficiency Index (EEI)		100	Energy efficiency class*		E
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		210	Climate class:		T - tropical, ST - subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		43
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food No - - - -
Chill Yes - -18 12 M
0-star or ice-making	No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star Yes - -18 12 M
2-star section No - - -
Variable temperature compartment	No - - - -
For 4-star compartments
Fast freeze facility Yes
Type of light source -
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 mesiacov
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.philco.cz

* A (highest efficiency) to G (lowest efficiency)

TECHNICAL INFORMATION

Technical information can be found on the type plate on the inside of the appliance and on the energy label. The QR code, on the supplied energy label, contains a link to register the appliance in the EU Eprel database. Keep the energy label, the instructions for use, together with other documents supplied with the device.

TESTING INFORMATION

The delivered device is in accordance with EcoDesign and EN 62552:2013. Air access requirements for proper operation of the device, the minimum distance from the wall and the dimensions of the device are part of this manual. If you have any further questions, please contact the manufacturer.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

Model name and serial number can be found on the rating plate. Position of rating plate can be changed without notice.

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

When contacting our authorized service, have the model designation, serial number and defect description available.

To download documents, visit www.philco.cz.

To report a defect and obtain additional service information, visit https://philco.cz/podpora-a-servis.

Subject to change without notice.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

Original of this user manual is Czech.

WARNING! DURING USING, SERVICE AND DISPOSAL THE APPLIANCE, PLEASE PAY ATTENTION TO SYMBOL SIMILAR AS LEFT SIDE, WHICH IS LOCATED ON REAR OF APPLIANCE (REAR PANEL OR COMPRESSOR) AND WITH YELLOW OR ORANGE COLOR.

IT'S RISK OF RE WARNING SYMBOL. THERE ARE FLAMMABLE MATERIALS IN REFRIGERANT PIPES AND COMPRESSOR. PLEASE BE FAR AWAY RE SOURCE DURING USING, SERVICE AND DISPOSAL.

MRAZNIČKA

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

Vážený zákazníku,

REGULACE TEPLOTY....14

ZMRAZENÍ POTRAVIN....14

ODMRAZOVÁNÍ MRAZÁKU 15

ČÁST 5: ČIŠTĚNÍ A ÚDRŽBA ......16

Simple directional arrows with a dot between two left-pointing arrows, no text or symbols present.

ZNAČKA ISO 7000-1701 (2004-01) OZNAČUJE MÉDIUM POD TLAKEM.

TENTO SPOTŘEBIČ JE URČEN PRO POUŽITÍ V DOMÁCNOSTI A PODOBNÝCH PROSTORECH, JAKO JSOU:

• KUCHYŃSKÉ KOUTY V OBCHODECH, KANCELÁŘÍCH A OSTATNÍCH PRACOVIŠTÍCH;
  – SPOTŘEBIČE POUŽÍVANÉ HOSTY V HOTELÍCH, MOTELECH A JINÝCH OBYTNÝCH PROSTŘEDÍCH;
  – SPOTŘEBIČE POUŽÍVANÉ V PODNICÍCH ZAJIŠŤUJÍCÍCH NOCLEH SE SNÍDANÍ;
  – SPOTŘEBIČE POUŽÍVANÉ VE STRAVOVACÍCH A PODOBNÝCH NEPRODEJNÍCH PROSTŘEDÍCH.

POUZE NĚKTERÉ VYBRANÉ MODELY CHLADNIČEK OBSAHUJÍ VÝROBNÍK LEDU. ZABUDOVANÉ VÝROBNÍKY LEDU MUSÍ BÝT INSTALOVÁNY POUZE VÝROBCEM NEBO JEHO SERVISNÍ ORGANIZACÍ.

• PRO VYBRANÉ MODELY S VÝROBNÍKEM LEDU S PŘIPOJENÍM NA VODU PLATÍ: VÝSTRAHA: PŘIPOJUJE SE POUZE NA PŘÍVOD PITNÉ VODY.
• VÝSTRAHA: SPOTŘEBIČ MUSÍ BÝT PŘIPEVNĚN PODLE NÁVODU, ABY SE ZABRÁNILO NEBEZPEČÍ ZPŮSOBENÝM JEHO NESTABILITOU.
• VÝSTRAHA: CHLADICÍ SYSTÉM OBSAHUJE CHLADIVO POD VYSOKÝM TLAKEM. NEMANIPULUJTE SE SYSTÉMEM. MUSÍ BÝT OPRAVOVÁN POUZE KVALIFIKOVANOU OSOBOU.

OBSAHUJE CHLADICÍ PLYN IZOBUTAN

R600A

CHLADIVO

CHLADICÍ IZOBUTAN (R600A), KTERÝ JE OBSAŽEN V CHLADICÍM OKRUHU SPOTŘEBIČE, JE PŘÍRODNÍ PLYN S VYSOKOU KOMPATIBILITOU SE ŽIVOTNÍM PROSTŘEDÍM, KTERÝ JE PŘECE JEN HOŘLAVÝ. BĚHEM PŘEPRAVY A INSTALACE SPOTŘEBIČE ZABRAŇTE POŠKOZENÍ KOMPONENT CHLADICÍHO OKRUHU. CHLADIVO (R600A) JE HOŘLAVÉ.

- VAROVÁNÍ — CHLADNIČKY V IZOLACI OBSAHUJÍ CHLADIVO A CHLADICÍ PLYNY. CHLADIVO A CHLADICÍ PLYNY MUSÍ BÝT LIKVIDOVÁNY ODBORNĚ, PROTOŽE MOHOU ZPŮSOBIT PORANĚNÍ OČÍ NEBO VZNÍCENÍ. PŘED PROVEDENÍM SPRÁVNÉ LIKVIDACE SE UJISTĚTE, ZDA NENÍ POTRUBÍ CHLADICÍHO OKRUHU POŠKOZENO.

SYMBOL VAROVÁNÍ A ZNAMENÁ TO, ŽE CHLADIVO A CHLADICÍ PLYNY JSOU HOŘLAVÉ.

VAROVÁNÍ: RIZIKO POŽÁRU HOŘLAVÝCH MATERIÁLŮ

POKUD BY DOŠLO K POŠKOZENÍ CHLADICÍHO OKRUHU

- VYHNĚTE SE OTEVŘENÉMU OHNI A ZDROJŮM VZNÍCENÍ.

- DŮKLADNĚ VYVĚTREJTE MÍSTNOST, VE KTERÉ SE SPOTŘEBIČ NACHÁZÍ.

JE NEBEZPEČNÉ MĚNIT NEBO UPRAVOVAT SPOTŘEBIČ JAKÝMKOLIV ZPŮSOBEM.

JAKÉKOLIV POŠKOZENÍ NAPÁJECÍHO KABELU MŮŽE VÉST KE ZKRATU, POŽÁRU A/NEBO ZASAŽENÉM ELEKTRICKÝM PROUDEM.

• VÝSTRAHA: CHLADICÍ SYSTÉM OBSAHUJE CHLADIVO POD VYSOKÝM TLAKEM. NEMANIPULUJTE SE SYSTÉMEM. MUSÍ BÝT OPRAVOVÁN POUZE KVALIFIKOVANOU OSOBOU.
• VÝSTRAHA: PŘI UMÍŠŤOVÁNÍ SPOTŘEBIČE SE MUSÍ ZAJISTIT, ABY NAPÁJECÍ PŘÍVOD NEBYL ZACHYCEN NEBO POŠKOZEN.
• VÝSTRAHA: NEUMÍŠŤOVAT VÍCENÁSOBNÉ PŘENOSNÉ ZÁSUVKY NEBO PŘENOSNÉ PRODLUŽOVACÍ PŘÍVODY NA ZADNÍ STRANU SPOTŘEBIČE.

ELEKTRICKÁ BEZPEČNOST

1. NAPÁJECÍ KABEL NESMÍ BÝT PRODLUŽOVÁN.
2. UJISTĚTE SE, ZDA NENÍ ZÁSTRČKA NAPÁJECÍHO KABELU POŠKOZENÁ.

ROZDRCENÁ NEBO POŠKOZENÁ ZÁSTRČKA SE MŮŽE PŘEHŘÍVAT A ZPŮSOBIT POŽÁR.

1. UJISTĚTE SE, ZDA MÁTE VOLNÝ PŘÍSTUP K ZÁSTRČCE SPOTŘEBIČE.

2. NETAHEJTE ZA NAPÁJECÍ KABEL.

3. POKUD JE ELEKTRICKÁ ZÁSUVKA UVOLNĚNÁ, NEPŘIPOJUJTE K NÍ ZÁSTRČKU. HROZÍ RIZIKO ÚRAZU ELEKTRICKÝM PROUDEM NEBO VZNIKU POŽÁRU.

4. NESMÍTE POUŽÍVAT TENTO SPOTŘEBIČ BEZ KRYTU VNITŘNÍHO OSVĚTLENÍ.
5. CHLADNIČKA JE URČENA POUZE NA NAPÁJENÍ Z JEDNÉ FÁZE STŘÍDAVÉHO PROUDU S HODNOTAMI 220\~240 V/50 HZ. POKUD JE KOLÍSÁNÍ NAPĚTÍ V MÍSTĚ BYDLIŠTĚ UŽIVATELE TAK VELKÉ, ŽE PŘESAHUJE VÝŠE UVEDENÉ LIMITY, Z BEZPEČNOSTNÍCH DŮVODŮ POUŽIJTE PRO CHLADNIČKU AUTOMATICKÝ NAPĚTOVÝ REGULÁTOR S VÍCE NEŽ 350 W.

CHLADNIČKA MUSÍ BÝT VYBAVENA SPECIÁLNÍ NAPÁJECÍ ZÁSTRČKOU NAMÍSTO BĚŽNĚ POUŽÍVANÉ S JINÝMI ELEKTRICKÝMI SPOTŘEBIČI. ZÁSTRČKA MUSÍ ZODPOVÍDAT ZÁSUVCE S UZEMŇOVACÍM KONTAKTEM.

BĚŽNÉ POUŽITÍ

• VE SPOTŘEBIČI NESKLADUJTE HOŘLAVÉ PLYNY ANI TEKUTINY. HROZÍ RIZIKO EXPLOZE.
• VE SPOTŘEBIČI NEPOUŽÍVEJTE JINÉ ELEKTRICKÉ SPOTŘEBIČE (NAPŘ. ELEKTRICKÝ VÝROBNÍK ZMRZLINY, MIXÉRY ATD.).
• PŘI ODPOJOVÁNÍ SPOTŘEBIČE Z ELEKTRICKÉ ZÁSUVKY, VŽDY TAHEJTE ZA ZÁSTRČKU. NETAHEJTE ZA KABEL.
• DO BLÍZKOSTI PLASTOVÝCH DÍLŮ TOHOTO SPOTŘEBIČE NEDÁVEJTE HORKÉ PŘEDMĚTY.
• NEDÁVEJTE ŽÁDNÉ PŘEDMĚTY DO BLÍZKOSTI VZDUCHOVÝCH OTVORŮ V ZADNÍ STĚNĚ.

• BALENÉ MRAZENÉ POTRAVINY SKLADUJTE V SOULADU S POKYNY VÝROBCE MRAZENÝCH POTRAVIN.

• MĚLI BYSTE STRIKTNĚ DODRŽOVAT DOPORUČENÍ TÝKAJÍCÍ SE SKLADOVÁNÍ VE SPOTŘEBIČI OD VÝROBCE. VIZ PŘÍSLUŠNÉ POKYNY O SKLADOVÁNÍ.

• DO MRAZICÍHO PROSTORU NEDÁVEJTE SYCENÉ NEBO ŠUMIVÉ NÁPOJE, PROTOŽE VYTVÁŘEJÍ TLAK NA NÁDOBU, KTERÁ MŮŽE EXPLODOVAT, COŽ MŮŽE VÉST K POŠKOZENÍ SPOTŘEBIČE.
• NEKONZUMUJTE MRAZENÉ POKRMY IHNED PO VYJMUTÍ Z MRAZNIČKY, MŮŽETE SE PORANIT.
• NEUMÍŠTÚJTE SPOTŘEBIČ NA PŘÍMÉ SLUNEČNÉ SVĚTLO.
• MĚJTE HORKÉ SVÍČKY, LAMPY A JINÉ PŘEDMĚTY S OTEVŘENÝM OHNĚM V DOSTATEČNÉ VZDÁLENOSTI OD SPOTŘEBIČE, ABYSTE ZABRÁNILI RIZIKU POŽÁRU.
• SPOTŘEBIČ JE URČEN NA USKLADNĚNÍ POKRMŮ A/NEBO NÁPOJŮ V BĚŽNÉ DOMÁCNOSTI PODLE POPISU V NÁVODU. SPOTŘEBIČ JE TĚŽKÝ. ZVYŠTE POZORNOST PŘI JEHO PŘEMÍŠTOVÁNÍ.
• NEVYJÍMEJTE ANI SE NEDOTÝKEJTE POLOŽEK V PROSTORU MRAZENÍ, POKUD MÁTE VLHKÉ/MOKRÉ RUCE, PROTOŽE TO MŮŽE VÉST K PORANĚNÍM POKOŽKY NEBO POPÁLENINÁM Z MRAZU.
• NIKDY NEPOUŽÍVEJTE DNO, ZÁSUVKY, DVÍŘKA APOD. NA STOUPÁNÍ NEBO JAKO PODPĚRU.
• MRAZENÉ POTRAVINY, NESMÍ BÝT PO ROZMRAZENÍ OPĚTOVNĚ ZMRAZENY.
• NEKONZUMUJTE LEDOVÉ NANUKY NEBO KOSTKY LEDU IHNED PO VYJMUTÍ Z MRAZNIČKY, PROTOŽE BYSTE SI TAK MOHLI PORANIT ÚSTA A RTY.
• ABYSTE ZABRÁNILI PÁDU PŘEDMĚTŮ A ZRANĚNÍ NEBO POŠKOZENÍ SPOTŘEBIČE, NEPŘETĚŽUJTE PŘIHRÁDKY DVÍŘEK ANI DO ZÁSUVEK NEDÁVEJTE NADMĚRNÉ MNOŽSTVÍ POTRAVIN.

INSTALACE DŮLEŽITÉ!

• PŘI PŘIPOJENÍ K ELEKTRICKÉ SÍTI BUĎTE OPATRNÍ, DODRŽUJTE POKYNY V TOMTO NÁVODU. SPOTŘEBIČ VYBALTE A ZKONTROLUJTE HO Z HLEDISKA VIDITELNÝCH POŠKOZENÍ.
• POKUD JE SPOTŘEBIČ POŠKOZENÝ, NEPŘIPOJUJTE HO. OZNAMTE PŘÍPADNÉ POŠKOZENÍ V MÍSTĚ ZAKOUPENÍ. V TOMTO PŘÍPADĚ SI NECHTE OBALOVÝ MATERIÁL.

- DOPORUČUJE SE POČKAT NĚKOLIK HODIN, PŘED PŘIPOJENÍM SPOTŘEBIČE, ABY SE OLEJ V KOMPRESORU USTÁLIL.

- OKOLO SPOTŘEBIČE ZAJISTĚTE DOSTATEČNÉ VĚTRÁNÍ, V OPAČNÉM PŘÍPADĚ MŮŽE DOCHÁZET K PŘEHŘÍVÁNÍ. PRO DOSAŽENÍ DOSTATEČNÉHO VĚTRÁNÍ DODRŽUJTE POKYNY K INSTALACI.

- POKUD JE TO MOŽNÉ, ZADNÍ STĚNA SPOTŘEBIČE BY NEMĚLA BÝT PŘÍLIŠ BLÍZKO STĚNY A NEMĚL BY SE DOTÝKAT HORKÝCH ČÁSTÍ (KOMPRESOR, KONDENZÁTOR), ABY SE ZABRÁNILO RIZIKU POŽÁRU, DODRŽUJTE PŘÍSLUŠNÉ POKYNY K INSTALACI.

- SPOTŘEBIČ NESMÍ BÝT UMÍSTĚN V BLÍZKOSTI RADIÁTORŮ NEBO SPORÁKŮ.

- PO INSTALACI SPOTŘEBIČE SE UJISTĚTE, ZDA JE SÍŤOVÁ ZÁSTRČKA SNADNO PŘÍSTUPNÁ.

- ODLOŽTE VŠECHNY OBALY MIMO DOSAH DĚTÍ, PROTOŽE HROZÍ RIZIKO UDUŠENÍ.

• VNITŘNÍ PROSTOR VAŠÍ CHLADNIČKY/MRAZNIČKY MŮŽE PŘED PRVNÍM POUŽITÍM ZAPÁCHAT. JE TO NORMÁLNÍ JEV. ZÁPACH ZMIZÍ, JAKMILE ZAČNE ZAŘÍZENÍ CHLADIT/MRAZIT.
- PŘED PŘIPOJENÍM CHLADNIČKY/MRAZNIČKY SE UJISTĚTE, ŽE NAPĚTÍ V ELEKTRICKÉ SÍTI ODPOVÍDÁ POŽADAVKŮM NA PŘIPOJENÍ CHLADNIČKY/MRAZNIČKY. V PŘÍPADĚ POCHYBNOSTÍ SE OBRAŤTE NA KVALIFIKOVANÉHO ELEKTRIKÁŘE.
- SPOTŘEBIČ MUSÍ BÝT PŘIPOJEN DO ZÁSUVKY S ODPOVÍDAJÍCÍM NAPĚTÍM A SPRÁVNĚ NAINSTALOVANOU POJISTKOVOU ZÁSUVKOU.
- CHLADNIČKA/MRAZNIČKA NESMÍ BÝT UMÍSTĚNA VENKU NEBO VYSTAVENA DEŠTI.
- CHLADNIČKA/MRAZNIČKA MUSÍ BÝT UMÍSTĚNA NEJMÉNĚ 50 CM OD TOPNÝCH TĚLES, TOPENÍ TRUB, PLYNOVÝCH TRUB ATD.
- POKUD JE CHLADNIČKA S MRAZNIČKOU UMÍSTĚNA VEDLE MRAZÁKU, MUSÍ MEZI NIMI BÝT MIN. 2 CM ROZESTUP.
• NA CHLADNIČKU/MRAZNIČKU NEPOKLÁDEJTE TĚŽKÉ VĚCI, NEZAKRÝVEJTE JI.
• NAD CHLADNIČKOU/MRAZNIČKOU MUSÍ BÝT MIN. 150 MM VOLNÝ PROSTOR.
- NAINSTALUJTE DVĚ PLASTOVÁ VODÍTKA NA KONDENZÁTOR CHLADNIČKY/MRAZNIČKY, KTERÁ ZABRAŇUJÍ DOTYKU ZDI A KONDENZÁTORU.
• TENTO SPOTŘEBIČ JE VYROBEN K POUŽITÍ V DOMÁCNOSTECH A JE VHODNÝ POUZE PRO CHLAZENÍ /MRAZENÍ POTRAVIN. NENÍ VHODNÝ PRO KOMERČNÍ POUŽITÍ A / NEBO PRO SKLADOVÁNÍ LÁTEK S VÝJIMKOU POTRAVIN. VÝROBCE NENESE ZA ŽÁDNÉ ZTRÁTY, ZPŮSOBENÉ NEVHODNÝM POUŽITÍM SPOTŘEBIČE, ODPOVĚDNOST.

ČÁST 2: POPIS PŘÍSTROJE

VAROVÁNÍ! POČET A KONSTRUKCE NÍŽE UVEDENÉHO PŘÍSLUŠENSTVÍ SPOTŘEBIČE SE MŮŽE LIŠIT OD PŘÍSLUŠENSTVÍ, S NÍMŽ JSTE ZAKOUPILI SVŮJ SPOTŘEBIČ. Popis je upraven pro celou skupinu mrazáků.

Umístění

Illustration of a hand holding a tool inside a device outline (no text or symbols visible)

VAROVÁNÍ!

Famous for Quality the World Over

Vážený zákazník,

Illustration of a hand holding a tool inside a device outline (no text or symbols)

VAROVANIE!

Famous for Quality the World Over

Drogi kliencie,

Illustration of a hand holding a tool inside a device (no text or symbols visible)

OSTRZEŻENIE!

Famous for Quality the World Over

Tisztelt vásárlónk,

Elhelyezés

Hand holding a tool inside a device outline (no visible text or symbols)

FIGYELEM!

is a pending or registered trademark of Electrolux Home Products, Inc. and used under a license from Electrolux Home Products, Inc.
