USER MANUAL MUFF17VLRT Philco

of your Freezer or Refrigerator

Line drawing of various household appliances including washing machine, refrigerator, and showerbox (no text or symbols)

TABLE OF CONTENTS

Product Registration....2

Important Safety Instructions....2

First Steps....4

Setting the Temperature Control....6

Optional Features....6

Energy-Saving Tips....7

Care and Cleaning....7

Power/Freezer Failure....9

Before you Call....9

International Limited Warranty....12

PRODUCT REGISTRATION

Read and Save These Instructions

This Owner's Guide provides specific operating instructions for your model. Use your appliance only as instructed in this guide. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

Record Your Model and Serial Numbers

Record the model and serial numbers in the space provided below.

Model Number:

Serial Number:

Purchase Date:

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Please read all instructions before using this unit.

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

For Your Safety

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this unit or any other appliance. Read product labels for flammability and other warnings.
• Do not operate the unit in the presence of explosive fumes.
• Remove and discard any spacers used to secure the shelves during shipping. Small objects are a choke hazard to children.
• Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

WARNING

Child Safety

• Destroy carton, plastic bags, and any exterior wrapping material immediately after the unit is unpacked. Children should never use these items for play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers and can quickly cause suffocation.
• An empty, discarded appliance is a very dangerous attraction to children.
• Remove the door(s) of any appliance that is not in use, even if it is being discarded.

WARNING

Proper Disposal of Your Appliance

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous – even if they will sit for "just a few days". If you are getting rid of your old appliance, please follow the instructions below to help prevent accidents.

We strongly encourage responsible appliance recycling/disposal methods. Check with your utility company or visit www.recyclemyoldfridge.com for more information on recycling your old appliance.

Before you throw away your old appliance:

• Remove door/lid.
• Leave shelves in place so children may not easily climb inside.
• Have the refrigerant removed by a qualified technician.

Line drawings of two open storage cabinets, one closed and one closed with a lid (no text or symbols)

WARNING

Avoid fire hazard or electric shock. Do not use an extension cord or an adapter plug. Do not remove any prong from power cord.

WARNING

Other Precautions

• To defrost appliance, always unplug unit first.
• Never unplug the unit by pulling on the power cord. Always grip the plug firmly and pull straight out from the receptacle.
• Turning the control to OFF turns off the compressor, but does not disconnect power to other electrical components.

Grounding type wall receptacle

Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong grounded plug

WARNING

Electrical Information

These guidelines must be followed to ensure that safety mechanisms in the design of this appliance will operate properly. Failure to follow these warnings may result in electric shock or injury. Check serial plate for voltage and cycle information.

• The appliance must be plugged into its own dedicated 220-240 Volt, 50/60 Hz., AC only electrical outlet. The power cord of the appliance is equipped with a three-prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded three-prong receptacle, protected with a 15-amp time delay fuse or circuit breaker. The receptacle must be installed in accordance with the local codes and ordinances. Consult a qualified electrician. Receptacles protected by Ground Fault Circuit Interrupters (GFCI) are NOT RECOMMENDED. Do NOT use an extension cord or adapter plug. Do not remove any prong from power cord.
• If the power cord is damaged, it should be replaced by an authorized service technician to prevent any risk.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly, and pull straight out from the receptacle to prevent damaging the power cord.
• Unplug the appliance before cleaning and before replacing a light bulb to avoid electrical shock.
• If voltage varies by 10% or more, appliance performance may be affected. Operating the unit with insufficient power can damage the motor. Such damage is not covered under the warranty. If you suspect your household voltage is high or low, consult your power company for testing.
• To prevent the appliance from being turned off accidentally, do not plug unit into an outlet controlled by a wall switch or pull cord.
• Do not pinch, knot, or bend power cord in any manner.
• Set the controls at midpoint at start up. See section "TEMPERATURE CONTROL" IF ADJUSTMENTS ARE DESIRED.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Don't use a steam cleaner. If live components come into contact with condensing steam, they may short- circuit or cause an electrical shock.
• Do not use mechanical devices or other means to accelerate the defrosting process other than those recommended by the manufacturer.
• Choose a location that is not too cold--the ambient temperature should be above 10^ C.
• Put the appliance in a dry place avoiding areas of high moisture or humidity.
• Keep ventilation openings, in the appliance enclosure or built-in structure, clear of obstruction.
• Never try to repair the refrigerator yourself, only use a qualified or authorized service person for repairs.
• Never use electric heaters or dryers to defrost the unit because you can receive an electric shock.
• Do not damage the refrigerant circuit.

NOTE

You must read these warnings carefully before installing or using the appliance. If you need assistance, contact your place of purchase. The manufacturer will not accept liability, should these instructions or any other safety instructions incorporated in this book be ignored.

FIRST STEPS

This Use & Care Guide provides general operating instructions for your model. Use the unit only as instructed in this Use & Care Guide. Before starting the unit, follow these important first steps.

Location

Choose a place that is near a grounded electrical outlet.

For the most efficient operation, the appliance should be located where surrounding temperatures will not exceed 43^ C. Temperatures of 0^ C and below will NOT affect operation. Additional compressor heaters are not recommended.

Allow space around the unit for good air circulation. Leave a 75 mm space on all sides of the unit for adequate circulation.

75 mm Air Space 75 mm 75 mm) 75 mm)

75 mm 75 mm 75 mm Installation

NOTE

The exterior walls of the unit may become quite warm as the compressor works to transfer heat from the inside. Temperatures as much as -1°C warmer than room temperature can be expected. For this reason it is particularly important in hotter climates to allow enough space for air circulation around your appliance.

Leveling

The appliance must have all bottom corners resting firmly on a solid floor. The floor must be strong enough to support a fully loaded unit.

NOTE

It is VERY IMPORTANT for your appliance to be level in order to function properly. If the unit is not leveled during installation, the door/lid may be misaligned and not close or seal properly, causing cooling, frost or moisture problems.

To level Upright Units:

Use a carpenter's level to level the appliance from front to back. Adjust the plastic leveling feet in front, 12 bubble higher, so that the door closes easily when left halfway open.

To level Chest Units:

If needed, add metal or wood shims between feet pads and floor.

CAUTION

To allow door to close and seal properly, DO NOT let food packages extend past the front of shelves.

Line drawing of a refrigerator with three shelves and top door (no text or symbols)

Repositioning the Mid-Level Basket (some models):

1. To remove the support-hanging basket, press upward on underside of front of support to release from shelf rod.
2. Rotate front under the shelf, and then slide support-hanging basket forward to remove from back shelf rod.
3. To remove shelf grommet, slide away from wall, then pull from rod.
4. Repeat steps 1-3 for other side.
5. With the shelf installed, press the 2 shelf grommets down onto the rod that is anchored into the appliance wall (located in the back only). Be sure to keep the
   larger end of the shelf grommets away from the wall.

Illustration of hands holding a pipe with a black arrow indicating downward motion (no text or symbols)

1. Push the shelf grommets onto the shelf rod until firmly seated.

Illustration of a hand pressing down on a pipe fitting with a black arrow indicating force (no text or symbols)

1. Slide the shelf grommets into the wall grommets already in the unit wall until they are flush.

Simple line drawing of a cylindrical pipe with flange (no text or symbols)

1. Guide the support-hanging basket underneath the shelf, inserting the slotted end of the support onto the rear shelf rod.

2. Rotate the support-hanging basket up to bring the front end over the front shelf rod. Slide forward to locate front of support-hanging basket over front of shelf rod. Push down on support until it snaps into place.

Diagram of a refrigerator interior showing the lid and drawer mechanism, with an inset magnified view highlighting the handle (no text or symbols present)

To install the handle clips to the basket:

1. Place the basket on a firm, flat surface.

2. With the narrow side of the handle clip on the inside of the basket, snap the handle clip to the recessed area in the basket.

Diagram showing a device with a magnified view of a device inside a container (no text or symbols)

Line drawing of a shopping basket with a downward arrow indicating compression or shift (no text or symbols)

1. Once the inside surface snaps in place, continue the process by rolling the handle clip slightly outward and pressing down firmly to snap onto the outside surface. If installed incorrectly, the handle clip will not lay flat.

Technical line drawing of a mechanical component with a magnified inset showing detail (no text or symbols)

Door Removal (upright models)

If door must be removed, unplug the unit.

1. Gently lay the unit on its back, on a rug or blanket.

2. Remove 2 base screws and base panel.

3. Remove 4 bottom hinge screws.

4. Remove plastic top hinge cover.

5. Remove 2 screws from top hinge.

6. Remove top hinge from cabinet.

7. Remove door and bottom hinge from cabinet.

8. To replace door, reverse the above order and securely tighten all screws to prevent hinge slippage.

Lid Removal (chest models)

See Instructions on hinge label. Unplug the unit.

SETTING THE TEMPERATURE CONTROL

Cool Down Period

• For safe food storage, allow 4 hours for the appliance to cool down completely. The unit will run continuously for the first several hours. Foods that are already frozen may be placed in the unit after the first few hours of operation. Unfrozen foods should NOT be loaded into freezer until freezer has operated for 4 hours.
• When loading freezer, freeze only 1.36 kg of fresh food per cubic foot of freezer space at one time. Distribute packages to be frozen evenly throughout the freezer. It is not necessary to turn control knob to a colder setting while freezing food.

Electromechanical Temperature

Control (chest and some upright models)

The temperature control is located inside the freezer on upright models, and on the left exterior wall on chest models. The temperature is factory preset to provide satisfactory food storage temperatures. However, the temperature control is adjustable to provide a range of temperatures for your personal satisfaction. If a colder temperature is desired, turn the temperature control knob toward COLDEST and allow several hours for temperatures to stabilize between adjustments.

2 3 4 5 COLDEST 9 OFF

NOTE

Your freezer may have some, or all of the features listed below. Become familiar with these features, and their use and care.

OPTIONAL FEATURES

Power On Light (chest and some upright models)

The Power On Light indicates that the appliance is properly connected to electrical power. The light glows even when the temperature control is turned to OFF. If the light goes out, refer to "Appliance does not run" in the Before You Call

Adjustable Shelf (some upright models)

This shelf can be moved to 1 or 2 positions. Move to the right and lift left to move to the desired location.

Slide-Aside Basket (some chest models)

This basket helps organize odd-shaped items. To reach other packages in the freezer, slide the basket aside or lift out. The maximum basket storage weight is 25 kg. (55 lbs.)

Line drawing of a plastic basket with perforated side and handle (no text or symbols)

Line drawing of three identical rectangular storage compartments mounted on a vertical shelf (no text or symbols)

Adjustable Door Bins (some upright models)

Adjustable door bins are located inside on the freezer door and provide flexible storage space. The number of bins provided varies by model.

Soft Freeze Zone (some upright models)

Soft Freeze Zone is specifically designed to maintain a higher temperature than the rest of the freezer to store products

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Pizza Shelf (some upright models)

Here is the place to store up to four extra-large boxes of frozen pizza without ever having to dig them out from beneath a pile of other stored goods.

The pizza shelf can be

retracted to provide space for larger items on the shelf below and still store up to 2 pizzas.

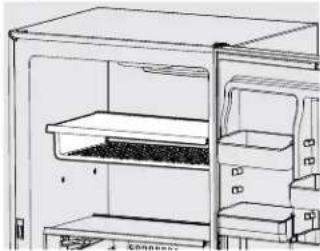

Mid-Level Basket

This basket keeps things organized and slides out for easy access.

Technical line drawing of a mechanical component or housing with no visible text or symbols

Line drawing of a rectangular plastic basket with perforated sides and internal compartments (no text or symbols)

Basket Divider (some upright models)

Use these handy dividers to keep the various items stored in your baskets more organized. To change the location of the divider simply slide

your basket out, grab the divider from the center and rotate in a counterclockwise direction until it is disengaged. To assemble, simply align as shown in the figure below and rotate in a clockwise direction until it spans into place.

ENERGY-SAVING TIPS

SAVE MONEY SAVE ENERGY

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight.
• Let hot foods cool to room temperature before placing in the unit. Overloading the appliance forces the compressor to run longer. Foods that

freeze too slowly may lose quality or spoil.

• Be sure to wrap foods properly and wipe containers dry before placing them in the unit. This cuts down on frost build-up inside the unit.
• Shelves and baskets should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the freezer less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close door as soon as possible.

CAUTION

Damp objects stick to cold metal surfaces. Do not touch interior metal surfaces with wet or damp hands.

Some upright freezers are frost-free and defrost automatically, but should be cleaned occasionally.

Between Defrosting

To avoid frequent defrosting, occasionally use a plastic scraper to remove frost. Scrape with a pulling motion. Never use a metal instrument to remove frost.

CAUTION

Freezer must be unplugged (to avoid electrical hazard) from power source when defrosting unit.

Defrosting

It is important to defrost and clean freezer when 6 mm to 12 mm of frost has accumulated. Frost may tend to accumulate faster on upper part of the freezer due to warm, moist air entering the freezer when the door is opened. Remove food and leave the door open when defrosting the freezer.

- On upright models with a defrost drain (Figure 1), remove drain plug on the inside floor of the freezer by pulling straight out. To access external drain tube on models with a base panel, first remove the 2 screws from the base panel. Locate the drain tube near the left center under the freezer. Place a shallow pan under the drain tube. Defrost water will drain out. Check pan occasionally so water does not overflow. A 12 mm garden hose adapter can be used to drain the freezer directly into a floor drain. If your model is not equipped with an adapter, one can be purchased at most hardware stores. Replace the drain plug when defrosting and cleaning are completed. If the drain is left open, warm air may enter freezer.

DrainTube DrainPan

Figure 1

CARE AND CLEANING

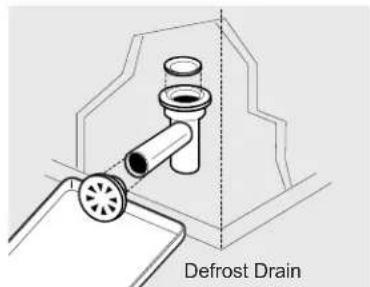

- On chest models with a defrost drain, place a shallow pan beneath the drain outlet (Figure 2). A 12 mm garden hose adapter can be used to drain the freezer directly into a floor drain (Figure 3). If your model is not equipped with an adapter, one can be purchased at most hardware stores. Pull out the drain plug inside the freezer, and pull off the outside defrost drain plug (Figure 4).

Defrost Drain

Figure 2

Hose Adaptor Defrost Drain Plug

Figure 3

Drain Plug

Figure 4

• Defrost water will drain out. Check pan occasionally so water does not overflow. Replace the drain plugs when defrosting is completed.
• On models without a defrost drain, place towels or newspapers on the freezer bottom to catch the frost. The frost will loosen and fall. Remove towels and/or newspapers.
• If the frost is soft, remove it by using a plastic scraper. If the frost is glazed and hard, fill deep pans with hot water and place them on the freezer bottom. Close the freezer door. Frost should soften in about 15 minutes. Repeat this procedure if necessary.

Cleaning the Inside

After defrosting, wash inside surfaces of the unit with a solution of 25 g of baking soda in 1 liter warm water. Rinse and dry. Wring excess water out of the sponge or cloth when cleaning in the area of the controls, or any electrical parts.

Wash the removable parts with the baking soda solution mentioned above, or mild detergent and warm water. Rinse and dry. Never use metallic scouring pads, brushes, abrasive cleaners, or alkaline solutions on any surface. Do not wash removable parts in a dishwasher.

Cleaning the Outside

Wash the cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth. Replace parts and food.

Do not use razor blades or other sharp instruments, which can scratch the appliance surface when removing adhesive labels. Any glue left from the tape can be removed with a mixture of warm water and mild detergent, or touch the residue with the sticky side of the tape already removed. DO NOT REMOVE THE SERIAL PLATE.

WARNING

If leaving door open while on vacation, make certain that children cannot get into the appliance and become entrapped.

WARNING

Do not open door unnecessarily if unit is off for several hours.

Vacation and Moving Tips

Short Vacations: Leave the appliance operating during vacations of less than 3 weeks.

Long Vacations: If the unit will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. Leave the freezer door open slightly, blocking it open if necessary, to prevent odor and mold growth.

Moving: Disconnect the power cord plug from the wall outlet. Remove food, defrost, and then clean the appliance. Secure all loose items such as base panel, baskets, and shelves by taping them securely in place to prevent damage. In the moving vehicle, secure the unit in an upright position, and secure to prevent movement. Also protect outside of unit with a blanket, or similar item.

If a power failure occurs, frozen foods will stay frozen for over 2 days (upright/convertible) or 3 days (chest) if the appliance is kept closed*. If the power failure continues, pack seven or eight pounds of dry ice into the unit every 24 hours. Look in the Yellow Pages under "Dry Ice," "Dairies," or "Ice Cream Manufacturers" for local dry ice suppliers. Always wear gloves and use caution when handling dry ice.

If the appliance has stopped operating,

see "Appliance does not run" in the BEFORE YOU CALL section of this manual. If you cannot solve the problem, call an authorized servicer immediately.

If the appliance remains off for several hours, follow the directions above for the use of dry ice during a power failure. If necessary, take the food to a local locker plant until the unit is ready to operate. Look in the Yellow Pages under "Frozen Food Locker Plants."

*Average cabinet temperature as tested per AHAM standard HRF-1-2007 Section 7.9 at 21°C with door remaining closed.

BEFORE YOU CALL

Before calling your place of purchase, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.
PROBLEM CAUSE	CORRECTION
APPLIANCE OPERATION
Appliance does not run.	·Appliance is plugged into a circuit that has a ground fault interrupt.·Temperature Control is in the OFF position or POWER OFF position.·Appliance may not be plugged in or plug is loose.·Hose fuse blown or tripped circuit breaker.·Power outage	·Use another circuit. If you are unsure about the outlet, have it checked by a certified technician.·See Setting the Temperature Control section.·Ensure plug is tightly pushed into outlet.·Check/replace fuse with a 15-amp time-delay fuse. Reset circuit breaker.·Check house lights. Call local electric company.

BEFORE YOU CALL

PROBLEM CAUSE CORRECTION
Appliance runs too much or too long.	Room or outside weather is hot.Appliance has recently been disconnected for a period of time.Large amounts of warm or hot food have been stored recently.Door is opened too frequently or too long.Door may be slightly open.Temperature control is set too low.Gasket is dirty, worn, cracked, or poorly fitted.	It's normal for the appliance to work longer under these conditions.It takes 4 hours for the appliance to cool down completely.Warm food will cause appliance to run more until the desired temperature is reached.Warm air entering the appliance causes it to run more.Open door less often.Ensure door is tightly closed.Turn control knob to a warmer setting. Allow several hours for the temperature to stabilize.Clean or change gasket. Leaks in door seal will cause appliance to run longer in order to maintain desired temperatures.
APPLIANCE TEMPERATURES
Interior temperature is too cold.	Control is set too low.The appliance is in Quick Freeze mode.	Set control to a warmer setting. Allow several hours for temperature to stabilize.Exit Quick Freeze mode by entering into the options menu on the control panel and pressing the "set" button once the indicator is highlighted next to "Quick Freeze".
Temperature inside appliance is too warm.	Control is set too warm.Door is opened too frequently or too long.Door may not be seating properly.Large amounts of warm or hot food has been stored recently.Appliance has recently been disconnected for a period of time.	Set fresh food control to a colder setting. Allow several hours for temperature to stabilize.Warm air entering the appliance causes it to run more Open door less often.See "DOOR PROBLEMS" section.Warm food will cause appliance to run more until the desired temperature is reached.Appliance requires 4 hours to cool down completely.
External temperature is too warm.	The external walls can be as much as 30°F warmer than room temperature.	This is normal while the compressor works to transfer heat from inside the cabinet.
SOUND AND NOISE
Louder sound levels when appliance is on.	Modern appliances have increased storage capacity and more stable temperatures. They require a high efficiency compressor.	This is normal. When the surrounding noise is low, you might hear the compressor running while it cools the interior.
Longer sound levels when compressor comes on.	Appliance operates at higher pressures during the start of the ON cycle.	This is normal. Sound will level off or disappear as appliance continues to run.
Popping or cracking sound when compressor comes on.	Metal parts undergo expansion and contraction, as in hot water pipes.	This is normal. Sound will level off or disappear as the appliance continues to run.
Bubbling or gurgling sound, like water boiling.	Refrigerant (used to cool the appliance) is circulating throughout the system.	This is normal.
PROBLEM CAUSE	CORRECTION
Vibrating or rattling noise.	Appliance is not level. It rocks on the floor when it is moved slightly.Floor is uneven or weak. Appliance rocks on floor when it is moved slightly.Appliance is touching the wall.	Level the unit. Refer to "Leveling" in the INSTALLATION Section.Ensure floor can adequately support the appliance. Level the appliance by putting wood or metal shims under part of the appliance.Re-level or move the appliance slightly. Refer to "Leveling" in the INSTALLATION Section.
The alarm is sounding from the control panel	Look on the control panel to determine which indicator light is on (High Temp, Power Fail, or Door Ajar)	Press the "set" button to acknowledge the alarm or close the door if the door ajar indicator is shown.
WATER/MOISTURE/FROST INSIDE APPLIANCE
Moisture forms on inside walls.	Weather is hot and humid.Door may not be seating properly.Door is opened too often or too long.	The rate of frost buildup and internal sweating increases. This is normal.See "DOOR PROBLEMS".Open door less often.
WATER/MOISTURE/FROST OUTSIDE APPLIANCE
Moisture forms on outside.	Door may not be seating properly, causing cold air from inside to meet warm air from outside.	See "DOOR PROBLEMS".
ODOR IN APPLIANCE
Odor in appliance. • Interior needs to be cleaned.Foods with strong odors are in the appliance.		Clean interior with sponge, warm water, and baking soda.Cover the food tightly.
DOOR PROBLEMS
Door will not close. • Appliance is not level. It rocks on the floor when it is moved slightly.Floor is uneven or weak. Appliance rocks on floor when it is moved slightly.		This condition can force the cabinet out of square and misalign the door. Refer to "Leveling" in the INSTALLATION Section.Level the floor by using wood or metal shims under the appliance or brace floor supporting the appliance.
LIGHT BULB IS NOT ON
Power Available Light is not on	LED may be burned out.No electric current is reaching the appliance.The door has been left open for more than 5 minutes.	Contact a qualified service dealer.See "Appliance does not run" in "APPLIANCE OPERATION".Close the door.

REFRIGERATORS - HOME FREEZERS - ROOM AIR CONDITIONERS DEHUMIDIFIERS - WATER COOLERS

TO BE APPLIED TO ALL PRODUCTS BUILT AFTER JANUARY 1, 2015

THIS WARRANTY APPLIES OUTSIDE OF NORTH AMERICA. For your protection as the original purchaser, for home use, this appliance is warranted as set forth below.

IMPORTANT:

This Warranty shall not apply if the appliance has been subject to any accident, abuse or misuse, or damage by fire, flood or other acts of nature.

2 YEAR MANUFACTURE & MATERIAL:

Through the 2nd year from the date of purchase we will, through our Authorized Service Representative, repair or replace (at our option) FOB factory any part that becomes inoperable due to defects in manufacture or material under normal domestic use and service.

7 YEAR WARRANTY – SEALED REFRIGERATION SYSTEM COMPONENTS

In addition to the above 2 Year Warranty on the complete appliance, during the 3rd through 7th years from the date of purchase, we will replace FOB factory, through our Authorized Service Representative, any component of the Sealed Refrigerating System (consisting of compressor, condenser, cooling coil, connecting tubing, filter dryer, and defrost solenoid valve, where applicable) with a new or repaired component, if it is shown to our satisfaction that the component is inoperable due to defects in manufacture or material under normal domestic use and service. Refrigerant gas excluded.

CUSTOMER'S RESPONSIBILITIES:

1. Record the model and serial number on this Warranty and keep it with your sales slip or invoice as a record of your purchase date.
2. Provide proper connection to utilities, installation, setting of controls and maintenance, in accordance with instructions in the user's manual for the appliance.
3. Pay charges for pick-up and delivery of the appliance, labor, transportation, local duties or taxes associated with warranty service including any charge to analyze the condition of the appliance. During the 2 Year Warranty, such charges are the responsibility of the dealer from whom the appliance was purchased, or as specified at the time of the purchase of the appliance.
4. Replacement of glass and light bulbs.

HOW TO OBTAIN SERVICE

Contact the dealer where the appliance was purchased. The dealer will make the necessary arrangements or refer you to an Authorized Service Representative if available.

THERE ARE NO OTHER WARRANTIES EXPRESSED OR IMPLIED COVERING THIS APPLIANCE EXCEPT THIS WARRANTY, WHICH IS IN LIEU OF ALL OTHER WARRANTIES, INCLUDING TO THE EXTENT PERMITTED BY LAW, ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL WE BE LIABLE FOR SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES OR FOR ANY DELAY IN THE PERFORMANCE OF THIS WARRANTY DUE TO CAUSES BEYOND OUR CONTROL. THE SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE LIMITED TO THE REPLACEMENT OF PARTS AS HERINBEFORE PROVIDED.

ELECTROLUX MAJOR APPLIANCES INTERNATIONAL | 10200 DAVID TAYLOR DRIVE CHARLOTTE, NORTH CAROLINA USA

كل شيء عن

الاستخدام والعناية

بالمحمد أو была

Silhouette illustration of various household appliances including washing machines, refrigerators, and a refrigerator (no text or symbols)

جدول المحتويات

Line drawings of two open storage cabinets, one closed and one closed with a lid (no text or symbols)

Line drawing of a refrigerator with shelves and top panel (no text or symbols)

Illustration of hands holding a metal pipe with a black arrow indicating downward motion (no text or symbols)

بالنسبة للرف المثبً

Illustration of a hand using a tool to press or install a pipe fitting (no text or symbols present)

Pure diagram of a cylindrical pipe with flange (no text or symbols)

Diagram of a refrigerator interior showing a close-up of the front panel and side panel (no text or symbols present)

Diagram showing a device with a magnified view of a rectangular component, no text or symbols present

لنت hypothesis م rivطcast بالسلة: و. 1 ضع السلة على سطح ثابت ومست ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) ب (%) b

Line drawing of a plastic container with a downward arrow indicating a drop or compression (no text or symbols)

لا ملاحظة

Technical line drawing of a mechanical component with a magnified inset showing internal structure (no text or symbols)

Line drawing of a plastic basket with perforated side and handle (no text or symbols)

Line drawing of four rectangular storage bins arranged vertically (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a multi-level industrial machine or storage unit with no visible text or symbols

Line drawing of a ship's hull with visible hull number 100, no text or symbols present

Line drawing of a rectangular plastic basket with internal compartments (no text or symbols)
