Product type	Cooktop (contact grill)
Brand	MIELE
Model	KM 408-1 GRILL
Dimensions (W x D x H)	514 x 288 x 52 mm
Cut-out dimensions (W x D)	500 x 274 mm
Power supply	240 V / 208 V, 60 Hz, 15 A
Power cord	3 conductors (black, red, green)
Functions	Contact grill
Intended use	Countertop installation
Safety distance (above)	760 mm (30 inches) minimum
Safety distance (side walls)	50 mm (2 inches) minimum
Safety distance (between units)	50 mm (2 inches) between KM 408-1 and others
Required countertop material	Heat-resistant (100°C) with suitable adhesive
Electrical installation	By a qualified electrician according to local codes
Applicable standards	ANSI/NFPA 70 (USA) / CSA C22.1 (Canada)
Included accessories	Support bars, spring clips, silicone seal
Maintenance	Clean regularly, do not seal the unit
Safety	Grounding required, do not install near a gas deep fryer
Customer service (USA)	800-999-1360
Customer service (Canada)	800-565-6435

Frequently Asked Questions - KM 408-1 GRIL MIELE

What is the safety distance above the KM 408-1 grill?

The minimum distance between the top of the unit and any cabinet or hood above must be at least 30 inches (760 mm).

What are the cut-out dimensions for installing the KM 408-1?

The cut-out dimensions are 19 1/16 inches (500 mm) in width and 10 13/16 inches (274 mm) in depth.

Can I install the grill above a dishwasher or refrigerator?

No, cooktops must not be installed above a dishwasher, washing machine, dryer, freezer, or refrigerator, as heat could damage these appliances.

What type of electrical wiring is required for the KM 408-1?

The unit requires a power supply of 240 V or 208 V, 60 Hz, with a 15 A fuse. The supplied cable has three conductors: black (L1), red (L2), and green (ground).

Should the grill be sealed to the countertop?

No, the unit must not be permanently sealed. It is held in place by spring clips and a silicone seal provides sealing. Sealing would complicate maintenance operations.

What is the safety distance between the grill and an exhaust hood?

For the KM 408-1 model, the minimum recommended distance to an exhaust hood is as specified by the hood manufacturer, which must not be less than 26 inches (660 mm).

Can I install multiple Miele units side by side?

Yes, you can install multiple units side by side respecting safety distances. The cut-out width for 2 units is 22 1/8 inches (562 mm), for 3 units 33 1/2 inches (850 mm), etc.

How to clean the KM 408-1 grill?

Clean the surface regularly with a soft cloth and a non-abrasive cleaner. Avoid using steam cleaners. Hood filters should also be cleaned frequently.

What are the Miele technical service numbers?

In the USA, call 800-999-1360. In Canada, 800-565-6435 or contact your regional office.

Can the grill be used on a granite countertop?

Yes, but the support bars and spring clips must be secured with double-sided construction adhesive. Screws are not necessary for granite. A silicone seal should fill the gap between the bars and the countertop.

USER MANUAL KM 408-1 GRIL MIELE

Installation Instructions

Illustration of a screw and a mechanical component with motion arrows indicating movement (no text or symbols)

KM 400 Electric Cooktop

KM 402 / KM 403 Fryer

KM 408-1 Contact Grill

KM 410 / KM 411 Electric Barbecue

To prevent accidents and

machine damage,

read these instructions

before installation or use.

IMPORTANT SAFETY INSTRUCTIONS 4

Installation 4

Safety distance above the appliances 5

Safety distance between the KM 410 / KM 411 and a venting hood . . . . . . . . 6

Appliance dimensions....7

KM 400 / KM 408-1 7

Cutting out the countertop....10

Laying out the support bars and clamps. 11

Securing the support bars....12

Wood or Corian countertops. 12

Granite countertops 12

Securing the spring clamps....12

Wood or Corian countertops....12

Granite countertops 12

Locking the appliance into place 13

Electrical connection....15

Note to the installer:

Please leave this instruction book with the consumer for the local electrical inspector's use.

Installation

The minimum distances given in these Installation Instructions must be observed in order to ensure safe operation. Failure to do so increases the risk of fire.

To prevent appliance damage, the cabinetry and venting hood should be installed first.

The countertop must be bonded with heat resistant (212 °F/100 °C) adhesive to prevent distortion.

The cooktops should only be installed with the required safety distances shown. Do not install the cooktop between 2 tall cabinets as this is a fire hazard.

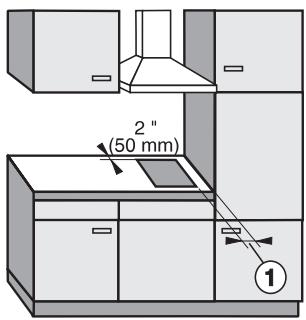

① = Minimum safety distances:

$$ \mathrm{KM} 4 0 0 = 2 ^ {\prime \prime} (5 0 \mathrm{mm}) $$

$$ \mathrm{KM} 4 0 2 / 4 0 3 = 2 ^ {\prime \prime} (5 0 \mathrm{mm}) $$

$$ \mathrm{KM} 4 0 8 - 1 = 2 ^ {\prime \prime} (5 0 \mathrm{mm}) $$

$$ \mathrm{KM} 4 1 0 / 4 1 1 = 1 0 ^ {\prime \prime} (2 5 0 \mathrm{mm}) $$

Deep fryers must not be installed next to gas cooktops. Gas flames can ignite splattering oil. A distance of at least 12" (305 mm) should be maintained between these two appliances.

Simple line drawing of a kitchen cabinet with front and side panels (no text or symbols)

recommended

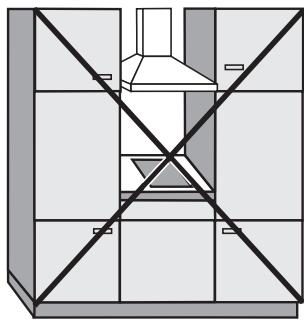

not recommended

Architectural diagram of a kitchen with no visible text, numbers, or symbols

not allowed

Cooktops should not be installed above a dishwasher, washer, dryer, freezer or refrigerator. Heat generated by cooktops could damage these appliances.
This equipment has not been designed for maritime use or for use in mobile installations such as aircraft or recreational vehicles. However, under certain circumstances it may be possible for an installation in these applications. Please contact the nearest Miele Dealer or the Miele Technical Service Department with specific requirements.

Safety distance above the appliances

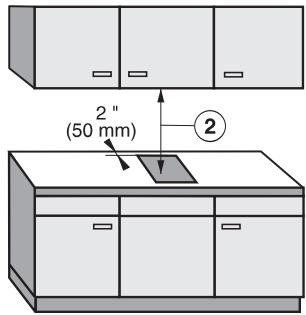

There must be a minimum safety distance of at least 30 inches (760 mm) between the top of the appliance and any cabinet above it, ②. If the cabinet manufacturer recommends a different distance, follow that manufacturer's recommendation.

When installing the cooktops under an exhaust hood, always observe the minimum safety distances recommended by the hood manufacturer.

Safety distance between the KM 410 / KM 411 and a venting hood

The minimum safety distance between the KM 410 / KM 411 and the bottom of a venting hood should be no less than 26" (650 mm).

The filters of the venting hood should be cleaned regularly.

Never leave the grill unattended when in use.

If more than one appliance is installed beneath a hood and they have different minimum safety distances, the greater distance should be followed.

Keep this instruction book in a safe place and pass it on to any future owner.

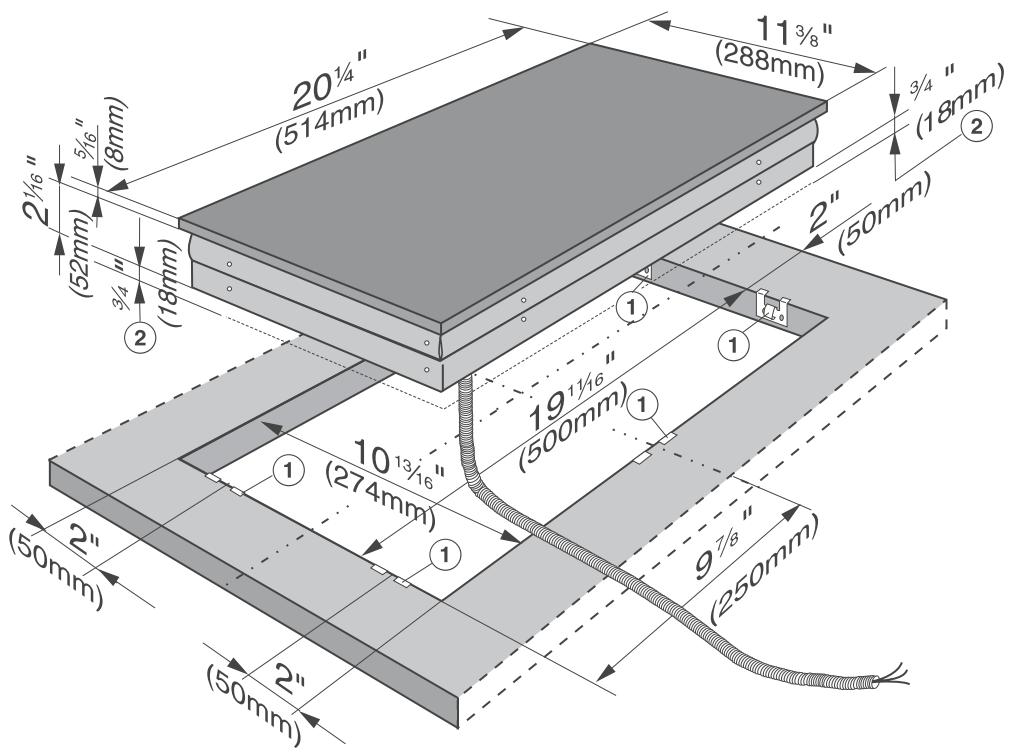

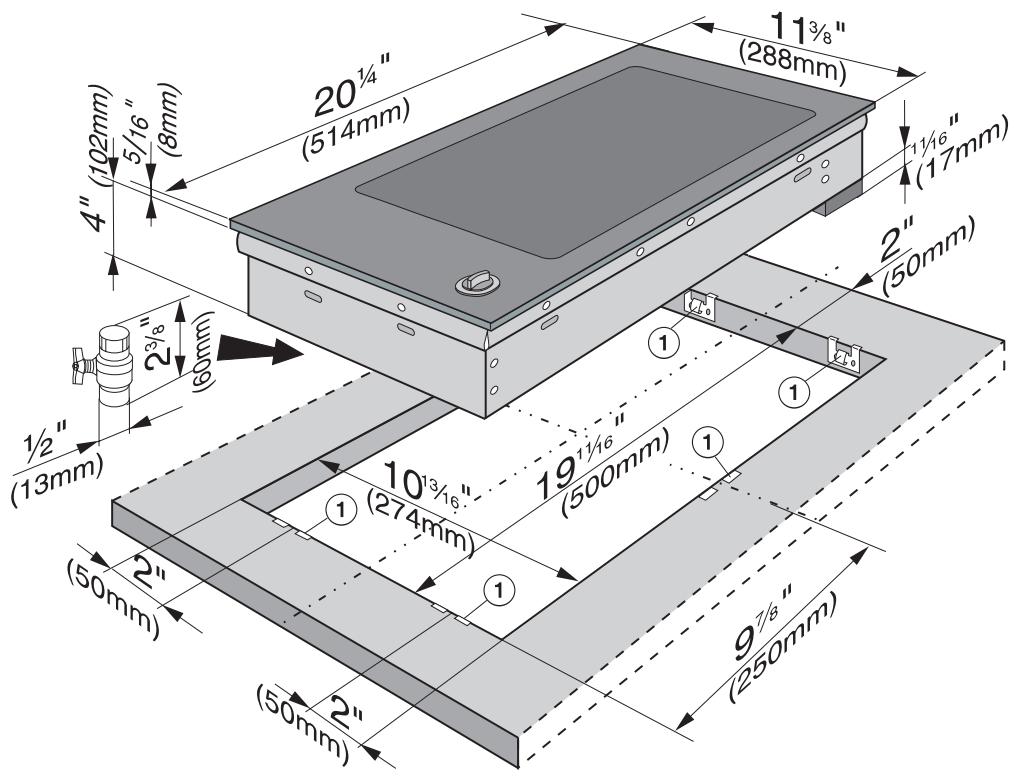

KM 400 / KM 408-1

① Clamps
② Please allow an additional ^3/_4 " (18 mm) depth below the cooktop for clearance of the power cord.

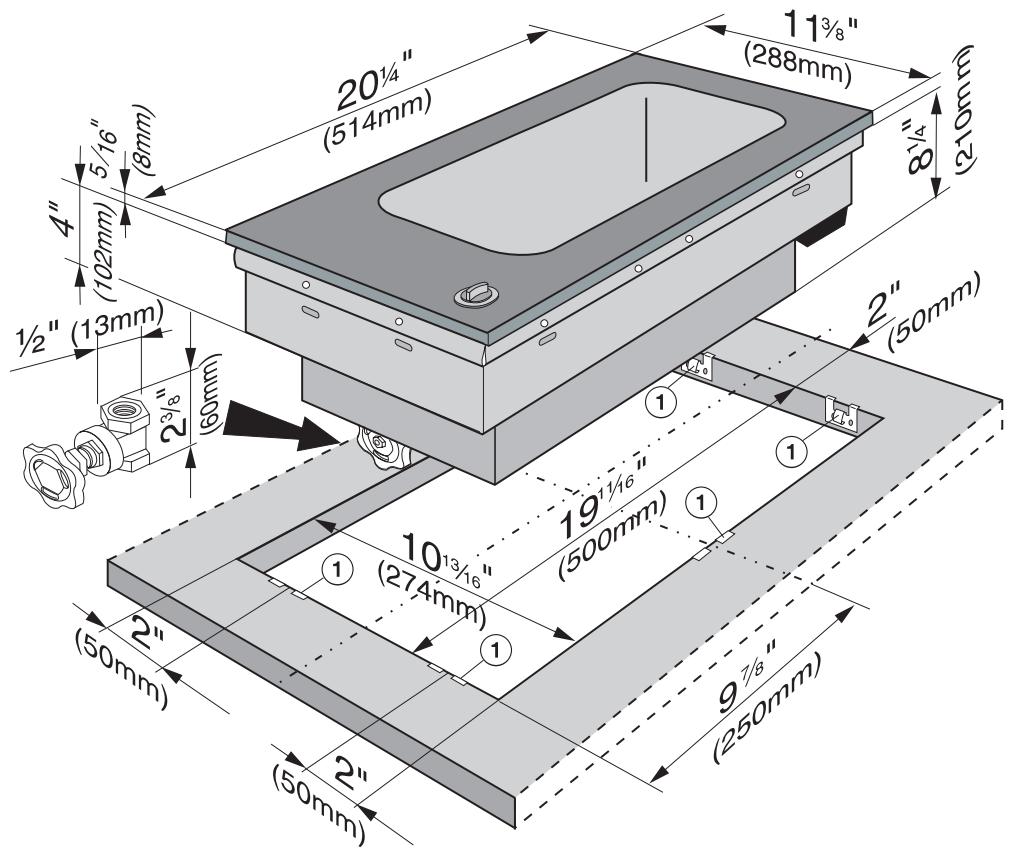

KM 402 / KM 403

① Clamps

KM 410 / KM 411

① Clamps

Cutting out the countertop

All Miele combisets have the same length and width. Make sure that there is enough room beneath the countertop to allow for the depth of the various appliances. When installing a KM 402 / KM 403 or KM 410 / KM 411 remember to allow clearance for the drain valve that will be located in the cabinet beneath the appliances.

The following safety distances must be maintained:

• Between the cooktop and rear wall: 2" (50 mm).
• Between the cooktop and side wall or cabinet:

$$ \mathrm{KM} 4 0 0 = 2 ^ {\prime \prime} (5 0 \mathrm{mm}) $$

$$ \mathrm{KM} 4 0 2 / 4 0 3 = 2 ^ {\prime \prime} (5 0 \mathrm{mm}) $$

$$ \mathrm{KM} 4 0 8 - 1 = 2 ^ {\prime \prime} (5 0 \mathrm{mm}) $$

$$ \mathrm{KM} 4 1 0 / 4 1 1 = 1 0 ^ {\prime \prime} (2 5 0 \mathrm{mm} $$

Refer to section "Important Safety Instructions" for further information.

Installing one or multiple appliances:

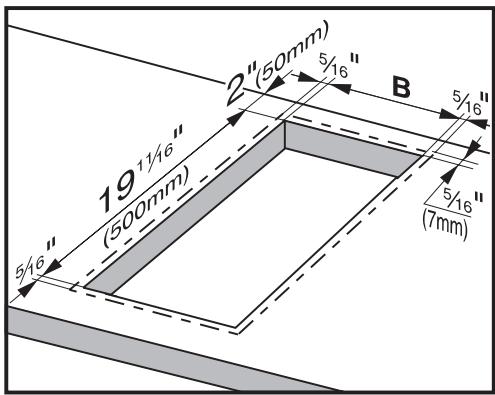

Cut out the countertop using the dimensions listed in the following table.

Number of cooktops	Cut out width Dimension "B"
1	10^13/_16" (274 mm)
2	22^1/_8" (562 mm)
3	33^1/_2" (850 mm)
4	44^13/_16 (1138 mm)
5	56^1/_8" (1426 mm)
6	67^1/_2" (1714 mm)
7	78^13/_16" (2002 mm)

The tolerance for each dimension is ^1/_16 " (1 mm).

When installing more than one combiset cooktop, a support bar must be installed between the appliances. Install the support bars as shown on the following page before setting the appliances into the countertop.

Laying out the support bars and clamps

① Clamps
② Support bars

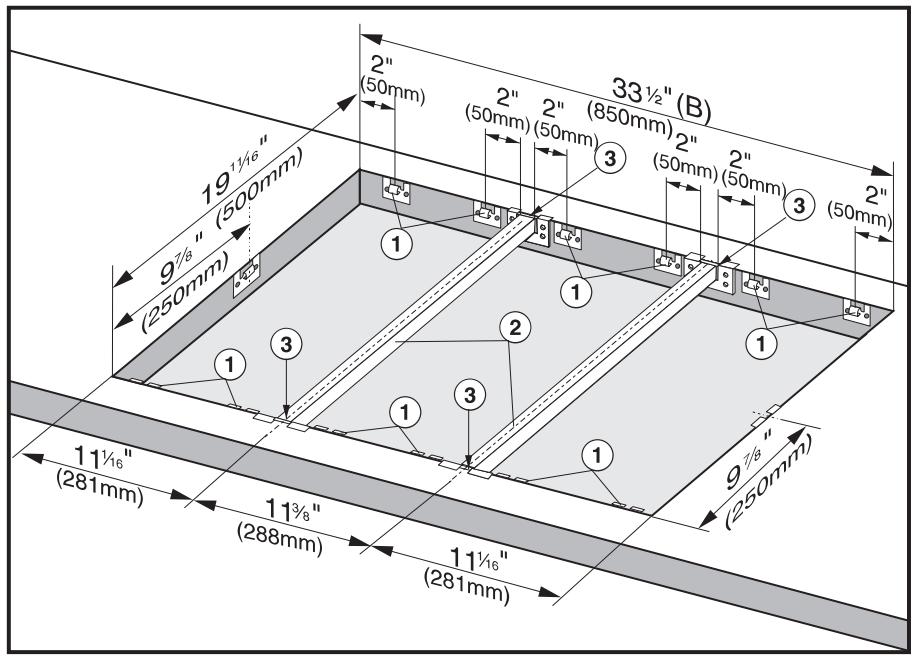

This illustration shows the layout for 3 combisets, their respective support bars, ②, and the 14 spring clamps, ①, required for correct installation.

If more than 3 combisets are being installed, add an additional 11^3/8 (288 mm) to the overall width of the cut out for each extra combiset, or use the table on the preceding page.

③ Slight gap between support bar and countertop.

Securing the support bars

Wood or Corian countertops

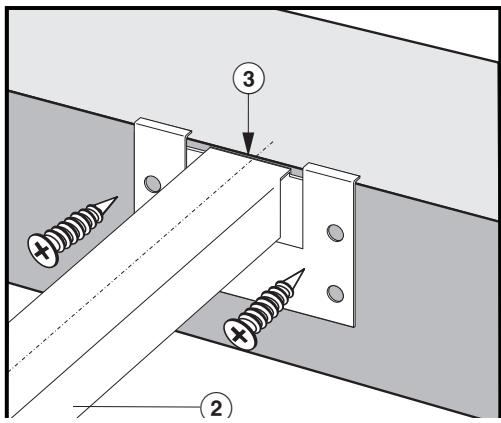

■ Arrange the bars, ②, as shown in the illustration
■ Drill ^1/_16 " (1.5 mm) pilot holes through the brackets and secure them using the supplied screws.
■ Fill the gap, ③, between the bars and the countertop using the supplied silicon sealant.

Granite countertops

For granite countertops, the support bars, ②, can be secured using double-sided construction tape. Do not allow the bars to "float", they must be securely fastened. Fill the gap, ③, between the bars and the countertop using the supplied silicon sealant.

The screws are not necessary for granite countertops.

Securing the spring clamps

Wood or Corian countertops

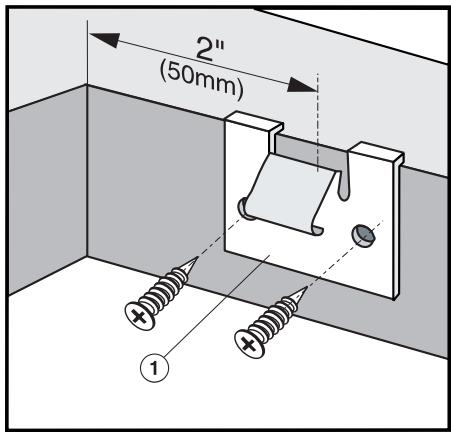

■ Place the spring clamps, ①, as shown in the illustration.
- Drill two ^1/_16 " (1.5 mm) pilot holes for each clamp and secure using the supplied screws.

Granite countertops

For granite countertops, the spring clamps can be secured using doublesided construction adhesive. Do not allow the spring clamps to "float", they must be securely fastened.

The screws are not necessary for granite countertops.

Locking the appliance into place

Make sure the cooktops are aligned correctly before setting them into the countertop. Once the spring clamps are engaged, a special tool is required to release the cooktop from the clamps.

■ Guide the power cord through the cut out and connect the appliance to the electrical supply.

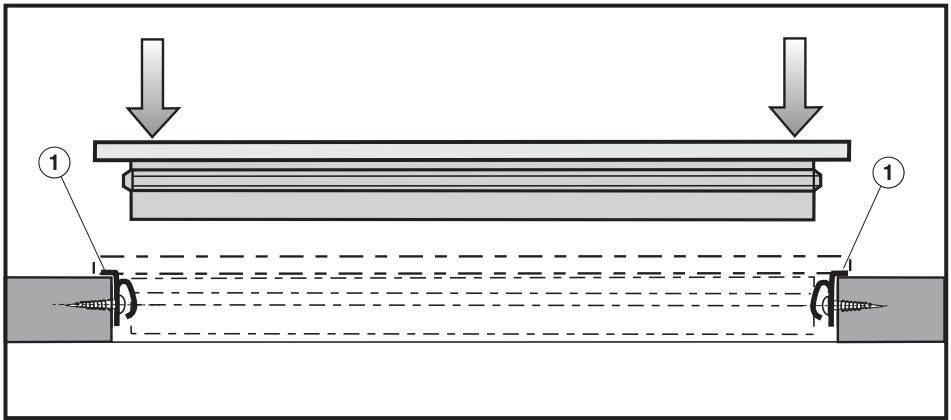

■ Position the cooktop over the cut out. With a hand on each side, above the clamps, ①, press the cooktop down, locking it into the spring clamps. Make sure that the cooktop rim lies flat against the countertop on all sides.

Important

Illustration of a hand using a pipette to mark a cross symbol on a screen (no text or symbols present)

The cooktop must not be permanently sealed into the countertop when installed.

If the cooktop is sealed into position, the countertop or appliance may be damaged if the cooktop needs to be removed for maintenance or service. The sealing strip under the edge of the cooktop provides a sufficient seal for the countertop.

WARNING:

Disconnect the appliance from the main power supply before servicing. To reduce the risk of electric shock, make sure that the appliance is properly grounded after installation.

To guarantee the electrical safety of this appliance; continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician. The manufacturer cannot be held responsible for damages caused by the lack, or inadequacy of, an effective grounding system.

All electrical work should be performed by a qualified electrician in accordance with local codes and with the

- National Electrical code ANSI / NFPA No. 70-1481 for USA

or

- Canadian Electrical Code Part I (CSA Standard C 22.1) for Canada

Note to the installer:

Please leave these instructions with the consumer.

Power supply:

- 240 V, 60 Hz, 15 A fuse rating or

- 208 V, 60 Hz, 15 A fuse rating

The oven is equipped with a power cord consisting of 3 leads. They must be connected to a dedicated line through the use of an approved junction box

Black : connect to L1 (hot)

Red: connect to L2 (hot)

Green: connect to GND (ground):

For further information, see the wiring diagram provided with the appliance.

WARNING:

THIS APPLIANCE MUST BE GROUNDED
