KMGP 340 - Hob MIELE - Free user manual and instructions

Product type	Grill/Griddle for gas cooktop
Brand	MIELE
Model	KMGP 340
Compatibility	Miele KM 342 and KM 344 gas cooktops
Dimensions (approx.)	Approx. 40 x 25 cm
Weight (approx.)	Approx. 3 kg
Material	Enameled steel or cast iron
Cooking surfaces	Two sides: smooth and grooved
Recommended preheating	5 minutes at maximum power
Power source	Heated by cooktop burners
Care	Hand wash with soapy water; do not put in dishwasher
Safety	Never place on two front or two rear burners; use one front and one rear; monitor hot oil
Intended use	Household use only
Included accessories	None
Country of origin	Germany

Frequently Asked Questions - KMGP 340 MIELE

How to use the grill for the first time?

Wash the grill with warm soapy water, dry it completely. Place it on two burners (one front and one rear) and preheat for 5 minutes at maximum power.

Which cooktops are compatible?

This grill is designed for Miele KM 342 and KM 344 gas cooktops. Do not use on other models.

How to clean the grill after use?

Let it cool, then hand wash with warm soapy water. Rinse and dry completely. Do not put in dishwasher.

Can the grill be put in the dishwasher?

No, the grill is not dishwasher safe. Always hand wash to avoid damage.

What types of food to cook on each side?

The grooved side is ideal for meats and fish (grill marks). The smooth side is suitable for vegetables, pancakes, eggs, etc.

Should you preheat the grill?

Yes, preheat the grill for 5 minutes at maximum power. Then reduce to medium heat for meat, low heat for vegetables.

How to prevent food from sticking?

Brush non-marinated foods with a little oil before placing on the grill. Use oils that withstand high temperatures.

What to do in case of a grease fire?

Never pour water. Smother flames with a chemical powder or foam extinguisher. Always monitor hot oil.

Can the grill be used on any burner?

No, place the grill on a front burner and a rear burner. Never place it on two front burners or two rear burners.

Why not place pots on the grill?

The grill is not designed to support the weight of pots. Use only heat-resistant cooking utensils.

USER MANUAL KMGP 340 MIELE

IMPORTANT SAFETY INSTRUCTIONS 3

Before using the griddle 4

Using the griddle 5

Griddle care 6

CONSIGNES DE SECURITE IMPORTANTES 7

IMPORTANT SAFETY INSTRUCTIONS

Correct usage

Use this griddle only on Miele KM 342 and KM 344 gas cooktops.
Read these instructions before you use this griddle for the first time. Also, follow the instructions provided with your cooktop. Failure to do so could result in serious injury.
Use the appliance only for its intended purpose. The manufacturer cannot be held responsible for damages caused by improper use.
Protect your hands with insulated gloves or potholders when using the appliance. Use only dry, heat resistant potholders. Moist or damp potholders used on hot surfaces can result in steam burns. Do not let the potholder touch the hot surface. Do not use towels or other bulky items near the appliance.
The griddle should only be positioned across a front and rear burner. Never place the griddle across the two front or two rear burners.

Only use one griddle at a time!
The griddle will become very hot during use. Only use heat resistant cooking utensils.
Never place cookware on the griddle!
Never cover the griddle with a cloth. A fire could result.
Do not allow children to operate or play with, or near, the griddle.
Never leave the griddle unattended when cooking with oil or fat. Overheated oil could ignite. Always heat oil slowly, monitoring it as it heats.
Do not use water on grease fires. Smother any fire or flame, or use a dry chemical or foam-type extinguisher.

SAVE THESE INSTRUCTIONS

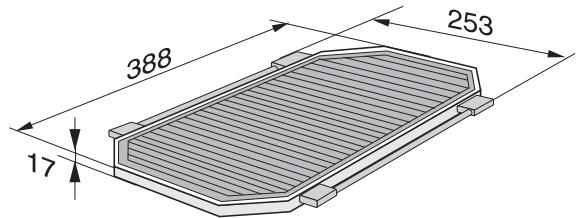

Before using the griddle

Before using for the first time clean the griddle by hand with a solution of hot water and liquid dish soap. Dry thoroughly.

You can cook on both sides of the griddle.

Griddle, ribbed side

Griddle, smooth side

How to proceed:

• Place the griddle over two burners spanning them front to rear. The wording must be at the front.
  Turn on the two burners.
  Pre-heat for 5 minutes at the highest burner setting.
  After preheating the griddle, turn down the burner to medium to cook meat, and low to grill vegetables.
  Turn the food frequently to prevent burning.

Make sure the gas burners are turned off after using the griddle!

Tips

• To minimize splattering, dry moist or marinated foods with paper towels before cooking.
• Salt meat and fish after cooking to retain natural juices.
• Cook with oils that can handle high temperatures without smoking.
• To help prevent the food from sticking, brush un-marinated meats and vegetables with a little oil before placing on the griddle.

Turn off the gas burners after use and allow the griddle to cool before cleaning.

Never put a hot griddle in cool water.

The griddle must not be washed in a dishwasher!

Clean the griddle by hand after each use with a solution of liquid dish soap and warm water. Rinse and dry thoroughly.

Soak to loosen any burnt-on food. Use a brush to remove stubborn deposits.

For further information, see the "Cleaning and care" section of the cooktops operating instructions ,

CONSIGNES DE SECURITE IMPORTANTES
