Product Type	Soundbar
Brand	JVC
Model	TH-E321B
Dimensions (W x H x D)	900 x 67 x 93 mm
Net Weight	1.6 kg
Power Supply	100-240 V~, 50/60 Hz
Power Consumption (Operation)	20 W
Power Consumption (Standby)	< 0.5 W
Speaker Output Power (RMS)	2 x 50 W
Frequency Response	120 Hz – 20 kHz
Audio Input Sensitivity	700 mV
Bluetooth Version	5.1
Bluetooth Profiles	A2DP, AVRCP
Bluetooth Range	Up to 8 m
USB Compatibility	Hi-Speed USB 2.0, FAT16/FAT32, up to 32 GB, MP3 only
Audio Inputs	HDMI ARC, Optical, Coaxial, AUX (3.5 mm), USB
Equalizer Presets	Movie, Music, News
Remote Control Range	6 m / 30°
Remote Control Battery	2 x AAA (1.5 V)
Automatic Power Off	After 15 minutes without signal
Wall Mounting Hole Distance	864 mm
Included Accessories	Remote control, 2 x AAA batteries, 3.5 mm audio cable, AC power cord, wall mounting brackets (4 screws, 4 dowels)

Frequently Asked Questions - TH-E321B JVC

How do I connect the soundbar to my TV via Bluetooth?

Press the SOURCE button on the soundbar or the Bluetooth button on the remote to select Bluetooth mode (blue LED flashes). On your TV, enable Bluetooth and search for devices. Select "TH-E321B" from the list. If prompted, enter password 0000. Once paired, the LED turns solid blue. The operational range is up to 8 meters.

How do I use HDMI ARC to connect to my TV?

Use an HDMI cable (not included) to connect the soundbar's HDMI ARC socket to the TV's HDMI (ARC) socket. Ensure your TV supports HDMI-CEC and ARC, and that these functions are enabled in the TV settings. Press the HDMI ARC button on the remote to select this mode. You can then control volume and mute using your TV remote.

Why is there no sound coming from the soundbar?

First, check that the soundbar is not muted – press MUTE or VOLUME +/-. Ensure the correct input mode is selected (e.g., HDMI ARC, Optical, etc.). For digital connections (HDMI, Optical, Coaxial), set the audio output of the source device to PCM. Also verify that the volume is turned up on both the soundbar and the source device. If using Bluetooth, ensure the source device is paired and not muted.

How do I wall mount the soundbar?

Drill four parallel holes (5.5–6 mm diameter) in the wall, spaced 864 mm apart. Insert dowels if needed, then fix the wall mounting brackets with screws (included). Loosen the screws at the back of the soundbar about 2–3 mm, then lift the soundbar onto the brackets. Ensure the wall can support the total load (1.6 kg). Suggested mounting height is ≤ 1.5 meters for optimal performance.

Can I play music from a USB drive?

Yes, connect a USB mass storage device (up to 32 GB, formatted FAT16/FAT32) to the USB socket. Press the USB button on the remote to select USB mode. Only MP3 files are supported. Use the remote to play/pause (▶) and skip tracks (◄►).

How do I pair a new Bluetooth device after the first one?

In Bluetooth mode, press and hold the ▶ button on the remote for a few seconds. The soundbar will voice "Pairing" and the blue LED will flash rapidly. Then, on your new device, search for "TH-E321B" and select it. Follow the same pairing steps as for the first device.

What should I do if the remote control stops working?

First, ensure you are within 6 meters of the soundbar and pointing directly at the sensor. Replace the batteries (2 x AAA) with correct polarity. Also, check if there are obstacles or other infrared devices interfering. If still not working, try resetting the soundbar by unplugging and plugging it back in.

How do I clean the soundbar?

Unplug the soundbar from the power outlet. Use a dry, soft cloth to clean the exterior. Do not use chemical solvents or abrasive cleaners, as they may damage the finish. Avoid getting moisture into any openings.

Why does the soundbar automatically turn off?

The soundbar has an automatic power-off function: if no audio signal is detected for approximately 15 minutes (e.g., the TV is off or the volume is too low), it will switch to standby mode. To resume, press the ⏻ button. To disable this feature, you must keep a constant audio signal present.

What audio formats are supported via Optical or Coaxial input?

The soundbar supports PCM audio format via Optical and Coaxial inputs. If the source device outputs other formats (e.g., Dolby Digital), the soundbar will mute. In that case, set the source device's audio output to PCM. Refer to your source device's manual for configuration.

USER MANUAL TH-E321B JVC

2.0 Channel Soundbar

TH-E321B

INTRODUCTION

Thank you for buying our product. Please read through these operating instructions so you will know how to operate your equipment properly. After you finish reading the instructions manual, put it away in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude as to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and usage instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the like.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug the apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.
• This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
• The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
• Minimum distance around the apparatus for sufficient ventilation is 5cm.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc...
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Batteries should be recycled or disposed of as per state and local guidelines.
• The use of apparatus in moderate climates.

Caution

• Use of controls or adjustments or performance of procedures other than those described herein, may result in hazardous radiation exposure or other unsafe operation.
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus must not be exposed to dripping or splashing and objects filled with liquids, such as vases, must not be placed on apparatus.
• The mains plug/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Warning

• The battery (batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
• Do not place this unit close to strong magnetic fields.
• Do not place this unit on the amplifier or receiver.
• If any solid object or liquid falls into the system, unplug the system and have it checked by qualified personnel before operating it any further.
• Do not attempt to clean the unit with chemical solvents as this may damage the finish. Use a clean, dry or slightly damp cloth.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank on the cord.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment.
• The rating label is pasted on the bottom or back of the equipment.

Battery usage CAUTION

- To prevent battery leakage which may result in bodily injury, property damage, or damage to the apparatus:

• Install all batteries correctly, ⊕ and ⊗ as marked on the apparatus.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
• Remove batteries when the unit is not used for a long time.

WHAT'S IN THE BOX

Soundbar Remote Control 2 x AAA Batteries

Instruction Manual

3.5 to 3.5 mm Audio Cable

AC Power Cord

2 x Wall Mounting Bracket 4 x Screw / 4 x Dowel (For installing the wall mounting brackets)

NOTE: Images, illustrations and drawings shown on this User Manual are for reference only, actual product may vary in appearance. Power cord quantity and plug type vary by regions.

SOUNDBAR

1. LED Indicators

• Red > Standby mode
• Green > AUX mode
• Green flash > USB mode
• Blue > BLUETOOTH mode • White > HDMI ARC mode
• Orange > OPTICAL mode
• Orange flash > COAXIAL mode

2. Remote Control Sensor

Sensor Receive signal from the remote control.

3. Wall bracket screws

1. ⏻ (ON/OFF) button Switch the Soundbar between ON and Standby mode.
2. ⚠ (SOURCE) button Select the play function.
3. +/- (VOLUME) buttons Increase/decrease the volume level.
4. (MUTE) button Mute or resume the sound.
5. (BLUETOOTH) button Select Bluetooth mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.
6. AC~ Socket Use to connect to power cable.
7. AUX Socket

Connect to an external audio device.

1. USB Socket

Insert the USB device to play music.

1. HDMI ARC Socket

Connect to a TV via HDMI cable.

1. COAXIAL Socket

Use to connect to the COAXIAL OUT socket on an external device.

1. OPTICAL Socket

Use to connect to the OPTICAL OUT socket on an external device.

REMOTE CONTROL

1. button

Switch the Soundbar between ON and STANDBY mode.

1. EQ buttons

Increase/decrease the volume level.

1. SOURCE buttons

Press to select the source.

Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.

1. (MUTE) button

Mute or resume the sound.

1. /buttons

Skip to previous/next track in Bluetooth/USB mode

1. ▶ button

Play/pause/resume playback in Bluetooth/USB mode.

Prepare the Remote Control

The provided remote control allows the Soundbar to be operated from a distance.

• Even if the remote control is operated within the effective range of 6m (19.7 feet), remote control operation may be impossible if there are any obstacles between the Soundbar and the remote control.
• If the remote control is operated near other products that generate infrared rays, or if other remote control devices using infrared rays are used near the Soundbar, it may operate incorrectly. Conversely, the other products may operate incorrectly.

Replace the Remote Control Battery

• Press and slide the back cover to open the battery compartment of the remote control.
• Insert two AAA size batteries (included). Make sure the positive and negative ends of the batteries match the positive and negative ends indicated in the battery compartment.
• Close the battery compartment cover.

Precautions Concerning Batteries

• Be sure to insert the batteries with correct positive and negative polarities.
• Use batteries of the same type. Never use different types of batteries together.
• Either rechargeable or non-rechargeable batteries can be used. Refer to the precautions on their labels.
• Be aware of your fingernails when removing the battery cover and the battery.
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.
• Do not use any batteries other than those specified.
• Do not mix new batteries with old ones.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

PLACEMENT AND MOUNTING

Placement

Option A

If your TV is placed on a table, you can place the Soundbar on the table directly in front of the TV stand, centered with the TV screen.

Option B

If your TV is attached to a wall, you can mount the Soundbar on the wall directly below the TV screen.

Wall Mounting (if using Option B)

• Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the Soundbar and wall brackets. Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future reference.
• Use an electronic stud finder to check the wall type before drilling and mounting.

WARNING

• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. Suggested wall mounting height: ≤ 1.5 meters.
• Drill 4 parallel holes (5.5-6 mm each according to wall type) in the wall. The distance between the holes should be 864 mm.
• Firmly fix 1 dowel into each hole in the wall if necessary. Tighten the wall mount brackets on the wall with screws and screwdriver (not included). Make sure that they are securely installed.
• Loosen the screws at the back of the Soundbar. Leave approximately 2-3 mm between the screw head and the surface of the Soundbar.
• Lift the Soundbar onto the wall mount brackets and slot into place.

GENERAL OPERATION

CONNECT POWER

Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the Soundbar.

Before connecting the AC power cord, ensure you have completed all other connections.

Soundbar

Connect the mains cable to the AC~ socket of the Soundbar and then into a mains socket.

Note: If there is no power, ensure the power cord and plug are fully inserted and the power is turned on.

STANDBY/ON

When you first connect the Soundbar to the mains socket, the Soundbar will be in Standby mode.

• Press the ⏻ button on the Soundbar or on the remote control to switch the Soundbar ON.
• Press the ⏻ button again to switch the Soundbar back to STANDBY mode.
• Disconnect the mains plug from the mains socket if you want to switch the Soundbar OFF completely.

Automatic Power Off Function

The Soundbar automatically turns to Standby mode after about 15 minutes if the TV or the external unit is disconnected, switched off or the volume is too close to mute.

• To switch the Soundbar off completely, remove the mains plug from the mains socket.
• Please turn the Soundbar off completely to save energy when not in use.

SELECT MODES

Press the ⭕ (SOURCE) button on the Soundbar or the AUX, ✝ (Bluetooth), USB, OPTICAL, COAXIAL, HDMI ARC buttons on the remote control to select the desired mode.

Green > AUX mode

Green flash > USB mode

Blue > BLUETOOTH mode

White > HDMI ARC mode

Orange > OPTICAL mode

Orange flash > COAXIAL mode

ADJUST THE VOLUME

Press the +/- (VOLUME) buttons on the Soundbar or on the remote control to adjust the volume. If you wish to turn the sound off, press the (MUTE) button on the remote control.

Press the ⏻ (MUTE) button again or press the +/- (VOLUME) buttons on the Soundbar or on the remote control to resume normal listening.

Note: While adjusting the volume, the status LED indicator will quickly flash. When the volume has hit maximum/minimum value level, the status LED indicator will slowly flash 3 times.

Press the EQ button on the remote control to select your desired preset equalizer effects.

Orange flash quickly	>MOVIE
White flash quickly	>MUSIC
Green flash quickly	>NEWS

HDMI CONNECTION

ARC (Audio Return Channel)

The ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to your soundbar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the volume output (VOLUME +/- and MUTE) of the soundbar.

Connect the HDMI cable (included) from unit's HDMI ARC socket to the HDMI (ARC) socket on your ARC compliant TV. Then press the remote control to select HDMI ARC.

NOTE:

Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On. The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC function, please refer to the owner's manual. ARC only works with devices that are HDMI ARC capable as well as with an HDMI 1.4 cable (and higher).

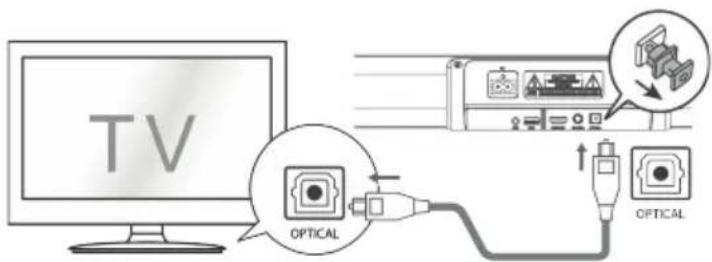

USE THE OPTICAL SOCKET

Remove the protective cap of the OPTICAL socket, then connect an OPTICAL cable (not included) to the TV's OPTICAL OUT socket and the OPTICAL socket on the Soundbar.

USE THE COAXIAL SOCKET

You can also use the COAXIAL cable (not included) to connect the TV's COAXIAL OUT socket and the COAXIAL socket on the Soundbar.

USE THE AUX SOCKET

Use a 3.5mm to 3.5mm audio cable (included) to connect the TV's or external audio device headphone socket to the AUX socket on the Soundbar.

Use an RCA to 3.5mm audio cable (not included) to connect the TV's audio output sockets to the AUX socket on the Soundbar.

1. Ensure that the Soundbar is connected to the TV or audio device.
2. Press the ☉ (SOURCE) button repeatedly on the Soundbar or press the AUX, OPTICAL, COAXIAL, HDMI ARC buttons on the remote control to select the desired mode.
3. Press the +/- (VOLUME) button to adjust the volume to your desired level.

NOTE:

The Soundbar may not be able to decode all digital audio formats from the input source. In this case, the Soundbar will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g., TV, game console, DVD player, etc.) is set to PCM (refer to the user manual of the input source device for its audio setting details) with HDMI / OPTICAL / COAXIAL input.

Pairing the Soundbar with a Bluetooth® device to listen to music.

First time pairing

1. Press the ☉ (SOURCE) button repeatedly on the Soundbar or press the button on the remote control to select Bluetooth® mode. The Blue indicator will flash slowly.
2. Activate your Bluetooth® device and select the search mode. "TH-E321B" will appear on your Bluetooth® device list.
3. Select "TH-E321B" and enter "0000" for the password if necessary. The Soundbar will voice "Paired" and the Blue indicator will light up solidly.

Pairing a new device

1. In Bluetooth® mode, press and hold the ▶ button to clear all pairing. The Soundbar will enter pairing mode. The Soundbar will voice "Pairing" and the Blue indicator will flash rapidly.
2. Follow steps 2-3 in "First time pairing" above to pair a new Bluetooth® device.

Listen to music from a Bluetooth® device

If your Bluetooth® device supports A2DP, play music via your device.

If your Bluetooth® device supports AVRCP, use the supplied remote control to control playback.

• To increase or decrease the volume, press the +/- (VOLUME) button.
• To pause or resume playback, press the ▶ button. • To skip to a track, press the ↖ button.

To disconnect the Bluetooth® function, you can:

• Switch to another source on the Soundbar;
• Disable the function from your Bluetooth® device.

NOTE:

The operational range between the Soundbar and the device is approximately 8 metres.

Before connecting a Bluetooth® device to the Soundbar, ensure you know the device's capabilities.

Compatibility with all Bluetooth® devices is not guaranteed.

Any obstacle between the device and the Soundbar can reduce operational range.

Keep this player away from other electronic devices that may cause interference.

The player will also be disconnected when your device is moved beyond the operational range.

USB OPERATION

By connecting a USB mass storage device (e.g. USB flash drive) to this unit, you can enjoy the device's stored music through the Soundbar.

1. Press the (SOURCE) button on the Soundbar or press the USB button on the remote control to select USB mode.
2. Press button ▶ to pause/resume playback.
3. To skip to a track, press the ↖ button.

NOTE:

The player supports the USB music file format of MP3 only.

The Soundbar can support USB devices with up to 32 GB of memory.

The Soundbar may not be compatible with all USB devices; this is not an indication of a problem with the unit.

LICENCE NOTIFICATION

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Zhong Shan City Richsound Electronic Industrial Ltd. is under license. Other trademarks and trade names are those of their respective owners.

HDMI®

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

TROUBLESHOOTING

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service.

Problem Solution

No power	·Ensure that the AC cord of the apparatus is properly connected.·Ensure that there is power at the AC outlet.·Press ⏻ (standby) button to turn the Soundbar on.
Remote control does not work	·Before you press any playback control button, first select the correct source.·Reduce the distance between the remote control and the Soundbar.·Insert the battery with its polarities ⊕ / ∅igned as indicated.·Replace the battery.·Aim the remote control directly at the sensor on the front of the Soundbar.
No sound	·Make sure that the Soundbar is not muted. Press MUTE or +/- (VOLUME) button to resume normal listening.·Press ⏻ button on the Soundbar or on the remote control to switch the soundbar to standby mode. Then press the button again to switch the soundbar on.·Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode while using digital (e.g. HDMI, OPTICAL, COAXIAL) connection.·The Soundbar may not be able to decode all digital audio formats from the input source. In this case, the Soundbar will mute. This is NOT a defect.·If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.
I can't find the Bluetooth name of this unit on my Bluetooth device for Bluetooth pairing	·Ensure the Bluetooth function is activated on your Bluetooth® device.·Re-pair the Soundbar with your Bluetooth® device.·The Soundbar has a Bluetooth® function that can receive a signal within 8 metres. Keep a distance within 8 metres between the Soundbar and your Bluetooth® device.
The Soundbar turns off	·When the Soundbar's external input signal level is too low, the Soundbar will be automatically turn off after 15 minutes. Please increase the volume level of your external device.

SPECIFICATIONS

Soundbar

Power Supply 100-240 V~ 50/60 Hz
Power Consumption	20 W< 0,5 W (StandBy)
USB	5 V / 500 mAHi-Speed USB (2.0) / FAT32 / FAT1632G (max)Supported files MP3
Dimension (WxHxD) 900 x 67 x 93 mm
Net weight 1,6 kg
Audio input sensitivity 700 mV
Frequency Response 120 Hz - 20 KHz

Wireless Specification

Bluetooth version / profiles	V 5.1 (A2DP, AVRCP)
Bluetooth frequency range	2402 MHz ~ 2480 MHz
Bluetooth Max. transmitting power	≤ 10 dBm

Amplifier (RMS Output power)

L/R Speaker 2 x 50 W

Remote Control

Distance/Angle 6 m (19,7 feet) / 30°

Battery type AAA (2 x 1,5 V)

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type TH-E321B is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.JVCAUDIO.cz/doc

INTRODUCTION

1. LED indicator

POWER CONNECTION

Soundbar

ARC (Audio Return Channel)

Audio cable 3.5 mm to 3.5 mm

1. LED indicators

Option A

POWER CONNECTION

Soundbar

ARC (Audio Return Channel)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

DANGER OF ELECTRIC SHOCK. DO NOT OPEN.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE THE COVER (OR THE BACK COVER).

THERE ARE NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

1. LED indicator

Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.

9. Power connector

POWER CONNECTION

Soundbar

ARC (Audio Return Channel)

AC charging cable

1. LED indicators

- Red > Standby mode

CONNECTING THE POWER CABLE

Soundbar

Audio cable 3.5 mm to 3.5 mm

CONNECTING THE POWER SUPPLY

Soundbar

ARC (Audio Return Channel)

Option A

Soundbar

This product is manufactured and distributed exclusively by ETA a.s., serviced and warranted by its designated partner.

“JVC” is the trademark of JVCKENWOOD Corporation, used by such company under license.
