M30 BT - Mouse Niceboy - Free user manual and instructions

Type	Wireless Mouse
Model	M30 BT
Connection	Bluetooth 5.0 or USB 2.4 GHz Dongle
Sensor	Optical
Maximum DPI	3200
DPI Modes	800 / 1200 / 1600 / 2400 / 3200
Number of Buttons	6
Left/Right Button Lifespan	5 million presses
Power Supply	1x AA Battery (1.5V)
Voltage	DC 1.5V
Current Consumption	≤ 8 mA
Dimensions (L x W x H)	106 x 66 x 42 mm
Weight (with battery)	73 ± 5 g
Radio Frequency Power	≤ 12 mW
System Requirements	Windows, Mac, iOS
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Operating Humidity	20% to 90%
Included Accessories	1x AA Battery, USB Dongle, User Manual
Compliance	2014/53/EU, 2014/30/EU, 2014/35/EU, 2011/65/EU

Frequently Asked Questions - M30 BT Niceboy

How do I turn on the Niceboy M30 BT mouse?

To turn on the mouse, slide the On/Off switch on the underside to the ON position. The mouse will power up and be ready to connect.

How do I connect the mouse via Bluetooth?

Press and hold the connection mode switch button until the Bluetooth option lights up. Then activate Bluetooth on your device, search for available devices, and select M30 BT. The mouse will automatically configure.

How do I connect the mouse using the USB dongle?

Move the connection mode switch to USB mode, then plug the supplied USB receiver into an available USB port on your PC. The mouse will automatically install and be ready to use.

How do I change the DPI (sensitivity) of the mouse?

Press the DPI button on the mouse to cycle through the preset DPI levels: 800, 1200, 1600, 2400, and 3200. The current DPI mode is indicated by the LED (not explicitly described, but commonly by color or blink pattern).

What type of battery does the mouse use and how long does it last?

The mouse uses one AA battery (1.5V). Battery life depends on usage, but typical life for a wireless mouse with optical sensor is several months under normal use.

Is the mouse compatible with Mac?

Yes, the Niceboy M30 BT is compatible with Windows, Mac, and iOS systems. It works as a Plug & Play device.

How many buttons does the mouse have?

The mouse has 6 buttons: left button, right button, scroll wheel (clickable), forward button, backward button, and a DPI button.

What should I do if the mouse is not recognized by my computer?

Ensure the mouse is turned on (On/Off switch set to ON). For USB connection, check that the USB receiver is properly inserted and the connection mode switch is set to USB. For Bluetooth, make sure Bluetooth is enabled on your device and the mouse is in pairing mode. Also, verify that your computer's USB drivers are up to date.

Can I use the mouse while it is charging?

No, the Niceboy M30 BT uses a replaceable AA battery and does not have a rechargeable battery. Simply replace the battery when it runs out.

How do I clean the mouse?

Use a soft, dry cloth to clean the exterior. Avoid using liquids or abrasive cleaners. Do not disassemble the mouse. Keep it away from humidity, extreme temperatures, and direct sunlight.

USER MANUAL M30 BT Niceboy

ZAPNUTÍ/VYPNUTÍ

PREHL'AD ROZVRHNUTIA

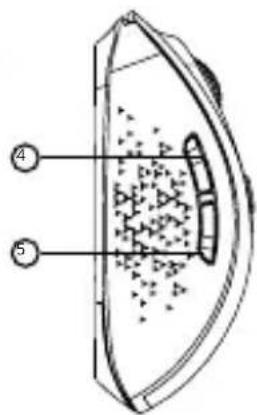

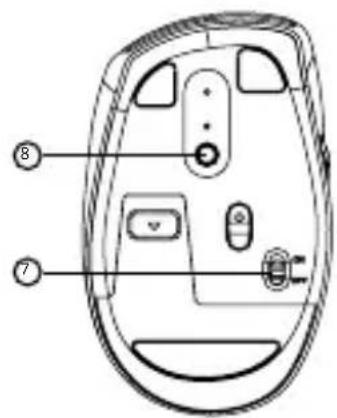

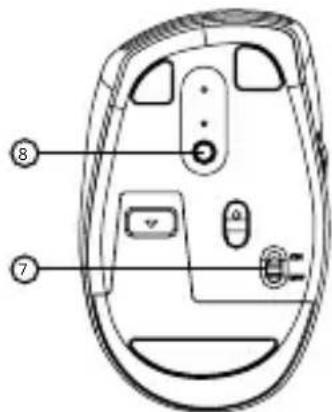

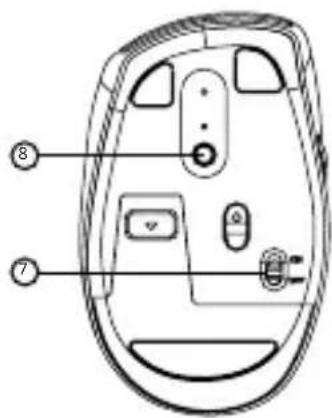

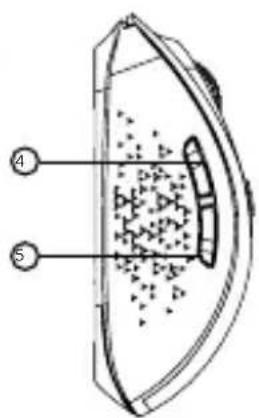

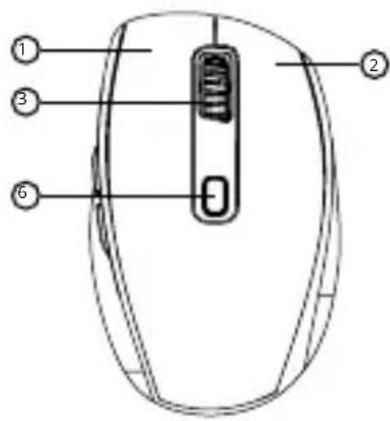

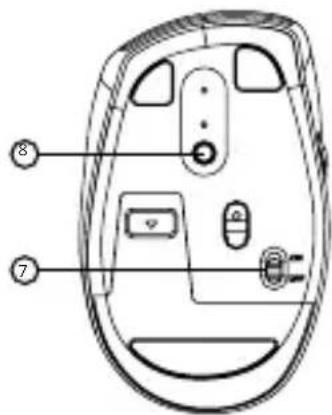

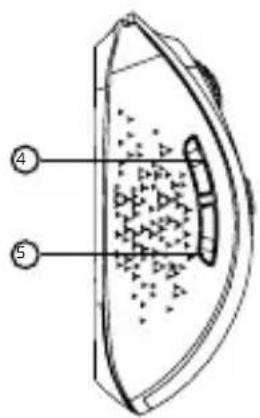

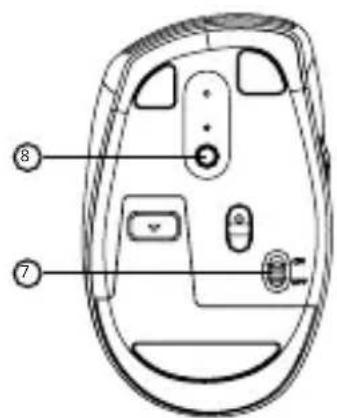

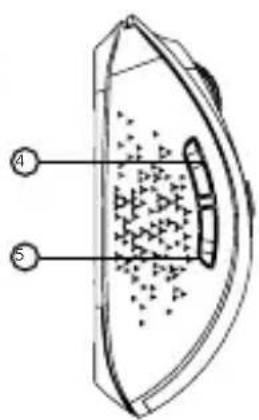

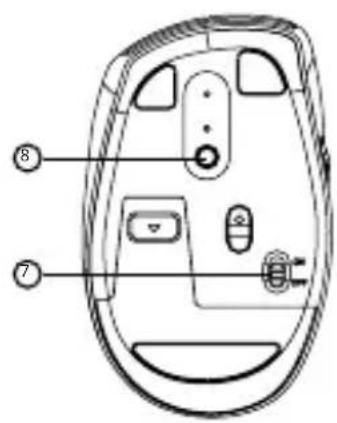

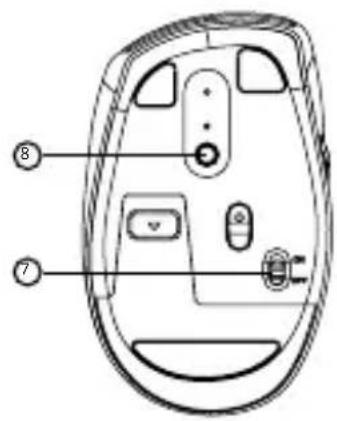

LAYOUT OVERVIEW

1. Left button
2. Right button
3. Scrolling wheel
4. Fordward
5. Backward
6. DPI button
7. On/Off switch
8. Switch for changing connection mode

TURNING ON/OFF

Turn on the mouse using the slide switch on the underside of the mouse. The switch must be in the ON position for the mouse to work. If the mouse is not recognised, check that the USB driver in your computer is up to date (information should be provided by the manufacturer of your PC/laptop).

CONNECTING TO BLUETOOTH

Press and hold the button for switching connection modes until the BT connection option lights up. Activate Bluetooth on your device. Select M30 BT in your list of available devices. Niceboy M30 BT is a Plug & Play device and will automatically configure itself to connect to your device.

CONNECTING TO A PC VIA USB

Move the connection mode switch to USB mode. Plug the supplied USB receiver into a USB port on your PC. Niceboy M30 BT is a Plug & Play device and will automatically configure itself to connect to your device.

PARAMETERS

Voltage: DC 1.5V ±5G, proud: ≤ 8 mA

Power Supply: 1x AA battery, 1,5V

Sensor: Optical

Max DPI: 3200

DPI MODE: 800 / 1200 / 1600 / 2400 / 3200

Number of buttons: 6

L/R buttons lifespawn: 5 million presses

Connection: USB Dongle, BT ( v. /5.0 - 2.4 GHz )

Radio frequency power: ≤ 12 mW

System requirements: Win, Mac, los

Measurements: 106 * 66 * 42mm

Dimension: 73 ± 5g

ADDITIONAL INFORMATION

Avoid using the mouse on places exposed to too low or high temperature (0 °C and more/45°C and more) or humidity (20 % and less/ 90 % and more). Avoid storing the mouse on places exposed to too low or high temperature (-20 °C and more/ 60 °C and more) or humidity (90 % and more). Protect the product from rain, humidity and liquids and do not attempt to disassemble it. Protect the device from sharp objects and falls from height. Batteries – improper handling (prolonged charging, short circuit, breakage by other objects, etc.) may

result in fire, overheating or battery leakage. The battery or accumulator that may be included with the product has a lifetime period of six months, as it is a consumable. This product complies with all the basic requirements of relevant EU directives.

Information on all frequency bands in which the radio equipment operates and intentionally transmits radio waves as well as the maximum radio frequency power transmitted in the frequency band in which the radio equipment is operated is included in the instructions and safety information.

NICEBOY s.r.o. hereby declares that the type of radio equipment NICEBOY M30 BT complies with Directives 2014/53 / EU, 2014/30 / EU, 2014/35 / EU, and 2011/65 / EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/en/declaration/m30-bt

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment

and human health, which could be the result of incorrect waste disposal. You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly.

User information for disposing electrical and electronic devices (business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device. Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union. For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.

DE

LIEFERUMFANG

Niceboy M30 BT

Gebrauchsanleitung

1x AA Batterie

USB Dongle

ÜBERSICHT BELEGUNG

PREGLED RASPOREDA

1. Lijeva tipka
2. Desna tipka
3. Kotačić za skrolanje
4. Tipka naprijed
5. Tipka natrag
6. Tipka DPI
7. Be / ki gomb
8. Prekidač za promjenu načina povezivanja

UKLJUČIVANJE/ISKLJUČIVANJE

https://niceboy.eu/hr/declaration/m30-bt

INFORMACIJE ZA KORISNIKA O NAČINU ZBRINJAVANJA ZLEKTRIČNIH I ELEKTRONSKIH UREĐAJA (DOMĆINSTVA)

Simbol naveden na proizvodu ili u popratnoj dokumentaciji znači da je zabranjeno odlagati električne ili elektroničke proizvode zajedno s komunalnim otpadom. Pobrinite se za pravilnu likvidaciju otpada: dotrajali proizvod predajte besplatno u ovlašteni centar za skupljanje otpada. Propisnom likvidacijom dotrajalog proizvoda ćete doprinijeti očuvanju skupocjenih prirodnih izvora te prevenciji negativnih utjecaja na okoliš i ljudsko zdravlje zbog nepravilne likvidacije otpada. Za više infor-

macija obratite se nadležnom lokalnom uredu ili mjestu zbrinjavanja. Nepravilno zbrinjavanje ove vrste otpada kažnjava se sukladno nacionalnim propisima.

Informacije za korisnika o načinu zbrinjavanja električnih i elektronskih uređaja (poslovna uporaba)

Vezano za pravilno zbrinjavanje dotrajale električne/elektronske opreme za poslovnu upotrebu i upotrebu u tvorničkim pogonima obratite se proizvođaču ili uvozniku ovog proizvoda. Pro- izvođač će Vam pružiti informacije o načinu zbrinjavanja proizvoda i obavijestit će vas o tome tko je dužan osigurati zbrinjavanje ovog električnog uređaja ovisno o datumu uvođenja pro- izvoda na tržište. Informacije o zbrinjavanju dotrajalog proizvoda u ostalim zemljama (izvan EU). Gore navedeni simbol važi samo u Europskoj uniji. Za više informacija o pravilnom zbrinjavanju električnih i elektronskih uređaja se obratite prodavatelju ili dobavljaču.

PL

ZAWARTOŚĆ OPAKOWANIA

Niceboy M30 BT

WŁĄCZANIE/WYŁĄCZANIE

INFORMACJE DODATKOWE

VKLOP/IZKLOP

PREZENTARE GENERALĂ

Tensiune: DC 1.5V ±5G, current: ≤ 8 mA

Alimentare: 1x baterie AA, 1,5V

Senzor/ Tehnologie: optic

DPI maxim: 3200

Rezoluție reglabilă/MODURI DPI: 800/1200/1600/2400/3200

Număr de butoane: 8

ОБЗОР РАСКЛАДКИ

ВКЛЮЧВАНЕ/ИЗКЛЮЧВАНЕ

Praha 4, Czech Republic, ID: 294 16 876.

Made in China.

RoHS CE 📧 ✉
