Brand	Zelmer
Model	Eco Power VC3100
Product Type	Bagless canister vacuum cleaner with cyclone filtration
Maximum Power	1600 W
Rated Voltage	220-240 V AC
Mains Protection	16 A fuse
Noise Level	84 dB(A)
Filtration System	Cyclone + washable HEPA inlet filter (H10 or H13), foam inlet filter, microfilter outlet, foam outlet
Dust Container	Removable cyclone container with full indicator and safety valve
Suction Control	Electronic stepless power regulator on body and mechanical slider on hose handle
Cord Rewind	Yes, with retractor button and yellow warning band
Telescopic Tube	Yes, metal with fastening hook
Included Nozzles	Switchable sucker-brush, gap nozzle, small brush; plus parquet brush (HP version only)
Versions	VC3100.0SK (HEPA H10) and VC3100.0HP (HEPA H13)
Filter Maintenance	All filters washable (rinse with water, air dry only); HEPA filter recommended replacement every 6 months
Safety Features	Automatic safety valve to prevent motor damage when container full or clogged
Carrying Handle	Yes, on top of unit
Usage	Household dry vacuuming only (not for liquids)
Static Electricity	May occur in low humidity; discharge by touching metal items or use antistatic agents
Storage	Vertical or horizontal; hose can remain attached but not strongly bent

Frequently Asked Questions - Eco Power VC3100 Zelmer

How do I empty the cyclone dust container?

Press the button on the dust container to open the bottom and empty into trash. Ensure the seal is properly positioned and the bottom snaps closed securely before reinserting.

How do I clean or replace the HEPA inlet filter?

Remove the cyclone container, take out the HEPA filter and foam inlet filter. Rinse them with running water if dirty, then air dry completely before reinstalling. Replace HEPA filter every 6 months for optimal performance.

What does the fluttering sound mean?

A fluttering sound indicates the safety valve is activated due to a clog in the hose, tube, or nozzle, or an overfilled dust container. Check and clear blockages or empty the container.

Why has the suction power decreased?

Common causes: a full dust container, clogged filters (HEPA or foam), or blockages in the hose/tube. Empty the container, clean or replace filters, and inspect the suction path for obstructions.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed for dry surfaces only. Never vacuum liquids or damp dirt to avoid damage and safety hazards.

How should I store the vacuum cleaner?

Store in vertical or horizontal position. For vertical storage, hook the telescopic tube into the fastening on the bottom. For horizontal, attach the nozzle brush hook to the rear hook. Avoid strong bending of the hose.

How do I replace the outlet filter?

Press the hook on the filter cover and pull it off. Remove the Microfilter and foam outlet filter, rinse if needed, dry, and reinsert. Snap the cover back until you hear a click.

What is the difference between VC3100.0SK and VC3100.0HP?

The VC3100.0SK comes with a HEPA H10 filter and standard nozzles. The VC3100.0HP has a HEPA H13 filter (99.95% filtration) and includes an additional parquet brush for hard floors.

How do I adjust the suction power?

Use the electronic power regulator knob on the vacuum body for stepless adjustment. You can also temporarily adjust using the mechanical slider on the hose handle.

How do I clean the cyclone cone?

Remove the cyclone container, open the bottom, turn the cone left to unlock, and pull it out. Rinse with running water, dry, then reinstall by aligning tabs and turning right to lock.

USER MANUAL Eco Power VC3100 Zelmer

PL Sapanmi Ifleadi

Grakcarn, nysu kryna uzygna uzygna i zony mnd cyzorytak oka pala zra. Zr. W. w. zybybata, lejnywych mecnem, mecnem, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zybya, zyby a.

In the case, we need to be a good way. We have to come in the way of our country. I don't know that we do not know what

noti wawald in iąki, i dojajatne deple i zukonien, i wawald in iąki, i dojajatne deple i zukonien, i wawald in iąki, i dojajatne deple i zukonien, i wawald in iąki, i dojajatne deple i zukonien, i wawald in iąki, i dojajatne deple i zukonien, i wawald in iąki

Brista, Arzara, Kyushuwa, 12. 03:45-67 (1)

The following table is in English:

Bekspolyte (konegma zba, cava) organ spony azolichach pejikazny, sorzelyczny lub raskemem tere wate konegma zadzonye dinklaku zvity, reg. konegma zadzonye zvity, reg. konegma zadzonye zvity, reg. konegma zadzonye zvity, reg. konegma zadzonye zvity, reg. konegma zadzonye zvity, reg. konegma zadzonye zvity, reg. konegma zadzonye zvity, reg. konegme zadzonye zvity, reg. konegme zadzonye zvity, reg. konegme zadzonye zvity, reg. konegme zadzonye zvity, reg. konegme zadzonye zvity, reg. konegme zadzonye zvity, reg. konegme zadzonye zvity,

Urugal

:

[1]

18.4

at k, and in

The following table is provided in the image:

The following table is provided in the image:

The following table is in English:

wakovka, mukwaga papu Uhaj Dvark

The following text in the source image is illegible due to extreme pixelation and noise. No characters can be confidently identified.

www.niuniu.com

The following table is a simple formula:

The following table is a simple formula:

The following table is provided in the image.

1

The following table is in Chinese:

VRE

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 90.

Vergesland is not possible for a 24th year.

Dune technologies

The following table is in English:

in the case of the 2014-2016

1. 2016年1月1日

Ocama, 1980.

(1)

1.2020年1月1日

-SPETRIC

Company: SICC

Explain w/ewert 5 dB

7.100 cm a##e ## der 12 m bil r#a mar##ove.

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety instructions

Danger! / Warning! Health hazard

Do not operate the appliance if the cord, the housing or the handle is visibly damaged. In such a case, return the appliance to a service center.

the supply cord is damaged, it must be replaced by the manufacturer, a service agent or a qualified person in order to avoid a hazard.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

Always unplug the appliance before cleaning, assembling or dismantling.

Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

Do not use the vacuum cleaner to clean people or animals, pay special attention to keep the nozzles away from eyes and ears.

Do not use the vacuum cleaner to clean liquids or other damp dirt.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

Caution!

Not observance can result in damage to possessions

Connect the vacuum cleaner only to a 220-240 V mains supply equipped with a 16 A fuse.

Do not unplug by pulling on cord.

Do not run the vacuum cleaner or the brushes over the cord, it may cause damage to the cord insulation.

Do not use the vacuum cleaner without the filters installed in the vacuum cleaner or if the filters are damaged.

Do not pick up: matches, cigarette butts, hot ash. Avoid picking up sharp objects.

Check the suction hose, the tubes and the nozzles – remove the dirt from the inside.

Do not vacuum fine dust such as: flour, cement, gypsum, toners for printers and copy machines etc.

is forbidden to cover up the air holes of the vacuum cleaner while it is working. Otherwise, the hot air has no way of exiting the vacuum cleaner, and this may lead to motor overheating causing a failure or a deformation of the plastic parts.

stion Information on the product and suggestions for its use

The vacuum cleaner is for household use only.

Operate the appliance only in indoor spaces and vacuum only dry surfaces. Before vacuuming dry the carpets that were wet cleaned.

Technical parameters

The type of the vacuum cleaner and the technical parameters are indicated on the rating label. Mains protection 16 A. Does not cause interferences with audio/video devices.

Does not require grounding ☐

ZELMER vacuum cleaners meet the requirements of the applicable norms.

The appliance is in conformity with the requirements of the directives:

Low voltage appliance (LVD) - 2006/95/EC. -

– Electromagnetic compatibility (EMC) – 2004/108/EC.

Noise level: 84 dB/A.

This vacuum cleaner has a dust bin "CYCLONE" with cyclone filtration, which allows vacuuming without the use of a traditional bag. A characteristic feature of the cyclone filter is the use the phenomenon of turbulence of air stream for separating fixed impurities. Separation of impurities occurs in the container part of circular cross section, in which the rotating air moves the pollutions on the wall of the container. The initially purified air is targeted to the foam inlet filter and washable HEPA inlet filter (High Efficiency Particulate Air). For washable inlet filter HEPA was used a special filtering material, which allows to rinse the filter with running water after its dirty, and reuse of the filter.

VERSIONS OF VC3100 VACUUM CLEANERS

Version\Styling option and equipment	Maximum power	Adjusting the suction power	Tank full indicator “CYCLONE”	Protection against lack of HEPA inlet filter	Inlet filter	Suction tube	Sucker-brush sweeper	Small nozzle sucker	Gap sucker	Small brush sweeper	"BNB" Parquet brush sweeper
1	2	3	4	5	6	7	8	9	10	11	12
VC3100.0SK	1600 W	+	+	+	HEPA H10	Telescopic	with metal base	+	+	+	-
VC3100.0HP	1600 W	+	+	+	HEPA H13	Telescopic	with metal base	+	+	+	+

Static electricity

In the process of vacuuming of some surfaces in areas of low air humidity the device may become electrically charged. It is a natural phenomenon – it does not damage the device, and it is not considered to be a fault.

In order to minimize the phenomenon, we recommend you to:

discharge the device by touching metal items in the room with the pipe,

Increase air humidity in the room,

- se widely available antistatic agents.

Structure of device

1 Outlet filter cover

2 A hook for mounting sucker-brush sweeper or telescopic tube

3 A plug with power connecting cable

4 On/Off button and simultaneously a knob for suction power control

5 Dust bin full indicator "CYCLONE"

6 Cable retractor button

7 An attach to unlock the dust bin "CYCLONE"

8 A handle for carrying vacuum cleaner

9 A bolt – mechanical suction power regulator

10 Suction hose

11 Telescopic suction tube with a fastening hook

12 Outlet filter "Microfilter" (mounted in a vacuum cleaner)

13 Foam exhaust filter (mounted in vacuum cleaner, in exhaust filter cover)

14 HEPA Inlet filter (mounted in dust container "CYCLONE"). Vacuum cleaner is equipped in one filter only (A or B)

A Inlet filter HEPA H13 (mounted in vacuum cleaner VC3100.0HP)

B Inlet filter HEPA H10 (mounted in vacuum cleaner VC3100.0SK)

15 Foam inlet filter (mounted in dust container) "CYCLONE", in the inlet filter HEPA frame
16 Dust container "CYCLONE" (which is a removable segment of the vacuum cleaner)
17 Dust container cone "CYCLONE" (mounted in dust container "CYCLONE")
18 Switchable sucker-brush sweeper
19 Gap sucker
20 Small brush sweeper
21 Small sucker
22 "BNB" Parquet brush sweeper (Brush Natural Bristle). Available only in case of VC3100.0HP version.

Used for cleaning and polishing of hard, scratch-sensitive surfaces such as wood flooring, panels, parquet, marble, tiles, etc.

Delicate and soft bristles of Natural origin provide maximum vacuuming efficiency and protects against scratches on the surface.

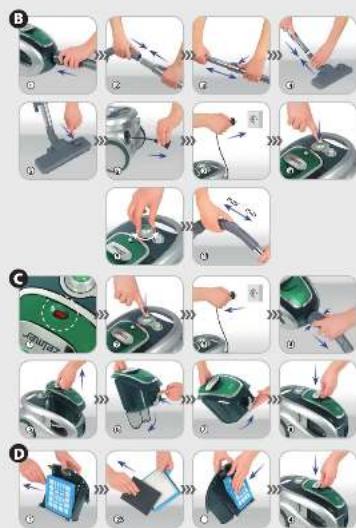

Prepare the vacuum cleaner to use

① Insert the tip of the suction hose to the vacuum cleaner inlet. The characteristic “click” indicates a properly fitted hose.
② The second end of the hose (a handle) connect to telescopic suction tube.
③ Set the telescopic suction tube to the desired length by sliding the slider according with arrow and put out / slide out the tube.
④ On the other end of the suction tube install the appropriate sucker or brush.
⑤ In switchable sucker-brush in order to vacuuming hard surfaces - wood floors, plastic, ceramic tiles etc., pull out the brush by pressing the switch on sucker-brush as shown on the figure
⑥ Catch the connection cable plug (3) and draw it out from the vacuum cleaner.

en drawing out the power cable you have to pay attention to yellow band indicating the end of the cable drawn out. Further attempts (jerks) may lead to damage of the cable.

⑦ Plug the cord into an AC outlet.

Before you start vacuum cleaner make sure whether the dust container "CYCLONE" is mounted in chamber of the vacuum cleaner, and whether the inlet and outlet filters are mounted in the vacuum cleaner.

⑧ Start the vacuum cleaner by pressing On/Off button (4).
⑨ Vacuum cleaner is equipped with electronic power regulator, which - during the vacuuming - can smooth control the suction power of vacuum cleaner. By turning the knob (4) right or left - you can increase or decrease the suction power.
⑩ Vacuum cleaner is also equipped in mechanical control of suction power (9), which is located on the handle of the hose. It can temporarily slightly adjust the suction power, without adjustment done with knob (4).

Disassembly/assembly of "CYCLONE" dust container

Vacuum cleaner is equipped in removable dust container "CYCLONE" (which is a removable segment of vacuum cleaner), which accumulates contaminants. As soon as the "CYCLONE" dust container is full, it should be emptied.

cuum cleaner is equipped with a sa valve which is located in the chamber "CYCLONE" dust container. The valve activated (open) automatically when a jam (occlusion) occurs on the sucking or this happens to equipment connected to it, as well as in the case of excessive overfill of "CYCLONE" dust container. When the is open you can hear a characteris ("a sound of flutter") in the vacuum cleaner.

① Vacuum cleaner is equipped with a dust container "CYCLONE" full indicator (5). When the gap of dust container "CYCLONE" full indicator is totally filled with red mark during operation (vacuum cleaner operates at full power and sucker nozzle or brush is upraised over cleaned surface) so this informs that there is a need to empty the dust bin "CYCLONE". The dust container "CYCLONE" full indicator (5) may work also in the case of clogging of the suction hose or clogging of equipment connected to the hose.
② Switch off the vacuum cleaner by pressing On/Off button (4).
③ Take off the cable connection plug from the wall outlet.
④ Press the two side buttons on the hose end, then remove the hose end from vacuum cleaner inlet hole.
⑤ Raise the hook to unlock the dust container "CYCLONE" (7) and remove dust container "CYCLONE" (16) from the vacuum cleaner.

⑥ Move the dust container "CYCLONE" on garbage trash. Press the button located on dust container "CYCLONE", the bottom of the container will open and the contents will fall out to the trash.
⑦ After emptying the container, snap the bottom. Pay attention to the fact that a seal located on the bottom of container must be correctly positioned.

container must be precisely closed. Otherwise the dust will penetrate the vacuum chamber and the suction power will decrease.

cleaner

⑧ Insert the empty dust container "CYCLONE" to vacuum cleaner. The characteristic "click" indicates that container has been mounted correctly.

Emptying the dust container "CYCLONE" is necessary when you notice that:

a) "CYCLONE" dust container full indicator indices turned on, b) sucking power of vacuum cleaner decreased,
c) dust container "CYCLONE" is full.

Disassembly of filters

case of dirty filters: inlet filter, foam filter (15), HEPA inlet filter (14), outlet foam filter (13), "Microfilter" (12) you can replace them with new filters, clean them or rinse with run water.

Do not wash the filter in the washing machine or dishwasher.

of the Filters can be dried in natural way only. is total Do not dry the filters using hose heaters and radiators.

Before replacement of filters make sure vacuum cleaner is switched off and connection flexible plug is pulled out from the wall outlet.

INLET FILTER HEPA AND FOAM INLET FILTER

Vacuum cleaners are equipped with outlet filter HEPA (High Efficiency Particulate Air) type H10 or H13.

These filters have exceptionally high filtration capacity, are made of special fibers, which can retain almost all dust particles. The filter standards H10 and H13 define the permeability of the filter: H10 filter can retain 85% of particles diameter of 0.3 microns, and H13 filter up to 99.95% of all impurities.

It is necessary to clean periodically the inlet filter HEPA (14) in order to remove minor fractions of the dust, and foam inlet filter (15) must be also cleaned.

Disassembly the "CYCLONE" dust container and empty it in accordance with paragraph (C).

① Remove the HEPA foam inlet filter (14) from "CYCLONE" dust container
② Remove foam inlet filter (15). If the foam inlet filter (15) is dirty, you can replace it with a new filter, you can clean

it or rinse with running water. Do not forget to dry above mentioned filter before re-installation.

The main function of the foam inlet filter (15) is to protect HEPA inlet filter (14) against excessive dirt.

safety reasons it is unacceptable to install the moist or damaged foam inlet filter (15).

- clean the pleats of HEPA inlet filter (14), in case of filter damage it should be absolutely replaced with a new filter. If HEPA inlet filter (14) is dirty, you can replaced it with a new filter, you can clean it or rinse with running water. Do not forget to dry above mentioned filter before re-installation.

safety reasons it is unacceptable to install the moist or damaged inlet filter HEPA (14).

- insert a new/rinsed HEPA inlet foam filter (15) into previously occupied space.

③ Insert a new/rinsed HEPA inlet filter (14) to the dust container into previously occupied space.

④ Insert "CYCLONE" dust container with mounted HEPA inlet filter (14) to vacuum cleaner chamber. The characteristic "click" indicates that container has been correctly mounted.

s recommended to replace HEPA inlet filter (14) with a new one every 6 months of use.

not vacuum without HEPA inlet filter installed in "CYCLONE" dust container. of HEPA inlet filter (14) shall prevent insertion of "CYCLONE" dust container to the cleaner.

"MICROFILTER" OUTLET FILTER AND OUTLET FOAM FILTER

① In order to replace "Microfilter" outlet filter (12) press the hook located in the filter cover and pull out the filter cover from vacuum cleaner.
② Pull out the "Microfilter" outlet filter (12).

If the "Microfilter" outlet filter (12) is dirty, you can replace it with a new filter, you can clean it or rinse with running water. Do not forget to dry above mentioned filter before re-installation.

safety reasons it is unacceptable to install the moist or defective "Microfilter" filter (12).

③ Carefully insert a new / rinsed filter to previously occupied space.
④ Pull out the foam outlet filter from filter cover (1).

If the outlet foam filter (13) is dirty, you can replace it with a new filter, you can clean it or rinse with running water. Do not forget to dry above mentioned filter before re-installation.

safety reasons it is unacceptable to install the moist or damaged outlet foam filter (13).

⑤ Carefully insert a new / rinsed filter to previously occupied space.
⑥ Put the filter cover so that two tips located at the right side of the cover should hit the holes in the body of the vacuum cleaner, press the filter cover so the hook snapped in the body. Characteristic “click” sound informs, that the filter cover has been properly installed.

not use the vacuum cleaner with and outlet filters mounted in the device.

maged inlet and outlet filters must be always replaced with new, factory original filters.

THE CONE OF "CYCLONE" DUST CONTAINER

It is necessary to clean periodically the "CYCLONE" dust container cone.

① Disassembly "CYCLONE" dust container according to point (C).
② Press the button located on "CYCLONE" dust container and open the bottom of the container. If "CYCLONE dust container is full, empty it according to the point (C).
③ Turn the cone left, so the two tips located on the flange of the cone were put out from the slots of the container. Put out the cone.
④ If the "CYCLONE" dust container cone (17) is dirty, you can rinse it with running water. Do not forget to dry above mentioned cone before re-installation.
⑤ Insert the rinsed cone of "CYCLONE" dust container into the container slot so the tip located on the flange of the cone was in the slot of container's body. Turn right the cone so that the two tips located on the flange of the cone were blocked in the slots of the container.
⑥ Snap the bottom of "CYCLONE" dust container. Please pay attention to the proper positioning of seal found on the bottom of the container.
⑦ Insert "CYCLONE" dust container to vacuum cleaner chamber. The characteristic "click" indicates that the container has been correctly mounted.

End of operation, cleaning and maintenance

① Switch off vacuum cleaner pressing On/Off switch (4). ② Put the connection cable plug out the wall outlet.
③ Wind the cable by pressing retractor button (6). Performing this action, hold the power cable to avoid any tangles and shocking the vacuum cleaner body with the plug.
④ Disconnect telescopic suction tube and a sucker or a brush sweeper.
⑤ Disconnect telescopic suction tube and a hose.
⑥ Press the two side buttons located at the hose end, then remove the hose end from vacuum cleaner inlet hole.

⑦ Vacuum cleaner can be stored either in vertical or horizontal position. The hose may remain attached to the vacuum cleaner, but please note that the hose should not be strongly bent during storage.

Storing in horizontal position:

Insert a fixing hook of sucker-brush sweeper to a hook – for fixing the sucker-brush sweeper located on the back of the vacuum cleaner over the outlet filter cover.

Vertical storage:

place the nozzle brush on the telescopic pipe, – then insert the hook of the telescopic pipe into the – fastening situated on the bottom of the vacuum cleaner, near the front wheel.

⑧ If necessary, clean the casing and the chamber of the vacuum cleaner with a damp cloth (it may be damped in dishwashing liquid), dry it off, and wipe it dry.

Do not use any scrubbing agents or solvents.

Examples of problems you may encounter when using the vacuum cleaner

PROBLEM SOLUTION
A characteristic fluttering in the vacuum cleaner is heard.	·Check the CYKLON dust container and other accessories. Remove the reason for the clog-up or empty and clean the CYKLON dust container.·Replace or clean the filters.
The vacuum cleaner works less efficiently.	Empty and clean the CYKLON dust container, replace or clean the filters, check the suction pipe, the hose, and the nozzle – remove the reason for the clog-up.
The cut-out of the wiring system has been triggered.	Check if there are any other devices, besides the vacuum cleaner, plugged into the same electrical circuit. If the cut-out is triggered again, have the vacuum cleaner repaired in a servicing center.
The vacuum cleaner does not work; the body or the power cord is damaged.	Have the vacuum cleaner repaired in a servicing center.

Ecology – Environmental protection

Each user can contribute to protect the environment. It is neither difficult nor expensive. In order to do so:

Return cardboard packages to recycling points.

Throw polyethylene (PE) bags into appropriate containers.

Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose of with household waste!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Notes

Notes
