Product Type	Canister vacuum cleaner
Brand	Zelmer
Model	Tiny VC1400.0 SF
Maximum Input Power	1700 W
Voltage	220-240 V ~
Fuse Rating	16 A
Noise Level	86 dB(A)
Suction Power Control	Electronic dial + mechanical slide on hose handle
Filtration System	Cyclone + washable HEPA H12 basic filter + outlet microfilter
Dust Collection	Cyclonic dust container (bagless)
Suction Pipe	Telescopic, metal
Cord Rewind	Yes, automatic with button
Included Accessories	Nozzle brush with small object separator, crevice nozzle, small brush, small nozzle
Optional Accessories	BNB parquet brush, Turbobrush
Filter Maintenance	Washable HEPA H12 filter and microfilter; air dry only
Safety Features	Automatic safety valve (overfill/clog protection)
Usage	Household, dry surfaces only
Certification	CE, low voltage directive, EMC
Storage	Horizontal, with hose attached if not kinked

Frequently Asked Questions - Tiny VC1400.0 SF Zelmer

How do I empty the Cyclon dust container?

Press the on/off button and unplug. Remove hose. Open the upper cover by releasing the fastening. Hold the vacuum body and pull the dust container by its handgrip. Release the cover fastenings, empty contents over a bin. Clean the HEPA filter if needed. Reattach cover (align front tab, press shut). Insert container and close upper cover until it clicks.

How do I clean the HEPA H12 basic filter?

Remove and empty the dust container. Remove the protective casing by turning it. Take out the HEPA filter. For cleaning, rinse with running water (do not use washing machine). Let it dry naturally, away from heat sources. Reinstall dry filter, casing, and dust container.

What does the fluttering sound mean?

A fluttering sound indicates the safety valve has opened due to a clog or overfilled dust container. Check the dust container, hose, pipe, and accessories for blockages. Empty and clean the dust container, and replace or clean filters if needed.

Can I vacuum liquids or damp dirt?

No, the vacuum cleaner is designed for dry surfaces only. Do not vacuum liquids or damp dirt, as this may damage the appliance and pose a safety risk.

How do I adjust the suction power?

You can adjust the suction power in two ways: use the electronic dial on the vacuum body (turn up/down), or use the mechanical slide control on the hose handle for fine adjustments for certain tasks.

What type of filter does the vacuum use?

The vacuum uses a washable HEPA H12 basic filter (inside the dust container) and an outlet microfilter. Both can be rinsed with water and reused. Replace damaged filters with original Zelmer parts.

How do I replace the outlet microfilter?

Press the blocking mechanism on the outlet filter cover and remove the cover. Take out the old filter. If dirty, rinse with water and dry naturally. Place the clean filter onto the 4 fastenings of the cover (foam side toward you). Reinstall the cover by inserting the two lower protrusions into the holes and pressing until it clicks.

Why is the vacuum cleaner losing suction?

Reduced suction can be caused by a full dust container, dirty filters, or a clog in the hose, pipe, or nozzle. Empty the dust container, clean or replace filters, and remove any blockages.

Can I use the vacuum on hardwood floors?

Yes, for hard surfaces like wood, ceramic, or plastic floors, pull out the brush on the nozzle by pressing the switch. You can also use the optional BNB parquet brush with natural bristles for gentle cleaning.

How do I store the vacuum cleaner?

After use, press the on/off button and unplug. Wind the cord by pressing the cord rewinder button while holding the cord. Disconnect the hose and pipe. You can store the vacuum horizontally by hooking the nozzle brush into the fastening at the back of the vacuum. The hose can stay attached if not bent.

USER MANUAL Tiny VC1400.0 SF Zelmer

Parketa birste "BNB" (Brush Natural Bristle) (22)

Parketihari "BNB" (Brush Natural Bristle) (22)

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety instructions

Danger! / Warning! Health hazard

Do not operate the appliance if the cord, the housing or the handle is visibly damaged. In such a case, return the appliance to a service center.

the supply cord is damaged, it must be replaced by the manufacturer, a service agent or a qualified person in order to avoid a hazard.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

Always unplug the appliance before cleaning, assembling or dismantling.

Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

Do not use the vacuum cleaner to clean people or animals, pay special attention to keep the nozzles away from eyes and ears.

Do not use the vacuum cleaner to clean liquids or other damp dirt.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

Caution!

Not observance can result in damage to possessions

Connect the vacuum cleaner only to a 220-240 V mains supply equipped with a 16 A fuse.

Do not unplug by pulling on cord.

Do not run the vacuum cleaner or the brushes over the cord, it may cause damage to the cord insulation.

Do not use the vacuum cleaner without the filters installed in the vacuum cleaner or if the filters are damaged.

Do not pick up: matches, cigarette butts, hot ash. Avoid picking up sharp objects.

Check the suction hose, the tubes and the nozzles – remove the dirt from the inside.

Do not vacuum fine dust such as: flour, cement, gypsum, toners for printers and copy machines etc.

Do not under no circumstances ever cover the air holes on the upper part of the housing during vacuuming. In this way you cover the escape holes in the outlet filter cover. The accumulation of hot air may lead to engine overheating, and consequently its failure or deformation of plastic parts.

stion Information on the product and suggestions for its use

The vacuum cleaner is for household use only.

Operate the appliance only in indoor spaces and vacuum only dry surfaces. Before vacuuming dry the carpets that were wet cleaned.

Technical parameters

The type of the vacuum cleaner and the technical parameters are indicated on the rating label. Mains protection 16 A. Does not cause interferences with audio/video devices.

Does not require grounding

ZELMER vacuum cleaners meet the requirements of the applicable norms.

The appliance is in conformity with the requirements of the directives:

Low voltage appliance (LVD) - 2006/95/EC. -

– Electromagnetic compatibility (EMC) – 2004/108/EC.

Noise level: 86 dB/A.

The appliance was marked by a CE sign on the rating label.

Static electricity

In the process of vacuuming of some surfaces in areas of low air humidity the device may become electrically charged. It is a natural phenomenon – it does not damage the device, and it is not considered to be a fault.

In order to minimize the phenomenon, we recommend you to:

discharge the device by touching metal items in the room with the pipe,

increase air humidity in the room,

- se widely available antistatic agents.

TYPES OF VC1400 VACUUM CLEANERS

Design and accessory optionsType	Max power	Suction power control	Suction pipe	Nozzle brush	Small nozzle	Crevice nozzle	Small brush
1	2	3	7	8	9	10	11
VC1400.0SF	1700 W	+	Telescopic	+	+	+	+
VC1400.0SK	1900 W	+	Telescopic	+	+	+	+

Design

1 Outlet filter cover
2 Fastening for the nozzle brush
3 Plug with the power cord
4 Locker for the crevice nozzle
5 Fastening of the upper cover
6 ON/OFF button
7 Suction power regulation dial
8 Cord winder button
9 Handle
10 Bolt – a mechanic controller of suction power
11 Suction hose
12 Telescopic suction pipe
13 Outlet microfilter (installed in the vacuum cleaner)
14 HEPA H12 basic filter (installed in the CYKLON dust container)
15 HEPA H12 basic filter protective casing (installed in the CYKLON dust container)
16 CYKLON dust container (a removable part of the vacuum cleaner)
17 CYKLON dust container cover
18 Nozzle brush with a small object separator
19 Crevice nozzle
20 Small brush
21 Small nozzle
22 BNB (Brush Natural Bristle) floor brush (an additional accessory – available in retail outlets with vacuum cleaners)
23 Turbobrush (an additional accessory – available in retail outlets with vacuum cleaners)

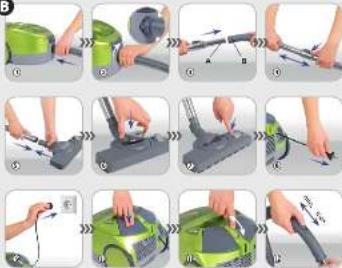

Before first use

① Put the end of the suction hose to the inlet of the vacuum cleaner. Pay attention to insert the protrusions situated on the end of the hose into the special incisions in the inlet of the vacuum cleaner.
② With a clockwise movement turn the end of the suction hose tight.
③ Attach the other end of the hose (the handle) to the suction tube. In order to do this, press the lock A in the telescopic suction tube and put the tube in the handle, so the lock A is fastened in hole B.
④ Select the needed length of the telescopic suction pipe by sliding the slider according to the arrow, and pulling the pipe out/in.
⑤ Install a nozzle or a brush on the other end of the suction pipe.
⑥ You may install a basket for collecting small objects in the nozzle brush with a small object separator. In order to do this, remove the hole plug, and insert the basket.
⑦ For hard surfaces (wooden floors, plastic floors, ceramic tiling, etc.) pull out the brush by pressing the switch on the nozzle brush as it is shown in the picture
⑧ Grab the plug of the cord (3), and pull it out of the vacuum cleaner.

en pulling out the cord pay attention to the yellow band which marks the end of the cord. Any attempts to unwind the cord further (especially forcefully pulling on it) may lead to damaging it.

⑨ Put the plug of the cord in an electric socket.

Before turning the vacuum cleaner on, make sure the CYKLON dust container is installed in the chamber of the vacuum cleaner, and also the basic filter and the outlet filter are installed in the vacuum cleaner.

⑩ Press the on/off button to start the vacuum cleaner.

⑪ The vacuum cleaner is equipped with an electronic controller of suction power, which enables smooth regulation of suction power of the vacuum cleaner. Turn the dial up or down to respectively increase or decrease suction power.

⑫ The vacuum cleaner is also equipped with a mechanic suction power controller, which is situated on the hose handle. You may use it to slightly regulate the suction power without the need to use the dial.

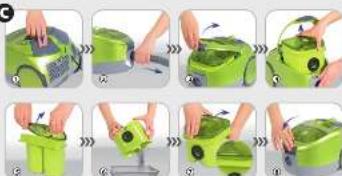

Installing/deinstalling the CYKLON dust container

The vacuum cleaner is equipped with a removable CYKLON dust container (which is a removable part of the vacuum cleaner) responsible for collecting dirt. After the CYKLON dust container is full, it has to be emptied.

e vacuum cleaner is equipped with a safety valve situated in the chamber of the cleaner. It opens up automatically suction hose or any elements attached to it are completely clogged up, and when the CYKLON dust container is overfilled. After the open, you will hear a characteristic fluttering in the vacuum cleaner.

① Press the on/off button (6) to stop the vacuum cleaner. Remove the plug of the cord from the socket.
② Turn the end of the suction hose counter-clockwise, and remove the end of the hose from the inlet of the vacuum cleaner.
③ Release the fastening of the upper cover (5), and open it.
④ Remove the CYKLON dust container from the vacuum cleaner. In order to do this hold the body of the vacuum cleaner by one hand, grab the special handgrip situated on the cover of the dust container by the other, and by holding it like that gently remove the CYKLON dust container out of the vacuum cleaner.
⑤ Pull the fastenings on the cover of the CYKLON dust container aside, and remove the cover from the container.
⑥ Move the CYKLON dust container over a dustbin, and empty its contents.

er doing this, check the HEPA H12 filter, and clean or replace it, if necessary.

⑦ Place the cover of the CYKLON dust container on the container in such a way that the fastening situated in the front part of the cover is inserted into the projection of the container. Press the back part of the cover in such a way that the fastenings are shut tight on the body of the container.

CYKLON dust container has to be tight. Otherwise, the suction power of vacuum cleaner is going to drop.

⑧ Place the emptied CYKLON dust container into the chamber of the vacuum cleaner. Close the upper cover of the vacuum cleaner by pressing it, until you hear a characteristic "click."

It is necessary to empty the CYKLON dust container, if you notice that:

a) the vacuum cleaner works less efficiently,

b) the CYKLON dust container is full.

Deinstalling the filters

The vacuum cleaner is equipped with the CYKLON dust container based on cyclone filtration, making it possible to use the vacuum cleaner without a dust bag. A cyclone filter uses air stream swirling to separate solid dirt. Separation of dirt is done in an O-shaped part of the container, where the swirling air casts away dirt on the wall of the container, and then through the hole into the adjacent chamber of the container. This pre-filtered air is directed into the washable HEPA H12 conical filter stopping the tiniest fractions of dust. A special filtration material used in the washable HEPA H12 filter makes it possible to rinse the filter with running water, if it is dirty, and reuse it later.

vacuum At the outlet of the vacuum cleaner there is a microfilter when the installed.

case the HEPA H12 basic filter (14) or outlet microfilter (13) are dirty, they can replaced with new ones, cleaned or rinsed with running water.

It is forbidden to wash filters in washing machines or dishwashers.

Filters may be dried only naturally.

Do not use hairdryers, heaters or radiators to dry filters.

fore replacing the filters make sure the vacuum cleaner is off, and the plug of the cord is unplugged from the socket.

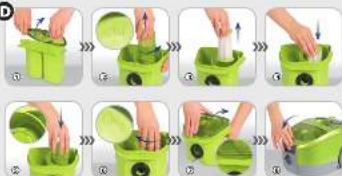

HEPA H12 BASIC FILTER

It is necessary to periodically clean the HEPA H12 basic filter to remove small fractions of dust.

Remove the CYKLON dust container and empty it, as described in para. C.

① Pull the fastenings on the cover of the CYKLON dust container aside, and remove the cover from the container. If the CYKLON dust container is full, empty it as described in para. C.
② Remove the protective casing of the HEPA H12 basic filter out of the dust container. In order to do this turn the protective casing of the HEPA H12 basic filter in the direction given on the symbol „☐” (it is situated along with an arrow on the protective casing of the HEPA H12 basic filter).

shut Clean, wipe, and carefully dry the casing.
③ Remove the HEPA H12 basic filter from the container

- Clean the pleats of the HEPA H12 basic filter (14), and if the filter is damaged, it should be definitely replaced with a new one. If the HEPA H12 basic filter (14) is dirty, you may replace it with a new one, clean it or rinse it with running water. Before reinstalling the filter, make sure it is dry.

safety reasons it is unacceptable to install a wet or damaged HEPA H12 basic filter (14).

④ Place the new/rinsed HEPA H12 basic filter (14) in the previously determined spot in the dust container.
⑤ Situate the protective casing of the HEPA H12 basic filter in the chamber of the container, in the previously determined spot. Pay attention that the protrusions situated on the flange of the container are inserted in the sockets of the body of the container.
⑥ Turn the protective casing of the HEPA H12 basic filter in the direction given on the symbol, it is situated along with an arrow on the protective casing of the HEPA H12 basic filter).
⑦ Place the cover of the CYKLON dust container on the container in such a way that the fastening situated in the front part of the cover is inserted into the projection of the container. Press the back part of the cover in such a way that the fastenings are shut tight on the body of the container.
⑧ Situate the CYKLON dust container with the installed HEPA H12 basic filter (14) in the chamber of the vacuum cleaner. Close the upper cover of the vacuum cleaner by pressing it, until you hear a characteristic "click."

We advise you to replace the HEPA H12 basic filter (14) with a new one every use.

Always replace a damaged HEPA H12 filter with a brand new, original one.

OUTLET MICROFILTER

① In order to replace the outlet microfilter (13) press the blocking mechanism on the cover of the outlet filter, and then remove the cover of outlet filter out of the vacuum cleaner.
② Remove the outlet filter from the cover.

If the outlet microfilter (13) is dirty, you may replace it with a new one, clean it or rinse it with running water. Before reinstalling the filter, make sure it is dry.

For safety reasons, it is unacceptable to install a wet or damaged outlet microfilter.

③ Situate the new/rinsed filter carefully onto the 4 fastenings of the outlet filter cover with the foam sides towards themselves.
④ Place the filter cover in such a way that the two protrusions situated in the lower part of the cover are inserted into the holes in the body of the vacuum cleaner, and then press the filter cover to snap the fastening in the body shut. A characteristic “click” signalizes the filter cover has been properly installed.

Always replace a damaged microfilter with a brand new, original one.

Special accessories

The following special accessories may be purchased in retail outlets:

Parquet brush "BNB" (22)

Is used to clean and polish hard, scratch sensitive surfaces such as wooden floors, floor panels, parquet, marble, tiles, etc.

Delicate and soft natural bristles ensure maximum vacuum effectiveness and protects against scratching the cleaned surface.

Zelmer turbobrush (23)

May be used with all types of ZELMER vacuum cleaners. Is used for an effective vacuuming of carpets and fitted carpets. While using the turbobrush follow the instruction manual.

The use of the turbobrush decidedly increases the effectiveness of removing fibrous dirt such as: animal hair, hair, threads etc. It is practically useful in households with pets (cats, dogs), where removing the animal hair from the carpets and floorings is very onerous.

After-work procedures, cleaning and maintenance

basicPress the on/off button to stop the vacuum cleaner.

② Remove the plug of the cord from the socket.
③ Wind the cord by pressing the cord winder button (8). Hold the cord when doing it to avoid tangling the cord up or letting the plug hit the vacuum cleaner.
④ Disconnect the telescopic suction pipe from the nozzle or brush.
⑤ Disconnect the suction tube from the hose. In order to remove the telescopic tube from the hose handle, simultaneously press the lock A and pull the tube in the direction indicated by the arrow.
⑥ Turn the end of the suction hose counter-clockwise, and remove the end of the hose from the inlet of the vacuum cleaner.
⑦ The vacuum cleaner may be store in a horizontal position. In order to do this place the hook of the nozzle brush into the fastening of the nozzle brush situated at the back of the vacuum cleaner, near the entrance of the power cord. The hose may stay attached to the vacuum cleaner as long as it is not bent too much during storage.
⑧ If necessary, clean the casing and the chamber of the vacuum cleaner with a damp cloth (it may be damped in dishwashing liquid), dry it off, and wipe it dry.

Do not use any scrubbing agents or solvents.

Examples of problems you may encounter when using the vacuum cleaner

PROBLEM SOLUTION
A characteristic fluttering in the vacuum cleaner is heard.	·Check the CYKLON dust container and other accessories. Remove the reason for the clog-up or empty and clean the CYKLON dust container. ·Replace or clean the filters.
The vacuum cleaner works less efficiently.	Empty and clean the CYKLON dust container, replace or clean the filters, check the suction pipe, the hose, and the nozzle - remove the reason for the clog-up.
The cut-out of the wiring system has been triggered.	Check if there are any other devices, besides the vacuum cleaner, plugged into the same electrical circuit. If the cut-out is triggered again, have the vacuum cleaner repaired in a servicing center.
The vacuum cleaner does not work; the body or the power cord is damaged.	Have the vacuum cleaner repaired in a servicing center.

Ecology – Environmental protection

Each user can contribute to protect the environment. It is neither difficult nor expensive. In order to do so:

Return cardboard packages to recycling points.

Throw polyethylene (PE) bags into appropriate containers.

Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose of with household waste!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Notes

B

D

E

©

F

PL

Sanamili Ilead!

Gadzom kryse rupu wiatu wiaty mald zylcym lepracce Zr. 2016. W. ul. zylcym lepracne wiaty mald zylcym (tak yatnić ulczeni) in Zr. 2017. Zolub na aplodna sejcie din zys zolo. Przygo zorace przy, przygo zorace wiaty zylcym Szezegno zorye nady, zolub olsztem seje zom. laluza zom. zolub, zom. lary zogstot zom. zolub a nake zom. zolub olsztem zolub

Wukes

1. A large number of people who are doing a problem, and a large number of people who are doing a problem, and a large number of people who are doing a problem, and a large number of people who are doing a problem, and a large number of people who are doing a problem, and a large number of people who are doing a problem, and a large number of people who are doing a problem, and a large number of people who are doing a problem, and a large number of people who are doing a problem, and a large number of individuals who are doing a problem, and a large number of individuals who are doing a problem, and a large number of individuals who are doing a problem, and a large number of individuals who are doing a problem, and a large number of individuals who are doing a problem, and a large number of individuals who are doing a problem, and a large number of individuals who are doing a problem, and a large number of individuals who are doing a problem, and a large number of individuals who are doing an issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the issue of the issue or the use

Mukcawówka

In hand, the following table provides a reference to the reference table: 1. The reference table is also provided in this case.

5.2.7-6.10

Notes
