HKS 9330 - Cooker BLOMBERG - Free user manual and instructions
Find the device manual for free HKS 9330 BLOMBERG in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Freestanding Cooker |
| Brand | Blomberg |
| Model | HKS 9330 |
| Energy Type | Electric |
| Oven Capacity | Approx. 66 L |
| Hob Type | Electric Ceramic Hob with 4 Zones |
| Oven Functions | Conventional, Grill, Fan Assisted |
| Grill | Yes |
| Interior Light | Yes |
| Timer | Programmable Timer |
| Child Lock | Yes |
| Cleaning Type | Manual Cleaning (Enamel Interior) |
| Oven Door | Removable Door for Easy Cleaning |
| Dimensions (H x W x D) | 85 x 90 x 60 cm |
| Weight | Approx. 55 kg |
| Power Supply | 220-240 V, 50/60 Hz |
| Installation | Freestanding, Requires Proper Ventilation |
| Control Type | Knobs and Digital Display |
| Safety Features | Automatic Shut-off, Overheat Protection |
| Accessories Included | Baking Tray, Grill Rack |
Frequently Asked Questions - HKS 9330 BLOMBERG
How to preheat the oven?
Turn the temperature knob to the desired setting. The oven will begin heating, and the indicator light will remain on until the set temperature is reached. Once the light turns off, the oven is preheated.
How to clean the ceramic hob?
Clean the hob after each use once it has cooled. Use a ceramic hob scraper to remove burnt residues, then apply a ceramic hob cleaner with a soft cloth. Avoid abrasive pads or harsh chemicals.
What do the error codes E1 or E2 mean?
Error code E1 typically indicates a temperature sensor fault. E2 may indicate an oven overheat condition. Consult the manual for specific codes, and if persistent, contact customer support.
Can I use aluminum foil in the oven?
Avoid placing aluminum foil directly on the oven bottom as it can damage the enamel and cause poor heat distribution. It may be used on a baking tray or to cover dishes, but ensure it does not touch the heating elements.
How to replace the oven light bulb?
Disconnect the cooker from the power supply. Remove the glass cover protecting the bulb. Unscrew the old bulb and replace it with a 25W/300°C compatible bulb. Reattach the cover and restore power.
Is the oven self-cleaning?
No, this model requires manual cleaning. The enamel interior can be cleaned with mild detergent and warm water. Avoid abrasive cleaners. The oven door is removable for easier access.
What is the maximum oven temperature?
The maximum temperature for this oven is 250°C. Always refer to the temperature knob settings and do not exceed recommended temperatures for baking or roasting.
How to activate the child lock?
The child lock is typically activated by pressing and holding the lock button (if equipped) for 3 seconds, or following a specific button sequence as described in the manual. This prevents accidental operation.
Why is the hob not heating?
Check that the power supply is connected and the circuit breaker is not tripped. Ensure the zone is selected (knob turned) and that the safety cut-off is not activated due to overheating. If the issue persists, contact service.
How to install the cooker?
Installation must be carried out by a qualified technician. Ensure the cooker is placed on a level surface with proper ventilation. Connect to the mains according to local electrical regulations. Do not block ventilation slots.
User questions about HKS 9330 BLOMBERG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Cooker in PDF format for free! Find your manual HKS 9330 - BLOMBERG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HKS 9330 by BLOMBERG.
USER MANUAL HKS 9330 BLOMBERG
Exterior view of a square baking tray with a mesh pattern (no text or symbols)Kuchenblech
Diagram showing a fire with smoke rising above a building, crossed out by a black X (no text or symbols)natural_image
Diagram showing two labeled oval shapes (1 and 2) with a diagonal line, no text or symbols present.1 Position 1
2 Position 2
3 Position 3
Cross-sectional diagram of a device showing internal components and wiring (no text or symbols)


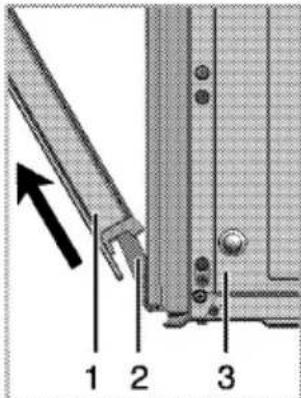

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating flow or movement.Ofentür reinigen

