USER MANUAL E-PL3 OLYMPUS

4. Shooting and viewing movies

Sending and receiving images Using OLYMPUS Viewer 2/[ib]

10. Customizing camera settings

System chart Index H Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference. 1 We recommend that you take test shots to get accustomed to your camera before taking important photographs. H The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product H The contents in this manual are based on firmware version 1.0 for this camera. Ifthere are additions and/or modifications of functions due to firmware update for the camera, the contents will differ. For the latest information, please visit the Olympus website.

= This notice concerns the supplied flash unit and is chiefly directed to users in North America. Information for Your Safety IMPORTANT SAFETY INSTRUCTIONS When using your photographic equipment, basic safety precautions should always be followed, including the following: + Read and understand all instructions before using. + Close supervision is necessary when any flash is used by or near children. Do not leave flash unattended while in use. + Care must be taken as burns can occur from touching hot parts. + Do not operate if the flash has been dropped or damaged - until it has been examined by qualified service personnel + Let flash cool completely before putting away. + To reduce the risk of electric shock, do not immerse this flash in water or other liquids. To reduce the risk of electric shock, do not disassemble this flash, but take it to qualified service personnel when service or repair work is required. Incorrect reassembly can cause electric shock when the flash is used subsequenty. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fre, electric shock, or injury to persons.

SAVE THESE INSTRUCTIONS

Indications used in this manual The following symbols are used throughout this manual. Important information on factors which may lead to a malfunction @ Cautions | or operational problems. Also warns of operations that should be absolutely avoided. A Notes Points to note when using the camera. F1 Ti Useful information and hints that will help you get the most out of 1ps your camera. TE Reference pages describing details or related information.

Unpack the box contents The following items are included with the camera. If anything is missing or damaged, contact the dealer from whom you purchased the Body cap USB cable AV cable Camera CB-USB6 (Monaural) CB-AVC3 + Flash case + Computer software CD-ROM +_ Instruction manual + Warranty card Flash Lithium ion Lithium ion FLLM1 battery charger PS-BLS1 (BLS-1) PS-BCS1 (BCS-1) or BLS-5 orBCS-5 Attaching the strap À Thread the strap in the direction of 2 Lastly, pull the strap tight making the arrows. sure that it is fastened securely. + Attach the other end of the strap to the other eyelet in the same way.

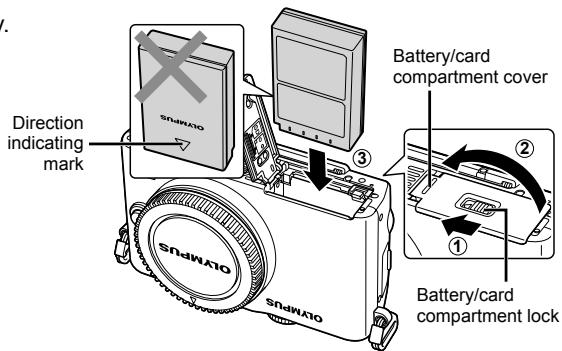

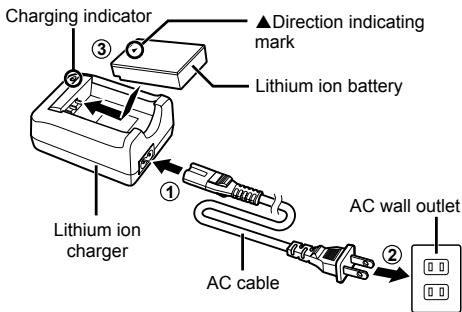

Buroos 10} suoirje. Eu Charging and inserting the battery 1 Charging the battery. Charging indicator Charging indicator ADirection indicating BCS-1|BCS5 CR. mark Charging in Lights orange Lithium ion battery

(Charging time: Up to approximately AC wall outlet 3 hours 30 minutes) Liu ion charger ° ec AC cable © cautions + Unplug the charger when charging is complete. + Use only compatible battery chargers to charge rechargeable batteries. BLS-1 batteries must be charged using the BCS-1, BLS-5 batteries using the BCS-5. progress (Charging Ligns | of (complete blue (Charging error | Blinks orange 2 Loading the battery. Battery/card compartment cover Direction indicating mark Battery/card compartment lock Removing the battery Turn off the camera before opening or closing the battery/card compartment cover. To remove the battery, fist push the battery lock knob in the direction of the arrow and then remove. © cautions + Contact an authorized distributor or service center if you are unable to remove the battery. Do not use force. Notes +_Itis recommended to set aside a backup battery for prolonged shooting in case the battery in use drains.

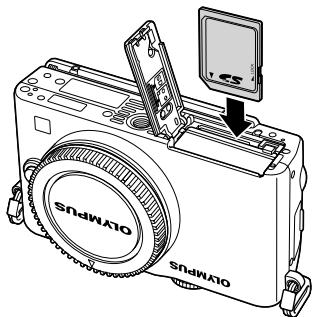

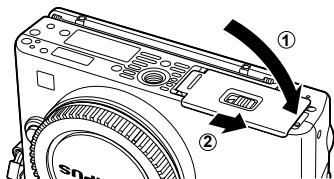

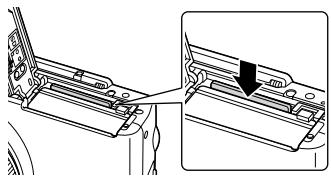

Eu Inserting and removing cards 1 Loading the card. +_ Insert the SD/SDHC/SDXC/Eye-Fi card (referred to as “card” in these instructions) until ilocks in place. LF “Card basics” (P. 99) © cautions + Turn off the camera before loading or removing the card. epinf 9iseg

Removing the card Press the inserted card lightly and it will be ejected. Pull out the card. © cautions + Do not remove the battery or card while the card write indicator (P. 24) is displayed. Burjooys 10} su 2 Closing the battery/card compartment cover. + Close the cover and slide the battery/card compartiment lock in the direction shown by the arrow. © cautions + Close the battery/card compartment cover when using the camera.

Eu Attaching a lens to the camera 1 Remove the body cap from the camera and the rear cap from the lens.

2 Attach a lens to the camera. © cautions + Make sure the camera is turned off. + Do not press the lens release button. + Do not touch internal portions of the camera. + Align the lens attachment mark (red) on the camera with the alignment mark (red) on the lens, then insert the lens into the camera's body. + Rotate the lens in the direction indicated by the arrow until you hear it click. 3 Remove the lens cap. Removing the lens from the camera While pressing the lens release button, rotate the lens in the direction of the arrow. LT ‘interchangeable lenses" (P. 100)

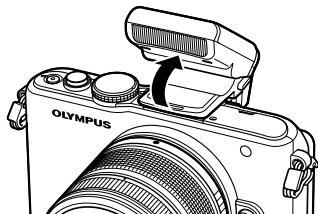

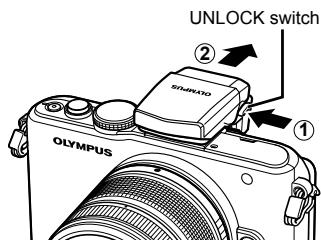

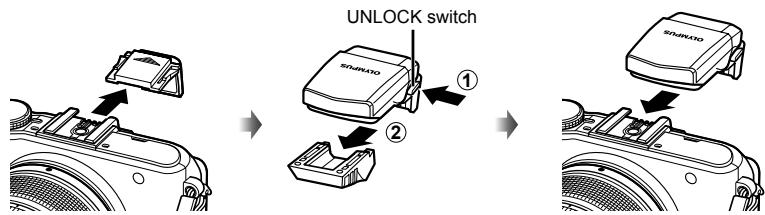

Eu Attaching the flash unit 1 Remove the terminal cover from the flash unit and attach the flash to the camera. + Slide the flash unit all the way in, Stopping when it contacts the back of the shoe and is securely in place. epinf 9iseg UNLOCK switch 2 To use the flash, raise the flash head. + Lower the flash head when the flash is not in use.

Eu Power on 1 Press the ON/OFF button to turn on the camera: When the camera is tumed on, the (blue) power lamp will light and the monitor will turn on. When the camera is tumed on, dust reduction will be performed to remove dust from the surface of the image sensor filer. To turn off the power, press the ON/OFF button again. 2 Setthe mode dial to AU. = ON/OFF button = Monitor Battery level 74 (green): Camera ready to shoot Displayed for about 10 seconds after the camera is tumed on. ZA (green): Low battery È CA (blinks red): Charge the battery Available recording time 2 Be Number of storable still pictures Using the Monitor You can adjust the angle of the monitor.

Eu Setting the date/time Date and time information is recorded on the card together with the images. The file name is also included with the date and time information. Be sure to set the correct date and time before using the camera. 1 Display the menus. + Press the MENU button to display the menus. epinf 9iseg

Dante .| EE © Ésput «| n T ES SE > | | 2 MENU button ni 2 Select [@] in the [f] (setup) tab. + Use A V to select [f] and press D>. + Select [©] and press D 3 Set the date and time. + Use D> to select items. + Use A V to change the selected item. + Use A V to select the date format. Burjooys 10} su ‘The time is displayed using a 24-hour clock. 4 Save settings and exit. + Press © to set the camera clock and exit to the main menu. + Press the MENU button to exit the menus.

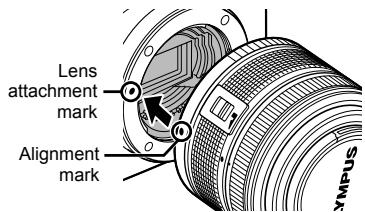

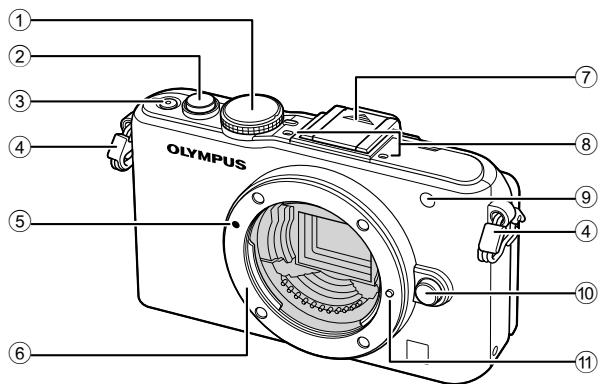

Lens attachment mark P.6 Mount (Remove the body cap before attaching the lens.) Hot shoe cover Stereo microphone …P. 62,68 Self-timer lamp/AF iluminator en .P. 49/P. 82

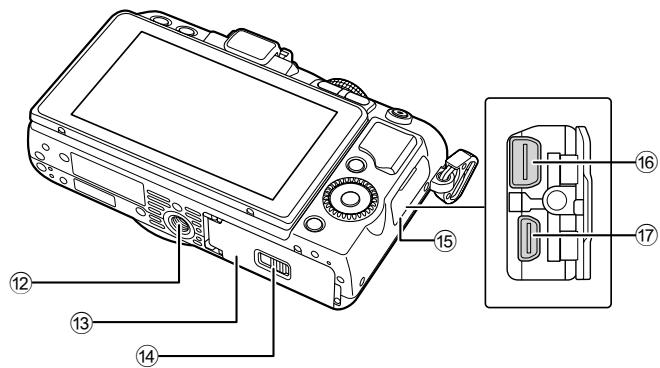

10|EN Lens release button Lens lock pin TTripod socket Battery/card compartment cover. Battery/card compartment lock . Connector cover Multi-connector …. nu HDMI micro connector (type D)

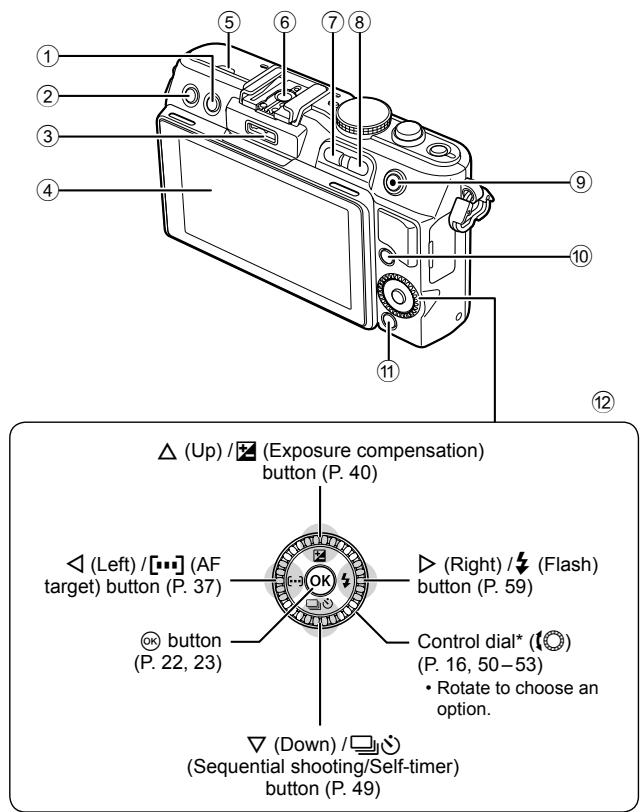

< (Left) /Cni] (AF D> (Right) /4 (Flash) target) button (P. 37) —+ ÿ— button (P. 59) S @ button Control dial* (3) (P.22, 23) (P. 16, 50-53) + Rotate to choose an option. V (Down) /Œjù) (Sequential shooting/Self-timer) button (P. 49) @ ff (Erase) button … .P.17,63 ® Q button. 33, 38, 63, 64 @ ©] (Playback) button. P.16,63 @) © (Movie) button. “P 18, 15, 61, 65, 80 @ Accessory port. 4 INFO (Information display) button 24, 25, 32-34 & Monitor - @ Speaker 4) MENU button. . 23 © Hot shoe 42 Arrow pad Control dial ((C) P. 16, 50-53 Fn/Æ button … *_In this manual, the {©} icon represent operations performed using the control dial. EN|11

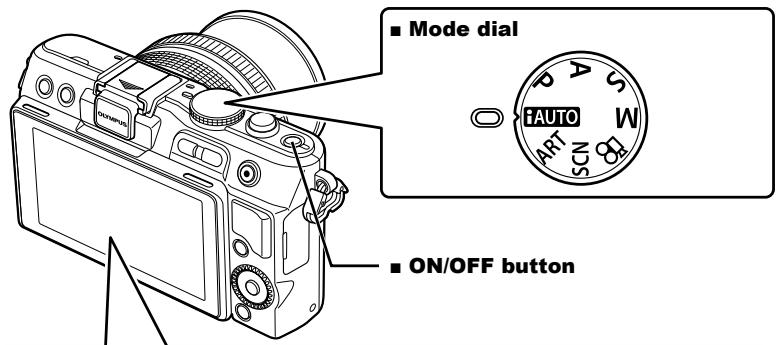

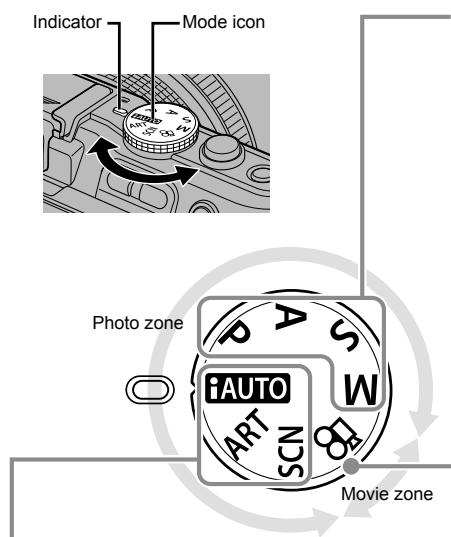

Eu Camera controls Mode dial Use the mode dial to select the shooting mode. After choosing the shooting mode, use the shutter button to take photographs and the © button to shoot movies. epinf oiseg = Advanced shooting modes P__ [Program shooting (P. 50) A |Aperure priority shooting (P.51) g | Shutter priority shooting (P. 52) M | Manual shooting (P. 53) + For more advanced shooting and greater creative control, you can set the aperture value and shutter speed. + The settings made in the advanced shooting modes are retained even if the camera is tumed off.

= Easy shooting modes AUTO (P. 20) * NIRE isolctd, ho camera automatialy optimizes settings to suit the subject. ART | Art fier (P. 18) Select ART or SCN options according to your SON | Scene (P. 19) subject or crealve intent. The camera optimizes settings automatically. When rotating the mode dial or turning off the power in the easy shooting modes, functions with changes made to their settings are restored to the factory default settings. É Tips + Resetting camera settings: [& “Restoring default or custom settings” (P. 35) 12|EN

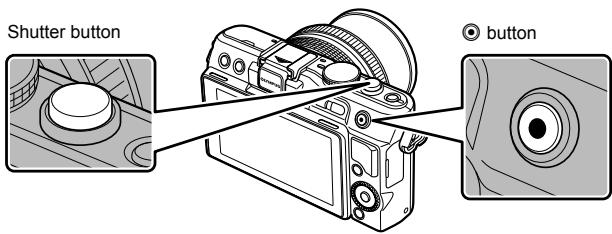

© button Mode Photos: shutter button Movies: © button Aperture and shutter speed are automatically adjusted for optimal results. You control aperture. You control shutter speed. &lol»>| © You control aperture and shutter speed. A full auto mode in which the camera automatically optimizes settings for the current scene. Select an art filter. Select a scene. The camera automatically adjusts settings and records a movie. Photographs are recorded at the settings selected in [R?Mode]. Adjust shutter speed or aperture for different effects while shooting movies. = Taking photographs during movie recording To take a photograph during movie recording, press the shutter button. Press the © button to end recording. Three files will be recorded to the memory card: the movie footage preceding the photograph, the photograph itself, and the movie footage following the photograph. flash can not be used. © cautions + Image size and quality for photographs are independent of movie frame size +_ The autofocus and melering used in movie mode may differ from that used to take photographs. +_The © button can not be used to record movies in the following instances: shutter button pressed halfway/BULB/Sequential shooting/PANORAMA/3D/ multiple exposure, etc. (stil photography also ends) Oniy one photograph can be taken at a time during movie recording the self-timer and epinf oiseg

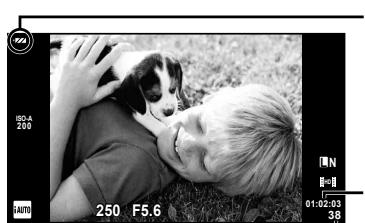

Eu Taking photographs/shooting movies 1 Frame the shot. + Be sure your fingers, the Strap, or other objects do not obstruct the lens. epinf oiseg Horizontal grip Vertical grip Using lenses with an UNLOCK switch Retractable lenses with an UNLOCK switch can not be used while retracted. Turn the zoom ring in the direction of arrow (1) to extend the lens ((2)). To store, turn the zoom ring in the direction of arrow {@) while sliding the UNLOCK switch (®).

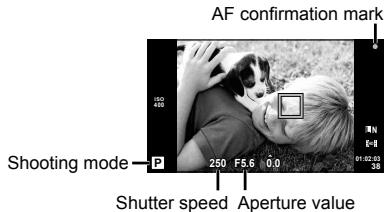

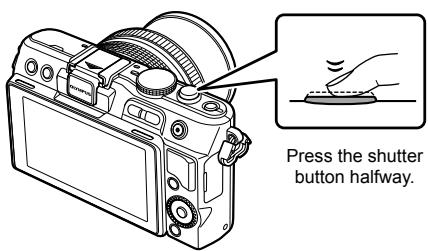

2 Adjust the focus. + Light} press the shutter button down to the first position (press the shutter button halfway). AF target _AF confirmation mark Press the shutter button halfway. Shutter speed Aperture value +_ The AF confirmation mark (@ or ©) will be displayed and focus wil lock. © | Lenses that supports Hi-Speed Imager AF* © | Lenses with other Four Thirds mounts

• Visit our website for more information. +_ The shutter speed and aperture value that have been set automatically by the camera are displayed. 14] EN

Pressing the shutter button halfway and all the way down The shutter button has two positions. The act of lighiy pressing the shutter button to the first position and holding it there is called “pressing the shutter button halfway," that of pressing it all the way down to the second position “pressing the shutter button all (or the rest of) the way down.” Press the rest of CZ Press halfway the way down Æ * ET » 3 Release the shutter. Press the rest of Taking photographs Press halfway the way down Press the shutter button all the way (fully). . S +_The shutter sounds and the picture is Z » > taken. Recording movies Release the shutter button and press the © button to begin recording. Press the © button again to end recording. Ë Tips +_ lfno operations are performed for a minute, the camera enters “sleep” (stand-by) mode Lo turn off the monitor and to cancel all actions. The camera aclivates again when you touch any button (the shutter button, [>] button, etc.). [Sleep]: L& “Customizing camera settings” (P. 81) © cautions +_Ifthe camera is used for extended periods, the temperature of the image pickup device will rise and noise and colored fog may appear in images recorded at high ISO sensitivities. Choose a lower ISO sensitivity or turn the camera off for a short period.

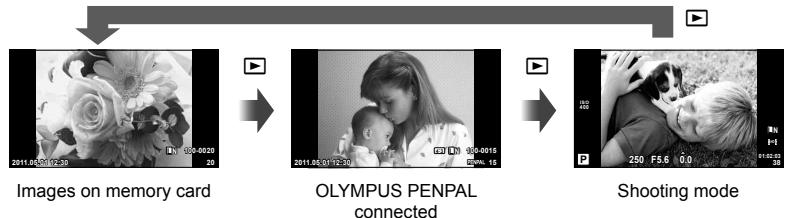

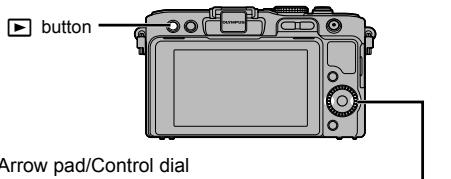

Eu Playback/Erasing iewing Images " Single-frame playback + Press the [7] button to display your most recent photograph or movie.

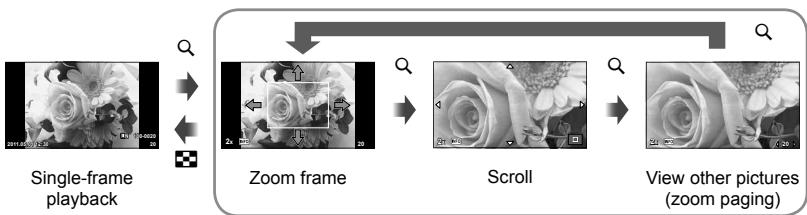

© button Arrow pad/Control dial Displays the previous frame Displays the next frame # Close-up playback +_ In single-frame playback, press @ to zoom in up to 14%; press [3 to return to single-frame playback. index display/Calendar display + To view multiple frames, press ÊS during single-frame playback. To start calendar playback, press the J button repeatedly. + Press the @ button to view the currently selected picture full frame: Index display = Movie playback Select a movie and press @ to display the playback menu. Select [Movie Play] and press @ to begin playback + To interrupt movie playback, press MENU. 16|EN

Volume Volume can be adjusted by pressing A or V during single-frame and movie playback.

Erasing images Display an image you want to delete and press 1. Select [Yes] and press @) You can also select multiple images for deletion. EF “Selecting images” (P. 65) button a) suoreiedo 2iseg Protecting images Protect images from accidental deletion. Display an image you wish to protect and press @ to display the playback menu. Select [O-n] and press @, and then press A to protect the image. Protected images are shown by a On protect) icon. Press V to remove protection. You can also protect multiple selected images. “Selecting images” (P. 65) © cautions + Formatting the card erases all images even if they have been protected. EN|17

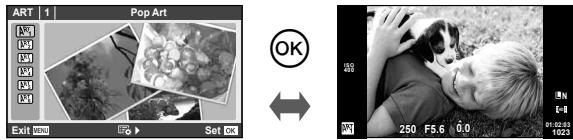

Eu Using art filters 1 Rotate the mode dial to ART. + Amenu of art filters will be displayed. Select a filter using À V. the monitor. Press @ to return to the art filter menu. = Types of art filters Pop Art Soft Focus 83 Grainy Film 2 Shoot. +_ To choose a different setting, press @ to display the art filter menu Art effects Ar fiers can be modified and effects can be added. Pressing D> in the art filter menu displays additional options. Modifying filters Option Lis the original filter, while options Il and on add effects that modify the original filter. Adding effects* Soft focus, pin-hole, frames, white edges, starlight *_ The effects available vary with the selected filter. © cautions + IF {RAM is currently selected for image quality, image quality will automatically be set to [BN+RAW]. The art filter will be applied to the JPEG copy only, + Depending on the subject, tone transitions may be ragged, the effect may be less noticeable, or the image may become more “grainy." + Some effects may not be visible in live view or during movie recording. + Playback may differ according to the filters, effects, or movie quality settings applied. 18|EN

Eu Shooting in scene mode 1 Rotate the mode dial to SCN.

+ Press @ or press the shutter button halfway to display the view through the lens in the monitor. Press @ to retum to the scene menu. y = Types of scene modes o, @ Portrait Nature Macro o e-Portrait Candle 2 M Landscape Sunset œ® Éa Landscape+Portrait Documents ni Sport Panorama (P. 54) = F1 Night Scene Fireworks 3 Night+Portrait Beach & Snow o Children © Fisheye Effect F1] High Key © Wide-angle Œ Lowkey D Macro DIS Mode F2) 3D Photo Macro 2 Shoot. + To choose a different setling, press @ Lo display the scene menu. © cautions +_In {e-Portrait] mode, two images are recorded: an unmodified image and a second image to which [e-Portrait] effects have been applied. The unmodified image is recorded using the option currently selected for image quality, the modified copy at an image quality of JPEG ([-quality (2560 x 1920). + [2 Fisheye Effect], [D2 Wide-angle], and [E2 Macro] are for use with optional converter lenses. + Movies can not be recorded in [e-Portraif], [Panorama], or [3D Photo] mode. EN | 19

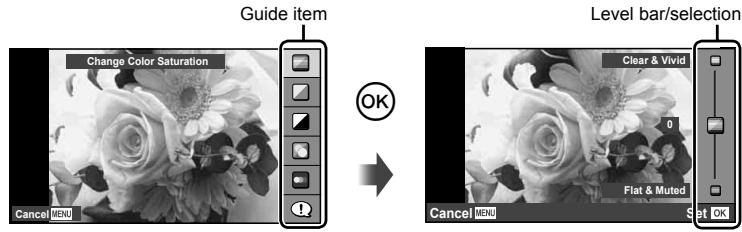

Live guides are available in iAUTO (HUE) mode. While AUTO is a full auto mode, live guides make it easy to access a variety of advanced photographic techniques. Guide item Level bar/selection Guide item Level bar/selection Affects Change Color Saturation Clear & Vivid €} Flat & Muted Saturation, contrast, gradation, etc. Change Color Image Warm æ co Color temperature, gradation, etc. Change Brighiness Bright e ax Exposure compensation, gradation, etc. Blur Background Blur srar Aperiure, live preview, etc. Express Motions Blurred ; Motion* 4) Stop Motion Shutter speed {1/2s-fastest speed), frame rate, etc. Shooting Tips + Tips For Child Photo + Tips For Pet Photo + Tips For Flower Photo + Tips For Cuisine Photo + Tips For Framing :_ Tips With Accessory

• Monitor frame rate slows. 20|EN

1 Setthe mode dial to ED. 2 After pressing @ to display the live guide, use the A V buttons on the arrow pad to highlight an item and press @) to select. Guide item 3 Use AV on the arrow pad to choose the level. +_ If [Shooting Tips] is selected, highlight an item and press @ to view a description. + Press the shutter button halfway to select +_ The effect of the selected level is visible in the display. If Blur Background] or [Express Motions] is selected, the display will return to normal, but the selected effect will be visible in the final photograph. 4 Shoot. + Press the shutter button to shoot. + To clear the live guide from the display, press the MENU button. © cautions + IF{RAW/ is currently selected for image quality, image quality will automatically be set to LEN+RAWI. + Live guide settings are not applied to the RAW copy. + Pictures may appear grainy at some live guide setting levels. + Changes to live guide setting levels may not be visible in the monitor. + The flash can not be used with the live guide. + Changes to live guide options cancel previous changes. + Choosing live guide settings that exceed the limits of the camera exposure meters may result in pictures that are over- or under-exposed. + InP, A, S, and M modes, live guides can be displayed by pressing the Fn button. Pictures will be taken using live guide settings. [Button Function]: & “Customizing camera settings” (P. 81) epinf 9iseg

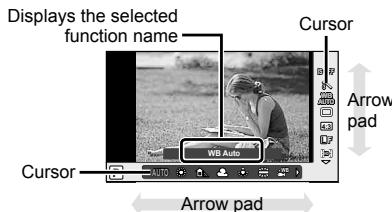

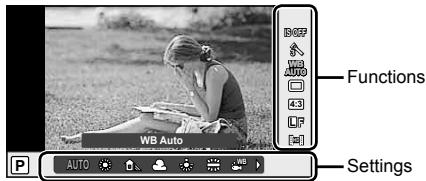

Eu Using live control The live control can be used to adjust settings in P, S, A, M, and @ modes. Using live control allows you to preview the effects of different settings in the monitor. À custom setting is available that allows the live control to be used in other modes (P.81). n Available settings Image stabilize: . Picture mode’ Scene mode? Art filter mode’? Record mode. Flash mode” Flash intensity control"? P. 60 Metering mode" AF mode. Sequential shooting/self-timer . Aspect ratio""2 #1 P, À, S and M modes only. *2 ART and SCN oriy. *3 @ mode only. 1 Press @ to display the live control. + To hide the live control, press @ again. 2 Use the À Vbuttons on the Displays the selected Cursor arrow pad to select settings, use <> to change the selected setting, and press @). +_ The selected settings take effect automatically if no operations are performed for about 8 seconds. .P.62 © cautions + Some items are not available in some shooting modes. É Tips + For information on displaying or hiding the live control [ÉRControl Setings]: EF *Customizing camera settings” (P. 81) 22|EN

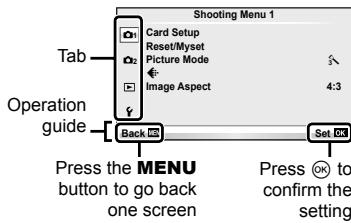

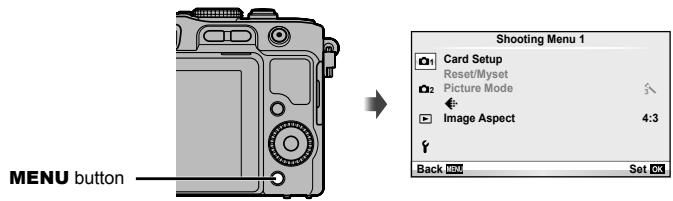

1 Press the MENU button to display the menus. e@ OL [= Menus = =. ; ES © © Preliminary and basic shooting Tab Es, « 9 options Ce à £ Advanced shooting options operation [4] ©) Playback and retouch options guide {= == Custom menu* @ Accessory port menu Press the MENU Press @ to Camera setup button to go back confirm the w (e.g., date and language) one screen setting u *_ Not displayed at default settings. 5 2 Use AV to select a tab and press @. 3 Select an item using À V and press €? to display options for the rs y nl selected item. Es The current setting 5 Function is displayed © se ; RTL [55 = © 1 T ao ” es 4 ° œ Eine Ha Le JE = sim se an 4 Use AV to highlight an option and press @ to select. + Press the MENU button repeatedly to exit the menu. Notes + For details on the functions that can be set with the menu, refer to “Menu directory" (P. 107). + A guide is displayed for about 2 seconds after you select an option. Press the INFO button to view or hide guides. Ë Tips + Camera settings can be customized to your shooting style: Use the custom menus to customize camera settings to your own goals or taste. Custom menus are not displayed by default, and you will need to display the menus before proceeding. LE “Customizing camera settings” (P. 81) Using accessory port devices: Settings for the EVF and OLYMPUS PENPAL accessories are accessed from {he accessory port menu. This menu is not displayed by default, and you will need to display it before proceeding. E& *Customizing camera settings” (P. 81) EN 23

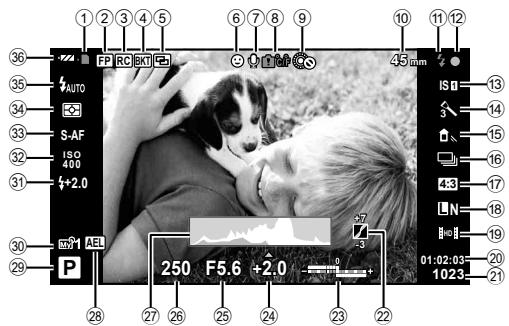

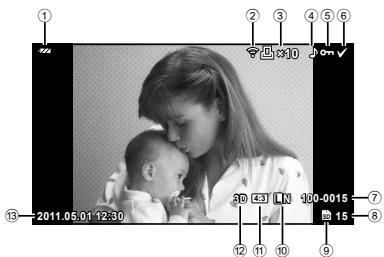

Card write indicator. Super FP flash RC mode. ) Auto bracket Multiple exposure Face priority © …. Movie sound . . Internal temperature w saming QC/F Lock Focal length Flash. {blinks: charging in progress, lights up: charging completed) AF confirmation mark... Image stabilizer… Ant filter Scene mode. Picture mode. 45 White balance …… 4 Sequential shooting/self-timer . 4 Aspect ratio.

4) Record mode (still images)

4) Record mode (movies)

@ Available recording time @ Number of storable stil pictures ….P. 106

Flash mode. 45 Battery check #2 Litup (green) : Ready for use displayed for about ten seconds after the camera is turned on) € Litup (green) : Battery is running low C2 Blinks (red) : Charging required You can switch the monitor display using the INFO button. LE “Switching the information display” (P. 32)

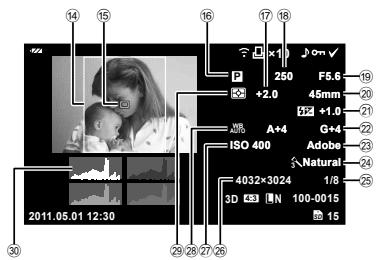

) Histogram You can switch the monitor display using the INFO button LE ‘Displaying information during playback" (P. 33) EN 25

Es Shooting [Ex S Taking pictures with automatic settings > 12 ra Easy photography with special effects > Antfilter (ART) 18 LT Choosing an aspect ratio >» Aspect ratio 48 4 Quickly matching settings to the scene > Scene (SCN) 19 2 Pro-level photography made simple > Live guide 20 ‘Taking pictures so that whites come out white and blacks come out black > Exposure compensation si Live guide 20 Taking pictures with a blurred background > CROP ERIEEMHAOECEIEERUEE Aperture priority shooting 51 Taking pictures that stop the subject in Live guide 20 motion or convey a sense of motion Shutter priority shooting 52 White bal 43 Taking pictures with the correct color > re paiance One-touch white balance 44 Processing pictures to match the subject/ > Picture Mode 45 Taking monotone pictures Art filter (ART) 18 AF target 37 Focus/Focusi > CANCER Zoom frame ÀF/z00m AF 36 When the camera won't focus on your subject > Focus lock 37 Focusing on a small spot in the framel > Zoom frame AEL00m AF D confrming focus before shooting Focus lock 37 R ing photographs after focusi > FERMEMENT MIRE I Eu EME C-AF4TR (AF Tracking) 36 Tuning off the beep speaker > m)) (Beep sound) 84 Disabling the flash/taking photos without > Fash 59 the flash ISOIDIS Mode 10 image Stabilizer 42 Anti-Shock 84 Reduci hakc > educing camera shake es %é Remole cable 102 Taking pictures of a subject against > Flash shooting 59 backlight Gradation (Picture Mode) 45 Bulb shooting 53 Photographing fireworks > otographing firewor Scene (SCN) n 26|EN

Reducing image noise (motting) Taking pictures without white subjects appearing too white or black subjects appearing too dark Optimizing the monitor/ adjusting monitor hue Checking set effect before taking a picture ‘Taking pictures while checking the level of the camera/Shooting with deliberate composition Zooming in on photos to check focus Self-portraits Sequential shooting Extending the useful life of the battery increasing the number of pictures that can be taken Playback/Retouch Viewing images on a TV. Viewing slideshows with background music Brightening shadows Dealing with red-eye Printing made easy. Commercial prints Simple photo sharing Camera Settings Restoring default setings Saving the settings Changing the menu display language CRE Noise Reduct. Gradation (Picture Mode) Histogram Exposure compensation Tone control Monitor brightness adjustment Live View Boost Mu view display Preview function Test Picture Displayed Grid (E/info Setings) Auto®] (Rec View) mode2 (>) Close Up Mode) Sel-timer Sequential shooting Sleep Record mode Playback on TV Slideshow Shadow Adj (JPEG Edit) Redeye Fix (JPEG Edit) Direct printing Creating a print order OLYMPUS PENPAL

Preparations for shooting Charging and inserting the battery

Inserting and removing cards …5 Attaching a lens to the camera...6

Attaching the flash unit … Power on. . Setting the date/time. 9 Names of parts and fun Names of parts … Camera Camera controls … Mode dial Basic operations . Taking photographs/shooting movies. Playback/Erasing... Viewing Images Volume Erasing images Protecting images 17 Using art filters… Shooting in scene mode. Using live guides … Using live control. Using the menus. Information displayed in the monitor . Shooting Playback. Quick task index Basic photography/ frequently-used options 32 Switching the information display Choosing shooting controls . Displaying information during playback Other uses for the INFO button Restoring default or custom settings. Using reset settings. Saving Myset.. Using Myset: Choosing a focus mode {AF mode)... Choosing a focus target (AF target). Focus lock Quick AF target selection Toggling quickly between ÂF and MF... Zoom frame AF/zoom AF . Face priority AF/ pupil detection AF … Taking pictures using face priority. Controlling exposure {exposure compensation)... Previewing the effects of exposure compensation and white balance .

Changing the brightness of highlights and shadows . Choosing how the camera measures brightness {metering) A1 Exposure lock (AE lock) .………41 Reducing camera shake the image stabilizer). Adjusting color {white balance) White balance compensation One-touch white balance.

Processing options {picture mode) . Image quality (record mode). Choosing a record mode

Setting the image aspect ISO sensitivity. Sequential shootingl using the self timer …

“point-and-shoot" photography {P program mode] Other shooting options Choosing aperture (A aperture-priority mode). Choosing shutter speed (S shutter-priority mode).

Choosing aperture and shutter speed (M manual mode). Choosing when the exposure ends.

Varying settings over a series of photographs (bracketing).…….S {Digital Tele-converter) Flash shooting Using a flash (flash photography) Adjusting flash output {Flash intensity control)... Using external flash units designated for use with this camera. Other external flash units Shooting and viewing movies 61 Changing the settings for movie recording Adding effects to a movie. Movie sound options (recording sound with movies) Viewing movies … Playback options Single-frame playback. Index display/ calendar display . Playback zoom {close-up playback). Selecting images … sJuejuo9 Jo ejqeL [| EN |29

sJuejuo9 Jo ejqeL || 30|EN Table of Contents Canceling all protections. All-frame erase . Rotate … Slideshow. Editing still images. Image overlay Audio recording. Viewing camera images on TV. Sending and receiving images 71 Sending images. Receiving images! adding a host. Editing the address book … Creating albums … Using OLYMPUS Viewer 2/ Lib] Windows Macintosh Copying pictures to a computer without OLYMPUS Viewer 2/ lib] Printing pictures Print reservation (DPOF). Creating a print order... Removing all or selected pictures from the print order. 77 Direct printing (PictBridge) Easy printing Custom printing Camera setup 80 Setup Menu .80 © (Date/time setting .80 @Æ (Changing the display language) »} (Monitor brightness ‘adjustment Rec View . #/©@ Menu Display. Firmware. Customizing camera settings Before Using the Custom/ Accessory Port Menus Custom Menu options. MAF/ME . # Button/Dial . Release. Disp/m))/PC. Exp/Æ/1SO. % Custom © é-/Color WB.. Record/Erase fl Movie [Fn]Function, © Function Accessory port menu options. OLYMPUS PENPAL Share. & OLYMPUS PENPAL Album … Electronic Viewfinder .

Using the super control panel...91 Recording movies with the shutter button. Taking a photograph when recording ends. Wireless remote control flash photography .

Information 94 Shooting tips and information. .94 Error codes …. Cleaning and storing the camera. Cleaning the camera Storage Cleaning and checking the image pickup device. Pixel mapping - Checking the image processing functions. Card basics… Usable cards... Formatting the card . Battery and charger Using your charger abroad 100 Interchangeable lenses. M.ZUIKO DIGITAL lens specifications. Principal Accessories Mount adapter .. Remote cable (RM-UC1).. Converter lenses … Macro arm light (MAL-1) Microphone set (SEMA-1) 102 Electronic viewfinder (VF-2) 102 Exposure warning display.….…103 Flash modes that can be set by shooting mode. Flash synchronization and shutter speed External flash unit . Record mode and file size/ number of storable still pictures … Menu directory. Specifications … SAFETY PRECAUTIONS 113 SAFETY PRECAUTIONS . 113 D'ACURLETS 120 Index 122 sJuejuo9 Jo ejqeL [| EN |31

1 Basic photography/frequently-used

suondo pesn-Ajuenbay/Ayde1Bojoud aiseg The INFO button can be used to choose the information and type of controls displayed during shooting.

1) Switching the information display

Press the INFO button to choose the information displayed when shooting. INFO “1 You can display a framing grid or choose the type of grid displayed using [Æ3/Info Settings] > [LV-Info]. FF “Customizing camera settings” (P. 81) *2 Displayed when [On] is selected for [EÆd/Info Settings] > [LV-Info]. EF “Customizing camera settings” (P. 81) Image only Multi view display ? Choosing shooting controls Shooting options can be displayed by pressing @. You can choose the types of display available using the [ÉAControl Settings] option in the custom menus (P. 81). ART/SCN Art fiter menu

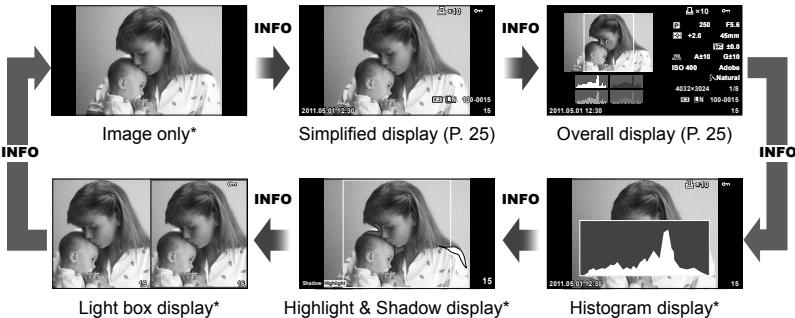

Displaying information during playback The INFO button can be used to choose the information displayed during playback. Light box display" Highlight & Shadow display* Histogram display"

• Displayed when [On] is selected for [Æï/Info Settings] > [F] Info]. EF “Customizing camera settings” (P. 81) Histogram display Display a histogram showing the distribution of brighiness in the image. The horizontal axis gives the brighiness, the vertical axis the number of pixels of each brighiness in the image. Areas above the upper limit at shooting are displayed in red, those below the lower limit in blue, and the area metered using spot metering in green Highlight & Shadow display Areas above the upper limit of brightness for the image are shown in red, those below the lower limit in blue. [Histogram Settings]: L& “Customizing camera settings” (P. 81) Light box display Compare two images side-by-side. Press @ to select the image on the opposite side of the display. In addition to adjusting settings using [Æ%/Info Settings] in the custom menus, you will also have to select [mode2] for [[>] Close Up Mode]. IF “Customizing camera settings" (P.81) + The base image is displayed on the right. Use <[> to select an image and press @ to move the image to the left. The image to be compared to the image on the left can be selected on the right. To choose a different base image, highlight the right frame and press @ + Press Q to zoom in on the current image. To view other areas of the picture, press the INFO button and use À V or the control dial. + Use À V <B> to view other areas of the picture. The image displayed changes each time Q is pressed suondo pesn-Ajusnbey/Ayde1Bojoud oiseg Q EN 33

suondo pesn-Ajusnbey/Ayde1Bojoud oiseg |. | 34|EN Other uses for the INFO button = One-touch white balance To view the one-touch white balance dialog, press the INFO button in the one-touch white balance menu (P. 44). # Color temperature To view the color temperature dialog, press the INFO button in the custom white balance menu (P. 43). = Playback zoom To zoom an image in or out, press the © button to initiate playback zoom and then press the INFO button and use AV. n Tone control Exposure compensation, aperture, and shutter speed can be adjusted by pressing the FA button. The tone control dialog can be displayed by pressing the INFO button after pressing the [4 button. You can then use <[> to choose the tone level. LS “Changing the brightness of highlights and shadows” (P. 40) » Focal length To choose the focal length for image stabilization, press the INFO button in the IS mode dialog and use À V <D> or the control dial. FF “Reducing camera shake (the image stabilizer)" (P. 42)

<ETEDB»E = Help Help is displayed automatically about 2 seconds after an item is selected. To disable help, press the INFO button. Press the INFO button again to re-enable help.

Restoring default or custom settings Camera settings can be easily restored to one of three presets. Reset: Restore default settings. Myset: Restore preselected settings for P, A, $, or M mode. The shooting mode does not change. Up to four sets of preselected settings can be stored. Quick Myset: Preset settings are used only while the Fn or © button is pressed. Shooting mode is adjusted to the preset settings. [Button Function]: LF “Customizing camera settings” (P. 81) Using reset settings 1 Select [Reset/Myset] in shooting menu Ê} (P. 107). 2 Select [Reset] and press @. + Highlight (Resei] and press L> to choose the reset type. To reset all settings except the time, date, and a few others, highlight [Full] and press LE “Menu directory” (P. 107) 3 Select [Yes] and press @. Saving Myset 1 Adjust settings in order to save. 2 Select [Reset/Myset] in shooting menu 8j (P. 107). 3 Select the desired destination ([Mysett}-[Myset4]) and press D>. + [Set] appears next to destinations ([Myset1}-{Myset4]) to which settings have already been saved. Selecting [Set] again ovenwrites the registered setting + To cancel the registration, select [Reset]. 4 Select [Set] and press @. LE “Menu directory” (P. 107) Using Myset 1 Select [Reset/Myset] in shooting menu €} (P. 107). 2 Select the desired settings (Myset1]-[Myset4]) and press @. 3 Select [Set] and press suondo pesn-Ajusnbey/Ayde1Bojoud oiseg Q EN 35

Choosing a focus mode (AF mode) Select a focusing method (focus mode). 1 Display the live control (P. 22) and select the AF mode item using À V. Select an option with [> and press @. + The selected AF mode is displayed on the monitor.

The camera focuses once when the shutter button is pressed halfway. When the focus is locked, a beep sounds, and the AF S-AF (single AF) | confirmation mark and the AF target mark light up. This mode is suitable for taking pictures of still subjects or subjects with limited movement. The camera repeats focusing while the shutter button remains pressed halfway. When the subject is in focus, the AF confirmation mark lights up on the monitor and the beep sounds when the focus is locked at the first and second time. Even if the subject moves or you change the composition of the picture, the camera continues trying to focus. + Four Thirds system lenses focus using [S-AF]. This function allows you to manually focus on any subject. C-AF {continuous AF) MF (manual focus) suondo pesn-Ajusnbey/Ayde1Bojoud oiseg |. | S-AF+MF After pressing the shutter button halfway to focus in [S-AF] simultaneous use of | mode, you can turn the focus ring to fine-adjust focus manually. S-AF mode and MF mode) Press the shutter button halfway to focus; the camera then tracks and maintains focus on the current subject while the C-AF+TR shutter button is held in this position. CE tracking) + The AF target is displayed in red if the camera can no longer track the subject. Release the shutter button and then frame the subject again and press the shutter button halfway. + Four Thirds system lenses focus using [S-AF]. Ë Tips + The [Ris Priority S] (P. 83) and [Ris Priority C] (P. 83) options can be used to choose whether the shutter can be released when the camera is unable to focus. + [MF Assist] (P. 82) can be used to enable automatic zoom display when the lens focus ring is rotated. + [Focus Ring] (P. 82) allows you to change the rotational direction of the focus ring. © cautions +_ The camera may be unable to focus if the subject is poorly li, obscured by mist or smoke, or lacks contrast. 36|EN

Choosing a focus target (AF target) Choose which of the 35 autofocus targets will be used for autofocus. 1 Press the [ri] button (<) to display the AF target. 2 Use A V <D to select the single target display and position the AF target. + “All targets” mode is restored if you move the cursor off the screen. + You can choose from the following three target types. Press the INFO button and use AV All Targets Single Target Group Target The camera automatically chooses from the full set of focus targets. Select the focus target The camera automatically manually. chooses from the targets in the selected group Focus lock Ifthe camera is unable to focus on your chosen subject, select single target mode and use focus lock to focus on another subject at about the same distance: 1 n [S-AF] mode, position the AF target over the subject and press the shutter button halfway. + Make sure that the AF confirmation mark is lighting up. + Focus locks while the shutter button is pressed halfway. 2 Keeping the shutter button pressed halfway, recompose the photograph and then press the shutter button the rest of the way down. + Do not change the distance between the camera and the subject while pressing the shutter button halfway. Quick AF target selection You can save the selected AF target for quick recall using the Fn or © buttons. + Select the AF target using [[rsi] Set Home] (P. 82). + Use [[Fn) Function] or [© Function] to assign this function to the button. {Button Function]: LS “Customizing camera settings” (P. 81) Toggling quickly between AF and MF The Fn or © button can be used to toggle [MF]. + Use [[Fn) Function] or [© Function] to assign this function to the button. Button Function]: LF “Customizing camera settings” (P. 81) suondo pesn-Ajusnbey/Ayde1Bojoud oiseg Q EN 37

suondo pesn-Ajusnbey/Ayde1Bojoud oiseg |. | 38|EN Zoom frame AF/zoom AF You can zoom in on a portion of the frame when adjusting focus. Choosing a high zoom ratio allows you to use autofocus to focus on a smaller area than is normally covered by the AF target. You can also position the focus target more precisely. 1 Q Press endroit) LE — 7

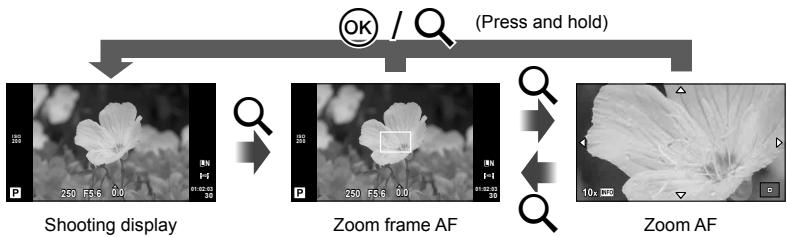

D | | Shooting display Zoom frame AF Q Zoom AF 1 Press the Q button to display the zoom frame. +_Ifthe camera was focused using autofocus just before the button was pressed, the zoom frame will be displayed at the current focus position. + Use A V <D> to position the zoom frame. + Press the INFO button and use A V to choose the zoom ratio. Comparison of AF and zoom frames 2 Press the @ button again to zoom in on the zoom frame. + Use A V <D> to position the zoom frame. + Press the INFO button and use A V to choose the zoom ratio. 3 Press the shutter button halfway to initiate autofocus. Notes + Autofocus is available and pictures can be taken both when the zoom frame is displayed and when the view through the lens is zoomed in. © cautions + Zoom is visible only in the monitor and has no effect on the resulting photographs.

Face priority AF/pupil detection AF The camera detects faces and adjusts focus and digital ESP. Taking pictures using face priority 1 Display the live control (P. 22) and select the face priority item using À V. 2 Use <> to select an option and press

Face Priority Off Face priority of. Face Priority On Face priority on Face & Eye Priority On The autofocus system selects the pupil of the eye closest to the camera for face-priority AF. Face & R. Eye Priority On The autofocus system selects the pupil of the eye on the right for face-priority AF. #)#)9)08 Face & L. Eye Priority On The autofocus system selects the pupil of the eye on the left for face-priority AF. 3 Pointthe camera at your subject. + Ifa face is detected, it will be indicated by a white border. 4 Press the shutter button halfway to focus. + When the camera focuses on the face in the white border, ihe border wil turn green. + _lfthe camera is able to detect the subject's eyes, it will display a green frame over the selected eye. (pupil detection AF) 5 Press the shutter button the rest of the way down to shoot. © cautions + Face priority applies only to the first shot in each sequence taken during sequential shooting + Depending on the subject, the camera may not be able to correctly detect the face. +_In metering modes other than [Æ& (Digital ESP metering)], the camera will meter exposure for the selected position. % Notes + Face priority is also available in [MF]. Faces detected by the camera are indicated by white frames. suondo pesn-Ajusnbey/Ayde1Bojoud oiseg Q EN | 39

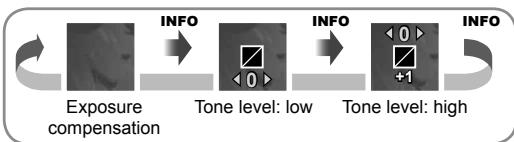

Controlling exposure (exposure compensation) Press the F4 button (A) and use <[> to adjust exposure compensation. Choose positive (‘4") values to make pictures brighter, negative (*-") values to make pictures darker. Exposure can be adjusted by +3EV. Negative (-) No compensation (0) Positive (+) É Tips + To change the exposure adjustment interval. [EV Step]: FF “Customizing camera settings” (P. 81) © cautions + Exposure compensation is not available in ŒM, M, or SCN modes. Previewing the effects of exposure compensation and white balance The effects of exposure compensation and white balance can be previewed in the 4-split screen. 1 Select [On] for [E/Info Settings] > [Multi View] in the #, Custom menu (P. 81). 2 Press the INFO button repeatedly to display the multi view display. +_This function is not available in EXD, ART, SCN or @ mode. 3 Use XD to select the desired value and press @. + Use A V to toggle between the exposure compensation and white balance displays. suondo pesn-Ajusnbey/Ayde1Bojoud oiseg |. | Changing the brightness of highlights and shadows To display the tone control dialog, press the FA button (A) and press the INFO button. Use <[> to choose a tone level. Choose “low” to darken shadows or “high” to brighten highlights.

a LUE Exposure Tone level: low Tone level: high compensation

Choosing how the camera measures brightness (metering) Choose how the camera meters subject brightness. 1 Display the live control (P. 22) and select the metering item using À V. 2 Select an option with <[> and press The camera meters exposure in 324 areas of the frame and optimizes exposure for the current scene or (if an on the subject at the center. BCE? option other than [OFF] is selected for [© Face Priority]) g portrait subject. This mode is recommended for general use This melering mode provides Îhe average m EEE metering between the subject and the metenng background lighting, placing more weight ŒJ Spot metering Choose this option to meter a small area {about 2% of the frame) with the camera pointed at the object you wish to meter. Exposure will be adjusted according to the brighiness at the metered point. Spot metering - CHI highlight control increases spot melering exposure. Ensures bright subjects appear bright. Spot metering - CSA shadow control Lowers spot metering exposure. Ensures dark subjects appear dark. 3 Press the shutter button halfway. + Normally, the camera will start metering when the shutter button is pressed halfway and lock exposure while the shutter button is held in this position. Exposure lock (AE lock) To lock exposure without locking focus, press the Fn or © button. Exposure lock can be used when you want to set focus and exposure separately while recomposing photographs, or if you want to take a series of photographs atthe same exposure. + Assign AEL/AFL to the Fn or © button using [[Fn] Function] or [© Function]. LE “Customizing camera settings” (P. 81) con is displayed when the button is pressed once. Press Exposure locks and a AE lock the shutter button to take a picture. + Press the button again to cancel AE lock. E Tips + To lock exposure while the button is pressed. [AEL/AFL Memo]: To activate AE lock with a set metering mode. [AEL Metering]: EF *Customizing camera settings” (P. 81) suondo pesn-Ajusnbey/Ayde1Bojoud oiseg Q

suondo pesn-Ajusnbey/Ayde1Bojoud oiseg |. | 42|EN Reducing camera shake (the image stabilizer) You can reduce the amount of camera shake that can occur when shooting in low light situations or shooting with high magnification. 1 Display the live control (P. 22) and select the image stabilizer item using À V. 2 Select an option with [> and press @. IS Off Image stabilizer is off. Auto Image stabilizer is on Image stabilization applies only to vertical (1Ê)) camera VerticallS | she. Use when panning the camera horizontal. Image stabilization applies only to horizontal (É4) camera Horizontal IS _ | shake. Use when panning the camera horizontally with the camera held in portrait orientation.

Choosing a focal length (Micro Four Thirds/Four Thirds System lenses excluded) Use focal length information to reduce camera shake when shooting with lenses that are not Micro Four Thirds or Four Thirds system lenses. 1 Select the [Image Stabilizer] item in the live control (P. 22) and press the INFO button. 2 Use <> to choose a focal length and press + Choose a focal length between 8mm and 1000 mm. + Choose the value that most closely matches to the one that is printed on the lens. © cautions + The image stabilizer cannot correct excessive camera shake or camera shake that occurs when the shutter speed is set to the slowest speed. In these cases, it is recommended that you use a tripod. When using a tipod, set [Image Stabilzer] to [OFF]. When using a lens with an image stabilization function, turn off the image stabilizer function of either the lens or the camera. You may notice an operating sound or vibration when the image stabilizer is activated. The image stabilizer will not activate at shutter speeds of over 2 seconds.

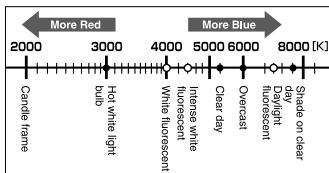

Adjusting color (white balance) White balance (WB) ensures that white objects in images recorded by the camera appear white. [AUTO] is suitable in most circumstances, but other values can be selected according to the light source when [AUTO] fails to produce the desired results or you wish to introduce a deliberate color cast into your images. 1 Display the live control (P. 22) and select the white balance item using À V. äl 2 Select an option using <> and press “ WB mode Coin Light conditions temperature g Used for most light conditions (when there is a futo wie |AUTO| — | white porion framed on he monitor). Use this mode for general use. For shooting outdoors on a clear day, or to 5300K capture the reds in a sunset or the colors in a fireworks display 7500K For shooting outdoors in the shadows on a clear day Preset white 6000K | For shooting outdoors on a cloudy day balance 3000K | For shooting under a tungsten light 4000K | For subjects lit by fluorescent lights — For underwater photography 5500K | For flash shooting One-touch Color | Choose when a white or gray subject can be white @/ | temperature | used to measure white balance and the subject balance @R | setbyone- |is under mixed lighting or lit by an unknown type (P. 44) touch WB._| of flash or other light source. Custom 2000K— | After pressing the INFO button, use <D> white CcwB 14000K buttons to select a color temperature and then balance press @. White balance color temperature As their temperature increases, objects first start to shine red and then to shine blue as the temperature rises further. Color temperature expresses the color of light in this way using absolute temperatures in degrees K (kelvin). + Fluorescent light sources indicated by white dots in the accompanying figure have 2000 colors that differ slightly from those on the color temperature scale: the values shown in the figure have been converted to color temperatures for illustrative purposes. 4000 5000000 ” anoatr|

suondo pesn-Ajusnbey/Ayde1Bojoud oiseg |. | 44|EN É Tips + Removing warm colors from pictures taken using auto white balance under incandescent lighting. [ao Keep Warm Color]: Selecting [v#$] for white balance only when the flash is used. [$ +WB]: LT “Customizing camera settings” (P. 81) White balance compensation This function lets you make fine changes to the auto WB and preset WB settings. 1 Select [WB] in # Custom Menu (P. 81) tab &3. 2 Select the option to be modified and press D>. 3 Select a slider with QD> and use A V to choose the amount. Adjusting the white balance in the A direction Fes Tamber-Blue) Higher values produce *warmer” (redder)tints, lower values “cooler” (bluer) tints. Adjusting the white balance in the G direction max {Green-Magenta) Higher values produce greener tints, lower values tints that are more purple. 4 Press @ to save settings and exit. É Tips + To display a test photograph taken at the selected white balance value, press the © button. + Adjusting all WB mode settings at once. [AIl (MEZ]: 1 “Customizing camera settings” (P.81) One-touch white balance Measure white balance by framing a piece of paper or other white object under the lighting that will be used in the final photograph. This is useful when shooting a subject under natural light, as well as under various light sources with different color temperatures. 1 Select [©] or [@R] (one-touch white balance 1 or 2) and press the INFO button. 2 Photograph a piece of colorless (white or gray) paper. + Frame the object so that it fils the display and no shadows fall i +_ The one-touch white balance screen appears. 3 Select [Yes] and press ©. +_The new value is saved as a preset white balance option. +_ The new value is stored until one-touch white balance is measured again. Tuming the power off does not erase the data. É Tips +_Ifthe subject is too bright or too dark or visibly tinted, the message “WB NG Retry” will be displayed and no value will be recorded. Correct the problem and repeat the process from Step 1

Processing options (picture mode) Select a picture mode and make individual adjustments to contrast, sharpness, and other parameters. Changes to each picture mode are stored separately. 1 Select [Picture Mode] in shooting menu Ê} (P. 107).

suondo posn-AjuenbeyyAydesBojoud ojseg |. | 6 |EN 3 Press > to display settings for the selected option. cloud with natural blue sky. Slightly emphasizes colors in RES Contrast Distinction between light and dark | + v Sharpness Sharpness of the image v v Saturation Vividness of the color v v Gradation Adjust tone (gradation). Divides the image into detailed regions and adjusts the brightness separately for At each region. This is effective for images with areas of large contrast in which the whites : : appear too bright or the blacks appear too dark _— Use [Normal] mode for general uses. High Key Gradation for a bright subject Low Key Gradation for a dark subject. Effect Sets the extent that the effect will RE -Enhance) be applied Creates a black and white image. B&W Filter The filter color is brightened {Monotone) and the complementary color is darkened ï Creates a normal black and CHENE white image. Er Reproduces clearly defined white GX blue skies and sunsets Strongly emphasizes colors in R:Red blue skies and brightness of crimson foliage. . Strongly emphasizes colors in G:Green, red lips and green leaves. Pet. Tone (Monotone) | Colors the black and white image. Creates a normal black and CHENE white image. S:Sepia Sepia — | - B:Blue Bluish P:Purple Purplish G:Green Greenish © cautions + Changes to contrast have no effect at settings other than [Normal].

Image quality (record mode) Select an image quality for photographs and movies according their intended use, for example retouching on a computer or display on the web. Choosing a record mode 1 Display the live control (P. 22) and use À Y to choose a record mode for movies or photographs. 2 Select an option using <> and press Record mode # Record modes (still images) Choose from RAW and JPEG (IF, EN, [IN, and BN) modes. Choose a RAW+JPEG option to record both a RAW and a JPEG image with each shot. JPEG modes combine image size (18, [, and ) and compression ratio (SF, F, N, and B). The options available can be selected using the [t- Set] option in the custom menus. L& “Customizing camera settings" (P.81) Image size Compression rate F N B | Application CE | Rien ÊTRE (Fine) | (Normal) | (Basic) Tage) | 4032302 | SF | EF | Ev LE 3200%2400 Scecttor 25607 1820 elect for the ic j* int size U (Midde) Er oaao SF mr EN gs p 1600%1200 1280x960" For small prints. Smal) [1024768 | BSF and use on a 640%480 website

• Default. + The size of [ID] and [8] images can be selected using the [Pixel Count] option in the custom menus. F& “Customizing camera settings” (P. 81) RAW image data This format (extension “.ORF”) stores unprocessed image data for later processing. RAW image data can not be viewed using other cameras or software, and RAW images can not be selected for printing. JPEG copies of RAW images can be created using this camera. LT “Editing still images” (P. 67) suondo pesn-Ajusnbey/Ayde1Bojoud oiseg Q EN |47

suondo posn-AjuenbeyyAydesBojoud ojseg |. | 48|EN » Record modes (movies) Record mode | Pixelcount | Framerate File format Application FulrHD Fine 1920%1080 | 59.941 7 Full HD Normal | 1920x1080 | 59941 7 AvcHD* For viewing on HD Fine 1280x720 |59.04p ? AVCHD devices. HD Normal 1280x720 _|59.04p ? HD 1280x720 For computer Approx. 30 fps | Motion JPEG* | playback or sp 640x480 editing. + Depending on the type of card used, recording may end before the maximum length is reached *1 Individual files can be up to 4 GB in size or 29 minutes in length *2 Image sensor output about 30 fps. *3 The frame rate may drop when an art filter is used. *4 Files may be up to 2 GB in size Setting the image aspect You can change the aspect ratio (horizontal-to-vertical ratio) when taking pictures using live view. Depending on your preference, you can set the aspect ratio to [4:3] (standard), [16:9], [3:2], [6:6], or [3:4]. 1 Display the live control (P. 22) and select the aspect ratio item using AV. 2 Use <> to select an aspect ratio and press © cautions + JPEG images are cropped to the selected aspect ratio: RAW images, however, are not cropped but are instead saved with information on the selected aspect ratio. + When RAW images are played back, the selected aspect ratio is shown by a frame. É Tips + For information on cropping existing photographs or changing their aspect ratio, see “Editing still images” (P. 67)

Increasing ISO sensitivity increases noise (graininess) but allows photographs to be taken when lighting is poor. The setting recommended in most situations is [AUTO], which starts at ISO 200 — a value that balances noise and dynamic range — and then adjusts ISO sensitivity according to shooting conditions. 1 Display the live control (P. 22) and select the ISO sensitivity item using AV. 2 Select an option using <> and press @. ISO sensi The sensitivity is set automatically according to the shooting QUO conditions. 200-12800 | Sensitivity is set to the selected value.

+_The default value and upper limit for auto ISO sensitivity can be selected using 1ISO-Auto Set]. The options available for ISO sensitivity can be selected using [ISO Step]. Auto sensiivity can be enabled in M mode using [ISO-Auto] LT “Customizing camera settings” (P. 81) Sequential shooting/using the self timer The camera will take photos while the shutter button is pressed all the way down. Altematively, the self-timer can be used for self- or group-portraits or to reduce camera shake when the camera is mounted on a tripod or otherwise fixed in place. ress the ŒŸ) button to display the direct menu. Press the hi) b: V) to display the di 2 Select an option using <I> and press Single-frame | Shoots 1 frame at a time when the shutter button is pressed shooting {normal shooting mode). The camera will take photos at the selected frame rate while Ch Sequential H |the shutter button is pressed all the way down. [© H fps] (P.83) The camera will take photos at the selected frame rate while Sequential L | he shutter button is pressed all the way down. [ji L fps]

(P.83) Press the shutter button halfway to focus, the rest of the way oi2s Selftimer | down to start the timer. First, the sel-timer lamp lights up for Ÿ12 42sEc approximately 10 seconds, then it blinks for approximately 2 seconds and the picture is taken. Self.timer. Press the shutter button halfway to focus, the rest of the O2 sec way down to start the timer. The self-timer lamp blinks for approximately 2 seconds, and then the picture is taken. % Notes +_ To cancel the activated self-timer, press the Eh) button. =_In [S-AF] and [MF] focus modes, focus and exposure wil be fixed at the values for the first frame in each sequence, © cautions + During sequential shooting, if the battery check blinks due to low battery, the camera stops shooting and starts Saving the pictures you have taken on the card. The camera may not save all of the pictures depending on how much battery power remains. + Ficihe camera securely on a ripod for selftimer shooting +_ If you stand in front of the camera to press the shutter button halfway when using the self- timer, the photograph may be out of focus. suondo pesn-Ajusnbey/Ayde1Bojoud oiseg Q EN | 49

2 Other shooting options “Point-and-shoot” photography (P program mode) In mode P, the camera automatically adjusts shutter speed and aperture in response to subject brightness. 1 Setthe mode dial to P. 2 Take pictures. +_ The shutter speed and aperture selected by the camera are displayed in the monitor. Shooting mode fe] Shutter speed Aperture value suondo Bunoous 124}0 | Program shift (PS) In P and ART modes, you can press the F button (A) and then use À V to choose different combinations of aperture and shutter speed without altering exposure.This is known as “program shift" "s” appears next to the shooting mode during program shif, To cancel program shift, press and hold À V until ‘s”is no longer displayed or turn the camera of. Program shift © cautions + Program shift is not available when you are using a flash. © cautions +_ The shutter speed and aperture displays flash if the camera is unable to achieve optimal exposure. See “Exposure warning display” (P. 103). & Tips + Changing the roles of the control dial. [Dial Function]: LE “Customizing camera settings” (P. 81) 50 |EN

Choosing aperture (A aperture-priority mode) In mode À, you choose the aperture and let the camera automatically adjust shutter speed for optimal exposure. 1 Rotate the mode dial to A. 2 After pressing the E4 button (A), use À Y to choose the aperture. + Exposure compensation can also be adjusted using the control dial. * ln M is io Aperture value 3 Take pictures. + Larger apertures (lower f-numbers) decrease depih of field (the area in front of or behind the focus point that appears to be in focus), softening background details. Smaller apertures (higher f-numbers) increase depth of field. When the When the aperture aperture value (f- value number) is (number) is decreased increased Preview function Fnbution © button The Fn and © buttons can be used to preview depth of field. If [Preview] is assigned to any of these buttons using the {{Fn) Function] or [© Function] option in the custom menus, you can press and hold the button to stop aperture down to the selected value and preview depth of field (the distance behind and in front of the focus point that appears to be in focus) in the monitor. [Button Function]: E& “Customizing camera settings” (P.81) Ë Tips + Using the control dial to adjust aperture. [€ Lock]: Changing the roles of the control dial. [Dial Function]: EE “Customizing camera settings” (P. 81) suondo Bunoous 12410 Q

suondo Bunoous 124}0 | ty mode) In mode $, you choose the shutter speed and let the camera automatically adjust aperture for optimal exposure. 1 Rotate the mode dial to S. Choosing shutter speed (S shutter-p 2 After pressing the 4 button (A), use AV to choose the shutter speed. + Exposure compensation can also be adjusted using the control dial. Shutter speed 3 Take pictures. + A fast shutter speed can freeze a fast action scene without any blur. À slow shutter speed will blur a fast action scene. This blurring wil give the impression of dynamic motion. Fast shutter Slow shutter speed speed É Tips + Using the control dial to adjust shutter speed. [@ Lock]: Changing the roles of the control dial. [Dial Function]: LE “Customizing camera settings” (P. 81) 52|EN

Choosing aperture and shutter speed (M manual mode) In mode M, you choose both the aperture and the shutter speed. Select a shutter speed of [BULB] or [TIME] for long exposures. 1 Rotate the mode dial to M. EN

2 Press the [4 button (A) and use <> to set aperture and À V to choose a shutter speed. + Shutter speed can be set to values between 1/4000s and 60s or to [BULB] or [TIME]. 3 Take pictures. © cautions + Exposure compensation is not available in M mode. Choosing when the exposure ends Use for night landscapes and fireworks. Shutter speeds of [TIME] and [BULB] are available in mode M. +_ [TIME] or (BULB] is displayed on the monitor. Bulb photography (BULB): The shutter remains open while the shutter button is pressed. The exposure ends when the shutter button is released. Time photography (TIME): The exposure begins when the shutter button is pressed all the way down. To end the exposure, press the shutter button all the way down again + Changing the roles of the control dial. [Dial Function]: Ending the exposure automatically after a set time. [Bulb Timer]: To fix the focus during manual focus shooting. [Bulb Focusing]: EF *Customizing camera settings” (P. 81) © cautions + To prevent blur, mount the camera on a tipod and use a remote cable (P. 102). = The following can not be used: Sequential shooing/self-timer shooting/AE bracket shooting/image stabilizer/ flash bracketing Noise in images While shooting at slow shutter speeds, noise may appear on-screen. These phenomena are caused when current is generated in those sections of the image pickup device that are not normally exposed to light, resulting in a rise in temperature in the image pickup device or image pickup device drive circuit. This can also occur when shooting with a high ISO setting in a high-temperature environment. To reduce this noise, the camera activates the noise reduction function. [Noise Reduct.]: I “Customizing camera settings” (P. 81) do Buroous 19430 Q

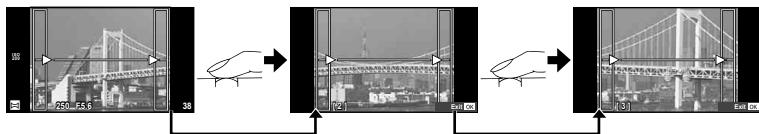

Taking Panoramas If you have installed the supplied computer software, you can use it to join pictures together to form a panorama. L& “Using OLYMPUS Viewer 2/[ib]” (P. 73) Taking pictures for a panorama 1 Rotate the mode dial to SCN. Select [Panorama] and press @. Use A V <> to choose a pan direction. Take a picture, using the guides to frame the shot. + Focus, exposure, and other settings are fixed at the values for the first shot. 5 Take the remaining images, framing each shot so that the guides overlap with the previous picture. & & ND suondo Bunoous 12410 | + A panorama may include up to 10 images. À warning indicator (1) is displayed after the tenth shot. 6 After taking the last shot, press @ to end the series. © cautions + During panorama shooting, the image previously taken for position alignment will not be displayed. With the frames or other markers for display in the images as a guide, set the composition such that the edges of the overlapping images overlap within the frames. <& Notes + Pressing @ before shooting the first frame returns to the scene mode selection menu Pressing @ in the midst of shooting ends the sequence of panorama shooting, and allows you to continue with the next one. 54|EN

3D Photography Take 3D photographs. The results can be viewed on devices that support 3D display. The camera monitor can not be used to view images in 3D. 1 Rotate the mode dial to SCN. 2 Select [8D Photo] and press ©. 3 Press the shutter button to take the first shot and keep the shutter button in this position. + Focus and exposure are locked at the values for the first shot. 4 Move the camera horizontally without rotation until the first shot is superimposed on your subject. The camera will take the second shot automatically. +_Ifthe camera does not take the second shot automatically or if you released the shutter button before the second shot was taken, press the shutter button all the way down again. + Do not adjust focus or zoom. 5 The two images are combined automatically. +_Ifthe camera displays the message [3D photo was not created.], take the photograph again. The two shots are saved to separate files. © cautions + Adjusting zoom after the first shot is taken cancels the first shot. +_ The camera focuses on the subject in the center focus point only. + Image size is fred at 1920 x 1080. *_3D and manual focus lenses can not be used. + Depending on the lens and camera settings, the 3D effect may not be visible. : The camera wil not go to sleep during 3D photography. + RAW photography is not available + Frame coverage is not 100%. % Notes + To retake the photograph after taking the first shot, press 1. Press @ to save the first shot and exit without recording a 3D image. suondo Bunoous 12410 Q

56|EN Recording multiple exposures in a single image (multiple exposure) Record multiple exposures in a single image, using the option currently selected for image quality. 1 Select [Multiple Exposure] in shooting menu © (P. 107). 2 Adjust settings. EEE Frame Select 21]. When set to [On], the brighiness of each frame is set to 1/2 and the images are Auto Gain … | overlaid. When set to [Off] the images Ps mr = are overlaid with the original brighiness of each frame. When set to [On], a RAW image recorded on a card can be overlaid with Overlay multiple exposures and stored as a separate image. The number of pictures taken is one.

+ (is displayed in the monitor while multiple exposure is in effect. 3 Take pictures. . is displayed in green when shooting starts. + Press 1] to delete the last shot. + The previous shot is superimposed on the view through the lens as a guide to framing the next shot. To overlay 3 or more frames: Select RAW for [<t:] and use the [Overlay] option to make repeated multiple exposures. For more information on overlaying RAW images: EE “Image overiay” (P. 68) © cautions +_ The camera will not go to sleep while multiple exposure is in effect. + Photographs taken with other cameras can not be included in a multiple exposure. When [Overlay] is set to [On], the images displayed when a RAW image is selected are developed with the settings at the time of shooting. To set the shooting functions, cancel multiple exposure shooting first. Some functions cannot be set. Multiple exposure is cancelled automatically from the first picture in the following situations. The camera is tumed offfThe [F] button is pressed/The MENU button is pressed/The shooting mode is set to a mode other than P, À, S, M/The battery power runs out/ Any cable is connected to the camera/You switch between the monitor and electronic viewfinder When a RAW image is selected using [Overlay], the JPEG image for the image recorded in JPEG+RAW is displayed. When shooting multiple exposures using bracketing, priority is given to multiple exposure shooting. While the overlay image is being saved, bracketing is reset to the factory default setting.

Varying settings over a series of photographs (bracketing) “Bracketing” refers to the act of varying settings automatically over a series of shots or a series of images to “bracket” the current value. Bracketing is available in P, A, S, and M modes. 1 Select [Bracketing] in shooting menu & (P. 107). 2 Choose a bracketing type. . is displayed in the monitor. AE BKT (AE bracketing) “ee ë BE — RE — à) The camera varies exposure by 0.3EV, 0.7EV, or 1.0EV over three shots. In single-frame shooting mode, one photograph is taken each time the shutter button is pressed all the way down, while in sequential shooting mode the camera continues to take shots in the following order while the shutter button is pressed all the way down: no modification, negative, positive Number of shots: 2, 3, 5, or 7 The indicator turns green during bracketing, The camera modifies exposure by varying aperture and shutter speed (mode P), shutter speed (modes A and M), or aperture (mode S). The camera brackets the value currently selected for exposure compensation. The size of the bracketing increment changes with the value selected for [EV Step]. IF “Customizing camera settings” (P. 81) WB BKT (WB bracketing) mes = Three images with different white balances (adjusted in specified color directions) are automatically created from one shot, starting with the value currently selected for white balance. + White balance can be varied by 2, 4, or 6 steps on each of the A-B (Amber Blue) and G—M (Green-Magenta) axes. +_ The camera brackets the value current selected for white balance compensation. + No pictures will be taken during WB bracketing if there is not enough memory on the card for the selected number of frames.

do Buroous 19430 Ù EL BKT (FL bracketing) The camera varies flash level over three shots (no modification on the first shot, negative on the second, and positive on the third). In single-frame shooting, one shot is taken each time the shutter button is pressed, in sequential shooting, all shots are taken while the shutter button is pressed. + The indicator turns green during bracketing. + The size of the bracketing increment changes with the value selected for [EV Step]. LF “Customizing camera ro Fan settings” (P. 81) 1S0 BKT (ISO bracketing) The camera varies sensitivity by 0.3EV, 0.7EV, or 1.0EV over three shots (no modification on the first shot, negative on the second, and positive on the third), bracketing the current sensitivity setting (or if auto sensitivity is selected, the optimal sensitivity setting) while Keeping shutter speed and aperture fixed. In single-frame shooting, one shot is taken each time the shutter button is pressed: in sequential shooting, all shots are taken while the shutter button is pressed. + The size of the bracketing increment does not change with the value selected for [ISO Step]. LT “Customizing camera settings” (P. 81) + Bracketing is performed regardless of the upper limit set with [ISO-Auto Set]. L& “Customizing camera settings” (P.81) ms == ART BKT (ART bracketing) Each time the shutter is released, the camera records multiple images, each with a different art filter setting. You can tum art filter bracketing on or off separately for each picture mode. + Recording may take some time. — + ART BKT can not be combined with WB BKT or SO BKT. Et Digital Zoom (Digital Tele-converter) Digital Tele-converter is used to zoom in beyond the current zoom ratio. The camera saves the center crop. Zoom is increased by about 2x. 1 Select [On] for [Digital Tele-converter] in Shooting menu 6 (P. 107). 2 The view in the monitor will be enlarged by a factor of two. +_The subject will be recorded as it appears in the monitor. © cautions + Digital zoom is not available with multiple exposures or when 60], 51, Ex, Et, or selected in SEN mode. + When a RAW image is displayed, the area visible in the monitor is indicated by a frame. 58|EN

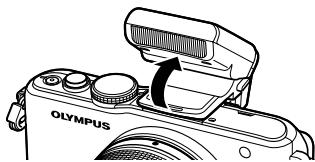

3 Flash shooting The flash can be set manually as required. The flash can be used for flash photography in a variety of shooting conditions. Using a flash (flash photography) À Attach the flash unit and raise the flash head. + EŒ “Attaching the flash unit" (P. 7) 2 Press the # button (D>) to display options. 3 Use D to choose a flash mode and press +_ The options available and the order in which they are displayed vary depending on the shooting mode. L& “Flash modes that can be set by shooting mode” (P. 104) The fiash fires automatically in low Hght or PUrORAAutoraEn backlight conditions. g Fill-in flash The flash res regardless of the light conditions. © Flash off The flash does not fire. This function allows you to reduce the red- @1#@ Red-eye reduction flash | eye phenomenon. In S and M mode, the flash always fires. Slow synchronization | Slow shutter speeds are used to brighten #SLOW (et curtain) dimiy-lit backgrounds. Slow synchronization OsLOw (istcurtain/Redeye | Combines slow synchronization with red-eye reduction flash reduction. The flash fires just before CE Slow synchronization | the shutter closes to Curtain (21 curtain) create trails of light behind ur moving light sources. BE Manual For users who prefer manual operation. 4 Press the shutter button all the way. © cautions + In ©/$ O(Red-eye reduction flash)], after the pre-flashes, it takes about 1 second before the shutter is released. Do not move the camera until shooting is complete. + 1©1$ O{Red-eye reduction flash)] may not work effectively under some shooting conditions. + When the flash fires, the shutter speed is set to 1/160 sec. or slower. When shooting a subject against a bright background with the fil-in flash, the background may be overexposed. Buroous yse]4 A

Buroous yse]4 | 60|EN Adjusting flash output (Flash intensity control) Flash output can be adjusted if you find that your subject to appears overexposed, or is underexposed even though the exposure in the rest of the frame is just right. 1 Display the live control (P. 22) and select the Flash intensity control item using À V. 2 Choose the compensation value with <E> and press ©. É Tips + Forinformation on flash bracketing: EE *FL BKT (FL bracketing)" (P. 58) © cautions + This setting has no effect when the flash control mode for the external flash unit is set to MANUAL. + Changes to flash intensity made with the external flash unit are added to those made with the camera. + Wen [82H is set to [On], the flash intensity value will be added to the exposure compensation value. & “Customizing camera settings” (P. 81) Using external flash units designated for use with this camera Optional external flash units designated for use with this camera support a wide variety of options for flash photography, including automatic flash control, super FP. and wireless flash control (P. 93). Other external flash units Note the following when using a third-party flash unit mounted on the camera hot shoe: + Using obsolete flash units that apply currents of more than about 24 V to the camera hot shoe X-contact will damage the camera Connecting flash units with signal contacts that do not conform to Olympus specifications may damage the camera. Use only with the camera in shooting mode M at shutter speeds slower than 1/160s and at ISO settings other than [AUTO] Flash control can only be performed by manually setting the flash to the ISO sensitivity and aperture values selected with the camera. Flash brighiness can be adjusted by adjusting either ISO sensitvity or aperture Use a flash with an angle of ilumination suited to the lens. Angle of ilumination is usually expressed using 35-mm format equivalent focal lengths.

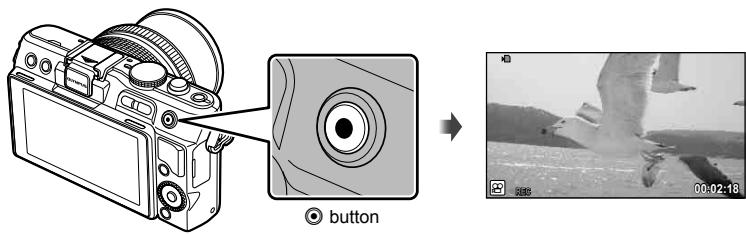

4 Shooting and viewing movies Use the © button to record High Definition (HD) movies with sound. In movie mode, you can create movies that take advantage of the effects available in modes À and M. Changing the settings for movie recording Adding effects to a movie À After selecting @ mode, display the live control (P. 22) and use A V to highlight the shooting mode. 2 Use <B> to choose a mode and press @. “EHEDESE saaow Buimala pue Buroous Q Optimal aperture is set automatically according to the brighiness of the subject. Depiction of background is changed by setting the aperiure. Use <> to adjust the aperture. Shutter speed affects how the subject appears. Use A V to adjust s the shutter speed. Shutter speed can be set to values between 1/30s and 1/4000s. You control both aperture and shutter speed. Use <> to choose the aperture, À V to select the shutter speed from values between 1/30

2 $ and 1/4000 s. Sensitivity can be set manually to values between ISO 400 and 1600: auto ISO sensitviy control is not available. Movie can be recorded wilh effects of ar filer mode. ARTIZARTS | Lo “Using art filters” (P. 18) © cautions When recording a movie, you cannot change the settings for exposure compensation, aperture value, and shutter speed 1 [Image Stabilizer] is activated while recording a movie, the recorded image is enlarged light. Even if [Vertical IS] or [Horizontal IS] is selected, the setting for [Auto] is applied. Stabilization is not possible when the camera shake is excessive. When using a lens with the image stabilizer function, turn off the image stabilizer function of either the lens or the camera. When the inside of the camera becomes hot, shooting is automatically stopped to protect the camera. With some art flters, [C-AF] operation is limited. Cards with an SD speed class of 6 or above are recommended for movie recording.

Movie sound options (recording sound with movies) 1 Display the live control (P. 22) and select the Movie ® item using À V. 2 Switch ON/OFF using <[> and press @. © cautions + When recording sound in a movie, the sound made by the lens and camera operating may be recorded. If desired, you can reduce these sounds by shooting with [AF Mode] set to [S-AF], or by limiting the amount of times you press the buttons. + No sound is recorded in [ARTS] (Diorama) mode.

a à sa: 5 1 Display a movie in single-frame playback and 8 press @. & 2 Select [Movie Play] using A Y and press @ to 2 begin playback. E +_ The following operations can be performed during < movie playback:

£ Pause or resume playback. 5 + While playback is paused, press A to e display the first frame and press V to 3 display the last frame. Press < [> to 2 @ rewind or advance one frame. Press and E hold the button to rewind or advance in a succession. Elapsed time/Total recording time <D> | Advance or rewind a movie. A/W |Adjust volume. É Tips + Recording movies with the shutter button: F5 “Recording movies with the shutter button" (P.92) + Reducing wind noise: FF “Microphone set (SEMA-1)" (P. 102) 62|EN

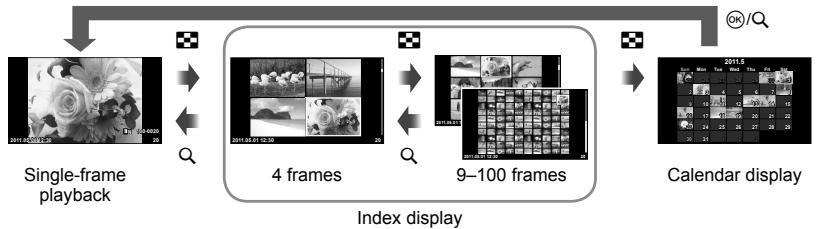

5 Playback options Single-frame playback Press the [>] button to view pictures full frame Images on memory card OLYMPUS PENPAL Shooting mode connected + To exit to shooting mode, press the shutter button halfway. The following operations can be performed in full-frame playback. <> or {€ | View other pictures. suondo y2eq{ejd Fan | ü Erase the current picture (P. 17). a Zoom in on pictures (P. 16). =] View Index display. INFO | View information on the current picture (P. 33) © Select pictures. Selected pictures are shown by af. Display the menus. ® JPEG Edit, RAW Data Edit, On, ®, Rotate, dE). Erase Index display/calendar display m Index display To view multiple pictures, press the ÆE3 button in full-frame playback. # Calendar display Display the first picture taken on each date. EN|63

Single-trame 4 frames 9-100 frames Calendar display playback Index display Only items for which [On] is selected are displayed. [E%/Info Settings]: LE “Customizing camera settings” (P. 81) Increase the number of pictures displayed from 4 to ©, 25, or 100. Press [|] EŒ again to view the calendar display. Decrease the number of pictures displayed from 100 to 25, 9, or 4. Press a & again to view the current image full frame. AIVIQD Select a picture. or(© © Select pictures. Selected pictures are shown by æf. Index display The menus are displayed. Calendar display View le pictures iaken on the selected date full frame. suorndo y2eq{ed Lén) Playback zoom (close-up playback) Besides normal close-up playback, you can also quickly zoom in on images and view other frames at the current zoom ratio (zoom paging) if [mode2] is selected for 15] Close Up Mode]. L “Customizing camera settings” (P. 81) ER # ° Single-frame Zoom frame Scrol View other pictures playback {00m paging) Close-up playback Position the zoom frame. In zoom paging, use <> to view other AIVIQID | situres at ne current zoom ratio. a View the frame at the selected zoom ratio. Press again to zoom in INFO Use A V to zoom in and out. («| Exit to single-frame playback. 64|EN

Selecting images Select multiple pictures for protection or deletion. Press the © button to select the current picture. Selected pictures are marked with @. To remove & and deselect the picture, press the © button again. + Multiple pictures can be selected in index playback. Canceling all protections This function lets you cancel the protection of several images at one time. 1 Select [Reset Protect] in the [5] (playback) menu (P. 107). 2 Select [Yes] and press All-frame erase Erase all images on the memory card. 1 Select [Card Setup] in shooting menu 8 (P. 107). 2 Select [AIl Erase] and press +_ The [Format] option (P. 99) can be used to delete non-image data. 3 Select [Yes] and press Rotate Choose whether to rotate photographs. 1 Play the photograph back and press 2 Select [Rotate] and press 3 Press A to rotate the image counterclockwise, Y to rotate it clockwise: the image rotates each time the button is pressed + Press © to save settings and exit. +_ The rotated image is saved in its current orientation + Movies, 3D photos, and protected images can not be rotated. suondo y2eqfeld Pen

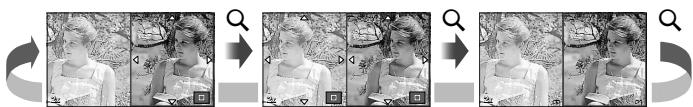

suorndo y2eq{ed Lén) 66|EN Slideshow This function displays images stored on the card one after another. 1 Press @ during playback and select the slideshow option. 2 Adjust settings. Start Start the slideshow. Images are displayed in order, starting with the current picture. EGM Set BGM {4 types) or turn BGM [Of]. Effect* Choose the transition between frames. This option can be used when slideshows are displayed on external devices using HDMI. Slide Set type of slideshow to execute. Slide Interval | Choose the lengih of lime each slide is displayed from 2 to 10 seconds. Movie Interval | Select [Full to include ful-length movie clips in the slideshow, {Short] to include only the opening portion of each clip. *_ Movies are not displayed when an effect other than [Fade] is selected. 3 Select [Start] and press ©. + The slideshow will start. + Press @ to stop the slideshow. Volume Press A V during the slideshow to adjust the overall volume of the camera speaker. Press <|> to adjust the balance between the background music and the sound recorded with photographs or movies.

ing still images Recorded images can be edited and saved as new images. 1 Display the image to be edited and press ©. + [RAW Data Edil is displayed ifthe picture is a RAW image, [JPEG Edit ifitis a JPEG image. If the image was recorded in RAW+JPEG format, the copy that will be edited is determined by your choice of [Edit] option. 2 Select (RAW Data Edit] or [JPEG Edit] and press RAW Data Edit Create a JPEG copy of a RAW image. The JPEG copy is processed using the settings current} stored in the camera. Adjust camera settings before choosing this option. JPEG Edit Choose from the following options: [Shadow Adj]: Brightens a dark backlit subject. [Redeye Fix|: Reduces the red-eye phenomenon during flash shooting. LH: Use the control dial to choose the size of the crop and À V <> to position the crop. [Aspect]: Changes the aspect ratio of images from 4:3 (standard) to 13:21, [16:9], (6:6], or [3:4]. After changing the aspect ratio, use the arrow pad to specify the trimming position. [Black & White]: Creates black and white images. [Sepia]: Creates sepia-toned images. [Saturation]: Sets the color depth. Adjust the color saturation checking the picture on the screen. 15}: Convents the image file size to 1280 x 960, 640 x 480, or 320

• 240. Images with an aspect ratio other than 4:3 (standard) are converted to the closest image file size. [e-Portrait]: Makes skin look smooth and translucent. You may not be able to compensate depending on the image if face detection fails. © cau + Movies and 3D photos can not be edited + Red-eye correction may not work depending on the image: + Editing of a JPEG image is not possible in the following cases: When an image is recorded in RAW, when an image is processed on a PC, when there is not enough space in the card memory, when an image is recorded on another camera. + When resizing ([Fm)) an image, you cannot select a larger number of pixels than was originally recorded. + [A] and [Aspect] can only be used to edit images with an aspect ratio of 4:3 (standard) suondo y2eqfeld Pen

suorndo y2eq{ed Lén) 68|EN Image overlay Up to 3 frames of RAW images taken with the camera can be overlaid and saved as a separate image. The image is saved with the record mode set at the time the image is saved. (If [RAW] is selected, the copy will be saved in [IN+RAW] format.) 1 With a RAW image displayed during playback, press @ and select Image Overlay]. 2 Select the number of images in the overlay and press @. 3 Use À V <> to select the RAW images that Fes or will be used in the overlay and press @) to KZ select. + When you have selected the number of images specified in Step 2, the overlay will be displayed. 4 Adjust gain. + Use <> to select an image and use A V to adjust gain. + Gain can be adjusted in the range 0.1-2.0. Check the Fin mer DE | 5 Press @. A confirmation dialog will be displayed: select [Yes] and press & Tips +_ To overlay 4 or more frames, save the overlay image as a RAW file and use image Overlay] repeatediy. Audio recording Add an audio recording (up to 30sec. long) to the current photograph. 1 Display the image to which you want to add an audio recording and press ©. + Audio recording is not available with protected images. + Audio recording is also available in the playback menu. 2 Select [®] and press ©. + To exit without adding a recording, select [No]. 3 Select [ Start] and press © to begin recording. + To stop recording part-way through, press @). 4 Press @ to end recording. + Images with audio recordings are indicated by a J icon. + To delete a recording, select [Erase] in Step 2

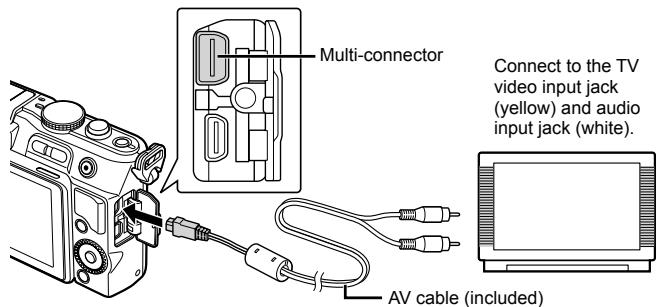

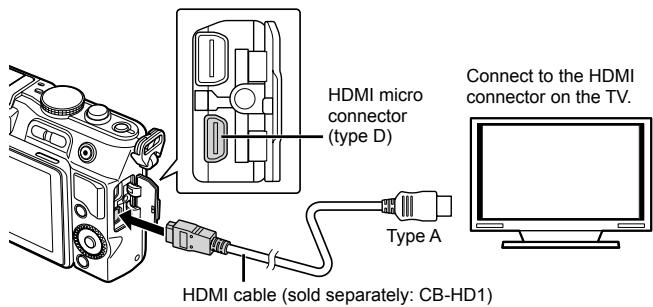

Viewing camera images on TV Use the AV cable provided with the camera to playback recorded images on your TV. You can playback high-definition images on a high-definition TV by connecting it to the camera using a commercially available HDMI cable. = Connection via AV cable Connect to the TV video input jack (yellow) and audio input jack (white).

| L— AV cable (included) 1 Use the camera to select the video signal format that matches that of the connected TV (INTSCJ/PAL) + [Video Out]: FF “Customizing camera settings” (P. 81) 2 Connect the TV and camera. 3 Turn on the TV, and change “INPUT” to “VIDEO”(an input jack connected to the camera). © cautions + The camera's monitor turns off automatically when the AV cable is connected to the camera + Press the [E] button when connecting via an AV cable. + For details on changing the input source of the TV, refer to the TV's instruction manual. + Depending on the TV's settings, the displayed images and information may become cropped = Connection via HDMI cable Connect to the HDMI HDMI micro connector on the TV. TypeA L HDMI cable (sold separately: CB-HD1) suondo y2eqfeld Pen

suorndo y2eq{ed Lén) 70|EN 1 Connect the camera to the TV using the HDMI cable. 2 Turn on the TV and switch “INPUT? to “HDMI INPUT”. 3 Turn on the camera. © cautions For details on changing the input source of the TV, refer to the TV's instruction manual. When the camera and TV are connected by both an AV cable and an HDMI cable, HDMI will take priority. Depending on the TV's settings, the displayed images and information may become cropped. When you connect to a TV via an HDMI cable, you can select the format of the digital video signal. Choose a format that matches the input format selected with the TV. [HDMI]: LS “Customizing camera settings” (P. 81) 10801 Priority is given to 10801 HDMI output. 720p Priority is given to 720p HDMI output 480p/576p HDMI output. 576p is used when [PAL] is selected for 480p/576p | Video Out]. You cannot shoot pictures or movies when the HDMI cable is connected. Do not connect the camera to other HDMI output devices. Doing so may damage the camera. + HDMI output is not performed while connected via USB to a computer or printer. Using the TV remote control The camera can be operated by a TV remote control when connected to a TV that supports HDMI control. 1 Select [HDMI] in #, Custom Menu (P. 81) tab 83. 2 Select [HDMI Control] and choose [On]. 3 Operate the camera by using the TV remote control. You can operate the camera by following the operation guide displayed on the TV. During single-frame playback, you can display or hide the information display by pressing the “Red” button, and display or hide the index display by pressing the “Green' button Some televisions may not support all features.

6 Sending and receiving images The optional OLYMPUS PENPAL can be used to upload pictures to, and receive pictures from, Bluetooth devices or other cameras connected to an OLYMPUS PENPAL. Visit the OLYMPUS website for more information on Bluetooth devices. Before sending or receiving images, select [On] for [®/© Menu Display] > [& Menu Display] to make the accessory port menu accessible. Sending images Resize and upload JPEG images to another device. Before sending images, make sure that the receiving device is set to the mode for receiving data. 1 Display the picture you wish to send full frame and press @. 2 Select [Send A Picture] and press @. + Select [Search] and press @ in the next dialog. Bluetooth devices in range, or in [Address Book] will be displayed 3 Select the destination and press @. +_ The image will be uploaded to the receiving device. +_ If prompted to provide a PIN code, enter 0000 and press ©. Recei ing images/adding a host Connect to the transmitting device and download JPEG images. seBeuwu] Bulaissei pue Buipuss Q 1 Select [OLYMPUS PENPAL Share] in the tab |. pores of the accessory port menu (P. 90). CHERE 2 Select [Please Wait] and press @. ä + Perform operations for sending images on the sending [| device. + Transmission will start and a [Receive Picture Request] dialog will be displayed. 3 Select [Accept] and press @. Ferre L +_ The image will be downloaded to the camera. +_ I prompted to provide a PIN code, enter 0000 and press ©. Ë Tips + To resize images to be transmitted or choose how long the camera searches for a destination: ES “Customizing camera settings” (P. 81) EN|71

Editing the address book The OLYMPUS PENPAL can store host information. You can assign names to hosts or delete host information. 1 Select [OLYMPUS PENPAL Share] in the Œ tab of the accessory port menu (P. 90). + Press D> and select [Address Book]. 2 Select [Address List] and press +_ The names of existing hosts are listed. 3 Select the host you wish to edit and press ©. Deleting hosts Select [Yes] and press ©. Editing host information Press @ to display host information. To change the host name, press @ again and edit the current name in the rename dialog. Creating albums Your favorite JPEG pictures can be resized and copied to an OLYMPUS PENPAL. 1 Display the picture you wish to copy full frame and press @. 2 Select [HUM] and press ©. + To copy images from an OLYMPUS PENPAL to the memory card, select [EE] and press É Tips + Choosing the size at which images are copied. [Picture Copy Size]: Copying all images from the memory card. [Copy All: Deleting or formatting albums. [Album Mem. Setup]: Removing protection from all images in the album. [Reset Protect]: Viewing album status (amount of memory remaining). [Album Mem. Usage]: LE “Customizing camera settings” (P. 81) © cautions + The OLYMPUS PENPAL can be used only in the region in which it was purchased Depending on the areas, the usage may infringe the wave regulations and may be subject to its penalty. seBewui Buiais2e pue Buipues a | 72|EN

7 Using OLYMPUS Viewer 2/[ib] Windows À Insert the supplied CD in a CD-ROM drive. Windows XP + A"Selup' dialog wi be displayed. Windows Vista/Windows 7 + An Autorun dialog will be displayed. Click *OLYMPUS Setup” to display the “Setup” dialog. © caution +_Ifthe “Setup” dialog is not displayed, select “My Computer” (Windows XP) or “Computer” (Windows VistaWindows 7) from the start menu. Double-click the CD-ROM (OLYMPUS Setup) icon to open the “OLYMPUS Setup” window and then double-click ‘LAUNCHER.EXE”. +_Ifa “User Account Control” dialog is displayed, click Yes” or “Continue”. 2 Follow the on-screen instructions on your computer. © caution + lnothing is displayed on the camera screen even after connecting the camera to the computer, the battery may be exhausted. Use a full-charged battery. Mult-connector — USB cable Look for this mark. [ail 1emeiA SnaWATO Buisn Q USB port © caution + When the camera is connected to another device via USB, a message will be displayed prompting you to choose a connection type. Select [Storage] 3 Register your Olympus product. + Click the “Registration” button and follow the on-screen instructions. 4 Install OLYMPUS Viewer 2 and [ib] computer software. + Check the system requirements before beginning installation + Click the “OLYMPUS Viewer 2° or “OLYMPUS ib' button and follow the on-screen instructions to install the software. EN|73

[qil/z 1emeiA SnaWAIO Buisn |. 74|EN OLYMPUS Viewer 2 Operating System Windows XP (Service Pack 2 or later) Windows Vista/ Windows 7 Processor Pentium 4 1.3 GHZ or better {Pentium D_3.0 GHz or better required for movies) RAM 1 GB or more (2 GB or more recommended) Free Hard Drive Space 1 GB or more Monitor Settings 1024 x 768 pixels or more Minimum 65,536 colors (16.770.000 colors recommended) Cib] Operating System Windows XP (Service Pack 2 or later) Windows Vista/ Windows 7 Pentium 4 1.3 GHz or better Procssson {Pentium D_3.0 GHz or better required for movies) 512 MB or more (1 GB or more recommended) RAM {1 GB or more required for movies—2 GB or more recommended) Free Hard Drive Space 1 GB or more Monitor Settings 1024 x 768 pixels or more Minimum 65,536 colors (16.770.000 colors recommended) Graphics A minimum of 64 ME video RAM with DirectX 9 or later. + See online help for information on using the software. Macintosh 1 Insert the supplied CD in a CD-ROM drive. +_ The disk contents should automatically be displayed in the Finder. If they are not, double-click the CD icon on the desktop. + Double-click the “Setup” icon to display the “Setup” dialog. 2 Install OLYMPUS Viewer 2. + Check the system requirements before beginning installation. + Click the “OLYMPUS Viewer 2” button and follow the on-screen instructions to install the software.

+ Other languages can be selected from the language combo box. For information on using the software, see online help. +_ You can make user registration via “Registration” in OLYMPUS Viewer 2 “Help”. © cautions + AVCHD movie file format is not supported. Copying pictures to a computer without OLYMPUS Viewer 2/[ib] Your camera supports the USB Mass Storage Class. You can transfer images to a computer by connecting the camera to the computer with the supplied USB cable. The following operating systems are compatible with the USB connection: Windows: Windows XP Home Edition! Windows XP Professional! Windows VistaWindows 7 Macintosh: _ Mac OS X version 10.3 or later 1 Turn the camera off and connect it to the computer. +_ The location of the USB port varies with the computer. For details, refer to your computer's manual. 2 Turn onthe camera. = + The selection screen for the USB connection is displayed Eu 3 Press À V to select [Storage]. Press

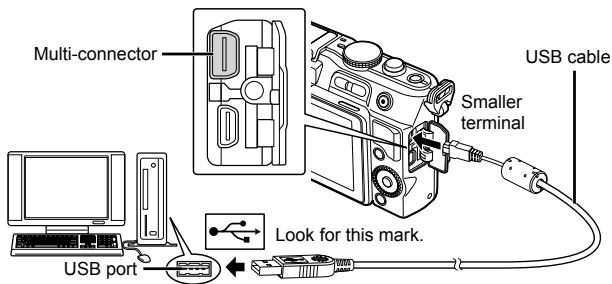

4. The computer recognizes the camera as a new device.

© cautions I your computer is rumning Windows VistaAWindows 7, select [MTP] in Step 3 to use Windows Photo Gallery. Data transfer is not guaranteed in the following environments, even if your computer is: equipped with a USB port. Computers with a USB port added by means of an extension card, ete. Computers without a factory-installed OS and home-built computers Camera controls can not be used while the camera is connected to a computer. Ifthe dialog shown in Step 2 is not displayed when the camera is connected, select [Auto] for [USB Mode] in the camera custom menus. EF “Customizing camera seltings” (P. 81)

8 Printing pictures seinjoid Bugur1d | « | 76|EN Print reservation (DPOF*) You can save digital “print orders” to the memory card listing the pictures to be printed and the number of copies of each print. You can then have the pictures printed at a print shop that supports DPOF or print the pictures yourself by connecting the camera directly to a DPOF printer. À memory card is required when creating a print order.

• DPOF (Digital Print Order Format) is a standard for recording the data that a printer or print service requires to automatically print pictures. Creating a print order 1 Press @ during playback and select [LH]. re

2 Select [3] or [d#] and press ©. Free Individual pictures —_—_— Press <[> to select the frame that you want to set as print reservation, then press À V to set the number of prints. ss == +_ To set print reservation for several pictures, repeat this step. Press @ when all the desired pictures have been selected. All pictures Select [LÉ] and press @). 3 Select the date and time format and press @. No The picures are printed wihout the date | | —m and time. Date The pictures are printed with the shooting date. rs Time The pictures are printed with the shooting time. 4 Select [Set] and press @. © cautions +_ The camera can not be used to modify print orders created with other devices. Creating a new print order deletes any existing print orders created with other devices. + Not all functions may be available on all printers or at all photo labs. + Print orders can not include 3D photos, RAW images, or movies. When requesting prints without a digital print order, specify the file number. Requesting prints by frame number may result in the wrong pictures being printed

Removing all or selected pictures from the print order You can reset all print reservation data or just the data for selected pictures. 1 Press @ during playback and select [LL]. 2 Select [D] and press @. +_ To remove all pictures from the print order, select [Reset] and press @. To exit without removing all pictures, select [Keep] and press 6. 3 Press <[> to select images you wish to remove from the print order. + Use V to set the number of prints to 0. Press @ once you have removed all the desired pictures from the print order. 4 Select the date and time format and press @. + This setting is applied to all frames with print reservation data. 5 Select [Set] and press @. Direct printing (PictBridge) By connecting the camera to a PictBridge-compatible printer with the USB cable, you can print out recorded pictures directiy. 1 Connect the camera to the computer using the supplied USB cable and turn the camera on. USB cable Mutt- connector + Use a fully charged battery for printing. + When the camera is turned on, a dialog should be displayed in the monitor prompting you to choose a host. fit is not, select [Auto] for [USB Mode] in the camera custom menus. EF “Customizing camera setings” (P. 81) 2 Use AV to select [Print]. S + [One Moment] will be displayed, followed by a print- mode selection dialog +_Ifthe screen is not displayed after a few minutes, disconnect the USB cable and start again from Step 1 Proceed to “Custom printing” (P. 78). © cautions + 3D photos, RAW images, and movies can not be printed.

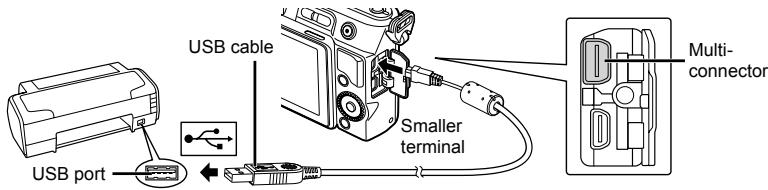

78 |EN Easy printing Use the camera to display the picture you wish to print before connecting the printer via the USB cable. 1 Use <> to display the pictures you want to print on the camera. 2 Press D. +_ The picture selection screen appears when printing is completed. To print another picture, use <[> to select Péstan a the image and press @). +_ To exit, unplug the USB cable from the camera while the picture selection screen is displayed Custom printing 1 Follow the operation guide to set a print option. Selecting the print mode Select the type of printing (print mode). The available print modes are as shown below. Print Prints selected pictures. Prints all the pictures stored in the card and makes one print for Al Print each picture Multi Print pas multiple copies of one image in separate frames on a single All index Prints an index of all he pictures stored in the card ICE Prints according to the print reservation you made. IFthere is no picture with print reservation, this is not available. Setting the print paper items This setting varies with the type of printer. If only the printer's STANDARD setting is available, you cannot change the setting. Size Sets the paper size that the printer Supports. Borderless Selects whether the picture is printed on the entire page or inside a blank frame. Picafsheet Selects the number of pictures per sheet. Displayed when you have selected [Multi Print]

Selecting pictures you want to print Select pictures you want to print. The selected pictures can be printed later (single-frame reservation) or the picture you are displaying can be printed right away. Prints the currently displayed picture. IFthere is a picture that [Single Print (GK) Print] reservation has already been applied to, only that reserved picture wil be printed. Singe Print [PIS print reservation 1 {he currenty displayed picture. If you ai want to apply reservation to other pictures after applying [Single Print, use Ql> to select them Sets the number of prints and other items for the currently displayed More (Œ)) picture, and whether or not to print i. For operation, refer to “Setting printing data” in the next section. Setting printing data Select whether to print printing data such as the date and time or file name on the picture when printing. When the print mode is set to [AI Print] and [Option Set] is selected, the following options ap; pears. Ex Sets the number of prints. Date Prints the date and time recorded on the picture. File Name Prints the file name recorded on the picture. Er Trims the picture for printing. Set the trimming 152 with the @ or EE button and the trimming position with A V À 2 Once you have set the pictures for printing and printing data, select {Print}, then press + To stop and cancel printing, press @. To resume printing, select [Continue]. # Cancelling printing To cancel printing, highlight [Cancel] and press @. Note that any changes to the print order will be lost: to cancel printing and return to the previous step, where you can make changes to the current print order, press MENU.

9 Camera setup Setup Menu Use the Setup Menu to set the basic camera functions. For details on using the menu lists, see “Using the menus” (P. 23). san == Option Description EC © Set the camera clock. 9 (Pate/time setting) You can change the language used for {he on-screen display (Changing the and error messages from English to another language _ display language) 1e! You can adjust the brighiness (Monitor brightness _ | and color temperature of the adjustment) monitor. Color temperature adjustment wil affect only the monitor display during playback. Use <> to highlight { (color temperature) or {brightness) and A V to adjust the value. For information on adjusting the brighiness and color temperature of the electronic viewfinder, see [EVF Adjust] (P. 90). Rec View Choose whether pictures are displayed immediately after shooting and for how long. This is useful for making a brief check of the picture you have just taken. Pressing the shutter button halfway while checking the picture lets you resume shooting immediately. isec]-[20sec]: … Selects the number of seconds to display each picture. Can be set in units dnyes eue) Ü of 1 second. off: The picture being recorded to the card is not displayed. faut}: Displays the image being recorded, and then switches to playback mode. This is useful for erasing a picture after checking it. ET] Choose whether to display the custom menus or accessory | 84 Menu Display port menu: Firmware Your products firmware version will be displayed. When you make inquiries about your camera or accessories or when you want to download software, you will need to state which version of each of the products you are using. 80|EN

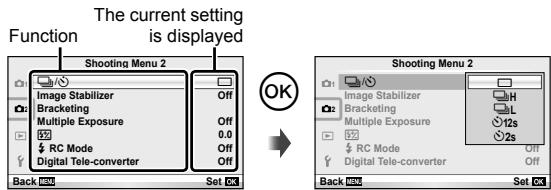

10 Customizing camera settings Camera settings can be customized using the custom and accessory menus. The #, Custom menu is used to fine-tune camera settings. The @ Accessory Port menu is used to adjust settings for accessory port devices. Before Using the Custom/Accessory Port Menus The Custom and Accessory Port menus are only available when the appropriate option is selected for the [#,/& Menu Display] item in the setup menu. Press the MENU button to display the menus. Select the Ÿ setup menu tab (P. 80) using À V and press >. Select [%/© Menu Display] using À V and pie press D. Select the desired menu using À V and press OO À LG N = Select [On] using À V and press @?. +_ The selected menu wil be displayed.

M AF/ME MENU = ©, Option Description AF Mode Choose the AF mode. Fulltime AF [On] is selected, the camera will continue to focus even when the shutter button is not pressed halfway. — AF Area Choose the AF target mode. Ed Reset Lens When set to [On], this resels the focus of the lens (infnity) each lime the power is turned off. — Buib Focusing | Normal} focus locks during the exposure when manual focus (MF) is selected. Select [On] to allow focusing using | — the focus ring, EN | 81

Option Description LE Focus Ring You can customize how the lens adjusts to the focal point by selecting the rotational — direction of the focus ring MF Assist Select [On] to automatically magnify the image for precise focus when the focus ring is rotated in manual focus mode. SetHome | Choose the AF target position that will be saved as the home position. FF) appears in the AF target selection _ display while you choose a home position. AF Iuminat, Select [Of] to disable the AF iluminator. — © Face Priority | The camera gives priority to the faces or pupiis of human portrait subjects during focusing. The camera zooms in on 39 faces during close-up playback. Button/Dial MENU D & + E Option Description CE AEL/AFL ‘Assign focus or AE lock to the Fn or ©) button when the 88 button function is set to [AEL/AFL]. AELJAFL Memo | IF[OM is selected, exposure willock only while the buton | 44 is pressed. Button Function Choose the function assigned to the selected button. — (Fn)Function | AEL/AFL, © REC, Preview, @, [ri] Home, MF, RAW F©runction | Test Picture, Myset, Backlit LCD, E-/@3. Live Guide, 8 ED © Function Digital Tele-converter, Off o D Function E. $. ©), 180, WB, @ Lock = H V Function S Dial Function Choose the function assigned to the dial before and after 3 the HA button is pressed settings can be adjusted by rotating the control dial without pressing the F4 button. Ï F A S M a Echos | Apenure | Shuter | Shuter — value speed | speed Aperiure 3 lAfter Ps F7] Value La Dial Direction Choose the direction in which the dial is rotated to adjust … Fa shutter speed or aperture or to move the cursor. £ S Lock 1F [Off is selected, exposure compensation and other

Release MENU = ©, Option Description Es Ris Priority S [On] is selected, the shutter can be released even when the camera is not in focus. This option can be set separately | — Ris Priority C for S-AF (P. 36) and C-AF (P. 36) modes. DH fps Choose Ihe frame advance rates for [SJ and [Qi] Figures | D Lips are the approximate maximums. : a Disp/m)}/PC MENU + © + Option Description 1 HDMI THDMI Outj: Selecting the digital video signal format for connecting to a TV via an HDMI cable. 70 {HDMI Control]: Select [On] to allow the camera to be operated using remotes for TS that support HDMI control. Video Out Choose the video standard (INTSC] or [PALI) used in your | 69 country or region. Efinfo Settings | Choose the information displayed when the INFO button is pressed. (Œinfo]: Choose the information displayed in full frame playback {LV-Info]: Choose the information displayed when the 32, 33, camera is in shooting mode. 64 + To choose a framing guide from [#8]. [88]. [FR or [E2), select [Displayed Grid] 1% Settings]: Choose the information displayed in index and calendar playback ÊControl Choose the controls displayed in each shooting mode. Settings Shooting mode Controls PA

Live Control (P. 22) On/Off | On/Off | On/Off | On/Off 32 SCP (P. 91) On/Off | On/Off | On/Off | On/Off _ On/Off _ _ _ _ On/Off _ Scene Menu _ _ _ On/Off Picture Mode Display only the selected picture mode when the live control Settings or super control panel is used to select a picture mode. — Histogram Highlight]: Choose the lower bound for the highlight display. | 33 Settings {Shadow]: Choose the upper bound for the shadow display. Mode Guide Choose [On] to display help for the selected mode when he | 6 mode dial is rotated to a new setting. Live View Boost [On] is selected, priority will be given to making images clearly visible: the effects exposure compensation and other settings will not be visible in the monitor. ART LV Mode Imode1]: The fier effect is always displayed {mode2]: Filter effects are not visible in the monitor while the shutter button is pressed halfway. Choose for a smooth display.

TE] Close Up Mode Imodei]: Press @ to zoom in (lo a maximum of 14*) and press F3 to zoom out. Imode2]: Press Q to display the zoom frame for the specified zoom ratio. Press Q again to zoom in 14,64 Backlit LCD IFno operations are performed for the selected period, the backlight will dim to save battery power. The backlight will not dim if [Hold] is selected. Sleep The camera will enter sleep (energy saving) mode if no operations are performed for the selected period. The camera can be reactivated by pressing the shutter button halfway. =) (Beep sound) When set to [Off], you can turn off the beep sound that is emitted when the focus locks by pressing the shutter button. Volume Adjust playback volume. USB Mode Choose a mode for connecting the camera to a computer or printer. Choose [Auto] to display USB mode options every time the camera is connected. Exp/&/ISO MENU =} * Option Description EV Step Choose the size of the increments used when selecting shutter speed, aperture, exposure compensation, and other exposure parameters. Metering Choose a metering mode according to the scene.

AEL Metering Choose the melering method used for AE lock (P. 41). [Auto]: Use the currently selected metering method

Set 1SO sensitivity.

1S0 Step Select the increments available for choosing ISO sensitivity. 1SO-Auto Set Choose the upper limit and default value used for ISO sensitivity when [Auto] is selected for [ISO]. {High Limit]: Choose the upper limit for auto ISO sensitivity selection. [Default]: Choose the default value for auto ISO sensitivity selection. 1SO-Auto Choose the shooting modes in which [Auto] ISO sensitivity is available. {P/AIS]: Auto ISO sensitivity selection is available in all modes except M. ISO sensitivity is fixed at ISO 200 in mode M. {AI}: Auto ISO sensitivity selection is available in all modes. Bulb Timer You can set the maximum time for bulb shooting Anti-shock [4] Choose the delay between the shutter button being pressed and the shutter being released. This diminishes camera shake caused by vibrations. This feature is useful in situations such as microscope photography and astrophotography. I is also useful for sequential shooting {P. 49) and self timer photography (P. 49).

7 Slow Limit Choose the slowest shutter speed available when a flash is used.

When set to [On], it will be added to the exposure compensation value and flash intensity control will be performed. 40,60 Color WB MENU D % EX] Option Description

Noise Reduct. This function reduces 1he noise that is generated during long exposures. Auto]: Noise reduction is only performed at slow shutter speeds. [On]: Noise reduction is performed with every shot. [Off]: Noise reduction off. + Noise reduction requires about twice the time needed to record the image. + Noise reduction turns off automatically during sequential shooting. + This function may not work effectively with some shooting conditions or subjects.

Noise Filter Choose the amount of noise reduction performed at high ISO sensitivities. wWB Choose the white balance mode.

TAII Seij: Use the same white balance compensation in all modes except [CWB]. {AI Reset]: Set white balance compensation for all modes except [CWB] to 0. A Keep Warm Color Select [Off to eliminate “warm” colors from pictures taken under incandescent lighting Fw8 Choose a white balance setting for use with the flash Color Space You can select how colors are reproduced on the monitor or printer. Shading Comp. Choose [On] to correct peripheral ilumination according to the type of lens. + Compensation is not available for teleconverters or extension tubes. + Noise may be visible at the edges of photographs taken at high ISO sensitivities.

woysna [a] sBuiyes esewes Gui 86|EN & -/ColorWB MENU =} ©, =} F3 Option Description Es Set The record mode for JPEG photographs can be selected from four combinations of image size and compression rate. The camera offers a choice of three sizes and four compression rates for each combination. Modifying JPEG record modes

combination ([Æ-1] PE UE ON 47 —Ié4)anduse AV | [as Em mm me to change. - "1

se = Number of Compression pixels rate Pixel Count Choose the pixel count for [I}- and [size images.

3) Choose a pixel count

and press Ces D za fl Record/Erase MENU > © Option Description ER Quick Erase If [On] is selected, pressing the 1 button in the playback = display will immediately delete the current image. RAW+JPEG Erase | Choose the action performed when a photograph recorded at a setting of RAW+JPEG is erased in single-frame playback (P. 15). JPEG]: Oniy the JPEG copy is erased 47 {RAWI: Only the RAW copy is erased. IRAW#PEG]: Both copies are erased

• [AI Erase] (P. 65) and [Erase Selected] (P. 65) delete both RAW and JPEG copies. File Name TAuto]: Even when a new card is inserted, the fille numbers are retained from the previous card. File numbering continues from the last number used or from the highest number available on the card. {Reset}: When you insert a new card, the folder numbers Starts at 100 and the file name starts at 0001. If a card containing images is inserted, the file numbers start at the number following the highest file number on the card.

Edit Filename Choose how image files are named by editing the portion of the filename highlighted below in gray. new photographs. Names can be up to 63 characters long [Copyright Info.]: Select [On] to include the names of the photographer and copyright holder in the Exif data for new photographs. [Artist Name]: Enter the name of the photographer. [Copyright Name]: Enter the name of the copyright holder.

1) Highlight a character (2) and press © to add the

highlighted character to the name (1).

IEND] and press + To delete a character, press the INFO button to place the cursor in the name area (1), highlight the character, and press 1]. SRGB: PMdd0000 jpg —— Pmdd — AdobeRGB: _mdd0000 jpg —— mdd Priority Set Choose the default selection ([Yes] or [Noj) for confirmation dialogs. — dpi Setting Choose the print resolution. Auto]: Print resolution is selected automatically according . to image size. {Custom]: Press > to choose a print resolution. Copyright Settings | Add the names of the photographer and copyright holder to + OLYMPUS does not accept liability for damages arising from disputes involving the use of {Copyright Settings]. Use at your own risk. be selected using the live control. fl Movie MENU =} © => OI Option Description EF DMode Choose a movie record mode. This option can also be 61 selected using the live control. Movie+Still Choose [On] to record a photograph when movie recording | 92 ends Movie ® Choose [Of] to record silent movies. This option can also e

soso ÙJ sBuiyes esewes Gui 88|EN MENU =} *, + EI Ô Utility Option Description Œ Pixel Mapping | The pixel mapping feature allows the camera to check and adjust the image pickup device and image processing 98 functions. Exposure Shift | Adjust optimal exposure separately for each metering mode. + This reduces the number of exposure compensation options available in the selected direction. + The effects are not visible in the monitor. To make En normal adjustments to the exposure, perform exposure compensation (P. 40). €2 Warning | Choose the battery level at which the CZ4 warning is 8 Level displayed. Eye-Fi Enable or disable upload when using an Eye-Fi card. 99 *_ The camera does not support the ‘endless” Eye-Fi mode. Be sure to read the following beore use: IS “Card basics” (P. 99) m AEL/AFL

MENU =} ©, = E] = [AEL/AFL]

The Fn and © buttons can be used for metering or LL eutl autofocus. Choose a mode for each focus mode. ==] DOME mo oo AEL/AFL a = Shutter button function © batten nction ED Half-press Full press DRE Focus |Exposure | Focus |Exposure | Focus | Exposure mode S-AF Locked _ _ _ Locked S-AF | mode2 S-AF _ _ Locked _ Locked mode3 _ Locked _ _ S-AF — mode1 | C-AF start Locked Locked _ _ Locked C-AF mode2 | C-AF start _ Locked Locked _ Locked mode3 _ Locked Locked _ C-AF start _ mode4 _ _ Locked Locked C-AF start _ mode _ Locked _ _ _ Locked MF mode2 _ _ _ Locked _ Locked mode3 _ Locked _ _ S-AF _

n (Fn)Function, © Function MENU =} *, =} 3 = [Button Function] = [[Fn)Function]/[© Function] The following functions can be assigned to the Fn and © buttons. The options available vary from button to button. AEL/AFL Press the Fn or © button to lock focus and exposure. OREC Press the button lo record a movie. If movie recording is not currently assigned to a button, movies can be recorded by rotating the mode dial to @ and pressing the shutter button. Preview (electronic) Aperture is stopped down lo the selected value while the button is pressed (P. 51).

The camera measures white balance when the button is pressed (P. 44). Home Pressing the button selects the AF target position saved with [E-"1] Set Home] (P. 82). The home AF target position is indicated by à (A icon. Press the button again to return to AF target mode. If the camera is turned off when the home position is selected, the home position will be reset. MF Press the button lo select manual focus mode. Press the button again to restore the previously selected AF mode. RAW € Press the button lo toggle between JPEG and RAW+JPEG record modes. Test Picture To take a photograph and display it in the monitor without recording it to the card, press the shutter button while the Fn or © button is pressed. Myset1-Myset4 Pictures taken while the Fn or © button is pressed will be shot using the settings selected for [Reset/Myset] (P. 35). Backlit LCD Press the Fn or © button to turn the monitor off. This is useful when you are using the electronic viewfinder. Press the button again to turn the monitor on. Se Press the Fn or © button to toggle between Æ4 and [@} when the underwater case is attached. Live Guide Press ihe button to display live guides. Digital Tele-converter Press the button to turn digital zoom on or off. off No function is assigned to the button

sôumes esewues Burziuioysn9 [a] 90|EN Accessory port menu options € OLYMPUS PENPAL Share Option Description E Please Receive images and add hosts to the address book. 71 Wait Address [Address List]: View the hosts that have been saved to the address Book book. 72 [New Pairing]: Add a host to the address book. {Search Timer]: Choose how long the camera searches for a host. My Display information for your OLYMPUS PENPAL, including the name, OLYMPUS | address, and supported services. Press 6) to edit the device name. 72 PENPAL Picture Choose the size at which images are transmitted. Send Size | [Size 1: Small]: Images are sent at a size equivalent to 640 x 480. 71 [Size 2: Large]: Images are sent at a size equivalent to 1920 x 1440. [Size 3: Medium]: Images are sent at a size equivalent to 1280 x 960. & OLYMPUS PENPAL Album MENU DO HE Option Description Œ Copy All | All images and sound files are copied between the memory card and OLYMPUS PENPAL. Copied images are resized according to the 72 option selected for picture copy size. Reset Remove protection from all pictures in the OLYMPUS PENPAL album. 72 Protect Album Show the number of pictures currently in the album and the number of Mem. additional pictures that can be stored at [Size 2: Medium]. 72 Usage Album |[AÏErase]: Delete all pictures in the album, Mem. {Format Album]: Format the album. 72 Setup Picture Choose the size at which images are copied. Copy Size | [Size 1: Large]: Copied images are not resized 7 [Size 2: Medium]: Images are copied at a size equivalent to 1920 x Electronic Viewfinder MENU + © + Option Description Œ EVF Adjust | Adjust the brighiness and color temperature of the electronic viewfinder. The selected color temperature is also used in the monitor during playback. Use <> to select color temperature (fF) or brightness (3%) and use À V to choose from values between [+7] and [-7].

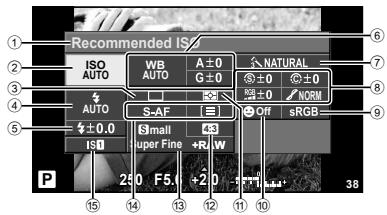

Using the super control panel The term “super control panel” refers to the display shown below, which lists shooting settings together with the option currently selected for each. To use the super control panel, select [On] for [ÉgControl Settings] > [SCPI (P. 83). To choose between the live control, super control panel, and other displays, press while the camera is in shooting mode and press the INFO button to cycle through the different displays. # Settings that can be modified using super control panel D Currently selected option Gradation 7... eu. P. 46 ) 1SO sensitivity.… B&W Filter © .P. 46 ) Sequential shooting/self-timer Picture tone =? 46 ) Flash mode …… ou (@) Color space... -….P. 85

You can also select settings using the control dial. 2 Select an option using <> and press @. + Repeat steps 1 and 2 as necessary. + The selected settings take effect automatically if no operations are performed for a few seconds. sBuiyes esewes Buiziwoysn9 Q 3 Press the shutter button halfway to return to shooting mode. EN |91

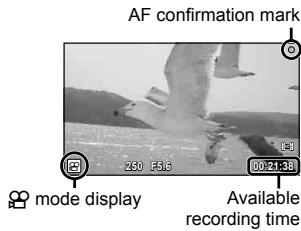

sBuiyes esewes Buiziwoysn9 [a] Recording movies with the shutter button Movies are usually recorded using the © button, but the shutter button can be used if other functions have been assigned to both the Fn and © buttons. 1 Setthe mode dial to @. 2 Press the shutter button halfway down and focus on what you wish record. + When the subject is in focus, the AF confirmation mark lights up. AF confirmation mark & mode display Available recording time 3 Press the shutter button all the way to begin recording. + REC lights up while both movie and sound are recorded simultaneously. Lights up in red Total recording during recording time 4 Press the shutter button all the way to end recording. Taking a photograph when recording ends Select [On] for [Movie+Stil] to take a still picture when movie recording is finished. This feature is useful when you want to record a still picture as well as the movie. 1 Select [Movie+Still] in # Custom Menu (P. 81) tab Gi. 2 Select [On] and press @. © cautions +_ This option is only available when the shutter button is used to record movies. 92|EN

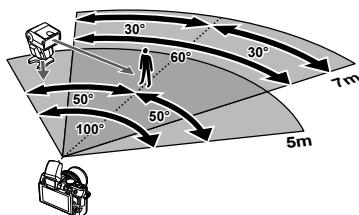

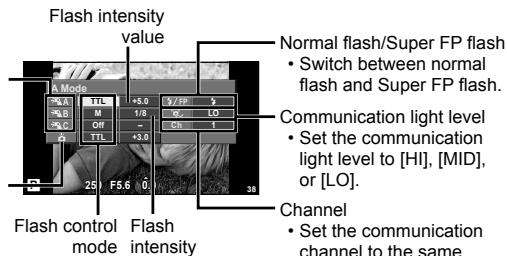

Wireless remote control flash photography External flash units that offer a remote control mode and are designated for use with this camera can be used for wireless flash photography. The camera can independentiy control up to 3 groups consisting of the supplied flash unit and/or remote flash units. See the documentation provided with the external flash units for details. 1 Set the remote flash units to RC mode and place them as desired + Turn the external flash units on, press the MODE button, and select RC mode. + Select a channel and group for each external flash unit 2 Select [On] for [$ RC Mode] in & Shooting menu 2 (P. 107). + The super control panel switches to RC mode. + You can choose a super control panel display by repeatediy pressing the INFO button. + Select a flash mode (note that red-eye reduction is not available in RC mode). 3 Adjust the settings for each group in the super control panel. Flash intensity Group Normal flash/Super FP flash + Select the flash control 7) + Switch between normal mode and adjust the flash fé flash and Super FP flash intensity separately for 5 Communication light level gach group. For MANDAL, “ ll : Set the communication select the flash intensity. È light level to [HI], [MID], Adjust settings for the ôl Ê or [LO] supplied flash unit Channel Flash control Flash * Set the communication mode intensity channel to the same channel used on the flash 4 Attach the supplied flash unit and raise the flash head. + After confirming that the built-in and remote flash units have charged, take a test shot. = Wireless flash control range Position the wireless flash units with their remote sensors facing the camera. The LES illustration on the right shows the approximate SEE ranges at which the flash units can be positioned. The actual control range varies with local conditions. © cautions + We recommend using a single group of up to three remote flash units. + Remote flash units can not be used for second curtain slow synchronization or anti-shock exposures longer than 4 seconds. +_Ifthe subject is too close to the camera, the control flashes emitted by the supplied flash may affect exposure (this effect can be reduced by reducing the output of the supplied flash by, for example, using a diffuser).

uoljeuLoqUI «| 94|EN Shooting tips and information The camera does not turn on even when a battery is loaded The battery is not fully charged + Charge the battery with the charger. The battery is temporarily unable to function because of the cold + Battery performance drops at low temperatures. Remove the battery and warm it by putting it in your pocket for a while. No picture is taken when the shutter button is pressed The camera has turned off automatically + The camera automatically enters sleep mode to reduce the drain on the battery if no operations are performed for a set period of time. LS [Sleep] (P. 15) If no operations are performed for a set time (5 minutes) after the camera has entered sleep mode, the camera will turn off automatically. The flash is charging + On the monitor, the $ mark blinks when charging is in progress. Wait for the blinking to stop, then press the shutter button. Unable to focus + The camera can not focus on subjects that are too close to the camera or that are not suited to autofocus (the AF confirmation mark will blink in the monitor). Increase the distance to the subject or focus on a high contrast object at the same distance from the camera as your main subject, compose the shot, and shoot. Subjects that are difficult to focus on It may be difficult to focus with auto focus in the following situations. AF confirmation mark is blinking. These subjects. fi are not focused.

ubject with low Excessively bright Subject containing no contrast light in center of vertical lines: frame

AF confirmation mark lights up but the subject is not | focused.

Subjects at different Fast-moving subject … Subject not inside distances AF area

Noise reduction is activated + When shooting night scenes, shutter speeds are slower and noise tends to appear in images. The camera activates the noise-reduction process after shooting at slow shutter speeds. During which, shooting is not allowed. You can set [Noise Reduct.] to [Off]. LS “Customizing camera settings” (P. 81) The date and time has not been set The camera is used with the settings at the time of purchase + The date and time of the camera is not set when purchased. Set the date and time before using the camera. E& “Setting the date/time” (P. 9) The battery has been removed from the camera +_ The date and time settings will be returned to the factory default settings if the camera is left without the battery for approximately 1 day. The settings will be cancelled more quickly ifthe battery was only loaded in the camera for a short time before being removed. Before taking important pictures, check that the date and time settings are correct. Set functions are restored to their factory default settings When you rotate the mode dial or turn off the power in a shooting mode other than P, A, S. or M, functions with changes made to their settings are restored to the factory default settings. Image taken appears whitish This may occur when the picture is taken in backlight or semi-backlight conditions. This is due to a phenomenon called flare or ghosting. As far as possible, consider a composition where strong light source is not taken in the picture. Flare may occur even when a light source is not present in the picture. Use a lens hood to shade the lens from the light source. If a lens hood does not have effect, use your hand to shade the lens from the light. LS “interchangeable lenses” (P. 100) Unknown bright dot(s) appear on the subject in the This may be due to stuck pixel(s) on the image pickup device. Perform [Pixel Mapping]. If the problem persists, repeat pixel mapping a few times. LE “Pixel mapping - Checking the image processing functions” (P. 98) ture taken Functions that cannot be selected from menus Some items may not be selectable from the menus when using the arrow pad +_ Items that cannot be set with the current shooting mode +_ Items that cannot be set because of an item that has already been set: Combination of [LH] and [Noise Reduct.], etc. uoljeuLoqUI à

uoljeuLoqUI «| SI" Error codes Monitor EE Possible cause Corrective action The card is notinserted, orit | Insert a card or insert a different cannot be recognized. card No Card Insert ihe card again. IFlhe problem persists, format {he card. There is a problem with the card. | {he Card cannot be formatted, it Card Error cannot be used. Write Protect Writing to the card is prohibited. The card write-protect switch is set to the “LOCK” side. Release the switch. (P. 99) Card Full + The card is full. No more pictures can be taken or no more information such as print reservation can be recorded. + There is no space in the card and print reservation or new images cannot be recorded. Replace the card or erase unwanted pictures. Before erasing, download important images to a PC.

Card cannot be read. Card may not have been formatted. + Select [Clean Card], press @ and turn off the camera. Remove the card and wipe dry the metallic surface with a soft, dry cloth + Select [Format] » [Yes], and then press @ to format the card Formatting the card erases all data on the card. There are no pictures on the card. The card contains no pictures. Record pictures and play back. Picture Error The selected picture cannot be displayed for playback due to a problem with this picture. Or the picture cannot be used for playback on this camera. Use image processing software to view the picture on a PC. Ifthat cannot be done, the image file is damaged.

The Image Cannot Be Edited Pictures taken with another camera cannot be edited on this camera, Use image processing software to edit the picture. Picture Error Images can not be transferred between devices that are currently receiving or transmitting data. Increase the amount of memory available on the card, for example by deleting unwanted images, or choose a smaller size for the images being transmitted

Monitor indication Possible cause Corrective action Qc/F Internal camera temperature is too high Please wait for cooling before camera use. The interal temperature of the camera has risen due to sequential shooting. Turn off the camera and wait for the internal temperature to cool. Wait a moment for the camera to tu off automatically. Allow the internal temperature of the camera to cool before resuming operations. Battery Empty The battery is drained. Charge the battery. cr. No Connection The camera is not correcily connected to a computer, printer, HDMI display, or other device. Reconnect the camera = There is no paper in the printer. | Load some paper in the printer. No Paper The printer has run out ofink Replace the ink cartridge in the printer. Noink

e The paper is jammed Remove the jammed paper. Jammed Settings Changed The printers paper cassette has been removed or the printer has been manipulated while making settings on the camera Do not manipulate the printer while making settings on the camera There is a problem with the printer and/or camera. Turn off camera and printer. Check the printer and remedy any problems before turning the power Print Error on again. T Pictures recorded on other b cameras may not be printed on | Use a personal computer to print. Cannot Print this camera. The lens is locked Please extend the lens. The lens of the retractable lens. stays retracted. Extend the lens. (P. 14) Please check the status of a lens. An abnormality has occurred between the camera and the lens. Turn off the camera, check the connection with the lens, and turn the power on again. uoljeuLoqUI à

uoljeuLoqUI «| 98|EN Cleaning and storing the camera Cleaning the camera Turn off the camera and remove the battery before cleaning the camera. Exterior: + Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and well wrung. Monitoi + Wipe gentiy with a soft cloth Lens: + Blow dust off the lens with a commercial available blower. For the lens, wipe gentiy with a lens cleaning paper. Storage + When not using the camera for a prolonged period, remove the battery and card. Store the camera in a cool, dry place that is well ventilated Insert the battery periodically and test the cameras functions. Remove dust and other foreign matter from the body and rear caps before attaching them. Attach the body cap to the camera to prevent dust from getting inside when no lens is attached. Be sure to replace the front and rear lens caps before putting the lens away. Clean the camera after use. Do not store with insect repellent. Cleaning and checking the image pickup device This camera incorporates a dust reduction function to keep dust from getting on the image pickup device and to remove any dust or dirt from the image pickup device surface with ultrasonic vibrations. The dust reduction function operates when the camera is turned on. The dust reduction function operates at the same time as the pixel mapping, which checks the image pickup device and image processing circuitry. Since dust reduction is activated every time the camera's power is turned on, the camera should be held upright for the dust reduction function to be effective. © cautions + Do not use strong solvents such as benzene or alcohol, or a chemically treated cloth Avoïd storing the camera in places where chemicals are treated, in order to protect the camera from corrosion Mold may form on the lens surface if the lens is left dirty. Check each part of he camera before use ifit has not been used for a long time. Before taking important pictures, be sure to take a test shot and check that the camera works. properly. Pixel mapping - Checking the image processing functions The pixel mapping feature allows the camera to check and adjust the image pickup device and image processing functions. After using the monitor or taking continuous shots, wait for at least one minute before using the pixel mapping function to ensure that it operates correctly.

1 Select [Pixel Mapping] in % Custom Menu (P. 81) tab 2 Press D>, then press +_ The [Busy] baris displayed when pixel mapping is in progress. When pixel mapping is finished, the menu is restored. © cautions + Ifyou accidentally turn the camera off during pixel mapping, start again from Step 1. Card basics Usable cards In this manual, all storage devices are referred eo" Cl to as “cards.” The following types of SD memory } F ) card (commercially available) can be used with this camera: SD, SDHC, SDXC, and Eye-Fi. For D, ( HA the latest information, please visit the Olympus website. SD card write protect switch The SD card body has a write protect switch. If you set the switch to Ca the LOCK" side, you wil not be able to write to the card, delete data or format. Return the switch to the unlock position enable writing. © cautions +_ The data in the card will not be erased completely even after formatting the card or deleting the data. When discarding, destroy the card to prevent leakage of personal information. Use the Eye-Fi card in compliance with the laws and regulations of the country where the camera is used. In locations such as on an airplane, where the Eye-Fi communication is prohibited, remove the Eye-Fi card from the camera, or set [Eye-Fi] (. 88) to [Of] The Eye-Fi card may became hot during use. When using an Eye-Fi card, the battery may run out faster. When using an Eye-Fi card, he camera may function more slow. Formatting the card Cards must be formatted with this camera before first use or after being used with other cameras or computers. All data stored on the card, including protected images, is erased when the card is formatted. When formatting a used card, confirm there are no images that you still want to keep on the card. uoljeuLoqUI à 1 Select [Card Setup] in shooting menu ©} ee (P. 107) js | 2 Select [Format]. 3 Select [Yes] and press es ss + Formatting is performed.

uoljeuLoqUI «| 100 | EN Battery and charger Use the single Olympus lithium-ion battery. Use only genuine OLYMPUS rechargeable batteries. Use only compatible battery chargers to charge rechargeable batteries. BLS-1 batteries must be charged using the BCS-1, BLS-5 batteries using the BCS-5 The camera's power consumption varies widely with usage and other conditions. As the following consume a lot of power even without shooting, the battery will be drained quickly. + Performing auto focus repeatedly by pressing the shutter button halfway in shooting mode. + Displaying images on the monitor for a prolonged period. + When connected to a computer or printer. When using a drained battery, the camera may turn off without the low battery warning being displayed. The battery will not be fully charged at the time of purchase. Charge the battery using the supplied charger before use. The normal charging time using the supplied charger is approximately 3 hours 30 minutes. estimated). Do not attempt to use chargers not specifically designated for use with the supplied battery, or to use batteries not specifically designated for use with the supplied charger. © cautions + There is a risk of explosion if the battery is replaced with the incorrect battery type. Dispose of the used battery following the instructions. “Battery Handling Precautions” (P. 114) Using your charger abroad +_ The charger can be used in most home electrical sources within the range of 100V to 240V AC (50/60 Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent. + Do not use commercially available travel adapters as the charger may malfunction: Interchangeable lenses Choose a lens according to the scene and your creative intent. Use lenses designed exdlusively for the Micro Four Thirds system and bearing the M. ZUIKO label or the symbol shown at right. With an MICRO adapter, you can also use Four Thirds System and OM System lenses. © cautions + When you attach or remove the body cap and lens from the camera, keep the lens mount on the camera pointed downward. This helps prevent dust and other foreign matter from getting inside the camera. + Do not remove the body cap or attach the lens in dusty places. Do not point the lens attached to the camera toward the sun. This may cause the camera to malfunction or even ignite due to the magnifying effect of sunlight focusing through the lens. Be careful not to lose the body cap and rear cap.

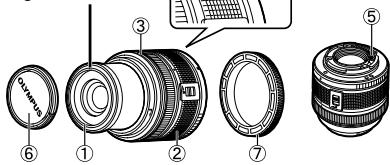

M.ZUIKO DIGITAL lens specifications Ifthe hood is attached = Names of parts to alens with a (© Filter mount thread ) Zoom ring (zoom lenses only) @ Focus ring (® Mount index ®) Electrical contacts © Front cap ( Rear cap = Lens and camera combinations decorative ring, rotate the ring to the left Lens Camera Atfachment AF | Metering Micro Four Thirds Satan lon _—— Yes Yes Yes icro Four Thirds Four Thids system | éytem camera | Attachment Yes” Yes lens possible with OM System lenses mount adapter | No Ves? Micro Four Thirds | Four Thirds System system lens Camera No No No “1 IC-AF] and [C-AF+TR of [AF Mode] cannot be used *2 Accurate metering not possible. " Main Specifications Iems 14-42mm ITR] 17mm [40-150mmR | 14-150mm Mount Micro Four Thirds mount Focal length 14-42mm 17mm 40-150mm | 14-150mm Max. aperture 135-565 128 10-56 | 40-56 Image angle 75-29" 649 | 3037-82 | 75-82 Agroups, | 1Ogroups, | 11groups, Lens configuration | 7 "OUPS. 8 lenses Glenses | 13lenses | 15lenses Multlayer film coating Iis control 13.522 128-22 | 140-22 | 14022 Shootingrange |- 0.25m-00 (14-19mm) (Focal length) |: 0.3m-00 (20-42mm) | 02M-00 | 09m-00 | 0.5m-00 Focus adjusiment AFIME switching Weight (excluding RME 1159 719 1909 2609 Dimensions (Max. diameter x 056.5x50mm 057x22mm | 063.5x83mm | 063.5x83mm overall length) Filter mount thread diameter 37mm 37mm 58mm 58mm © cautions + Edges of pictures may be cut off if more than one filer is used or if a thick fier is used. uoljeuLoqUI à

uoljeuLoqUI «| 102|EN Principal Accessories Mount adapter Mount adapter allows the camera to be used with lenses that do not conform to the Micro Four Thirds System standard » Four Thirds lens adapter (MMF-2) The camera requires MMF-2 Four Thirds lens adapter to attach Four Thirds lenses. Some features, such as autofocus, may not be available. = OM adapter (MF-2) Use with existing OLYMPUS OM System lenses. Focus and aperture must be adjusted manually. Image stabilization can be used. Input the focal length of the lens being used in the camera image stabilization settings. Remote cable (RM-UC1) Use when the slightest camera movement can result in blurred pictures, for example for macro or bulb photography. The remote cable attaches via the camera USB connector. Converter lenses Converter lenses attach to the camera lens for quick and easy fish-eye or macro photography. See the OLYMPUS website for information on the lenses that can be used. + Use the appropriate lens attachment for SN mode Macro arm light (MAL-1) Use to illuminate subjects for macro photography, even at ranges at which vignetting would ocur with the flash. Microphone set (SEMA-1) Produces higher-quality recordings than the camera's built-in microphone. The microphone can be placed at a distance from the camera to avoid recording ambient sounds or wind noise. Third-party commercial microphones can also be used depending on your creative intent (power supplied via 93.5mm stereo mini-plug). Electronic viewfinder (VF-2) Electronic viewfnder can be used to view the shooting display. This is convenient when you are in a very bright location, such as under direct sunlight, where it is difficult to view the monitor, or are using the camera at a low angle. or Æ)

Exposure warning display If the optimum exposure cannot be obtained when pressing the shutter button halfway, the display will blink on the monitor. Shooting | Warning display mode : | example (blinking) | Sttu5 scon NIZNTZ The subjectis |+ Increase the ISO sensitivity. n É > PK BR 100 dark. + Use the flash. NI NIy + Decrease the ISO sensitivity. _ . get iS_ |. Use a commercially available ND filter PIN PIS g' (for adjusting the amount of light). Ne The subjectis | Decrease the aperture value. PS underexposed. | Increase the ISO sensitivity. A i + Increase the aperture value. Ste The subjectis | Decrease the ISO sensitivity or use a Soi F8 overexposed. | commercially available ND filter (for ! adjusting the amount of light). NT 7 [The subjectis | Set the shutter speed slower. 72 À | underexposed. | Increase the ISO sensitvity. S : + Setthe shutter speed faster. N 17 |Thesubjectis | Decrease the ISO sensitivity or use a 2 F2 — overexposed. | commercially available ND filter (for ! adjusting the amount of light). +_The aperure value at the moment when its indication blinks varies with the lens type and focal length of the lens. uoljeuLoqUI à

1 = uoljeuLoqUI «| Flash modes that can be set by shooting mode Super Shutter Shooting Flash | Conditions for Mode | control Flash Mode | Gning | fingtheñasn | SPeed panel limit AUTO Auto flash Fires automatically 1/30sec.— Auio flash in dark/backlit* © (red-eye reduction) an conditions sec: 30sec.— 4 Filkin flash Awaysfres | peu E] Flash off = = = © Slow synchronization SLOW _ | (recreye reduction) | st |. itomatically Slow synchronization | curtain | Fires aul a! 60sec.- SLoWw (st curtain) in datbackite | 4 AGO sec. 3 Slow synchronization | 2nd SLOW2 (nd curtain) | curtain E Fillin flash st 60sec.— 3© Filin flaeh curtain | Always res 1160sec. (red-eye reduction) SM E] Flash off = = — a File flash Son | 294 é0sec— , synchronization Always fires 2nd-C On euramy…— | Curain 1A60sec. *_ In Super FP mode, external flash units for use with this camera detect backlighting and emit a longer-than-normal flash + $AUTO, @) can be set in NM mode. Minimum range Lens | Approximats distance at The lens may cast shadows over objects close to which vignetting occurs the camera, causing vignetting, or be too bright 14-42mm 10m even at minimum output. 17 mm 025m 40-150mm 10m 14-150mm | Flash can not be used + External flash units can be used to prevent vignetting. To prevent photographs from being overexposed, select mode À or M and choose a high f-number, or reduce ISO sensitivity. [04 | EN

Flash synchronization and shutter speed Enr Upperlimitof | Fixed timing g Flash timing synchronization | when flash mode ê Ê timing" fires”? P 1/ (lens focal length x 2) or synchronization 4160 A timing, whichever is slower 160 1/1 ë The set shutter speed _ “1 Can be changed using menu: 1/60—1/160 [4 X-Sync.]: IF “Customizing camera settings” (P. 81) *2 Can be changed using menu: 30 1/160 [4 Slow Limit]: LŒ “Customizing camera settings” (P. 81) External flash unit Optional flash units designed for use with this camera can be used for a variety of flash effects. The external flashes communicate with the camera, allowing you to control the camera's flash modes with various available flash control modes, such as TTL-AUTO and Super FP flash An external flash unit specified for use with this camera can be mounted on the camera by attaching it to the camera's hot shoe. You can also attach the flash to the flash bracket on the camera using the bracket cable (optional). Refer to the documentation provided with the external flash units as well. Functions available with external flash units Flash control mode GN (Guide number) (50100) [RC mode TTL-AUTO, AUTO, MANUAL, | GN50 (85 mm°) GN28 (24mm°) v FP TTLAUTO, FP MANUAL _ | GN36 (85mm°) GN20 (24mm°) v FL-300R TILAUTO, MANUAL GN20 (28mm) v FL-14 TTLAUTO, AUTO, MANUAL_| GN14 (28mm°) = RFA GNT =

FF TTL-AUTO, MANUAL NZ _

• The focal length of the lens that can be used (Calculated based on 35 mm film camera) uoljeuLoqUI à

1 = uoljeuLoqUI «| 106|EN Record mode and file size/number of storable still pictures The file size in the table is approximate for files with a 4:3 aspect ratio. Record | Number of pixels | Compression File | Filesize |Number of storable mode | _ (Pixel Count) pi format | (MB) still picture" RAW Loss-less compression] ORF. [Approx. 13.8 55 LES 127 Approx. 8.4 102 LE 4032x3024 TA Approx 5.9 146 EN 1 Approx. 2.7 322 LE 1n2 Approx. 1.8 480 SF 127 Approx. 5.6 155 UF 14 Approx. 3.4 257 ON 5200x2400 1 Approx. 17 508 LE 1n2 Approx. 1.2 753 DSF 27 Approx. 3.2 271 IF Ta Approx. 2.2 398 TN 2860x1920 TE Approx. 1.1 782 LE 1n2 Approx. 0.8 ST SF 27 Approx. LE a76 IF Ta Approx. 1.3 To EN 1820x1440 TE Approx. 0.7 1356 LE) 1n2 Approx. 0.5 1968 ISF 127 JPEG lapprox. 1.3 678 IF . Ta Approx. 0.9 984 EN 1600x1209 1 Approx. 0.5 1906 1n2 Approx. 0.4 2653 27 Approx. 0.9 1034 TA Approx 0.6 1488 1280x960 Te Approx. 0.4 273 172 Approx 0.3 3613 W27 Approx. 0.6 1564 so24xre8 TA Approx 0.4 2260 1 Approx. 0.3 4068 1n2 Approx. 0.2 5547 127 Approx. 0.3 3589 14 Approx. 0.2 5085 540x480 1 Approx. 0.2 TE2T 172 Approx. 0.1 10170 “1 Assumes a 1 GB SD card © cautions The number of remaining pictures may change according to the subject, whether or not print reservations have been made, and other factors. In certain instances, the number of remaining pictures displayed on the monitor will not change even when you take pictures or erase stored images. The actual file size varies according to the subject. The maximum number of storable still pictures displayed on the monitor is 9999. For the available recording time for movies, see the Olympus website.

• Settings differ depending on the region where the camera is purchased. #, Custom Menu Tab | Function I Default [1 8 |® AFMF St Picture SAF AF Mode” [iovie CAF * Fulime AF Of v AF Area v Reset Lens On Bulb Focusing On Focus Ring a v MF Assist Of v [si] Set Home É AF Illuminat. On v © Face Priority a v © Buton/diai SAF mode AEL/AFL CAF mode2 , MF mode AEL/AFL Memo On v 5 EI A Button | ©Function © REC S v 3 Function [> Function a 5 V Function =] 5 P a 5 Dial A FNo Function [5 Shutter ” M Shutter Dial Exposure Dial Direction [Menu Dial Ÿ Glock On o Release Rs Priority S Of v RS Priority © On v D Hfps 5ps v D Lips 3fps v 108 |EN

Specifications = Camera Product type Product iype Digital camera with interchangeable lens system Lens MZuiko Digital, Micro Four Thirds System Lens Lens mount Micro Four Thirds mount Equivalent focal length on à 35mm film camera Approx. ice the focal lengih of the lens Image pickup device Product 1ype 413" Live MOS sensor No. of total pixels Approx.13,060,000 pixels No. of effective pixels Approx_12,300,000 pixels Screen size 17.3 mm(H}x 13.0 mm{V) Aspect ratio 1.33 (43) Live view Sensor Uses Live MOS sensor Field of view 100% Monitor Product 1ype Varr-angle 3.0° TFT color LCD Total no. of peels Approx. 460,000 dots (aspect ratio 16:2) Shutter Product iype Computerized focal-plane shutter Shutter 11400060 sec. Bulb Auto focus Product iype Imager contrast detection system Focusing points 85 points Selection of focusing point | Auto, Optional Exposure control Metering system TTL metering system (mager metering) Digital ESP metering/Center weïghted averaging metering/Spot metering Metered range EV 0-20 (Digial ESP metering/Center weïghied averaging metering/ Spot metering) Shooting modes IAUTO/P: Program AE (Program shift can be performed}. A: Aperture priority AE/S: Shutter priority AE/MI: Manual/ART: Ar fiter/ SCN: Scene/@9: Movie 150 sensitvity

200 - 12800 (1/3, 1 EV step)

Exposure compensation ASEV (VS, 12, 1 EV step) White balance Product 1ype Image pickup device Mode setting AutolPreset WB (7 settings) Customized WBJOne-touch WE Recording Memory SD/SDHC/SDXC/Eye-Fi card Recording system Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF)), RAW Data, MP format Applicable standards Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching I, PictBridge Sound win st pictures Wave format Movie AVI Motion JPEG/AVCHD Audio PCM 48kHz/Dolby Digital Playback Display format Single-frame playbackClose-up playback/ndex display/Calendar display uoljeuLoqUI

uoljeuLoqUI 112/EN Drive Drive mode Single-frame shoofing/Sequential shooting/Seltimer. Sequential shooting Approx. 4 framesisec. (Eh, IS: 151), Approx. 5 frames/sec. (©h. IS: OFF) Seïttimer Operation time: 12 sec. 2 sec. External flash Sync speed 1780 s or siower Flash control mode TTLAUTO (TTL pre-Mlash mode) External connector Muït-connector (USB connector, AV connector)HDMI micro connector (type DYAccessory port Power supply Battery Lion Batery x DimensionsAweight Dimensions. 109.5 mm(W)*63.7 mm(H)x37.3 mm(D) (4.8"x2.5"x 1.5") {excluding protrusions) Weïgnt Approx. 313 g (0.7 Ib.) (including battery and memory card) Operating environment Temperature 0°C-40-C(32-F- 104 -F) (operation]-20 “C - 60 °C (-4 F- 140 F) (storage) Humidity 30% - 90% (operationÿ/10% - 20% (storage) = FL-LM1 Flash HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. HOMI

MODEL NO. BLS-1 (PS-BLS1) I BLSS

Product type Rechargeable Lithium ion battery Nominal voltage DC72V Nominal capacity 1150 man No. of charge and discharge times Approx. 500 times (varies wilh usage conditions) Ambient temperature 0:C-40-C(32F- 104 F) (charging) Dimensions Approx. 35.5 mm QU) x 12.8 mm (H) 55 mm(D) (1.4"* 0.5 x 2.2) Weight Approx 469.11) | Approx 44g@0.11D) # Lithium ion charger

MODEL NO. BCS-1 (PS-BCS1) I BCSS

Rated input AC 100V - Z40V (5060 HZ) Rated output DC 8.35V, 400mA Charging time Approx. 3 hours 30 minutes (room temperature) Ambient temperature 0-C-40-C (82 F - 104 °F) (operation 20 *C - 60 °C (-4 ‘F - 140 °F) (storage) Dimensions Approx. 62 mmQW)x 38 mm(H)x83 mm (D) (2.4 1.5 43.3) Weight (wiout AC cable) Approx. 729 (021) [| Approx 70g{021b) +_The AC cable supplied with this device is for use only with this device and should not be used with other devices. Do not use cables for other devices with this device. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR OBLIGATION ON THE PART OF THE MANUFACTURER.

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL. An exclamation mark enclosed in a triangle alerts you to important operating

and maintenance instructions in the documentation provided with the product I the product is used without observing the information given under this A DANGER symbol, serious injury or death may result. A warning line products used without observing te information given under his symbol, injury or death may result. I the product is used without observing the information given under this ZX GCAUTION symbol, minor personal injury, damage to the equipment, or loss of valuable data may result WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT. General Precautions Read AIl Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference Cleaning — Aways unplug this product from the wall outlet before cleaning. Use only a damp cloih for cleaning. Never use any type of liquid or &erosol cleaner, or any type of organic solvent to clean this product. Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus. Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofng sections. Location — To avoid damage to the product, mount the product securely on a stable tripod, Stand, or bracket Power Source — Connect this product only to the power source described on the product label Foreign Objects — To avoid personal injury, never insert a metal object into the product. Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers. Product Handling Precautions À WARNING + Do not use the camera near flammable or explosive gases. Do not use the flash and LED on people (infants, small children, etc.) at close range. You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash 100 close to the subjects eyes could cause a momentary loss of vision. + Keep young children and infants away from the camera. Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury: + Becoming entangled in the camera strap, causing strangulation. + Accidentally swallowing the battery, cards: or other small parts. SNOLLNVI3d AL31VS A

SNOLLNVI3d AL31VS Ë 114/EN + Accidentall fring the flash into their own eyes or those of another child + Accidentally being injured by the moving parts of the camera. + Do not look at the sun or strong lights with the camera. + Do not use or store the camera in dusty or humid places. +_ Do not cover the flash with a hand wi firing. À CAUTION + Stop using the camera immediately if you notice any unusual odors, noise, or smoke around if Never remove the batteries with bare hands, which may cause a fire or bum your hands. Never hold or operate the camera with wet hands. Do not leave the camera in places where may be subject to extremely high temperatures. Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger if it is covered (such as a blanket). This could cause overheating, resulting in fre. Handie the camera with care to avoid getting a low-temperature burn. When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following: + When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low temperature burn may be caused. + In places subject to extremely cold temperatures, the temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures. + Be careful with the strap. Be careful with the strap when you carry the camera. It could easily catch on stray objects - and cause serious damage. Battery Handling Precautions Follow these important guidelines to prevent batteries from leaking, overheating, burning, [exploding, or causing electrical shocks or burns: À DANGER +_ The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified charger. Do not use any other chargers Never heat or incinerate batteries. Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc. Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near à heat source, etc. To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify i in any way, by soldering, etc. battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately. Always store batteries out of the reach of small children. I a child accidentally swallows a battery, seek medical attention immediately. Should you notice that the charger is emiting smoke, heat, or an unusual noise or smell, immediately cease use and unplug the charger from the power outlet, and then contact an authorized distributor or service center. À WARNING Keep batteries dry at al times. To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product. Insert the battery carefully as described in the operating instructions If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them. Do not use a battery if it is cracked or broken. If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other Way during operation, stop using {he camera If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately. Never subject batteries to strong shocks or continuous vibration À CAUTION + Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality. The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.

AWways unload the battery from the camera before storing the camera for a long period. This camera uses a lithium ion battery specified by Olympus. Do not use any other type of battery. For safe and proper use, read the battery instruction manual carefuly before using it. I the battery's terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use. AWways charge a battery when using i for the fist time, or if it has not been used for a long period +_ When operating the camera with battery power at low temperatures, try to keep the camera and spare battery as warm as possible. À battery that has run down at low temperatures may be restored after i is warmed at room temperature. The number of pictures you can take may. vary depending on the shooting conditions or battery. Before going on a long trip, and especially before traveling abroad, purchase extra batteries. À recommended battery may be dificuit to obtain while traveling When the camera wil not be used for an extended period, store it in a cool place. Please recycle batteries to help save our planet resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations. Caution for Usage Environment +_ To protect the high-precision technology contained in this product, never leave the camera in the places listed below, no matter if in use or storage: + Places where temperatures and/or humidity are high or go through extreme changes. Direct sunight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifirs. In sandy or dusty environment. + Near flammable items or explosives. + In wet places, such as bathrooms or in the rain, When using products with weatherproof designs, read their manuals as wel In places prone to strong vibrations. Never drop the camera or subject it to severe Shocks or vibrations. +_ When mounted on a tripod, adjust the position of the camera with the tripod head Do not twist the camera. Do not leave the camera pointed directly atthe sun. This may cause lens or shutter curtain damage, color failure, ghosting on the image pickup device, or may possibly cause fires. Do not touch electric contacts on cameras and interchangeable lenses. Remember to attach the body cap when removing the lens. Before storing the camera for a long period, remove the battery. Select a cool, dry location or starage to prevent condensation or moid from forming inside the camera. After Storage, test the camera by tuming it on and pressing the shutter release button to make Sure thatit is operating normal. +_ The camera may malfunction if it is used in à location where itis subject to a magnetic! electromagneic fleld, radio waves, or high voltage, such as near a TV set, microwave, video game, loud speakers, large monitor unit, TV/radio tower, or transmission towers. In such cases, turn the camera off and on again before further operation. Always observe the operating environment restrictions described in the camera's manual Do not directly touch or wipe the image Pickup device of the camera. Monitor The display on the rear of the camera is an LCD monitor. In the unlikely event that the monitor breaks, do not put the liquid crystal in your mouth. Any of the material adhering to your hands, feet, or clothing should be rinsed off immediately. + Astrp of light may appear on the top/bottom of the monitor, but this is not a malfunction. When a subject is viewed diagonally in the camera, the edges may appear zigzagged on the monitor. This is not a malfunction: i wil be less noticeable in playback mode. In places subject to low temperatures, the monitor may take a long time to turn on or is color may change temporari, When using the camera in extremely cold places, it is a good idea to occasionally place itin a warm place. An monitor exhibiting poor performance due to low temperatures wil recover in nommal temperatures, The monitor is made with high-precision technology. However, black spots or bright spots of light may appear constantly on the monitor. Due to its characteristics or the angle at which you are viewing the monitor, the spot may not be uniform in color and brighiness, This is not a malfunction. SNOLLNVI3d AL31VS A

Lens + Do not immerse in water or splash with water. + Do not drop or exert strong force on the lens. Do not hold at the moving part of the lens. Do not touch the lens surface directy. Do not touch the contact points directly. Do not subject to abrupt temperature changes. The operating temperature range is 10 *C —40 °C (14 *F—104 °F). Always use within this temperature range. Legal and Other Notices + Olympus makes no representations or warranties regarding any damages, or benefit expected by using this unit lawiuly, or any request from a third person, which are caused by the inappropriate use of this product. Olympus makes no representations or warranties regarding any damages or any benefit expected by using this unit lawuly which are caused by erasing picture data. Disclaimer of Warranty + Olympus makes no representations or warranties, either expressed or implied, by. or concerning any content of these written materials or software, and in no event Shall be liable for any implied warranty of merchantability or finess for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use or inablity to use these writien materials or software or equipment, Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you + Olympus reserves all rights to this manual. Warning Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners. Copyright Notice Al rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability 116|EN SNOLLNVI3d AL31VS Ë is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice. FCC Notice +_ Radio and Television Interference Changes or modifications not expressly approved by the manufacturer may void the users authority to operate this equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. W this equipment does cause harmful interference to radio or television reception, which can be determined by. tuming the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Adjust or relocate the receiving antenna. + Increase the distance between the camera and receiver. + Connect the equipment to an outiet on & circuit different from that to which the receiver is connected. Consul your dealer or an experienced radio/TV technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC). Any unauthorized changes or modifications to this equipment would void the users authority to operate it Use Only Dedicated Rechargeable Battery and Battery Charger We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery and battery charger with this camera Using a non-genuine rechargeable battery and/or battery charger may result in fire or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liabilty for accidents or damage that may result from the use of a battery and/or battery charger that are not genuine Olympus accessories.

For customers in North and South America For customers in USA Declaration of Conformity Model Number E-PL3 Trade Name OLYMPUS Responsible Party _ : OLYMPUS IMAGING AMERICA INC. Address 3500 Corporate Parkway, P. O. Box 610, Center Valley, PA 18034-0610, USA Telephone Number _: 484-896-5000 Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 ofthe FCC rules. Operation is subject to the following two conditions: {1) This device may not cause harmful interference. {2) This device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus complies with Canadian ICES-003. For customers in Europe CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. *CE” mark cameras are intended for sales in Europe. This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product Lx A This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex I] indicates separate collection of waste batteries in the EU countries. Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries. Provisions of warranty I this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during the applicable national warranty period and has been purchased from an authorized Olympus distributor within the business area of Olympus Europa Holding GmbH as stipulated on the website: http:/imwwrolympus.com this product wil be repaired, or at Olympus's option replaced, free of charge. To claim under this warranty the customer must take the product before the end of the applicable national warranty period to the dealer where the product was purchased or any other Olympus service station within the business. area of Olympus Europa Holding GmbH as stipulated on the website: http:/{muwolympus.com. During the one year period of the Word Wide Guarantee the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.

2. The customer shall transport the product to the dealer or Olympus authorized service station at his

own risk and shall be responsible for any costs incurred in transporting the product. Provisions of Guarantee 1 “OLYMPUS IMAGING CORP, Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan grants a one year World Wide Guarantee. This worldwide Guarantee must be presented at an Olympus authorized repair service station before any repair can be made under conditions of this Guarantee. This Guarantee is valid only if the Guarantee Certificate and proof of purchase are presented at the Olympus repair service station. Please note that this Guarantee is in addition to and does not affect the customers legal warranty rights under the applicable national legislation governing the sale of consumer goods mentioned above. SNOLLNVI3d AL31VS A

2. This Guarantee does not cover the following and the customer will be required to pay repair charge,

even for defects occurring within the Guarantee period referred to above. (a) Any defect that occurs due to mishandiing (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.) (b) Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station ©) Any defect or damage that oceurs due to transport, a fall, shock, etc. after purchase of the product. a) Any defect or damage that oceurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources. {e) Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc. () Any defect that oceurs due to exhausted batteries, etc. (g) Any defect that occurs due to sand, mud, etc. entering the inside of the product casing. (h) When the Guarantee Certificate is not retumed with the product i)_ When any alterations whatsoever are made to the Guarantee Certificate regarding the year, month and date of purchase, the customers name, the dealers name, and the serial number. &). When proof of purchase is not presented with this Guarantee Certificate. 3 This Guarantee applies to the product only; the Guarantee does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries. 4 Olympus's sole liability under this Guarantee shal be limited to repairing or replacing the product. Any liability under the Guarante for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect of the product, and in particular any loss or damage caused to any lenses, films, other equipment or accessories used with the product or for any loss resulting from a delay in repair or loss of data, is excluded. Compellng regulations by law remain unaffected by this. Notes regarding Guarantee maintenance

1. This Guarantee wil only be valid the Guarantee Certficate is duly completed by Olympus or an

authorized dealer or other documents contain sufficient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are ll completed or the original invoice or the sales receipt (indicating the dealer name, the date of purchase and product type) is attached to this Guarantee Certificate. Olympus reserves the right to refuse free-of-charge service if neither Guarantee Certfcate is completed nor the above document is attached or if the information contained in it is incomplete or ilegible.

2. Since this Guarantee Certificate will not be re-Issued, keep it in a sate place.

+ Please refer to the list on the website: tp/ www.olympus.com for the autharized intemational Olympus service network. Trademarks +_ IBM is a registered trademark of International Business Machines Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. Macintosh is a trademark of Apple Inc. The SDHC and SDXC logos are trademarks. Eye-Fi is a trademark of Eye-Fi, Inc. Shadow Adjustment Technology” function contains patented technologies from Apical %

Limited. apical AVCHD and the AVCHD logo are trademarks of the Sony and Panasonic corporations. Manufactured with an implementation license from Dolby Laboratories. Dolby and the double-D logo are trademarks of Dolby Laboratories. Slideshow transition technology supplied by HI Corporation. mAscorcArsuLE"

Al other company and product names are registered trademarks and/or trademarks of their respective owners. Micro Four Thirds and the Micro Four Thirds logo are trademarks or registered trademarks of OLYMPUS IMAGING Corporation in Japan, the United States, the countries of the European Union, and other countries. “PENPAL'" is used in reference to the OLYMPUS PENPAL. The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF" standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA). THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE. PERSONAL AND NONCOMMERCIAL USE OF À CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (‘AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY À CONSUMER ENGAGED IN À PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM À VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP/WWWW.MPEGLA.COM SNOLLNVI3d AL31VS A

System chart Power Supply Viewinder = LD

BLS-4/BLS-5 BCS-1/BCS-5 Q

Lion Battery Lion Battery Charger _ ta Oplcal View Finder Electronic View Finder Remote Operation RM-UC1 Remote Cable USB Cable/ Connection Cable | AV Cable! HDMI Cable Shoulder Strap Case / Strap” | Camera Case MET Retro Bag/ PEN Case Modern PEN Case Smart Accessory port devices Underwater | Undenvater case System æ

“1 Not all lenses can be used with adapter. For deals, refer to the Olympus official website. Also, please note hat manufacture of OM System Lenses has been discontinued. “2 For compatible lens, refer to the Olympus official website. +3 The OLYMPUS PENPAL can be used only in the region in which it was purchased. Depending on the areas, the usage may infringe the wave regulations and may be subject to its penalty. “4 Use only compatible battery chargers Lo charge rechargeable batteries. 120 | EN

MMF-2* Four Thirds System Lenses Four Thirds Adapter MF2* OM Adapter 2 OM System Lenses Flash FL-14 Electronic Flash FL-50R Electronic Flash FL-36R Electronic Flash SRF-11 Ring Flash Set STF-22 se O1 FC-1 Macro Flash Controller *$ Some accessories may not be available in your region. “8 Use in accordance with local regulations. Converter Lens? FCON-P01 Fisheye WCON-P01 Wide MCON-P01 Macro FL-300R Electronic Flash “Twin Flash Set TF-222 “Twin Flash

B&W Filter . Backlit LCD: Battery. BGM. Black & White Bracketing.. Bulb Focusing Bulb shooting. Bulb Timer . Button Function … 82

Easy printing. Easy shooting mode: Edit Filename... Effect. Electronic viewfnder. e-Portrait. EV Step EVF Adjust... Exposure compensation F4 Exposure Shift Eye-Fi. Eye-Fi card.

Gradation Group Target.

Test Picture. Tone control. Timming +

WB.. 43,85 WB BKT. 57 White balance compensation 44 White balance WB.…. 43

OLYMPUS EUROPA HOLDING GMBH

Premises: Consumer Product Division Wendenstrasse 14 — 18, 20097 Hamburg, Germany Tel: +49 40 - 23 77 3-0 / Fax: +49 40 - 23 07 61 Goods delivery: Bredowstrasse 20, 22113 Hamburg, Germany Letters: Postfach 10 49 08, 20034 Hamburg, Germany European Technical Customer Support: Please visit our homepage http:/www.olympus-europa.com or call our TOLL FREE NUMBER“: 00800 - 67 10 83 00 for Austria, Belgium, Denmark, Finland, France, Germany, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom. Please note some (mobile) phone services / provider do not permit access or request an additional prefi to +800 numbers. For al not listed European Countries and in case that you can't get connected to the above mentioned number please make use of the following CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 48 99. Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday) Authorized Distributors United Kingdom: Olympus Service Department South Africa: _ Tudor Photographic IEire Olympus Imaging & Audio” Ath floor, Park on Long KeyMed House 66 Long Street Stock Road Cape Town 8001 Southend-on-Sea South Africa Essex Tel: +27 (0) 21 423 4150 SS2 50H Fax: +27 (0) 21 424 4632 United Kingdom Sales - 0800 111 4777 Service - 0800 111 4888 Facsimil - +44 (0)1702 445134 email - consumer@olympus.co.uk M OIympuS:co.uk
