USER MANUAL VG-180 OLYMPUS

• Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.
• We recommend that you take test shots to get accustomed to your camera before taking important photographs.
• In the interest of continually improving products, Olympus reserves the right to update or modify information contained in this manual.

Digital camera

Lithium Ion Battery (LI-42B)

USB-AC adapter (F-2AC)

USB cable (CB-USB4)

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

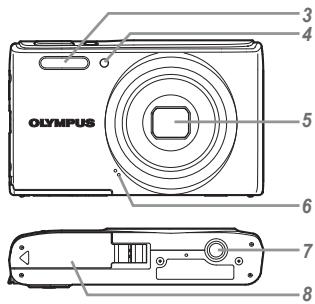

Names of Parts

1 Connector cover
2 USB connector
3 Flash
4 Self-timer lamp
5 Lens
6 Microphone
7 Tripod socket
8 Battery/card cover

1 ON/OFF button
2 Shutter button
3 Monitor
4 Zoom buttons
5 Indicator lamp
6 button (switching between shooting and playback)
7 Arrow pad INFO (changing information display) (flash) (self-timer)/ (erase)
8 button (OK)
9 MENU button

Arrow pad

1 instruct to press the up/down/left/right arrow pad.

Inserting and removing the battery and card (commercially available)

1 Follow Steps ① and ② to open the battery/card cover.

Turn off the camera before opening the battery/ card cover.

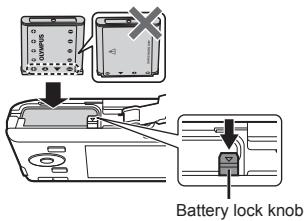

2 Insert the battery while sliding the battery lock knob in the direction of the arrow.

Insert the battery as illustrated with the mark toward the battery lock knob.

Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.

Slide the battery lock knob in the direction of the arrow to unlock, and then remove the battery.

3 Insert the card straight until it clicks into place.

Always use SD/SDHC/SDXC cards with this camera. Do not insert other types of memory cards. "Using the card" (p. 49)
- Do not touch the metallic parts of the card directly.

To remove the card

1

2

Press the card in until it clicks and comes out slightly, then remove the card.

4 Follow Steps ① and ② to close the battery/card cover.

When using the camera, be sure to close the battery/card cover.

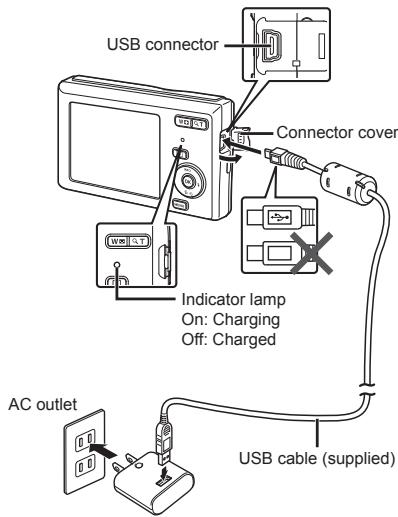

Charging the battery

Connect the USB cable and USB-AC adapter to the camera and charge the battery.

For charging the battery abroad, see "Using your charger and USB-AC adapter abroad" (p. 48).

• The battery is not fully charged at shipment. Before use, be sure to charge the battery until the indicator lamp turns off (up to 3 hours).

Connecting the camera

When to charge the batteries

Charge the battery when the error message shown below appears.

Error message
Flashes in red

Never use any cable other than supplied or Olympus-designated USB cable. This may cause smoking or burning.
The included F-2AC USB-AC adapter (hereafter referred to as USB-AC adapter) differs depending on the region where you purchased the camera. If you received a plug-in type USB-AC adapter, plug it directly into AC outlet.
The included USB-AC adapter has been designed to be used for charging and playback. Do not take pictures while the USB-AC adapter is connected to the camera.
Be sure to unplug the power plug of the USB-AC adapter from the wall outlet when the charging is complete or the playback ends.
For details on the battery, see "Battery Handling Precautions" (p. 57). For details on the USB-AC adapter, see "USB-AC adapter" (p. 58).

• If the indicator lamp does not light, check the USB cable and USB-AC adapter connections.

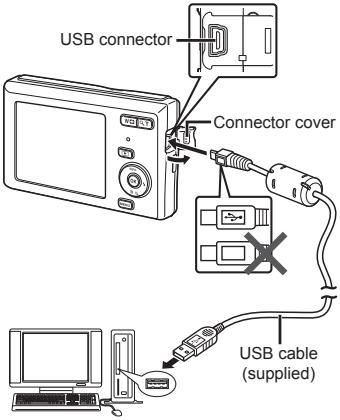

• The battery can be charged while the camera is connected to the computer via USB. The charging time varies depending on the performance of the computer. (There may be cases in which it takes approx. 10 hours.)

Turning on the camera and making the initial settings

When you turn on the camera for the first time, a screen appears enabling to set the language for the menus and messages displayed in the monitor, and the date and time.

To change the selected date and time, see "Setting the date and time f [ ] p.33).

1 Press the ON/OFF button to turn on the camera, press of the arrow pad to select your language and press the button.
2 Press of the arrow pad to select the year for [Y].

Date and time setting screen

3 Press of the arrow pad to save the setting for [Y].

4 As in Steps 2 and 3, press of the arrow pad to set [M] (month), [D] (day), [Time] (hours and minutes), and [Y/M/D] (date order), and then press the OK button.
For precise time setting, press the button as the time signal strikes 00 seconds.
5 Press of the arrow pad to select time zone and then press the OK button.

• Use to turn daylight saving time ([Summer]) on or off.

Learning how to use the

camera

• Press the ON/OFF button to turn on the camera and enter the standby mode. (Press the ON/OFF button again to turn off the camera.)

• Select the shooting mode, and press the shutter button to shoot a still image.

• To shoot a movie, select the mode, and then press the shutter button.

• Set the shooting functions using the function menu or the setup menu.

• To view images, press the button to switch to playback mode.

• To return to standby mode, press the button again, or press the shutter button halfway down and then release it.
• Press and hold the button while the camera is turned off to start up the camera in the playback mode.
• In this case, pressing the button again sets the camera to the standby mode.

Shooting still images

1 Press the ON/OFF button to turn on the camera.
2 Select the shooting mode. (p. 13)
3 Hold the camera and compose the shot.

When holding the camera, take care not to cover the flash, microphone or other important parts with your fingers, etc.
Take care so that the flash window is not exposed to fingerprints or dirt.

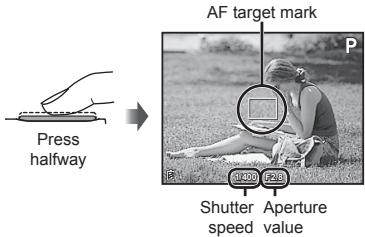

4 Press the shutter button halfway down to focus.

• The camera was unable to focus if the AF target mark flashes red. Try focusing again.
  5 To take the picture, gently press the shutter button all the way down while being careful not to shake the camera.

Using the zoom

Pressing the zoom buttons adjusts the shooting range.

Pressing the wide Pressing the telephoto (W) button (T) button

Image size	Zoom bar
16M*1/14M*2	W T Optical zoom
Other	W T ST *3

1 VG-180/D-770 only
*2 VG-165/D-765 only
3 Due to increased processing of the pixel counts, the image quality will not degrade. The magnification ratio changes depending on the image size setting.

Using the flash

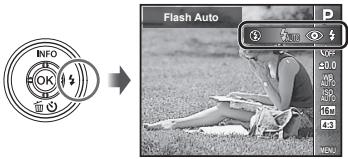

The flash functions can be selected to best match the shooting conditions.

1 Press

2 Use to select the setting option, and press the OK button to set.

Option	Description
Flash Auto	The flash fires automatically in low-light or backlight conditions.
Redeye	Pre-flashes are emitted to reduce the occurrence of red eye in your photos.
Fill In	The flash fires regardless of the available light.
Flash Off	The flash does not fire.

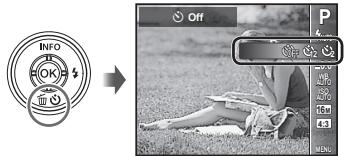

Using the self-timer

After the shutter button is pressed all the way down, the picture is taken after a short delay.

1 Press

2 Use to select the setting option, and press the OK button to set.

Option	Description
Off	The self-timer is deactivated.
12 sec	The self-timer lamp turns on for approx. 10 seconds, then blinks for approx. 2 seconds, and then the picture is taken.
2 sec	The self-timer lamp blinks for approx. 2 seconds, and then the picture is taken.

To cancel the self-timer after it starts

Press the MENU button.

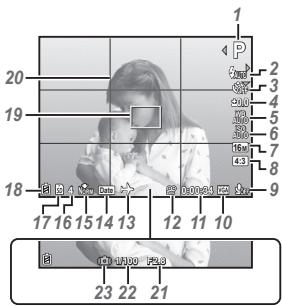

Shooting screen displays

When the shutter button is pressed halfway down

No.	Name	Normal	Detailed	No info.
1	Shooting mode	✓	✓	-
2	Flash	✓	✓	-
3	Self-timer	✓	✓	✓
4	Exposure compensation	✓	✓	-
5	White balance	✓	✓	-
6	ISO sensitivity	✓	✓	-
7	Image size (still images)	✓	✓	-
8	Aspect	✓	✓	-
9	Recording with sound	✓	✓	-
10	Image size (movies)	✓	✓	-
11	Movie recording length	✓	✓	-
12	Movie recording icon	✓	✓	-
13	World time	-	✓	-
14	Date stamp	✓	✓	-
15	Compression	✓	✓	-
16	Number of storable still pictures	✓	✓	-
17	Current memory	✓	✓	-
18	Battery check	✓	✓	-
19	AF target mark	✓	✓	✓
20	Grid Guide	-	✓	-
21	Aperture value	✓	✓	✓
22	Shutter speed	✓	✓	✓
23	Camera shake warning	✓	✓	✓

Switching the displays

The displays change in the order of Normal Detailed No info. Each time (INFO) is pressed.

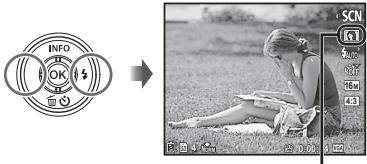

Selecting the shooting mode

The default settings of the function are highlighted in

Shooting mode	Submode
P (P mode)	-
IAUTO (IAUTO mode)	-
(DIS Mode)	-
BEAUTY (BEAUTY mode)	Recommended/Set 1/Set 2/Set 3
(Super Macro mode)	-
SCN (SCN mode)	Portrait/Landscape/Night Scene/Night+Portrait/Sport/Indoor/Candle/Self Portrait/Sunset/Fireworks/Cuisine/Documents/Beach & Snow/Pet
MAGIC (MAGIC mode)	Pop Art/Pin Hole/Fish Eye/Soft Focus/Punk/Sparkle/Watercolor/Reflection/Miniature
(Movie mode)	-

• "List of settings available in each shooting mode" (p. 44), "List of SCN settings" (p. 45), "List of MAGIC settings" (p. 47)

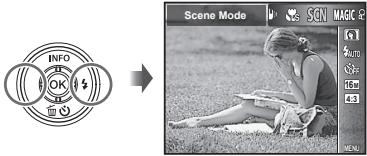

1 Press of the arrow pad on standby mode screen first, and press to select shooting mode.

To select the BEAUTY, SCN and MAGIC submodes, display submodes by using first. Then use to select the desired submodule and press the button.

To select a submode

Icon indicating the submode that is set

Learning about the shooting modes

P(Pmode)

The camera will select the appropriate aperture value and shutter speed for the subject. Changes can also be made to various shooting settings, such as exposure compensation, as needed.

iAUTO (iAUTO mode)

The camera will automatically select the optimal shooting mode for the scene. The shooting condition is decided by the camera and settings cannot be changed, excepting some functions.

(DISmode)

This mode enables the user to reduce blur that is caused by camera shake and subject movement.

(Super Macro mode)

This enables shooting as close as 5 cm (2 in.) to the subject. The zoom position is locked.

SCN (SCN mode)

You can shoot with the best mode for the subject and shooting scene.

The best shooting settings for various scenes are pre-programmed as submodes. Note that functions may be limited in some modes.

Refer to the descriptions displayed on the submode selection screen, and select the desired submode.

MAGIC (MAGIC mode)

You can shoot with special effects.

Refer to the sample images displayed on the submode selection screen, and select the desired submode.

The best shooting settings for each effect are pre-programmed, so some function settings cannot be changed.

(Movie mode)

You can shoot a movie.

"Shooting movies" (p. 18)

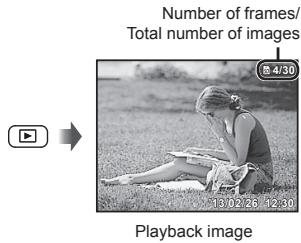

1 Press the button.

2 Use to select an image.

Displays previous image

Displays next image

• Hold to fast forward and hold to reverse.
• Press the button again to return to the shooting screen.

Index view and close-up view

Index view enables quick selection of a desired image. Close-up view (up to 10× magnification) allows checking of image details.

1 Press the zoom buttons.

Single-image view
W T

Close-up view

Index view

To select an image in index view

Use to select an image, and press the button to display the selected image in single-image view.

To scroll an image in close-up view

Use to move the viewing area.

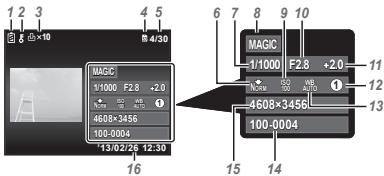

Playback mode display

Normal
Still image

Detailed

No information

No.	Name	Normal	Detailed	No info.
1	Battery check	-	✓	-
2	Protect	✓	✓	-
3	Print reservation/number of prints	✓	✓	-
4	Current memory	✓	✓	-
5	Frame number/total number of images	✓	✓	-
6	Compression	-	✓	-
7	Shutter speed	-	✓	-
8	Shooting mode	-	✓	-
9	ISO sensitivity	-	✓	-
10	Aperture value	-	✓	-
11	Exposure compensation	-	✓	-
12	Shooting submode	-	✓	-
13	White balance	-	✓	-
14	File name	-	✓	-
15	Image size	-	✓	-
16	Recording date and time	✓	✓	-

Switching the displays

The displays change in the order of Normal Detailed No info. Each time (INFO) is pressed.

Erasing images during playback

1 Display the image you want to erase and press (II).

2 Press to select [Erase], and press the OK button.

• Grouped images are erased as a group.
• Multiple images or all images can be erased at a time (p. 30).

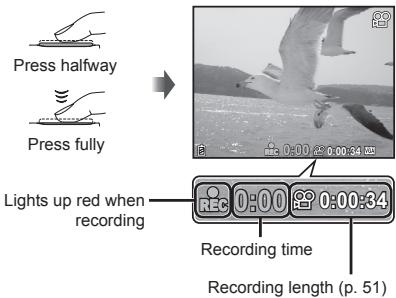

1 Press of the arrow pad on standby mode screen first, and press to select movie mode.
2 Press the shutter button halfway down to focus on the subject, and then gently press the shutter button all the way down to start recording.

Sound is also recorded.
3 Press the shutter button all the way down gently to stop recording.

Playing back movies

Select a movie, and press the button.

Movie

During playback

Pausing and restarting playback	Press the ⊙ button to pause playback. During pause, fast forward or reverse, press the ⊙ button to restart playback.
Fast forward	Press ➔ to fast forward. Press ➔ again to increase the fast forward speed.
Rewind	Press ↘ to rewind. Press ↘ again to increase the rewind speed.

The sound recorded in movie mode cannot be played back with this camera. To listen to the sound, connect to a PC.

Operations while playback is paused

Cueing	Use △ to display the first frame and press ▽ to display the last frame.
Advancing and rewinding one frame at a time	Press ▷ or ▲ to advance or rewind one frame at a time. Hold ▷ or ▲ pressed for continuous advance or rewind.
Resuming playback	Press the ⊙ button to resume playback.

To stop movie playback

Press the MENU button.

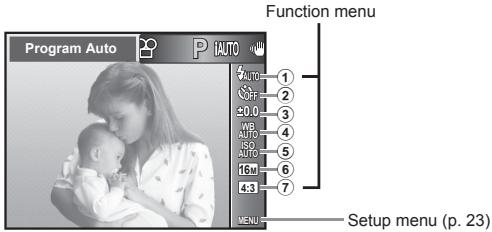

Menu settings

In certain shooting modes, some functions cannot be set.

Function menu

① Flash	③ Exposure compensation	⑤ ISO sensitivity	⑦ Aspect
② Self-timer	④ White balance	⑥ Image Size

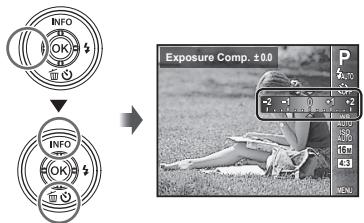

Using the function menu

1 Use of the arrow pad to display the function menu.
2 Use of the arrow pad to select the function to be set.
3 Use of the arrow pad to select the setting value, and then press the button to enter the setting.

Example: Exposure compensation

Flash		Sets the flash firing method.
FLASH Auto		The flash fires automatically in low-light or backlight conditions.
Redeye		Pre-flashes are emitted to reduce the occurrence of red eye in your photos.
Fill In		The flash fires regardless of the available light.
Flash Off		The flash does not fire.
Self-timer		Sets the time after the shutter button is pressed until the picture is taken.
Off 12 sec		The self-timer is deactivated.
2 2 sec		The self-timer lamp turns on for approx. 10 seconds, then blinks for approx. 2 seconds, and then the picture is taken.
		The self-timer lamp blinks for approx. 2 seconds, then the picture is taken.
Exposure compensation		Compensates the brightness (appropriate exposure) adjusted by the camera.
-2 to +2 Value		Set a larger negative (-) value to adjust darker, or a larger positive (+) value to adjust brighter.
White balance		Sets an appropriate color scheme for the light of the shooting scene.
WB Auto WB Auto		The camera automatically adjusts the white balance.
Sunny Cloudy		Suitable for shooting outdoors under a clear sky.
Cloudy		Suitable for shooting outdoors under a cloudy sky.
Incandescent		Suitable for shooting under tungsten lighting.
Fluorescent		Suitable for shooting under white fluorescent lighting.
ISO sensitivity		Sets the ISO sensitivity.
ISO AUTO	ISO Auto	The camera automatically sets the sensitivity with priority on image quality.
ISO 100 to ISO 1600 Value		Set a smaller value to reduce noise in the picture, or a larger value to reduce blur.
Image size		Sets the number of recording pixels.
4608×34561		Suitable for printing pictures over A3 (11×17 in.).
4288×32162		Suitable for printing pictures over A3 (11×17 in.).
3200×2400		Suitable for printing pictures up to A3 (11×17 in.).
1920×1440		Suitable for printing pictures up to A4 size (8.5×11 in.).
640×480		Suitable for using pictures on emails.
Aspect		Sets the horizontal-to-vertical ratio of images.
4:3		Change the horizontal-to-vertical ratio to 4:3 when taking pictures.
16:9		Change the horizontal-to-vertical ratio to 16:9 when taking pictures.
3:2		Change the horizontal-to-vertical ratio to 3:2 when taking pictures.
1:1		Change the horizontal-to-vertical ratio to 1:1 when taking pictures.

VG-180/D-770 only
2 VG-165/D-765 only

• In certain shooting modes, some functions cannot be set. Refer to "List of settings available in each shooting mode" (p. 44)
  The image sizes are the examples when the aspect ratio is set to [4:3].

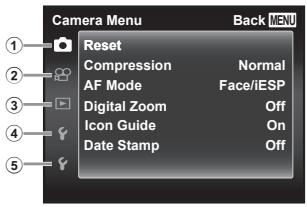

Setup menu

① Camera Menu (p. 25)
	Reset Compression AF Mode Digital Zoom Icon Guide Date Stamp
② Movie Menu (p. 27)
	Image Size Frame Rate © (Movie sound recording)

Using the setup menu

Press the MENU button during shooting or playback to display the setup menu.

The setup menu provides access to a variety of camera settings, such as shooting and playback functions, time and date settings, and display options.

1 Press the MENU button.

• The setup menu is displayed.

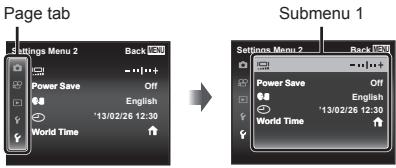

2 Press to select the page tabs. Use to select the desired page tab and press .

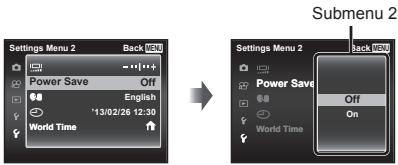

3 Use to select the desired submenu 1 and then press the OK button.

4 Use to select the desired submenu 2 and then press the OK button.

• Once a setting is selected, the display returns to the Submenu 1.
• There may be additional operations.

5 Press the MENU button to complete the setting.

The default settings of the function are highlighted in
- For the operation method, refer to "Using the setup menu" (p. 24).

Camera Menu

Restoring the shooting functions to the default settings [Reset]

Submenu 2	Application
Yes	Restores the following menu functions to the default settings. • Shooting mode • Flash • Self-timer • Exposure compensation • White balance • ISO sensitivity • Image Size (still images) • Aspect • Camera Menu and Movie Menu Functions
No	The settings will not be changed.

Selecting the image quality for still images [Compression]

Submenu 2	Application
Fine	Shooting at high quality.
Normal	Shooting at normal quality.

• "Number of storable pictures (still images)/ Recording length (movies) in the internal memory and cards" (p. 50, 51)

Selecting the focusing area [AF Mode]

Submenu 2	Application
Face/iESP	The camera focuses automatically. (If a face is detected, it is shown by a white frame1; when the shutter button is pressed halfway and the camera focuses, the frame turns to green2. If no face is detected, the camera chooses a subject in the frame and focuses automatically.)
Spot	The camera focuses on the subject located within the AF target mark.
AF Tracking	The camera tracks the subject movement automatically to focus on it continuously.

1 For some subjects, the frame may not appear or may take some time to appear.
2 If the frame blinks in red, the camera cannot focus. Try refocusing on the subject.

To focus on a moving subject continuously (AF Tracking)

① Hold the camera to align the AF target mark on the subject and press the button.
When the camera recognizes the subject, the AF target mark automatically tracks the subject movement to focus on it continuously.
③ To cancel the tracking, press the button.
- Depending on the subjects or the shooting conditions, the camera may be unable to lock the focus or fail to track the subject movement.
- When the camera fails to track the subject movement, the AF target mark changes to red.

Shooting at higher magnifications than optical zoom

[Digital Zoom]

Submenu 2	Application
Off	Disable digital zoom.
On	Enable digital zoom.

[On] selected for [Digital Zoom]:

Image size	Zoom bar
16M*1/14M*2	Digital zoom range
Other	The magnification ratio changes depending on the image size setting.3 Digital zoom range

VG-180/D-770 only
2 VG-165/D-765 only
3 Due to increased processing of the pixel counts, the image quality will not degrade. The magnification ratio changes depending on the image size setting.
Photographs taken with the zoom bar displayed in red may appear "grainy."

Displaying icon guides

[Icon Guide]

Submenu 2	Application
Off	No icon guide is displayed.
On	The explanation of the selected icon will be displayed when a shooting mode or function menu icon is selected (position the cursor on the icon for a while to display the explanation).

Imprinting the date of recording

Date Stamp]

Submenu 2	Application
Off	Do not imprint the date.
On	Stamp new photographs with the date of recording.

• When the date and time are not set, [Date Stamp] cannot be set. "Setting the date and time [ ] " (p. 33)
• The date stamp can not be deleted.
• When drive settings are set to other than [□], [Date Stamp] cannot be set.

Movie Menu

Selecting the image size for movies [Image Size/Frame Rate]

Submenu 1	Submenu 2	Application
Image Size	VGA (640×480)/QVGA (320×240)	Select the image quality based on the image size and frame rate. Higher frame rates provide smoother movie images.
Frame Rate	30fps-1/15fps-1

1 frames per second
- "Number of storable pictures (still images)/ Recording length (movies) in the internal memory and cards" (p. 50, 51)

Recording sound when shooting movies [O]

Submenu 2	Application
Off	No sound is recorded.
On	Sound is recorded.

• When set to [On], only the digital zoom can be used during movie recording. To record the movie with the optical zoom, set [O] (movies) to [Off].

Playback Menu

Playing back images automatically [Slideshow]

To start a slideshow

After pressing the 念 button, the slideshow starts. To stop the slideshow, press the 念 button or the MENU button.

• During a slideshow, press to advance one frame, to go back one frame.

Changing the image size [ ]

This saves a high-resolution image as a separate image with a smaller size for use in e-mail attachments and other applications.

Submenu 1	Submenu 2	Submenu 3
Edit		VGA
		GVA

① Use to select an image.
② Use to select an image size and press the button.

The resized image is saved as a separate image.

Cropping image [F]

Submenu 1	Submenu 2
Edit

① Use to select an image, and press the button.
② Use the zoom buttons to select the size of the cropping frame, and use to move the frame.

③ Press the OK button after you have selected the area to trim.

The edited image is saved as a separate image.

Brightening areas that are dark due to backlight or other reasons [Shadow Adj]

Submenu 1	Submenu 2
Edit	Shadow Adj

① Use to select an image, and press the button.
- The edited image is saved as a separate image.
Depending on the picture, the editing may not be effective.
- The retouching process may lower the image resolution.

Retouching red eyes in flash shooting [Redeye Fix]

Submenu 1	Submenu 2
Edit	Redeye Fix

① Use to select an image, and press the button.
- The edited image is saved as a separate image.
Depending on the picture, the editing may not be effective.
- The retouching process may lower the image resolution.

Rotating images [ ]

Submenu 1	Submenu 2
Edit

① Use to select an image.
② Press the OK button to rotate the image.
③ If necessary, repeat Steps ① and ② to make settings for other images, and press the MENU button.
- The new picture orientations will be saved even after the power is turned off.

Erasing images [Erase]

Submenu 2	Application
All Erase	All images in the internal memory or card will be erased.
Sel. Image	Images are individually selected and erased.
Erase	Deletes the image displayed.

• When erasing pictures in the internal memory, do not insert the card into the camera.
• Protected images cannot be erased.

To individually select and erase images [Sel. Image]

① Use to select [Sel. Image], and press the OK button.
Use < to select the image to be erased, and press the button to add a mark to the image.

• Press T of the zoom button to return to the single frame display.

③ Repeat Step ② to select the images to be erased, and then press the MENU button to erase the selected images.
④ Use to select [Yes], and press the button.

• The images with a mark are erased.

To erase all images [All Erase]

① Use to select [All Erase], and press the button.
② Use to select [Yes], and press the button.

Saving print settings to the image data [Print Order]

• "Print Reservations" (p. 36)
• Print reservation can be set only for still images that are recorded to the card.

Protecting images [5]

• Protected images cannot be erased by [Erase] (p. 17, 30), [Sel. Image] (p. 30), or [All Erase] (p. 30), but all images are erased by [Memory Format]/[Format] (p. 31).

① Use to select an image.
- Press the W zoom button to display an index view. Images can be quickly selected using . Press the T button to return to the single frame display.
② Press the button.
- Press the button again to cancel the settings.

③ If necessary, repeat Steps ① and ② to protect other images, and press the MENU button.

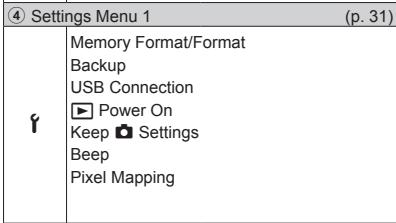

Settings Menu 1

Erasing data completely f [Memory Format]/ f [Format]

• Before formatting, check that no important data is left in the internal memory or card.
• Cards must be formatted with this camera before first use or after being used with other cameras or computers.
• Be sure to remove the card before formatting the internal memory.

Submenu 2	Application
Yes	Completely erases the image data in the internal memory or card (including protected images).
No	Cancels formatting.

Copying images in the internal memory to the card f [Backup]

Submenu 2	Application
Yes	Backs up image data in the internal memory to the card.
No	Cancels the backup.

Selecting a method for connecting the camera to other devices [USB Connection]

Submenu 2	Application
Auto	Set to select the connection method each time the camera is connected to another device.
Storage	Connect as a card reader.
MTP	As a portable device, connect to PC loaded with Windows Vista/Windows 7/Windows 8.

Refer to "Connecting with a computer" (p. 35) for the connection method with a computer.

Turning on the camera with the button f [Power On]

Submenu 2	Application
No	The camera is not turned on. To turn on the camera, press the ON/OFF button.
Yes	Press and hold the ➔ button to turn the camera on in the playback mode.

Saving the mode when the camera is turned off [Keep Settings]

Submenu 2	Application
Yes	The shooting mode is saved when the camera is turned off and is reactivated the next time the camera is turned on.
On	The shooting mode is set to P mode when the camera is turned on.

Setting the operation sound f [Beep]

Submenu 2	Application
On	Enable operation beep.
Off	Disable operation beep.

Adjusting the image processing function f [Pixel Mapping]

• This function has already been adjusted at factory shipping, and no adjustment is needed right after purchase. Approximately once a year is recommended.
• For best results, wait at least one minute after taking or viewing pictures before performing pixel mapping. If the camera is turned off during pixel mapping, be sure to perform it again.

To adjust the image processing function

Press the 念 button when [Start] (Submenu 2) is displayed.

• The check and adjustment of the image processing function starts.

f Settings Menu 2

Adjusting the brightness of the monitor f []

To adjust the monitor brightness

① Use to adjust the brightness while viewing the screen, and then press the () button.

Saving battery power between shots f [Power Save]

Submenu 2	Application
Off	Cancels [Power Save].
On	When the camera is not being used for approx. 10 seconds, the monitor automatically turns off to save battery power.

To resume standby mode

Press any button.

Changing the display language

Submenu 2	Application
Languages	The language for the menus and error messages displayed on the monitor is selected.

Setting the date and time f[]

① Press the Arrow pad to to select the year for [Y].
^ 念 Press the Arrow pad to ^ to save the setting for [Y].
③ As in Steps ① and ②, press the Arrow pad to to set [M] (month), [D] (day), [Time] (hours and minutes), and [Y/M/D] (date order), and then press the button.
- For precise time setting, press the button as the time signal strikes 00 seconds.

Choosing home and alternate time zones f [World Time]

• You will not be able to select a time zone using [World Time] if the camera clock has not first been set using

Submenu 2	Submenu 3	Application
Home/Alternate	↑	The time in the home time zone (the time zone selected for ↑ in submenu 2).
	→	The time in the travel destination time zone (the time zone selected for → in submenu 2).
↑*1	—	Select the home time zone (↑).
↑*1,2	—	Select the travel destination time zone (→).

1 In areas where daylight saving time is in effect, use to turn daylight saving time (Summer) on.
2 When you select a time zone, the camera automatically calculates the time difference between the selected zone and the home time zone (H) to display the time in the travel destination time zone () .

Connecting with a computer

Set [USB Connection] in the setup menu of the camera beforehand. (p. 31)

Connecting the camera

When [USB Connection] is set to [Auto], connect the camera and the computer, select [Storage] or [MTP] at the screen for selecting the connection method, and then press the button.

System requirements

Windows : Windows XP Home Edition/ Professional (SP1 or later)/ Windows Vista/Windows 7/ Windows 8

Macintosh : Mac OS X v10.3 or later

• Even if a computer has USB ports, proper operation is not guaranteed in the following cases:
  Computers with USB ports installed using an expansion card, etc.
  Computers without a factory-installed OS and home-built computers
• When the computer does not support SDXC cards, a message may appear urging to format the internal memory or card. ( Formatting will completely erase all images, so do not format.)

In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera.

• Print reservations can be set only for the images stored on the card.
• DPOF reservations set by another DPOF device cannot be changed by this camera. Make changes using the original device. Making new DPOF reservations with this camera will erase the reservations made by the other device.
  DPOF print reservations can be made for up to 999 images per card.

Single-frame print reservations

1 Display the setup menu.

• "Using the setup menu" (p. 24)
  2 From the playback menu l select [Print Order] and then press the button.

3 Use to select [□], and press the OK button.

4 Use to select the image for print reservation. Use to select the quantity. Press the OK button.
5 Use to select the [O] (date print) screen option, and press the OK button.

Submenu 2	Application
No	This prints the image only.
Date	This prints the image with the shooting date.
Time	This prints the image with the shooting time.

6 Use to select [Set], and press the button.

Reserving one print each of all images on the card [ALL]

1 Follow Steps 1 and 2 in [p.36).
2 Use to select [ALL], and press the OK button.
3 Follow Steps 5 and 6 in [].

Resetting all print reservation data

1 Follow Steps 1 and 2 in [p.36).
2 Select either [□] or [ALL], and press the OK button.
3 Use to select [Reset], and press the button.

Resetting the print reservation data for selected images

1 Follow Steps 1 and 2 in [□] (p. 36).
2 Use to select [□], and press the OK button.
3 Use to select [Keep] and press the button.
4 Use to select the image with the print reservation you want to cancel. Use to set the print quantity to "0".
5 If necessary, repeat Step 4, and then press the OK button when finished.
6 Use to select the [O] (date print) screen option, and press the OK button.

• The settings are applied to the remaining images with the print reservation data.

7 Use to select [Set], and press the OK button.

Usage Tips

If the camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to fix the problem(s).

Troubleshooting

Battery

"The camera does not work even when batteries are installed".

• Insert recharged batteries in the correct direction.
  "Inserting and removing the battery and card (commercially available)" (p. 4), "Charging the battery" (p. 5)
• Battery performance may have been reduced temporarily due to low temperature. Take the batteries out of the camera, and warm them by putting them in your pocket for a while.

Card/Internal memory

"An error message is displayed".

"Error message" (p. 40)

Shutter button

"No picture is taken when the shutter button is pressed".

• Cancel sleep mode.

To save battery power, the camera automatically goes into sleep mode and the monitor turns off if there is no operation for 3 minutes when the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode. Operate the zoom buttons or other buttons to restore the camera from sleep mode before taking a picture. If the camera is left for another 12 minutes, it automatically turns off. Press the ON/OFF button to turn the camera on.

• Press the button to switch to the shooting mode.
• Wait until 12 (flash charge) stops blinking before taking pictures.

Monitor

"Difficult to see".

• Condensation may have occurred. Turn off the power, and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.

"Vertical lines appear on the monitor".

• This condition may occur when the camera is pointed at an extremely bright subject under a clear sky and so on.

The lines may appear on the recorded movie.

"The light is caught in the picture".

• Shooting with flash in dark situations results in an image with many flash reflections on dust in the air.

Date and time function

"Date and time settings return to the default setting".

• If the batteries are removed and left out of the camera for about 12 hours ^-1 , the date and time settings return to the default setting, and must be reset.

1 The time until the date and time settings return to the default setting varies depending on how long the batteries have been loaded.

"Turning on the camera and making the initial settings" (p. 7)

Miscellaneous

"The camera makes a noise when taking pictures".

• The camera may activate the lens and make a noise even if no operation is performed. This is because the camera automatically performs actions of auto focus as far as it is ready to shoot.

Error message

• When one of the messages below is displayed on the monitor, check the corrective action.

Error message	Corrective action
Card Error	Card problem Insert a new card.
Write Protect	Card problem The card write-protect switch is set to the “LOCK” side. Release the switch.
Memory Full	Internal memory problem • Insert a card. • Erase unwanted images.1
Card Full	Card problem • Replace the card. • Erase unwanted images.1
Card Setup	Card problem Use △∇ to select [Format], and press the ⊙ button. Next, use △∇ to select [Yes], and press the ⊙ button.2
Memory Setup	Internal memory problem Use △∇ to select [Memory Format], and press the ⊙ button. Next, use △∇ to select [Yes], and press the ⊙ button.2

Error message	Corrective action
No Picture	Internal memory/Card problemTake pictures before viewing them.
Picture Error	Problem with selected image Use photo retouch software, etc. to view the image on a computer. If the image still cannot be viewed, the image file is corrupted.
The Image Cannot Be Edited	Problem with selected image Use photo retouch software, etc. to edit the image on a computer.
Battery Empty	Battery problemCharge the battery.
Cannot Print*	Problem with selected image Use a computer to print.

Before erasing important images, download them to a computer.
2 All data will be erased.
3 This camera may be unable to print images taken by other cameras.

Shooting tips

When you are unsure of how to take a picture that you envision, refer to the information below.

Focusing

"Focusing on the subject"

• Taking a picture of a subject not in the center of the monitor

After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

Pressing the shutter button halfway (p. 9)

• Set [AF Mode] (p. 25) to [Face/iESP]
• Taking a picture in [AF Tracking] mode (p. 25)

The camera tracks the subject movement automatically to focus on it continuously.

• Taking a picture of subjects where autofocus is difficult

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

Subjects with low contrast

When extremely bright objects appear in the center of the monitor

Object with no vertical lines

1 It is also effective to compose the shot by holding the camera vertically to focus, and then returning to the horizontal position to take the picture.

When objects are at different distances

Fast-moving object

The subject is not in the center of the frame

Camera shake

"Taking pictures without camera shake"

• Taking pictures using (p. 14)
• Select [Sport] in the scene mode (p. 13)
  The [Sport] mode uses a fast shutter speed and can reduce the blur incurred by a moving subject.
• Taking pictures at a high ISO sensitivity If a high ISO sensitivity is selected, pictures can be taken at a high shutter speed even at locations where a flash cannot be used. "ISO sensitivity" (p. 22)

Exposure (brightness)

"Taking pictures with the right brightness"

• Taking pictures using [Face/IESP] (p. 25) Appropriate exposure is obtained for a face against backlight, and the face is brightened.
• Taking pictures using [Fill In] (p. 21) flash A subject against backlight is brightened.
• Taking pictures of a white beach or snow scene
• Select [Beach & Snow] in the scene mo (p. 13).

- Taking pictures using exposure compensation (p. 21)

Adjust the brightness while viewing the screen for taking the picture. Normally, taking pictures of white subjects (such as snow) results in images that are darker than the actual subject. Use the exposure compensation to adjust in the positive (+) direction to express whites as they appear. When taking pictures of black subjects, on the other hand, it is effective to adjust in the negative (-) direction.

Color hue

"Taking pictures with colors at the same shade as they appear"

• Taking pictures by selecting white balance (p. 21)

Best results in most environments can normally be obtained with the [WB Auto] setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artificial light settings, and so on.)

Image quality

"Taking sharper pictures"

• Taking pictures with the optical zoom
• Avoid using digital zoom (p. 26) to take picture
• Taking pictures at a low ISO sensitivity If the picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy. "ISO sensitivity" (p. 22)

Batteries

"Making batteries last longer"

• Set [Power Save] (p. 33) to [On]

Playback/Editing tips

Playback

"Playing images in the internal memory and card"

• Remove the card and display the images in internal memory

"Inserting and removing the battery and card (commercially available)" (p. 4)

List of settings available in each shooting mode

For details on SCN, refer to "List of SCN settings" (p. 45).

For details on shaded areas, refer to "List of MAGIC settings" (p. 47).

	P	IAUTO			MAGIC
Zoom	√	√	√	-	√
Flash	√	*1	√	-	√
Self-timer	√	√	√	√	√
Exposure compensation	√	-	√	√
White balance	√	-	√	√
ISO sensitivity	√	-	-	√	-
Image Size	√	√	√	√
Aspect	√	√	√	√	√
Compression	√	√	√	√	√
AF Mode	√	-	√	-	-
Digital Zoom	√	-	√	-	-
Icon Guide	√	√	√	√	√
Date Stamp	√	√	√	√	√

*1 Some functions cannot be set.

List of SCN settings

	♀	♂	网	♂	♀	♂	甲	乙	♂
Zoom	✓	✓	✓	✓	✓	✓	✓	-	✓
Flash	*1	-	-	*1	*1	*1	-	*1	-
Self-timer	✓	✓	✓	✓	✓	✓	✓	✓	✓
Exposure compensation	-	-	-	-	-	-	-	-	-
White balance	-	-	-	-	-	-	-	-	-
ISO sensitivity	-	-	-	-	-	-	-	-	-
Image Size	✓	✓	✓	✓	✓	✓	✓	✓	✓
Aspect	✓	✓	✓	✓	✓	✓	✓	✓	✓
Compression	✓	✓	✓	✓	✓	✓	✓	✓	✓
AF Mode	✓	✓	✓	✓	✓	✓	✓	-	✓
Digital Zoom	✓	✓	✓	✓	✓	✓	-	-	✓
Icon Guide	✓	✓	✓	✓	✓	✓	✓	✓	✓
Date Stamp	✓	✓	✓	✓	✓	✓	✓	✓	✓

*1 Some functions cannot be set.

	图	11	图	16
Zoom	√	√	√	√	√
Flash	-	*1	-	*1	-
Self-timer	√	√	√	√	√
Exposure compensation	-	-	-	-	-
White balance	-	-	-	-	-
ISO sensitivity	-	-	-	-	-
Image Size	√	√	√	√	√
Aspect	√	√	√	√	√
Compression	√	√	√	√	√
AF Mode	-	√	√	√	-
Digital Zoom	√	√	√	√	√
Icon Guide	√	√	√	√	√
Date Stamp	√	√	√	√	√

*1 Some functions cannot be set.

List of MAGIC settings

	Pop Art	Pin Hole	Fish Eye	Soft Focus	Punk
Exposure compensation	✓	✓	-	✓	✓
White balance	✓	✓	-	✓	-
Image Size	✓	✓	✓	✓	✓

	Sparkle	Watercolor	Reflection	Miniature
Exposure compensation	✓	✓	✓	✓
White balance	✓	✓	✓	✓
Image Size	*1	✓	✓	✓

*1 Some functions cannot be set.

Camera care

Exterior

• Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well.

Monitor

• Wipe gently with a soft cloth.

Lens

• Blow dust off the lens with a commercial blower, then wipe gently with a lens cleaner.

Do not use strong solvents such as benzene or alcohol, or chemically treated cloth.

Mold may form on the lens surface if the lens is left dirty.

Battery/USB-AC adapter

• Wipe gently with a soft, dry cloth.

Storage

• When storing the camera for extended periods, remove the battery, USB-AC adapter and card, and keep in a cool, dry place that is well ventilated.

• Periodically insert the battery and test the camera functions.

Avoid leaving the camera in places where chemical products are handled since this may result in corrosion.

Using a separately sold USB-AC adapter

The USB-AC adapter F-3AC (sold separately) can be used with this camera. Do not use any USB-AC adapter other than the dedicated one. When using F-3AC, be sure to use the USB cable included with this camera.

Do not use any other USB-AC adapter with this camera.

Shooting is not available when using the F-3AC.

Using a separately sold charger

A charger (LI-41C: sold separately, or UC-50 and UC-42BC: sold separately) can be used to charge the battery.

Using your charger and USB-AC adapter abroad

• The charger and USB-AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger and USB-AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent.
• Do not use travel voltage converters as they could damage your charger and USB-AC adapter.

Cards compatible with this camera

SD/SDHC/SDXC card (commercially available) (for compatibility card details, visit the Olympus website.)

This camera can be used without a card by storing images in its internal memory.

SD/SDHC/SDXC card write-protect switch

The SD/SDHC/SDXC card body has a write-protect switch.

If you set the switch to the "LOCK" side, you will not be able to write to the card, delete data or format.

Return the switch to enable writing.

Format

Cards must be formatted with this camera before first use or after being used with other cameras or computers.

Checking the image saving location

The memory indicator shows whether the internal memory or card is being used during shooting and playback.

Current memory indicator

IN: Internal memory is being used
50: Card is being used

Even if [Memory Format]/[Format], [Erase], [Sel. Image], or [All Erase] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data.
- Switching between a card and internal memory is not available.

When using the internal memory, remove the card first.

Readout/recording process of the card

During shooting, the current memory indicator lights up in red while the camera is writing data. Never open the battery/card cover or unplug the USB cable.

This can not only damage the image data but also render the internal memory or card unusable.

Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards

The figures for the number of storable still pictures and recording length are approximate. The actual capacity varies with shooting conditions and the card used.

Still pictures

Image Size	Compression	Number of storable pictures
		Internal memory	SD/SDHC/SDXC card (4GB)
16M 4608×3456*2	FINE	1	400
	NORM	3	750
14M 4288×3216*3	FINE	1	460
	NORM	3	850
8M 3200×2400	FINE	3	770
	NORM	5	1,340
3M 1920×1440	FINE	10	2,530
	NORM	21	4,960
VGA 640×480	FINE	95	20,670
	NORM	174	41,340

The image sizes are the examples when the aspect ratio is set to [4:3].
2 VG-180/D-770 only
3 VG-165/D-765 only

Movies

Image Size	Frame Rate	Continuous recording length
		Internal memory		SD/SDHC/SDXC card (4 GB)
		With sound	Without sound	With sound	Without sound
640×480	30fps	8 sec.	8 sec.	33 min.	35 min.
	15fps	16 sec.	17 sec.	64 min.	70 min.
320×240	30fps	22 sec.	24 sec.	87 min.	98 min.
	15fps	39 sec.	49 sec.	156 min.	197 min.

• The maximum file size of a single movie is 2 GB, regardless of the capacity of the card.

Increasing the number of pictures that can be taken

Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase the images in the internal memory or card.

[Erase] (p. 17, 30), [Sel. Image] (p. 30), [All Erase] (p. 30), [Memory Format]/[Format] (p. 31)

Trademarks

Microsoft and Windows are registered trademarks of Microsoft Corporation.
- Macintosh is a trademark of Apple Inc.
- SDXC Logo is a trademark of SD-3C, LLC.
- All other company and product names are registered trademarks and/or trademarks of their respective owners.

The software in this camera may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file at http://www.olympus.co.jp/en/support/imgg/ digicamera/download/notice/notice.cfm

• The standards for camera file systems referred to in this manual are the "Design rule for Camera File system/DCF" standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

Camera

	VG-165/D-765	VG-180/D-770
Product type : Digital camera (for shooting and displaying)
Recording system
Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))
Applicable standards : Exif 2.3, Digital Print Order Format (DPOF), PRINT Image Matching III
Movie : AVI Motion JPEG
Memory : Internal memory, SD/SDHC/SDXC card
No. of effective pixels : 14,000,000 pixels	16,000,000 pixels
Image pickup device : 1/2.3" CCD (primary color filter)
Lens : Olympus lens 4.7 to 23.5 mm, f2.8 to 6.5 (Equivalent to 26 to 130.0 mm on a 35 mm film)
Photometric system : Digital ESP metering, spot metering system
Shutter speed : 2 to 1/2000 sec.
Shooting range
Normal : 0.2 m (0.7 ft.) to ∞ (W), 0.6 m (2.0 ft.) to ∞ (T)
Super macro mode : 0.05 m (0.2 ft.) to ∞ (f=8.3 mm (fixed))
Monitor : 2.7" TFT color LCD display, 230,400 dots
Connector : USB connector
Automatic calendar system : 2000 up to 2099
Operating environment
Temperature	: 0 °C to 40 °C (32 °F to 104 °F) (operation)/-20 °C to 60 °C (-4 °F to 140 °F) (storage)
Humidity	: 30 % to 90 % (operation)/10 % to 90 % (storage)
Power supply	: One Olympus lithium ion battery (LI-42B)
Dimensions	: 95.4 mm (W) × 58.2 mm (H) × 21.0 mm (D)(3.8 × 2.3 × 0.8 in.) (excluding protrusions)
Weight	: 122 g (4.3 oz) (including battery and card)

Lithium ion battery (Li-42B)

Product type : Lithium ion rechargeable battery

Model No. : LI-42B

Standard voltage : DC 3.7 V

Standard capacity : 740 mAh

Battery life : Approx. 300 full charges (varies on usage)

Operating environment

Temperature : 0 °C to 40 °C (32 °F to 104 °F) (charging)

USB-AC adapter (F-2AC)

Model No.	: F-2AC-2B/F-2AC-1C/F-2AC-3C/F-2AC-4C/F-2AC-5C/F-2AC-1D/ F-2AC-3D/F-2AC-4D/F-2AC-5D/F-2AC-6D
Power requirements	: AC 100 to 240 V (50/60 Hz)
Output	: F-2AC-2B: DC 5 V, 500 mA F-2AC-1C/F-2AC-3C/F-2AC-4C/F-2AC-5C/F-2AC-1D/F-2AC-3D/F-2AC-4D/ F-2AC-5D/F-2AC-6D: DC5 V, 550 mA
Operating environment
Temperature	: 0 °C to 40 °C (32 °F to 104 °F) (operation)/ -20 °C to 60 °C (-4 °F to 140 °F) (storage)

Design and specifications subject to change without notice.

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product. DANGER If the product is used without observing the information given under this symbol, serious injury or death may result. WARNING If the product is used without observing the information given under this symbol, injury or death may result. CAUTION If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections.

Location - To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the product label.

Lightning — If a lightning storm occurs while using a USB-AC adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a metal object into the product.

Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

WARNING

• Do not use the camera near flammable or explosive gases.
• Do not use the flash and LED on people (infants, small children, etc.) at close range.

• You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject's eyes could cause a momentary loss of vision.

• Keep young children, infants, and animals such as pets away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.

• Accidentally swallowing the battery, cards or other small parts.
• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera.

• Do not look at the sun or strong lights with the camera.

• Do not use or store the camera in dusty or humid places.
• Do not cover the flash with a hand while firing.
• Use SD/SDHC/SDXC cards only. Never use other types of cards.

If you accidentally insert another type of card into the camera, contact an authorized distributor or service center. Do not try to remove the card by force.
- If you find that the USB-AC adapter is extremely hot or notice any unusual odors, noise, or smoke around it, unplug the power plug from wall outlet immediately and stop using it. Then, contact an authorized distributor or service center.

CAUTION

• Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

• Never remove the batteries with bare hands, which may cause a fire or burn your hands.

• Never hold or operate the camera with wet hands. This may cause overheating, exploding, burning, electrical shocks, or malfunctions.

• Do not leave the camera in places where it may be subject to extremely high temperatures.

• Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger or USB-AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire.

• Handle the camera with care to avoid getting a low-temperature burn.

• When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:

• When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

• In places subject to extremely cold temperatures, the temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

• Be careful with the strap.

• Be careful with the strap when you carry the camera. It could easily catch on stray objects and cause serious damage.

• To protect the high-precision technology contained in this product, never leave the camera in the places listed below, no matter if in use or storage:
• Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers.
  In sandy or dusty environments.
• Near flammable items or explosives.
• In wet places, such as bathrooms or in the rain. When using products with weatherproof designs, read their manuals as well.
  In places prone to strong vibrations.
• Never drop the camera or subject it to severe shocks or vibrations.
• When attaching the camera to or removing it from a tripod, rotate the tripod screw, not the camera.
• Before transporting the camera, remove a tripod and all other non-OLYMPUS accessories.
• Do not touch electric contacts on cameras.
• Do not leave the camera pointed directly at the sun. This may cause lens or shutter curtain damage, color failure, ghosting on the image pickup device, or may possibly cause fires.
• Do not push or pull severely on the lens.

• Before storing the camera for a long period, remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally.

• The camera may malfunction if it is used in a location where it is subject to a magnetic/electromagnetic field, radio waves, or high voltage, such as near a TV set, microwave, video game, loud speakers, large monitor unit, TV/radio tower, or transmission towers. In such cases, turn the camera off and remove the battery, then reinsert it and turn the camera on again before further operation.

• Always observe the operating environment restrictions described in the camera's manual.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

• The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified USB-AC adapter or charger. Do not use any other USB-AC adapters or chargers
• Never incinerate or heat batteries in microwaves, on hot plates, or in pressure vessels, etc.
• Never leave the camera on or near electromagnetic devices. This may cause overheating, burning, or exploding.
• Do not connect terminals with any metallic objects.
• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, keys, etc. The short circuit may cause overheating, exploding, or burning, which burn or damage you.
• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.
• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.
• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.
• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.
• If you cannot remove the battery from the camera, contact an authorized distributor or service center. Do not try to remove the battery by force. Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.

WARNING

• Do not wet batteries with fluid such as water or seawater.
• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.
• Insert the battery carefully as described in the operating instructions.
• If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.
• Do not use a battery if it is cracked or broken.
• If a battery leaks, has unusual odor, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera, and keep away from fire immediately.
• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.
• Never subject batteries to strong shocks or continuous vibration by dropping or hitting.

This may cause exploding, overheating, or burning.

CAUTION

Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.
- The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.
- Always unload the battery from the camera before storing the camera for a long period.

Leaking and overheating may cause fire, injury, or malfunction.

• When storing the battery for a long period, select a cool location for storage.
  This camera uses one Olympus lithium ion battery. Use the designated battery. There is a risk of explosion if the battery is replaced with the incorrect battery type.
• Power consumption by the camera varies depending on which functions are used.
• During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly.
  The zoom is used repeatedly.

• The shutter button is pressed halfway repeatedly in shooting mode, activating the auto focus.
  A picture is displayed on the monitor for an extended period of time.
  The camera is connected to a printer.

• Using an exhausted battery may cause the camera to turn off without displaying the battery level warning.

• The Olympus lithium ion battery is designed to be used only for the Olympus digital camera.
  Do not use the battery to other devices.
• If the battery's terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use.
• Always charge a battery when using it for the first time, or if it has not been used for a long period.
• When operating the camera with battery power at low temperatures, try to keep the camera and spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature.
• Before going on a long trip, and especially before traveling abroad, purchase extra batteries. A recommended battery may be difficult to obtain while traveling.
• Please recycle batteries to help save our planet's resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

USB-AC adapter

• The included USB-AC adapter F-2AC is designed to be used only with this camera. Other cameras cannot be charged with this USB-AC adapter.
• Do not connect the included USB-AC adapter F-2AC to equipment other than this camera.
• For plug-in type USB-AC adapter: The included USB-AC adapter F-2AC is intended to be correctly orientated in a vertical or floor mount position.

Use Only Dedicated Rechargeable Battery, Battery Charger and USB-AC adapter

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery, battery charger and USB-AC adapter with this camera. Using a non-genuine rechargeable battery, battery charger and/or USB-AC adapter may result in fire or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery, battery charger and/or USB-AC adapter that are not genuine Olympus accessories.

Monitor

• Do not push the monitor forcibly; otherwise the image may become vague, resulting in a playback mode failure or damage to the monitor.
• A strip of light may appear on the top/bottom of the monitor, but this is not a malfunction.
• When a subject is viewed diagonally in the camera, the edges may appear zigzagged on the monitor. This is not a malfunction; it will be less noticeable in playback mode.
• In places subject to low temperatures, the monitor may take a long time to turn on or its color may change temporarily. When using the camera in extremely cold places, it is a good idea to occasionally place it in a warm place. The monitor exhibiting poor performance due to low temperatures will recover in normal temperatures.
• The monitor of this product is manufactured with high-quality accuracy, however, there may be a stuck or dead pixel on the monitor. These pixels do not have any influence on the image to be saved. Because of the characteristics, the unevenness of the color or brightness may also be found depending on the angle, but this is due to the structure of the monitor. This is not a malfunction.

Legal and Other Notices

• Olympus makes no representations or warranties regarding any damages, or benefit expected by using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product.
• Olympus makes no representations or warranties regarding any damages or any benefit expected by using this unit lawfully which are caused by erasing picture data.

Disclaimer of Warranty

• Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages or of the implied warranty, so the above limitations may not apply to you.

• Olympus reserves all rights to this manual.

Warning

Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners.

Copyright Notice

All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

FCC Notice

• Radio and Television Interference
  Changes or modifications not expressly approved by the manufacturer may void the user's authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
• This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Adjust or relocate the receiving antenna.
• Increase the distance between the camera and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC).

Any unauthorized changes or modifications to this equipment would void the user's authority to operate it.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number: VG-165/D-765

VG-180/D-770

Trade Name: OLYMPUS

Responsible Party:

OLYMPUS IMAGING AMERICA INC.

Address: 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A.

Telephone Number: 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1)This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause undesired operation.

For customers in CANADA

This Class B digital apparatus complies with Canadian ICES-003.

OLYMPUS WORLDWIDE LIMITED WARRANTY - IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus® imaging product(s) and related Olympus® accessories (individually a "Product" and collectively the "Products") will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase.

If any Product proves to be defective within the one-year warranty period, the customer must return the defective Product to any of Olympus Service Centers, following the procedure set forth below (See "WHAT TO DO WHEN SERVICE IS NEEDED").

Olympus, at its sole discretion, will repair, replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited warranty.

Repair, replacement, or adjustment of defective Products shall be Olympus's sole obligation and the customer's sole remedy hereunder.

The customer is liable and shall pay for shipment of the Products to the Olympus Service Center.

Olympus shall not be obligated to perform preventive maintenance, installation, deinstallation, or maintenance. Olympus reserves the right to (i) use reconditioned, refurbished, and/or serviceable used parts (that meet Olympus's quality assurance standards) for warranty or any other repairs and (ii) make any internal or external design and/or feature changes on or to its products without any liability to incorporate such changes on or to the Products.

WHAT IS NOT COVERED BY THIS LIMITED WARRANTY

Excluded from this limited warranty and not warranted by Olympus in any fashion, either express, implied, or by statute, are:

(a) products and accessories not manufactured by Olympus and/or not bearing the "OLYMPUS" brand label (the warranty coverage for products and accessories of other manufacturers, which may be distributed by Olympus, is the responsibility of the manufacturers of such products and accessories in accordance with the terms and duration of such manufacturers' warranties);
(b) any Product which has been disassembled, repaired, tampered with, altered, changed, or modified by persons other than Olympus's own authorized service personnel unless repair by others is made with the written consent of Olympus;
(c) defects or damage to the Products resulting from wear, tear, misuse, abuse, negligence, sand, liquids, impact, improper storage, nonperformance of scheduled operator and maintenance items, battery leakage, use of non-OLYMPUS' brand accessories, consumables, or supplies, or use of the Products in combination with non-compatible devices;
(d) software programs;
(e) supplies and consumables (including but not limited to lamps, ink, paper, film, prints, negatives, cables and batteries); and/or
(f) Products which do not contain a validly placed and recorded Olympus serial number, unless they are a model on which Olympus does not place and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY SET FORTH ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER REPRESENTATIONS, GUARANTIES, CONDITIONS, AND WARRANTY CONCERNING THE PRODUCTS, WHETHER DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING UNDER ANY STATUTE, ORDINANCE, COMMERCIAL USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OR REPRESENTATION AS TO THE SUITABILITY, DURABILITY, DESIGN, OPERATION, OR CONDITION OF THE PRODUCTS (OR ANY PART THEREOF) OR THE MERCHANTABILITY OF THE PRODUCTS OR THEIR FITNESS FOR A PARTICULAR PURPOSE, OR RELATING TO THE INFRAGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER PROPRIETARY RIGHT USED OR INCLUDED THEREIN.

IF ANY IMPLIED WARRANTYES APPLY AS A MATTER OF LAW, THEY ARE LIMITED IN DURATION TO THE LENGTH OF THIS LIMITED WARRANTY.

SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR LIMITATION OF WARRANTY AND/OR LIMITATION OF LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY.

THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/ OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM STATE TO STATE.

THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE, WHETHER LIABILITY IS ASSERTEED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR OTHERWISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conflict with or in addition to the terms of this limited warranty, shall not be binding upon Olympus unless reduced to writing and approved by an expressly authorized officer of Olympus.

This limited warranty is the complete and exclusive statement of warranty which Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications pertaining to the subject matter thereof.

This limited warranty is exclusively for the benefit of the original customer and cannot be transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other data saved on a Product to another image or data storage medium and/or remove any film from the Product prior to sending the Product to Olympus for service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED (INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample padding material to prevent damage in transit and either deliver it to the Authorized Olympus Dealer that sold you the Product or ship it postage prepaid and insured to any of our Olympus Service Centers.

When returning Products for service, your package should include the following:

1 Sales receipt showing date and place of purchase.
2 Copy of this limited warranty bearing the Product serial number corresponding to the serial number on the Product (unless it is a model on which Olympus does not place and record serial numbers).
3 A detailed description of the problem.

4 Sample prints, negatives, digital prints (or files on disk) if available and related to the problem.

When service is completed, the Product will be returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR SERVICE

See "WORLDWIDE WARRANTY" for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under this warranty.

For customers in Europe

"CE" mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. "CE" mark cameras are intended for sales in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate collection of waste batteries in the EU countries.

Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

Provisions of warranty

1 If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during the applicable national warranty period and has been purchased from an authorized Olympus distributor within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com this product will be repaired, or at Olympus's option replaced, free of charge. To claim under this warranty the customer must take the product before the end of the applicable national warranty period to the dealer where the product was purchased or any other Olympus service station within the business area of Olympus Europa Holding GmbH as stipulated on the website: http:// www.olympus.com. During the one year period of the World Wide Guarantee the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.
2 The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

Provisions of Guarantee

1 "OLYMPUS IMAGING CORP., 2951 Ishikawa-machi, Hachioji-shi, Tokyo 192-8507, Japan grants a one year World Wide Guarantee. This worldwide Guarantee must be presented at an Olympus authorized repair service station before any repair can be made under conditions of this Guarantee. This Guarantee is valid only if the Guarantee Certificate and proof of purchase are presented at the Olympus repair service station. Please note that this Guarantee is in addition to and does not affect the customer's legal warranty rights under the applicable national legislation governing the sale of consumer goods mentioned above.
2 This Guarantee does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the Guarantee period referred to above.

a. Any defect that occurs due to mishandling (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall, shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.

e. Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the inside of the product casing.
h. When the Guarantee Certificate is not returned with the product.
i. When any alterations whatsoever are made to the Guarantee Certificate regarding the year, month and date of purchase, the customer's name, the dealer's name, and the serial number.
j. When proof of purchase is not presented with this Guarantee Certificate.

3 This Guarantee applies to the product only; the Guarantee does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.
4 Olympus's sole liability under this Guarantee shall be limited to repairing or replacing the product. Any liability under the Guarantee for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect of the product, and in particular any loss or damage caused to any lenses, films, other equipment or accessories used with the product or for any loss resulting from a delay in repair or loss of data, is excluded. Compelling regulations by law remain unaffected by this.

Notes regarding Guarantee maintenance

1 This Guarantee will only be valid if the Guarantee Certificate is duly completed by Olympus or an authorized dealer or other documents contain sufficient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealer's name, the date of purchase and product type) is attached to this Guarantee Certificate. Olympus reserves the right to refuse free-of-charge service if neither Guarantee Certificate is completed nor the above document is attached or if the information contained in it is incomplete or illegible.
2 Since this Guarantee Certificate will not be re-issued, keep it in a safe place.
* Please refer to the list on the web site: http://www. olympus.com for the authorized international Olympus service network.

For customers in Asia

Provisions of warranty

1 If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during a period of up to one year from the date of purchase this product will be repaired, or at Olympus's option replaced, free of charge. To claim under warranty the customer must take the product and this Warranty certificate before the end of the one year warranty period to the dealer where the product was purchased or any Olympus authorized service station listed in the instructions and request the necessary repairs.
2 The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.
3 This warranty does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the one year period referred to above.

a. Any defect that occurs due to mishandling (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall, shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.
e. Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the inside of the product casing.
h. When this Warranty Certificate is not returned with the product.
i. When any alterations whatsoever are made to the Warranty Certificate regarding the year, month and date of purchase, the customer's name, the dealer's name, and the serial number.
j. When proof of purchase is not presented with this Warranty Certificate.

4 This Warranty applies to the product only; the Warranty does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.
5 Olympus' sole liability under this warranty shall be limited to repairing or replacing the product and any liability for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect in the product, and in particular any loss or damage caused to any film or lenses or other equipment or accessories used with the product or for any loss resulting from delay in repair, is excluded.

Notes;

1 This Warranty is in addition to and does not affect the customer's statutory right.
2 If you have any queries regarding this Warranty, call any of the Olympus authorized service stations listed in the instructions.

Notes regarding warranty maintenance

1 This Warranty will only be valid if the Warranty Certificate is duly completed by Olympus or the dealer. Make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed.
2 Since this Warranty Certificate will not be re-issued, keep it in a safe place.
3 Any request for repair by a customer in same country where the product was purchased shall be subject to the terms of the warranty issued by the Olympus distributor in that country. Where the local Olympus distributor does not issue a separate warranty or where the customer is not in the country where the product was purchased the terms of this worldwide warranty shall apply.
4 Where applicable, this Warranty is valid worldwide. The Olympus authorized service stations listed in this Warranty will gladly honor it.
* Please refer to the appended list for the authorized international Olympus service network.

Disclaimer of Warranty

Olympus makes no representations or warranties, either expressed or implied, by or concerning any content if these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use of inability to use these written materials or software. Some states do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you.

Suite 3A-6, Level 3A, Wisma Great Eastern

No.25, Lebih Light, 10200 Penang

Tel:[phone]/Fax:[phone]

KUCHING OFFICE

Level 6-5A, 6th Floor Menara MAA

Lot 86, Section 53

Jalan Central Timur,

93300 Kuching, Sarawak

Tel:[phone]/Fax:[phone]

http://www.olympus.com.my

OLYMPUS IMAGING CORP.

2951 Ishikawa-machi, Hachioji-shi, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help:

http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET

http://olympusamerica.com/contactus

Olympus software updates can be obtained at:

http://www.olympusamerica.com/digital

OLYMPUS EUROPA HOLDING GMBH

Premises: Wendenstrasse 14-18, 20097 Hamburg, Germany

Tel: [phone] / Fax: [phone]

Goods delivery: Modul H, Willi-Bleicher Str. 36, 52353 Duren, Germany

Letters: Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

• Please note some (mobile) phone services providers do not permit access or request an additional prefix to +800 numbers.

For all European Countries not listed and in case that you can't get connected to the above mentioned number, please make use of the following

CHARGED NUMBERS: [phone] or [phone]

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)

Customer Service Center:

A8F, Ping An International Financial Center, No. 1-3,

Xinyuan South Road, Chaoyang District, Beijing

Tel: [phone] Fax: [phone] Zip: 100027

A,32F Shanghai Industrial Investment Building 18

Cao Xi Road(N), Xuhui District, Shanghai

Tel: [phone] Fax: [phone] Zip: 200030

Rm.1605-1608, Guangzhou International Electronic tower, No403,

Huan Shi East Road, Guang Zhou

Tel: [phone] Fax: [phone] Zip: 510095

16F Huamin Hanzun Internation Plaza, No.1, Fuxing Street,

Chengdu

Tel: [phone] Fax: [phone] Zip: 610016

OLYMPUS HONG KONG AND CHINA LIMITED

Digital Camera Repair Centre

L4207, Office Tower, Langham Place, 8 Argyle Street, Mongkok, Kowloon, Hong Kong

Customer Hotline: [phone] Fax: [phone]

http://www.olympus.com.hk
