CX33 - Keyboard Natec - Free user manual and instructions

Product Type	Keyboard and Mouse Combo
Model	CX33
Brand	Natec
Connection Type	USB
Power Supply	USB bus-powered
Programmable Buttons	Yes (via software)
DPI Resolution	250 – 4000 DPI (adjustable in 4 profiles)
Polling Rate	125 / 250 / 500 / 1000 Hz (selectable)
Backlight	Yes, color adjustable
Macro Recording	Yes (via software)
Fire Key Function	Yes (assignable button with repeat speed and count)
Combo Key Function	Yes (assignable key combination)
Software	Available from www.genesis-zone.com
Compatibility	Windows (driver auto-install)
Installation	Plug and play, driver installation takes ~15 seconds
Safety Precautions	Do not disassemble; avoid extreme temperatures and dust
Cleaning	Wipe with a dry, soft cloth
Repairability	Non-authorized repairs void warranty; no spare parts listed
Regulatory Compliance	RoHS, WEEE
Environmental Information	Product is not household waste; recycle appropriately

Frequently Asked Questions - CX33 Natec

How do I install the Natec CX33 keyboard and mouse?

Connect the keyboard and mouse to a USB port. On first use, wait about 15 seconds for drivers to install automatically. The devices are then ready to use.

Can I customize the buttons on the CX33?

Yes, you can assign functions to each programmable button using the software available at www.genesis-zone.com. In the Basic Settings tab, select a button and choose from functions like Single Key, Fire Key, or Combo Key.

How do I adjust the DPI settings?

Open the software and go to the Basic Settings tab. You can predefine up to four DPI profiles (250–4000 DPI) and switch them using the DPI button. You can also set backlight color and mode there.

How do I record a macro?

In the software, go to Advanced Settings. Enter a macro name, click New, then Start Recording. Press the desired key combination, click Stop Recording, set loop times, and click Confirm. Then assign the macro to a button in Basic Settings.

What is the Fire Key function?

The Fire Key allows you to assign a button to repeatedly press another key (e.g., 'A') at a set speed and number of times per single press. Configure it in the Basic Settings tab under Fire Key.

What is the Combo Key function?

The Combo Key lets you assign a combination of keys (e.g., Ctrl+A+Alt) to a single button. Set it in the Basic Settings tab.

How do I change the polling rate (report rate)?

In the software, go to Basic Settings and select one of four polling rates: 125Hz, 250Hz, 500Hz, or 1000Hz. Click Apply to save.

Where can I download the software for the CX33?

Download the latest software from the official website: www.genesis-zone.com. Run setup.exe and follow installation instructions.

Is the CX33 compatible with Mac or Linux?

The manual only mentions Windows compatibility. Driver auto-install is described for Windows. For other operating systems, functionality may be limited.

How do I clean and maintain the CX33?

Wipe the surfaces with a dry, soft cloth. Avoid using liquids or abrasive cleaners. Do not expose the device to extreme temperatures or dust, and do not attempt unauthorized repairs.

USER MANUAL CX33 Natec

Black and white photo of a retro computer keyboard with mouse, showing no text or symbols on the main body.

EN - USER MANUAL DE - BEDIENUNGSANLEITUNG PL - INSTRUKCJA OBSŁUGI CZ - NÁVOD K POUŽITÍ SK - NÁVOD NA POUŽITIE RO - MANUAL DE UTILIZARE

GENESIS CX33 - USER MANUAL - EN

I. KEYBOARD

INSTALLATION

1. Connect keyboard to the USB port, for first time usage wait around 15 seconds until drivers will be installed.
2. Keyboard is ready for use.

II. MOUSE

INSTALLATION

1. Connect mouse to the USB port, for first time usage wait around 15 seconds until drivers will be installed.
2. To set the programmable buttons and DPI settings you need to download and install the latest software version from our website www.genesis-zone.com,
3. Open the installation folder, double click the icon setup.exe.
4. Follow the instruction to install the program.
5. When the installation has been completed successfully the icon at taskbar will be displayed.
6. Double click the icon to pop up setting interface.

BASIC SETTINGS

Basic settings tab allows you to assign individual functions to each button.

1. Each button can be set individually by click on list of programmable buttons, after this action the pop-up window will show available functions which can be selected by left click.

2. Select required function and click "Apply" to save the settings.

Single Key

This function allows you to assign any button from the keyboard. Click on “Single key”, when the pop-up window will come out press any button on keyboard which you want to assign e.g. “Ctrl”, then click “OK” to finish and close the window. Click “Apply” to save settings.

Fire Key

This function allows you to assign any button from your keyboard/mouse as a “Fire key”.

1. To set "Fire key" click on the list of programmable buttons and then select "Fire key".

2. When pop-up window will come out select required button which you want to assign e.g. "A". In the pop-up window you can also set the speed and number of how many times you want to use fire key by single button press.

3. Click "OK" to finish and close the window, then click "Apply" to save the settings.

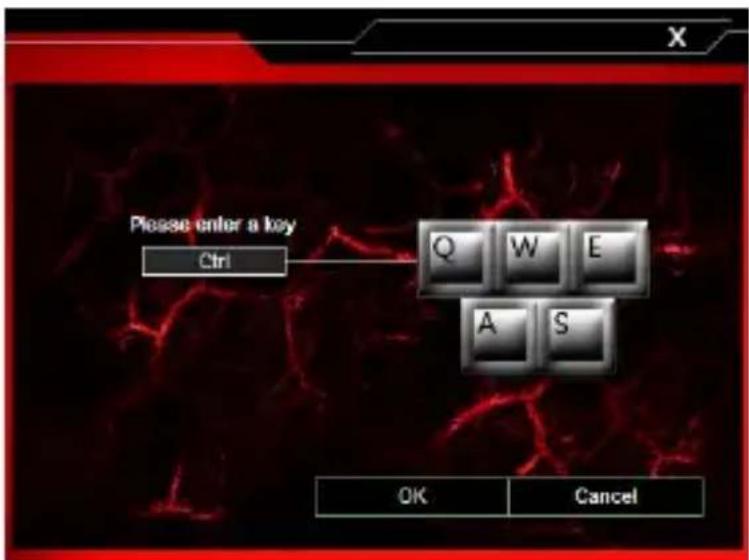

Combo Key

This function allows you to assign combination of buttons from your keyboard or mouse. Click on “Combo Key”, when the pop-up window will come out select required combination of buttons which you want to assign e.g. “Ctrl+A+Alt”, then click “OK” to finish and close the window. Click “Apply” to save settings.

DPI settings

Gaming software allows you to predefine up to four DPI profiles, which can be switched “on the fly” using the DPI button. Each profile can be set individually in “Basic Settings” tab. In these settings you can also set backlight color, backlight mode and resolution 250 – 4000 DPI. Click “Apply” to save the settings.

Report Rate

To set report rate (polling rate) select “Basic Settings” tab and choose one of 4 options (125Hz, 250Hz, 500 Hz, 1000 Hz), then click “Apply” to save the settings.

ADVANCED SETTINGS

Macro and profile editor

Adding a macro

To add a macro click “Advanced Settings” and enter name of macro in box “Macro name”, e.g. “1”. Click “New” and then “Start recording”. Use the keyboard to enter a combination of buttons which you want to assign into this macro, e.g. “Shift+A+B”, click “Stop recording” to finish recording. Enter a number in box “Loop times” to set how many times macro should be used after single button press. Click “Confirm” to finish and close the window.

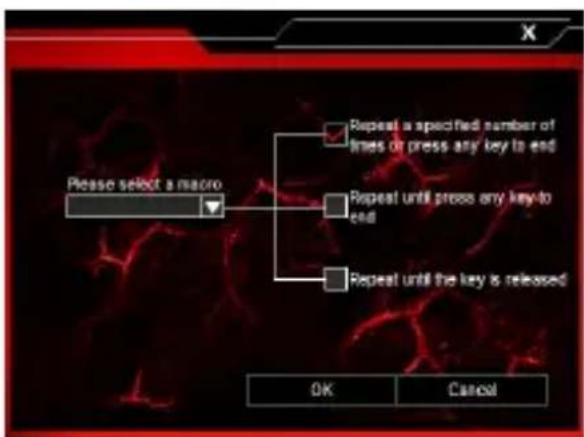

Select macro

To select macro click “Basic settings” tab and then click on box “Macro Key”. In pop-up window select the name of previously recorded macro. Select one of three options on the right and then click “OK” to finish and close the window. Then Click “Apply” to save the settings.

System settings

In this settings you can adjust mouse moving speed, scrolling speed and double click speed. To set these functions go to “Advanced settings” and select required speed for each function. Then Click “Apply” to save the settings.

GENERAL INFORMATION

• Non-authorized repairs or taking the device to pieces make the warranty void and may cause the product damage.
• Do not use the product in low and high temperatures and in the dusty atmosphere.
• Safe product, conforming to the EU requirements.
• This product is made in accordance with RoHS European standard. The standard was issued in order to decrease the amount of the electronic and electrical waste emitted into the atmosphere.
• The WEEE symbol (the crossed-out wheeled bin) indicates that this product in not home waste. You protect the environment when you recycle hazardous waste appropriately. In order to get detailed information about recycling this product please contact your retailer or a local authority.

Visit our web site to get more information: www.genesis-zone.com

Fire Key

Combo Key
        direction LR
        L1["OK"] --> M1["Cancel"]
        M1 --> N1["X"]

DPI-Einstellungen

Signalrate

Systemeinstellungen

Fire Key

Combo Key

Report Rate

USTAWIENIA ZAAWANSOWANE

Edytor makr i profili

Dodawania makra

Fire Key

Combo Key

Nastavení DPI

POKROČILÉ NASTAVENÍ

Editor maker i profilù

Dodávání maker

Volba maker

Systémové nastavení

Fire Key

Combo Key

Nastavenie DPI

Fire Key

Aceasta functie va permite sa utilizati orice buton de tastatura/maus ca tasta Fire.

Combo Key

Aceasta functie va permite sa atribuiti combinatii de butoane de la tastatura sau maus.

SETARI AVANSATE

System settings (setarile sistem)
