Product Type	Beard and hair trimmer
Brand	Eta
Model	4342 90000
Dimensions (H x W x D)	43 x 170 x 49 mm
Weight	0.15 kg
Power Source	Rechargeable NiMH battery or mains via adapter
Charging Time	Approx. 8 hours (first charge up to 12 hours)
Operating Time (cordless)	Approx. 40–45 minutes
Max Continuous Operating Time (cord)	30 minutes
Battery Type	NiMH, rechargeable
Cutting Length Range	4–34 mm (via comb attachments)
Attachments Included	2 comb attachments (4-19 mm and 19-34 mm), charging adapter, brush, oil, dock
Thinning Function	Yes (switch A6 to thin hair)
Cleaning Method	Brush clean; blades removable for rinsing under water (dry thoroughly before reuse)
Oil Required	Yes, included special oil for blade lubrication
Safety Features	Overcharge protection (indicator light), class III appliance, adapter class II, do not immerse, keep away from water
Usage	Household only; not for commercial use
Noise Level	65 dB (A)
Protection Class	III (appliance), II (adapter)
Included Accessories	Charging dock, comb attachments, brush, oil, charging adapter

Frequently Asked Questions - 4342 90000 Eta

How do I charge the trimmer?

Make sure the trimmer is OFF. Plug the connector into the socket A4 or place it on the dock C5, then connect the charging adaptor to a 230 V AC outlet. The red indicator light A2 flashes during charging; green when fully charged. Do not exceed 8 hours of charging time.

Can I use the trimmer while it is charging?

Yes, you can operate the trimmer with the adapter connected (corded use). However, maximum continuous operating time is 30 minutes, after which let it cool for 30 minutes.

How long does the battery last?

A fully charged battery provides about 40–45 minutes of cordless operation. To prolong battery life, fully discharge it twice a year before recharging.

Is the trimmer waterproof?

No, the trimmer is not waterproof. Do not immerse it in water or other liquids. You can rinse the removable blades under running water, but the main body must be kept dry.

How do I clean the blades?

Remove the cutting attachment and clean it with the brush. For heavy dirt, rinse the attachment under running water, then dry thoroughly before reattaching. Lubricate the blades with one or two drops of the included oil.

What attachments are included?

Two comb attachments: large (4–8–12–16–19 mm) and small (19–23–27–31–34 mm). Also included: charging adapter, brush, lubricating oil, and a charging dock.

How do I adjust the cutting length?

Use the blade cut length switch A5 to set the desired length on the attachment. The numbers indicate the hair length in mm after trimming.

Can I trim a wet beard?

It is recommended to wet and comb the beard before trimming for better results. However, the trimmer itself should not be used on wet hair if you are using the cord; the appliance must be kept dry.

What does the thinning switch do?

The Thin-out switch A6 adjusts the slider above the blades to eject some hair, allowing you to thin and shorten hair progressively without removing full volume.

How should I store the trimmer?

Store the trimmer and accessories in a dry, dust-free place out of reach of children. You can use the provided dock for convenient storage. Always turn off and unplug before storing.

USER MANUAL 4342 90000 Eta

Hair and beard trimmer • INSTRUCTIONS FOR USE

Black and white photo of a hairbrush with a black body, featuring a white clip and a digital button (no text or symbols visible)

CZ I. BEZPEČNOSTNÍ UPOZORNĚNÍ 3

II. POPIS SPOTŘEBIČE A PŘÍSLUŠENSTVÍ (obr. 1) 6

III. POKYNY K OBSLUZE 6

IV. ÚDRŽBA 9

V. EKOLOGIE 9

II. DESCRIPTION OF THE APPLIANCE AND ITS ACCESSORIES (fig. 1) 22

III. INSTRUCTIONS FOR USE 22

IV. MAINTENANCE 25

V. ENVIRONMENTAL PROTECTION 25

VI. TECHNICAL DATA 26

HU I. BIZTONSÁGI FIGYELMEZTETÉS

Top-down view of a rectangular electronic device with internal components and a central slot (no visible text or symbols)

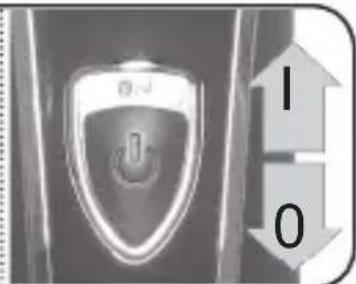

Close-up of a door key with a power button and directional arrows (no text or symbols)

Zastřižení vousů

Prostřihávání vlasů

Zastrihovanie brady

Illustration of a person's neck and shoulder with a bandage, no text or symbols present

Illustration of a hand holding a small object with dashed lines indicating alignment or measurement (no text or symbols)

Close-up of a mechanical component with directional arrows and a scale bar (no text or symbols)

Prestrihávanie vlasov

Hair and beard trimmer

eta 4342

INSTRUCTIONS FOR USE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing

I. SAFETY WARNING

• Before the first use, read the instructions for use carefully, look at the picture and keep the instructions for use.
• Check whether the data on the type label correspond with the voltage in your socket.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the charger from the power socket!
• Do not leave the iron plugged in power supply without supervision!
• If the power cord of the charger is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance if its power cord or charger is damaged, if it does not work properly, if it fell down and was damaged and it is leaking. In this case take the appliance to a special service to check its safety and proper function.
• For additional protection we recommend installation of current protection (RCD) with the nominal release current not exceeding 30 mA. Ask a control technician or an electrician for advice.
• Always unplug the appliance from charger if you leave it unattended and before assembly, disassembly or cleaning.
• The appliance is intended for use in households only and for similar use! It is not designed for use in hair salons or for other commercial use!
• Do not put or take out the plug to or from a socket with wet hands!
• Do not let the appliance in operation without supervision!
• Never immerse the appliance, the charging dock or the adaptor in water or other liquids (not even partly) and never wash in running water!

- Never tuck the appliance or the accessories into any body holes.

- Be careful in using the appliance without a set cord, the blades are sharp.

- Do not use the appliance while having a bath, having a shower or taking a sauna and for trimming wet or artificial hair.

- Keep the appliance dry.

- Do not let the appliance in operation without supervision!

- The appliance is not intended for styling animal hairs.

- Never charge the appliance for more than 8 hours and in direct sunlight or close to heat sources and if the temperature is below 10^ or above 50^ .

– In case the cutting lath or cutting attachment get blocked, the appliance must be turned off immediately and the cause removed.

- Check regularly, if the blades are not damaged or deformed.

- Do not attempt to repair the appliance yourself.

- Keep the special oil bundled with the device out of reach of children, persons insane. Heed the instructions written on the package when handling!

- It is not allowed to alter the surface of the appliance in any way (e.g. sticker, foil etc.)!

- Charge the battery in temperature close to room temperature.

- Do not dispose the battery into fire. There is a risk of explosion!

- Do not charge a battery which is leaking electrolyte.

- Electrolyte leaking from a battery is caused by overloading the appliance or using it in extremely high temperatures. If you spill electrolyte on yourself, wash the area with water and soap and rinse with lemon juice with vinegar. If the liquid got into your eyes, wash the eye with fresh water for several minutes and find medical help immediately.

- Do not expose the battery to temperatures higher than 50^ to prevent damaging the battery.

- Do not put the trimmer on hot heat sources (e.g. oven, stove, radiator, etc.)

- Do not connect the contacts of the battery or the charging cord! If you do not use a battery, keep it away from metal objects, such as paperclips, coins, keys, nails, screws or other small metal objects that can cause short circuit of the battery connectors. Short circuit of the battery connectors can cause burn or fire.

- The trimmer with the plugged cord must not be used at places where it could fall into a bath tub, a wash basin or a swimming pool. If the dryer fell to water anyway, do not take it out! First of all, unplug the cord from the socket and only then remove the trimmer. In this case take the appliance to a special service to check its safety and proper function.

- If the dryer was stored at lower temperatures, acclimatize it first, by which you remove stiffness of the lubricating fat in bearings and mechanical resistance of the plastic parts will be maintained.

- Also, do not put the trimmer in the on position on soft surfaces (e.g. bed, towels, sheets, carpet); the surfaces or the appliance could get damaged.

- Do not exceed the maximum continuous operating time of the appliance 30 min.

- The adaptor must not be damaged with sharp or hot objects, open fire and it must not be sunk into water.

- If you need to use the extension cord, it has to be uncorrupted and it has to comply with the valid standards.

- The adaptor supplied with this appliance is intended for this appliance only, do not use it for other purposes. Also, use only the supplied cord with this appliance, do not use any other adaptor for charging (e.g. from another appliance).

- Never use the appliance for any other purpose than for the intended purpose described in these instructions for use!

• All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.
• WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
• During normal operation, the accumulator batteries are not taken out. Take out the batteries only if the appliance is to be disposed (see par. V. ENVIRONMENTAL PROTECTION).
• The producer is not responsible for any loss caused by improper handling of the appliance and its accessories (e. g. injury, appliance damage, fire, etc.) and its guarantee for the appliance does not apply in the case of non-compliance with the safety instructions above.

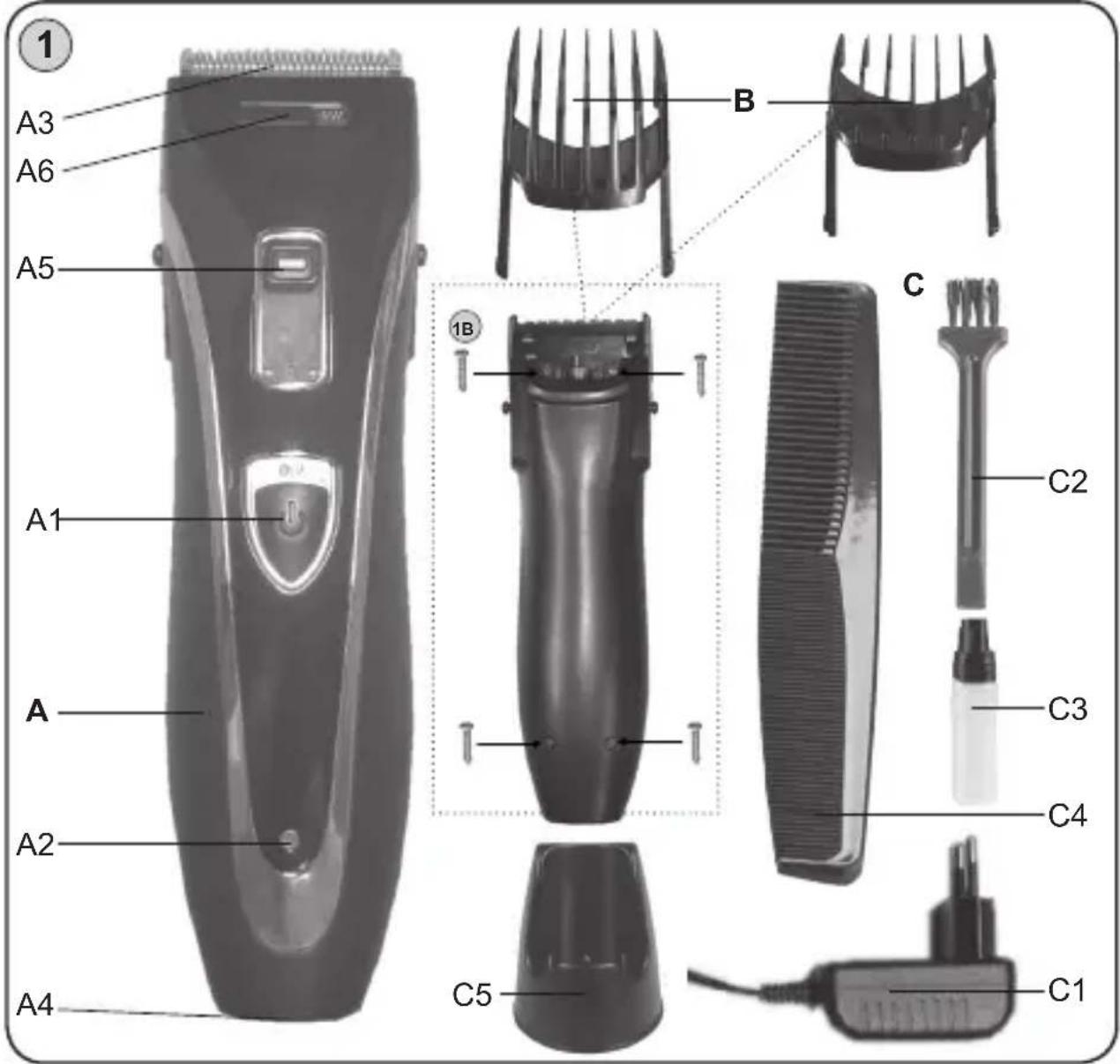

DESCRIPTION OF THE APPLIANCE AND ITS ACCESSORIES (fig. 1)

A - trimmer

A1 – switch 0/I (ON/OFF) A4 – socket for charging

A2 – indicator light A5 – blade cut length switch (4–34 mm)

A3 – blades A6 – switch Thin-out

B – Hair clipping attachments (2 pc)

• comb attachment the big (4–8–12–16–19 mm)
  – comb attachment the small (19–23–27–31–34 mm)

C - attachment

C1 – charging adaptor C3 – blade lubrication oil

C2 – brush C4 – crest

C5 - dock

III. INSTRUCTIONS FOR USE

Before you can use the appliance, its batteries must be charged (cordless use). Fully charged batteries provide operation time for approx. 40 – 45 minutes. When using the cord, a continuous operation should not exceed 30 minutes. Then let the appliance cool off for 30 minutes.

To Charge/Recharge

• Fully charge Clipper (max. 12 hours) before using for the first time or after non-use for a long period of time.
• Battery performance is best if you recharge only when the battery is (almost)completely empty.
• Charging or recharging at temperatures below 10^ or higher than 50^ adversely affects lifespan of the battery.
• Continuously recharging Clipper will reduce lifespan of battery.

1) Be certain Clipper is OFF.
2) Charging: plug the connector into the socket A4 or into the dock C5, where you place the trimmer.
3) Plug charging adaptor into any 230 V AC outlet.
4) It will take approximately 8 hours to fully charge the Clipper.
5) Do not exceed the set time of charging! There is an indicator the light A2 begins to flash red during charging. When the battery is charged, green light turns on. That is why it is necessary to watch and keep the set time of charging.
6) After charging, unplug the adaptor from the mains first and only then unplug the connector from the appliance.

Optimize the working life of the battery

• After the Clipper has been charged for the first time, do not recharge the Clipper between trimming sessions. Continue using it until the battery is completely empty.
• Do not charge for more than 8 hours.
• Do not keep adaptor permanently plugged in.
• Discharge / run down the battery completely twice a year by letting the motor run until it stops. Let the battery charge fully afterwards.
• The appliance heats up during charging or operation, which is normal.

Hair clipping

- The trimmer can be operated from the outlet with the adaptor connected (the battery must be recharged partially) or only from the charged battery. In case an attachment B gets blocked (or the blades A3), the appliance must be turned off immediately and the cause of the block removed.

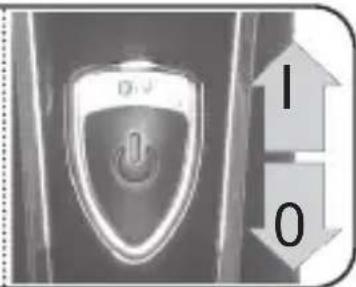

• The trimmer turns on and OFF with a switch A1. Turn the trimmer on only after the attachment has been properly placed and you are ready for trimming. Turn the trimmer off immediately after use.
• We recommended oiling the blades with the oil C3 attached before first use.
• Before you start clipping, make sure that the head of the person whose hair you are cutting is at the same level as your chest so that all parts of his/ her head are clearly visible and within easy reach.
• Only use the clipper on dry hair.
• Do not use on freshly washed hair.
  – Before you begin, comb the hair in the direction of growth.
• To achieve optimal clipping results, always move the clipper slowly through the hair against the direction of hair growth.
• When the appliance is in operation, the A2 light is green, when the battery power reaches minimum, the light begins to flash red. It is a signal to charge the battery.

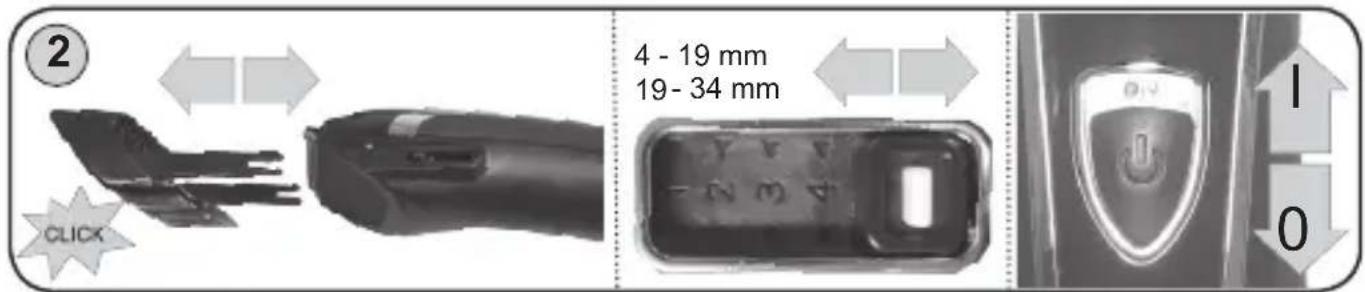

Clipping with hair comb attachment

1) Slide the cutting attachment B on the appliance head onto the guiding grooves in a way that it locks in the protrusions. Set the desired length A5 of attachment (see fig. 2).
2) If you are trimming for the first time, begin by trimming with an attachment of max. length to prevent too short of a cut.
3) Make sure that the flat part of the comb is always in full contact with the scalp to obtain an even result.
4) Move the clipper slowly over the crown from different directions to achieve an even result.
5) Always move the clipper against the direction of hair growth.
6) Make overlapping passes over the head to ensure that all hair that should be cut has been cut.
7) Turn the Clipper off and remove the hair comb often to blow and/or shake out hair that has accumulated.

Contouring without the hair clipping comb attachment

1) Remove the hair comb (if it is attached). Be careful when you are clipping without comb attachment as when the clipper is turned on it will trim every hair it touches.
2) Tilt the clipper in such a way that only one edge of the trimming attachment touches the hair ends when you shape the contours around the ears.
3) To contour the nape of the neck or hairline, turn the clipper and hold it with the trimming attachment pointing downwards.
4) To contour the sideburns, turn the clipper and hold it with the trimming attachment pointing downwards.

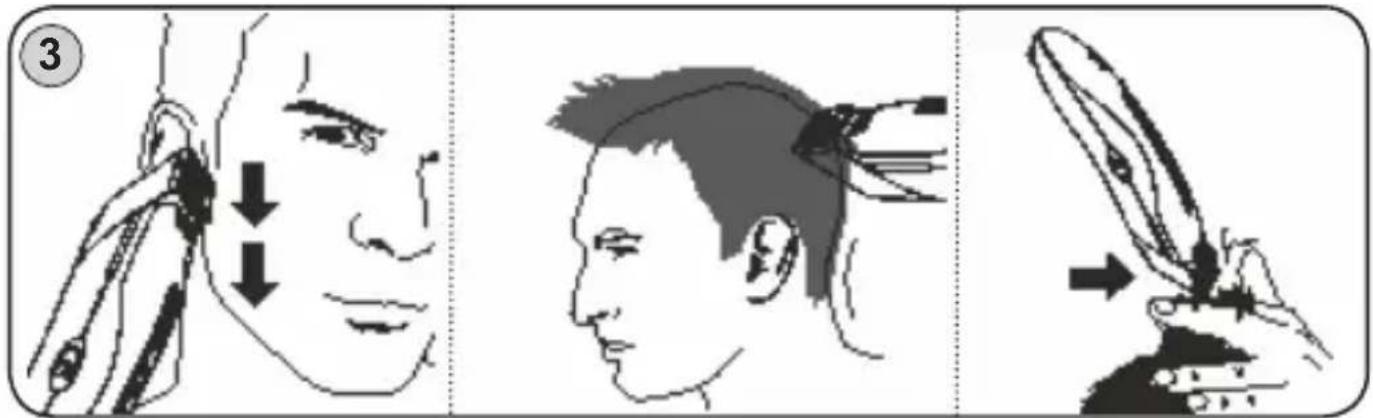

Cutting contours (fig. 3)

1. No adapter is used for aligning contours.

GB

1. Comb the hair in the required style.
2. Set the trimmer between hairline and ear. Check whether the corner of the trimmer blades is set against hairline. Follow the hairline and go round the ear slowly with the trimmer upwards and to the back. Do not push on the trimmer.
3. At the back on the neck and by the sideburns, hold the appliance against the skin and go down at the required length.

Perfect short military cut (fig. 3)

1. Always cut from the scruff to the head top using the longest setting. Hold the trimmer flatwise along the head and move it slowly through the hair upwards. Apply the same procedure on the head sides; even here move the trimmer bottom-up.
2. On the front part of the head top, cut the hair against the growth direction. Then align the cut against the cut on the temples.
3. If you want to reach even cut on the top, cut the hair using a straight comb, not the trimmer adapter. Use the comb for cutting hair on the top of the head.
4. To shorten the cut towards the neck, gradually use shorter adapters. Comb through the hair and look for unevenness in the cut. Align the cut by the neck and at the ears.

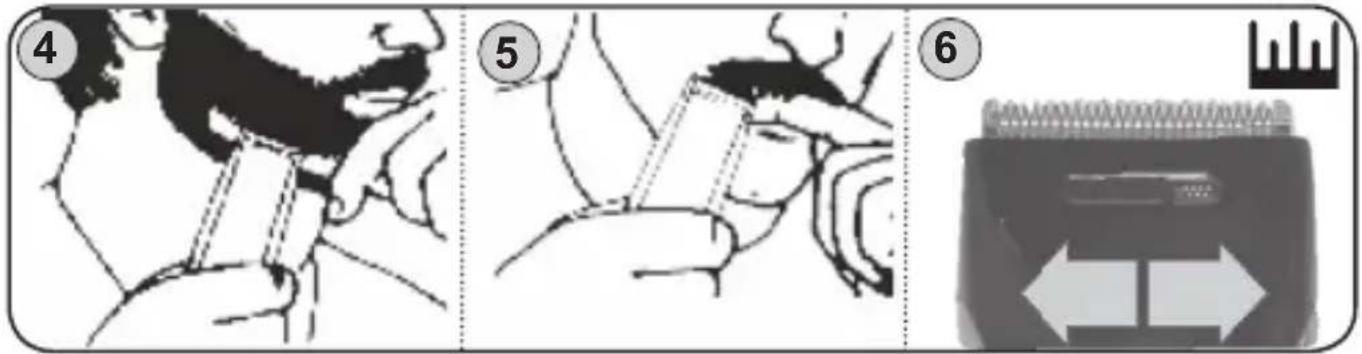

Trimming beard

1. Before trimming beard, wet it a bit and comb it.
2. Mark the beard line using the trimmer and cut out the beard exceeding the line on the outside.
3. If you want to reach even beard cut, use one of the B adapters or trim the ends carefully in parts using a comb by moving the comb through the beard upwards (fig. 4). Repeat the process on the whole beard.
4. After the end of trimming, shave the area around the beard in a usual way.

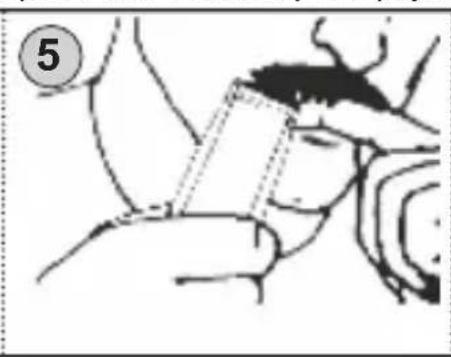

Trimming moustache

1. Before trimming moustache, wet it a bit and comb it.
2. For reaching even cut of the moustache, cut the ends carefully through a comb. If you prefer using a finger as the guide, follow the procedure on figure 5.

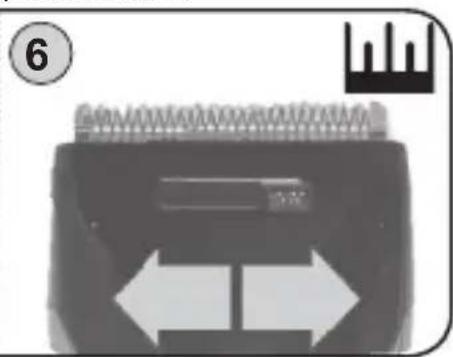

Adjustment dial for thin-out

Shorten your hair progressively to the desired length. To thin hair, the adjustment the slider the hair to eject strip above blades (see figure 6). The trimmer then only cuts a few of the hairs.

IV. MAINTENANCE

Turn off the appliance before each maintenance, or unplug the adapter from the electric socket! Do not use rough and aggressive detergents! Wipe the trimmer surface with a wet soft cloth.

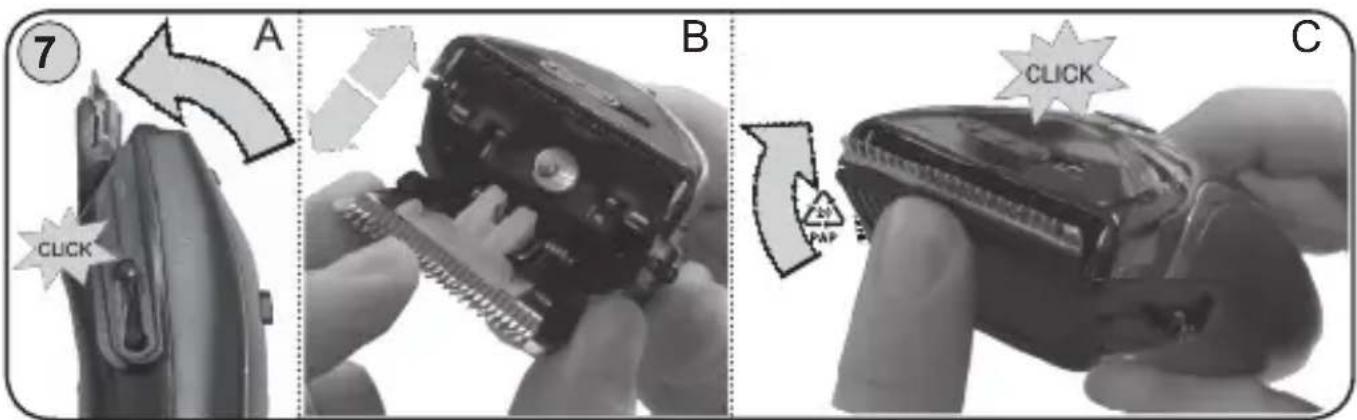

Cleaning blades

Clean the blades with the brush attached. If the blades are very dirty, you can remove the whole cutting attachment and clean it under running water. After drying it thoroughly, put the attachment with the blades back on the trimmer reversely. In order to keep the trimmer in a perfect condition, you have to lubricate the list with blades using one or two drops of oil for sewing machines (figure 7). Do not use hair oil, petroleum jelly or oil mixed with petrol or any other solvent because after evaporation the solid parts of the lubricant could slow down operation of the blades. Insert the trimming head to the trimmer properly, turn on the trimmer and then turn it off and wipe out the excessive oil from the blades.

Storage

Put the trimmer with the accessories back to the original package at a dry and dust free place, out of reach of children and incapacitated people. You can use the trimmerstand for this purpose.

V. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are marks of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste.

For proper disposal, hand them over at the special collection places where they will be received free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal.

Ask for more details at the local authorities or at a collection site. Fines can be afflicted for improper disposal of this type of waste in agreement with the national regulations.

The appliance is equipped with rechargeable NiMH batteries with long life.

For environmental protection it is necessary to dismantle discharged batteries (see pic 1B) after the end of life of the appliance. Dispose of the batteries in a suitable and safe way through the special collection networks. Never dispose of the batteries by burning!

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VI. TECHNICAL DATA

Voltage (V) specified on the type label

Input (W) specified on the type label

Trimmer weight (kg) 0.15

Appliance Protection Class III.

Adapter Protection Class II.

Dimensions (H x L x W) mm 43 x 170 x 49

Noise level: Acoustic noise level of 65 db (A) re 1pW

EC declaration on conformity was issued for the product.

Regarding EMC, the product conforms to the Council Directive No. 2004/108/EC as amended and regarding the electric safety, the product conforms to the Council Directive No. 2006/95/EC as amended.

The manufacturer reserves its right for unimportant deviations from the standard design without influence of the product function.

Oil: Warning, Avoid contact with eyes, Do not drink, Keep away from children or mental capabilities.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Do not use the appliance close to bath tubs, showers, bash basins or other water containers.

Close-up of a rectangular electronic component with internal markings (no readable text or symbols)

Close-up of a door key with a stylized button and directional arrows (no text or symbols)

A szakáll vágása

Close-up of a metallic electronic component with no visible text or symbols

Close-up of a metallic door with a power button and directional arrows (no text or symbols)

Przycięcie brody

Guarantee certificate is valid only for Czech Republic and Slovak Republic.
