Product Type	Digital Personal Scale with Body Composition Analysis
Brand	Eta
Model	4780 90000
Weight Capacity	180 kg / 396 lb / 28 st
Resolution	0.1 kg
Power Supply	3x AAA batteries 1.5 V (included)
Battery Type	AAA alkaline
Memory Storage	10 user profiles (P0-P9)
Measurement Parameters	Weight, Body Fat %, Body Water %, Muscle Mass %, Bone Mass %, BMI, KCAL
Body Fat Range	3.0% - 50.0%
Body Water Range	35.0% - 85.0%
Muscle Mass Range	1.0% - 50.0%
Minimum Weight	10.5 kg / 23.149 lb / 1.653 st
Height Range	80 cm - 220 cm (31.5 in - 86.6 in)
Age Range	6 - 100 years
Net Weight (device)	1.8 kg
Auto On	Step-on activation (barefoot recommended)
Safety Features	Not for use with pacemakers; avoid wet feet; overload protection; low battery indicator
Cleaning Instructions	Wipe with soft damp cloth; do not immerse in water
Intended Use	Household only; not for medical or commercial use

Frequently Asked Questions - 4780 90000 Eta

How do I set up my Eta 4780 90000 scale?

Insert 3 AAA batteries with correct polarity, place the scale on a flat, hard surface, then step on to activate. Use the ▲ and ▼ buttons to set the weight unit (kg, lb, or st:lb).

How do I measure body fat?

Step barefoot onto the scale with clean, dry feet. Stand still. The scale will first display your weight, then show 'o o o o' during analysis. After a few seconds, it will display body fat, muscle, bone, water, and other readings.

What do the error messages 'Lo', 'OL', and 'Err2' mean?

'Lo' means low battery (replace all batteries). 'OL' means overload (weight exceeds 180 kg). 'Err2' means body fat percentage is out of range (< 3% or > 50%). Turn off and on or remove/reinsert batteries to reset.

Can I use this scale if I have a pacemaker or other implanted medical device?

No. Do not use the fat analysis feature if you have a pacemaker, electrocardiograph, or other implanted medical device. The bioelectrical impedance analysis may interfere with these devices.

How do I switch between weight units?

When the scale is on and displaying 0.0, press the ▲ or ▼ button to cycle through kg, lb, and st:lb. The chosen unit will be saved for future weighings.

How do I store my personal data (height, age, etc.)?

Press the □ button to enter setup mode. Use ▲ or ▼ to select a memory slot (P0-P9), then set gender, height, and age using the buttons. Press □ to confirm each step. Data is saved automatically.

Why might my measurement be inaccurate?

Inaccurate readings can result from: weighing on carpet or uneven surfaces, wet or sweaty feet, moving during measurement, not weighing at the same time of day, recent exercise, eating, or drinking. Always weigh barefoot on a hard, flat surface.

How do I clean the scale?

Use a soft, slightly damp cloth to wipe the surface. Never immerse the scale in water or use harsh chemicals. Avoid getting moisture inside the device.

What is the maximum weight the scale can measure?

The maximum weight capacity is 180 kg (396 lb or 28 st). Exceeding this will show 'OL' and may damage the scale.

How do I replace the batteries?

Open the battery cover on the bottom of the scale. Remove old batteries and insert 3 new AAA batteries with correct polarity. Close the cover. Use only alkaline batteries, and do not mix old and new batteries.

USER MANUAL 4780 90000 Eta

Simple line drawing of a table with two legs and a central platform, no text or symbols present

DIGITÁLNÍOSOBNÍVÁHAS ANALÝZOU TĚLESNÉHO TUKU, TEKUTIN, SVALOVÉ HMOTY, HMOTNOSTI KOSTÍ, KCAL A BMI

eta 4780

NÁVOD K OBSLUZE

Illustration of a foot pressing down on a surface with a cross mark (no text or symbols)

FT, In = stopa, palec 1 FT = 30.48 cm, 1 In = 2,54 cm

IV. NÁVOD NA OBSLUHU

Silhouette of a foot stepping on a surface with a cross mark, no text or symbols present

Illustration of a human foot pressing down on a surface with a falling object (no text or symbols)

VÁŽI IHNEĎ: na váhu sa stačí postavit' - automaticky dôjde k zapnutiu a zváženiu

DIGITAL PERSONAL SCALE WITH BODY FAT, BODY WATER, MUSCLE, BONE, KCAL AND BMI

eta 4780

INSTRUCTIONS FOR USE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

• Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• The appliance is intended for use in households only and for similar use! It is not intended for use in health-care facilities and for commercial use!
• The appliance can use by people (including children) whose physical, sensual or mental inability or lack of experience and knowledge prevents safe use of the appliance if they are supervised.
• Never use the appliance if it malfunctions, if it fell to the ground and got damaged or if it fell into water. In these cases bring the appliance to a specialised service to have the safety and functions of the device checked.
• We recommend: Do not step onto the scale with wet feet or on wet surface of the scale, there is a risk of slipping.
• Never immerse the scale into water (even their parts)!
• If the scale was stored in lower temperatures, let it adjust to the room temperature.
• Use the scale in a horizontal position only and at places where they cannot knock over, in sufficient distance from heat sources (e.g. stove, fireplace, heat radiators), sources of increased air humidity (e.g. sauna, bathroom, swimming pool) and equipment with strong electromagnetic field (e.g. microwave oven, radio, mobile phone).
• Protect the personal scale from dust, chemicals, excessive humidity, toiletries, liquid cosmetic preparations, intensive temperature changes and do not expose them to direct sunlight.
• Do not place the scale on uneven surface or on surface covered with carpet. Unstable or soft surface under the scale can have negative effect on precision of weighing.
• In handling the scale, make sure injury of persons or damage of the appliance is prevented.
• Do not overload the appliance with weight higher than the maximum capacity! You will thus prevent damaging the appliance
• Do not use the fat analysis feature on this scale if you are using one of the following devices: pace maker, electrocardiograph and/or other medical device implanted in the body or device used as support.
• Handle the scale with care. Do not throw them or jump on them. The scale is durable, but improper handling can destroy their electronic sensors.
• Do not disassemble the scale and do not take any parts out.
• Do not put any objects on the surface of the scale during storing, they could be damaged.
• If you do not intend to use the scale for a long time, remove battery from them.
• If the battery is leaking, remove it immediately; it can damage the scale.

• Do not use worn and new batteries together and do not use rechargeable accumulators.

• Dispose of a discharged battery in a suitable way (see par. VIII. ENVIRONMENTAL PROTECTION).

• Never use the appliance for any other purpose than for that described in these instructions for use!
• Keep in mind that the data read from this scale are approximate and inaccurate in comparison to results of actual medicinal analyses. The exact determination of biometrical characteristics can be done only by a doctor via medical methods.
• Keep batteries and scale out of reach of children and incapacitated people. A person, who would swallow the batteries, must seek medical help immediately.
• Do not use during pregnancy.
• All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.
• The producer is not responsible for damage caused by improper use of the appliance (e.g. breaking the board, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warnings above.

II. GENERAL INFORMATION

Why is knowledge of your weight important?

Overweight or underweight is an important indicator of your health. Overweight can increase the risk of some forms of cancer, heart diseases, diabetes, stroke, high blood pressure, arthritis, gall bladder disorders, apnoea and other diseases. Underweight brings with it risks, such as reduced immune system, osteoporosis, females can suffer from amenorrhea which causes infertility etc.

Obese people who want to lose weight and very thin people who want to gain weight should consult the treatment method and the diet with their attending physician.

For fat analysis it is essential:

• to wait approx. 15 minutes after getting up from bed because water in our body can be spread out.
  – rest for a few hours (approx. 6-8) after an unusual exhausting activity.

The fat analysis will not provide useful information to children below 10 and adults over 80 years of age, persons with fever; after undergoing dialysis; persons with osteoporosis syndromes or persons who use cardiovascular medicaments; pregnant women; athletes who have a lot of musculature; because their results may be distorted. Obese people who want to lose weight and very thin people who want to gain weight should consult their diet with their doctor.

Why is it important to know what the value of fat and water in your organism is?

Obesity (excessive amount of body fat) is a known risk for people's health that is closely connected with serious diseases such as high blood-pressure, heart diseases, diabetes, osteoarthritis and some forms of cancer. There are other, less frequent symptoms, which may be caused by obesity, such as temporary suspension of breathing during sleep and tiredness during the day. An analysis of percentage ratio of body fat or your body composition is an effective way of assessing the level of your health. The contents of water in organism is a sign of good health. If the weight is not changing and the TBW % value (total contents of water in organism) is increasing, it means that the musculature in body is increasing (which is good for health).

If the TBW % value is decreasing, it means decreasing of musculature and increasing of fat or it may indicate improper distribution of water in organism or some potential diseases relating to lack of water in the organism. In general, the more musculature, the higher the content of water in body.

BMI

The technology used in these scales, Bio-electrical Impedance Analysis (BIA) is more technologically advanced than the order Body Mass Index (BMI) method where fat % is calculated using only height and weight. BIA technology uses 5 parameters to get a more accurate resolution for the analysis (weight and biological resistance which are automatically measured by the scales together with the three personal parameters entered manually - sex, height and age). This index sets mutual ratio between the body weight and height. It can be used to determine whether the person suffers from underweight, overweight or obesity or whether his/her health condition is normal. Also with regards to heart and vascular diseases, body mass index is a relatively good risk index, particularly in healthy people. However, the index is for reference only. Experts recommend supplementing the calculation by at least measuring the waist, which makes determining disposition of the body fat more precise. BMI will not provide very reliable information for small children, elderly people and active sportsmen who have a lot of muscle mass as their results can be biased.

Minimum energy consumption KCAL

It represents minimum amount of energy consumption necessary for maintaining the basic vital functions. The data on the display show the minimum daily consumption of energy that you give out at your weight, height, age and gender.

$$ 2 3 9 \mathrm{cal} = 1 \mathrm{kJ} $$

Important notes:

1) This scale requires you to weigh yourself barefoot for the reason of correct conductivity during the body fat analysis.
2) Do not place the scale on an uneven surface or a surface covered with a carpet.
3) Do not use the fat analysis feature on this scale if you are using one of the following devices: pace maker, electrocardiograph and/or other medical device implanted in the body or device used as support.
4) Excessive drinking, eating, exercising, health conditions, used medicaments, women's menstruation cycle etc. influence the results of the analysis.
5) Here must not be a contact between feet, calves or thighs. Otherwise the measurement could be inaccurate.

III. PREPARATION FOR USE

Remove all the packing material and take the scale out. Remove all possible adhesion foils, stick-on labels or paper from the scale. Open the battery cover on the bottom of the scale, insert the battery with the correct polarity and close the cover in the opposite direction. Place the scale on flat, stable and dry surface. Switch on the scale by tapping on the board of the scale with your foot and check the displayed weight unit (kg). If you wish to set unit to lb or st:lb, adjust the with ▲ and ▼ buttons. Then put the scale of firm and flat surface (see par.

I. SAFETY WARNINGS) Fig. 2.

st = stone (American weight unit) 1 st = 6,356 kg

kg = kilogram 1 kg = 2.2 lb

lb = pound (British weight unit) 1 lb = 0.454 kg, 1 st = 14 lb

FT, In = feet; inches 1 FT = 30.48 cm, 1 In = 2.54 cm

IV. INSTRUCTIONS FOR USE

Your scale is fine electronic equipment. One of the things that are most difficult to weigh is human body as it is always in motion. If you want to obtain reliable results, always try to step with your feet at the same place on the scale and stand still. If possible, weigh yourself at the same time of a day (preferably in the morning) to obtain comparable results. Remember that excessive clothes can increase your weight as well as eating and drinking before weighing. Short-term weight fluctuation is generally attributed to loss of liquids.

LCD SEGMENTUM / ICONS ILLUSTRATIONS:

P1 ...P0 number of memory

man

woman

MUS - musculature contents (%)

BONE weight contents (%)

FAT body fat contents (%)

Underfat

Healthy

Overfat

Obese

TBW body water contents (%)

KCAL minimum energy consumption

SETTING AND SAVING PARAMETERS

Press □ to turn ON.

Press ▲ or ▼ to switch between Body Parameter P0 - P9. Press □ to confirm.

Press ▲ or ▼ to select male or female. Press □ to confirm.

Press ▲ or ▼ to indicate height. Press □ to confirm, (you can change kg ↔ cm, lb ↔ ft:in, st:lb ↔ ft:in).

Press ▲ or ▼ to indicate age. Press □ to confirm.

The values are flashed and recorded.

MEASURING

1) Tap on the scales platform to switch on the product
2) Press □ P0 will flash. Press ▲ or ▼ to switch between Body Parameter P0 - P9.

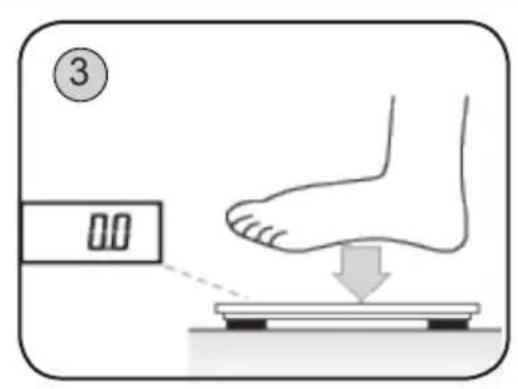

3) Step onto the platform when the LCD display reads 0.0 (Fig. 3). Important: For correct measurements and scale functions step on the scale barefoot.

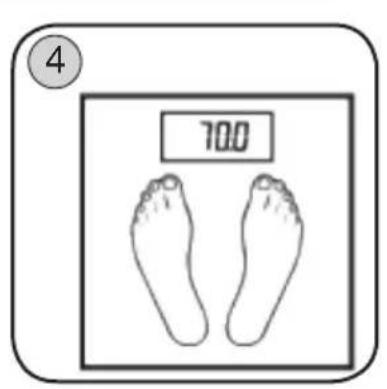

4) First the weight is recorded, then „o o o o“ is displayed, indicating that the scales are analyzing. Please do not alight.
5) Once finished, the weight, body fat, body muscle and bone weight will be displayed alternately for 2 times before the scales automatically turn off (Fig. 4).
6) After this the scale is going turn off.
7) If no weighing is carried out while 0.0 is displayed the scales will automatically switch off after 9 seconds.

Compare the body fat reading against the

to confirm the body status.

Body Fat Ratio Chart

Age	Female (%) Male (%)
	Low He	Healthy High	Obese Low	w Healthy	High Obese
6-15	3,0-16,0	16,1-21 21,1	-29,6 29,7-50	3-13 13,	1-17,4 17,	5-25,6 25,7-50
16-30	3,0-16,4	16,5-22 22,1	-30,4 30,5-50	3-13,6 1	3,7-18 18,	1-26,4 26,5-50
31-60	3,0 - 17	17,1-22,4 22,	5-31,4 31,5-	50 3-14 1	4,1-18,6 18	7-27 27,1-50
61-100	3,0-17,6	17,7-23	23,1-32	32,1-50	3-14,4	14,5-19	19,1-28	28,1-50

Water Ratio Chart & Muscle Ratio Chart

Age	Female (%) water			Body Muscle	Male (%) water			Body Muscle
	Low	Healthy	High		Low	Healthy	High
6 - 15	< 54	54 - 59	> 59	> 44	< 57	57 - 62	> 62	> 46
16 - 30	< 53	53 - 58	> 58	> 44	< 56	56 - 61	> 61	> 46
31 - 60	< 52	52 - 57	> 57	> 44	< 55	55 - 60	> 60	> 46
61-100	< 51	51 - 56	> 56	> 44	< 54	54 - 59	> 59	> 46

KCAL Chart

Age	Female		Male
	Weight (kg)	KCAL	Weight (kg)	KCAL
6 - 17	50	1265	60	1620
18 - 29	55	1298	65	1560
30 - 49	60	1302	70	1561
50 - 69	60	1242	70	1505
70 - 100	50	1035	65	1397

BMI Chart

BMI	Underfat Healthy Overfat Obese
	< 18,5 18,5 - 27 30 - 39 >40

Due to the natural differences between people this chart should be used for reference purposes only.

When display shows body fat percentage, platform light will be on

Control lamp - orange (yellow) light = Low

Control lamp – green light = Healthy

Control lamp - red light = High

ERROR AND OTHER LCD MESSAGE

LCD may show occasionally error message' Err .. Simply turn off the unit for a brief moment,

or remove and re-install battery as a total re-set. Then turn on again to resume operation.

1) When the LCD screen displays „L0“, you should install anew battery.
2) When the LCD screen displays „0L“, it indicates that the maximum weight is exceeded.
3) When the LCD screen displays „Err 2“, it shows an error in the body fat percentage. Fat percentage exceeds the maximum capacity of 50 %, fat percentage is under 3 %.

If signs appear, such as if the display is flashing or if there is a faulty sign, try to move the scale away from the influence of a source of interference or ensure switching off the source for the time of using the scale.

Replacing batteries

Open the battery cover on the bottom of the scale. Insert a battery with the right polarity and close the cover. Use AAA batteries (3 pcs) for this appliance. If you are not using the appliance for some time, take the batteries out!

Note

Do not use different type of batteries: Do not use used and new batteries together.

i

V. TROUBLESHOOTING OF POSSIBLE PROBLEMS

If you have problems with weight:

• Check whether the battery is inserted properly.
• Check whether you selected the proper weight unit.
• Check whether the scale is on a flat floor and they do not touch the wall.
• If nothing appears on the scale when you want to switch them on by tapping on them or if „LO“ (Fig. 5) appears only, replace the battery.
• If „OL“ (Fig. 6) appears on the display, the scale was overloaded.
• If unusual signs are displayed, remove the insert the battery again.
• If signs appear, such as if the display is flashing or if there is a faulty sign, try to move the scale away from the influence of a source of interference or ensure switching off the source for the time of using the scale.

VI. STORING

After using the scale, put it into the horizontal position (not vertically), out of reach of children and incapacitated people (see par. I. SAFETY WARNINGS).

VII. MAINTENANCE

Do not use coarse and aggressive cleaning agents (e.g. sharp objects, scrapers, diluting agents or other solvents). Clean the board by wiping with a soft wet cloth. Make sure that water does not get inside the appliance.

VIII. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations.

Remove a discharged battery and dispose of it in a suitable and safe way through the special collection networks. Never dispose of the battery by burning!

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by a professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

IX. TECHNICAL DATA

Weighing range max 180 kg / 396 lb / 28 st

Discrimination: 0.1 kg

Power supply: 3x Batteries 1.5 V AAA (Included)

Net weight of device: 1.8 kg

Memory capacity: 10

Mass alignment: from 80 to 220 cm

Age: from 6 to 100 years

Minimum weight: from 10.5 kg (23.149 lb / 1.653 st)

Body fat measuring unit: 0.1%

Body fat measuring range: 3.0% - 50.0%

Body water measuring range: 35.0% - 85.0%

Muscle mass measuring: 1.0% - 50.0%

The product has received ES declaration of conformity according to Act as amended.

The product matches the requirements of the below statutory order as amended.

- Committee Regulation No. 2004/108/ES as amended, setting the technical requirements of products in terms of their electromagnetic compatibility.

The manufacturer reserves the right to make insignificant changes to the standard design that do not affect its function.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Silhouette of a human foot pressing down on a surface with a cross mark (no text or symbols)

Do not step onto the scale with wet feet or on wet surface of the scale, there is a risk of slipping.

Illustration of a foot pressing down on a surface with a downward arrow indicating compression or force (no text or symbols)

AUTO STEP ON – just step on the scale and stand still, the scale will automatically turn ON and start taking measurements.

DIGITÁLISSZEMÉLYMÉRLEGTESTZSÍR-, TESTVÍZ-, IZOMTÖMEG, CSONTTÖMEG-ELEMZÉSI, KCAL- ÉS BMI FUNKCIÓVAL

eta 4780

KEZELÉSI ÚTMUTATÓ

Silhouette of a foot and a cross on a surface with a small object nearby (no text or symbols)

Illustration of a foot pressing down on a surface with a screwdriver (no text or symbols)

FT; In = stopy; cali 1 FT = 30,48 cm; 1 In = 2,54 cm

IV. INSTRUKCJA OBSŁUGI

Illustration of a hand pressing down on a surface with a tool and a cross mark (no text or symbols)

Illustration of a pair of boots on a mat with a downward arrow indicating compression or force (no text or symbols)

Guarantee certificate is valid only for Czech Republic and Slovak Republic.
