Product Type	Alarm Clock Radio
Brand	Blaupunkt
Model	CR3WH
Power Supply	AC mains (100-240V, 50/60Hz) with DC backup (2 x AAA batteries)
Dimensions (W x H x D)	18.0 x 9.0 x 12.0 cm
Weight	0.35 kg
Display Type	LED digital display with adjustable brightness
Radio Bands	FM (87.5-108 MHz) and AM (530-1710 kHz)
Alarm Functions	Dual alarms with wake to radio, buzzer, or combination
Snooze Function	Yes, 9-minute snooze interval
Sleep Timer	Yes, up to 90 minutes
Battery Backup	Preserves time and alarm settings during power outage
Volume Control	Separate rotary dial for radio and alarm volume
Additional Features	Weekend/Weekday alarm mode, display dimmer, aux input (3.5mm)
Warranty	1 year limited warranty

Frequently Asked Questions - CR3WH BLAUPUNKT

How do I set the time on my Blaupunkt CR3WH?

Press and hold the Time Set button until the hour digits flash. Use the +/- buttons to adjust hour, then press Time Set again to adjust minutes. Press Time Set to confirm.

How do I set an alarm?

Press and hold the Alarm 1 or Alarm 2 button until the alarm time flashes. Use +/- to set hour and minute. Press the alarm button again to confirm. Then select wake source (radio/buzzer) using the Source button.

How do I activate the snooze function?

When the alarm sounds, press the Snooze button (usually the top center button). The alarm will silence for 9 minutes and then sound again. You can snooze multiple times.

How do I adjust the display brightness?

Press the Dim button repeatedly to cycle through brightness levels (high, medium, low, off). Settings are saved automatically.

How do I listen to the radio?

Press the Radio button to turn on the radio. Use the Tuning knob to scan stations. Press and hold the Memory button to save a station to a preset. Use Preset buttons to recall saved stations.

What should I do if there is no sound from the radio?

Check that the volume is turned up and not muted. Ensure the antenna is fully extended for FM reception. If using AM, rotate the unit for better reception. Also verify the power cord is securely connected.

How do I replace the backup batteries?

Open the battery compartment on the bottom of the unit. Remove old batteries and insert two new AAA batteries observing correct polarity. Replace the cover. Batteries preserve time and alarm settings during power loss.

How do I reset the alarm clock to factory settings?

Use a paperclip to press the Reset button located in the battery compartment. This clears all settings and returns the clock to default time and alarms.

Can I use the alarm clock without the AC power?

No, the unit requires AC power to operate. Backup batteries only maintain the time and alarm settings during a power outage; they do not power the clock or radio.

How do I clean the Blaupunkt CR3WH?

Unplug the unit. Wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials. Avoid getting moisture into the openings. Clean the display gently with a microfiber cloth.

USER MANUAL CR3WH BLAUPUNKT

Multifunction Clock With Radio

We thank you for the purchase of Multifunction Clock with Radio. It has been designed and constructed using innovative components and techniques to enable the perfect display of time by this device. This unit is also equipped with FM radio.

Please read the instructions carefully to become familiar with the properties and functions, before you use the unit.

For the start-up of this device you require:

For the main unit: one piece of 5V AC/DC Adaptor (included).

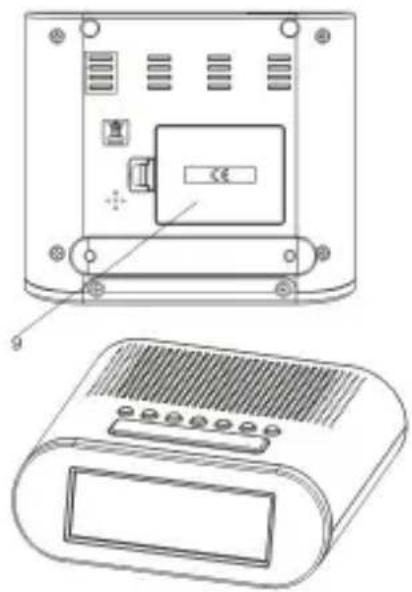

OVERVIEW

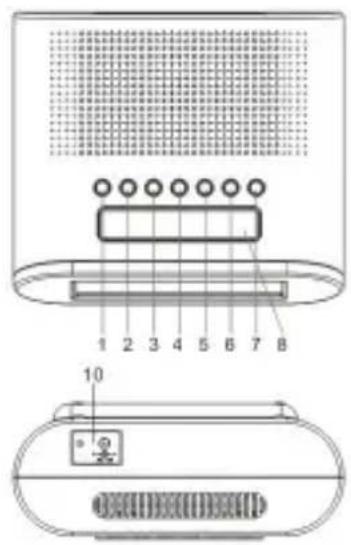

- MAIN UNIT

Technical line drawing of a device rear panel and its front view showing internal components (no text or symbols)

1. DOWN
2. UP
3. MODE
4. C/F
5. VOL-
6. VOL+
7. RADIO ON/OFF
8. SNOOZE.LIGHT
9. BATTERY COMPARTMENT
10. DC

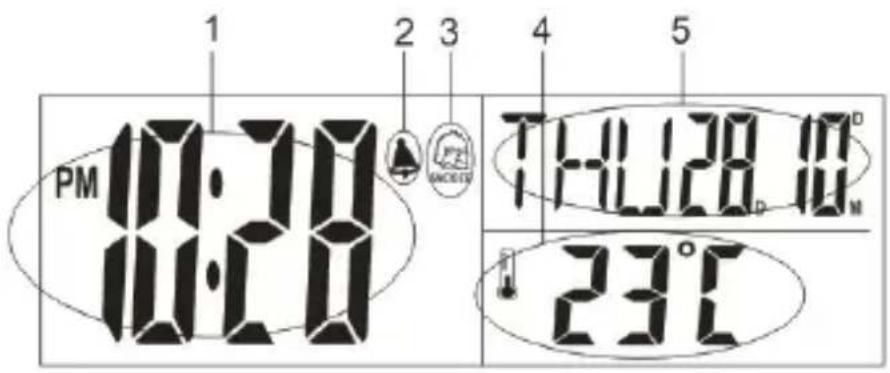

LCD SCREEN DISPLAY

1. TIME
2. ALARM
3. SNOOZE
4. TEMPERATURE
5. MONTH/DATE

FEATURES

1. FM Radio function.
2. LED back light.
3. Calendar display.
4. 12/24 hours selectable.
5. Alarm function & Snooze function.
6. Temperature C/F selectable.
7. Indoor temperature range: -9°C \~ +50°C

GETTING STARTED

POWER SUPPLY

MAIN UNIT INSTALLATION

1. Remove the battery compartment cover.
2. Insert 3xAA batteries matching the polarity (+ and -).

TIME SET

Time mode

1. Press "MODE" key to enter into ALARM mode.
2. Hold "MODE" key for 2 seconds to enter into time setting.
3. The figure to be set will be flashing.
4. Press "UP" or "DOWN" to change the settings.
5. Press "MODE" key to confirm and go to next setting.
6. The setting order is: 12/24-hr format, Year, Month, Day, Hour, Minute.
7. Press "MODE" again to confirm and exit setting.

ALARM & SNOOZE SET

ALARM SETTING

Alarm mode

10:20	RLM

1. Press "MODE" key to enter into "ALM" mode.
2. On alarm mode, press and hold "MODE" key for 2 seconds to enter into alarm setting
3. The figure to be set will be flashing.

4. Press "UP" or "DOWN" to change the settings. Press "MODE" key to confirm and go to next setting

5. Press "MODE" key to confirm and go to next setting.

6. The setting order is: Hour → Minute.
7. Press "MODE" again to confirm and exit setting.
8. Press "UP" to switch alarm on/off, "indicate alarm is on."

SNOOZE FUNCTION

When alarm ring, click "SNOOZE.LIGHT" to silence it for 5 minutes (snooze icon will flashing); click any other keys to stop ringing.

TEMPERATURE

1. The indoor temperature will display automatically after set up.
2. Press "C/F" key to switch C/F.

FM RADIO

FM mode

100.3 MHz	FM
	10 VOL

AUTOMATICALLY SET

1. Press "RADIO ON/OFF" key to turn radio on.
2. Press "UP" or "DOWN" to search frequency automatically. When a signal is find, it will stop searching and broadcast.
3. Press "VOL-" /"VOL+" to adjust volume.
4. When radio is working, choose the frequency and hold "MODE" key above 2 second to store the frequency.

MANUAL SET

1. Press "RADIO ON/OFF" key to turn radio on.
2. Press "UP" or "DOWN" for 2 seconds to enter the radio settings. While "SCN" displayed, press "UP" or "DOWN" to adjust frequency manually.
3. Press "VOL-" /"VOL+" to adjust volume.

SCHEDULED RADIO ON

Radio mode

0:20	RDO
	- - -

1. Press "MODE" key to choose "RADIO" mode.
2. Press and hold "MODE" key for 2 seconds to setting "Scheduled Radio On".
3. The figure to be set will be flashing.
4. Press "UP" or "DOWN" to change the settings.
5. The setting order is: Hour → Minute.
6. Press "MODE" again to confirm and exit setting.
7. In "RADIO" mode, click "UP" to switch "Scheduled Radio On" function on/off. When the function is on, the set frequency and 📋 will be displayed.
8. When scheduled time arrived, radio will broadcast the stored frequency automatically. The radio volume will gradually increase 2 levels by every 10 seconds until reaches level 12 (like 2-4-6 -8-10-12); During this process, if any key is clicked, the volume increase process will be terminated and the present volume level will be set.

SCHEDULED RADIO OFF

1. Press "RADIO ON/OFF" key to turn radio on.
2. Press "SNOOZE.LIGHT" to switch on/off "Schedule Radio Off" function.
3. indicate "Schedule Radio Off" function is on.
4. Press "SNOOZE.LIGHT" for 2 seconds to enter the "Schedule Radio Off" time settings
5. The countdown is: 10 mins\~90mins. The preset is 30 minutes, click "UP" or "DOWN" to adjust 10 minutes per step.
6. Press "SNOOZE.LIGHT" to confirm setting.

BACK LIGHT

Press "SNOOZE.LIGHT" to switch on backlight, it will last for 5 seconds

PRECAUTIONS

• Do not clean any part of the product with benzene, thinner or other solvent chemicals. When necessary, clean it with a soft cloth.
• Never immerse the product in water. This will damage the product.
• Do not subject the product to extreme force, shock, or fluctuations in temperature or humidity.
• Do not tamper with the internal components.
• Do not mix new and old batteries or batteries of different types.
• Do not mix alkaline, standard or rechargeable batteries with this product.
• Remove the batteries if storing this product for a long period of time.
• Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

Technical line drawing of a device rear panel and its front view showing internal components (no text or symbols)

AUTOMATYCZNE USTAWIENIE

Technical line drawing of a device rear panel and its front view showing internal components (no text or symbols)

1. DOWN
2. UP
3. MODE
4. C/F
5. VOL -
6. VOL +
7. RADIO ON/OFF
8. SNOOZE.LIGHT
9. Komora pro baterie
10. DC

LCD DISPLEJ

Technical line drawing of a device rear panel and its front view showing internal components (no text or symbols)

1. DOWN
2. UP
3. MODE
4. C/F
5. VOL -
6. VOL +
7. RADIO ON/OFF
8. SNOOZE.LIGHT
9. Komora pro baterie
10. DC

LCD DISPLEJ

Technical line drawing of a device rear panel and its front view showing internal components (no text or symbols)

1. DOWN (LE)
2. UP (FEL)
3. MODE (ÜZEMMÓD)
4. C/F
5. VOL- (HANGERÓ LE)
6. VOL+ (HANGERÓ FEL)
7. RADIO ON/OFF (RÁDIÓ BE/KI)
8. SNOOZE.LIGHT (SZUNDI - VILÁGÍTÁS)
9. ELEMTARTÓ
10. EGYENÁRAMÚ CSATLAKOZÓ

LCD KIJELZŐ

1. IDÓ
2. ÉBRESZTÉS
3. SZUNDI
4. HÖMÉRSÉKLET
5. HÓNAP/DÁTUM

FUNKCIÓK

AUTOMATIKUS KERESÉS
