Product Type	Microwave Oven
Brand	ECG
Model	MTD 170 B
Capacity	17 L
Microwave Power Output	700 W
Input Power	1200 W
Voltage	230-240 V~ 50 Hz
Operating Frequency	2450 MHz
Timer	60 minutes max
Power Levels	5 (100%, 80%, 60%, 40%, 20%)
Auto Menu Options	8 (Milk/Coffee, Rice, Spaghetti, Potatoes, Auto Reheat, Fish, Popcorn, Pizza)
Defrost Function	By weight (100-1800 g) or time
Child Lock	Yes
Clock Setting	Yes
Quick Start	Yes (30 sec to 12 min)
Turntable Diameter	245 mm
Weight	10.5 kg
Dimensions (W x H x D)	452 x 262 x 330 mm
Noise Level	57 dB
Accessories Included	Glass turntable, support, manual
Interior Light	Yes (dim when low power)
Door Safety Lock	Yes
Type of Installation	Countertop

Frequently Asked Questions - MTD 170 B ECG

How do I set the clock on the ECG MTD 170 B?

Press the Clock button once, then turn the Time/Weight wheel to set hours. Press Clock again to set minutes, adjusting with the wheel. Press Clock to confirm. The clock will display.

How do I use the auto defrost function?

Press the Auto Defrost button, then turn the Time/Weight wheel to set the weight (100-1800 g). Press Start/Quick Start to begin. The oven automatically sets time and power.

How do I activate the child lock?

To lock, hold the Stop/Cancel button for 3 seconds until you hear a beep and a lock icon appears on the display. To unlock, hold the same button for 3 seconds again.

What materials are safe to use in the microwave?

Safe materials include microwave-safe plastics, glass, ceramic, and paper. Avoid metal, aluminum foil (unless as directed), and sealed containers. Always check for a 'microwave safe' label.

Why does the turntable make noise during operation?

Noises can occur if the turntable or oven bottom is dirty. Clean both according to the cleaning instructions. If noise persists, ensure the turntable is correctly installed.

How do I clean the microwave oven?

Unplug the oven. Use a damp cloth with mild detergent to wipe the interior, door seal, and frame. Clean the glass turntable with soapy water. Do not use abrasive cleaners.

What should I do if the oven does not start?

Check that the power cord is firmly plugged in. If it still doesn't start, check the fuse or circuit breaker. If the outlet is faulty, try another appliance. If the door is not closed properly, close it securely.

How do I use the auto menu function?

Press the Auto Cook button repeatedly to select the food type (1-8). Turn the Time/Weight wheel to set the weight. Press Start/Quick Start to begin cooking.

Can I use metal containers in the microwave?

No, metal containers and aluminum foil (unless used as directed to shield small areas) can cause arcing and damage. Only use microwave-safe materials.

What is the maximum cooking time I can set?

The maximum cooking time is 60 minutes. When setting manually, you can adjust from 1 to 60 minutes using the Time/Weight wheel.

USER MANUAL MTD 170 B ECG

White ECG microwave oven with black lid and digital display (no visible text or symbols on main body)

MTD 170 B

MIKROVLNNÁ TROUBA

NÁVOD K OBSLUZE

MIKROVLNNÁ RÚRA

NÁVOD NA OBSLUHU

KUCHENKA MIKROFALOWA

INSTRUKCJA OBSŁUGI

MIKROHULLÁMÚ SÜTŐ

HASZNÁLATI ÚTMUTATÓ

MIKROWELLENHERD

BEDIENUNGSANLEITUNG

MICROWAVE OVEN

OPERATING MANUAL

CZ

SK

PL

HU

DE

EN

BEZPEČNOSTNÍ POKYNY

4 Potatoes (Brambory)

5 Auto Reheat (Ohřát)

6 Fish (Ryby)

7 Popcorn (Popcorn)

8 Pizza (Pizza)

INSTALACE

Stop/Cancel (Stop/Anuluj)

Start/Quick Start

Start/Szybki start

1 Milk/Coffee (Mleko/kawa)

2 Rice (Ryż)

3 Spaghetti (Makaron)

4 Potatoes (Ziemniaki)

Stop/Cancel (Stopp/Abbrechen)

Start/Quick Start

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any pr these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
2. Never use the oven if the door is damaged, if the oven does not function correctly or if the power cord is damaged. Have a professional service centre carry out all repairs or tuning including the changing of the power cord! Do not remove protective covers from the product as there exists a danger of injury by electric shock and danger of microwave energy. Before carrying out repairs disconnect the power cord from the mains. By removing the cover supply you can put the service technician in danger of being impacted by microwave energy or suffering an electric shock.
3. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. Do not immerse cord or plug in water!
4. Do not operate the microwave oven outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock.
5. Close supervision is necessary for operating the oven near children!
6. Do not leave the microwave oven running unattended.
7. Leaving the oven cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.
8. Do not use the microwave oven near a source of heat, for example, stove hotplates. Protect the appliance against direct sunlight.
9. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges.
10. Prevent fi res inside the oven by observing the following:
    a) Do not overheat food.
    b) Remove any clips from paper or plastic bags before placing them into the oven.
    c) Do not heat frying oils or greases in the oven, for oil temperatures cannot be regulated. Do not fry food inside the oven. Hot oil can damage parts of the oven and kitchen dishes and also cause burns.
    d) Wipe the door, door seal and inside of the oven dry using a damp cloth with detergent. All stains, greases and food residue are removed this way.

WARNING: The oven should not be operated, if the door or door seal is damaged, until repaired by a trained individual. The accumulated grease can overheat and could result in smoke or fi re.

Do not use abrasive cleaning agents.

e) If smoke begins to come out of the food being heated or the food catches fire, leave the door open, turn off the oven and unplug the cord from the outlet.

f) Do not leave the oven unattended when using disposable containers made of plastic, paper or other materials.

e) If smoke begins to come out of the food being heated or the food catches fire, leave the door open, turn off the oven and unplug the cord from the outlet.
f) Do not leave the oven unattended when using disposable containers made of plastic, paper or other materials.

uldt. Limit the risk of explosion or sudden boil by observing the following:

WARNING: Do not put hermetically sealed containers into the oven. Baby bottles with screw-on caps or pacifiers are also considered as sealed containers. This could lead to an explosion.

a) Use a container with a wide nozzle for heating liquids. After heating the liquid, leave it stand for 20 seconds to prevent an erupting boil.
b) Eggs in shells, hard-boiled eggs, water containing grease or oil and closed glass containers shall not be heated in the microwave oven because they can explode. Potatoes, frankfurters or chestnuts shall be peeled or pricked before inserting them into the oven.
c) Do not remove liquids from the oven directly after heating. Wait a few seconds before removing liquids to prevent them from boiling over.
d) Stir or shake and check the temperature of baby bottles and canned baby food prior to serving to protect against burning.

1. Containers are very hot after being heated. Use oven mitts when removing containers from oven. Be careful not to burn your face and hands by coming into contact with hot steam.

2. Always lift the furthest edge of the lid or food wrap. Open popcorn bags and baking bags at a sufficient distance away from the face.

3. Protecting the turntable against breaking:

a) Let the turntable cool down before cleaning.
b) Do not place hot food or containers on a cold turntable.
c) Do not place frozen food or cold containers on a hot turntable.

1. Make sure the containers do not touch the inside walls of the oven during the heating process.

2. Do not store food or other objects inside the oven. The oven can be switched on spontaneously if the network is struck by lightning

3. Do not use the oven if it does not contain any food or liquids. This may cause damage to the oven. Do not cover or block any openings on the microwave oven.

4. Use accessories only advised by the manufacturer, otherwise you risk losing the warranty.

5. Use the microwave oven only in accordance with the instructions given in this manual. This microwave oven is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.

6. The microwave oven is designed to heat food and beverages. Drying food or clothing and heating cushions, slippers, sponges, wet fabric and similar items may lead to injury, explosion or fire.

7. This appliance is intended for household use and similar areas, including:

8. kitchen corners in markets, offices and other work environments

9. appliances used in the agricultural industry
10. appliances used by guests in hotels, motels and other residential environments

11. appliances used in bed and breakfast businesses.

12. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand the risks involved with the improper use of the appliance. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision.

Do not expose yourself to excessive microwave energy

1. Do not attempt to operate the microwave oven if the door is open. By doing so, you can become exposed to harmful microwave energy. Do not attempt to break or hold safety locks on the oven door.
2. Do not insert foreign objects between the oven door. Make sure dirt or residue from cleaning agents are not door seal or sealing elements of the oven.
3. Do not use the oven if damaged. The oven door should perfectly tightly upon closing and should not be damaged.

Examples of damage caused to the oven door:

a) DENTING the oven door.
b) Loose or broken door HINGES or SAFEGUARDS.
c) OVEN DOOR SEAL OR SEALING AREAS ON THE FRAME HEAD.

Adjustments or repairs to the microwave oven should only be performed by a qualified person.

1. As with the majority of appliances intended for baking, strict supervision is necessary to reduce the risk fire around the oven.

In case of fi re:

1. Do not open oven door.
2. Turn off the oven and unplug cord from socket.
3. Turn off the master power switch.

CLEANING

Make sure you unplugged the oven from the outlet by disconnecting the plug from the outlet.

1. Use a damp cloth and clean the inside of the oven.
2. Clean accessories as usual in soap water.
3. Clean the door frame, seal and neighbouring parts carefully using a damp cloth dipped into dishwashing detergent and

wipe dry. To prevent switching on the oven accidentally keep the door open when cleaning the panel.

1. The oven must be earthed. The plug should be connected only to a properly grounded outlet.

Refer to a qualified electrician or service technician if you have any doubts regarding proper wiring or experience malfunctioning.

1. The microwave oven is equipped with a short cord to reduce the risk of tripping or tangling.
2. Long extension cords must meet the following requirements:

a) With respect to electric load, the rated values of the extension cord and outlet should comply with the rated values of the microwave oven.
b) The extension cord must be three-wire and the plug must be equipped with a grounding pin.
c) The cord must be sufficiently hidden, not hanging over the kitchen counter, to prevent against tripping over the cord

ft on the being pulled out by children.

UTENSILS AND DISHES

CAUTION

Risk of injury

Tightly closed containers can explode when heated. Closed containers must be opened prior to cooking and plastic containers shall be pierced, see Materials to find out what material can and can not be used in the microwave oven. Some non-metal material may not be safely used for oven heating. If you are not sure whether or not the material is safe for oven heating, proceed as follows:

Test the container:

1. Fill the container, to be heated in the microwave oven, with cold water (250 ml).
2. Heat for 1 minute at maximum cooking power.
3. Check the temperature of the tested container carefully. If the tested container is warm, do not use it for oven heating.
4. Do not cook more than 1 minute.

Material that can be used in the microwave oven

Containers	Notes
Aluminium foil.	Only to cover small parts of food. Covering small amounts of meat or poultry with foil prevents overcooking or burning the food. The foil must be at least 2.5 cm away from the inner oven surface (the foil can bend if too close).
Baking trays.	Follow the instructions of the manufacturer. The bottom of the baking container must be at least 5 mm above the turntable. Improper handling can lead to cracking the turntable.
Plates.	Use only plates and dishes specified for microwave oven use. Follow the instructions of the manufacturer. Do not use cracked or otherwise damaged bowls.
Glass jars and jugs.	Always remove the cover. Only heat the food. Do not cook! Most glass jugs and jars are not resistant to high temperatures and can crack.
Glass baking dishes.	Use only those glass baking dishes resistant to high temperatures. Make sure the bowl does not have a metal border or other metal objects. Do not use cracked or otherwise damaged bowls.
Baking bags.	Follow the instructions of the manufacturer. Do not close using metal clips. Leave the bag slightly opened enabling the free release of hot steam.
Paper trays. Suitable only for heating or short cooking. Do not leave the oven unattended while cooking.
Paper towels. Use these to cover food or remove melted grease. Use for short-term cooking only. Do not leave the oven unattended while cooking.
Parchment paper. Use for covering food, packing food for stewing and as protection against spattering.
Plastic material.	Use only plates and dishes specified for microwave oven use. Follow the instructions of the manufacturer. Plastic material, suitable for microwave oven use, should be equipped with a specific label: "Suitable for microwave ovens" Some plastics become softer as a result of long-term exposure to high temp "Boiling bags" and baking sacks must be cut, pieced or otherwise vented according to the food manufacturer's instructions.
Plastic packing foil	Use only plates and dishes specified for microwave oven use. Use them for covering food and to maintain food moist while cooking. Make sure the plastic foil does not touch the food being prepared.
Thermometers. Use only thermometers suitable for microwave oven use. (Thermometers for meat, bread products and candy.)
Wax paper. Use for covering food, as protection against spattering and to maintain food moist while cooking.

Material, which may not be used for oven heating.

Utensils and dishes Notes

Aluminium platters and trays.	Risk of bending. Move the food to a container suitable for microwave oven use.
Food and cardboard boxes with metal holders.	Risk of bending. Move the food to a container suitable for microwave oven use.
Metal dishes and dishes with metal objects.	Metal prevents the penetration of microwave energy. Metal borders can bend.
Wired closing rings. Risk of bending and fire inside the oven.
Paper bags.	Risk of catching fire. Risk of fire inside the oven.
Foam material. Plastic foam can melt at high temperatures and spoil food.
Wood.	Wood dries and can crack when cooked.

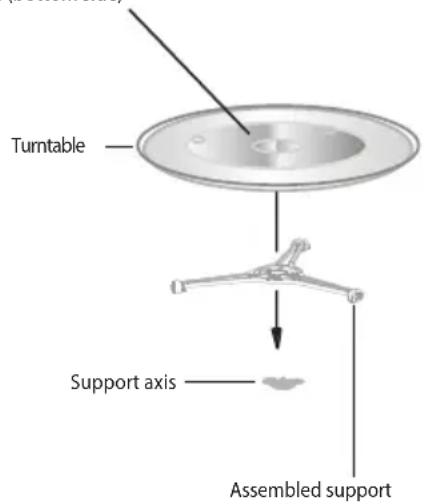

INSTALLING THE TURNTABLE

Charge (bottom side)

1. Do not lay the turntable face down. The turntable must always rotate freely.
2. Do not use the oven without the support and turntable.
3. All food and containers must always be placed on the turntable.
4. Contact your nearest authorized service if the turntable cracks or the support is damaged.

EN

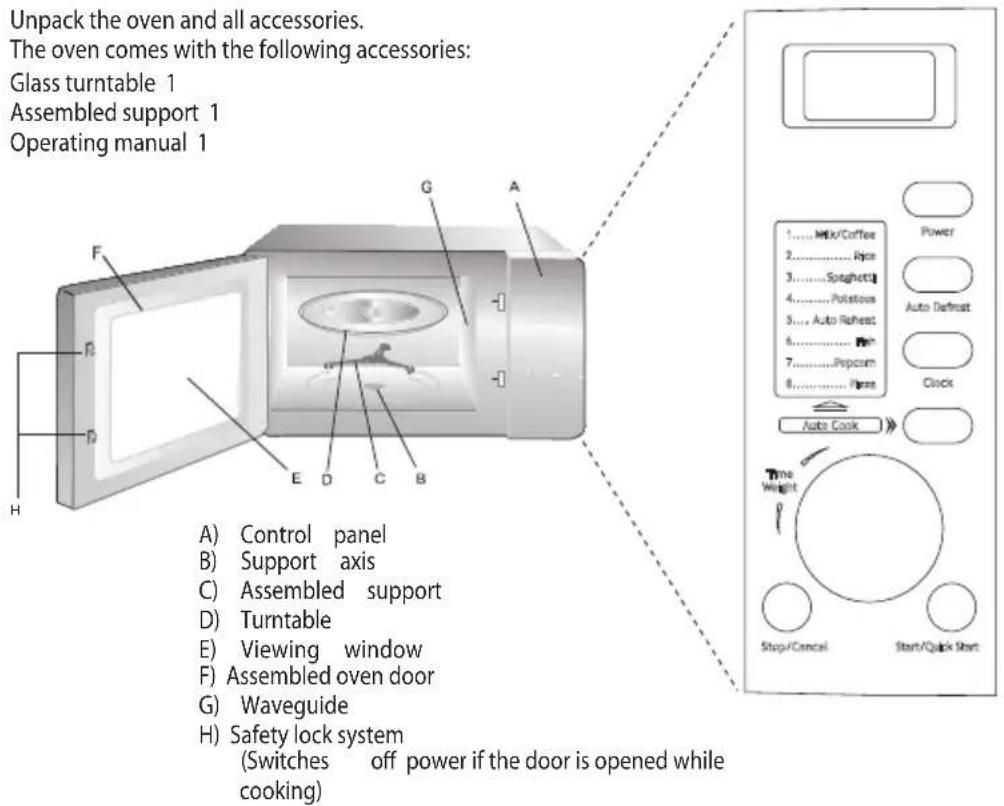

Unpack the oven and all accessories. The oven comes with the following accessories: Glass turntable 1 Assembled support 1 Operating manual 1

Power

Auto Defrost

Clock

Auto Cook

Time/Weight

Stop/Cancel

Start/Quick Start

1 Milk/Coffee
2 Rice
3 Spaghetti
4 Potatoes
5 Auto Reheat
6 Fish
7 Popcorn
8 Pizza

INSTALLATION

Remove all packaging material and take out all accessories.

Make sure the oven is not damaged in any way (dented or damaged door etc.). Do not install the microwave oven if damaged.

Kitchen counter

Oven body: Remove all protective foil from the oven surface.

Do not remove the light brown foil, screwed to the inside of the oven. This foil protects the oven magnetron.

Installation

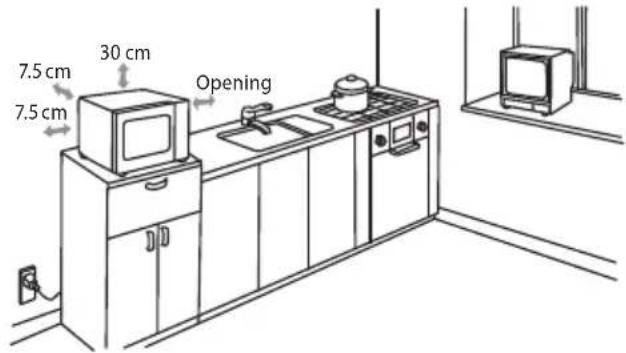

1. Place the oven on a flat surface with a sufficient amount of space around the appliance to ensure the proper function of exhaust vents

The minimum distance between the oven and the closest wall must be 10 cm.

At least one side must be open space.

a) Leave at east 30 cm of free space above the oven.
b) Do not remove oven legs.
c) Do not block exhaust vents. Blocking the exhaust vents could cause damage.
d) Place the oven as far away from the radio or television as possible. The microwave oven can interfere with the television and radio signal.

1. Connect the oven to a standard electricity network. Make sure the voltage and frequency on the oven label corresponds with the network voltage and frequency.

ATTENTION: Do not install the oven above or near the kitchen stove, or near another source of heat. Placing the oven by a heat source could damage the oven and result in losing the warranty. The microwave oven should be used in an open space and should not be placed in a cabinet.

The surface of the microwave oven can become hot during operation.

Hot surface

OVEN FUNCTIONS

Operating instructions

This microwave oven uses modern electronic controlling to configure cooking parameters to better meet your needs. Each press of a button is indicated by a beep.

1. Setting the time

As soon as you plug the microwave oven into the outlet, the oven display will flash "0:00" and a beep will sound.

1) Press Clock button once to set the clock and then set the clock by turning the Time/Weight wheel.
2) Press Clock button once more to set minutes and then adjust minutes by turning the Time/Weight wheel.
3) Press the Clock button to confirm and the time set will be displayed.

Note:

The oven will not function properly without the time begin set.

Pressing the Stop/Cancel button while setting the time will automatically return you to the previous settings.

2. Cooking in the microwave oven

1) Press the Power button. The number of presses sets the microwave power from 100 % to 0 %, see table below.
2) Using the Time/Weight wheel, set the desired cooking time. The time range can be set between 1-60 minutes.
3) Confirm by pressing the Start/Quick Start button and the oven will begin cooking. After the cooking time has elapsed, you will hear a beep and the display will show „END“.

Cooking power table

Number of power button presses Cooking power
1	1
2	80%
3	60%
4	40%
5	20%
6	0%

0

3. Automatic defrosting

Example: Defrosting 600g of shrimps.

1) Press Auto Defrost button, set the weight to 600 g by turning the Time/Weight wheel.
2) Start the defrosting process by pressing the Start/Quick Start button.
Defrosting time and power are set automatically by programmed weight.
The weight range of frosted foods is 100-1800 g.

4. Auto Menu

1) Choose type of food you want to reheat by pressing the Auto Cook button.
2) Using the Time/Weight wheel, set weight of the food.
3) Confirm by pressing the Start/Quick Start button and the oven will begin cooking.

Note: It is recommended to turn the food over in the middle of reheating so that the reheating is even.

Auto Menu Table

Code	Type of food
1	Milk/Coffee (200 ml/unit)
2	Rice (g)
3	Spaghetti (g)
4	Potatoes (230 g/unit)
5	Auto Reheat (g)
6	Fish (g)
7	Popcorn (99 g)
8	Pizza (g)

Note: Auto Reheat function depends on several factors, if the food is not sufficiently reheated, adjust the reheating time.

5. Rapid cooking

Press the Start/+ 30 s/Confirm button repeatedly to set cooking at 100% power for 0:30-12:00 minutes. See table below.

Number of button presses Time (min)
1	0
2	0
3	0
4	0
5	0
6	0
7	0
8	0
9	0
10 07:30
11 08:30
12 09:30
13 10:30
14 11:30
15 12:00

The oven will start cooking at full power immediately.

6. Child lock

LOCK: Hold the Stop/Cancel button down for 3 seconds, a beep will signal the child lock has been activated and a lock will appear on the display.

UNLOCK: Hold the Stop/Cancel button for 3 seconds, a beep will notify you that the child lock has been deactivated and the lock disappears from the display.

ELIMINATING PROBLEMS

Common
The microwave oven interferes with the television reception.	The microwave oven can interfere with the radio and television when operating. It is similar to the interference of small electrical appliances such as the blender, vacuum cleaner and electrical ventilator.
The light in the oven dims. The light in the oven cavity can dim when a lower cooking power is set.
Steam is accumulated on the door, hot air is coming from vents.	Steam can be released from food while cooking. Most of the steam is released through the exhaust vents, though some can accumulate in a cooler place, such as the door. This effect is normal.
The oven was started empty by accident. The oven should not be operated empty. It is very dangerous.

Problem	Possible cause	Correction
The oven will not start.	(1) The cord is not firmly plugged into the outlet.	Unplug the cord from the outlet. Plug the cord back into the outlet after approximately 10 seconds.
	(2) Blown fuse or switched off circuit breaker.	Replace the fuse or reset the circuit breaker (repaired by a service technician from our company).
	(3) Problem with the outlet.	Try connecting another electrical appliance into the outlet.
The oven does not heat.	(4) Door is not closed correctly.	Close the door properly.
The turntable makes noises when the microwave oven is operating.	(5) The turntable or bottom of oven are dirty.	Clean the oven according to the instructions stated in chapter “Cleaning.”

TECHNICAL INFORMATION

Capacity 17 l

Microwave power output 700 W

60 minutes timer

Auto Menu 8 options

Defrosting by time/weight

5 power levels available

Turn plate ∅ 245 mm

Weight 10.5 kg

Dimensions 452 × 262 × 330 mm (w × h × d)

Nominal voltage: 230-240 V\~ 50 Hz

Nominal input power: 1200 W

Operating frequency: 2450 MHz

Noise level: 57 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

Changes in text and technical parameters reserved.

08/05

EN

K+B Progres

K+B Progres, a.s. (dále jen K+B), IČO: 61860123
