Product type	Microwave
Brand	ECG
Model	MTM 1771 WE
Capacity	20 liters
Microwave power	700 W
Grill power	1000 W (estimated)
Main functions	Microwave, grill, defrost, combined cooking
Number of power levels	5
Control type	Rotary knobs and timer
Dimensions (W x H x D)	45 x 26 x 34 cm (estimated)
Weight	11 kg (estimated)
Power supply	230 V / 50 Hz
Power consumption	1050 W (estimated)
Door opening type	Side handle
Interior light	Yes
Turntable	Yes, 25 cm diameter
Timer	Up to 35 minutes
End signal	Yes
Child safety	Not specific (door lock)
Exterior material	Stainless steel and plastic
Care and cleaning	Clean with a damp cloth and mild detergent. Avoid abrasives.
Spare parts available	Yes, contact after-sales service
Repairability	Repairability index not provided

Frequently Asked Questions - MTM 1771 WE ECG

How to use the defrost function?

Place the frozen food in a suitable dish, select the defrost mode and set the weight or time. Stir halfway through for even defrosting.

Can I put metal in the microwave?

No, metal can cause sparks and damage the appliance. Use only suitable containers (glass, ceramic, microwave-safe plastic).

How to clean the inside of the microwave?

Use a soft cloth dampened with soapy water. For stubborn stains, heat a bowl of water with lemon for 2 minutes to loosen residue.

What to do if the microwave no longer heats?

Check the power outlet, the fuse, and that the door is properly closed. If the problem persists, contact after-sales service.

Which containers are prohibited?

Avoid metal, aluminum, melamine, unsuitable plastic, and gold-trimmed dishes. Prefer glass, ceramic, and microwave-safe plastic.

How to set the cooking time?

Turn the timer knob clockwise to the desired time (max 35 minutes). For more precise cooking, use the power levels.

The microwave makes noise, is that normal?

Yes, the noise comes from the fan and magnetron. A low hum is normal. If the noise becomes loud or unusual, stop the appliance and contact a technician.

How to use the grill?

Place the food on the provided metal rack, select the grill mode and set the time. Monitor cooking to avoid burning.

Can I heat liquids safely?

Yes, but be careful of overheating risk. Use a wide container, do not heat too long, and stir before drinking.

What to do in case of burning smell?

Immediately stop the appliance, unplug it, and let it cool. Clean the inside with a damp cloth. If the smell persists, contact after-sales service.

USER MANUAL MTM 1771 WE ECG

Simple line drawing of a microwave oven with front panel and control panel (no text or symbols)

MTM 1771 WE / MTM 1774 BE

CZ

MIKROVLNNÁ TROUBA

NÁVOD K OBSLUZE

SK

MIKROVLNNÁ RÚRA

NÁVOD NA OBSLUHU

PL

KUCHENKA MIKROFALOWA

INSTRUKCJA OBSŁUGI

HU

MIKROHULLÁMÚ SÜTÖ

HASZNÁLATI ÚTMUTATÓ

DE

MIKROWELLENHERD

BEDIENUNGSANLEITUNG

GB

MICROWAVE OVEN

INSTRUCTION MANUAL

HR/BIH

MIKROVALNA PEĆNICA

UPUTE ZA UPORABU

SI

MIKROVALOVNA PEČICA

NAVODILA

SR/MNE

MIKROTALASNA RERNA

UPUTSTVO ZA UPOTREBU

FR

FOUR A MICRO-ONDES

MODE D'EMPLOI

IT

FORNO A MICROONDE

Horký povrch!

Horúci povrch!

Ⓐ Panel sterowania

B Falowód

Forró felület!

Heiße Oberfläche!

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Ensure that the voltage in your outlet matches the voltage indicated on the device label and that the outlet is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Never use the oven if the door is damaged, the oven does not work properly, or the supply cord is damaged.

WARNING: It is dangerous for any person other than trained to perform any repairs or maintenance leading to removal any cover that provides protection from microwave radiation. All repairs or adjustments including cord replacements shall be performed by a professional service centre! The AV power supply must be unplugged prior to any repair. Removing the cover with the cord plugged in can result in the service technician being exposed to microwave energy or being shocked by electric current!

1. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. Do not immerse cord or plug in water!
2. Do not operate the microwave oven outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock.
3. Close supervision is necessary for operating the oven near children!
4. Do not leave the microwave oven running unattended.

5. Leaving the oven cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.

6. Do not use the microwave oven near a source of heat, for example, stove hotplates. Protect the appliance against direct sunlight.

7. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.
8. Prevent fires inside the oven by observing the following:

a) Do not overheat the food.
b) Before placing paper or plastic bags in the oven remove paper clips from them.
c) Do not heat oil or frying fat in the oven because you cannot regulate the temperature of the oil. Do not fry food inside the oven. Hot oil can damage parts of the oven and kitchen dishes and also cause burns.
d) After use, wipe the door, the door seal and inside of the oven with a cloth soaked in a mild detergent solution and wipe dry. All stains, greases and food residue are removed this way.

WARNING: If the door or door seal is damaged, the oven should not be used until it has been repaired by a trained person. The oven should be properly cleaned and any food residue removed. Failure to keep the oven clean may result in damage to the surface, which could adversely affect the life of the appliance and result in a hazardous situation. The piled up grease may overheat and could start a fire. Do not use abrasive cleaning agents. The appliance must not be cleaned with a steam cleaner.

e) If the cooked food inside the oven starts to smoke or ignites, leave the oven door closed, turn off the oven and pull out the plug of the power supply from the outlet to prevent the spread of fire.
f) When using disposable containers made of plastic, paper or other combustible materials, do not leave the oven unattended to prevent ignition.

1. Limit the risk of explosion or sudden boil by observing the following:

WARNING: Liquids and other dishes must not be heated in airtight containers because they are susceptible to explosion. Baby bottles with screw-on caps or pacifiers are also considered as sealed containers.

a) When heating liquids, use wide-mouth container and after heating allow it to stand for 20 seconds, to prevent eruptive boiling over.
b) Eggs in shell, whole hard-boiled egg, water containing grease or oil and sealed glass containers must not be heated in the microwave oven as they can explode even after the microwave heating has ended. Potatoes,

frankfurters or chestnuts shall be peeled or pricked before inserting them into the oven.

c) Microwave heating of beverages can cause delayed boiling, which must be taken into account when holding the container.
d) The contents of infant bottles and baby food must be stirred or shaken prior to administration and their temperature before consumption should be checked to prevent burns.

1. Containers are very hot after being heated. Use oven mitts when removing containers from the oven. Be careful not to burn your face and hands by coming into contact with hot steam.
2. Always lift the furthest edge of the lid or food wrap. Open popcorn bags and baking bags at a sufficient distance away from the face.
3. Protecting the turntable against breaking:

a) Let the glass tray cool off before cleaning.
b) Do not place hot dishes or containers on a cold glass tray.
c) Do not place frozen foods or cold containers on a hot glass tray.

1. Make sure the containers do not touch the inside walls of the oven during the heating process.
2. Do not store food or other objects inside the oven. The oven can be switched on spontaneously if the network is struck by lightning.
3. Do not use the oven if it does not contain any food or liquids. This may cause damage to the oven. Do not cover or block any openings on the microwave oven.
4. Use accessories only advised by the manufacturer, otherwise you risk losing the warranty.
5. Use the microwave oven only in accordance with the instructions given in this manual. This microwave oven is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
6. The microwave oven is designed to heat food and beverages. Drying food or clothing and heating cushions, slippers, sponges, wet fabric and similar items may lead to injury, explosion or fire.
7. This appliance is intended for household use and similar areas, such as:

- kitchen corners in markets, offices and other work environments

- appliances used in the agricultural industry

• appliances used by guests in hotels, motels and other residential environments

• appliances used in bed and breakfast establishments.

• This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand the risks involved with the improper use of the appliance. Children must not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision.

Do not expose yourself to excessive microwave energy

1. Do not attempt to operate the microwave oven if the door is open. By doing so, you can become exposed to harmful microwave energy. Do not attempt to break or hold safety locks on the oven door.
2. Do not insert foreign objects between the oven door. Make sure dirt or residue from cleaning agents are not left on the door seal or sealing elements of the oven.
3. Do not use the oven if damaged. The oven door should be perfectly tight upon closing and should not be damaged.

Examples of damage caused to the oven door:

a) DENTING the oven door.
b) Loose or broken door HINGES or SAFEGUARDS.
c) OVEN DOOR SEAL OR SEALING AREAS ON THE FRAME HEAD.

Adjustments or repairs to the microwave oven should only be performed by a qualified person.

1. As with the majority of appliances intended for baking, strict supervision is necessary to reduce the risk fire around the oven.

In case of fire:

1. Do not open oven door.
2. Turn off the oven and unplug cord from socket.
3. Turn off the master power switch.

CLEANING

Make sure you unplugged the oven from the outlet by disconnecting the plug from the outlet.

1. Use a damp cloth and clean the inside of the oven.

1. Clean accessories as usual in soap water.
2. Clean the door frame, seal and neighbouring parts carefully using a damp cloth dipped into dishwashing detergent and wipe dry.

The microwave oven must be grounded. The plug should be connected only to a properly grounded outlet. Refer to a qualified electrician or service technician if you have any doubts regarding proper wiring or experience malfunctioning.

1. The microwave oven is equipped with a short cord to reduce the risk of tripping or tangling.
2. Long extension cords must meet the following requirements:

a) With respect to electric load, the rated values of the extension cord and outlet should comply with the rated values of the microwave oven.
b) The extension cord must be three-wire and the plug must be equipped with a grounding pin.
c) The cable must be well hidden so that it does not hang over the worktop of the kitchen unit and to prevent the children from tripping over it or pulling it out.

UTENSILS AND DISHES

WARNING

Risk of injury

Only use containers that are suitable for use in microwave ovens. Tightly closed containers can explode when heated. Closed containers must be opened prior to cooking and plastic containers shall be pierced, see Materials to find out what material can and can not be used in the microwave oven. Some non-metal material may not be safely used for oven heating. If you are not sure whether or not the material is safe for oven heating, proceed as follows:

Hot surface!

Test the container:

1. Fill the container, to be heated in the microwave oven, with cold water (250 ml).
2. Heat for 1 minute at maximum cooking power.
3. Check the temperature of the tested container carefully. If the tested container is warm, do not use it for oven heating.
4. Do not cook more than 1 minute.

DANGER for children: Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

Materials which you may use in a microwave oven

Dishes Notes

Baking trays	Follow the instructions of the manufacturer. The bottom of the baking container must be at least 5 mm above the turning plate. Incorrect handling may lead to the breakage of the turning plate.
Plates	Use only plates and dishes designed for use in microwave ovens. Follow the instructions of the manufacturer. Do not use cracked or otherwise damaged bowls.
Glasses and jugs	Always remove the cap. Only heat up the food. Do not cook it! The majority of glass jugs and glasses are not resistant to high temperatures and breakage may occur.
Glass baking trays Use	only glass baking trays resistant to high temperatures.Check that the bowl does not have a metal rim or another metal accessory. Do not use cracked or otherwise damaged bowls.
Baking bags	Follow the instructions of the manufacturer. Do not close with metal clips. Leave the sealing joint slightly opened so that hot steam can escape.
Paper trays.	Appropriate only for heating up or short cooking. Do not leave the oven unattended while cooking.
Paper towels	Use to cover food and to absorb melted fat. Use only for short cooking. Do not leave unattended while cooking.
Grease-proof baking paper	Use to cover foods, to cover food while stewing and to prevent the oven from being sprayed.
Plastic materials	Use only plates and dishes designed for use in microwave ovens. Follow the instructions of the manufacturer. A plastic material appropriate for use in a microwave oven must have a specific labelling: “Appropriate for microwave ovens”. Some plastics soften as a result of long term effects of high temperatures. “Boiling bags” and baking satchels must be cut through, pierced or otherwise ventilated according to the food manufacturer's instructions.
Plastic wrapping foils	Use only plates and dishes designed for use in microwave ovens. Use them to cover foods and to maintain the moisture of the food during cooking. Make sure that the plastic foil is not touching the food being prepared.
Thermometers	Use only thermometers designed for use in microwave ovens. (Thermometers for meat, pastry and cakes.)
Wax paper	Use to cover foods to prevent the oven from being sprayed and to maintain the moisture of the food during cooking.

Materials which must not be used for cooking in a microwave oven

Equipment and dishes Notes

Aluminium trays and plates	Danger or distortion. Move the food into a container appropriate for cooking in a microwave oven.
Paper and cardboard boxes with a metal handle	Danger or distortion. Move the food into a container appropriate for cooking in a microwave oven.
Metal dishes and dishes with metal accessories	Metal prevents the penetration of microwave energy. The metal rim may warp.
Wire locking rings	Danger of distortion and fire inside the oven.
Paper bags	They may catch on fire. Danger of fire inside the oven.
Foam materials	Through the effect of heat the plastic foam may melt and degrade the quality of the food.
Wood	Wood is dried out during cooking and may crack.

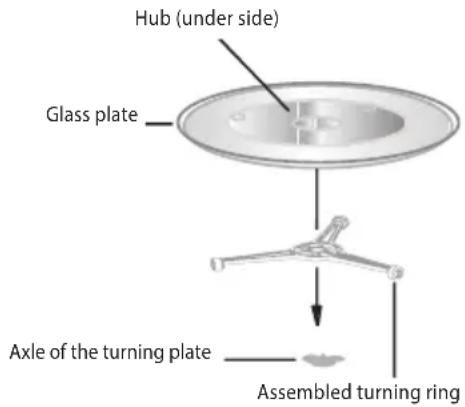

INSTALLATION OF THE TURNING PLATE

1. Never place the glass plate with the bottom in the upward direction. The glass plate must always turn freely.
2. Never use the oven without the driving collar and the glass plate.
3. All foods and containers with food must always be placed on the glass plate.
4. If the glass plate cracks or the driving collar is damaged, contact the nearest authorised service.

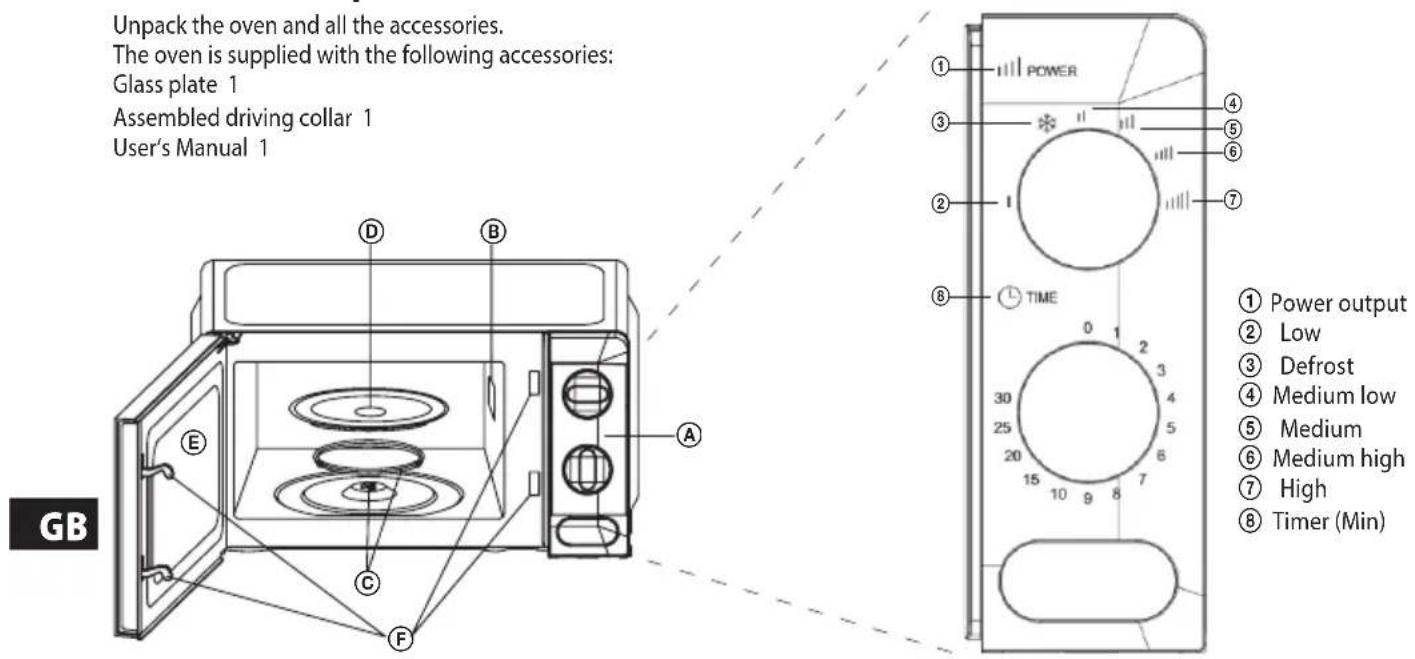

Names of oven parts and accessories

Unpack the oven and all the accessories.

The oven is supplied with the following accessories:

Glass plate 1

Assembled driving collar 1

User's Manual 1

Ⓐ Control panel
B Waveguide
© Assembled driving collar
D Glass plate

E Viewing window
⑤ Safety locking system

(Will cut off electric energy, if the door is

opened during cooking.)

INSTALLATION

Remove all packaging material and take out all the accessories.

Check that the oven is not in any way damaged (dented or damaged door, etc). Do not install the oven if it is in any way damaged.

Kitchen bench top

Body of the oven: Remove all protective foil from the surface of the oven.

Do not remove the light brown foil Ⓑ which is screwed into the inside of the oven. This foil protects the oven's magnetron.

INSTALLATION

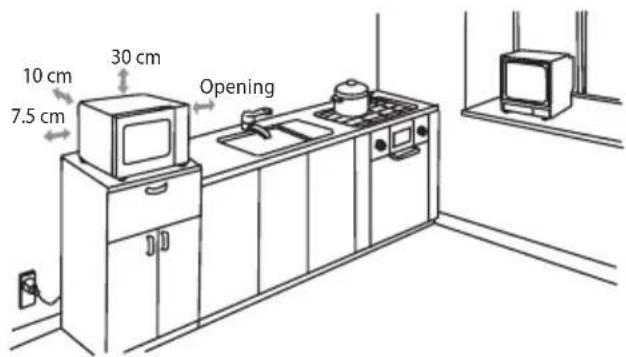

1. Place the oven on an even surface, which guarantees a sufficient amount of free space for the correct function of the ventilation openings.

There must be a minimum space of 7.5 cm between the oven and the nearest wall and 10 cm behind the oven.

At least one side must be free.

a) Leave at least 30 cm of free space behind the oven.
b) Do not remove the legs of the oven.
c) Do not block the ventilation openings. The oven could be damaged.
d) Place the oven as far as possible from a radio or television.

The microwave oven can interfere with the signal of the television or radio signal.

1. Connect the oven into standard electrical mains. Make sure that the specified voltage and frequency value specified on the label of the oven conforms with the value of the voltage and frequency in the mains.

CAUTION: Do not install the oven above the kitchen cook top nor in its vicinity or in the vicinity of another source a heat radiation. Placing

the oven near the source of heat radiation may

damage the oven and invalidated the warranty.

The microwave oven is designed to be used in an open space and must not be placed inside a cabinet.

During operation the surface of the microwave oven may be hot.

Control panel and functions

1. Set the power output of the oven by turning the control (Power) to the required level.
2. Set the cooking time by turning the timer (Time) to the required interval depending on the food being prepared (max. 30 minutes).
3. After the power output and the time has been set the microwave will automatically commence to cook.
4. After the set cooking time has elapsed the oven will turn itself off.
5. If you are not using the oven, leave the timer set to "0".

Note: To select a cooking time less than two minutes, turn the control past the 2 minute mark and return to the desired value.

Functions Power output Application
Low 20 % Softening of ice-cream
Defrost 42 % Defrosting
M. Low 52 % Preparation of soup, softening of butter
Med 73 % Stewing of meat, fish
M. High 88 % Rice, fish, chicken, minced meat
High	100 %	Heating, milk, boiling of water, vegetables, beverages

After the heating is completed, the device will keep the fan running for the time necessary to cool down the thermally stressed parts of the electronics to prevent damage. If the heating is shorter or if the ambient thermal conditions allow it, the device does not need to cool down after the heating is completed.

TROUBLESHOOTING

Common
The microwave oven interferes with television reception.	While in operation the microwave oven may interfere with radio and television reception. It is a similar type of interference to that of small electric appliances such as mixers, vacuum cleaners and electric ventilators.
The light inside the oven dims.	When using a lower power output the light inside the oven may dim.
Steam is accumulating on the door, hot air is coming out of the openings.	While cooking steam may come out of the food. The majority of it will escape through the ventilation openings, but a part may accumulate in a colder area such as the door. This is a normal event.
The oven was accidentally turned on while empty.	You must not turn on the oven when empty. It is very dangerous.

Problem Possible cause	Solution
Can not turn on the oven.	(1) The power cord is not firmly inserted into the power socket.	Pull the cord out of the socket. After approximately 10 seconds reinsert the power cord into the socket.
	(2) A fuse has burned out or the circuit breaker was triggered.	Change the fuse or switch on the circuit breaker (repaired by a service technician from our company).
	(3) Problem with the power socket.	Try to connect a different electrical appliance into the socket.
The oven does not heat.	(4) The door is not properly closed.	Close the door properly.
The glass plate is making sounds when the oven is in operation.	(5) The turning underlay or the bottom of the oven is dirty.	Clean the oven according to the instructions in chapter "Cleaning".

TECHNICAL INFORMATION

Capacity:	17 l
Microwave power output:	700 W
Minute timer:	30 minutes
Power levels available:	6 levels
Turning plate:	245 mm
Weight:	9.4 kg
Dimensions:	446 × 243 × 338 mm
Inner dimensions:	301 × 202 × 311 mm

Nominal voltage:	230-240 V~ 50 Hz
Nominal input power:	1 100 W
Operating frequency:	2 450 MHz
Noise level:	57 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

08/05

SIGURNOSNE UPUTE

Vruća površina!

① Izlaz snage
② Nizak
③ Odmrzavanje
④ Srednje nizak
⑤ Srednji
⑥ Srednje visok
⑦ Visok
⑧ Vremenski sat (Minute)

Ⓐ Kontrolna ploča
© Kontrola mikrovalova
© Sastavljen ležaj tanjura
© Stakleni tanjur

Test kuhinjske posode:

SI

Vroča površina!

BEZBEDNOSNA UPUTSTVA

Vruća površina!

① Snaqa
② Slabo
③ Odmrzavanje
④ Srednje nisko
⑤ Srednje
⑥ Srednje snažno
⑦ Snažno
⑧ Tajmer (min)

Ⓐ Upravljačka ploča
B Talasovod
© Sastavljeni noseći prsten
D Stakleni tanjir

E Prozorčić
⑤ Sigurnosna brava

Surface chaude!

① Potenza
② Basso
③ Sbrinamento
④ Medio basso
⑤ Medio
⑥ Medio alto
⑦ Alto
⑧ Timer (Min)

Pealispind on kuum!

Mahuti kontrollimine:

Karsta virsma!

Pārbaudiet trauku:

250 69 Klíčany, Czech Rep. e-post: [e-mail]

LT

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. el. paštas: [e-mail]

LV

K+B Progres, a.s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e-pasts: [e-mail]
