Product Type	Mouse
Brand	Natec
Model	GX77
Connection Type	Wired USB
Sensor Type	Optical
Resolution	1000 DPI
Number of Buttons	3 (left, right, scroll)
Scroll Wheel	Yes, with click
Cable Length	1.5 m
Dimensions (L x W x H)	120 x 70 x 38 mm
Weight	100 g
Compatible Systems	Windows, macOS, Linux
Power Source	USB powered
Maintenance & Cleaning	Clean with a soft, dry cloth. Do not use liquids or solvents.
Safety Precautions	Avoid exposure to moisture and extreme temperatures.
Spare Parts & Repairability	Not user-serviceable. Contact support for repairs.
General Use	Designed for everyday computer use, suitable for home and office.

Frequently Asked Questions - GX77 Natec

How do I connect the Natec GX77 mouse to my computer?

Plug the USB connector into an available USB port on your computer. The mouse should be automatically recognized and ready to use without additional drivers.

Is the Natec GX77 compatible with Mac?

Yes, the mouse works with macOS as well as Windows and Linux. It uses standard HID drivers.

How do I change the DPI/sensitivity?

The GX77 has a fixed DPI of 1000. There is no software or button to adjust sensitivity.

Can I use the mouse on a glass surface?

Optical mice generally require an opaque, non-reflective surface. Glass may cause erratic cursor movement. Use a mouse pad for best performance.

How do I clean the mouse?

Disconnect the mouse. Wipe the exterior with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water and wring thoroughly. Do not use alcohol or abrasive cleaners.

Why is the cursor not moving smoothly?

Check the surface you are using. Ensure the optical sensor is not blocked. Clean the lens gently with a cotton swab. Also, try a different USB port.

Does the mouse have a scroll wheel?

Yes, the GX77 features a scroll wheel that also acts as a middle button click.

What is the cable length?

The mouse comes with a 1.5-meter USB cable.

How do I replace the mouse? Is it repairable?

The mouse is not designed to be user-repaired. If it fails, contact Natec support or consider replacement.

Where can I find the manual?

The manual can be downloaded from the product page on notice-facile.com in PDF format.

USER MANUAL GX77 Natec

EN - NATEC GENESIS GX77 - USER MANUAL

I. Introduction

Natec Genesis GX77 is a wired gaming mouse with 9 fully customizable buttons, high precision laser engine and comfortable design.

II. Features

• High-end laser engine, precise positioning
• Adjustable resolution up to 5670DPI
• Different LED indicator colors
• Two modes of LED lightning: full lightened and breathing.
• 9 fully programmable keys – more than 40 settings to choose for each
• Adjustable polling rate: 125/250/500/1000 Hz.
• Advanced profiles management
• Ergonomic design

III. Driver description

A. System

• Compatible with Windows XP/Vista/7 operation system
• USB (1.1/2.0) port
• CD-ROM drive (for installing the driver from CD attached) / internet connection (for downloading the driver)
• 50 MB of hard disk space
• Screen resolution: minimum 1024x768

B. Windows XP/Vista/7 installation guide

1. Insert the Genesis GX77 gaming mouse USB plug into the computer USB port
2. Insert the Genesis GX77 driver CD into the CD-ROM drive (or download the driver from www.natec-europe.com)
3. Launch the setup application and click next on the window displayed
4. Select the install path, then click next
5. Wait for the end of the installing process
6. Click finish
7. You are ready to use the device.

IV. Mouse configuration

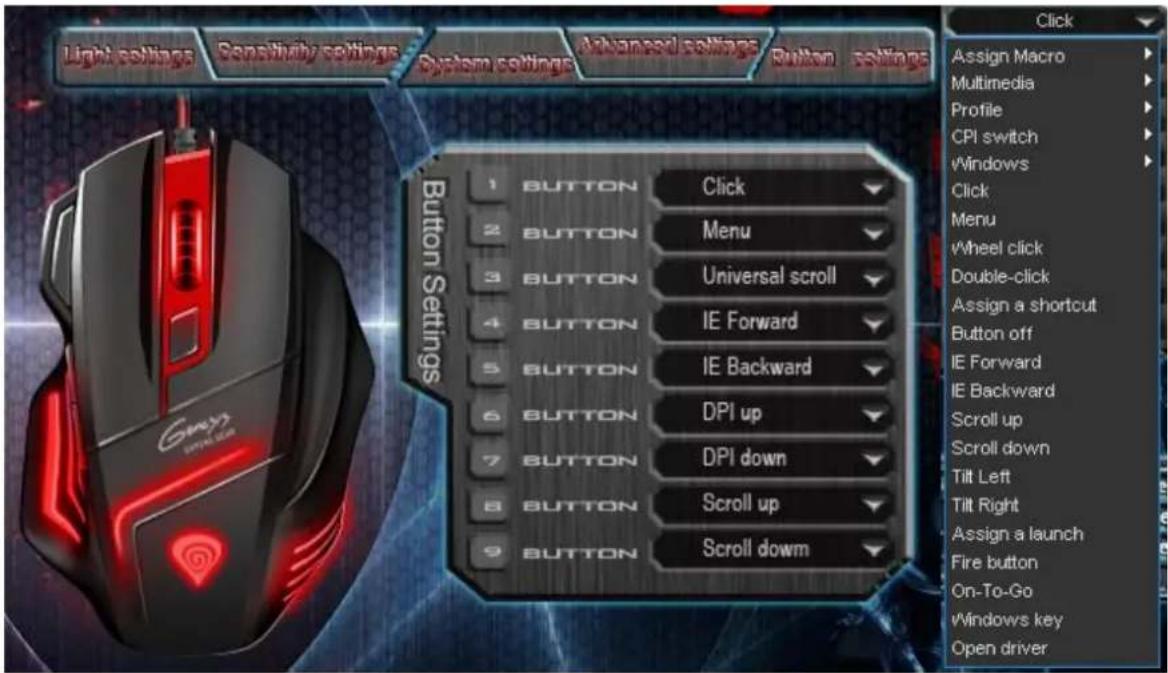

A. Button settings

Button settings tab allows you to assign individual functions to each button.

You can bind one of more than 40 functions to keys labeled by numbers on the schema above. In the right side of the window, you can see actual configuration of the buttons. Each position on the list is in fact a combo box, from which you can choose a preferred function for an individual button.

On-To-Go

The On-To-Go function works similarly to the fire button – but, as fire button simulates repeating presses of left button of the mouse, the On-To-Go can do so with any button of the mouse. To use this function:

1. Assign On-To-Go to any button in the Button Settings
2. Click Apply
3. Hold down the On-To-Go button and the button that you want to press repeatedly.

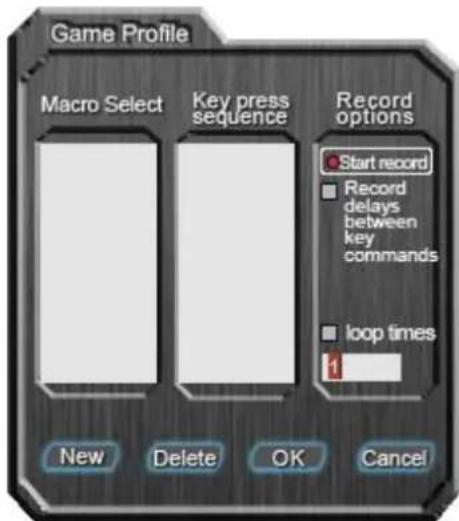

Defining Macros

In brief speaking, a macro is a series of actions that you can bind to the mouse. More precisely, macro is a recorded sequence of key presses, releases and time delays between them. Output delays can be recorded or predefined by user.

To define a macro, you have to choose from available function list assign macro, and then macro manager.

Adding a macro:

1. Click new
2. Choose name for your macro
3. Click start record
4. Press desired sequence of keys
5. Press stop record

Now you can assign your macro to the key by selecting it from group assign macro on the list related to the programmed key.

Deleting macros:

1. Open macro manager
2. Choose a macro from the list
3. Click delete

Additional options:

Record delays between key commands – you can choose whether to record time intervals between pressing and releasing the keys

Loop times - you can define how many times macro should be used after single button press.

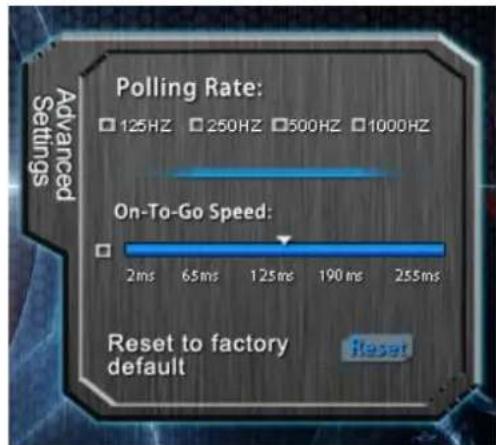

B. Advanced Settings

In this tab, you can adjust advanced settings of the mouse.

Polling rate - defines how often the mouse sends information of its position to the computer. Available options: 125/250/500/1000Hz

On-To-Go Speed - defines time intervals between key presses simulated by the On-To-Go function

Restoring factory defaults

To restore factory defaults, click reset in the advanced settings tab. Warning - resetting the configuration will delete all settings and macros stored in the driver!

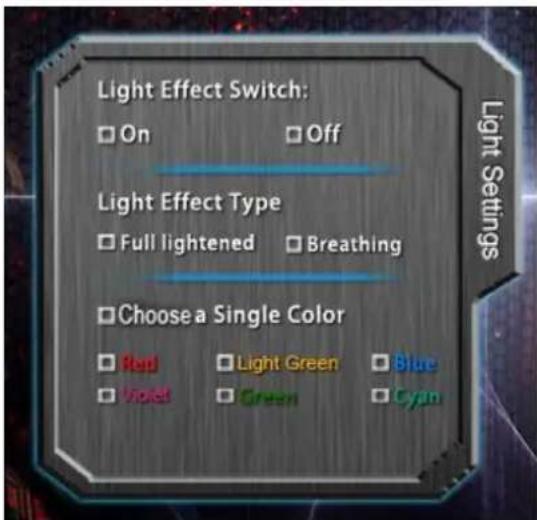

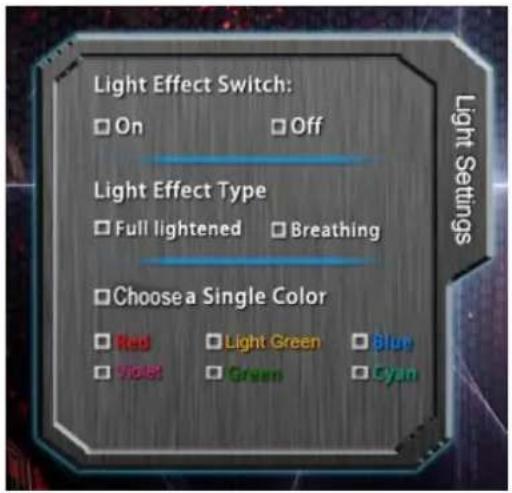

C. Light Settings

Light effect switch - turns on/off light effects on the mouse

Light effect type options – allows you to choose the type of LED effects of the mouse. Full lightened option causes constant luminance of diode while color changing; breathing setting means that the diode will slowly pulse.

Choose a Single Color - allows you to manually set single desired color of luminance. If turned off, the color of diode constantly changes.

D. Sensitivity settings

Sensitivity options - using the sliders you can adjust sensitivity for axis X and Y at once (when X / Y synchronous working box is checked) or separately (if unchecked).

DPI Setting – defines the resolution (DPI – dots per inch) of the mouse. Available options – 100-5670 DPI. It is possible to predefine up to four DPI profiles (don't confuse them with gaming profiles), which then can be switched "on the fly" using the mouse buttons. Unchecking the box on the left side of each slider will exclude that specific setting from available adjustments, without erasing it.

E. System Settings

The settings here are related rather to an operation system, than to hardware itself. System settings allow you to change the way your system interprets signals from the mouse.

Double click - defines how long the time interval between two clicks should be to interpret them as a double click

Windows pointer speed – allows you to change the speed of the screen cursor

Enhance pointer precision - provides slight support in precise movement of the cursor

Tilt wheel scroll speed - defines the speed of horizontal scrolling

Mouse wheel scroll speed – defines the speed of vertical scrolling. You can adjust using the slider or choose option 1 Page, which will activate full pages scrolling.

F. Profile management

Natec Genesis GX77 allows you to create different gaming profiles of settings and assign them to individual games or applications. Up to five profiles can be stored in the driver – other have to be saved to your hard disk. Switching between profiles is possible by the driver interface, mouse buttons with assigned profile-related functions or automatically – by launching an application linked to the profile.

Creating a profile

1. Click create in the driver interface
2. Type the name for the profile
3. In the path to executable box insert path to the executable file (.exe) of the application you want to be assigned to the profile

Editing a profile

1. Click edit on the driver interface
2. Edit the name and path to assigned application accordingly to your needs

Saving a profile

1. Click save on the driver interface
2. Choose the folder you want to save profile to and name for the file

Loading a profile

1. Click load on the driver interface
2. Choose the file with the profile you need

V. General

• Non-authorized repairs or taking the device to pieces make the warranty void and may cause the product damage.
• Do not use the product in low and high temperatures and in the dusty atmosphere.
• Do not connect / disconnect the product to / from a computer when it is on.
• The safe product, conforming to the EU requirements.
• The product is made in accordance with RoHS European standard. The standard was issued in order to decrease the amount of the electronic and electrical waste emitted into the atmosphere.
• The WEEE symbol (the crossed-out wheeled bin) using indicates that this product in not home waste. You protect the environment when you recycle hazardous waste appropriately. In order to get detailed information about recycling this product please contact your retailer or a local authority.
