Product Type	LED TV with PVR
Screen Size	22 inches (55 cm)
Aspect Ratio	16:9
Resolution	1920 x 1080 (Full HD)
Dynamic Contrast Ratio	1,000,000:1
Tuner Type	DVB-T MPEG2/4 HD
PVR Recording	Yes, via USB
Timeshift	Yes
Electronic Programme Guide (EPG)	Yes
Sound Output	2 x 3 W
Connectivity	1 x USB, 1 x HDMI, 1 x SCART, 1 x Component YPbPr, 1 x VGA, 1 x PC Audio In, 1 x Headphone Jack, 1 x RF In
Supported Media Formats	.mpg, .avi, .ts, .mp4, .mkv, .vob, .mp3, .aac, .jpg, .wav, .m4a, .wmv
Power Consumption (Max)	36 W
Standby Power Consumption	≤ 0.5 W
Energy Class	B
Parental Lock	Yes
Dimensions with Stand (W x H x D)	503 x 340 x 176 mm
Weight	4 kg
VESA Wall Mount	100 x 100 mm
Main Power Switch	Yes

Frequently Asked Questions - 22 LED 632 PVR ECG

How do I connect external devices like a DVD player?

Connect using HDMI, SCART, or Component YPbPr ports. For older devices, use AV In (composite) or VGA for PC. See the 'Installation diagram for external devices' in the manual.

Can I record TV programs using a USB drive?

Yes, this TV supports PVR recording to USB. Press REC on the remote to record the current program in DTV mode. Ensure the USB drive is formatted and has sufficient space.

What should I do if there is no picture but sound is fine?

Increase contrast and brightness in the Picture menu. If colors are wrong, check cable connections or try a different source.

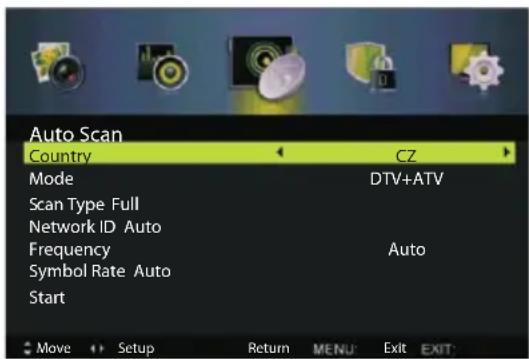

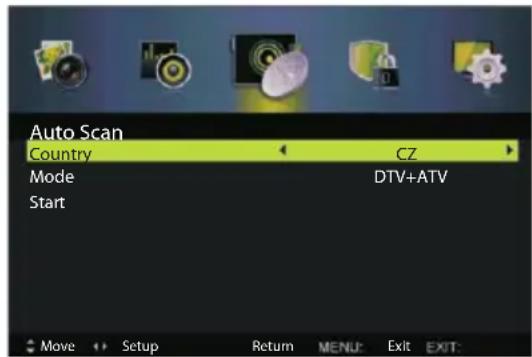

How do I perform an automatic channel scan?

Go to Channel menu > Auto Scan. Select Tuner Type (Antenna or Cable), choose Country and Scan Type (e.g., Advanced). Press Start. Digital channels scan first, then analog.

What is the default password for the parental lock?

The default password is 0000. You can change it in Lock System menu under New Password. If forgotten, contact a repair shop.

Why does the TV not respond to the remote control?

Check if batteries are dead. Point the remote directly at the sensor on the TV. Remove any obstacles. Ensure no strong light interferes.

Can I mount this TV on a wall?

Yes, it supports VESA 100x100 mm wall mounts. Use appropriate screws and ensure the wall can support the weight (4 kg).

How to clean the TV screen safely?

Unplug the TV. Use a dry, soft cloth to gently wipe the screen. Do not use water, chemicals, or abrasive materials.

What to do if the TV loses picture during a thunderstorm?

Disconnect the power cord and antenna during thunderstorms to prevent damage. Turn the TV off and unplug until the storm passes.

How do I adjust the aspect ratio?

Press PMODE directly or go to Picture menu > Aspect Ratio. Choose from Auto, Full, 4:3, Zoom1, or Zoom2.

USER MANUAL 22 LED 632 PVR ECG

Computer monitor displaying a scenic sunset over water with rocks on the shore (no text or symbols visible)

TV LED 632/631/622/621

LED TV

NÁVOD K OBSLUZE

CZ

LED TV

NÁVOD NA OBSLUHU

SK

LED TVs

INSTRUCTION MANUAL

EN

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Illustration of a table with a tray and a magnified inset showing three objects (no text or symbols)

Umístění televizoru

POPIS

Simple line drawing of a laboratory setup with a funnel and test tube (no text or symbols)

Illustration of a table with a tray and a magnified inset showing three objects (no text or symbols)

POPIS

TV INSTALLATION AND SETUP 42

Instructions for assembling the stand 42

Positioning....42

Antenna and power connection....42

DESCRIPTION 43

TV and interface buttons....43

Installation diagram for external devices 45

TELEVISION CONTROLS 46

Input switch....46

Picture menu....46

Audio menu....47

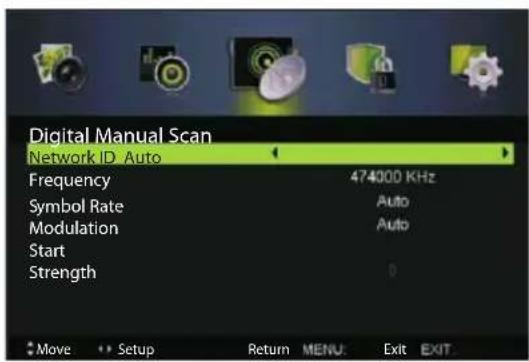

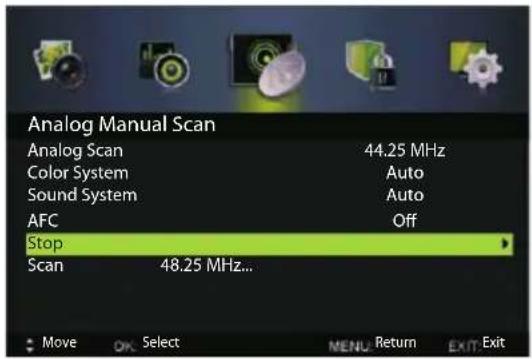

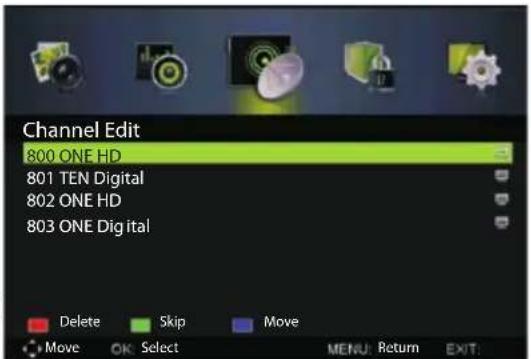

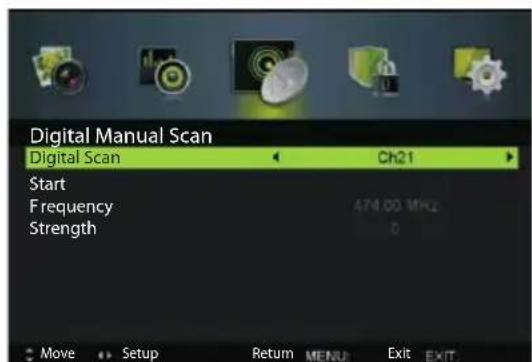

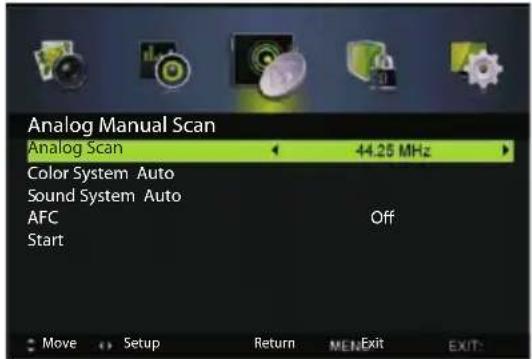

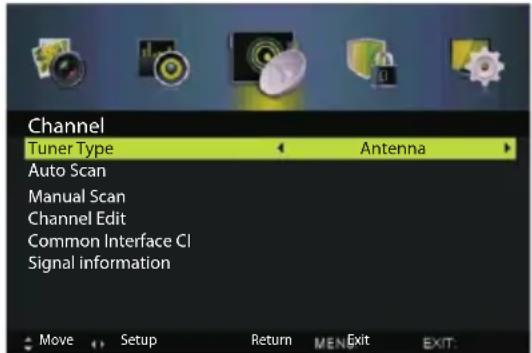

Channel menu....48

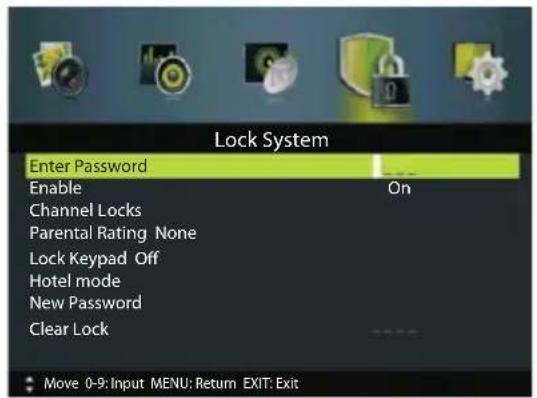

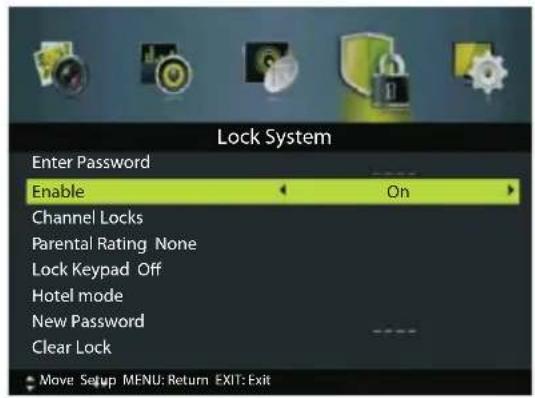

Lock System menu....50

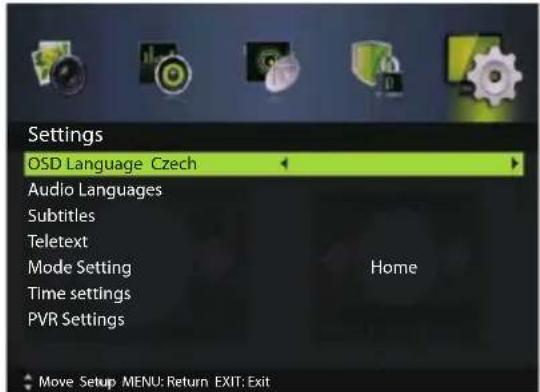

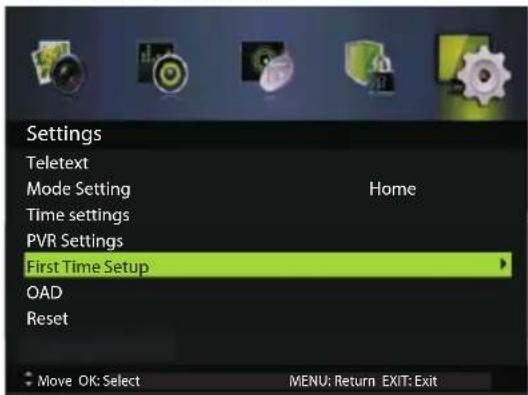

Setup Menu 51

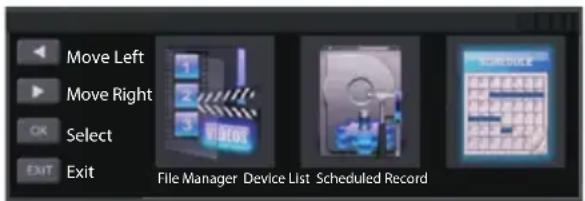

USB control....52

TROUBLESHOOTING 53

TECHNICAL SHEET 54

EN

SAFETY INSTRUCTIONS

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fl uctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fi re or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

ATTENTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN THE COVER OR BACK PANEL OF THE DEVICE. THERE ARE NO COMPONENTS INSIDE THAT THE USER COULD REPAIR HIMSELF. ALWAYS REFER TO TRAINED SERVICE EMPLOYEES.

A lightning arrow symbol inside an isosceles triangle shall warn the user about uninsulated "dangerous voltage" inside the device, which can be high enough to cause injury by electric current.

An exclamation point inside an isosceles triangle shall inform the user about the abundant amount of important instructions for operating the device and its maintenance (or service) that can be found in the included manual.

1. Read all of the instructions carefully.
2. Keep the instructions for future use.
3. Pay attention to warnings found in the manual.
4. Follow all instructions.
5. Do not use the device close to water.

6. Clean only with dry cloth.

7. Do not block exhaust vents. Install the device according to the manufacturer's instructions.

8. Do not install near heating sources, such as radiators, heating units, stoves, or other appliances (including amplifiers) producing heat.

9. Do not bypass the safety function of a grounded outlet. The power cord plug has two pins and one ground contact, ensuring your safety. If your socket does not match the power cord of this TV, ask an electrician to replace the old socket.

10. Protect the power cord, do not step on it, prevent against pinching the cord, particularly near the plug and the area where the cord exits the device.

11. Use only accessories and optional accessories recommended by the manufacturer.

12. Disconnect the power cord from the socket during thunderstorms or in case you do not plan to use the device for a long period of time.

13. Refer to qualified service workers for all necessary repairs. The device requires service if it is damaged in any way. For example, if the power cord or plug is damaged, liquid gets inside the device or a the device is penetrated by a foreign object, is exposes to rain or moisture, falls or does not function as usual.

14. The socket that the TV is connected to is used to disconnect the device from the power network and must be easy to access at all times.

15. Ventilation holes shall not be covered by objects such as newspapers, tablecloths, curtains etc., because this prevents the necessary ventilation of the device.

16. Do not place any sources of open fire on the device, for example burning candles.

17. Respect the ecological disposal of batteries.
18. The device is designed for operation in mild climates.
19. Prevent water dripping on the device and getting into the device. Do not place any objects filled with liquid on the device, e.g. a vase with flowers.
20. Electric discharge can lead to failing device functions. Functions can be manually restored by turning the device off and on again.

WARNING:

Do not expose the device to rain or moisture, this reduces the risk of fire or electric shock.

WARNING:

Protect the batteries against exposure to high temperatures, e.g. direct sunlight. Do not throw batteries into a fi re.

This symbol indicates the device is classified as a class II device, with double insulation between dangerous voltage and user access parts. Only use identical spare parts when performing service work.

EN

Warning

This television receiver uses high voltage for operation. Do not remove the back cover of the device. Have all service operations carried out by qualified workers.

Attention

Make sure the power cord does not get caught under the TV.

Warning

Do not expose the device to rain or moisture, this reduces the risk of fire or electric shock.

Attention

Do not lean against the TV, tilt or push the device. Pay close attention to the presence of children. A falling device could cause serious injury.

Warning

Prevent foreign objects entering the ventilation holes of the device. Protect the TV against liquid spills.

Attention

Do not install the TV on unstable carts, stands, shelves or tables. A fall could damage the device or cause injury.

Attention

Do not cover the ventilation holes on the back cover of the device. Sufficient ventilation is necessary for the proper functioning of electrical components.

Attention

Minimum spacing distances must be respected if the TV is installed in the entertainment centre compartment or other enclosed area. Overheating can shorten the service life of the device and can also be dangerous.

Attention

If you do not plan to use the device for a longer period of time, we recommend disconnecting the power cord from the socket.

INTRODUCTION

Thank you for purchasing this television product. In order to use this device to its full potential from the very start, read this manual carefully and keep handy for future use.

ATTENTION

Do not tamper with any internal device components and do not perform any adjustments that are not defined in this manual. LED TVs use high voltage. When cleaning dust or drops off the display or device case, you should first unplug the power cord from the socket and then wipe the device with a dry towel. To prevent damaging the TV, disconnect the power cord and antenna during a thunderstorm. Refer to a qualified service centre for all necessary repairs.

TV INSTALLATION AND SETUP

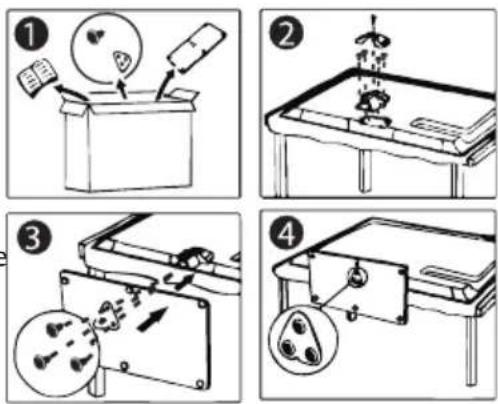

Instructions for assembling the stand

1. Open the cardboard box and remove the TV, accessories and stand (only available with certain models).
2. Place the device on a fl at service with the screen facing down. Use a blanket or other soft fabric to protect the display.
3. Slide the stand into the holder and firmly tighten with the included screws.
4. You are now finished with the assembly.

Positioning

• Place the unit within the room so that the display is not exposed to direct sunlight.
• Complete darkness or reflections on the screen can cause eye fatigue. Soft indirect light is recommended for comfortable viewing.
• Leave enough space between the device and wall to allow sufficient air circulation.
• Stay away from excessively warm areas to prevent damaging the case of the device or the premature ageing of components.
• Do not cover ventilation holes.

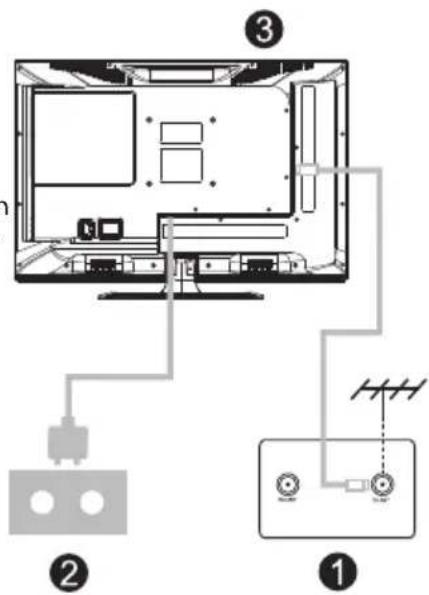

Antenna and power connection

1. Connect the antenna cable to the antenna connector on the back side of the TV.
2. Plug the power cord into the electric socket.
3. Switch the TV on.
   Press the On/Off switch on the TV. The indicator will turn green. When the TV is in standby mode (red indicator), the TV can be turned on by pressing a button on the remote controller.

DESCRIPTION

TV and interface buttons

Buttons on the TV

Note: The following description only represents a functional diagram. The actual position and layout can differ for various models.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

+

Power On/Off

SOURCE : External signal source

MENU : Displays the main menu and confi rms selected items

CH+/- : Channel selection

VOL +/- : Volume control

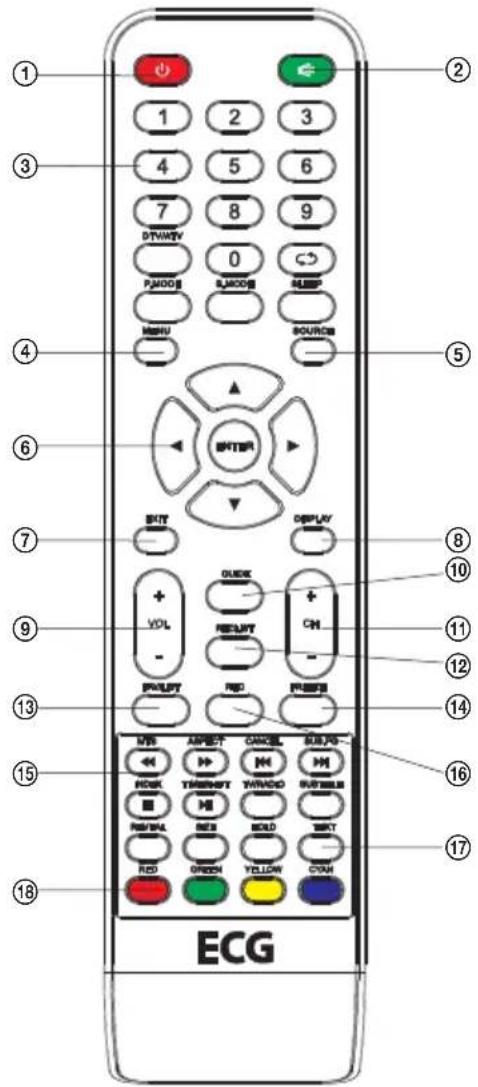

Buttons on the remote controller

1. ⏻: Turn the TV on or off into standby mode.
2. ☐: Audio on/off toggle.
3. NUMERICAL BUTTONS: Direct channel entry.
4. MENU: Display main menu on screen.
5. SOURCE: Press to display the available sources of video and their selection.
6. ARROWS: Menu controls. / ENTER: Confirm selection.
7. EXIT: Return to previous menu or leave menu.
8. DISPLAY: Display information
9. VOL +/-: Volume control.
10. GUIDE: Displays information about the current program and programs that follow (in DTV mode).
11. CH-/CH+: Switch to previous or next channel.
12. RECLIST: List of recordings
13. FAV/LIST: Access to the list of favourite channels.
14. FREEZE: Freezes the display on the screen.
15. USB speaker control button.
16. REC: Press to start recording the current TV program (in DTV mode).
17. TEXT: Open teletext.
18. Color buttons: Controlling the function indicated on the screen

Interface

Note: The following table provides an overview of various interfaces. The actual position, type, layout and number of interfaces can differ for various models.

	AV inExternal video and audio signal In (left and right channel).
	AV inExternal video and audio signal Out (left and right channel).*
	Y Pb Pr InComposite video signal connection from DVD/VCR.*
	HDMI InDigital signal input via HDMI connector.
	ANT 75Antenna In connection (75/VHF/UHF).
	VGA InAnalog video from PC In.
	PC audio InAudio signal from PC with VGA video signal connection.
	Headphone jackSound is automatically disabled from the TV speakers when headphones are connected.
	USB InConnecting a USB device and playing media fi les or recording programs to USB.
	SCART InComposite and RGB signal input supported as a standard.*

* Some models are not equipped with this interface

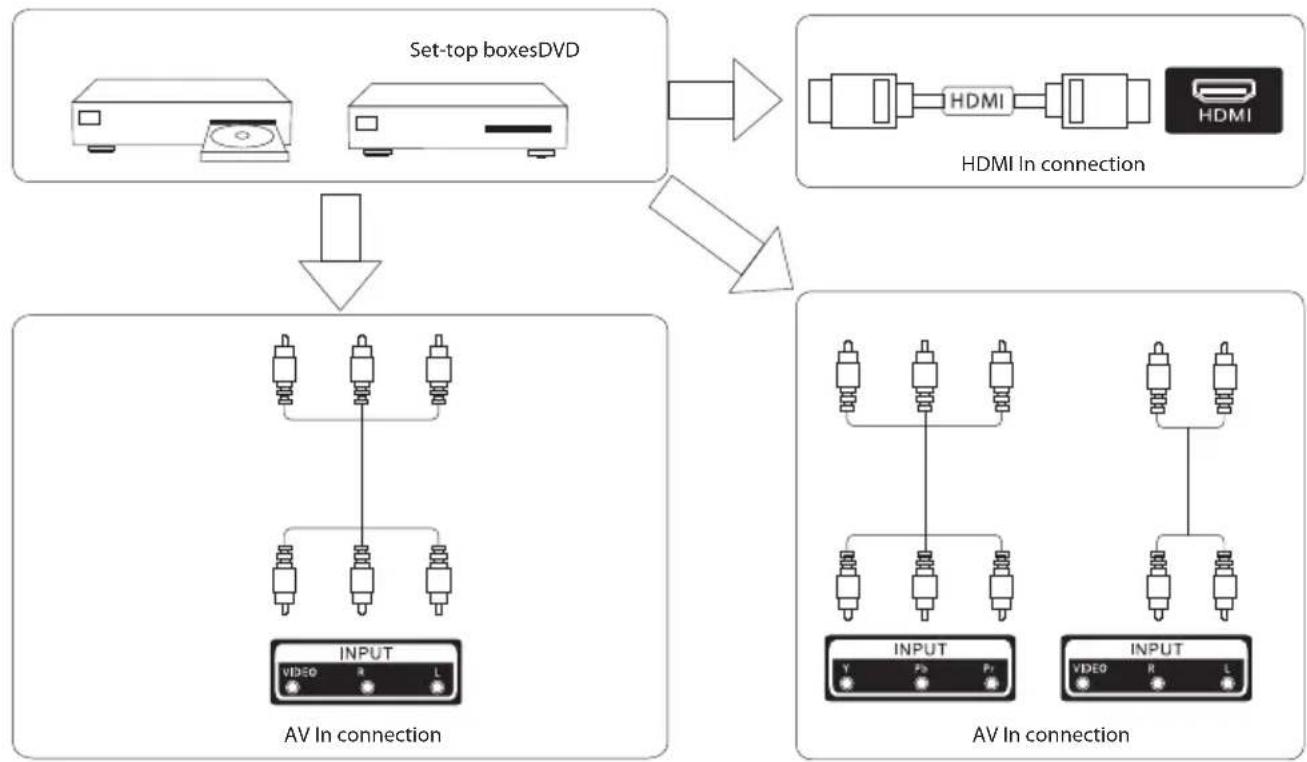

Installation diagram for external devices

EN

TELEVISION CONTROLS

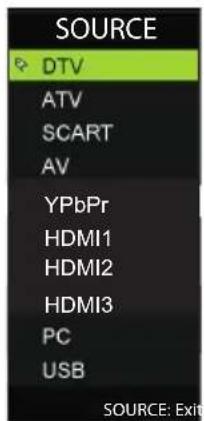

Input switch

Note: Example only, the type and number of inputs depends on the specific TV model.

1. Press INPUT to display the input source menu.
2. Press ▼/▲ or INPUT to select the desired input.
3. Press ENTER to switch to the selected input.
4. Press EXIT to exit the menu.

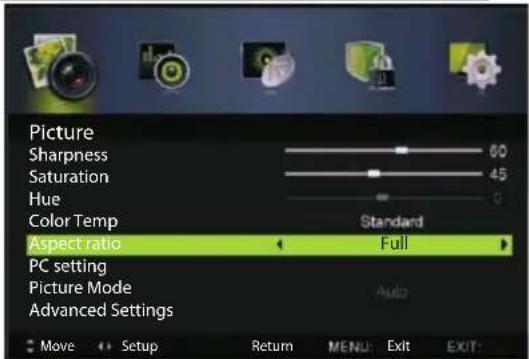

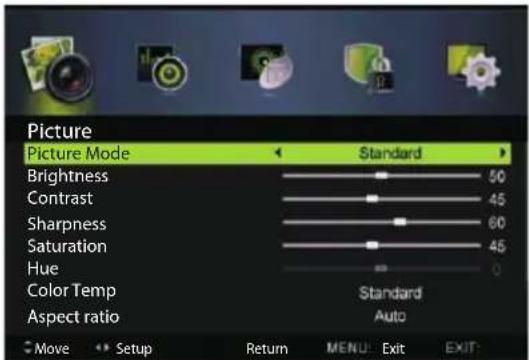

Picture menu

Press MENU to display the main menu.

Select PICTURE from the main menu via ◀/▶ and press ▼/ENTER to enter the menu.

1. Select the option you wish to configure in the PICTURE menu via ▼/▲.
2. Press ENTER/◄/► to set.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu.

Picture Mode

Press ▼/▲ to select Screen Mode and set via ◀/▶.

Tip: Press PMODE to directly set the screen mode.

Brightness/Contrast/Sharpness/Tint/Hue

Press ▼/▲ to make your selection and adjust via ◀/▶.

Brightness Brightness settings.

Contrast Contrast settings.

Sharpness Sharpness settings

Saturation Color saturation settings.

Hue Color hue settings. For signal in NTSC format only.

Color Temp

Changes the overall color representation of the picture.

Press ▼/▲ to select Color Temp and choose between Standard, Warm and Cool via the ◀/▶ buttons.

Standard Creates a live and fresh picture

Warm The picture is tuned to warm red tints

Cool The picture is tuned to cool blue tints

Aspect ratio

Press ▼/▲ to select Aspect Ratio and choose the desired aspect ratio via ◀/▶.

Auto Automatically adjusts the picture aspect ratio according to the current program

Full/4:3/Zoom1/Zoom2 Select from the available display formats.

PC setting

Press INPUT and select PC as the source.

Press MENU to enter the main menu, then choose the PICTURE menu via ◀/▶.

Press ENTER/▼ to enter the menu and press ▼ to choose PC Setting.

Advanced Settings

Setting advanced video functions can fi ne tune the picture parameters.

Press ▼/▲ to select Advanced Settings and then press ENTER/▶ to enter the sub-menu.

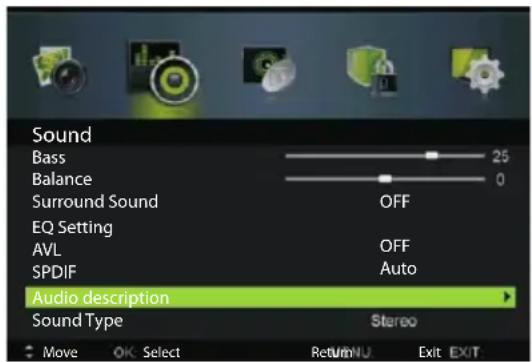

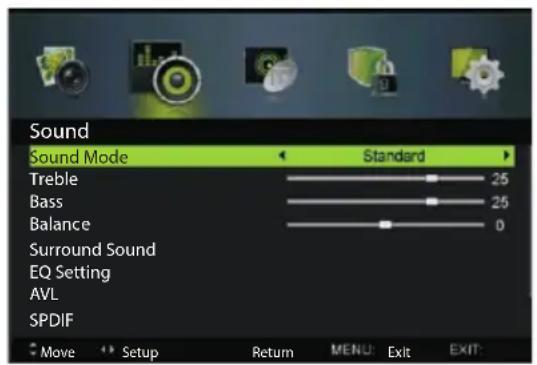

Audio menu

Press MENU to display the main menu.

Select AUDIO from the main menu via ◀/▶ and press ENTER/▼ to enter the menu.

1. Select the option you wish to configure in the AUDIO menu via ▼/▲.
2. Press ENTER/◄/► to set.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu.

Sound Mode

Press ▼/▲ to select Sound Mode and choose the desired mode via ◀/▶.

Treble / Bass / Balance

Press ▼/▲ to make your selection and adjust via ◀/▶.

Treble High frequency tones can be increased or decreased.

Bass Low frequency tones can be increased or decreased.

Balance The balance between left and right channel volume can be adjusted.

Surround Sound

Press ▼/▲ to select Surround Sound and choose On or Off via ◀/▶.

EQ Setting

The seven band equalizer curve can be set.

Press ▼/▲ to select EQ Setting and then press ENTER/▶ to enter the sub-menu.

AVL

Automatic volume control setup.

Press ▼/▲ to select AVL and choose On or Off via ◀/▶.

SPDIF

Press ▼/▲ to select SPDIF and choose Off / Auto / PCM via ◀/▶.

Audio description

Press ▼/▲ to select Audio Description and then press ENTER/▶ to enter the sub-menu.

Sound Type

Press ▼/▲ to select the Sound Type item and choose from the available options (Stereo, Dual I, Dual II, Mixed) via the ◀/▶ buttons.

Channel menu

Press MENU to display the main menu.

Select CHANNEL from the main menu via ◀/▶ and press ENTER/▼ to enter the menu.

1. Select the option you wish to configure in the CHANNEL menu via ▼/▲.

2. Press ENTER to access the sub-menu.

3. Press MENU to return to the previous menu.

Tuner Type

Press ▼/▲ to select Tuner Type and choose Antenna or Cable via ◀/▶.

Auto Scan

Press ▼/▲ to select Auto Scan and then press ENTER/▶ to enter the sub-menu.

The tuner type is Antenna The tuner type is Cable

Country

Press ◀/▶ to select the country.

Mode

Press ◀/▶ to select the mode: DTV+ATV, DTV, ATV.

Scan Type

Press ◀/▶ to select the channel scan type: Advanced, Quick, Full.

Network ID

Press ◀/▶ to select the network ID: Auto or enter a number.

Frequency

Press ◀/▶ to select the frequency: Auto or enter a number.

Symbol Rate

Press ◀/▶ to select the symbol rate: Auto or enter a number.

Start

Press ENTER / ▶ to start the auto scan process.

• The digital channels are scanned first, followed by the analog channels.
• Before starting the auto scan process, make sure the correct tuner type is selected (Antenna and Cable). An incorrectly configured signal type may result in no stations being found.
  • Stations with encoded broadcasting will not appear among the stations found.

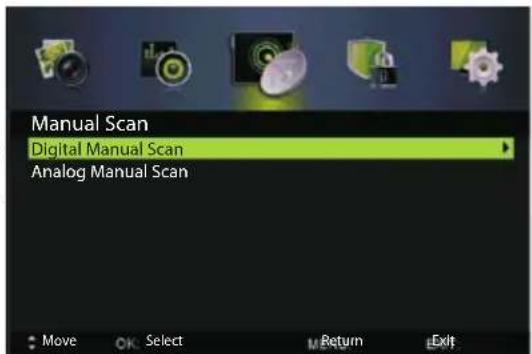

Manual Scan

Press ▼/▲ to select Manual Scan and then press ENTER/▶ to enter the sub-menu.

EN

Digital Manual Scan

Press ▼/▲ to select Digital Manual Scan and then press ENTER/▶ to enter the sub-menu.

The tuner type is Antenna The tuner type is Cable

Network ID

Press ◀/▶ to select the network ID: Auto or enter a number.

Frequency

Press ◀/▶ to select the frequency: Auto or enter a number.

Symbol Rate

Press ◀/▶ to select the symbol rate: Auto or enter a number.

Modulation

Press ◀/▶ to select the modulation: Auto, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM.

Start

Press ENTER / ▶ to start the channel scan process.

Analog Manual Scan

Press ▼/▲ to select Analog Manual Scan and then press ENTER/▶ to enter the sub-menu.

Analog Scan

Press ◀/▶ to select the Analog Scan.

Color System

Press ◀/▶ to select the color system: Auto, PAL or SECAM.

Sound System

Press ◀/▶ to select the Sound System: Auto, DK, BG, I or L.

Modulation

Press ◀/▶ to select the modulation: Auto, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM.

AFC

Auto fi ne tune.

Press ◀/▶ to select On or Off.

Start

Press ENTER / ▶ to start the channel scan process.

Channel Edit

Press ▼/▲ to select Channel Edit and then press ENTER/▶ to enter the sub-menu.

Three color buttons on the remote controller make organizing channels easier.

Use ▼/▲ to first highlight the channel you wish to delete, move or skip. Next:

• Press the red button to delete the channel.
• Press the green button to skip the selected channel. (When surfi ng through channels via CH+/-, these channels will automatically be skipped).
• Press the blue button to mark a channel to be moved. Use the buttons to move the channel to the desired position.

Common Interface

Press ▼/▲ to select Common Interface and then press ENTER to enter the sub-menu.

This option is only available in DTV mode with an inserted CI card.

Signal information

Use ▼/▲ to select Signal Information and then press ENTER to display signal information. Available only in DTV mode.

Lock System menu

Press MENU to display the main menu.

Select LOCK SYSTEM from the main menu via ◀/▶ and press ENTER/▼ to enter the menu.

1. Select the option you wish to configure in the LOCK SYSTEM menu via ▼/▲.
2. Press ENTER/◄/► to set.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu.

Press ▼/▲ to select Enable and choose On or Off via ◀/▶.

• The Channel Locks, Parental Rating and Lock Keypad features are available when password use is enabled (Enable set to On).
  • The default password is 0000. Should you forget your password, refer to a repair shop.

Channel Locks

Press ▼/▲ to select Channel Locks and then press ENTER/▶ to enter the sub-menu.

Parental Rating

Press ▼/▲ to select the Parental Rating and choose the desired protection level via ◀/▶.

Lock Keypad

By activating this option you can prevent undesirable use, for example, by children.

Press ▼/▲ to select Lock Keypad and choose On or Off via ◀/▶.

Hotel mode

Press ▼/▲ to select hotel mode.

New Password

Press ▼/▲ to select a New Password and enter a four digit number to use as the password. Enter the password again to confirm.

Clear Lock

Press ▼/▲ and select Clear Lock.

Setup Menu

Press MENU to display the main menu.

Select SETUP from the main menu via ◀/▶ and press ENTER/▼ to enter the menu.

1. Select the option you wish to configure in the SETUP menu via ▼/▲.
2. Press ENTER/◄/► to set.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu.

OSD Language

Press ▼/▲ to select the OSD Language and choose the desired language via ◀/▶.

Audio Languages

Press ▼/▲ to select the Audio Languages and then press ENTER to enter the sub-menu. Select the Audio Primary Language and Audio Secondary Language using the ▼/▲/◀/▶ buttons.

Subtitles

Press ▼/▲ to select Subtitles and then press ENTER to enter the sub-menu.

Teletext

This item allows changing the teletext settings. The option is only available for DTV and ATV signal sources. Press ▼/▲ to select Teletext and then press ENTER/▶ to enter the sub-menu.

Mode Setting

Press ▼/▲ to select Mode Setting.

Time settings

Press ▼/▲ to select Time Settings and then press ENTER/▶ to enter the sub-menu.

PVR setup

Press ▼/▲ to select the PVR Settings and then press ENTER to enter the sub-menu. The appliance will check the connected USB device.

First Time Setup

Press ▼/▲ to select First Time Setup and then press ENTER to enter first time setup mode.

OAD

Press ▼/▲ to select OAD and then press ENTER to enter the sub-menu.

Reset

Press ▼/▲ to select Reset and then press ENTER to enter the sub-menu.

USB control

Note: Prior to navigating through the USB menu, plug in the USB device to the TV and press INPUT to switch the TV to USB.

Use ◀/▶ to select USB from the input source menu and press ENTER to enter the menu.

Use ◀/▶ to select the item you wish to set from the USB menu and press ENTER to enter the menu.

TROUBLESHOOTING

Problem Solution
No power • Make sure the power cord plug is plugged into the electric socket. Unplug the TV from the power supply, wait about 60 seconds and then plug the TV in again and power on.
Bad signal reception • High buildings or hills can lead to analog signal reflection and shadows. Changing the antenna orientation can improve picture quality.• If you use an inside antenna, reception can be worse under certain circumstances. Try changing the antenna positioning to improve reception. If the picture does not improve, use an outdoor antenna.
No image • Make sure the antenna is correctly connected to the TV.• Try changing to a different channel to verify the issue does not lie outside of your receiver.
The picture is fine, but no sound • Increase the volume.• Make sure the sound on the TV is not muted. Press the mute button again to restore the previous volume.
The sound is fine, but no picture or incorrect colors	• Increase the contrast and brightness.
Snowy picture, noise or picture freezes • Make sure the antenna connection is correct.
Interfering horizontal stripes through the picture	• Interference caused by electric appliances, such as hair dryers or vacuum cleaners. Switch appliances used near the TV off .
The TV does not react to remote controller operations	• Direct the remote controller towards the remote control sensor on the TV.• Remove any obstacles between the remote controller and the TV sensor.• Make sure the batteries in the remote controller are not dead.
No picture in PC mode • Make sure the video cable connection to the VGA connector is intact.• Makes sure the format of the picture from the PC is compatible with this TV.
Vertical vibration (in PC mode) • Adjust the display frequency for the picture from the PC.
The picture in PC mode is too light or dark	• Adjust the brightness and contrast.

If the instructions above do not help eliminate the issue, unplug the TV from the power supply for about 60 seconds and then plug the TV in again. Should the issue persist, refer to a qualified repair shop. Do not attempt to repair the appliance yourself.

TECHNICAL SHEET

MODEL 22 LED 632/622 PVR 24 LED	622 PVR 24 LED 631/6	21 PVR
Screen
Panel size 22" (55 cm) 24" (60 cm) 24"	(60 cm)
Aspect ratio 16:9 16:9 16:9
Dimensions 1920 × 1080 1920 × 1080	1366 × 768
Dynamic contrast 1 000 000 : 1 1 000	000 : 1 1 000 000 : 1
Tuner
Digital tuner	HD DVB-T MPEG2/4	HD DVB-T MPEG2/4	HD DVB-T MPEG2/4
Electronic Programme Guide EPG	yes	yes	yes
PVR recording to USB	yes	yes	yes
Timeshift	yes	yes	yes
Channel list	yes	yes yes
Video system	PAL/NTSC/SECAM	PAL/NTSC/SECAM	PAL/NTSC/SECAM
Progressive Scan	yes	yes	yes
Comb filter	3D	3D	3D
Noise reduction	yes	yes	yes
OSD menu	yes	yes	yes
Sound
Sound output	2× 3 W	2× 3 W	2× 3 W
Pitch correction	stereo balance	stereo balance	stereo balance
Stereo sound	NICAM/A2	NICAM/A2	NICAM/A2
Connectivity
USB	1	1	1
Supported formats	.mpg\.avi\.ts\.mp4\.mkv\.ts\.vob\.mp3\.aac\.jpg\.mp3\.wav\.m4a\.aac\.wmv	.mpg\.avi\.ts\.mp4\.mkv\.ts\.vob\.mp3\.aac\.jpg\.mp3\.wav\.m4a\.aac\.wmv	.mpg\.avi\.ts\.mp4\.mkv\.ts\.vob\.mp3\.aac\.jpg\.mp3\.wav\.m4a\.aac\.wmv
HDMI	1	1	1
SCART	1	1	1
Component YPbPr	1	1	1
VGA (D-Sub5 pin)	1	1	1
PC audio in	1	1	1
Headphone jack	1	1	1
RF IN	1	1	1
General specifications
Parent lock yes yes yes
Power
Power input maximum 36 W maximum 48 W maximum 48 W
Standby power input ≤0.5 W ≤0.5 W ≤0,5 W
Power input OFF 0 W 0 W 0 W
Energy class B B B
Main switch yes yes yes
Dimensions and weight
Device dimensions with stand (w × h × d) (mm)	503 × 340 × 176 564 × 371 × 176	564 × 371 × 176
Device dimensions without stand (w × h × d) (mm)	503 × 316 × 51	564 × 347 × 51	564 × 347 × 51
Weight	4 kg	3.9 kg	3.9 kg
Wall suspension	VESA 100 × 100 VESA	100 × 100 VESA	100 × 100

EN

www.ecg.cz
