USER MANUAL T-100 OLYMPUS

OLYMPUS DIGITAL CAMERA T-100 Instruction Manual Thank you for purchasing an Olympus digital camera. Before you start Lo use your new camera, please read nese instructions carefly to enjoy optimum performance and a longer service le. Keep his manual in à safe place for fuure reference. We recommend that you take test shots ta get accustomed to your camera before taking important photographs. _Inthe interest of continualy improving our products, Olympus reserves the right to update or modif information contained in this manual. The screen and camera ilustrations shoum in this manual ere produced during the development stages and may difer from he actual product

sw À Checking the contents of the box USB cable # CD-ROM F-2AC USB-AC adapter Digital camera Other accessaries not shout: Instruction Manual (is manual, warranty card Contents may vary depending on purchase location. se 2 0 3 Preparing the Camera Shooting and Playing Back Images “Preparing the Camera” (p. 10) “Shooting, Viewing, and Erasing” (p. 14) sœ 0 D How to Use the Camera Printing “Camera Setings” (p. 3) “Direct printing (PictBrdge)" (p. 37) “Print Reservations (DPOF)" (p. 40) Contents > Names of Parts . > Menus for Playback, Editing, and Printing Function: > Preparing the Camera . > Menus for Other Camera > Shooting, Viewing, and Erasing … 14 Settings > Using Shooting Modes. > Using Shooting Functions. > Menus for Shooting Functions... 27

Camera Settings Usingthe Direct Buttons. Frequently used functions can be accessed using the direct buttons. <Ss

= à ©] button (switch between PE shooting and playback) (p.15)

Arrow pad A (up)! information display) (p. 16, 19) < (left) D> (right)

Press the MENU button to display the function menu. The function menu can be used to set frequentiy used shooting and playback functions such as shooting mode. Shooting Selected option Playback TIDESHOW PERFECT FIX Function menu © ISETUP] menu To select the shooting mode Use A V Lo select a menu and press Use <> 10 select à shooting mode and press nm the Er button. the (09) button. Te select function menu Use AV b sale amer andse AD 1 Inthe [SETUP] menu, various camera functions can be set, sect a menu coton Press he (baton & including shooting an playback functions nt displayed n the function menu, and ther setings such as date, me and screen display. À Select SETUP] and then press the C7 Æ Use À Y to selectthe desired submenu 2 button. and then press the fr) button. + The ISETUP] menu is displayed + Once a seting is sslected the display returs to the previous screen. @ Trere may be additional operations “Menu Setings”(p. 2710 36) 2 Press 4 to highlight the page tabs. Use A V to select the desired page tab and press D. Page Submenu 1 5° Press the MENU button to complete the her 5 Em scting. Qhu @ Some functions cannot be uses in some shooting modes. n such cases, Ine folowing message is displayed after seting 3 Use A Y to select the desired submenu 1 and then press the (9 button. Suimenu 2

Names of Parts Camera unit 1 Strap eyelet 5 Lens... .p. 46, 59 2 Battery/card compartment cover. p. 10 6 Microphone... p.29, 31 3 Self-timer lamp 24 7 Tripod socket 4 Flash. 8 Multi-connector ………p. 11, 12, 35, 37 Attaching the camera strap @ Put the strap tigt so tnt it does not come loose

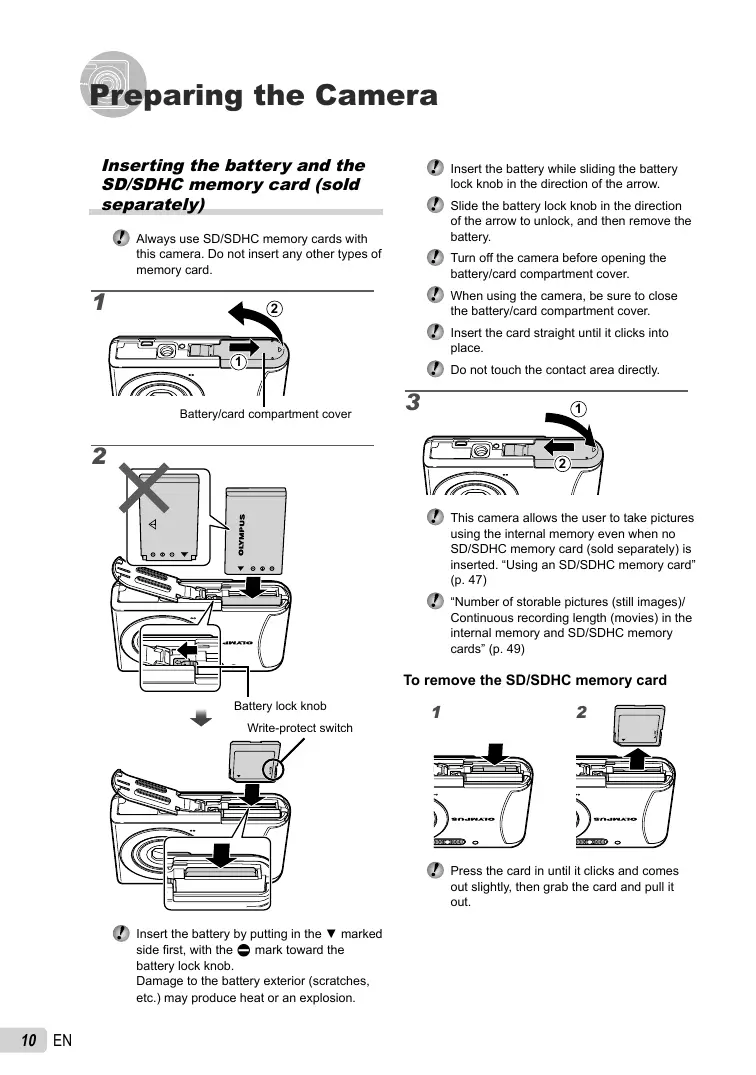

10 EN Preparing the Camera Inserting the battery and the SD/SDHC memory card (sold separately) @ Aways use SD/SDHG memory cards with ins Gamers. Do nol Insert anÿ other ypes of memory card. Battery/card comparment cover Battery lock knob Wrte-protect switch @ insert ine battery by puting in the v marked side frst, with the © mark toward the battery lock knob. Damage to he battery exterior (scratches, etc.) may produce heat or an explosion. @ insert the battery while sliding the battery lock knob in he direction of the arrow. @ Side ie battery lock knob in the direction fine arrow Lo unlock, ang ten remove the battery @ Tum ofthe camera before opening the batterylcard compariment cover. @ wmen using the camera, be sure to dose the battrylcard compariment cover. @ Insert ine card straight uni tits into piace. @ Do not touch the contact area direct

@ This camera allows ihe user to take pictures using the internal memory even when no SD/SDHC memory card (sold separately) is inseted. “Using an SD/SDHC memory card” (.47) @ “Number of storable pictures (still images) Continuous recording length (movies) in the internal memory and SD/SDHG memory cards” (p.49) To remove the SD/SDHC memory card

@ Press ie card in until clicks and comes out sgh, then grab the card and pui it

Charging the battery with the @ The bateryis not fuly charged at the time supplied USB-AC adapter of purchase. Before use, be sure Lo charge the battery until the indicator lamp turns off @ The included F-2AC USB-AC adapter {up to 4 hours) {uith an AG cable or plug-in type; ereatter @ ifihe indicator lamp does not light, the referred to as AC adapler) dif depending camera is not correely connected or the on the region here you purchased the battery, camera, or AG adapter may be camera. you received a plug-in type AC damaged. adapter, plug direct into an AC outlt @ For etais on te batery and ie AG @ The included AC adapter has been designed adapter, see “Battery and AC adapter 10 be used only for charging. Make sure {included} (p. 46) that operations such as shooting, viewing images and so on are not being used while When to charge the batteries the AC adapter is connected Lo he camera. Charge the battery when he error message ; shown below appears. Example: AC adapter with an AC cable ñ n lashes in r

Indicator lamp On: Charging Off: Charged EN #1

Installing the supplied computer software (ib) After checking the system requirements, follow the instructions below to connect the camera to a computer and install the supplied computer software (ib) System requirements Windows XP (Service Pack 2 or later) Windows Vista/Windows 7 Connecting the camera Muli-connector Computer (on and running) @ For information on using the computer software (Ib), see the soflware’s online help. T insert the supplied CD in a CD-ROM drive. A soup screen vil appear on he computer mentor. @ 1rtne setup window is not displayed select'My Computer (Windows XP) or “Computer” (Windows Vista/Windows 7) from 1e start menu. Double-click ne icon for the CD-ROM ve 10 open the setup CD window and tnen doube-clik *CameralialSelup.exe"

2 Connect the camera to the computer. 3 Follow the on-screen instructions on your computer. Operation guide Operation guides displayed at the bottom of the screen indicate that the MENU button, () button, or zoom buttons should be used Operation guide Setting the date, time and time zone The date and time set here are saved to image file names, date prints, and other data. T Press the ON/OFF button to turn on the camera. ‘+ The date and ime setting screen is displayed when the date and time are not set. or À «op Date and time setting screen

2 use AV to select the year for [Y]. YIMD YIMD Changing the display language The language for the menu and error messages displayed on the monitor is adjustable. À Display the [SETUP] menu. @ “Using he Menu” (p. 4) 2 use AV to selectthe #M (Settings

[) sackur © EQ. [ruse conecnon _ stoRAGE SAVESETTINGS NO ENGLISH ET LU SET 3 use A Y to select [@8] and press the (:] button. 2 and 3, use AV <D> (9 button to set [M] {month), [D] (day), [TIME] (hours and minutes), and [Y/M/D] (date order). @) For a more accurate seing, press ine 9 button when the time signal hits 00 seconds while setng the minutes @ To change the date and time, adjust the setting from the menu. [@))] (Date/time) (.34) 5 use XD to select your home time zone and press the (o*) button. e Use A V to tum dayight saving time (SUMMER) on or of @) The menus can be used to change the selected time zone. [WORLD TIME] (p. 35) 4 Use A Y XP to select your language and press the (04 button. 5 Press the MENU button.

Shooting, Viewing, and Erasing Shooting with the optimum aperture value and shutter speed [PROGRAM AUTO] In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed À Press the ON/OFF button to turn on the camera. {PROGRAM AUTO] indicator Number of storable stl pictures (p. 49) Monitor {standby mode sereen) @ irine PROGRAM AUTO] indicator is not displayed, press the MENU button to display the function menu and then set the shooting mode to P. “Using the Menu” (p. 4) Current shooting mode display © O @ Press the ON/OFF bution again to tum off the camera 2 Hold the camera and compose the shot.

Vertical grip @ When holding the camera, take care not to cover the flash wilh your fingers, etc. 3 Press the shutter button halfway down to focus on the subject. ‘e When the camera focuses on the subject, the exposure is locked (shutter speed and aperture value are displayed) and the AF target mark changes to green ‘+ The camera was unable lo focus ifthe AF target mark flashes red. Try focusing again. /AF target mark Shutter speed Aperiure value @ “Focusing" (p.44)

Æ To take the picture, gently press the shutter button all the way down while being careful not to shake the camera. Press fully Image review screen To view images during shooting Pressing the [=] button enables playback of images. To return to shooting, elther press the (#] button or press the shutter button halfway down. Shooting movies [MOVIE] À Press the MENU button to display the function menu screen. 3 Press the shutter button halfway down to focus on the subject, and gently press the button all the way down to start recording. length (p. 49) Current length Lights up red when recording Æ Gently press the shutter button all the way down to stop recording. @ Sound wi also be recorded @ During sound recording, only the digital 200m can be used. To record à movie with optical zoom, set [8] (movies) (p. 29) to (OFF

Using the zoom Pressing the zoom buttons adjusts the shooting range Pressing the wide ON) button Pressing the telephoto {T) button @ opiical zoom: 3x Digital zoom: 4x @ Select [DIS MODE] for the shooting mode (p.20) when shooting wih ie telepholo 20m To take larger images without reducing image quality [FINE ZOOM] (p. 28) @ The zo0m bar appearance identies the status of ie fine zooméigital zoom

When using optical 00m and digital 200m Digital zoom Optical zoom range range w T__S Lis Fine zoom range When using fine 200m 16 EN Changing the shooting information display The display ofthe screen information can be changed to best match the situation, for example, the need for a clear view of the screen or for making a precise composition by using the grid display. À Press A (INFO). The displayed shooting information changes in the order shown below each time fe button is presse. “Shootng mode display” (p. 8) Normal 6 No informaton

2 use D to select an image. Displays previous @ Hold > to fast forward and hold < to reverse. © Tre cispay size ofihe images can be changed. “index view and close-up view” (p.18) To play back movies Select a movie, and press the (o] button. @ The sound recorded in movie mode cannot be played back with this camera. To listen to the sound, connect to a TV or PC. D O1. Operations during movie playback Elapsed time/ — L Total recording fime During playback pausing and [Press ne F3 buton 1 pause piayback. To resume playback resuming ayDaGn… |duin9 pause, fast fond, or pi revind, press the (button Press [> to fast forward. Press Fast forward |1> again to increase the fast fonvard speed Press < to rewind. The Rewind … |reinding speed increases each time <] is pressed. Operations during pausing playback minou fe 720 During pause Press À lo display the first Cueing | frame and press V to display he last frame. Advancing | Press L> or <] to advance or and rewinding rewind one frame at a time. one frame at | Hold D> or < pressed for atime | coninuous advance or reuind Resuming [Press he 9 button to resume playback | playback To stop movie playback Press the MENU button.

Erasing images during Index view and close-up view playback (Single image erase). 4, ji, cnabies quick sslection of a desired image. Ciose-up view (up to 10x magnification) À Display the image you want to erase los checking of image details and press V (f). T Press the zoom buttons. & à Single-mage view Close-up view 2 Press À Y to select [RASE], and press the ( button. @ HALL ERASE] (p. 30) and [SEL. IMAGE] w&æ Tr p. 30) can be used lo erase multiple images Atthe same time. To select an image in index view Use À V <> to select an image, and press the (7) button to display the selected image in single-image view. To scroll an image in close-up view Use À V <> to move the viewing area.

Changing the image information display Shooting information settings displayed on the screen can be changed À Press A (INFO). ‘+ The displayed image information changes in he order shown below each time the button is pressed Normal R ‘oiomaton Detaied Using the menu guide the @ button is pressed while settings are being made in the playback function or [SETUP] menu, a description of the selected option is displayed @ “Using the Menu” (p.4) EN 19

Using Shooting Modes @ re shooting mode can be selected from Reducing blur on shooting ie tunction menu in te folowng order. P. {DIS MODE] AUTO, «. SCN, MAGIC. 1, and 2. ue mode crabes ie écart rade « } is mode enables the user to reduce blur ® “Using ine Menu (. 4) thatis caused by camera shake and subject movement Shooting with automatic settings [iAUTO] À Set the shooting mode to (à According to the scene, the camera 1DIS MODE] indicator automatically selects the optimal shooting mode from (PORTRAITJILANDSCAPE]/ INIGHT+PORTRAIT/SPORTJIMACRO]. This. is a fully automatic mode that allows the user to take pictures using the best mode for the shooting scene simply by pressing the shutter button. À Setthe shooting mode to IAUTO. The icon changes depending on the scene thatthe camera automatically selects. Using the best mode for the shooting scene [SCENE MODE] À Set the shooting mode to SCN. @ in some cases, (ne camera may not select ins desired shooting mode. @ wnen ie camera cannot identify which is tne optimal mode, [PROGRAM AUTO] be selected

3 use <> to select the best shooting mode for the scene, and press the button. Icon indicatng [SCENE MODE] that is set @ 1 SCENE MODE, ie optimum shooting setings ar pre-programmed fr speciie shoolng acenes. For ns reason, some setings cannot be changed in some modes, Option. Application QPORTRAIT/ a LANDSCAPE! PANIGHT SCENE The camera %% NIGHT+PORTRAIT/ takes à picture <K SPORT/ 2 INDOOR/ using the SELF PORTRAIT/ optimum settings 1 FIREWORKS |forthe scene TICUISINE/@ DOCUMENTS! |conditions PET Shooting with special effects IMAGIC FILTER] Add an artstic effect to your photo by selecting the desired magic filter. À Set the shooting mode to MAGIC.

• When the subject is dark, noise reduction is automatically activated. This approximately doubles the shooting lime during which no other pictures can be taken To take pictures of a moving subject like a pet ([#{ PET) Use QD to select [# PET], and press the C9] button to set. @ Hold the camera to align the AF target mark on the subject and press the button + Wen the camera recognizes the subject {he AF target mark automatically tracks the subject movement focus on continuous}. “To focus on a moving subject continuoushy (AF Tracking)" (. 28) 3 Use QD to select the desired effect and then press the (&*] button to set. leon Indicaig (MAGIG FILTER] that is set Shooting mode Option D POPART ® PIN HOLE

MAGIC FILTER BIS EVE

[© DRAWING @ in MAGIG FILTER, the optimum shooting selings are pre-programmed fr each scene efec. For (his re850n, some setings cannot be changed in some modes. EN 21

Creating panoramic images [PANORAMA] Take pictures that can be joined to form a panorama using the ib computer software. @ The focus, exposure (p. 24), zoom posion (p.16) and white balance (p.25) are ocked aie frstirame. @) The nach (p.23) Med to ® (FLASH OFF) mode À Set the shooting mode to H.

2 use À Y <> to select the pan direction. 3 Press the shutter button to take the first frame, and then compose the second shot. Before first shot After first shot e After tho frs shot, the area shoun in the white frame reappears on the side of the display opposite the pan direction. Frame subsequent photographs so that they overlap vith the image an the monitor. Æ Repeat Step 3 until the number of desired frames is taken, and then press the MENU button when finished. @ Panorama shooting is possible for up to 10 frames. © Forinormaton on making panoramas, referto the one help for the Ib computer software

Using Shooting Functions @ “Using the Menur (p. 4) Shooting closeups {Macro shooting) Using the flash This function enables the camera to focus and ‘The flash functions can be selected to best Shoot subjects at close distances. match the shooting conditions. À Select the macro option in the À Select the flash option inthe Shooting function menu. shooting function menu. 2 use XP to select the setting 2 use QD to select the setting option, and press the (0%) button to option, and press the (1] button to set. set. Option Description Option Description OFF Macro modes deactvated Fe flash fres automaticaly in his enables shooting as close as FLASH AUTO |oyight or backlight conditions. MACRO 0 em in" (60 em 23.6 in: 10 ——— 6 subject Pre-flashes are emitted to reduce ee REDEYE the occurrence of red eye in your ils enables shooëng as close &s photos. enr SUPER MACRO” | 5 cm/2,0 in. to the subject. FILLIN he flash fres regardiess ofthe When the zooms at ne widest (W) position. available light 2 When the 00m is at the most elephoto (T) position FLASH OFF [The fash does notre ? The zoom is automaticaly fixed. @ The fach (p.23) and zo0m (p. 16) cannot be se during super macro shoang

24 EN Using the self-timer Adjusting the brightness (Exposure compensation) After the shutter button is pressed all the way down, the picture is taken after a short delay. The standard brightness (appropriate exposure) set by the camera based on the shooting mode {except for liAUTO]) can be adjusted brighter or darker to obtain a desired shot À Select the exposure compens: n in the shooting function 2 use XP to select the setting option, and press the (09 button to set. Option Description 2 use QD to select the desired Ÿ OFF [The selt-timer is deactivated. brightness, and press the EE PTT button. The sel-timer lamp turns on for approx. 10 seconds, then blinks for approx. 2 seconds, and then ne picture is taken. The selftimer lamp blinks for Ÿ2SEC lapprox. 2 seconds, and then the picture is taken. Ÿ 12SEC @ seiriimer shooüng is automaticaly canceled after one shot. To cancel the self-timer after it starts Press the MENU button

Adjusting to a natural color Selecting the ISO sensitivity scheme (White balance) @ Abbrevition for he International For more natural coloring, choose a white Organization for Standardization. ISO balance option suited to the scene. standards specify the sensitivity for digital = cameras and flm, thus codes such as 150 À Select the white balance option in 100" are used to represent sensitvty.

the shooting function menu. In the ISO seing, although smaller values result in less sensitivity, sharp images can be taken under fully lit conditions. Larger values result in higher sensitivity, and images can be taken at fast shulter speeds even under low light conditions. However, high sensitiviy introduces noise into the resulting picture, which may give it à grainy appearance. 2 use <P> to select the setting option, and press the (09 button to set. Option Description The camera automatically adjusts WBAUTO he white balance according to the shooting scene. For shooling outdoor under à # clear sky À Select the ISO setting option inthe shooting function menu. a [For shooling outdoor under à Joudy sky 2 Use D to select the setting D option, and press the (04) button to or shooting under tungsten fighting set. TT frorshooimgumeraig fluorescent lighting (household LCD 1 MED ighing, ete.) The camera automaticaly adusts —"@ 0) isoauTo |ine sensiviy according to the For shooling under neural & fluorescent lighting (desk lamps, shooting scene dc.) 100/200/400 [The ISO sensiivity is fixed to 1h 800/1600 selected value. or shooling under white fluorescent lighting (offices, etc.)

Selecting the size of still images À Select the image size 0 shooting function menu. 2 use <> to select the s ting option, and press the (09 button to set. Option Description (Suitable for printing A3 [11x17 in.) pictures. fSuitable for printing pictures [up to A8 (11x17 in.) (Suitabie for printing A4 (85x11 in.) pictures. 12M (30682976) BM (3264x2448) SM (2560x1920) (Suitabie for printing pictures [up to A4 (8.5x11 in.) (Suitabie for printing AS [5x7 in.) pictures. 3M (20481536) 2M (1600x1200) (Suitable for printing pictures 1M (1280x960) a postcard are. (Suitable for viewing pictures VGA (640x480) fon a TV or using pictures in lemails and on websites. (Suitable for playing pictures 16:88 (1920%1080) [on a wide screen TV. @ image size for movies can be selected from the [SETUP] menu. IMAGE SIZE/FRAME RATE] (p. 27) @ “Number of storable pictures (st images} Continuous recording length (movies) in the internal memory and SD/SDHC memory cards” (p.49)

For information on using the menus, see “Using the Menu” (p. 4). Menus for Shooting Functions @ The defauit settings of the function are highlighted in Selecting a compression mode for still images [COMPRESSION] À (Shooting menu) > COMPRESSION Available shooting modes: P IAUTO «@» SCN MAGIC 51 Submenu 2 Application FINE [Shooting at high quality. NORMAL [Shooting at normal quality. @ “Number of storabe pures (st images Continuous recording length (movies in in intemal memory and SD/SDHG memory cards (p.48) Selecting the image quality for movies [IMAGE SIZE/FRAME RATE] @& (Movie menu) IMAGE SIZE/FRAME RATE. Available shooting modes: 2 Submenu 1 Submenu 2 Application VGA (6402480) IMAGE SIZE (AVGA (320x240) | select ne image quaity based on the image size and frame rat. EN SIP 7 Higher frame rates provide smoother mois images. SE 15fps*

• frames per second FRAME RATE @ “Number of storabe pures (st images Continuous recording length (movies in ie intemal memory and SD/SDHG memory cards (p.48) EN 27

Selecting the focusing area [AF MODE] (Shooting menu) à AF MODE Available shooting modes: P HAUTO «dj» SCN MAGIC = Submenu 2 Application LiFa face is detected, iLis shoun by a white frame”; when the hutter button is pressed halfway land the camera is able Lo focus, he frame color is changed to green? ifthe camera is able to focus. If no face is detected, the camera chooses a subject in the FACENESP The camera focuses on he subject located within the AF arget mark. SPOT AF TRACKING | |movement automatically to focus on it continuousiy.

• For some subjects, the frame may not appear or may lake some time to appear. ? Ifthe frame blinks in red, the camera is unable to focus. Try again to press {he shutter button halfray. To focus on a moving subject continuously (AF Tracking) (D Hold the camera to align the AF target mark on the subject and press the € button. ® When the camera recognizes the subject, the AF target mark automatically tracks the subject movement to focus on it continuousiy. (® To cancel the tracking, press the button. @ Depending on he subjects or the shooting conditions, tne camera may be unable 10 lock he focus or ai to rack ne subject movement @ wnen ie camera fais Lo track the subject movement, he AF Larget mark changes Lo red 28 EN The camera focuses automatically. frame and focuses automatically.) The camera tracks 1he subject Shooting at higher magnifications than optical zoom without reducing the image quality [FINE ZOOM] Éù (Shooting menu) FINE ZOOM Available shooting modes: P IAUTO 4» SCN MAGIC = Application [Optical zoom and digital zoom are ol [used to z00m in for shooting. [Optical 00m and image cropping où are combined to zoom in for Shooting (up to 18.6) @) This function wall not reduce the image quality since it does not convert the data with fewer pixels into the data wilh larger pixel. @ When set to [ON], [IMAGE SIZE] is limited to [EM] or lower. @ When set to [ON], digital zoom is canceled automatically. @ (FINE ZOOM is not available when [s$ SUPER MACRO] (p. 23) is selected. Reducing blur due to camera shake during movie shooting

& (Movie menu) à IS MOVIE MODE Available shooting modes: 2 Submenu 2 Application ÉShoots without using the image sl stabizing function. où Shoots using ihe mage stabilzing function: @ image siabization may not prevent moïon biur ceuseé by movement ofthe subject or by exreme movement af the camera @ when set to [ON], shooting is slightiy 200med in.

For information on using the menus, see “Using the Menu” (p. 4). Recording sound when shooting still images [@] (Shooting menu) > ® Displaying icon guides [ICON GUIDE] (Shooting menu) > ICON GUIDE Available shooting modes: P HAUTO «dj» SCN Available shooting modes: P IAUTO 1@} SCN MAGIC = Submenu 2 Application Submenu 2 Application OFF No sound is recorded. OFF [No icon guide is displayed. The camera automatically stars recording sound for approx. ON Là seconds after a picture is taken. his is useful for recording notes or comments about the picture. @ Vinen recording, aim the microphone {p. 6) aire source of (ne sound you Want lo recore @ The sound recorded in sil REG cannot be played back with Inis camera, To isten Lo ie sound. connect o a TV or PC. Recording sound when shooting movies [4] & (Movie menu) à ® Available shooting modes: @ Submenu 2 Application OFF lo sound is recorded. ON Sounds recorded. @ Wen set to [ON], oniy the digital zoom can be used during movie recording. To record the movie with the optical zoom, set [$] movies) to [OFF] @ The sound recorded in movie mode cannot be played back with his camera. To listen to the sound, connect to a TV or PC. a while to Fe explanation oflhe selecie icon will be displayed when où à shooting mode or shooting function menu icon is selected position the cursor on the icon for Jay the explanation) Bosaur FT) Functions can be changed | manually. k Icon guide

Menus for Playback, Editing, and Printing Functions Playing back pictures automatically ISLIDESHOW] SLIDESHOW To start a slideshow After pressing the (67) button, the slideshow start. To stop the slideshow, press the button or the MENU button. Single-frame advance/rewind: During a slideshow, press L> to advance one frame or press <] to rewind one frame. © The sound record when shooting cannot be played back during sideshow. To Isten to the sound, connect o a TV or PC. Retouching images [PERFECT FIX] PERFECT FIX @ Depending on the picture, ihe editing may not be effective. © Tre retouching process may louerthe image resolution Submenu Application = ILIGHTING FIX] and [REDEYE FIX] are applied together. [Oniy sections darkened by LIGHTING FIX _ |backghting and dim lighting are brightene Eyes that are reddened by the REDEYE FIX |fach are corrected Use A V to select a correction method, and press the (ox button. 2 Use <> to select an image for retouching, and press the [o% button. ‘+ The retouched image is saved as a separate image. 30 EN Changing the image size [Fm] EDIT > Fa Submenu 2 Application x This saves a high-resolution image MEN 640%480 a à soparate mage in a smaller Rx I sie for use in e-mail attachments HE 320 * 240 [and other applications: Use QD to select an image @Use A V to select the size, and press the (7) button. Cropping images [f] EDIT» @ Use <> to select an image, and press the (67) button. Use the zoom buttons to select the size of the cropping frame, and use A V <Il> to move the frame. Cropping frame Press the (0) button. + The edited image vil be saved as a separate image. Erasing images [ERASE] ERASE Submenu Application All images in the internal memory AULERASE " |or card wi be erased. Images are indvidualy selected SEL IMAGE Jand erased ERASE Deletes 1he image displayed GANCEL [Canceis erssing,

For information on using the menus, see “Using the Menu” (p. 4). @ wnen erasing pures in ne intemal memory do nat insert a card into {he camera @ wnen eresing pures from tne card, insert à card int the camera in advance To erase all images [ALL ERASE] Use A V to select [ALL ERASE], and press the (6%) button. @Use A V to select [YES], and press the button. To individually select and erase images [SEL. IMAGE] Use A V to select (SEL. IMAGE], and press the (e*] button. @ Use <> to select the image to be erased, and press the (9) button to add a V7 mark to the image. ‘+ Press the W zoom button to display an index view. Images can be quickly selected using AY XD. Press the T button to return to the Single frame display. SEL. IMAGE @ Repeat Step (2 to select the images to be erased, and then press the MENU button to erase the selected images. @ Use A V to select [VES], and press the button. ‘+ The images with a V7 mark are erased. Saving print settings to the image data IPRINT ORDER] {Playback menu) > PRINT ORDER ® ‘Print Reservations (DPOF) (p.40) @ Print reservation can be set ni for st images Inal are record lo (ne car, Protecting images [On] © (Playback menu) » On @ Protected images cannot be erased by IERASE] (p. 18, 30), (SEL. IMAGE], or [ALL ERASE] (p. 30), but all images are erased by [MEMORY FORMATYIFORMAT (p. 32). Use QD to select an image. 2 Press the (9 button. Press the G9 button again to cancel the settings. @ Ifnecessany, repeat Steps (D and 2) to protect other images, and press the MENU button. Rotating images [F1] © (Playback menu) » © Use QD to select an image. ® Press the (67) button to rotate the image. @ If necessary, repeat Steps (D and to make settings for other images, and press the MENU button. @ The new picure orientations wi be saved even after the power is turned off. Adding sound to still images [4] CE] (Playback menu)» ® Use QD to select an image. @ Aim the microphone toward the sound source. Press the (9 button. + Recording stars. Microphone

Menus for Other Camera Settings Erasing data completely

ÎMEMORY FORMATJ/FORMAT]

4: (Settings 1) > MEMORY FORMAT/ FORMAT @ Before formating, check ina no important data 1 let in the Intermal memory or car, @ Cards must be formatteg win nis camera belor first use or aller being used win olher cameras or compuiers Submenu 2 Application [Completely erases the image data Changing the display language [@8) #Mi (Settings 1)» @8 Submenu 2 Application The language for the menus and Languages error messages displayed on 1he monitor is selected. @ “Changing the display language” (p. 13) Restoring the shooting functions to the default settings [RESET] VES in the internal memory‘ or card Setings 1)» RESET including protected images). fm: (Setings 1)» No [Canceis fermattng. see RTE En

• Be sure to remove {he card before formatting the Restores the following menu internal memory functions ta the default setings. Flash (p.23) noi inthoi : Macro (p. 23) Copying images in the internal memory Selttimer (p. 24) to the card [BACKUP] VEs Exposure compensation (. 24) : White balance (p. 25) fi (Setings 1)» BACKUP L 180 (p.25) Image size (p. 26) Er iication : Menu functions in 3 (Shooting Le | HE | menu) (Movie menu) (p.27 ves IBacks up image data in the t 29) internal memory to the card he current setings wi not be No [Canceis he backup. Œ changea @ ittakes some time to back up data. Check ia ie battery has suffcient power bre staring he backup.

For information on using the menus, see “Using the Menu” (p. 4). Selecting a method for connecting the camera to other devices [USB CONNECTION] Yi (Settings 1) > USB CONNECTION Submenu 2 Application When Ihe camera is connected AUTO Lo another device, the settings selection screen is displayed Lo a computer or when using ib computer software with the camera connected to a computer. STORAGE Select when transfering mages Lo a computer running Windows [Vista or Windows 7 without using ib computer software. Sslect when connecting to à

PRINT PictBridge-compatble printer. Copying pictures to a computer without using ib computer software This camera is compatible with ine USB Mass Storage Class. You can transfer and save the image data on your computer wnil the camera and he computer are connected. System requirements Windows 2000 Professional! Windows XP/Windows Vista/Windows 7/ Mac OS X v10.3 or later @ Even ira computer has USB ports, proper operation Is not guaranteed in the following cases + computers with USB ports installed using an expansion card, te. ‘e computers without a factary-installed OS and home-buit computers Select when transfering images Turning on the camera with the [5] button [7] POWER ON] (Settings 1)» Œ) POWER ON Submenu 2 Application YES lon and starts the camera in the playback mode. No tu on the camera, press the ONJOFF button. Saving the mode when the camera is turned off [SAVE SETTINGS] (Settings 1)» SAVE SETTINGS Submenu 2 Application when the camera is turned of and is reactivated the next time the camera is tumed on. YES No Imode when the camera is tumed Pressing ihe [5] button tums [The camera is not tumed on. To FThe shooting mode is saved Fe shooïing mode 15 set 10 P.

Setting the operation sound [BEEP] #B (Settings 2) D BEEP Submenu 2 Application FTurns off or on the operating. OFFION soundhwarning sound of the camera buttons. Adjusting the CCD and the image processing function [PIXEL MAPPING] #B (Settings 2) PIXEL MAPPING @ is function has already been adjusted at factory Shipping, and no acjustment is meeded right after purchase. Approximately once à years recommendes. @ For best resuis, wait at last one minute after taking or viewing pictures before perlorming pixel mapping. ne camera is lurmed of during pixel mapping, be sure to perform t again To adjust the CCD and the image processing function Press the (J button when [START] {Submenu 2) is displayed. ‘+ The camera checks and adjusts the CCD and the image processing function at the same time. Adjusting the brightness of the monitor LC? #B (Settings 2) » Submenu 2 Application NORMAL brightness. Setting the date and time [@] #B (Settings 2)» © @ “Seting tne date, ime and time zone” 6.12) To select the date display order (D Press > after setting Minute, and use AV to select the date display order.

For information on using the menus, see “Using the Menu” (p. 4). Switching between home and travel destination time zones [WORLD TIME] # (Settings 2) WORLD TIME @ You wil note able to select a time zone using [WORLD TIME] fine camera clock has no frs been set using (ED) Submenu 2 Submenu 3 Application [The time in the home time zone (the time zone selected for ff in Isubmenu 2). HOME/ALTERNATE ÎThe time in the travel destination lime zone ((he lime selected for À in submenu 2). LE = Select ihe home ie zone (# a = Select ihe travel destination ime zone (A) ! In areas where daylght saving time is in effect, use A Ÿ to turn dayight saving time (SUMMERI) on. ? When you select a time zone, the camera automatically calculates the time difference between the selected zone and the home time zone (fÿ) to display the time in the travel destination time zone (# Selecting a video signal system to match your TV [VIDEO OUT] #B (Settings 2) > VIDEO OUT @ The TV video signal system varies depending on the countries and regions. Before viewing camera images on your TV, select he video output according to your TV video signal type. Submenu 2 Application NTSC [Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and s0 on. PAL [Connecting the camera to à TV in European countries, China, and so on. @ Tre factory defaut setings air according one region where he camera Is sole. To play back camera images on a TV (® Use the camera to select the same video signal system as the one of connected TV (INTSCYIPALI) @ Connect the TV and camera. Muli-connector Connect to the TV video input jack (yellow) and audio input jack (white). @ Tum on the TV, and change ‘INPUT- to “VIDEO (an input jack connected to the camera)." @) For detaïs on changing the input source of ne TV, refer to the TV's instruction manual.

@ Press the [E] button, and use <I> to select the image for playback @ Depending on the TV settings, the displayed images and information may become cropeci Saving battery power between shots [POWER SAVE] #2 (Settings 2)» POWER SAVE Submenu 2 Application OFF Cancels (POWER SAVE]. When the camera is not being used for approx. 10 seconds, the monitor automatically turns off to save battery pouer.

Printing Direct printing (PictBridge‘) By connecting the camera to a PictBridge- compatible printer, you can print images directly without using a computer. To find out if your printer supports PictBridge, refer to the printer instruction manual *! PictBridge is a standard for connecting digital cameras and printers of different makers and printing out pictures direct. @ Te printing modes, paper aies, and other parameters that can be set with 1he camera Vary depending on the printer that is used For details, refer l the printer instruction manual. @ For detais on the available paper types, loading paper, and instaling ink cassettes, refer to the printers instruction manual. Printing images at the printers standard settings [EASY PRINT] @ intne (SETUP] menu set [USB CONNECTION] [AUTO] or [PRINT] “Using the Menu (p. 4) 2 Turn on the printer, and then connect the printer and camera. Muli-connector D> button: USB cable (supplied)

3 Press [> to start printing. À Display the image to be printed on the monitor. @ “iewing images” (p. 16) Æ To print another image, use AD> to select an image, and press the button. To exit printing After a selected image is displayed on the screen, disconnect the USB cable from the camera and printer.

38 EN Changing the printer’ settings 5 Use A Y to selectthe for printing [CUSTOM PRINT] À Follow Steps 1 and 2 in [EASY PRINT] (p. 37). 2 Press the (67 button to start printing. 3 use A Y to selectthe print mode, and press the (01 button.

ALL PRINT MULTI PRINT ALL INDEX PRINT ORDER EXT Submenu 2 Application PRINT Fu ALL PRINT internal memory or card. MULTI PRINT layout format. ALLINDEX |stored in the internal memory or card PRINT ORDER IPRINT ORDER] is available only when print reservations have been made. “Print Reservations (DPOF)" (p.40) 4 Use A V to select [SIZE] (Submenu 3), and press >. @ 1ftne [PRINTPAPER] screen is not displayes, ie [SIZE]. BORDERLESS) and (PICS/SHÉETI are set ie printer s Standard PRINTPAPER SIZE BORDERLESS STANDARD This prints the image selected in FThis prints all images stored in the FTnis prints one image in a multiple FThis prints an index of al images FTnis prints images based on the print reservation data on the card IBORDERLESS] or [PICS/SHEET] settings, and press the (04 button. Submenu 4 Application The image is printed with a border OFFION" around it (OFF). The image is printed to fil the entire paper (ON). The number of [The number ofimages per sheet images per sheet |((PICS/SHEET)) is selectable only varies depending [when [MULTI PRINT] is selected on the printer.) Jin Step 3.

• The available settings for (BORDERLESS] vary depending on the printer. @ 1 ISTANDARD] is selected in Steps 4 and 5 the image is printed at the printers standard settings. 00 vo | La 28 PRINT EI 6 use XP to select an image. 7 Press A to make a print reserv: for the current image. Press Y to make the detailed printer settings for the current image. To make the detailed printer settings Use A V D to select the setting, and press the (6x button. PRINT INFO

DATE WITHOUT WITHOUT. FILE NAME

Suimenu EE This selects the number & (010 10 Jor prints. (Selecting PNITH] prints the pr images wih the date DATE ISelecting IMITHOUT] WITHOUT ins the images without he date. (Selecting DNITH] prints the le name on the image ris FLE NAME our |Setecting WITHOUT] does ot print any fle name on he image. Procseds otne [This selects a portion of # seting …|the image for printing, screen.) To crop an image [1] (D Use the zoom buttons to select the size ofthe cropping frame, use À V > to move the frame, and then press the button Cropping frame @Use A V to select [OK], and press the button 8 if necessary, repeat Steps 6 and 7 to select the image to be printed, make the detailed settings, and set ISINGLE PRINT]. 9 Press the 69 button.

CANCEL BACK I 10use A V to select [PRINT], and press the (0:] button. Printing starts + When [OPTION SET] is selected in JALL PRINT] mode, [PRINT INFO] screen is displayed. + When printing is fnished, the [PRINT MODE SELECT] screen is displayed

40 EN 11 Press the MENU button. 12when the message [REMOVE USB CABLE] is displayed, disconnect the USB cable from the camera and printer Print Reservations (DPOF) In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera. “ DPOF isa standard for string automate prntout inlomañion rom dgial cameres @ Print reservations can be set oniy for ne images slored on the card. Insert a card wih recorded images before making print reservaions. @ DPOF reservations set by another DPOF device cannot be changed by Iis camera Make changes using 1e original device Making new DPOF reservations with ts camera vil erase 1ne reservations made by 1n6 oiher device. @ DPOF prit reservations can be made for up 10 899 images per card Single-frame print reservations [D] À Display the [SETUP] menu. @ ‘Using the Menu’ (p. 4) 2 From the playback menu [5], select [PRINT ORDER] and then press the button. PRINT ORDER EXT 3 use A Y to select [OM], and press the (] button. 4 Use <> to select the image for print reservation. Use À V to select the quantity. Press thé button. 5 use A Y to select the [ED] (date pan screen option, and press the

button. FNNE DATE shooting date. CAN STE 6 use A Y to select [SET], and press the (] button.

Reserving one print each of all images on the card [{#] Resetting the print reservation data for selected images T Follow Steps 1 and 2 in [0] (p. 40). À Follow Steps 1 and 2 in [LE] (p. 40). 2 use A Y to select [L#], and press the (1] button. 2 use A Y to select [D], and press the (:] button. 3 Follow Steps 5 and 6 in []. Resetting all print reservation data T Follow Steps 1 and 2 in [0] (p. 40). 3 use A Y to select [KEEP] and press the (0) button. Æ Use <> to select the image with the print reservation you want to cancel. Use A V to set the print quantity to “0”. 2 use A Y to select either [CH] or LL], and press the (0:] button. PRINT ORDER SETTING: PRINT ORDERED

KEEP BACK EI 3 use À V to select [RESET], and press the (04) button. 5 If necessary, repeat Step 4, and then press the (4) button when finished. 6 use A V to select the [ED] (date print) screen option, and press the button. ‘+ The settings are applied to the remaining images with the print reservation data. 7 Use A Y to select [SET], and press the (:] button. EN 41

Usage Tips the camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to fix the problems). Troubleshooting Battery “The camera does not work even when batteries are installed”. Insert recharged batteries in he correct direction. inserting the battery and the SD/SDHC memory card (sold separately)" (p. 10), “Charging the battery with the supplied USB-AC adapter (p. 11) ‘+ Battery performance may have been reduced temporariy due to low temperature. Take the batteries out of the camera, and warm them by puting them in your pocket for a while. Card/internal memory “An error message is Error message” (p. 43) played”. Shutter button “No picture is taken when the shutter button is pressed”. ‘+ Cancel sleep mode To save batiery power, the camera automatically goes into sleep made and the monitor tums off ifihere is no operation for 3 minutes when the camera is tumed on. No picture 1 taken even if the shuter buttons fuly pressed in his mode. Operate the zoom buttons or other buttons to restor the camera from sleep mode before taking a picture. the camera is left for another 12 minutes, i automatically turns of. Press the ONIOFF button t turn the camera on. Press he (E] button to switch to the shooting mode. ‘+ Wait until # (flash charge) stops blinking before. taking pictures.

Monitor “Difficult to see”. ‘+ Condensation'® may have occurred. Turn offthe power, and wait for he camera body to become acclimated to the surrounding temperature and dry ut before taking pictures. “ Dew drops can form in the camera when it is suddenly taken from a cold location into a warm, humid room. “Vertical lines appear on the screen”. ‘+ This condition may occur when the camera is pointed at an extremely bright subject under a clear sky and s0 on. The lines do not appear, however, in the final image. “The light is caught in the picture”. ‘+ Shooting with flash in dark situations result in an image with many flash reflections on dust in the ai. Date and time function “Date and time settings return to the default setting”. ‘ Ifthe batteries are removed and lef out ofthe camera for about a day, the date and time settings return to the default setting, and must be reset. 2 The time untl he date and time setings return to the defaut seting varies depending on how long ne batteries have been loaded Sattng the date, time and time zone” (p. 12) Miscellaneous “The camera makes a noise when taking pictures”. ‘+ The camera may activate the lens and make a noise even if no operation is performed. This is because the camera automatically performs actions of auto focus as far as its ready to shoot.

Error message @ vinen one oftne messages below is displayed on he monor, check Ine correclive action Printer problem Ref the ink in the printer. Error message Corrective action SA [prmerprobiem Remove the jammed paper. Card problem Insert a new card. JAMMED Printer problem SETTINGS ANGED» | Return lo the status where the printer can be used CARD ERROR D Card problem The card write-protect switch is WRITE | setto the “LOCK side. Release PROTECT [the switch. Printer problem Turn off the camera and printer, check the printer for any PRINT ERROR | problems, and then turn the power on again. Internal memory problem + Insert a card MEMORY FULL | + Erase unwanted images: Problem with selected image Use a computer to print. CANNOT PRINT< Card problem + Replace the card. CARD FULL _ | Erase unwanted images. use A press à Card problem Use A V to select [FORMAT], and press he (button. Nex, V to select [YES], and ne 9 button. Internal memory problem Use A Y to select (MEMORY FORMAT], and press the button. Next, use A V te select IVES], and press the bution.+ NO PICTURE | them Internal memory/Card problem Take pictures before viewing ete. to PICTURE | comput ERROR |cannot Problem with selected image Use photo retouch software, view he image on a er. IFthe image still be viewed, lhe image fle is corupted CE] |rriem th secte image mHEmaGe [Use hot rose souare ct. CANNOT |toedit BE EDITED the image on à computer. Û |satory proie Barrenr | Gnage Me baters x | connection problem

connEcTION | "7" Connect the camera and ter or printer correct.

NO PAPER Printer problem Load paper into the printer. Before erasing important images, download them to à computer. ? AI data will be erased.

• This is displayed, for instance, when the printer's paper tray has been removed. Do not operate the printer while making the print setings on the

• This camera may be unable Lo print images Laken by other cameras. EN 43

Shooting tips When you are unsure of how to take a picture that you envision, refer to the information below. Focusing ee “Focusing on the subject” ‘+ Taking a picture of a subject not in the center ofthe screen After focusing on an object at he same distance 2s the subject, compose ne shot, and take 1e picture. Pressing ne shutter buton halfay (p. 14) + Set [AF MODE] (p. 28) to [FACE/IESP] Taking a picture in [AF TRACKING] mode (.28) The camera tracks the subject movement automatical to fous on continuousiy + Taking a picture of subjects where autofocus is difficult In the following cases, after focusing on an abject {by pressing the shutter button halfway dou) with high contrast at Ihe same distance as the subject compose Ihe shot, and take the picture. Subjects with low contrast When extremely bright objects appear in the center of the Object with no vertical nes"! is also effective to compose the shot by holding the camera vertical to focus, and then retuming to the horizontal position to take the picture. When objects are at different distances Fast-moving object ‘The subject is not in he center el ofthe frame Lu KN

Camera shake “Taking pictures without camera shake” ‘+ Taking pictures using «go mode (p. 20) ‘+ Solect #&, (SPORT) in SCN mode (p. 20) ‘The #& (SPORT) mode uses a fast shutter speed and ca reduce the blur incurred by a moving subject. ‘+ Taking pictures at a high ISO sensitivity Ha high ISO sensitvity is selected, pictures can be taken at a high shutter speed even at locations where a flash cannot be used. Selecting the ISO sensitviy” (p. 25) Exposure (brightness) “Taking pictures with the right bri ‘+ Taking pictures using [FILL IN] (p. 23) flash Asubject against backight is rightened. Taking pictures using exposure compensation (6.24) Ajust ne brighness while vieuing the screen for taking ne picture. Normal, taking pictures of white subjects (such 28 snow) results in images Anat are darker than he actual subject. Use the exposure compensation to adjust in ie poste (+) direction to express whites as they appear. Wien taking pures of black subjects, on {ne other hand, its effective to justin he negative {:) direction.

Color hue “Taking pictures with colors at the same shade as they appear” ‘ Taking pictures by selecting white balance (p.25) Best results in most environments can normally be obtained with the [WB AUTO] setting, but for some subjects, you should ty experimenting with diflrent setings. (This is especially true for sunshade under a clear sky, mixed natural and artficial light settings, and So on.) Image quality “Taking sharper pictures” + Taking pictures with the optical zoom AAvoid using digital zoom (. 16) to take pictures. ‘+ Taking pictures at a low ISO sensitivity Ifthe picture is taken with a high ISO sensitviy, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy. The resulting image is grainier than with low ISO sensitvity as welL “Selecting the ISO sensitity" (p. 25) Batteries “Making batteries last longer” + Avoid any of the following operations when not actually taking pictures because they deplet the battery power ‘+ Repeatediy pressing the shutter button balfway ‘+ Repeatediy using the zoom Set POWER SAVE] (p. 36) to [ON] Playback/Editing tips Playback [ “Playing images in the internal memory and card” ‘+ Remove the card when playing pictures in the internal memory inserting the battery and the SD/SDHC memory card (sold separately)" (p. 10) Editing “Erasing the sound recorded to a still image” + Record over the sound with silence when playing back the image ‘Adding sound to stil images [BJ (p. 31) EN 45

46 EN Appendix Camera care Exterior + Wipe gently with a soft cloth. Ifthe camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well. Monitor + Wipe gently with a soft cloth. Lens + Blow dust off the lens with a commercial blower, then wipe gentiy with a lens cleaner. Battery/AC adapter + Wipe gently with a soft, dry cloth @ Do not use strong solvents such as benzene or alcohol, or chemically treated cloth. @ Moid may form on the lens surface ifthe lens is left dirt. Storage + When storing the camera for extended periods, remove the battery, AC adapter and card, and keep in a cool, dry place that is well ventilated + Periodically insert the battery and test the camera functions. @ Avoid leaving the camera in places where chemical products are handied since this may result in corrosion Battery and AC adapter (included) This camera uses one Olympus lithium ion battery (LI-80B). No other type of batteries can be used @ Caution: There is a risk of explosion if the battery is replaced with the incorrect battery type. Dispose of the used battery following the instructions. (p. 52) Power consumption by the camera varies depending on which functions are used. During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly + The zoom is used repeatedly. +_ The shutter button is pressed halfway repeatedly in shooting mode, activating the auto focus. Apicture is displayed on the monitor for an extended period of time. The camera is connected to a computer or printer. Using an exhausted battery may cause the camera to turn off without displaying the battery level warning The rechargeable battery is not fully charged atthe time of purchase. Before use, charge the battery fully with the supplied F-2AC USB-AC adapter (hereafter referred to as AC adapter) When the included AC adapter is used, charging usually takes approximately 4 hours {varies on usage) The included AC adapter has been designed to be used only for charging. Make sure that operations such as shooting, viewing images and s0 on are not being used while the AC adapter is connected to the camera. The included AC adapter is designed to be used only with this camera. Other cameras cannot be charged with this AC adapter. Do not use with other devices. For plug-in type AC adapter: The included AC adapter is intended to be correctly orientated in a vertical or floor mount position.

Using your AC adapter abroad The AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differentiy and the AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent Do not use travel voltage converters as they could damage your AC adapter. Using an SD/SDHC memory card A card (and intemal memory) also corresponds to the film that records images in a film camera. Otherwise, the recorded images (data) can be erased, and retouching is also available with the use of a computer. Cards can be removed from the camera and exchanged, but this is not possible with the internal memory. Use of larger capacity cards enables you to take more pictures. SD/SDHC card write-protect switch The SD/SDHC card body has a write-protect switch. I you set the switch to the "LOCK" side, you wi not be able to write to the card, delete data or format. Release the switch to enable writing,

Cards compatible with this camera SD/SDHC memory cards (for more information, visit the Olympus website) EN 47

48 EN Using a new card Cards must be formatted with this camera before fist use or after being used with other cameras or computers. [MEMORY FORMATJ/[FORMAT] (p. 32) Checking the image saving location The memory indicator shows whether the internal memory or card is being used during shooting and playback Current memory indicator 1: Intemal memory is being used B: Card is being used Current memory indicator Playback mode @ Even if [MEMORY FORMATYIFORMAT], IERASE), (SEL. IMAGE) or [ALL ERASE] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data. Readout/recording process of the card During shooting, the current memory indicator lights in red while the camera is writing data. Never open the battery/card compartment cover or unplug the USB cable. This can not only damage the image data but also render the internal memory or card unusable Lights in red

Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and SD/SDHC memory cards @ The figures for the number af storable st ptures and continuous recording lengih are approximale. he actual capacity varies with shooting conditions and the card used Still images Number of storable st pictures IMAGE SZE |COMPRESSION| —— Intemaimemory | SDISDHC memory card (1 GB) With sound _ [Without souna|_With sound _ [Without sound essor Fe 1 1 142 143 mm A 2 2 ET] 23 aus Fe T ï 7e 210 em A 3 3 405 413 Fe 2 2 ES 33 IE 25601920 LA 5 5 ES G7 Fe 5 5 s3s EZ En 200152 A 10 El TS 1.080 Fe D 9 Ba 839 FA 16001200 ea T7 15 1,536 1780 re E 14 1315 1375 MA 1220960 ea El EI 2471 2152 re 28 ei 435 5505 Ron ea E DE 7570 1008 pue Fe D O Te 52 ea 16 F7 1,552 1.636 Movies Contnuous recoring engin IMAGE SZE | FRAMERATE internal memory | SD/SDHC memory cara (1 GE) WWF sound [Without sound] _With sound _ Without sound . En S sec. 5sec. | 8m. 31 sec. | 8 min. 26 sec. REX 5202480 FE Tsec. 11 sec. 16 min. 52 sec. | 17 min. 13 sec. an 0e En 1550 16 sec. [23 min.25 00. | 24 min. 7sec. $20+240 FE 30 sec. B2sec [45 min. 31 sec. | 48 min. 14 sec. @ The maximum fe size of single movie is 2 GB, regardiess of ne capaciy fe card Increasing the number of pictures that can be taken Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase the images in the internal memory or card. (ERASE] (p. 18, 30), ISEL. IMAGE] (p. 30), [ALL ERASE] (p. 30), [MEMORY FORMATJFORMAT] (p. 32)

REFER SERVICING TO QUALIFIED OLYMPUS

SERVICE PERSONNEL. À An exclamation mark enclosedin a angle alerts you t important operating and maintenance instructions in the ‘documentation provided win ie product. Aie product is used without observng the information given under is symbol. serious injury or death may result. Aie product is used without observing te information given under hs symbol injury or death may result Hine product is used without observing te information given under this symbol, minar personal injury, damage 1 tre equipment rss of valable data may sut. À PER À es À curo FWARNINGT [TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOGK,

NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO

[WATER OR OPERATE IN À HIGH HUMIDITY ENVIRONMENT. General Precautions Read AIl Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference. Cleaning — Always unplug this product from the wall outlet before cleaning. Use only à damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product. Attachments — For your safety, and Lo avoid damaging the product, use only accessories recommended by Olympus. Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections. Location — To avoid damage to the product, mount the product securely on a stable tipod, stand, or bracke. Power Source — Connect Ihis product only lo the power source described on the product label. Lightning — If a lighining storm occurs while using ‘an AC adapter, remove IL from the wall outlet immediately. Foreign Objects — To avoid personal injury, never insert a metal object into he product. Heat — Never use or store this product near any heat source such as a radiator, eat register, love, or any type of equipment or appliance that generates heat, including stereo amplifiers Handling the Camera À WARNING

• Do not use the camera near flammable or explosive gases. De not us the flash and LED on people {infants, small children, etc.) at close range. + You must be at least 1 m (3/L) away from the faces of your subjects. Firing ie flash Loo close to the subjecl's eyes could cause a momentary loss of vision Keep young children and infants away from the camera. + Abays use and store Ihe camera out of the reach of Young children and infants to prevent the following dangerous situations which could cause serious injury
• Becoming entangled in the camera strap. causing strangulation

• Accidentall swallowing the battery, cards or other smal parts. + Accidentaly fring the flash into her oun eyes: or those of another child

• Accidentally being injured by {he moving parts of the camera Do not look at the sun or strong lights with the camera. + Do not use or store the camera in dusty or humid places. Do not cover the flash with a hand while firing. Use SD/SDHC memory cards only. Never use other types of cards. If you accident insert another type of card into the camera, contact an authorized distributor or service center. Do not y to remove 1he card by force À cAUTION + Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it. + Never remove Ihe batteries vilh bare hands, which may cause a fire or burn your hands. + Never hold or operate the camera with wet hands. + Do not leave the camera in places where it ay be subject to extremely high temperatures. + Doing 50 may cause pars lo deteriorale and, in some circumstances, cause {he camera to catch fie. Do not use the AC adapter Ifitis covered (such as a blankel). This could cause overheaing, resulting in fr.

+ Handie the camera with care to avoid getting a low-temperature burn. + When Îhe camera contains metal parts, overheating can result in a low-temperature burn. Pay attention lo the following: + When used for a long period, the camera will get ho. If you hold on lo 1he camera in this State, a low-temperature burn may be caused In places subject lo extremely cold temperatures, le temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures. + Be careful with the strap. + Be careful with the strap when you carry the camera. I could easily catch on strPay objects and cause serious damage. Battery Handling Precaut Follow these Important guidelines to prevent batteries from leaking, overheating, burning, lexploding, or causing electrical shocks or burns. À DANGER 2 The camera uses a lithium ion battery specified by Olympus. Charge the battery with he specified AC adapler. Do nol use any olher AC adaplers. Never heat or incinerale batteries + Take precautions when carying or storing batiries Lo prevent them from coming into contact with any metal objects such as jewely, pins, fasteners, etc. Never store batteries where Ihey will be exposed to direct sunligh or subjected Lo high temperatures in a hot vehicle, near a heal source, etc To prevent causing battery leaks or damaging their terminals, carefuly follow al instructions regarding 1he use of batteries. Never attempt lo disassemble à batery or modif in any way, solder, et. I battery uid gets into your êyes, fush your eyes immediately wilh clear, cold running water and seek medical attention immediately. Always store baltries out of the reach of small children. l'a child accidentaly swallows a battery, seek medical attention immediately. À WaRNING

• Keep batteries dry at al times. 2 To prevent batteries from leaking, overheating, or causing a fre or explosion, use only batteries recommended for use with this product. Insert the battery carefuly as described in the operaling instructions.

• Irechargeable batieries have not been recharged within the specified lime, stop charging them and do not use them. + Do not use à baltery it is cracked or broken: + Ifa battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera. If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If he fluid burns your skin, seek medical attention immediately. Never subject batteries lo strong shocks or continuous vibration À cauTION + Before loading, always inspect {he battery carefully for eaks, iscoloration, warping, or any olner abnormalit ‘The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately alter using {ne camera. Aays unload the battery from Îhe camera before Stoing Ine camera for a long period Caution for Usage Environment + To protect the high-precision technology contained in this product, never leave the camera in the places listed below, no matter if in use or storage: + Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humiaifiers. + In sandy or dusty environments. + Near flammable items or explosives. + In wet places, such as bathrooms or in the rain When using products with weatherproof designs, read their manuals as well + In places prone to strong vibrations. Never drop the camera or subject it to severe shocks or vibrations. + When mounted on a tipod, adjust the position of the camera with the tipod head. Do not tist 1he camera. + Do not touch electric contacts on cameras. Do not leave the camera pointed direct at the sun. This may cause lens or shutter curtain damage, color failure, ghosting on the CCD, or may possibly cause fires. Do not push or pull severely on the lens. + Before storing the camera for a long period, remove the batteries. Select a cool, dry location for storage lo prevent condensation or mold from forming inside the camera. After storage, test the camera by luming it on and pressing the shutter button lo make sure that is operating normal. + Always observe the operating environment restrictions described in the cameras manual

Battery Handling Precautions This camera uses a lithium lon battery specified by Olympus. Do not use any other type of battery. Ifthe battery terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use. Always charge a battery when using it for the first time, or i it has not been used for a long period When operating the camera with battery power at low temperatures, try to keep the camera and spare battery as warm as possible. À battery that has run down at low temperalures may be restored afer i is warmed at room temperature. ‘The number of pictures you can take may vary depending on the shooting conditions or battery. Please recycle batteries lo help save our planet resources. When you throw away dead batteries, be sure lo cover their terminals and always observe local laws and regulations. LCD Moi Do not push the monitor forcibly, otherwise the image may become vague, resulting in à playback mode failure or damage to the monitor. A strip of light may appear on the top/bottom of the monitor, but his is nol a malfunction. When a subject is viewed diagonally in the camera, the edges may appear zigzagged on the monitor. This is not a malfunction, it wil be less noticeable in playback mode. In places subject to low temperatures, the LCD monitor may take a long time to turn on or its color may change lemporarly. When using the camera in extremely cold places, iLis a good idea to occasionally place it in à warm place. An LCD monitor exhibiting poor performance due to low temperatures wil recover in normal temperatures. The LCD used for {he monitor is made with high-precision technology. However, black spots or bright spots of light may appear constant on the LCD Monitor. Due to its characteristics or the angle at which you are viewing the monitor, the spot may not be uniform in color and brightness. This is not a malfunction.

Legal and Other Notices Olympus makes no representations or warranties. regarding any damages, or benefit expected by using this unit lawiull, or any request from a third person, which are caused by the inappropriate use of this product. Olympus makes no representations or warranties. regarding any damages or any benefit expected by using this unit lawfully which are caused by erasing picture data. Disclaimer of Warranty + Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written malerials or soflware, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages {including but not limited to damages for loss of business profs, business interruption and loss of business information) arising from the use or inabilty Lo use these written materials or software or equipment. Some countries do nt allow the exclusion or limitation cf iability for consequential or incidental damages or of the implied warranty, so the above limitations. may not apply lo you. Olympus reserves al rights to this manual. Warning Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners. Copyright Notice All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liabiity is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use ofthe information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

FCC Notice + Radio and Television Interierence Changes or modifications not expressiy approved by the manufacturer may void 1he user's authority Lo operate this equipment. This equipment hes been tested and found to comply with te limits for a Class B digital device, pursuant lo Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmiulinterference in a residential instalation + This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance wilh the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that iterference il not oceur in pareuiar instalation. this equipment does cause harmful interference Lo radio or television reception, which can be determined by tuming the equipment of and on, the user is encouraged to y to correct the interierence by one or more of ie follouing messures: Adjust or relocate the receiving antennal Increase lhe distance between 1e camera and receiver. Connect the equipment 19 an outlt on a circuit different from that to which Ine receiver is connected Consul your dealer or an experienced radio/TV téchnician for help. Only ne OLYMPUS-supplied USB cable should be used to connect the camera to USE enabled personal computers (PC) Any unauthorized changes or modifications to this equipment would void the user's authority to operate it Use Only Dedicated Rechargeable Battery and AC adapter We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery and AC adapter with this camera. Using a non-Olympus rechargeable battery and/or AC adapter may result in fire or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability. for accidents or damage that may result from the use of a battery and/or AC adapter that are not genuine Olympus accessories.

For customers in North and South America For customers in USA Declaration of Conformity Model Number Trade Name Responsible Party OLYMPUS IMAGING AMERICA INC. 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A 484-896-5000 T-100 OLYMPUS Address Telephone Number Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations.

OLYMPUS WORLDWIDE LIMITED

WARRANTY - IMAGING PRODUCTS

Oympus warrants that the enclosed Olympus® imaging product(s) and related Olympus® accessories (individually a “Product” and collectively the “Products”) will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase. If any Product proves to be defective within the one-year warranty period, the customer must retum the defective Product to any of Olympus Service Centers, following the procedure set forth below (See ‘WHAT TO DO WHEN SERVICE IS NEEDED"). Olympus, at its sole discretion, will repair, replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited warranty. Repair, replacement, or adjustment of defective Products shall be Olympus s sole obligation and the customers sole remedy hereunder. The customer is liable and shall pay for shipment ofthe Products to the Olympus Service Center. Olympus shall not be obligated to perform preventive maintenance, installation, deinstallation, or maintenance. Olympus reserves the right to (i) use reconditioned, refurbished, and/or serviceable used parts (that meet Olympus’s quality assurance standards) for warranty or any other repairs and (ii) make any intemal or external design and/or feature changes on or to its products without any liability to incorporate such changes on or to the Products.

WHAT IS NOT COVERED BY THIS

LIMITED WARRANTY Excluded from this limited warranty and not warranted by Olympus in any fashion, either express, implied, or by statute, are (@) products and accessories not manufactured by Olympus andior not bearing he “OLYMPUS" brand label (he warranty coverage for products and accessories of olher manufacturers, which may be distrbuted by Olympus, is {he responsibility of the manufacturers of such products and accessories in accordance wilh the lerms and duration of such manufacturers’ warrants): (b) any Product which has been disassembled, repaired, tampered with, altered, changed, or modified by persons other than Olympus own authorized service personnel unless repair by others is made with the writlen consent of Olympus: (c) defects or damage to 1he Products resulting from wear, tear, misuse, abuse, negligence, sand, liquids, impact, improper storage, nonperformance of scheduled operator and maintenance items, batiery leakage, use of non- “OLYMPUS brand accessories, consumables, or supplies, or use of the Products in combination with non-compatible devices; (@) software programs; e)supplies and consumables (including but not limited to lamps, ink, paper, film, prints, negatives, cables and batteries); andior (9 Products which do not contain a validly placed and recorded Olympus serial number, unless they are a model on which Olympus does not place and record serial numbers.

GUARANTIES, CONDITIONS, AND

USAGE OR OTHERWISE, INCLUDING BUT

NOT LIMITED TO ANY WARRANTY OR

REPRESENTATION AS TO THE SUITABILITY,

DURABILITY, DESIGN, OPERATION, OR

56 EN CONDITON OF THE PRODUCTS (OR ANY.

PART THEREOF) OR THE MERCHANTABILITY

OF THE PRODUCTS OR THEIR FITNESS FOR

IF ANY IMPLIED WARRANTIES APPLY AS

EXCLUSIONS MAY NOT APPLY.

THE CUSTOMER MAY ALSO HAVE DIFFERENT

BE RESPONSIBLE FOR ANY DAMAGES

THAT THE CUSTOMER MAY INCUR FROM

DELAYED SHIPMENT, PRODUCT FAILURE,

PRODUCT DESIGN, SELECTION, OR

PRODUCTION, IMAGE OR DATA LOSS OR

IMPAIRMENT OR FROM ANY OTHER CAUSE,

WHETHER LIABILITY IS ASSERTED IN

CONSEQUENTIAL OR SPECIAL DAMAGES OF

ANY KIND (INCLUDING WITHOUT LIMITATION

LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE. Representations and warranties made by any person, including but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conflict with or in addition to the terms of this limited warranty, shall not be binding upon Olympus unless reduced to writing and approved by an expressly authorized officer of Olympus. This limited warranty is the complete and exclusive statement of warranty which Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications. pertaining to the subject matter hereof. This limited warranty is exclusively for the benefit of the original customer and cannot be transferred or assigned WHAT TO DO WHEN SERVICE IS NEEDED The customer must transfer any image or other data saved on a Product to another image or data storage medium and/or remove any film from the Product prior to sending the Product to Olympus for servi

IN NO EVENT SHALL OLYMPUS BE

RESPONSIBLE FOR SAVING, KEEPING OR

MAINTAINING ANY IMAGE OR DATA SAVED

ON A PRODUCT RECEIVED BY IT FOR

SERVICE, OR ON ANY FILM CONTAINED

WITHIN A PRODUCT RECEIVED BY IT.

FOR SERVICE, NOR SHALL OLYMPUS BE

RESPONSIBLE FOR ANY DAMAGES IN

THE EVENT ANY IMAGE OR DATAIS LOST

OR IMPAIRED WHILE SERVICE IS BEING

PERFORMED (INCLUDING, WITHOUT

LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT. Package the Product carefully using ample padding material to prevent damage in transit and either deliver i to the Authorized Olympus Dealer that sold you the Product or ship it postage prepaid and insured to any of our Olympus Service Centers. When retuming Products for service, your package should include the following: Sales receipt showing date and place of purchase Copy of this limited warranty bearing the Product serial number corresponding to the serial number on the Product (unless it is a model on which Olympus does not place and record serial numbers). A detailed description of the problem. Sample prints, négatives, digital prints (or les on disk) if available and related to the problem. When service is completed, the Product will be retumed to you postage prepaid

WHERE TO SEND PRODUCT FOR

SERVICE See “WORLDWIDE WARRANTY" for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under

For customers in Europe CE markindeates hat his product complias uit he European requirements for safe} health, emironment and ustomer protection. CE mark cameras ara intended for sale in Europe This symbol frossediout hecled bin WEEE Annex IV indcates separale colecton of waste electical and electronic equipment in he EU countries.

Please de not row the equipment into the domestic refuse. Please use the retum and collation systeme available in your country far the ispasal ft product. This symbol frossed-out uhecled bin Directive 2006/G6/EC Annex I inicates soparate colon of waste batteries in {ha EU countrie. Please do not trou the batteries into he domestic refuse. Please use fn return and colon systems available in your country for the disposal of he waste batteries Provisions of warranty IFthis product proves lo be defeclive, alhough it has been used proper} (in accordance with Ine wriien Handling Care and Operating instructions supplied with i), during the applicable national warranty period and has been purchased from an authorized Olympus distrbutor within {he business area of Olympus Europa Holding GmbH 28 stipulated on the website: htp:/ww-olympus. com Ihis product will be repaired, or at Olympus's option replaced, free of charge. To claim under {his warranty he customer must Lake 1he product before the end of îne applicable national warranty period Lo lhe dealer where Ihe product was purchased or any olher Olympus service station within the business area of Olympus Europa Holding GmbH as stijpulated on ine website: Hip/hww.olympus.com. During 1he one year period of the World Wide Guarantee {he customer may lum the product in al any Olympus service station. Please nolice Ihat notin ll countries such Olympus service station exsis. The customer shal transport the product to the dealer or Olympus authorized service station this own risk and shall be responsible for any cos ineurred in transporing the product. Provisions of Guarantee 1 “OLYMPUS IMAGING CORP, Shinjuku Monolth, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan grants a one year World Wide Guarantee. This worldwide Guarantee must be presented at an Olympus authorized repair service stalion before any repair can be made under conditions of this Guarantee. This Guarantee is valid only if1ne Guarantee Certificate and proof of purchase are presented al the Olympus repair service station. Please nole {hat this Guarantee is in addition 10 and does not

affect the customers legal warranty rights under the applicable national legislation governing the sale of consumer goods mentioned above. This Guarantee does not cover the following and the customer will be required to pay repair charge, even for defects occurring within he Guarantee period referred to above. a. Any defect hat occurs due lo mishandling {such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.) Any defect Ihat occurs due lo repair, modification, cleaning, etc. performed by anyone other Ihan Olympus or an Olympus Authorized service station. Any defect or damage that occurs due to transport a fall, shock, etc. after purchase of the product. Any defect or damage that oceurs due to fire, earhquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources. Any defect Ihat occurs due lo careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc. Any defect Ihat occurs due to exhausted batteries, etc. Any defect Ihat occurs due to sand, mud, etc. entering the inside of the product casing. When the Guarantee Certificate is not relumed with the product. When any alerations whalsoever are made lo the Guarantee Cerificate regarding the year, month and date of purchase, the customer s name, the dealers name, and the serial number. When proof of purchase is nat presented with this Guarantee Certificate. This Guarantee applies to the product only; the Guarantee does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries. Olympus's sole liabilty under this Guarantee shall be limited to repairing or replacing the product. Any liabilty under the Guarantee for indirect or consequential loss or damage of any Kind incurred or suffered by the customer due to à defect of the product, and in particular any loss or damage caused to any lenses, films, other equipment or accessories used wilh Ihe product or for any loss resuling from a delay in repair or loss of data, is excluded. Compelling regulations by law remain unatfected by this.

58 EN Notes regarding Guarantee maintenance This Guarantee will only be valid if {he Guarantee Certificate is duly completed by Olympus or an authorized dealer or olher documents contain sufficient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealers name, the date of purchase and product type) is attached to this Guarantee Certificate. Olympus reserves the right lo refuse free-of-charge service if neither Guarantee Certificate is completed nor the above document is attached or if the information contained in i is incomplete or ilegible. Since this Guarantee Certificate wil not be re- issued, keep it in a safe place. Please refer to the list on the web site: tp: www.olympus.com for the authorized international Olympus service network. Trademarks IBM is a registered trademark of International Business Machines Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation Macintosh is a trademark of Apple Inc. SDHC logo is a trademark. Al other company and product names are registered trademarks and/or trademarks of their respective owners. The standards for camera flle systems referred to in this manual are {he “Design rule for Camera File system/DCF" standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

SPECIFICATIONS Camera Product type Digital camera (for shooting and displaying) Recording system Still pictures Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF)) Applicable standards Exif 2 2, Digital Print Order Format (DPOF), PRINT Image Matching Il, PictBridge Sound with still pictures + Wave format Movie AVI Motion JPEG Internal memory SD memory card SDHC memory card 12,000,000 pixels Image pickup device 112.33" CCD (primary color filter), 12,200,000 pixels (gross) Lens Olympus lens 6.3 lo 18.9 mm, 13.1 10 5.9 {equivalent 10 36 Lo 108 mm on a 35 mm camera) Photometric system Digital ESP metering system Shutter speed 4 10 172000 sec. Shooting range 0.6 m (2.0 1. t co (WA, 1.0 m (3.3 1) to co (7) (normal)

(3.7 x 2.4 x 0.9 in.) (excluding protrusions) 1742 g (6.1 02) (including battery and card)

60 EN Lithium ion battery (LI-80B) Product type Lithium ion rechargeable battery Standard voltage Dc37v Standard capacity: 650 mAh Battery life :_Approx. 300 full charges (varies on usage) (Operating environment Temperature: 0°C to 40°C (32°F Lo 104°F) (charging} 10°C to 60°C (14°F to 140°F) (operation)! -20°C to 35°C (4°F to 95°F) (storage) mensions

31.3 mm (W) x 43.8 mm (H) x 6.9 mm (D) (1.2 x 1.7x0.3in)

Weight + Approx. 18 9 (0.6 02) USB-AC adapter (F-2AC) Model No. F-2AC-1AIF-2AC-2AIF-2AC-1BIF-2AC-28 Power requirements 2_ AG 100 to 240 V (80/60 Hz) Output DC 5 V, 500 mA ‘Charging time 2 Approx. 4 hours Operating environment Temperature: 0 "Co 40 °C (32 °F to 104 °F) (operation -20 G to 60 °C (4 °F to 140 °F) (storage) Dimensions 50.0 mm (W) x 54.0 mm (H) x 22.0 mm (D) (20 x 2.1* 09m) Weight 2 Approx. 46 g (1.6 oz) (F-2AC-1A)Approx. 42 g (1.5 0z) (F-2AC-2A) Approx. 44 g (1.6 02) (F-2AC-1B)Approx. 40 g (1.4 oz) (F-2AC-2B) Design and specifications subject lo change wilhout notice.

OLYMPUS http:/www.olympus.com/ OLYMPUS IMAGING CORP. Shinjuku Monolth, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan OLYMPUS IMAGING AMERICA INC. 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 8034-0610. U.S.A. Tel. 484-896-5000 Technical Support (USA) 2417 online automated help: hitp:/vww.olympusamerica.com/support Phone customer support: Tel. 1-888-563-4448 (TolL.free) Our phone customer support is available from 8 am Lo 10 pm {Monday to Friday) ET Htip:/lolympusamerca.com/contactus Olympus software updates can be obtained at: http:/hwww.olympusamerica.com/digital

OLYMPUS EUROPA HOLDING GMBH

s: Wendenstrasse 14-18, 20097 Hamburg, Germany Tel: +49 40-23 77 3-0 / Fax: +49 40-23 07 61 Goods delivery: Bredowstrasse 20, 22113 Hamburg, Germany Letters: Postfach 10 49 08, 20034 Hamburg, Germany European Technical Customer Support: Please visit our homepage http:l/www.olympus-europa.com or call eur TOLL FREE NUMBER‘ : 00800 - 67 10 83 00 for Austria, Belgium, Denmark, Finland, France, Germany, aly, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom
