Product Type	MP3/MP4 Player
Brand	Sencor
Model	SFP 5960
Dimensions	43 × 43 × 12 mm (W × H × D)
Weight	Approx. 21 g
Display	1.5-inch TFT color, 65K colors, 128×128 pixels
Battery	3.7 V Li-polymer rechargeable
Battery Life	Up to 6 h video, up to 16 h MP3 (power save mode)
Audio Formats	MP3 (8–320 kbps), WMA (32–320 kbps), WAV (64/256 kbps), FLAC, APE
Video Formats	AVI (converted to 128×128)
FM Radio	Yes, with manual/auto scan and preset saving
Voice Recording	Built-in microphone, saves in VOICE folder
Photo Viewing	JPEG
E-book Reader	TXT (Unicode)
Connectivity	USB 2.0 High Speed (Read 4 Mbps, Write 1 Mbps)
Audio Output	10 mW + 10 mW (earphone)
Signal-to-Noise Ratio	≥ 85 dB
Frequency Response	20 Hz – 20 kHz
Internal Memory	4 GB Flash
Supported OS	Windows 2000/XP, Mac OS 10.4.6
Language Support	Multiple languages (EN, CZ, SK, HU, PL)
Working Temperature	5°C to 40°C
Safety Compliance	Meets basic EU regulation requirements
Maintenance	Clean with a soft, dry cloth. Keep away from moisture and extreme temperatures.
Spare Parts / Reparability	Contact authorized service center for repairs; no spare parts directly available.
Special Features	Lyric display, A-B repeat, EQ modes (Normal, Rock, Pop, Classic, Bass, Jazz, User), repeat modes, shuffle, firmware upgradeable, video converter software included

Frequently Asked Questions - SFP 5960 SENCOR

How do I turn the player on and off?

To turn on, push the power button to 'on', then long press the Play/Pause button. To turn off, long press the Play/Pause button, then push the power button to 'off'.

How do I lock the buttons to prevent accidental presses?

Press and hold the Menu and Play/Pause buttons simultaneously to lock the player. Repeat the same action to unlock.

How do I play music and adjust playback settings?

From the main menu, select 'Music'. Use ◀/▶ to choose a file and press Play/Pause to start. Long press ◀/▶ for fast forward/backward. Press +/- for volume. Access EQ and repeat modes via Settings > Music.

How do I use the FM radio?

Select 'FM Radio' from the main menu. Connect earphones (they act as antenna). Press Menu to choose 'Auto Scan' for automatic channel search. Use ◀/▶ to navigate presets. For manual tuning, select 'Manual' and adjust frequency.

How do I convert videos to play on this device?

The player only supports AVI format at 128×128 resolution. Use the AVI Converter tool from the included CD. Install it, then select your video file, set resolution to 128×128, choose output location, and convert. Copy the converted file to the player.

How do I record voice?

From the main menu, select 'Record'. Press Play/Pause to start or pause recording. Long press Menu to save and return to main menu, or long press Play/Pause to save and turn off. Files are saved in the VOICE folder.

How do I upgrade the firmware?

Go to Settings > System > Upgrade. Confirm, then connect the player to PC via USB while holding Menu button if needed. Use the RKnanoTool.exe from the CD to select firmware file (.BIN) and click 'Upgrade'. After completion, disconnect and restart.

How do I change the equalizer (EQ) settings?

Go to Settings > Music > EQ Select. Choose from: Normal, MS PlayFX, Rock, Pop, Classic, Bass, Jazz, or User EQ. For User EQ, adjust frequencies manually.

How do I use A-B repeat to loop a section?

During music playback, long press the Volume + button to set point A. Long press again to set point B. The player will repeat the segment between A and B. A third long press cancels A-B repeat.

How do I change the menu language?

Go to Settings > Language. Select your desired language from the list (e.g., EN, CZ, SK, HU, PL). Confirm to apply.

USER MANUAL SFP 5960 SENCOR

Line drawing of a rectangular electronic device with a central screen and 'SENCOR' branding (no additional text or symbols)

USER'S MANUAL

NÁVOD K OBSLUZE

NÁVOD NA OBSLUHU

FELHASZNÁLÓI KÉZIKÖNYV

INSTRUKCJA OBSŁUGI

SQUARE MP4 Player

• 1.5 inch TFT screen
• Support MP3, WMA, FLAC, APE formats audio
• Support MPEG-4 (AVI) format video
• Support FM Radio
• Lyric display synchronously
- Multi EQ modes and repeat modes
• Support JPG format picture view
• Built-in microphone for long time recording
• Support txt E-book reading
• Multi-Languages OSD menu

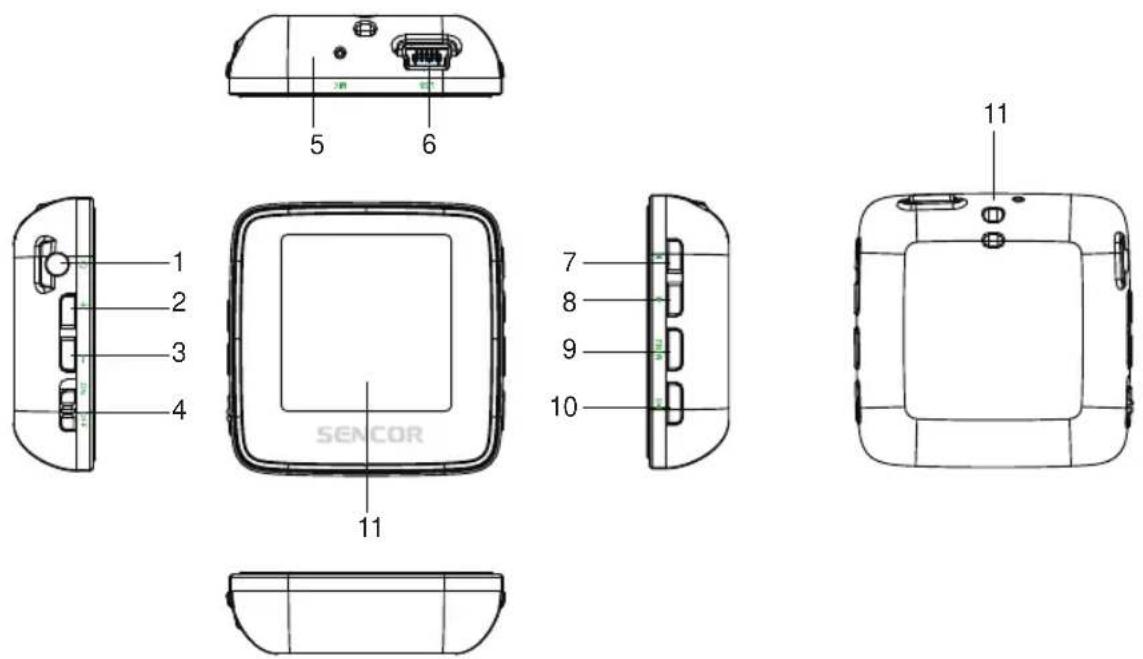

2. Player Layout

1. earphone port
2. volume +
3. volume -
4. power on/off
5. microphone
6. usb port
7. last/fast backward
8. next/fast forward
9. menu
10. play/pause
11. neck strap
12. display

3. Operation instruction

• Power On/Off

In the status of power off, push power button to on, then long press ▶II to turn on the player In the status of power on, long press ▶II to turn off, then push power button to off.

- Lock/Hold:

Press MENU and ▶II at the same time to lock the player, press them again to unlock the player.

- Basic Operation

In main menu interface, press ◀/▶ or +/- to select option, press ▶II to enter. Long press MENU to get back to main menu interface.

3.1 Music

In Main interface, short press ◀/▶ or +/- to select Music menu, then short press ▶II to enter music play interface.

Play/Pause: short press ▶II to play or pause the music playing.

Last/next: short press ◀ or ▶ to get to last music or next music.

Fast backword/Fast forward: long press ◀ or ▶ to fast backwards or forwards the music.

Volume: press + or - to adjust volume up or down.

A-B repeat: long press volume + button to set repeat start point A, long press again to set repeat end point B. Then player will repeat the segment. The third time long press will cancel A-B repeat and resume normal playback.

Lyric show: To show the lyric, the lyric file (eg. Abcde.lrc) should be in same name as music file (eg. Abcde.mp3) and both files should be in the same folder.

Music file list: in playback interface, press MENU button to get to folder/file list. Press ◀/▶ to select music file, press ▶■ button to play it.

Set EQ: please get to Settings > Music to set EQ. (reference to 3.8.1)

Set Play/Repeat mode: please get to Settings > Music to set Play mode. (reference to 3.8.1)

Remark: the player support audio formats of .mp3, .wma, .wav, .flac, .ape.

3.2 Video

Green dotted circular graphic with 'Video' text below, no other symbols or text visible

In Main interface, short press ◀/▶ or +/- to select Video menu, then short press ▶II to enter video file list. Press ◀/▶ to select video file, press ▶II button to enter video playback interface.

Play/Pause: short press ▶II to play or pause the video playing.

Last/next: short press ◀ or ▶ to get last or next video.

Fast backword/Fast forward: long press ◀ or ▶ to fast backwards or forwards the video.

Volume: press + or - to adjust volume up or down.

Video file list: in playback interface, press MENU button to get to folder/file list. Press ◀/▶ to select video file, press ▶II button to play it.

Remark: the player support video formats of .avi. Resolution should be 128x128. Please use video converting tool in gift CD to convert the video to which this player support (reference to point 5).

3.3 FM Radio

In Main interface, short press ◀/▶ or +/- to select FM Radio menu, then short press ▶II to enter FM radio interface.

Manual Scan: press MENU to show options, press ◀/▶ to select Manual then press ▶II button. Short press ◀ or ▶ to select frequency manually. Long press ◀ or ▶ player will auto scan and stop till it find channel.

Auto Scan: press MENU to show options, press ◀/▶ to select Auto then press ▶II button. Then the player will scan channels and set the found channels to Preset one by one. After auto scan, it'll get to the first preset channel. Press ◀ or ▶ to get to preset channels one by one.

Save Channel: press MENU to show options, short press ◀/▶ to select Memory then press ▶II button. Then press ◀/▶ to select position to save. Press ▶II will pop a warning, select Yes and press ▶II to confirm saving channel, or select No and press ▶II to cancel saving channel.

Preset: press MENU to show options, short press ◀/▶ to select Preset then press ▶II button. Press ◀/▶ to get to preset channel one by one.

Delete Channel: press MENU to show options, short press ◀/▶ to select Delete then press ▶II button. Then press ◀/▶ to select to be deleted channel. Press ▶II will pop up a warning, select Yes and press ▶II to confirm deleting channel, or select No and press ▶II to cancel deleting channel.

Volume: press + or - to adjust volume up or down.

Remark: Earphone should connect to player as an antenna. Otherwise the player can not receive channels.

3.4 Photo

In Main interface, short press ◀/▶ or +/- to select Photo menu, then short press ▶II button to enter picture list. Press ◀/▶ to select picture file, press ▶II button to view the picture.

Last/next: short press ◀ or ▶ to display last or next picture.

Auto Browse: short press ▶II an arrow symbol shows on corner of display, the play will display pictures one by one automatically. (Auto Browse gap time setting reference to point 3.8.5)

Photo file list: in photo display interface, press MENU button to get to folder/file list. Press ◀/▶ to select photo file, press ▶II button to display it.

3.5 Record

In Main interface, short press ◀/▶ or +/- to select Record menu, then short press ▶II button to enter recording interface.

Record/Pause: short press ▶II to record or pause.

Stop: long press MENU to save file and get to main interface, or long press ▶II button to save file and turn off the player. File of recorded voice are saved in folder of VOICE.

3.6 Text

In Main interface, short press ◀/▶ or +/- to select Text menu, then short press ▶II button to enter E-book file list. Press ◀/▶ to select E-book file, press ▶II button to view the text.

Manual Browse: short press ◀/▶ or +/- to browse up or down page by page.

Auto Browse: short press ▶II to browse page by page automatically. (Auto Browse gap time setting reference to point 3.8.3).

Text file list: in text browse interface, press MENU button to get to folder/file list. Press ◀/▶ to select text file, press ▶II button to browse it.

3.7 Navigation

In Main interface, short press ◀/▶ or +/- to select Navigation menu, then short press ▶II button to list folders/fi les in memory.

Play/Open file: press ◀/▶ to select file/folder, press ▶II to play or open it. If the file is not supported by this player, it can not play or open.

Delete file: in file list, press ◀/▶ to select file then press volume - button, there will be a warning, select Yes to delete file, or select No to cancel deleting.

3.8 Settings

In Main interface, short press ◀/▶ or +/- to select Settings menu, then short press ▶II button to enter setting options. (In submenu, press notget to upper menu.)

3.8.1 Music:

- Repeat mode

Once: play one music one time. Repeat one: repeat current music again and again. Folder once: play all music in current folder one time. Folder repeat: repeat all music in current folder. All once: play all the music in memory one time. All repeat: repeat all the music in memory. Intro: play the first 10 seconds of each music.

- Play mode

Order: play music in order. Shuffle: play music in random.

- EQ Select

Normal, MS PlayFX, Rock, Pop, Classic, Bass, Jazz, User EQ

- MS PlayFX Set

3D HeadPhone, Pure Bass

- User EQ Set

Set EQ by user. Press ◀/▶ to select, press +/- to adjust the frequency, press MENU confirm and get back.

3.8.2 Record:

• Record Quality
  Set high or normal record quality.
• Record Volume
  Set record volume level.

3.8.3 Text:

• Auto play SW:
  Turn on/off for text auto page.
• Auto play time:
  Set gap time for text auto page

3.8.4 FM Radio:

• Stereo SW
  Set FM stereo on or off.

- FM Region

Set FM receiving region. Four options: China, Europe, Japan, USA.

3.8.5 Photo:

- Auto play SW:

Turn on/off for photo auto scroll.

- Auto play time:

Set gap time for photo auto scroll.

3.8.6 Display:

- Backlight Time

Set the time if no operation on play, the backlight will turn off.

- Lum/Brightness

Set the display brightness level.

- Backlight Mode

If set to Normal, the backlight will be semi dark; if set to Power Save, the backlight will be all dark when backlight time is due.

3.8.7 Power Off Time:

Set auto power off time.

3.8.8 Language:

Set player menu language.

3.8.9 System:

• About
  View the player information of firmware version, date and memory status.
• Upgrade
  Upgrade fi rmware setting. (Reference to point 4)
• Default Set
  Set the system to original.

3.8.10 Exit:

Exit settings.

4. Firmware upgrade

If the player doesn't work or works sub normally, find the firmware upgrade tool and firmware in gift CD to upgrade the player. Processes as bellow:

Note before updating: a. Don't upgrade firmware if playing properly. b. Backup files to other storage before upgrade.

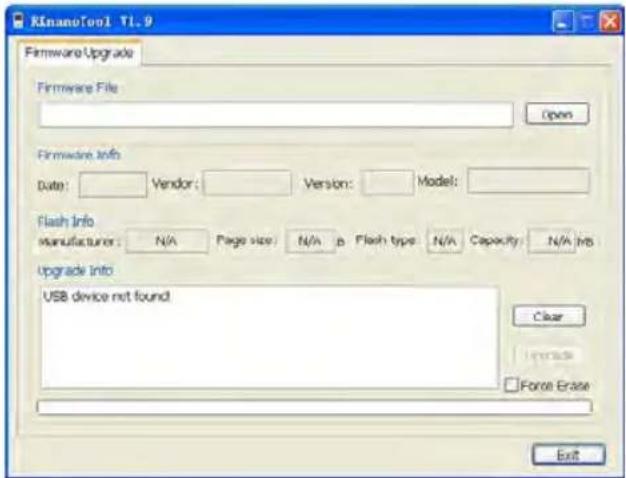

A. Find the software file RKnanoTool.exe from folder of Upgrade Tool in gift CD. Click it to show below dialog box:

B. Set the player to Settings>System>Upgrade, click it show warning of Firmware upgrade; select Yes and then connect the player to PC using USB cable. (In case if player can't turn on, push power button to off then hold MENU button and connect player to PC using USB cable at the same time, till PC find the player storage.). If connect successful, the dialog box will show "UsbBoot download successfully!" and show flash information, then do as below point c. If connection failed, the dialog box will show "USB device not found!", then connect again.

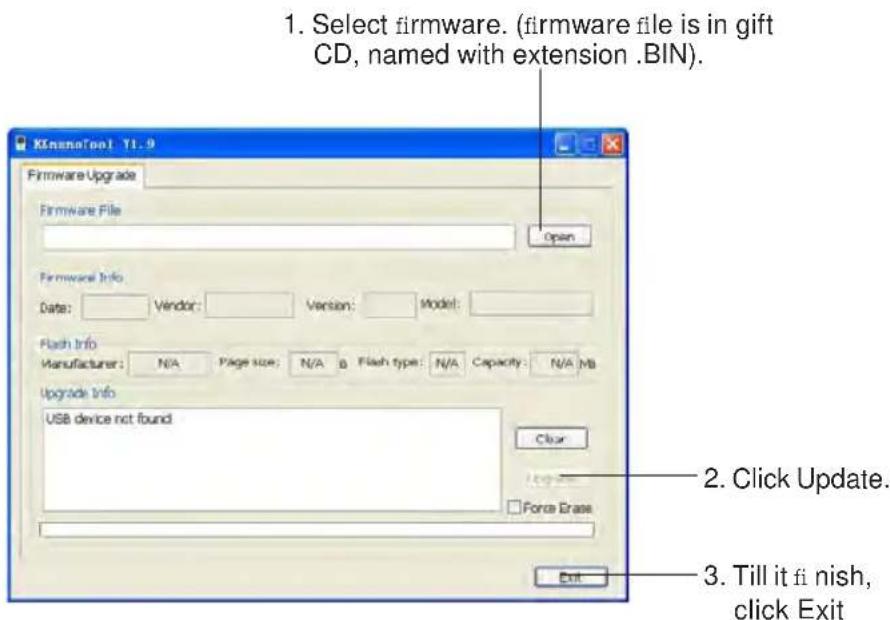

C. After connecting successfully, do as below

D. Disconnect the player from PC, start the player again. The player will work properly.

5. Video Convert

The player support video of AVI format in resolution of 128x128. Please use the software in gift CD to convert the video. The AVIConverter supports multi kind of video formats (AVI, RM, RMVB, MPG, MPG4, ASF, DAT, WMV, etc) convert to AVI format.

5.1 AVI Converter Tool Setup

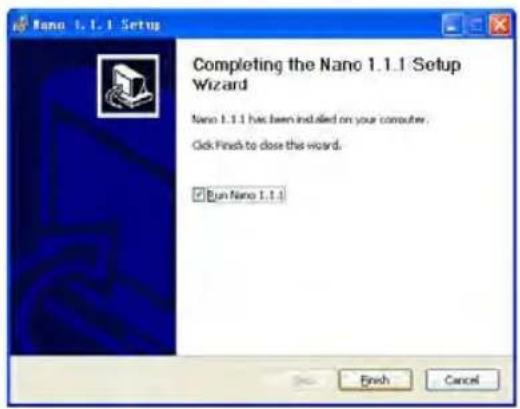

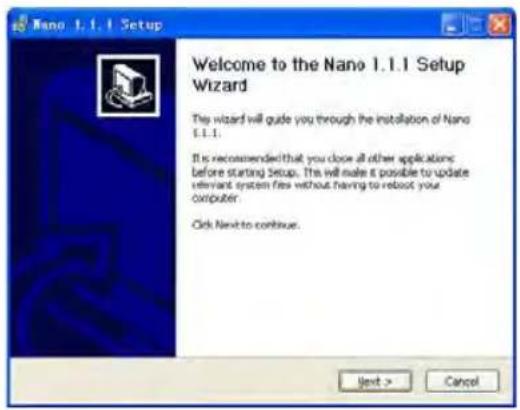

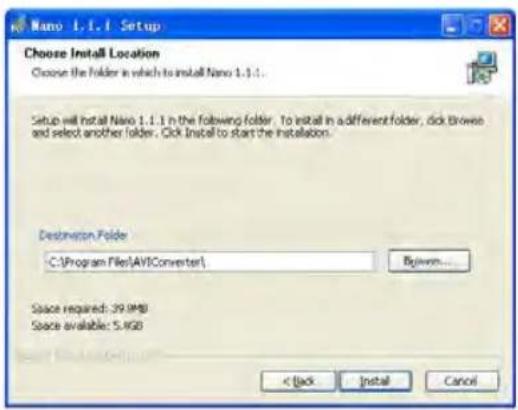

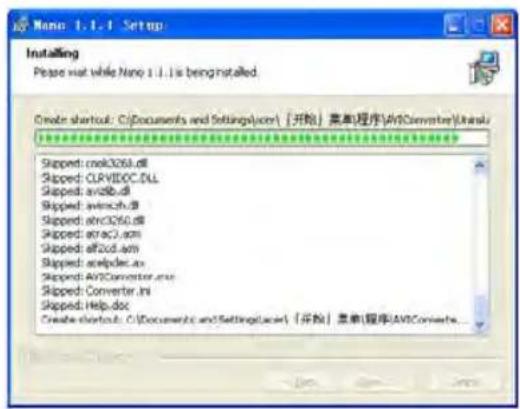

Click software Nano_Video_convert.exe in gift CD; then follow the steps to setup the AVI Converter tool to PC.

5.2 Convert Video to AVI format

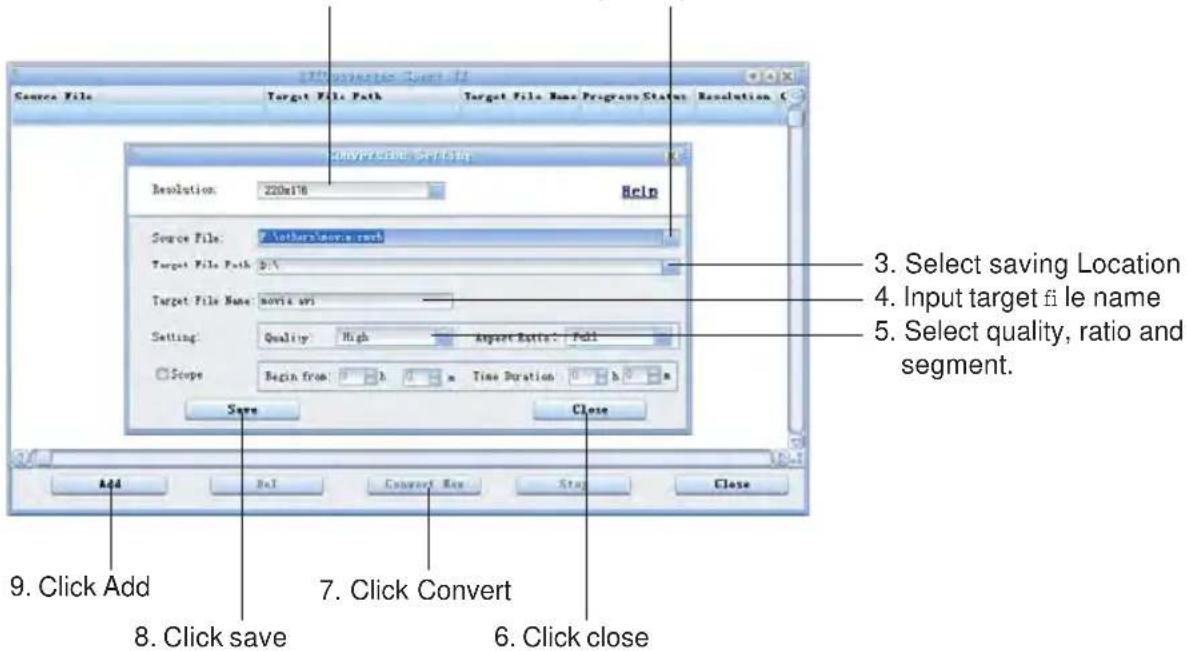

From PC>Program to run AVIConverter as below picture and steps for converting:

1. Select Resolution: 128x128 2. Select original input vido

After converting, copy the converted video file to the player, then enjoy it through player.

6. Accessories

Earphone 1 piece; USB cable 1 piece; drive CD 1 piece; user manual 1 piece.

Specifications

Items SFP 5960
Dimensions 43×43×12mm (W*H*D)
TFT colored display 1.5inch TFT; 65K real color display, Diagram (128 x 128)
Language support Multiple languages (EN, CZ, SK, HU, PL)
Data transmission speed	High speed USB2.0Read: 4Mbps, Write: 1Mbps
Supportable file format	Music:MP3: 8K bps – 320K bpsWMA: 32K bps – 320K bpsWAV; 64kbps / 256kbpsPicture: JPEG
Supportable video format	.AVI (All formats should be converted to .AVI format by afforded fi rmware)
Text For letters with diacritics use	UNICODE
S/N 85dB
Frequency response 20Hz-- 20KHz
Max. output power 10mW + 10mW
Flash memory 4GB
Power supply 3.7V li-polymer battery
Usable time of battery	Video play: 6 hoursMP3 play: 16 hours (power save mode)
Working temperature	5°C to 40°C
Supporting operating system	WIN2K/XP, Mac OS 10.4.6
Weight	About 21g
Accessories	User's Manual, earphone, USB cable, installation CD disk

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.
